Cardputer Accessory Kit v1.1
SKU:A145-V033
Description
Cardputer Accessory Kit v1.1 is a kit for repairing Cardputer v1.1 / Cardputer-Adv, specifically addressing issues such as bent or broken header pins caused by frequent plugging/unplugging of the Stamp-S3A main controller, as well as the screen FPC connector coming off. A usage tutorial is included later in this document to help users complete repairs and replacements on their own.
Includes
- 1 x Stamp-S3A
- 1 x ST7789V2 1.14 Inch Screen
- 1 x Hex Key L-Shape 1.5mm (For M2 Screw)
- 1 x Pin Sticker
Applications
- Cardputer v1.1 / Cardputer-Adv repair
Specifications
| Specification | Parameter |
|---|---|
| Product Size | Stamp-S3A: 26.0 x 18.0 x 4.7mm 1.14 Inch Screen: 17.6 x 31 x 1.6mm |
| Product Weight | Stamp-S3A: 3.4g 1.14 Inch Screen: 1.7g |
| Package Size | 94.0 x 64.0 x 26.0mm |
| Gross Weight | 27.6g |
Model Size
Videos
- Repair & Replacement Tutorial
Note
This video applies to replacement for both Cardputer and Cardputer v1.1.
Note

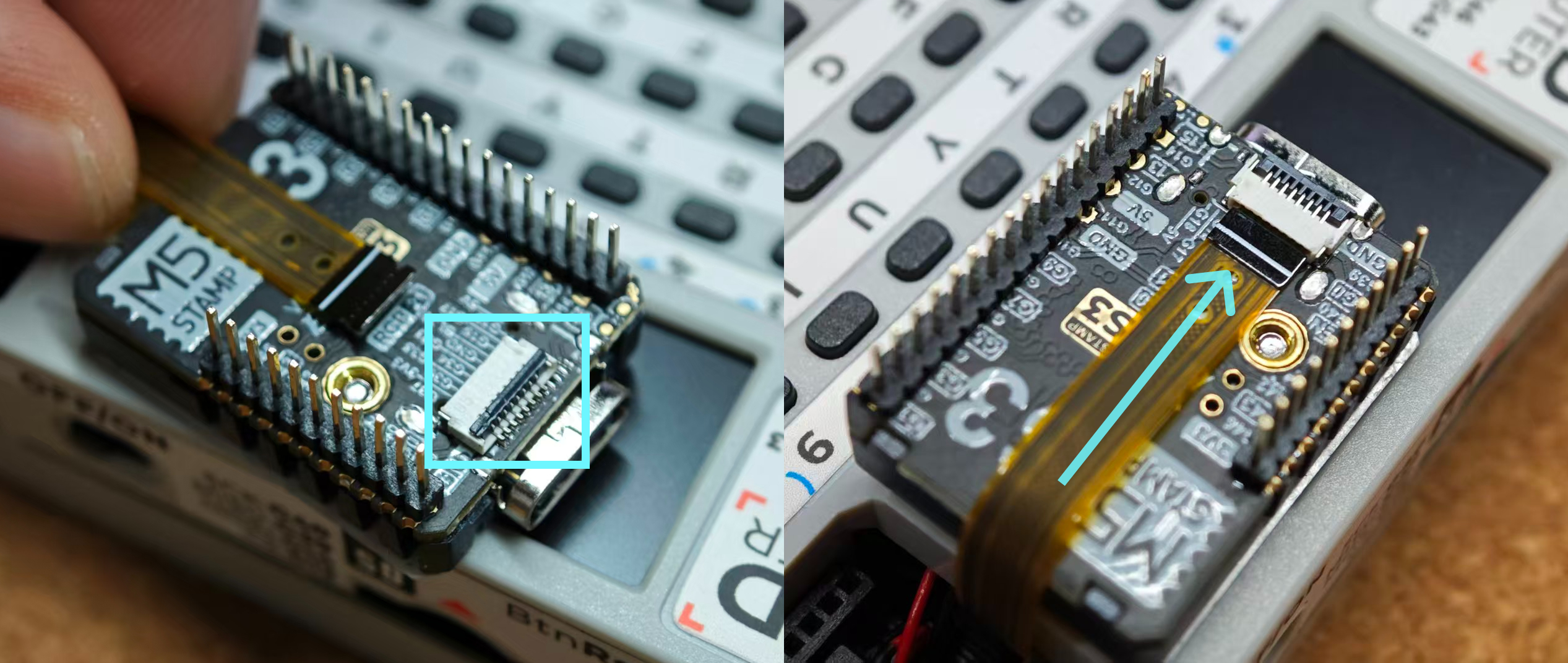

If you are using the Stamp-S3A module, please pay attention to the orientation of the FPC connector before connecting.
