Unit FlashLight
SKU:U152
Description
Unit FlashLight is an output unit with a built-in flashlight, containing an AW3641 driver and a white LED with a color temperature of 5000 ~ 5700K. There is a mode selection switch on the internal PCB that allows you to choose between flash mode and constant light mode, using a GPIO input interface. It can be used as a flash source or for lighting applications.
Features
- PWM brightness adjustment
- Over-temperature alarm
- Overvoltage and short-circuit protection
- Two operating modes
Includes
- 1 x Unit FlashLight
- 1 x HY2.0-4P Grove connection cable (20cm)
Applications
- Light source
- DIY
- Alarm
Specifications
| Specification | Parameter |
|---|---|
| Driver Chip | AW3641EDNR |
| Adjustment Method | PWM |
| AW3641EDNR Operating Temperature | -40℃ to +85℃ |
| Unit Operating Temperature | 0 ~ 40℃ |
| Color Temperature | 6000K~6500K (Kevin) |
| Product Size | 32.0 x 24.0 x 8.0mm |
| Product Weight | 4.6g |
| Package Size | 138.0 x 93.0 x 9.0mm |
| Gross Weight | 10.0g |
Learn
Operating Mode Description

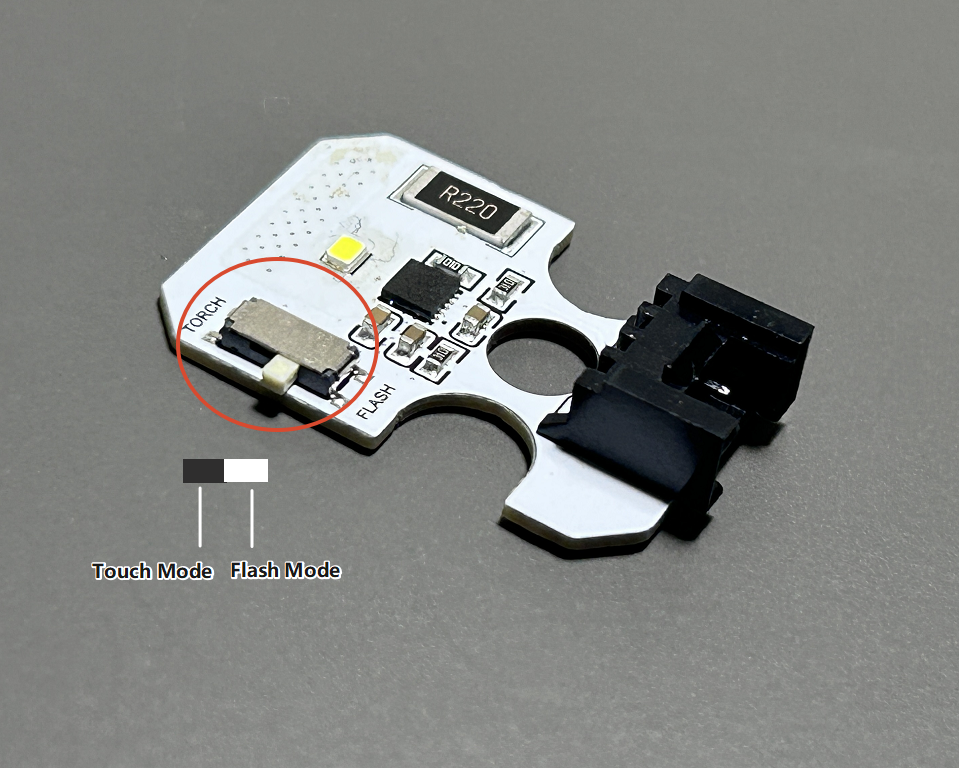

Unit Flashlight offers two operating modes. After removing the device enclosure, you can switch between modes using the DIP switch inside, following the silkscreen labels:
- Flash Mode: Pulse flash control for instantaneous high brightness. Supports setting 8 levels of flash intensity (100% ~ 30%) and flash timeout via single-wire protocol. Designed specifically for photo fill lighting.
- Torch Mode: Continuous steady illumination with PWM dimming support, allowing stepless brightness adjustment. Suitable for video recording or everyday lighting scenarios.
Note
In flash mode, the brightness is high and each flash generates heat. To prevent overheating and potential damage to the device, a interval of 8 ~ 15 seconds between flashes is recommended.
Schematics
1/1
PinMap
Unit FlashLight
| HY2.0-4P | Black | Red | Yellow | White |
|---|---|---|---|---|
| PORT.C | GND | 5V | Light Control | NC |
Model Size
Datasheets
Softwares
Arduino
