Unit NCIR2
SKU:U150
Description
Unit NCIR2 is a non-contact infrared single-point temperature measurement unit equipped with a data processing MCU, featuring a temperature measurement range of -70°C to 380°C. The MCU uses STM32, and through data processing, it can achieve high and low-temperature alarm functions. The board integrates a buzzer, RGB indicator light, a function button, and a reset button, and communicates with the host via I2C. This product can be used in conjunction with a host or independently, making it suitable for temperature measurement and abnormal alarm scenarios.
Features
- STM32F030F4P6
- MLX90614 Infrared (IR) Sensor
- GROVE I2C/HY2.0-4P Interface
- Programming Platform: Arduino/UIFlow
- Two LEGO-compatible holes
Includes
- 1 x Unit NCIR2
- 1 x HY2.0-4P Grove Cable (20cm)
Applications
- High-precision non-contact temperature measurement
- Motion detection
- Smart home
Specifications
| Specification | Parameter |
|---|---|
| MCU | STM32F030F4P6 |
| Sensor | MLX90614ESF-BAA |
| Protocol | I2C @0x5A |
| Measured Object Temperature Range | -70°C ~ 380°C |
| Sensor Operating Temperature | -40°C ~ 125˚C |
| Unit Operating Temperature | 0°C ~ 40°C |
| Measurement Accuracy | ±0.5°C |
| Development Platform | Arduino, UIFlow |
| Product Size | 48.0 x 24.0 x 8.0mm |
| Product Weight | 7.3g |
| Package Size | 138.0 x 93.0 x 9.0mm |
| Gross Weight | 12.8g |
Schematics
1/1
PinMap
Unit NCIR2
| HY2.0-4P | Black | Red | Yellow | White |
|---|---|---|---|---|
| PORT.A | GND | 5V | SDA | SCL |
Model Size
Datasheets
Softwares
Arduino
UiFlow1
Internal Firmware

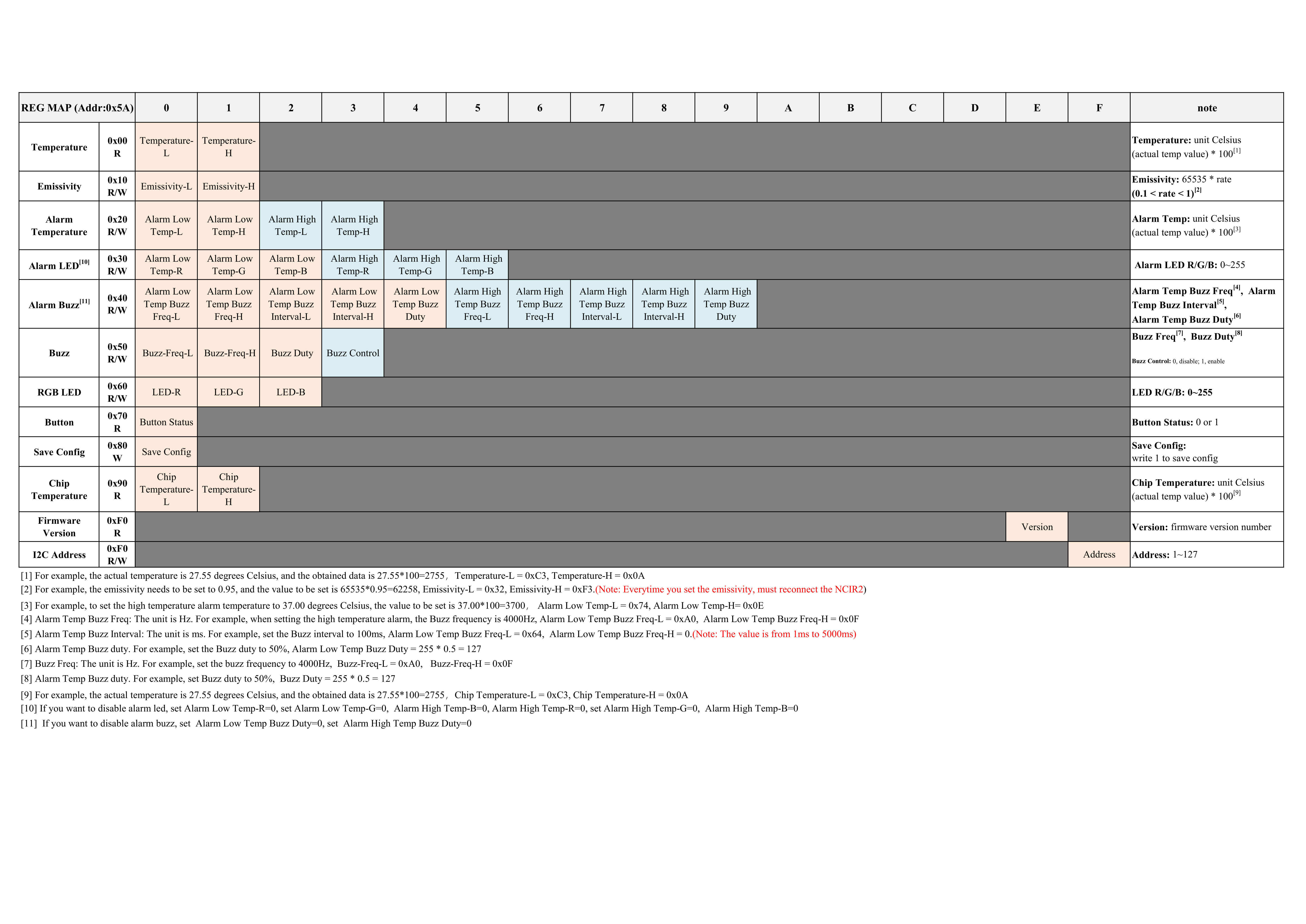

Protocol
