Unit-Mini CAN

SKU:U179

Description

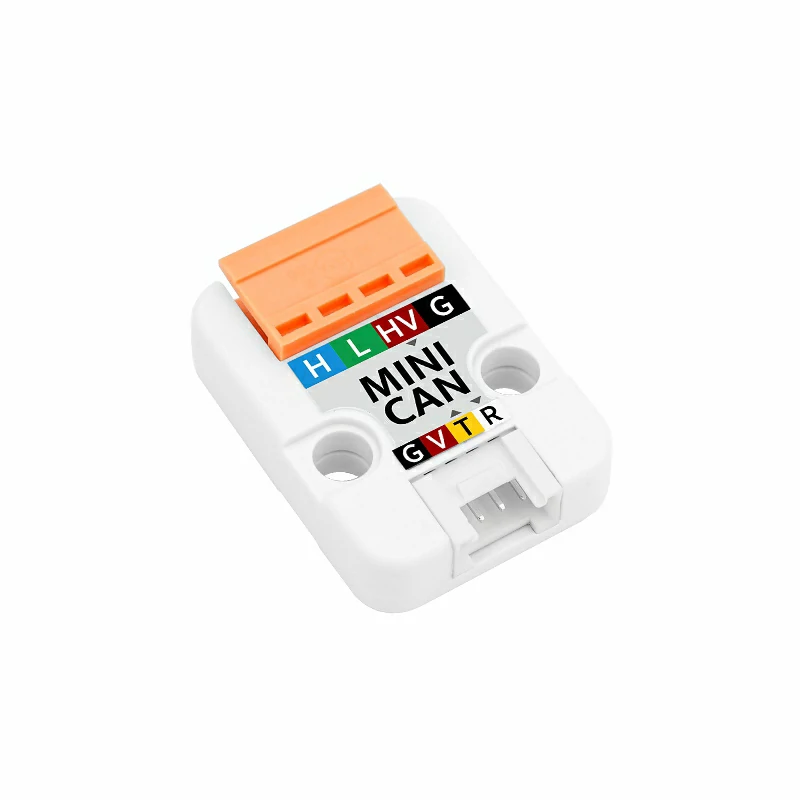

Mini CAN Unitis a compact CAN bus communication module that utilizes the TJA1051T chip, offering excellent high-speed data transmission capabilities. Additionally, it is equipped with electromagnetic compatibility (EMC) and electrostatic discharge (ESD) protection mechanisms, ensuring enhanced security and stability for data transmission.

Internally, Mini CAN Unit integrates a DCDC power supply chip, accommodating a wide voltage input range of 9-24V. This provides users with a stable and efficient CAN communication solution. Whether you are involved in automotive electronics, industrial automation, or communication systems, Mini CAN Unit offers a reliable and flexible CAN communication solution. It finds extensive applications in automotive electronics, industrial automation, and communication systems.

No matter if you are developing automotive electronic systems, controlling industrial automation processes, or implementing communication systems, Mini CAN Unit is your dependable choice.

Features

  • Using TJA1051T/3 chip
  • High Speed Data Transfer Capability
  • Electromagnetic compatibility (EMC) and electrostatic discharge (ESD) protection mechanisms
  • VH3.96 Wide terminal voltage input range (9-24v)

Includes

  • 1x Mini CAN Unit
  • 1x Grove Cable(20cm)
  • 1x VH3.96-4P

Applications

  • Automotive Electronics
  • Industrial Automation

Specification

Resources Parameters
Transmission Speed Up to 1Mbit/s
Protocol Standard Compliance with ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 standards
Wide Voltage input VH3.96 terminal: 9-24V
Grove:5V
Load Capacity DC5V/Max:700mA
Working Current Avg:DC5V/4.02mA
Avg:DC24V/2mA
Standby Current Avg:DC5V/3.09mA
Operating Temperature 0-40°C
Product Size 32* 24* 10.2mm
Package Size 136* 92* 13.7mm
Product Weight 7.8g
Package Weight 13.1g

Schematic

schematics

PinMap


Module Size

module size

Examples

Arduino

UIFlow

How to use Unit can and related API instructions in the UIFlow2.0

FAQ

Question: What is the difference between a CAN Unit(U085) and a Mini CAN Unit(U179)?
