SKU:U173

Description

QRCode Unit is an integrated one-dimensional/two-dimensional code scanning unit that combines a CMOS QR code capture engine with a resolution of 640x480 and a bus conversion MCU (STM32F030). It features a device-side toggle switch that allows for switching between I2C and UART communication interfaces.

The capture engine supports three types of mainstream QR codes and eight types of one-dimensional codes found in the market. It also provides a firmware upgrade interface. The unit includes a scan trigger button, a built-in buzzer, and supplementary LED lights. The buzzer and red LED provide audio and visual cues in different states, assisting with focusing and aiming.

The QRCode Unit can be configured through programming to operate in automatic continuous trigger or manual trigger mode. It is suitable for various fields such as logistics, retail, and manufacturing where barcode scanning is required.

Features

  • STM32F030F4P6@32 bit ARM Cortex-M0 processor
  • Supports 3 types of two-dimensional code and 8 types of one-dimensional code
  • Upgradable firmware
  • Built-in I2C and UART communication interface switch
  • Built-in buzzer sound prompts
  • Built-in lighting LED
  • High resolution imaging
  • Focusing and aiming functions

Includes

  • 1x QRCode Unit
  • 1x HY2.0-4P Cable (20cm)
schematics

The refracting head scan head can be installed to change the scanning Angle, as shown in the picture above.

Applications

  • Material Flow
  • Retail
  • Manufacture

Specification

Resources Parameters
MCU STM32F030F4P6@32 bit ARM Cortex-M0 processor
Sensor 640x480 CMOS@M14 Module
Illumination White LED
Focusing and aiming RED led
Read the type of QR code PDF417，QR Code，Data Matrix
Read one-dimensional code types Code39, Code93，Code 128，EAN-13，EAN-8，UPC-A， UPC-E，Interleaved 2 of 5
Recognition reading accuracy ≥5mil
Print contrast ≥ 20%
Scanning angle Elevation ±55°, declination ±55° (plus refractor lens, can change the scanning Angle)
Communication Interface I2c serial communication(0x21)
Shell Material Plastic ( PC )
Product Size 65.8*18.4*15.8mm
Package Size 136*92*16mm
Product Weight 14g
Package Weight 19.4g

Schematic

schematics

PinMap

QRCode Unit SDA SCL VCC GND
Basic(Port A)(RED) G21 G22 5V GND
QRCode Unit RXD TXD VCC GND
Basic(Port C)(BLUE) G16 G17 5V GND
STM32 PB1
BUTTON TRIG

Module Size

module size

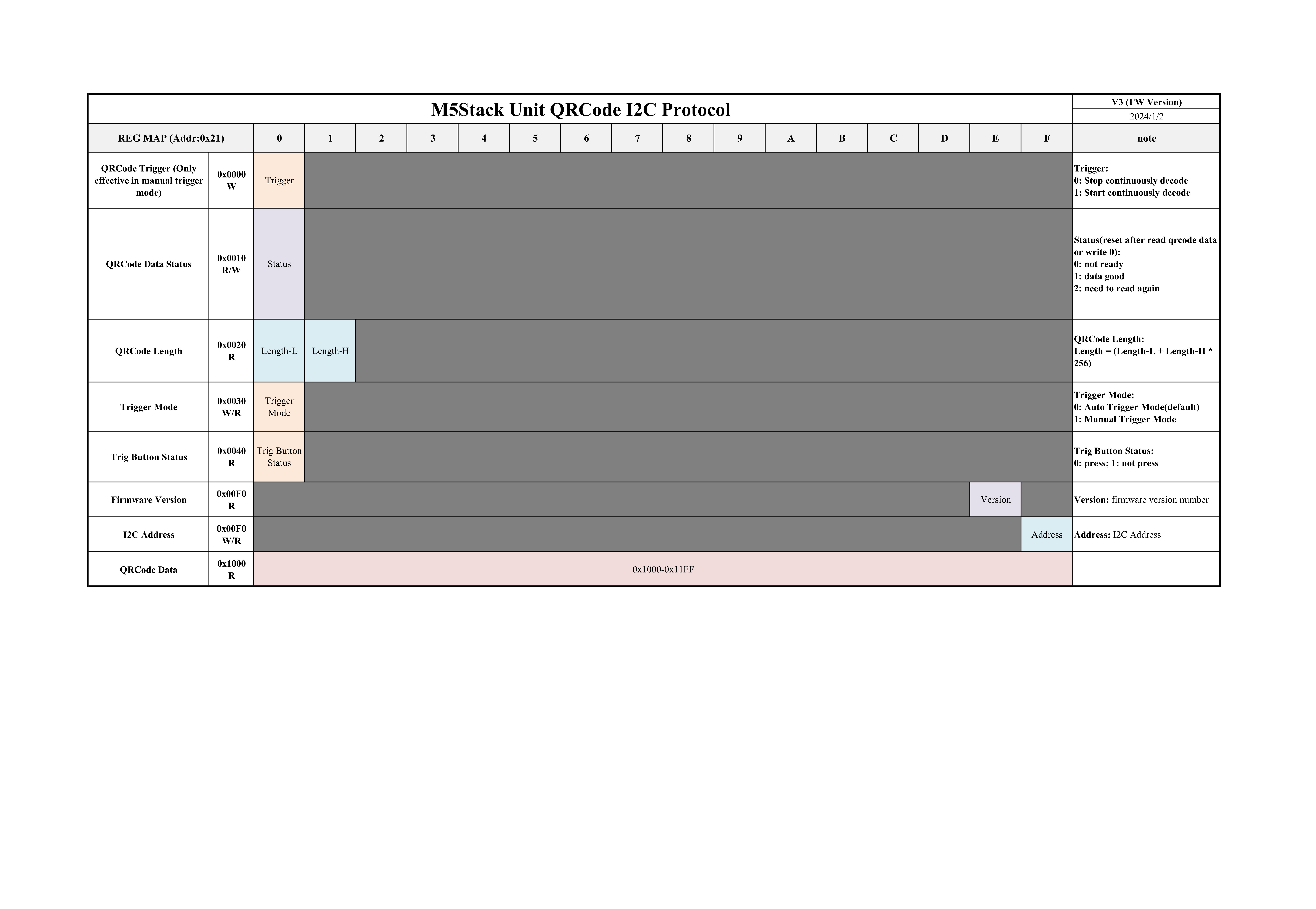

Protocol

detail

Examples

Arduino

UIFlow

UIFlow1.0 UIFlow1.0 Blockly qrcode Instructions for use
UIFlow1.0 Blockly qrcode Instructions for use
How to use Blockly qrcode on the UIFlow 1.0 graphical programming platform and related API instructions
UIFlow2.0 UIFlow2.0 Unit qrcode Docs
UIFlow2.0 Unit qrcode Docs
How to use Unit qrcode and related API instructions in the UIFlow2.0

Video

  • Unit-QRCode Function Introduction

  • UIFlow2.0 QRCode Unit
