Unit-RollerCAN Lite

SKU:U188-Lite

Description

RollerCAN Lite Unit is a brushless DC motor motion control kit with multiple integrated control functions, designed for efficient motion control. It supports 6-16V DC power input (via the CAN interface) or 5V input (via the Grove interface) and can automatically adjust the power factor to ensure optimal performance. It features a built-in FOC closed-loop drive system, using a 3504 200KV brushless motor. The maximum continuous operating phase current is 0.5A without forced cooling, and 1A for short-term. The driver uses a magnetic encoder for feedback and supports current, speed, and position triple-loop control, ensuring precise control.

Additionally, the back of the unit is equipped with a 0.66-inch OLED display to show the device's status in real-time. It also includes an RGB indicator and function button for easy human-machine interaction. The base of the product is designed with LEGO-compatible mounting holes and M3 screw holes for quick assembly and integration. The hardware and software of RollerCAN Lite Unit are fully open-source, supporting motion control and parameter adjustments via the CAN or I2C bus, and offering SWD and SWO debugging interfaces to enhance developer flexibility. This product is widely used in machine joints, motion control, industrial automation, and visual demonstration projects.

Unit RollerCAN Lite Unit RollerCAN Lite
Unit RollerCAN Lite
This tutorial will introduce you to the Unit RollerCAN Lite usage guide
Power supply voltage
Do not exceed 16V. If the voltage exceeds 18V, the motor will display error code E:1 and stop working, showing "Over Voltage", and the LED will light up blue.

Features

  • Brushless DC motor control
  • CAN communication / I2C communication control
  • Integrated OLED display
  • RGB indicator light
  • FOC closed-loop drive system

Package Includes

  • 1x RollerCAN Lite Unit
  • 1x PwrCAN Cable (10cm)
  • 1x HY2.0-4P Grove cable (5cm)
  • 6x friction pins
  • 1x flange
  • 1x bracket
  • 1x hex key (2.5mm)
  • 1x hex key (2mm)
  • 6x M3 nuts
  • 2x inner hex socket cap screws M3x14mm
  • 4x inner hex socket cap screws M3x10mm
  • 1x inner hex socket cap screw M2x5mm
  • 4x inner hex countersunk screws M3x14mm
  • 2x inner hex countersunk screws M3x12mm
  • 4x inner hex countersunk screws M3x5mm
  • 1x single-head terminal cable 5P debugging cable, 1.25mm pitch, 100mm length
includes

Applications

  • Robotic joint control
  • Intelligent manufacturing equipment
  • Visual demonstrations

Specifications

Specification Parameters
MCU STM32G431CBU6 @ Cortex-M4, 128KB Flash, 32KB SRAM, 170MHz
Motor Type D3504 200KV brushless motor @ diameter: 41mm
Driver Chip DRV8311HRRWR
Angle Sensor TLI5012BE1000
Communication Interface 2x CAN (XT30 interface) @ XT30 (2+2) PW-M
1x I2C (0x64)
Display 0.66-inch OLED display, resolution: 64*48, SPI communication
RGB LEDs 2x WS2812-2020
Motor Power Supply CAN (XT30 interface) power supply @ 6-16V
Grove port DC5V power supply
Load Load: 50g Motor speed: 2100rpm Current: DC16V/225mA
Load: 200g Motor speed: 1400rpm Current: DC16V/601mA
Load: 500g (maximum load) Motor speed: 560rpm Current: DC16V/918mA
No load: DC16V/78mA
Standby Current Grove port DC5V power supply @ 70mA
CAN (XT30 interface) power supply DC16V @ 32mA
Noise Level 48dB
Output Torque Grove port DC5V power supply: 0.021N.m / 0.2kgf.cm @ 350mA current
CAN (XT30 interface) DC16V power supply: 0.065N.m / 0.66kgf.cm @ 927mA current
Operating Temperature 0-40°C
Product Dimensions 40*40*30mm
Package Dimensions 170*75*52mm
Product Weight 71.9g
Package Weight 150.4g

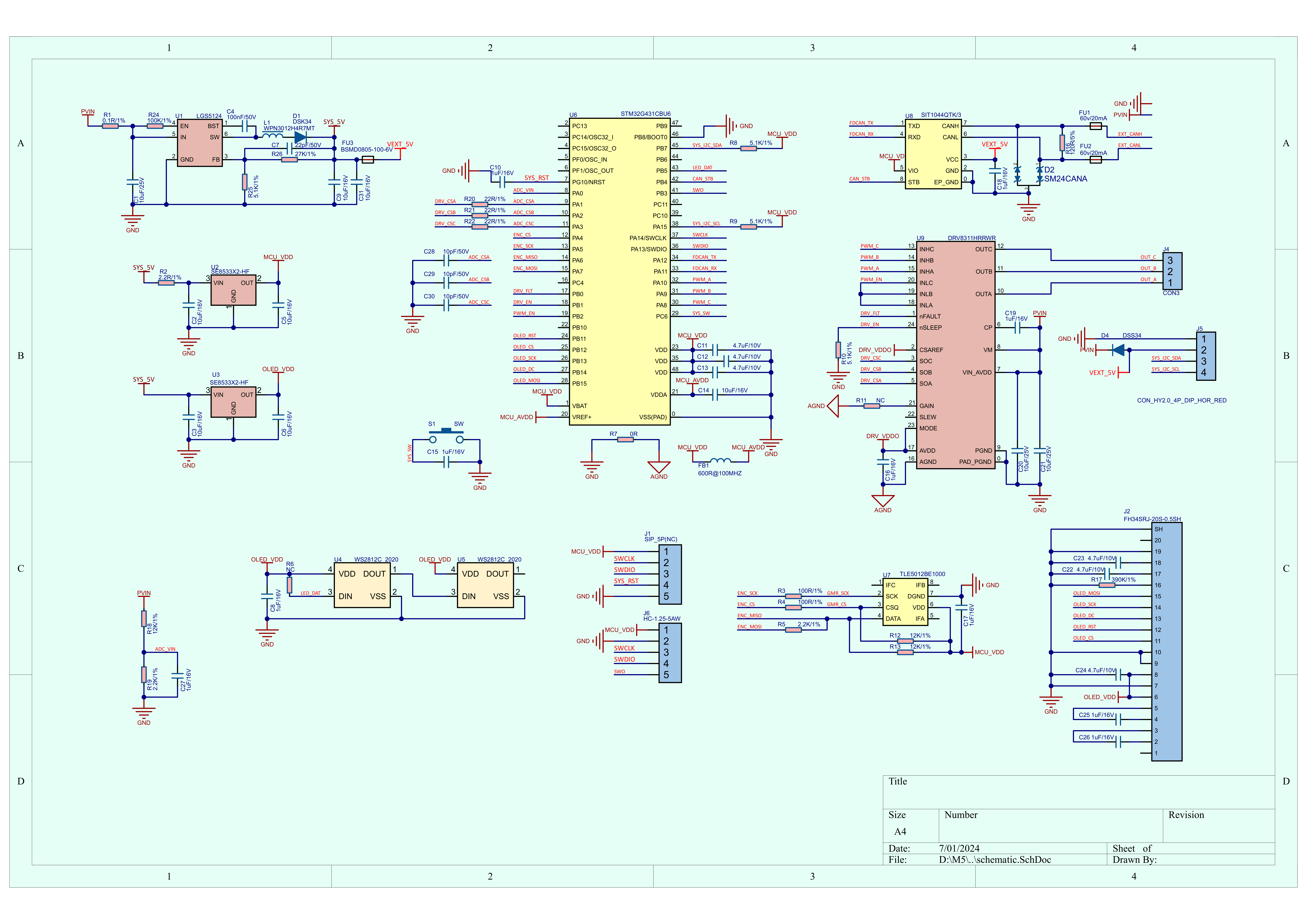

Schematics

schematics

PinMap

  • PORT A interface
PORT A SCL SDA VCC GND
Core (Basic) G22 G21 5V GND
Core2 G33 G32 5V GND
CoreS3 G1 G2 5V GND
Atom Lite / Atom Matrix G21 G25 5V GND
AtomS3 / AtomS3 Lite G39 G38 5V GND
StickC PLUS / PLUS2 G33 G32 5V GND
  • I2C\CAN\RGB\BUTTON
STM32G431CBU6 PA15 PB7 PA11 PA12 PB4 PB5 PC6
I2C SYS_I2C_SCL SYS_I2C_SDA
CAN FDCAN_RX FDCAN_TX CAN_STB
WS2812C LED_DAT
Button A SYS_SW
  • OLED
STM32G431CBU6 PB15 PB13 PB14 PB10 PB12
OLED OLED_MOSI OLED_SCK OLED_DC OLED_RST OLED_CS

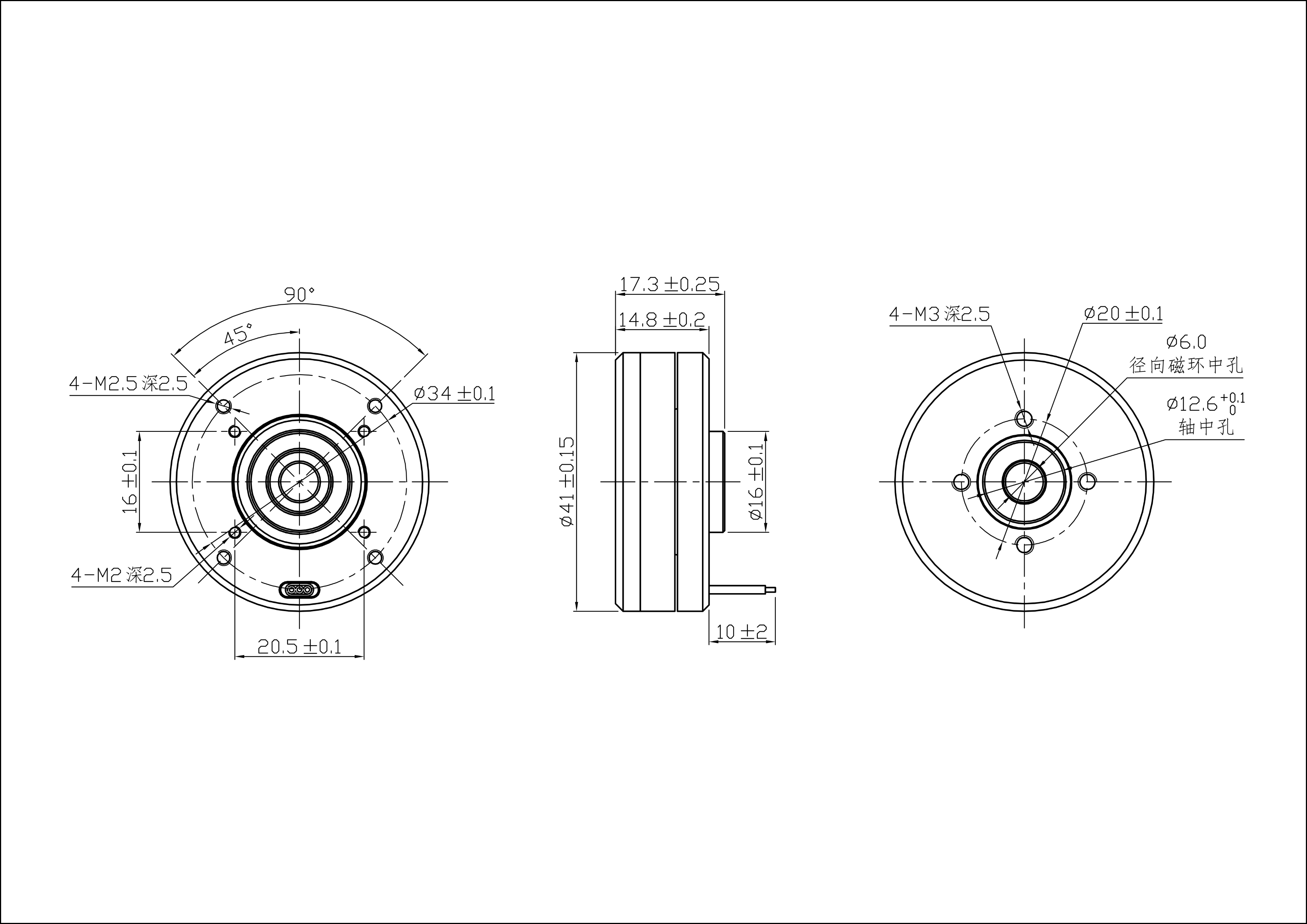

Module Size

Protocols

  • I2C Protocol

RollerCAN Lite Unit I2C Protocol Table

RollerCAN Lite Unit I2C User Manual

  • CAN Protocol

RollerCAN Lite Unit CAN Protocol Table

RollerCAN Lite Unit CAN User Manual

Examples

Arduino

RollerCAN Lite Unit Library

RollerCAN Lite Unit Internal Firmware

Videos

  • RollerCAN Lite Unit Product Introduction and Case Showcase

Product Comparison

Product Comparison Unit RollerCAN Unit RollerCAN Unit RollerCAN Lite Unit RollerCAN Lite Unit Roller485 Unit Roller485 Unit Roller485 Lite Unit Roller485 Lite
Driver Chip DRV8311 DRV8311 DRV8311 DRV8311
Communication CAN/I2C CAN/I2C RS485/I2C RS485/I2C
Slip Ring With Slip Ring Without Slip Ring With Slip Ring Without Slip Ring
Power Indicator LED Color Blue None Green None
Product Color Black Black Gray Gray
