BUTTON is a single button Unit. The button status can be detected by the input pin by simply capturing the high/low electrical level. If the button is pressed, the signal level will be high if the button is released, the signal level will be low.

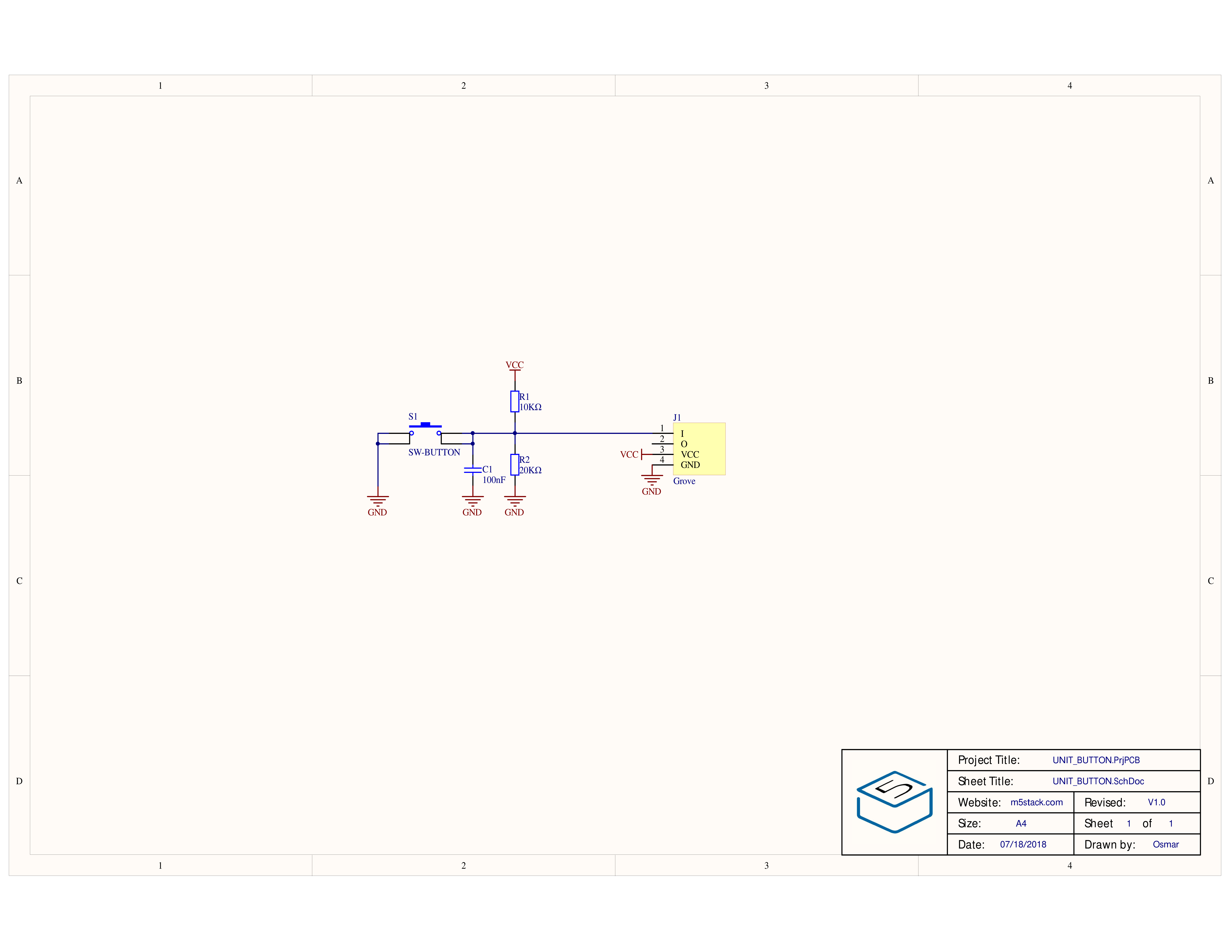

As shown in the figure below:
This unit communicates with M5Core through GROVE B port.
EasyLoader is a concise and fast program writer, which has a built-in case program related to the product. It can be burned to the main control by simple steps to perform a series of function verification.
The screen displays the current button status.
|M5Core(GROVE B)||Btn (GPIO36)||NC (GPIO26)||5V||GND|
|BUTTON Unit||BUTTON Pin||5V||GND|
The code below is incomplete (just for reference). To get the complete code, please click here
Detect different states of the button and perform corresponding operations
Button wasPressed Press the button to execute the set function
obtain button wasPressed Check if the button is pressed, only once during execution
Execute the following statement in Setup() of the Arduino program
When M5Core2 is stacked with other M5 modules, you need to remove the battery base of Core2, which does not support module stacking.
Reason and solution: The power supply current of the port is insufficient, which can cause the device to not enter the download mode normally. You can try to connect a capacitor (>0.1uF) between the RST pin and the GND pin, or when uploading the program, set the G0 Short-circuit to GND, so that G0 can be set to a low level state normally
Add the header file #include <driver/adc.h> and the function adc_power_acquire(); in the Arduino program
The battery life of the controller is affected by various factors such as battery capacity, operating status, and load, so there is no fixed value. Reducing the load and adopting a sleep strategy can effectively increase the battery life.
Support multiple stacks, the total capacity of the batteries in parallel increases, and the voltage remains unchanged. However, since the discharge of each battery is not balanced during use, there is a voltage difference between the batteries, which may cause the battery to charge backwards. .(will lose part of the battery capacity)
ESP32 module currently does not support WiFi in 5G band, only 2.4G.
Confirm whether the TX/RX pin on the TTL side of the pin is correct, try to add two 120Ω terminal resistors at the beginning and end of the device line to reduce signal reflection interference
