CatEar

SKU:A043

Description

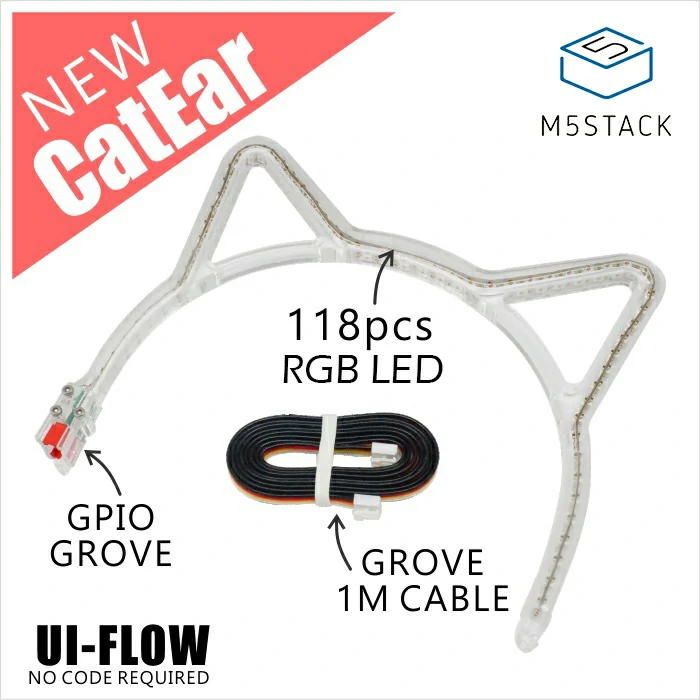

CatEar is a cat ear headband made from 118 RGB LEDs paired with an acrylic structure. Each LED on the strip can be programmed to display any color, and you can set brightness, light flow, and flashing modes. If you want to stand out at a party or Halloween, why not add some cool lighting effects to your outfit? It can be programmed using any type of M5Core and supports any HY2.0-4P interface (A, B, C).

Features

  • Number of RGB LEDs: 118
  • HY2.0-4P interface, supports UIFlow and Arduino.

Includes

  • 1 x Catear
  • 1 x HY2.0-4P Grove connection cable (1m)

Specifications

Specification Parameter
Number of LEDs 118
RGB LED SK6812
Net Weight 152g
Gross Weight 154g
Product Size 160 x 135 x 8mm
Package Size 265 x 181 x 25mm

PinMap

CatEar

HY2.0-4P Black Red Yellow White
PORT.B GND 5V LED Signal /

Softwares

Arduino

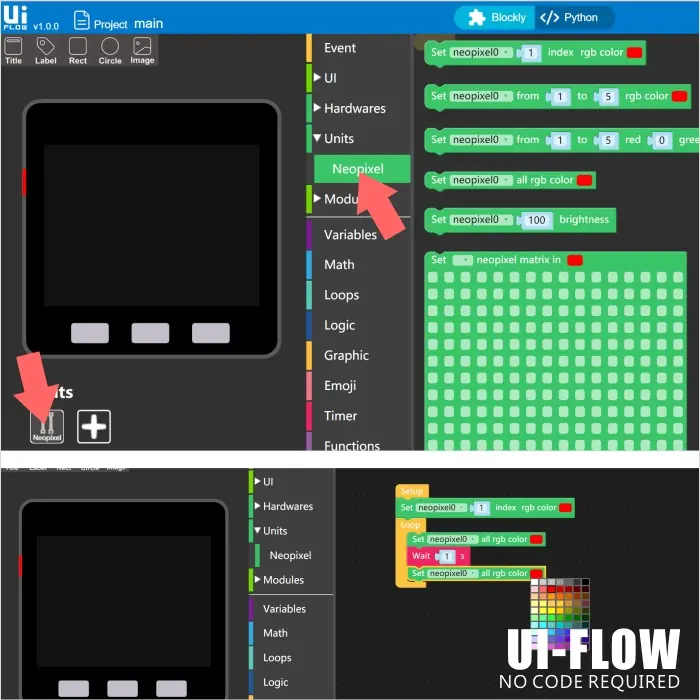

UiFlow1
