Unit HEX
SKU:A045
Description

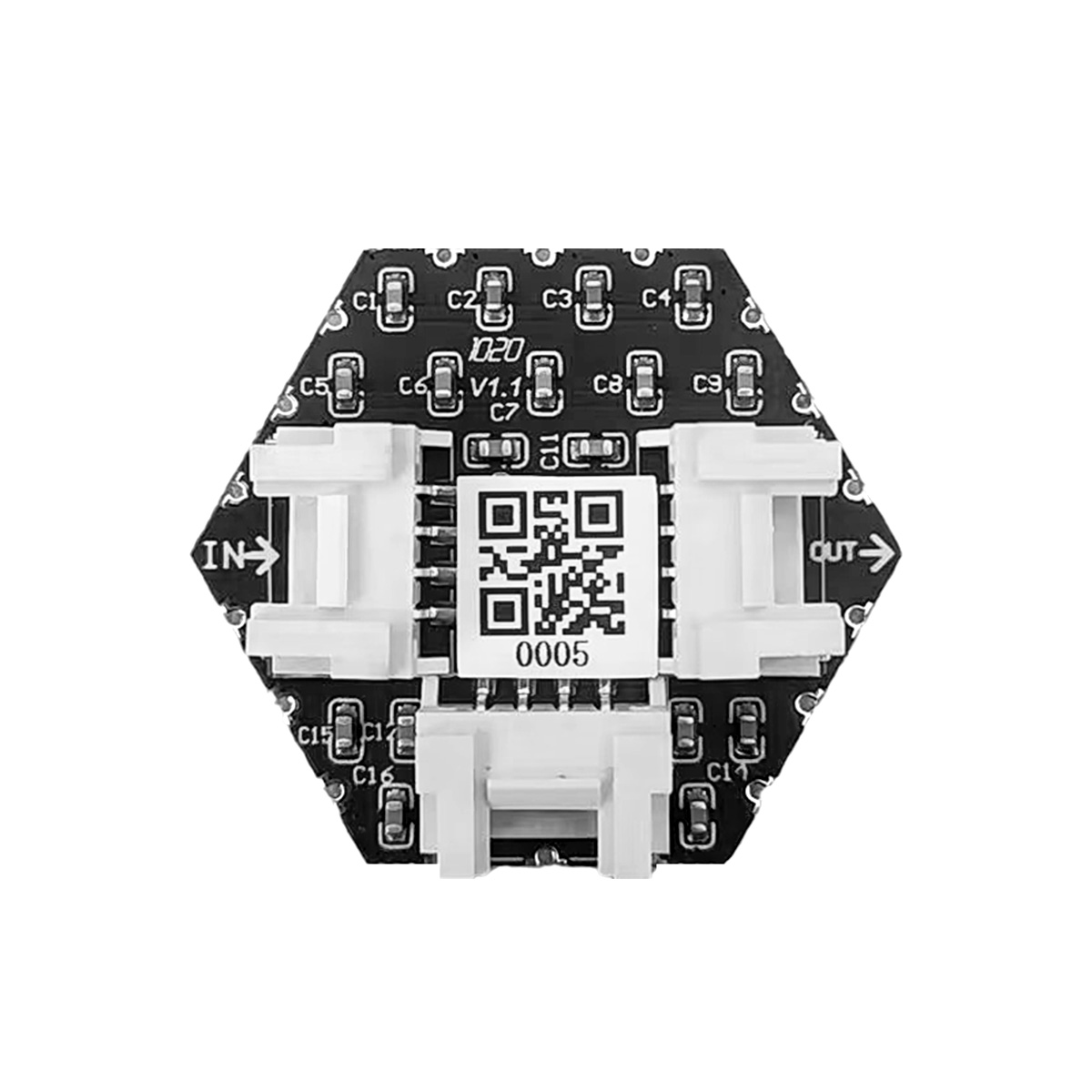

HEX is a hexagon RGB LED panel that integrates a total of 37 RGB LEDs. The HEX board includes an input port and an output port, you can have multiply of them in series connection.
Product Features
- 37 integrated LEDs
- Software development platform: Arduino, UIFlow (Blockly & python)

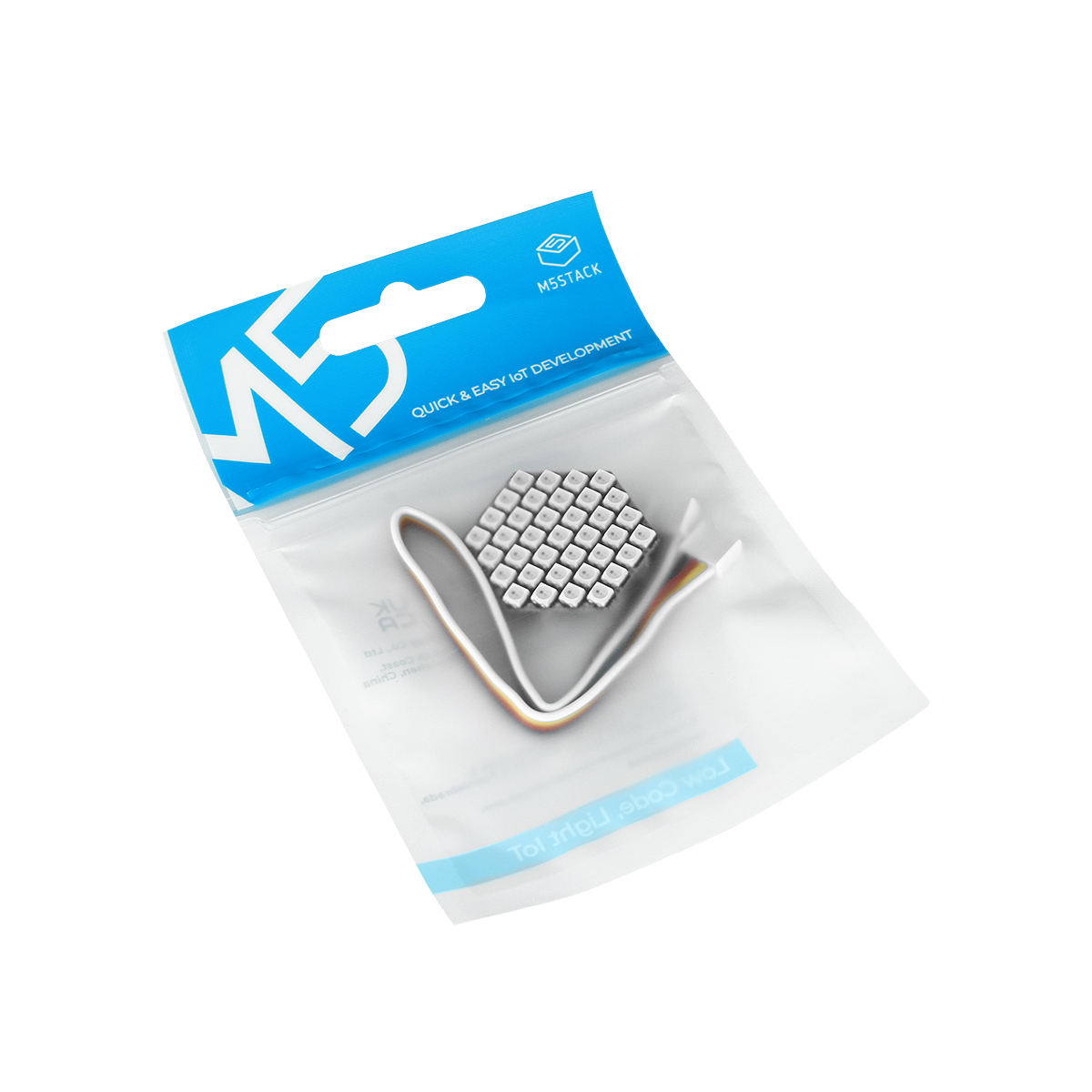

Include
- 1x HEX Unit
- 1x Grove Cable
Specification
| Resources | Parameter |
|---|---|
| RGB LED | SK6812 x 37 |
| Net weight | 8g |
| Gross weight | 10g |
| Product Size | 30*35*8mm |
| Package Size | 50*80*10mm |
This is how LEDs layout in the panel, Pay attention to the sequence in your code:
EasyLoader
EasyLoader is a concise and fast program writer, which has a built-in case program related to the product. It can be burned to the main control by simple steps to perform a series of function verification.
Download Windows Version Easyloader Download MacOS Version Easyloader
The HEX Unit light board displays a rainbow gradient.
PinMap
If HEX connectors to GROVE A
| M5Core(GROVE A) | GPIO22 | GPIO21 | 5V | GND |
|---|---|---|---|---|
| HEX Unit In | Data Pin | 5V | GND |
If HEX connectors to GROVE B
| M5Core(GROVE B) | GPIO36 | GPIO26 | 5V | GND |
|---|---|---|---|---|
| HEX Unit In | Data Pin | 5V | GND |
If HEX connectors to GROVE C
| M5Core(GROVE C) | GPIO16 | GPIO17 | 5V | GND |
|---|---|---|---|---|
| HEX Unit In | Data Pin | 5V | GND |
Example
Arduino
FastLED library on Arduino presents excellent and colorful lighting effects. Before compile, it is require to install the FastLED library and connect HEX to GROVE A.
RGB LED Library on Arduino
To get the complete code, please click here
UIFlow
To get the complete code, please click here
