IR

SKU:U002

Description

IR is a pair of infrared photoelectric sensors from the M5Go Kit family. Contains 1x infrared emitter and 1x receiver.

IR remote control is widely used in consumer electronics, it can be used to operate devices such as a television set, DVD player, or other home appliance, from a short distance. Since this unit comes with emitter and receiver, you can practice not only on IR encode but also on IR decode.

Product Features

  • 1x infrared emitter(wavelength:940nm)
  • 1x infrared receiver
  • Distance range: < 5m
  • Software Development Platform: Arduino, UIFlow(Blockly,Python)
  • Two Lego-compatible holes

Include

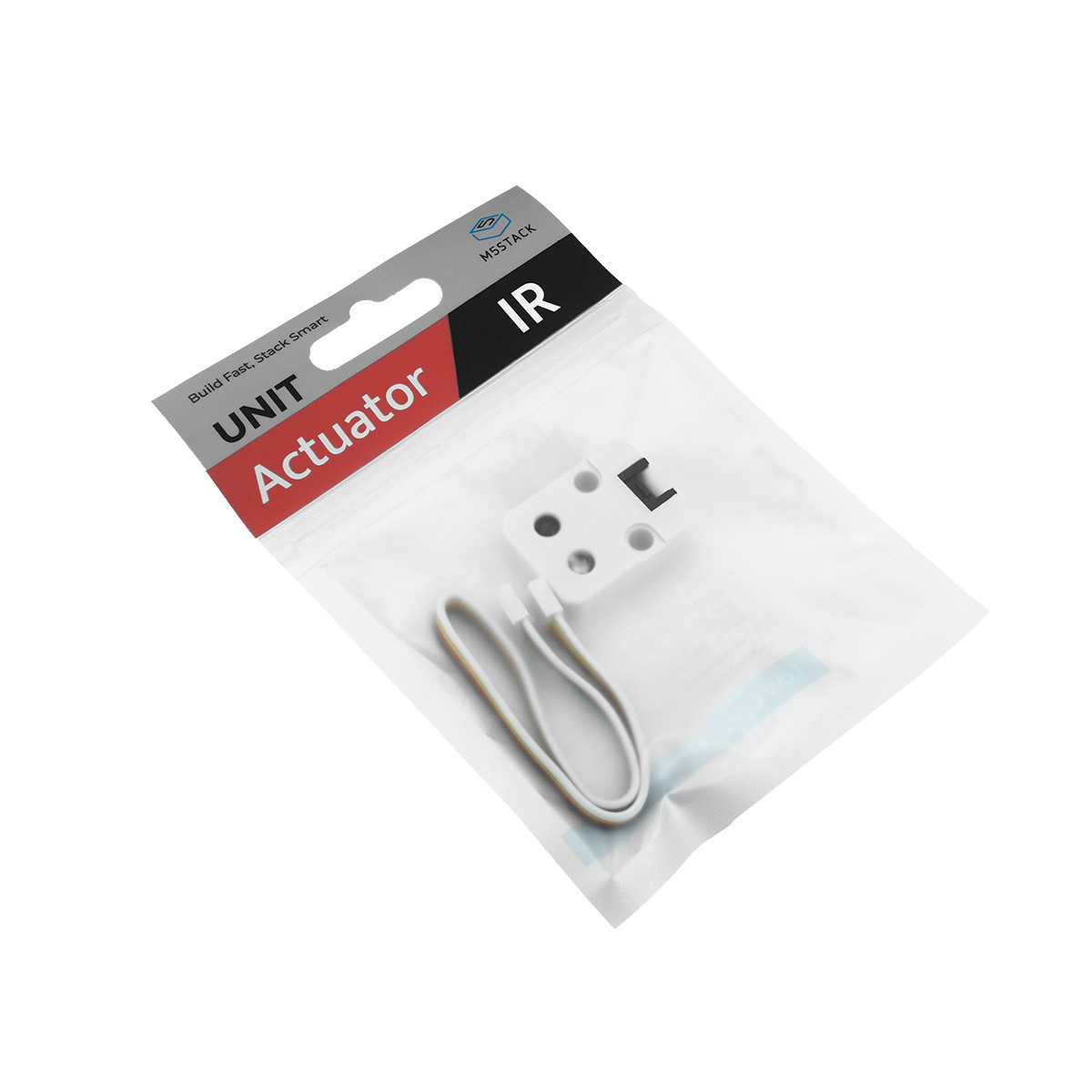

  • 1x IR Unit
  • 1x Grove Cable

Specification

Resources Parameter
infrared emitter wavelength 940nm

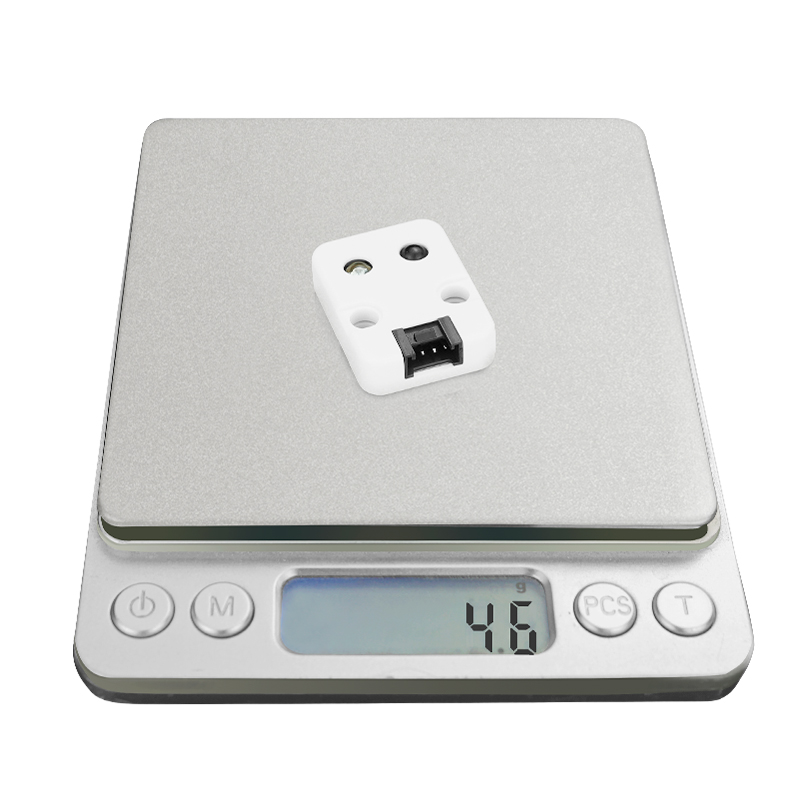

Net weight 4g
Gross weight 17g
Product Size 32*24*8mm
Package Size 67*53*12mm

EasyLoader

download EasyLoader

1.EasyLoader is a simple and fast program burner. Every product page in EasyLoader provides a product-related case program. It can be burned to the master through simple steps, and a series of function verification can be performed. .

  1. After downloading the software, double-click to run the application, connect the M5 device to the computer through the data cable, select the port parameters, click "Burn" to start burning. (For M5StickC burning, please Set the baud rate to 750000 or 115200)

PinMap

M5Core(GROVE B) GPIO36 GPIO26 5V GND
IR Unit Receiver Pin Transmitter Pin 5V GND

Schematic

Example

Arduino

To get the complete code, please click here

UIFlow

Feature Introduction

Launch or accept infrared remote control signals

  • state Received infrared signal returned 1

  • set on Send infrared signal

  • set off Stop sending

Usage

To get the complete code, please click here

Learn

This project replaced my daughter's old, broken night lamp. Its main components are: Atom Lite ESP32, neopixel strip, IR unit.
