Unit Mini Proto

SKU:U064

Description

Unit Mini Proto is a mini universal board Unit. You can freely design circuits on the board and connect it to M5Core through the HY2.0-4P port. If you plan to add simple circuits to your design and provide them with a reliable protective case, the Proto Unit is a good choice.

For different HY2.0-4P ports, you can connect different pins from the ESP32 for circuit connections.

  • PORT.A: G21, G22
  • PORT.B: G36, G26
  • PORT.C: G16, G17

Features

  • HY2.0-4P interface
  • 2 x LEGO compatible holes

Includes

  • 1 x Unit Mini Proto
  • 1 x HY2.0-4P Grove Cable (20cm)

Applications

  • Prototyping

Specifications

Specification Parameter
Product Size 32.0 x 24.0 x 8.0mm
Product Weight 3.0g
Package Size 136.0 x 92.0 x 10.0mm
Gross Weight 15.0g

Schematics

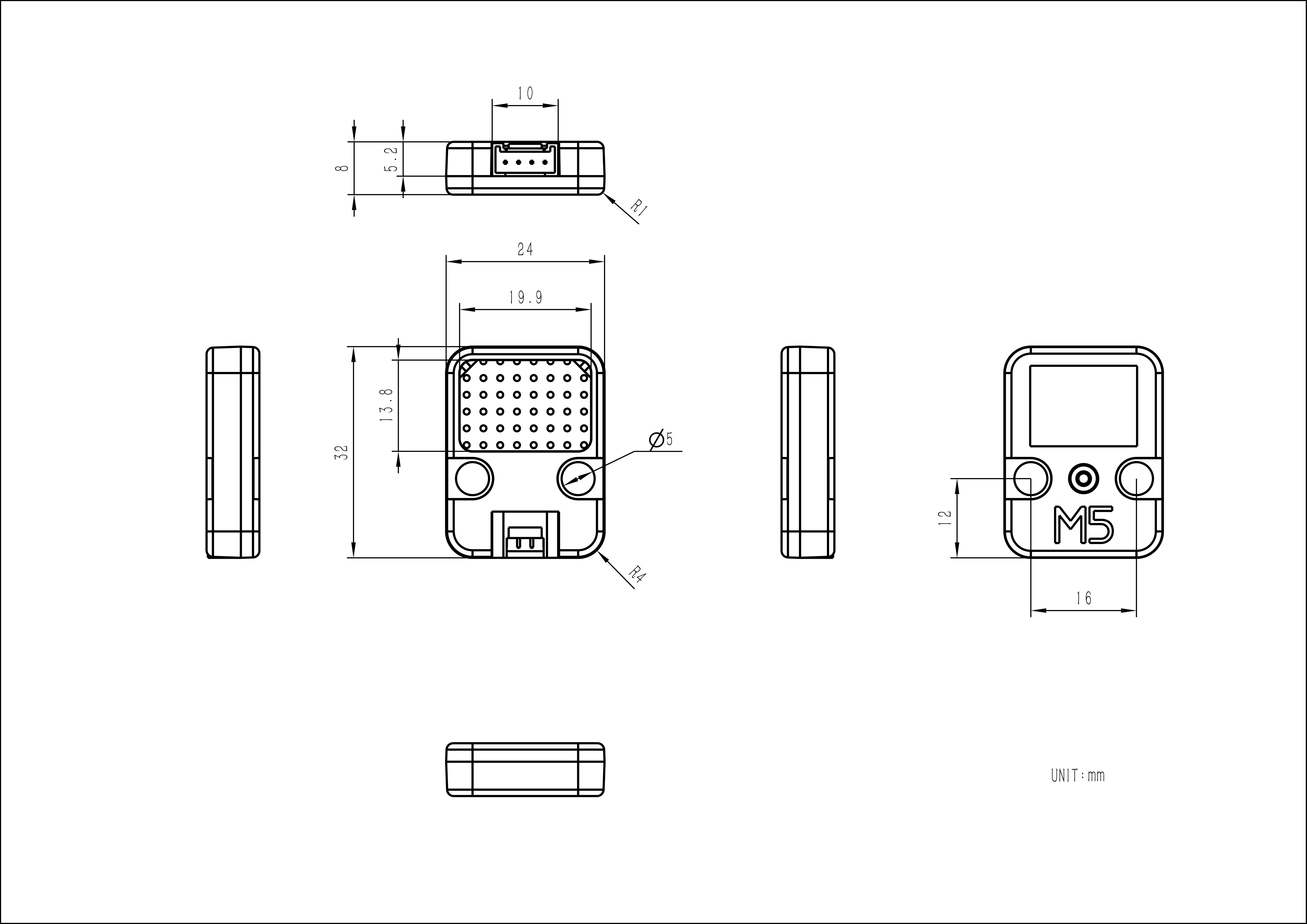

Model Size

Unit Mini Proto Model Size PDF
