Unit Power
SKU:U125
Description
Unit Power is a Unit-form DC power supply unit built-in with a DC-DC buck chip ME3116AM6G, supporting DC 6 ~ 24V -> 5V output. The input side features a standard DC-015 barrel jack, which can be directly connected to commonly used DC power adapters. The 5V output side adopts an HY2.0-4P connector for easier and more convenient device connection with simple operation. This product is suitable for power supply to various embedded devices with DC 5V loads.
Features
- ME3116AM6G
- DC-DC converter circuit
- Wide voltage input DC 6 ~ 24V
- Output capability: 5V@1A
- Equipped with power indicator light
- Plug and play
- HY2.0-4P connector
Includes
- 1 x Unit Power
Applications
- DC 5V device power supply
Specifications
| Specification | Parameter |
|---|---|
| Buck Chip | ME3116AM6G |
| Output Capability | 5V (±5%) @1A |
| DC 12V Input Port | DC-015 |
| DC 5V Output Port | HY2.0-4P |
| Power Indicator | Red |
| Product Size | 40.3 x 14.0 x 12.0mm |
| Product Weight | 4.4g |

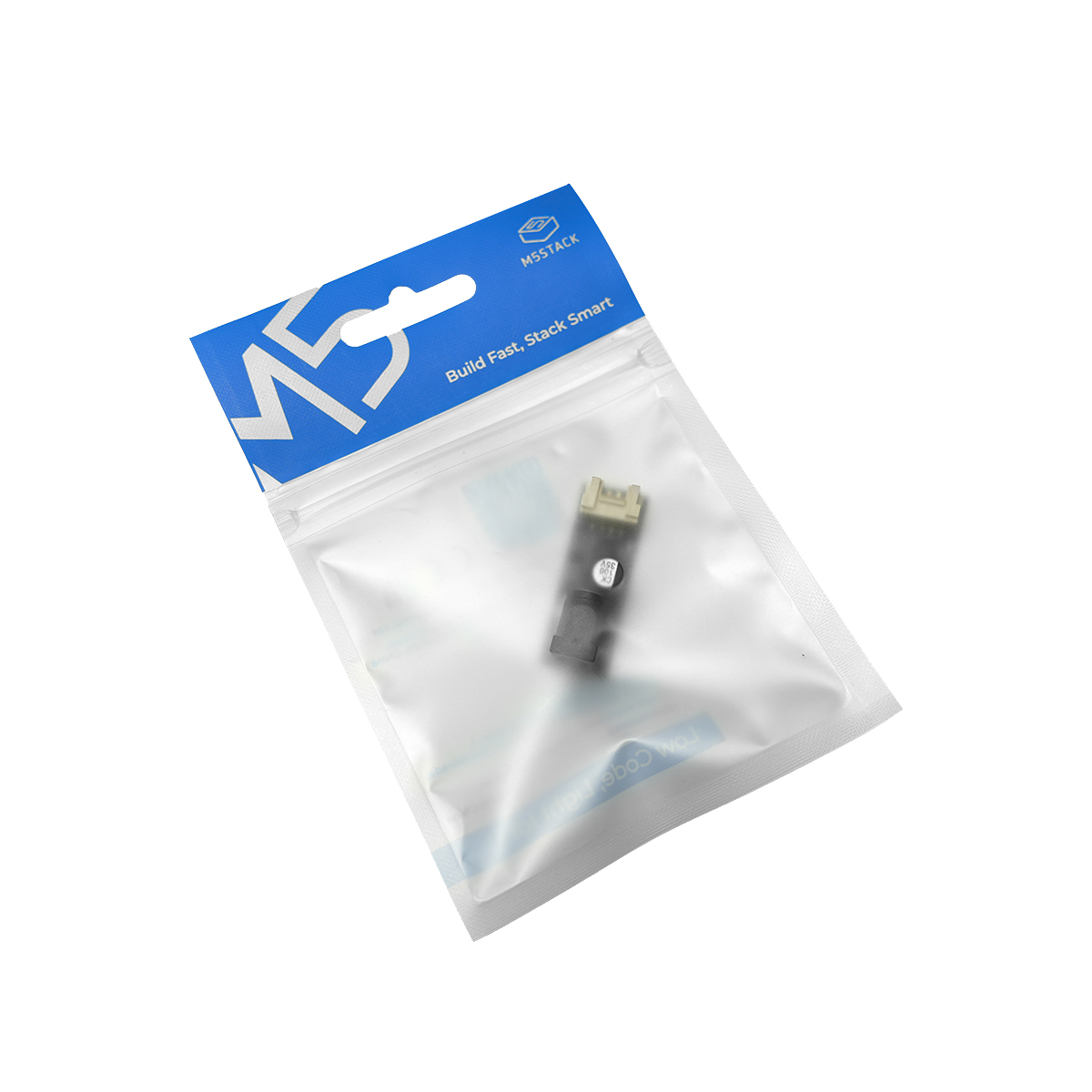

| Package Size | 50.0 x 80.0mm |
| Gross Weight | 5.1g |
Schematics
PinMap
Unit Power
| HY2.0-4P | Black | Red | Yellow | White |
|---|---|---|---|---|
| PORT.A | GND | 5V | NC | NC |
