Unit RGB
SKU:U003
Description
RGB is LED Unit include 3 individual LEDs. It is also one of the Unit from M5GO Kit. Each one can display any color based on the RGB spectrum. One feature of this Unit is that it's extendable, which means you can have multiple of them wired together.
This is a very useful piece of hardware for a STEM class, students can program it to realize some of cool applications, for example a traffic light.
Product Features
- Program Platform: Arduino, UIFlow(Blockly, Python)
- Two Lego-compatible holes
Include
- 1x RGB Unit
- 1x Grove Cable
Specification

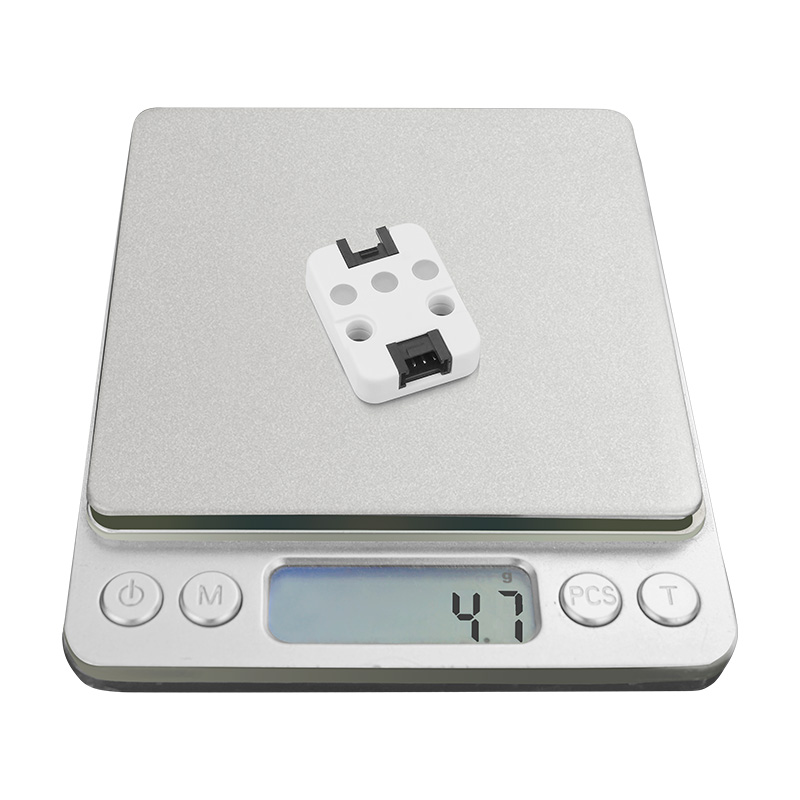

| Resources | Parameter |
|---|---|
| Lamp bead model | SK6812(3535) |
| Net weight | 4g |
| Gross weight | 17g |
| Product Size | 32*24*8mm |
| Package Size | 136*92*12mm |
EasyLoader
EasyLoader is a concise and fast program writer, which has a built-in case program related to the product. It can be burned to the main control by simple steps to perform a series of function verification.
Download Windows Version Easyloader Download MacOS Version Easyloader
Description:
Drive RGB LED to light up different colors.
Drive RGB LED to light up different colors.
PinMap
| M5Core(GROVE B) | GPIO36 | GPIO26 | 5V | GND |
|---|---|---|---|---|
| RGB Unit | Signal Pin | 5V | GND |

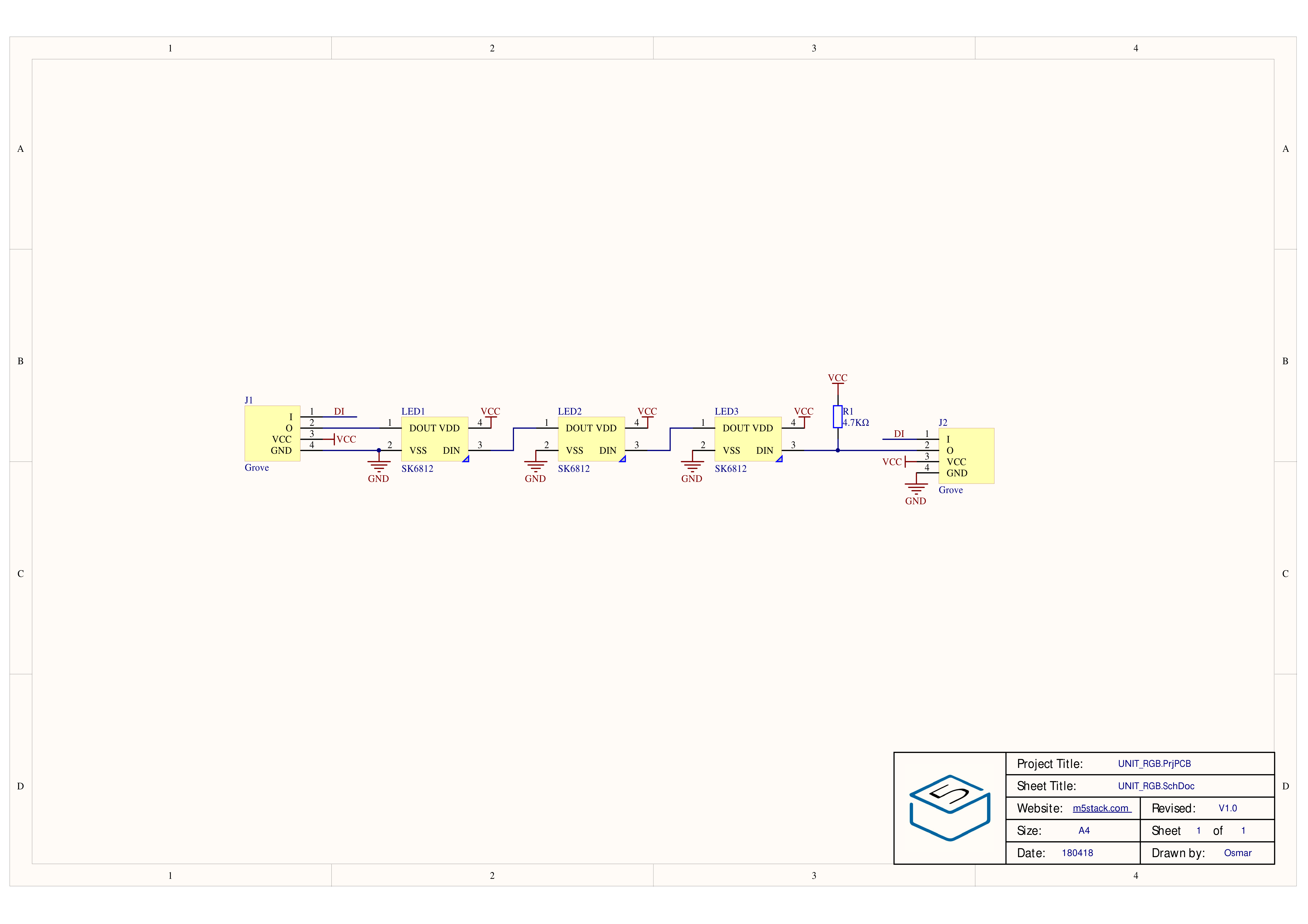

Schematic
Example
Arduino
UIFlow
How to use Blockly rgb on the UIFlow 1.0 graphical programming platform and related API instructions
How to use Unit rgb and related API instructions in the UIFlow2.0
