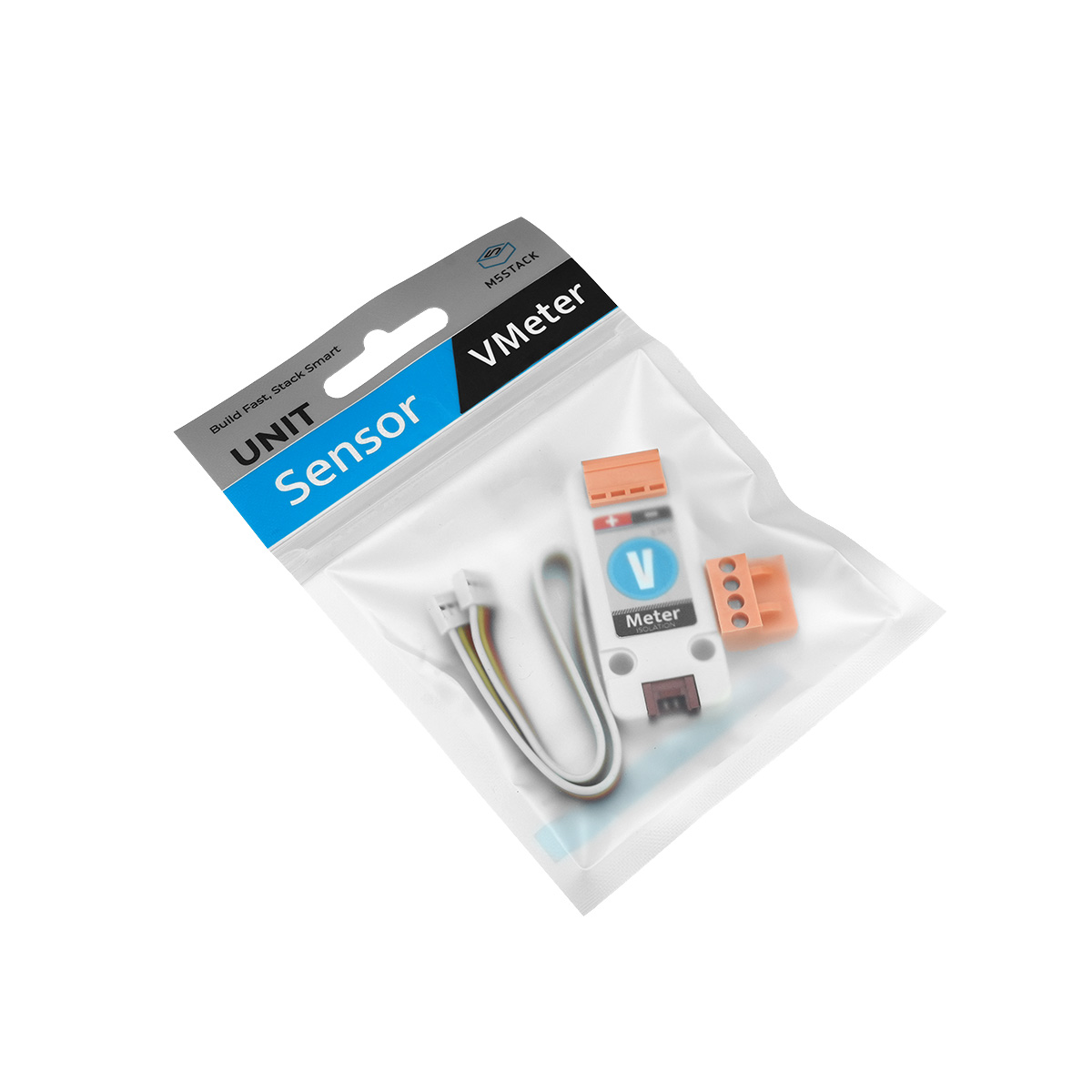

Voltmeter Unit is a voltage meter that can monitor the voltage in real time. The 16-bit ADC (analog-to-digital) converter ADS1115 is used internally to communicate through I2C (0X49).
In order to ensure the measurement accuracy, there is a built-in DC-DC isolated power supply, and the I2C interface is also electrically isolated through the low-power isolator CA-IS3020S.
This prevents noise and surges on the data bus or other circuits from entering the local ground terminal to interfere or damage sensitive circuits. Each Unit is individually calibrated when leaving the factory, initial accuracy of 0.1%FS, ±1 count, and a maximum measurement voltage of ±36V.
EEPROM (0x53) has built-in calibration parameters when leaving the factory. Please do not write to the EEPROM, otherwise the calibration data will be overwritten and the measurement results will be inaccurate.
|Resolution||Auto range, Count ≤ 16V, 1mV; Count > 16V, 7.9mV|
|Initial Accuracy||0.1%FS, ±1 count|
EasyLoader is a concise and fast program writer, which has a built-in case program related to the product. It can be burned to the main control by simple steps to perform a series of function verification.
Measuring voltage, gear 0.512, maximum measuring voltage 16V, analog pointer indicating range 5V ( https://m5stack.oss-cn-shenzhen.aliyuncs.com/resource/docs/datasheet/unit/ADS1115.PDF )
|V Meter Unit||SDA||SCL||5V||GND|
Execute the following statement in Setup() of the Arduino program
When M5Core2 is stacked with other M5 modules, you need to remove the battery base of Core2, which does not support module stacking.
Reason and solution: The power supply current of the port is insufficient, which can cause the device to not enter the download mode normally. You can try to connect a capacitor (>0.1uF) between the RST pin and the GND pin, or when uploading the program, set the G0 Short-circuit to GND, so that G0 can be set to a low level state normally
Add the header file #include <driver/adc.h> and the function adc_power_acquire(); in the Arduino program
The battery life of the controller is affected by various factors such as battery capacity, operating status, and load, so there is no fixed value. Reducing the load and adopting a sleep strategy can effectively increase the battery life.
Support multiple stacks, the total capacity of the batteries in parallel increases, and the voltage remains unchanged. However, since the discharge of each battery is not balanced during use, there is a voltage difference between the batteries, which may cause the battery to charge backwards. .(will lose part of the battery capacity)
ESP32 module currently does not support WiFi in 5G band, only 2.4G.
Confirm whether the TX/RX pin on the TTL side of the pin is correct, try to add two 120Ω terminal resistors at the beginning and end of the device line to reduce signal reflection interference
