AI Pyramid

SKU:AI-003

Description

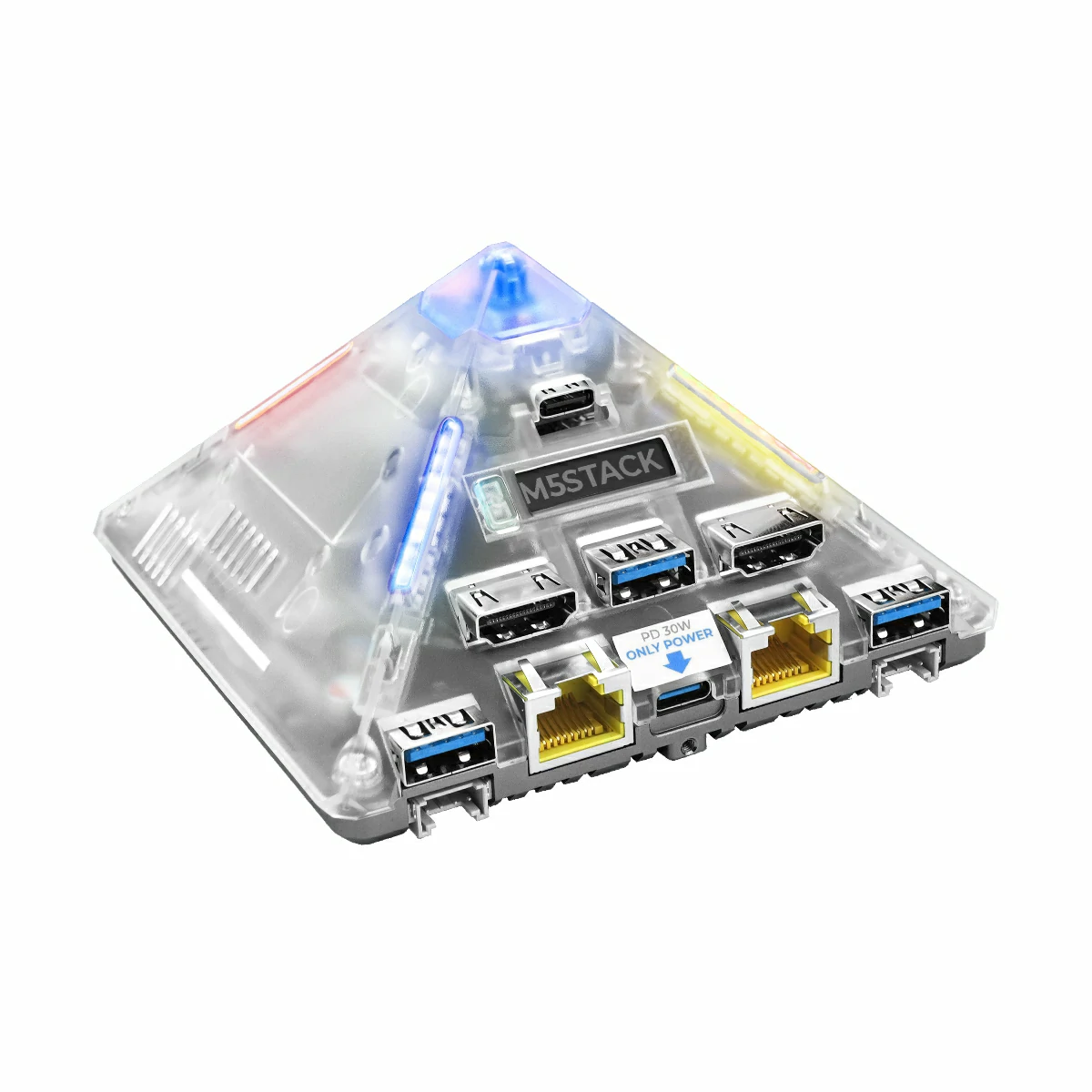

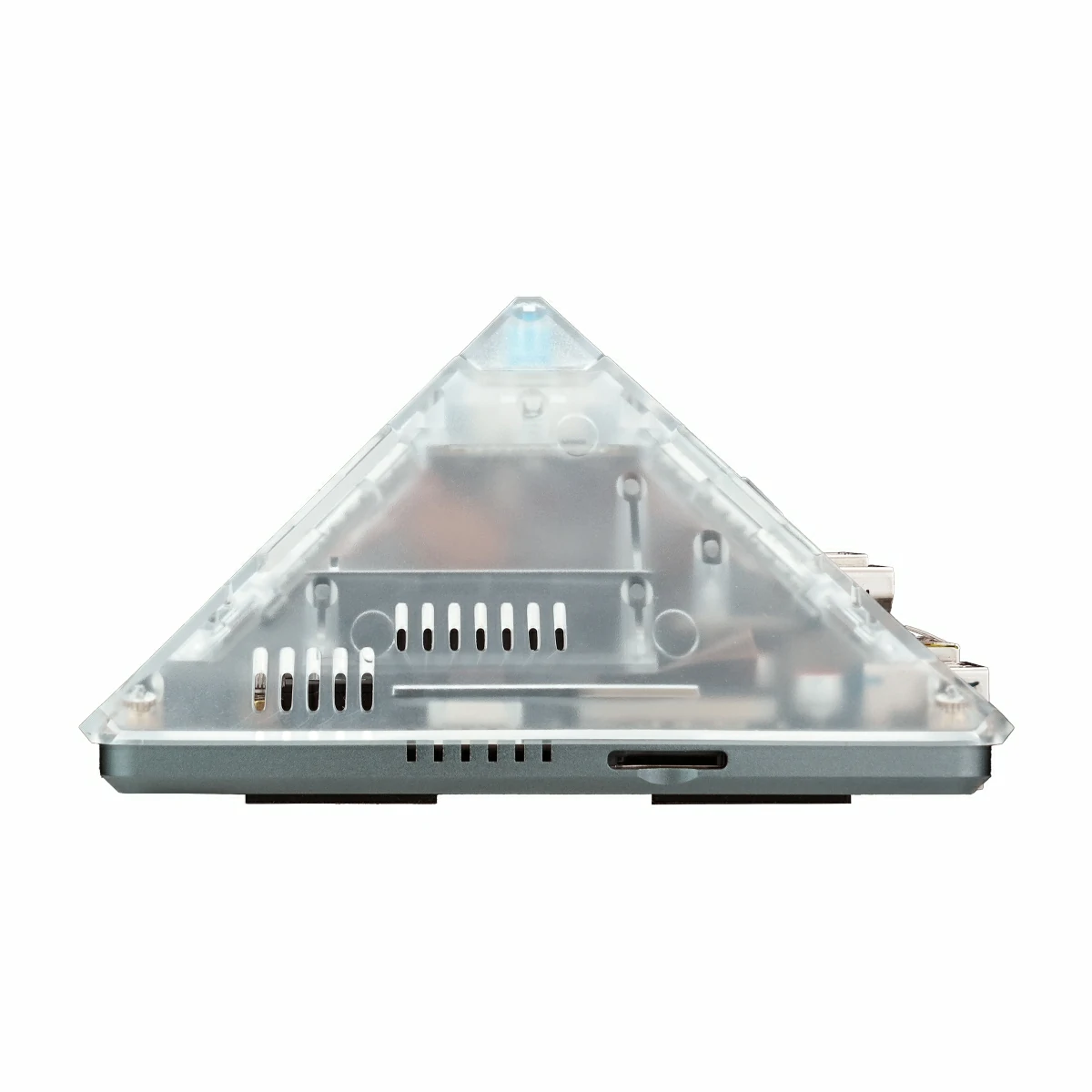

AI Pyramid is a pyramid-shaped high-performance AI PC purpose-built for local AI inference and edge intelligence deployments. Powered by the Axera AX8850 SoC, it integrates an octa-core Cortex-A55 processor and a 24 TOPS @ INT8 NPU to effortlessly handle complex workloads including visual recognition, multimodal interaction, and on-device large model inference. AI Pyramid comes with 4GB LPDDR4x high-bandwidth memory paired with a dedicated hardware video processing engine, supporting 8K H.264/H.265 encode/decode and 16-channel 1080p parallel decoding to meet demands for AI vision analytics, video processing, and multi-stream media applications. Equipped with dual HDMI 2.0 digital multimedia output ports, dual Gigabit Ethernet, USB 3.0, and USB Type-C interfaces, it delivers exceptional flexibility for display output, networking, and peripheral expansion. It serves as a desktop-grade AI computing platform and is ideal for field deployment in edge computing scenarios. Designed for AI PCs, edge intelligent terminals, and smart interactive devices, AI Pyramid provides reliable AI inference performance for localized AI systems such as AI vision gateways, intelligent security, and local smart photo albums (Immich).

Tutorial

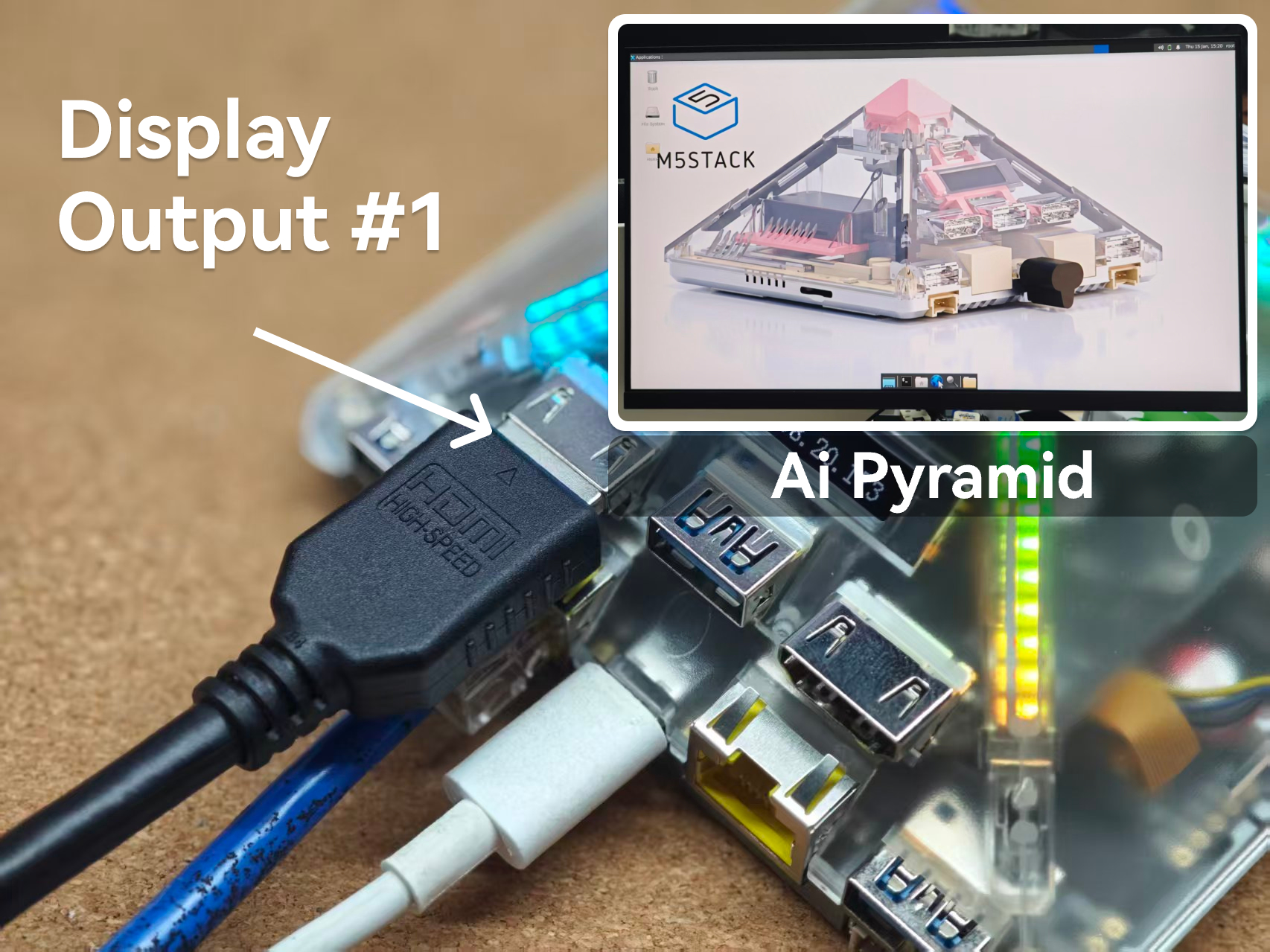

AI Pyramid Quick Start

This guide walks through the AI Pyramid quick-start workflow, helping users efficiently master basic device operation and core functional usage.

Features

High Performance
- Axera AX8850 SoC
- CPU: Octa-core Cortex-A55 @ 1.7 GHz
- NPU: 24 TOPS @ INT8
- 4GB (2+2) High-Bandwidth Memory: 64-bit LPDDR4x, 4266 Mbps

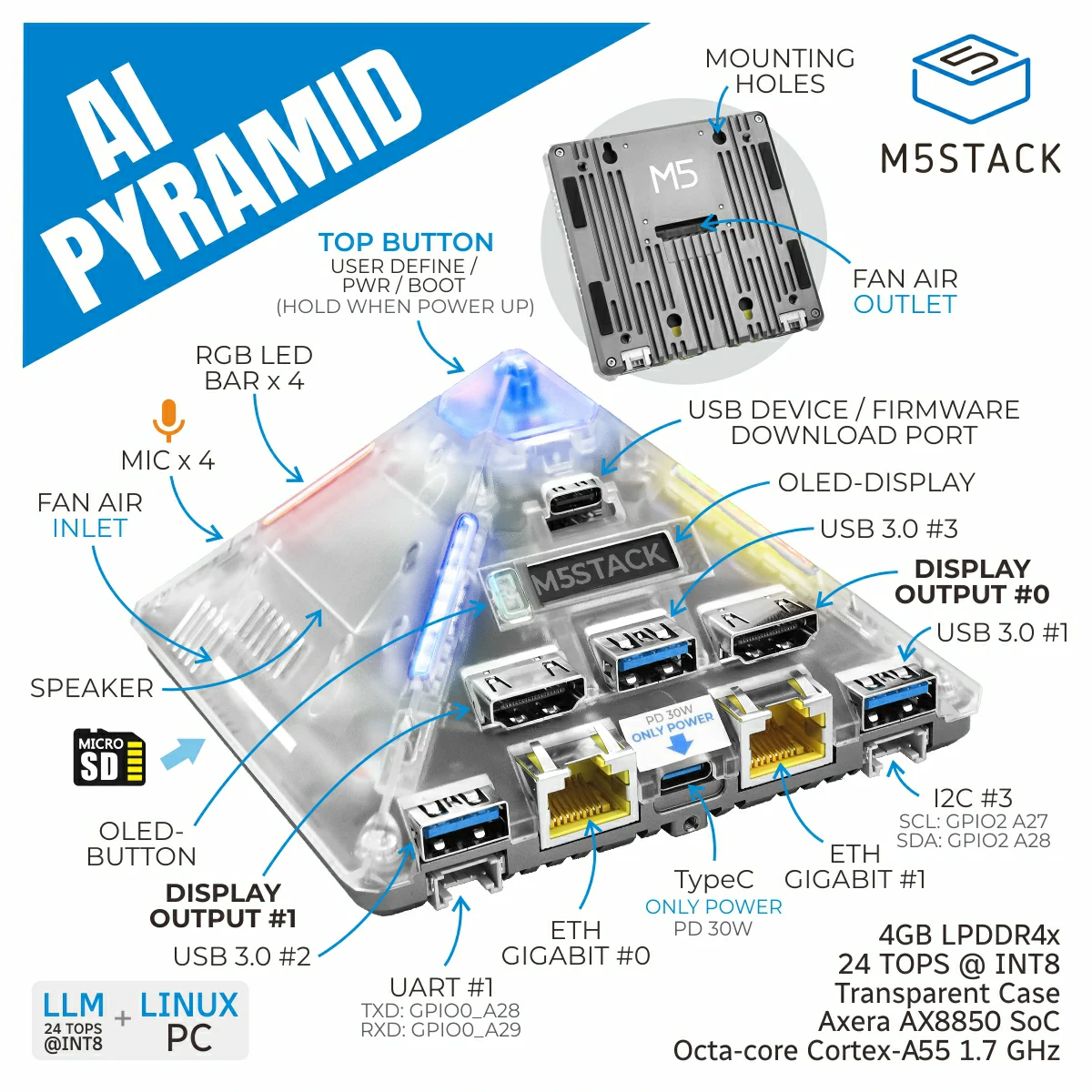

Rich I/O Interface Suite
- 2× HDMI 2.0 digital audio/video output ports, 4K@60fps supported
- 4× USB-A 3.0 ports (1 internal onboard port)
- 2× USB Type-C (USB Host + USB PD 3.0 100W power delivery)
- 2× Gigabit Ethernet ports
- 1× microSD card slot
- 2× HY2.0-4P expansion interfaces
Audio Subsystem
- ES8311 audio codec
- ES7210 4-microphone array input
- AW8317A speaker amplifier
Hardware Video Engine: 8K @ 30 fps H.264/H.265 encoding & decoding, 16-channel 1080p parallel decoding supported
Secure Boot & Encryption: AES/DES/3DES/SHA-256 hardware security module
Native AXCL Support: One-click deployment for CNN, Transformer, CLIP, Whisper, Llama 3.2, Qwen 3, InternVL3 and other models; H.264/H.265 simultaneous encode/decode/transcode enabled
Onboard STM32 Coprocessor for Extended Functions
- Power monitoring
- OLED status display
- User control buttons
- RGB LED lighting

Includes

1 × AI Pyramid

Applications

AI PC & Edge Intelligent Terminals
Smart Interactive Devices: Home Assistant, AIGC, voice cloning, meeting transcription
AI Vision Gateways
Local AI Smart Photo Album (Immich)
AI-Powered Intelligent Security (Frigate)

Specifications

Specification	Parameter
SoC	Axera AX8850
CPU	Octa-core Cortex-A55 @ 1.7 GHz
NPU	24 TOPS @ INT8
Video Encoder	8K @ 30 fps H.264/H.265 encoding, scaling & cropping supported
Video Decoder	8K @ 30 fps H.264/H.265 decoding, 16-channel 1080p parallel decoding, scaling & cropping supported
Memory	4GB 64-bit LPDDR4x, 4266 Mbps (2+2)
Storage	32GB eMMC 5.1
Ethernet	2× Gigabit Ethernet ports
USB-A Ports	4× USB-A 3.0 (3× external + 1× internal onboard)
USB Type-C Ports	2× USB Type-C (1× USB Host + 1× USB PD 3.0 100W, DC 9V/12V/20V compatible)
Multimedia Interface	2× HDMI 2.0 digital audio/video output ports, 4K@60fps supported
Cooling	Turbo cooling fan with EC intelligent thermal control
Audio Codec	ES8311 audio codec
Microphone	ES7210 microphone array input
Speaker	AW8317A amplifier, 4Ω 2W 2040 enclosed speaker
RGB LED	48× RGB LEDs
SmartIO Status Display	OLED SSD1306 (32×128); supports IP address, system resource, custom text/graphic display Panel dimensions: 28.54 × 8.58 × 1.22mm
User Buttons	2× user buttons (power on/off + OLED page navigation)
Power Requirement	PD input rated ≥ DC 9V@3A (27W)
Product Size	104.4 x 104.4 x 59.1mm
Product Weight	196.0g
Package Dimensions	144.5 × 105.0 × 62.0mm
Gross Weight	255.0g

Learn

Device Power Supply

Power Requirement

This device requires a PD adapter with a minimum output of DC 9V@3A (27W). The unit will not power on with a DC 5V supply.

Memory Allocation

Memory partitioning between the AI Pyramid system and hardware acceleration resources is defined below:

4GB variant (2GB + 2GB): 2GB allocated to system memory; 2GB reserved for hardware acceleration tasks including NPU compute and video encode/decode.

This partitioning scheme ensures stable system operation while reserving dedicated memory for AI inference and multimedia processing.

I2C Bus Notice

Avoid accessing the RTC chip during microphone recording, as this may cause unstable behavior on the SYS_I2C bus.

RTC Clock Notice

After external power loss, the onboard RTC clock module retains timekeeping for up to approximately 20 hours.

User Manual

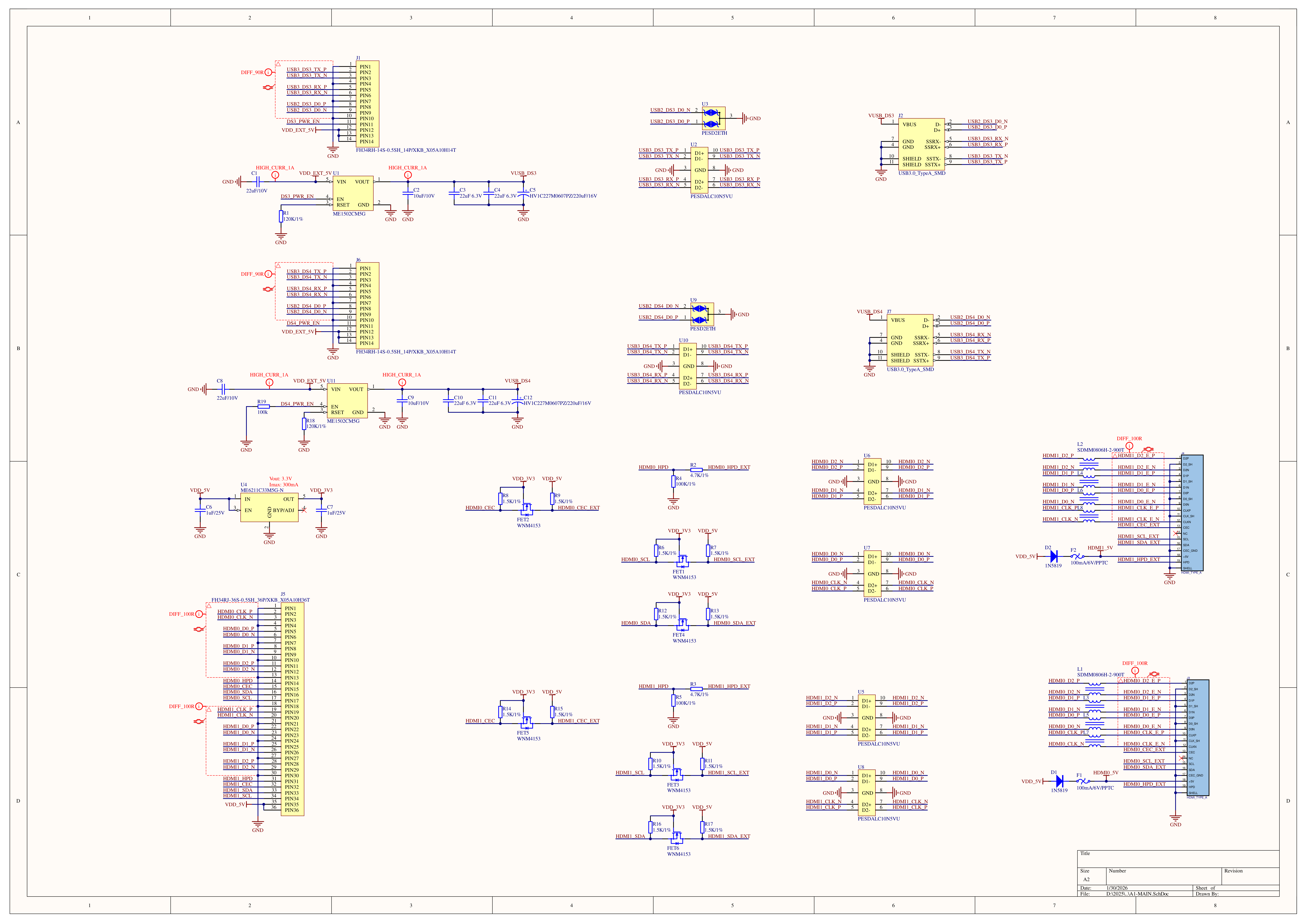

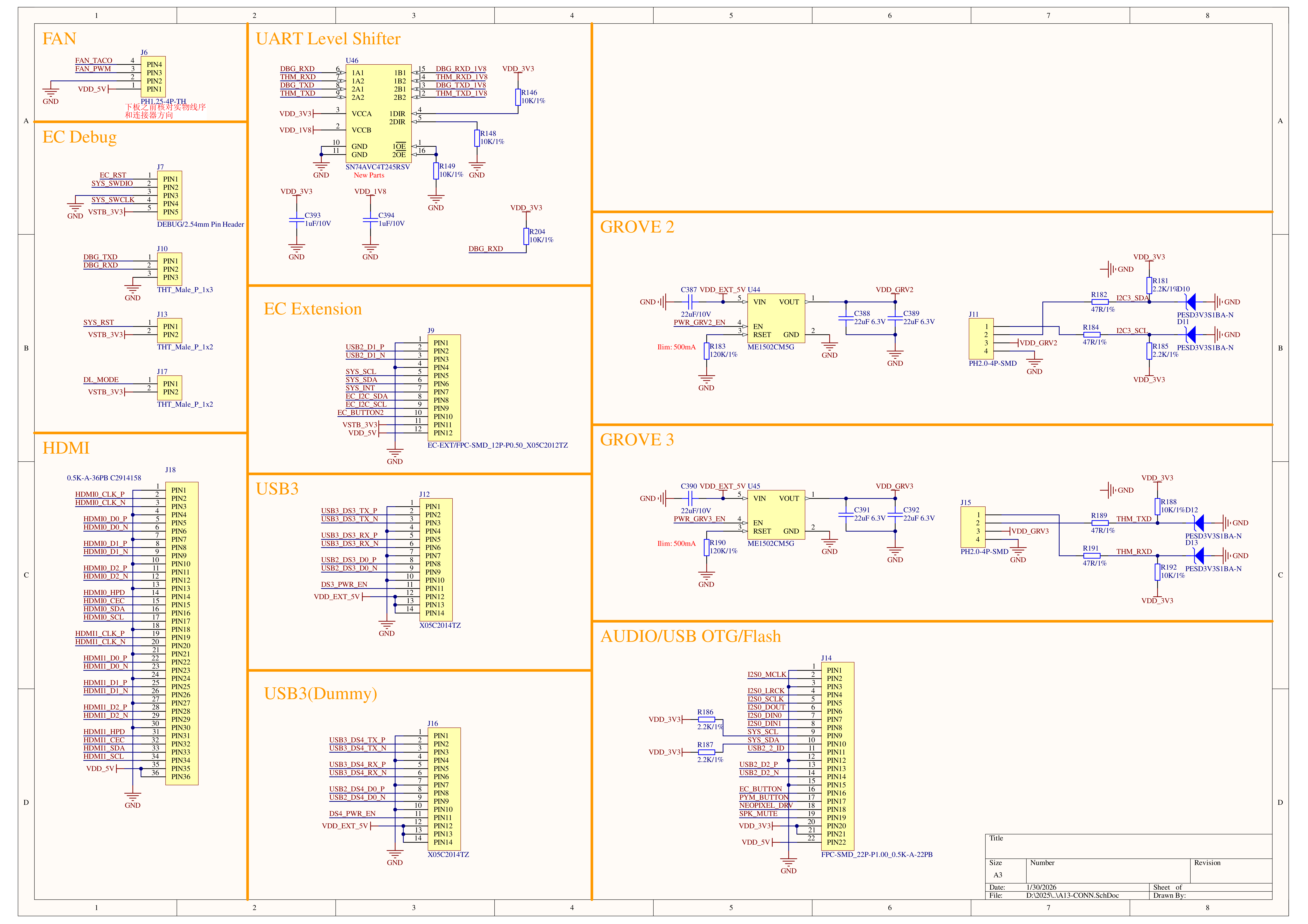

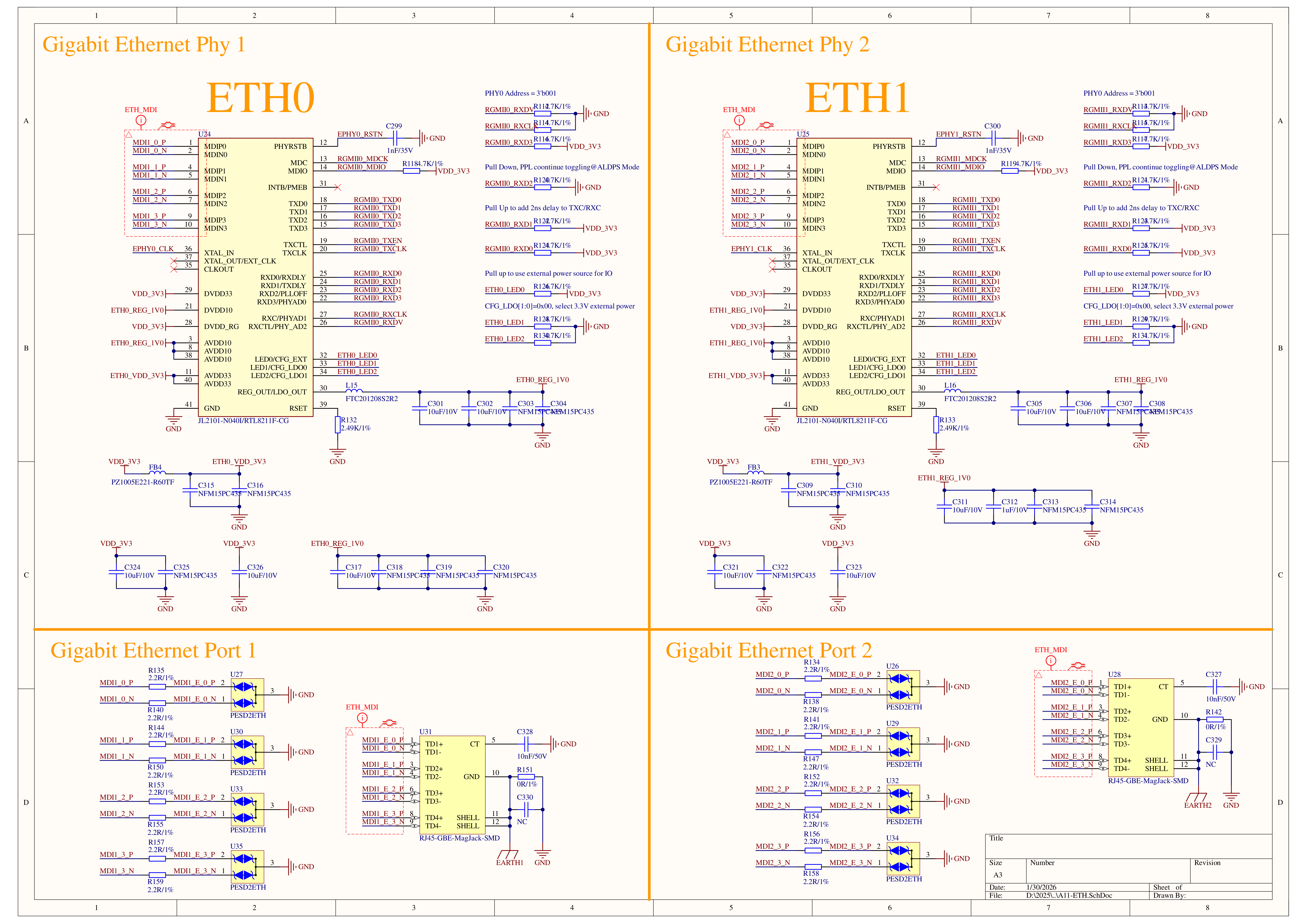

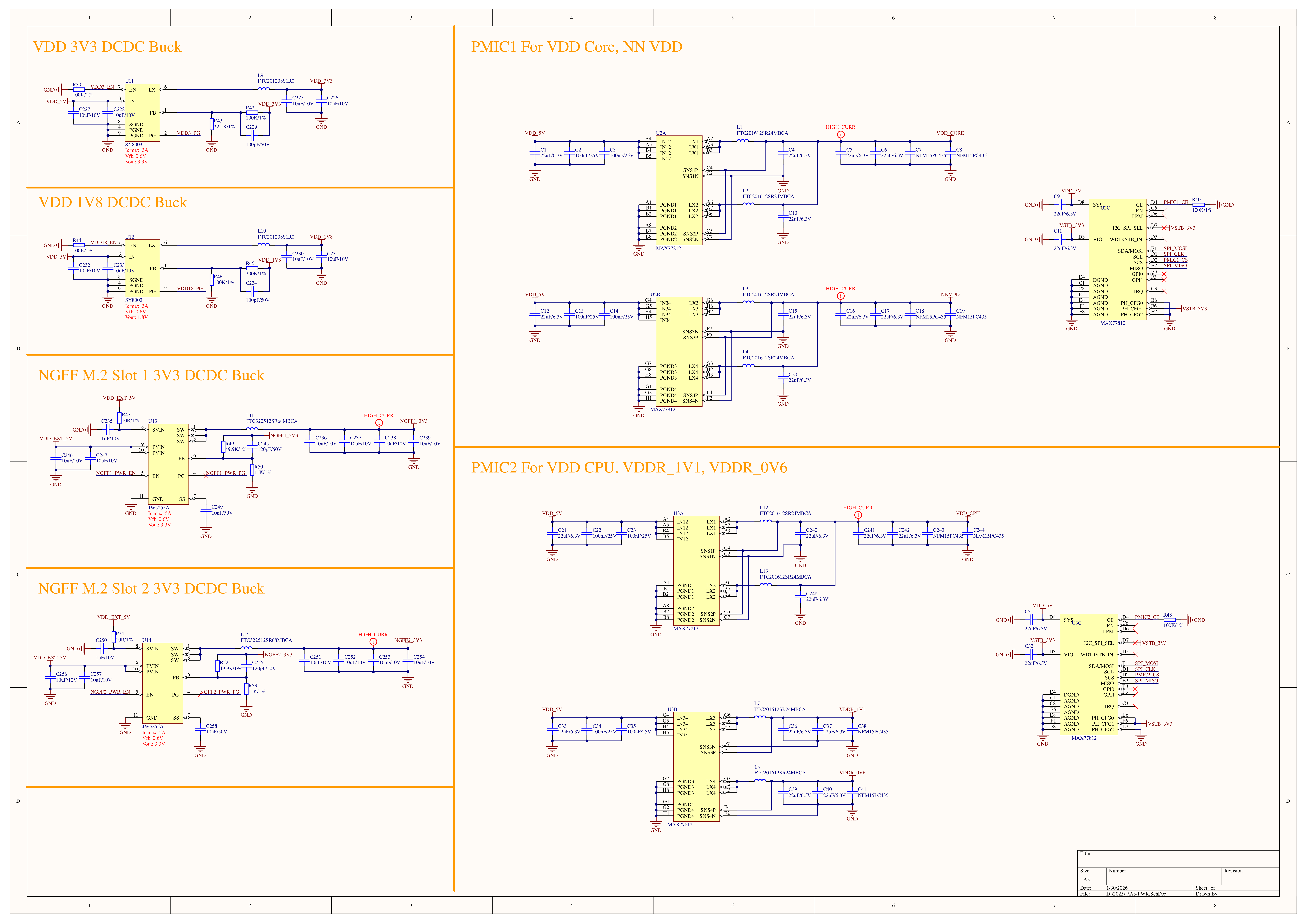

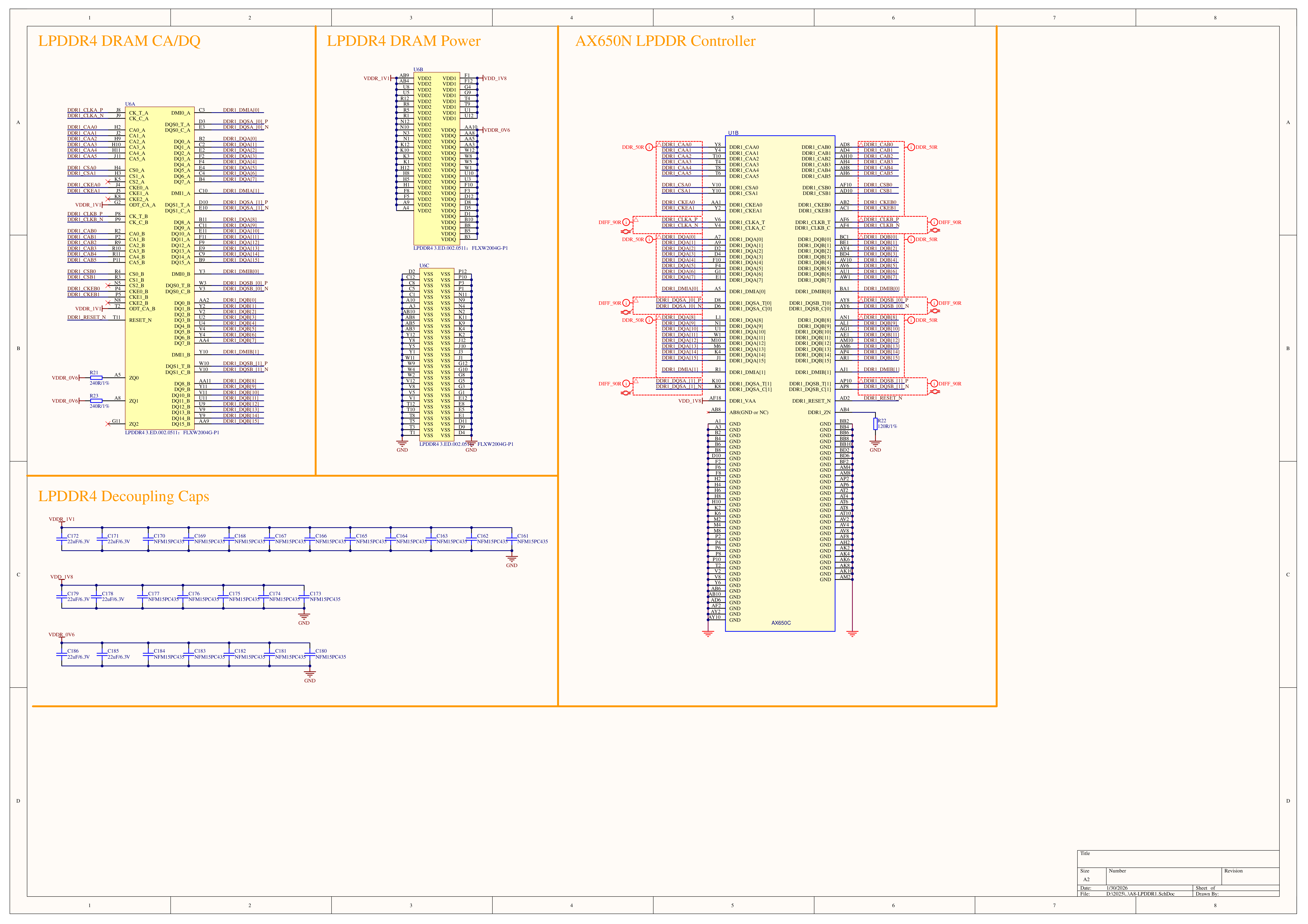

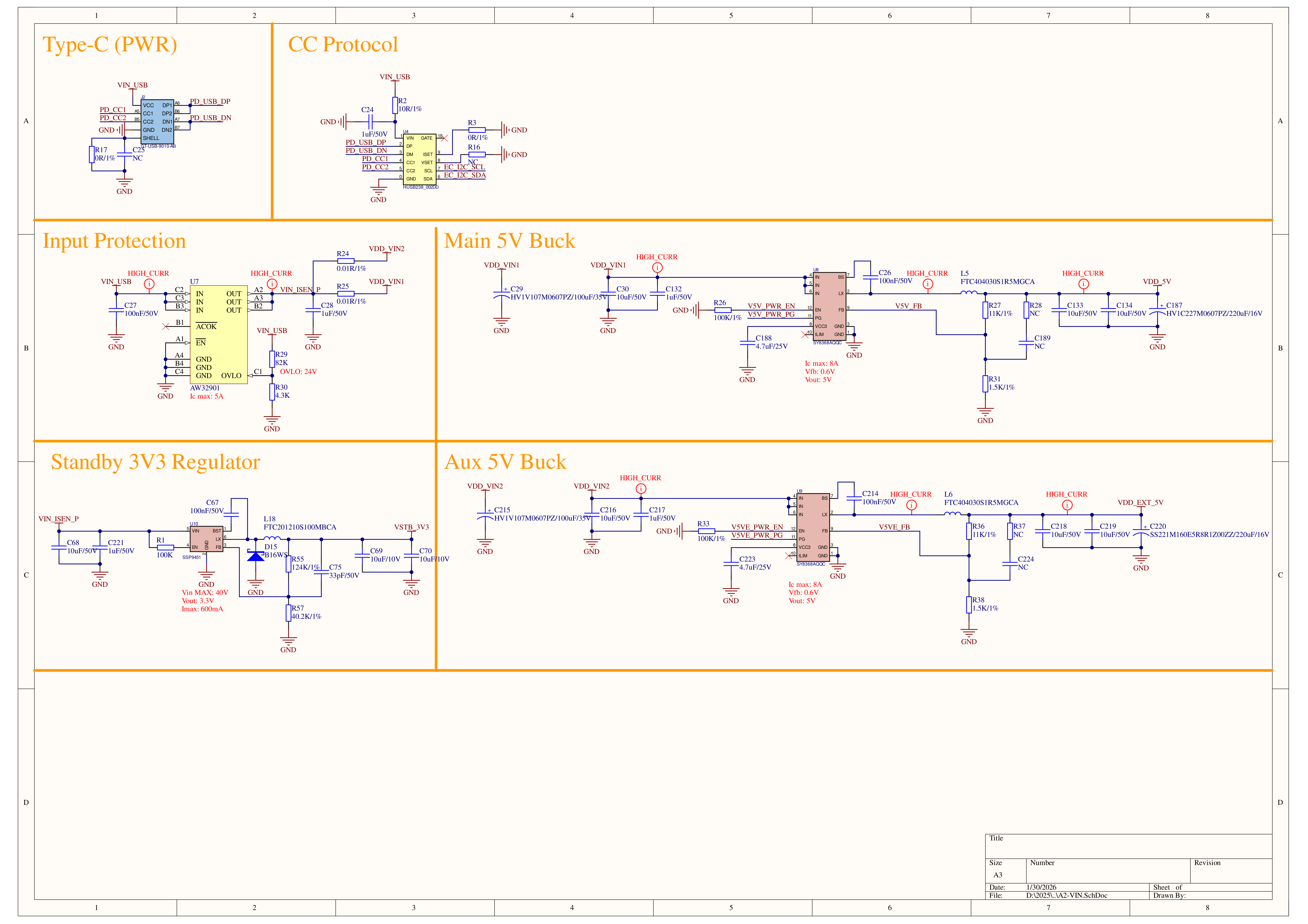

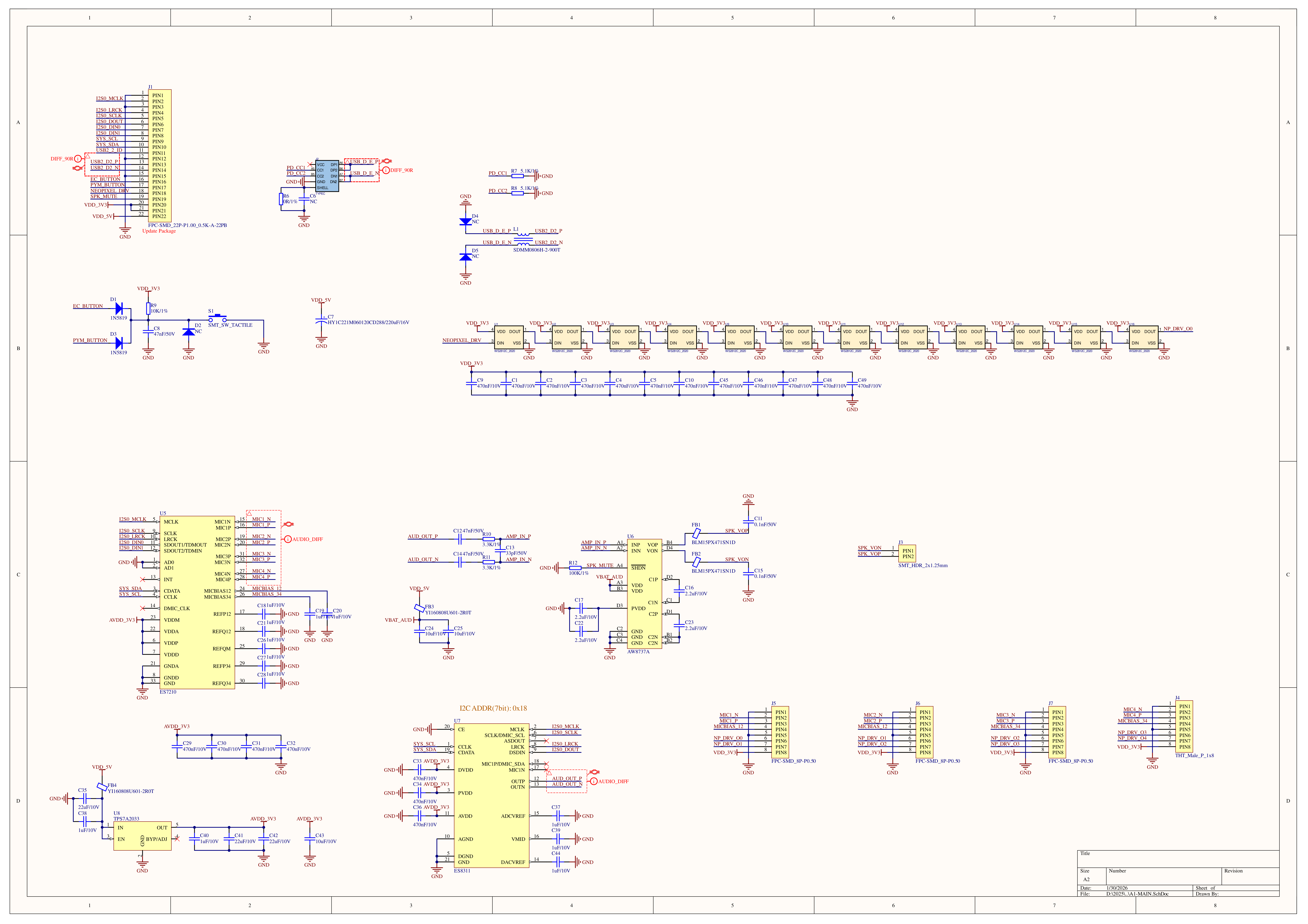

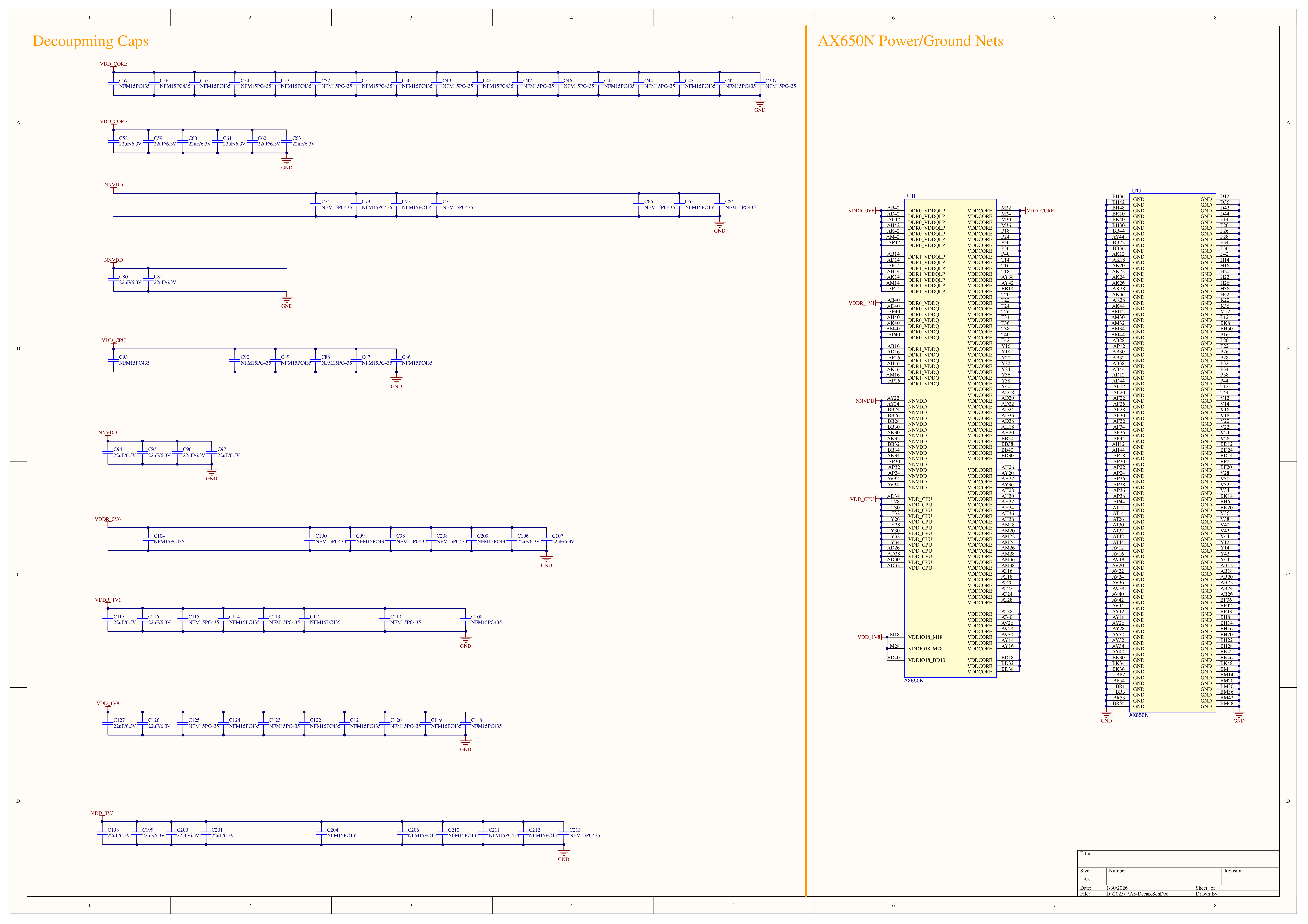

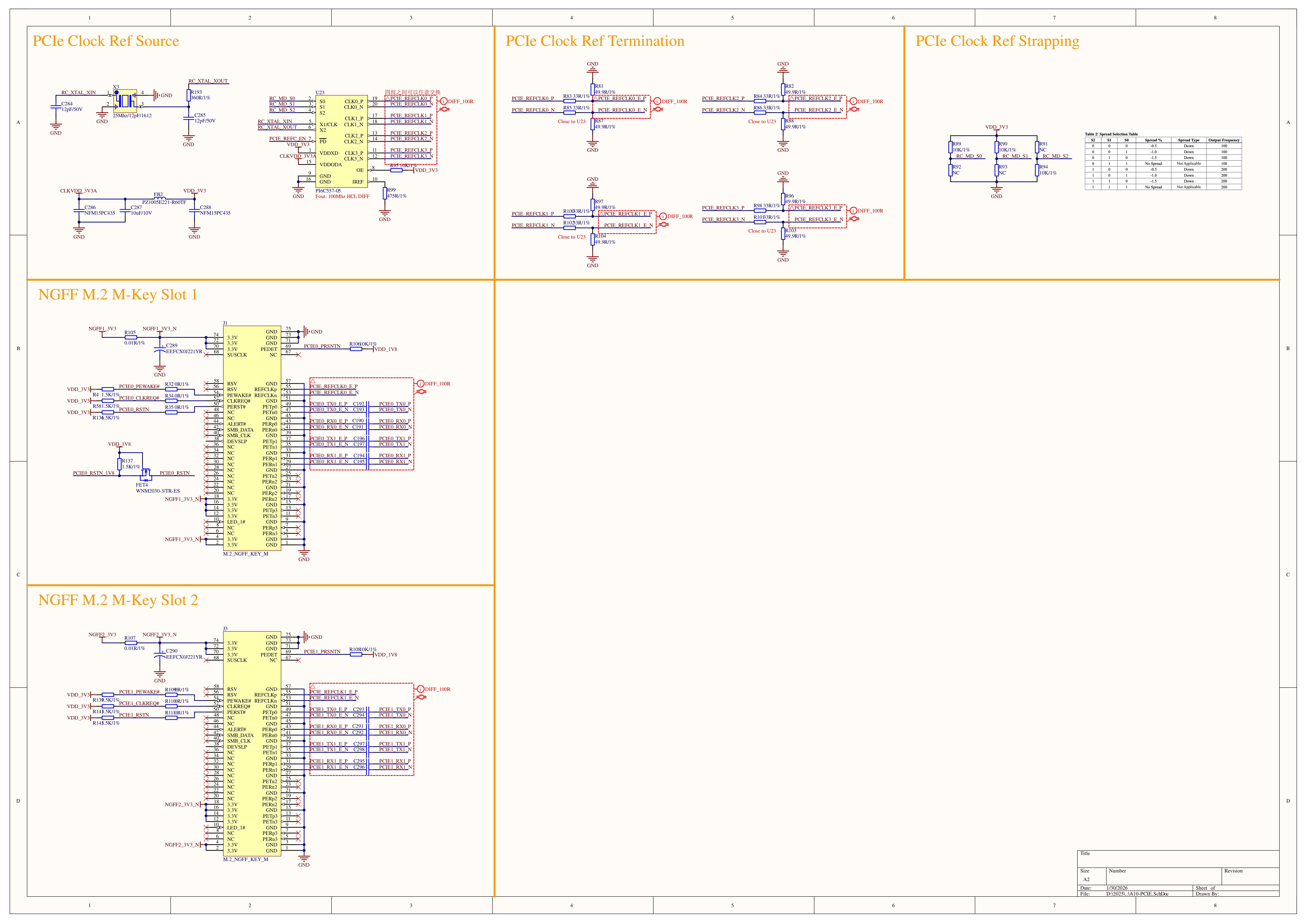

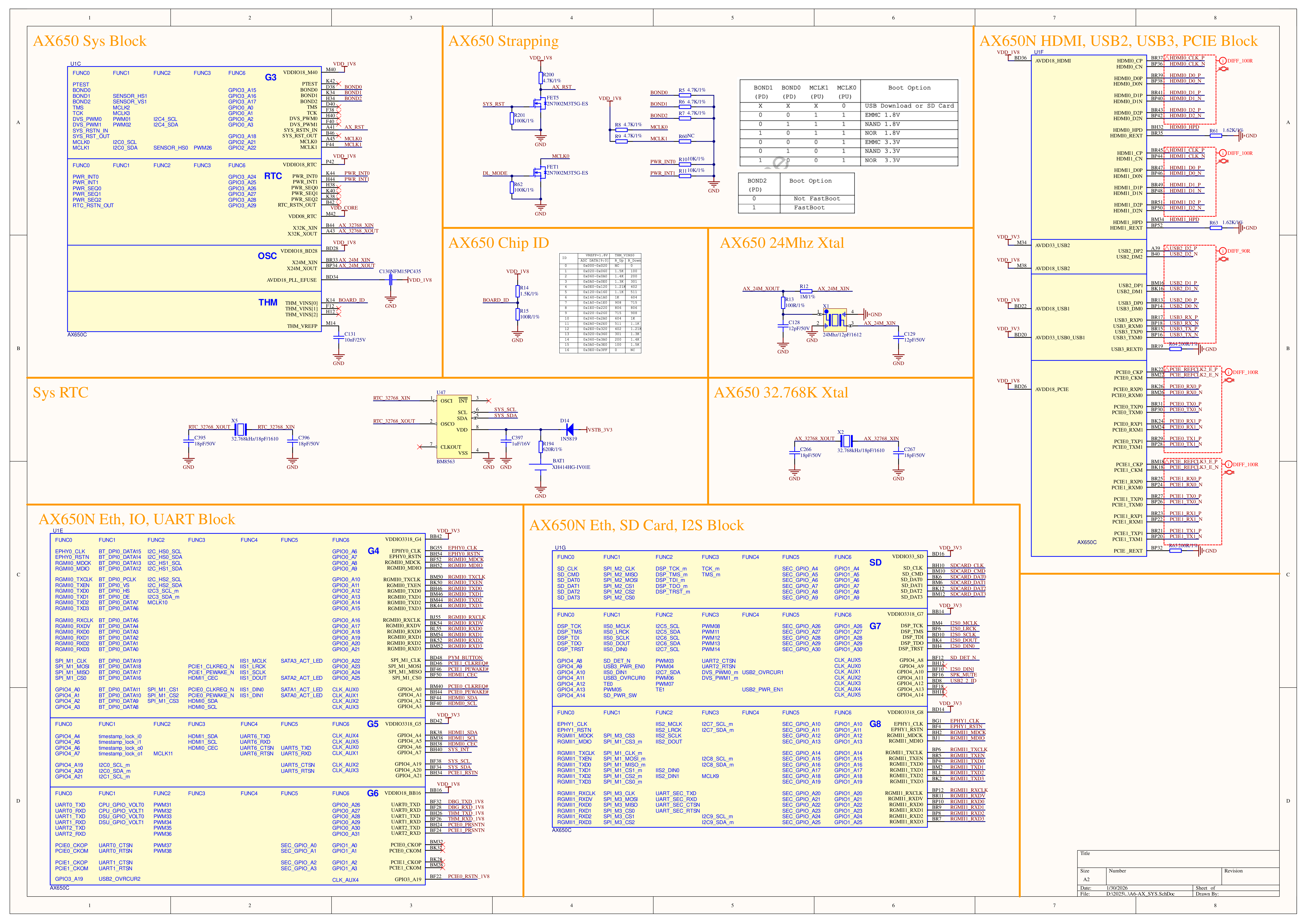

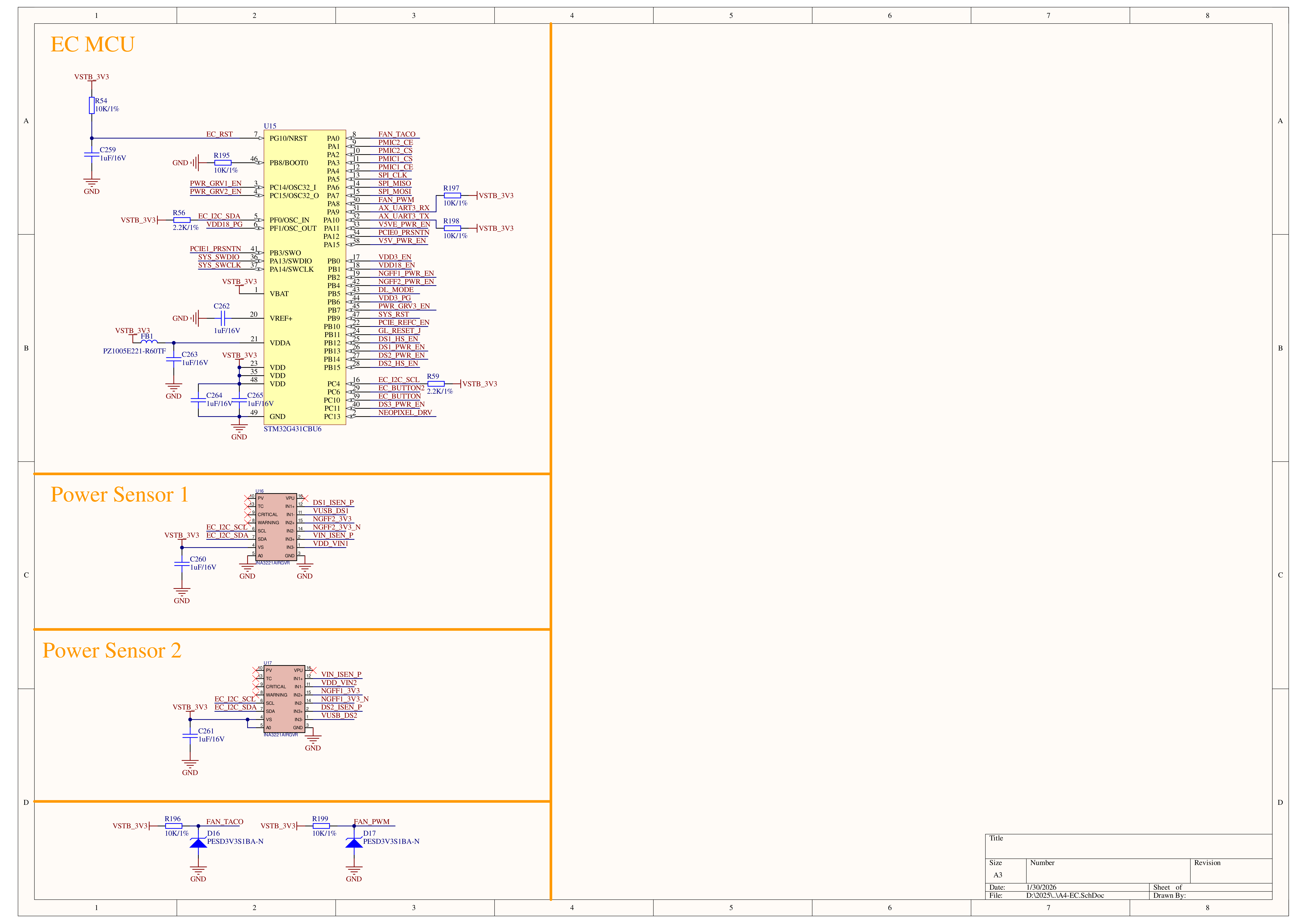

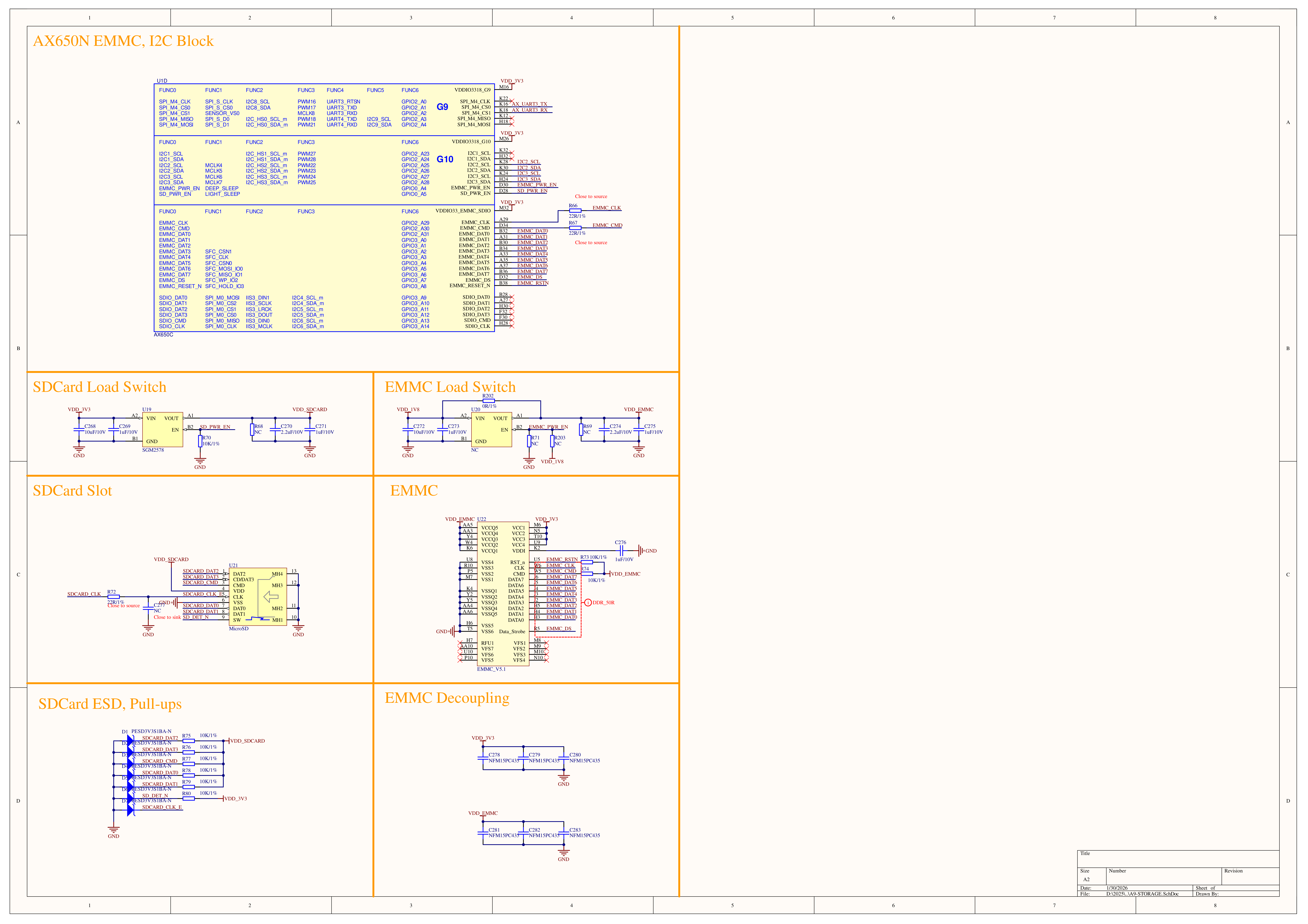

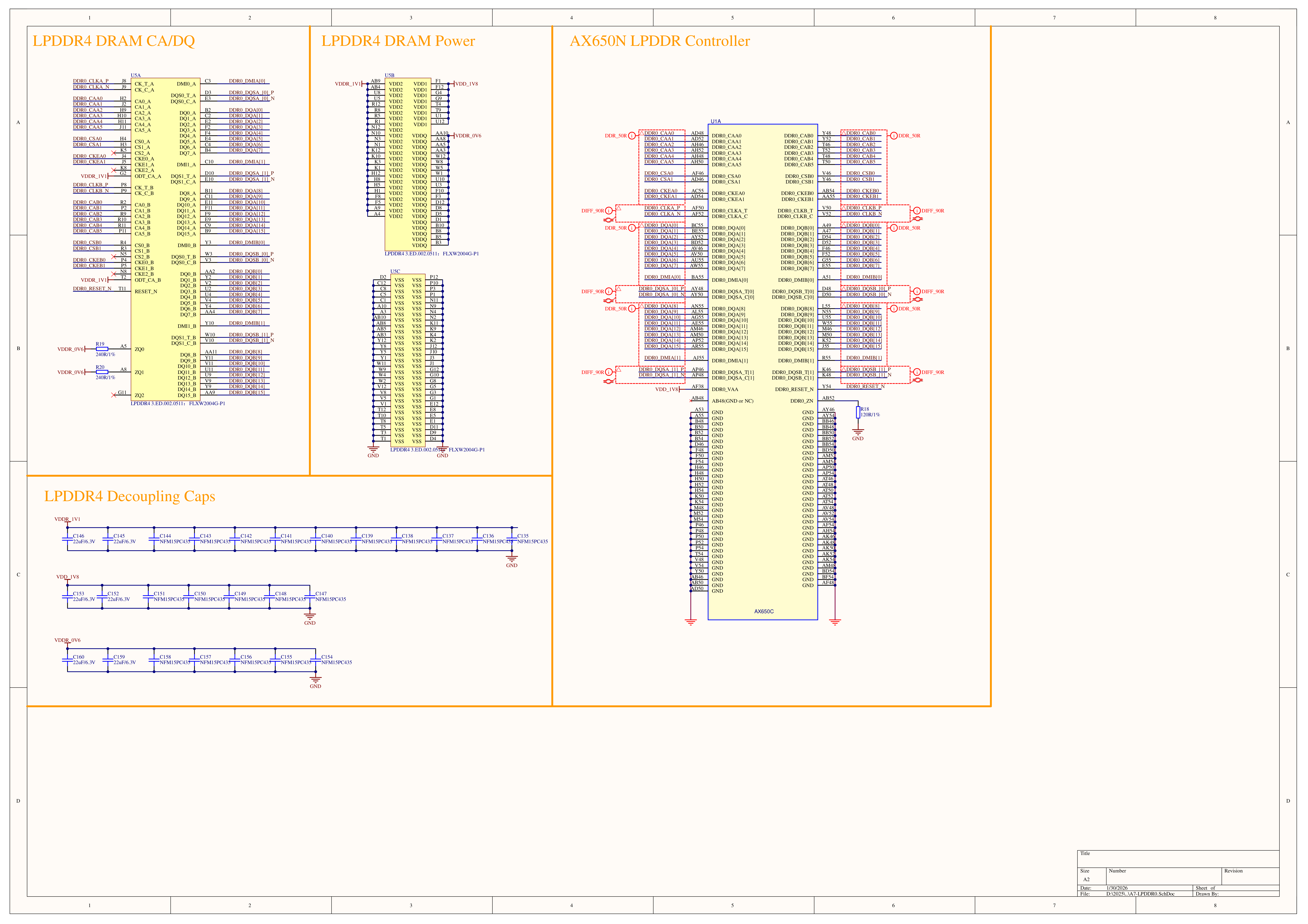

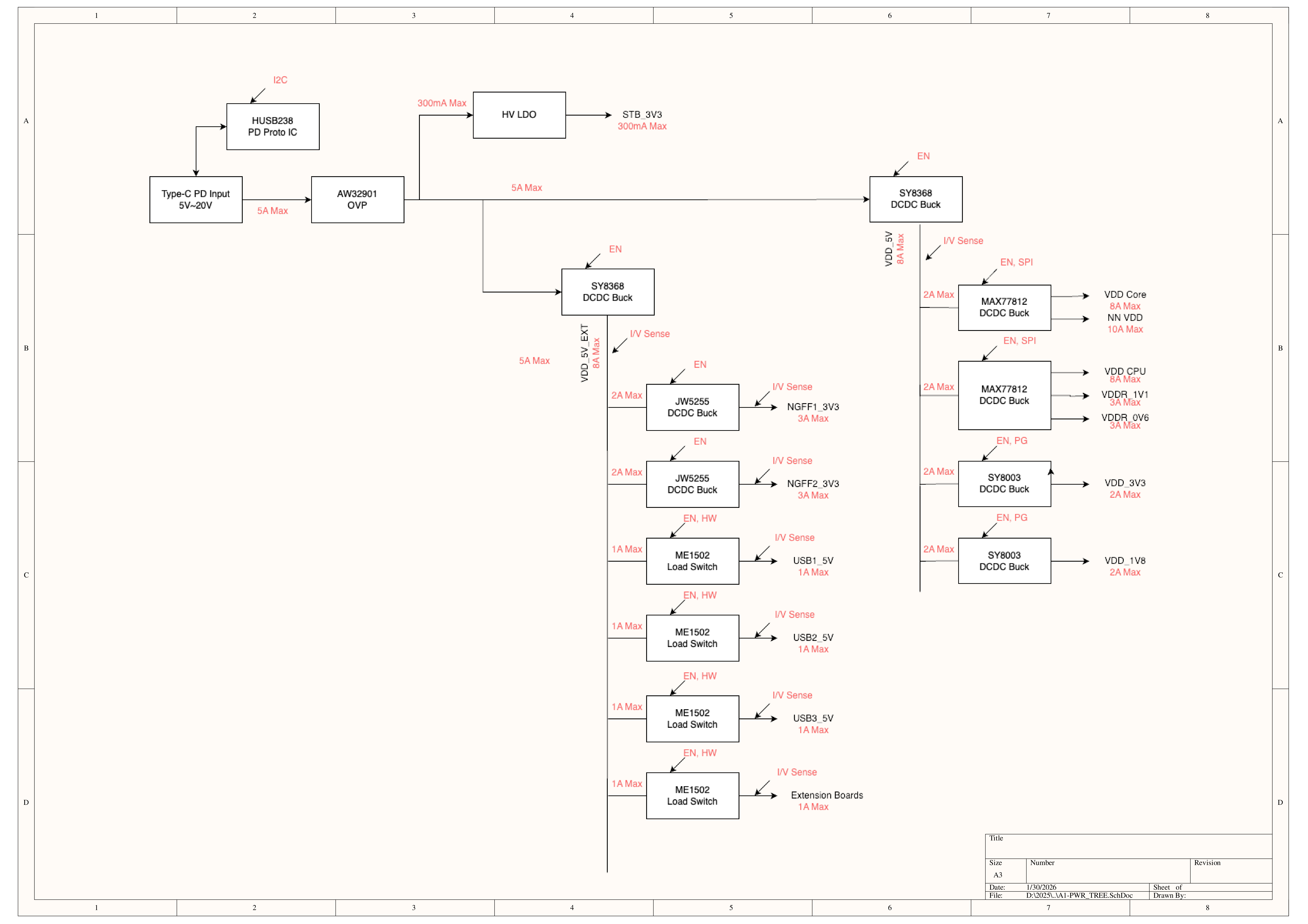

Schematics

1/16

Pin Map

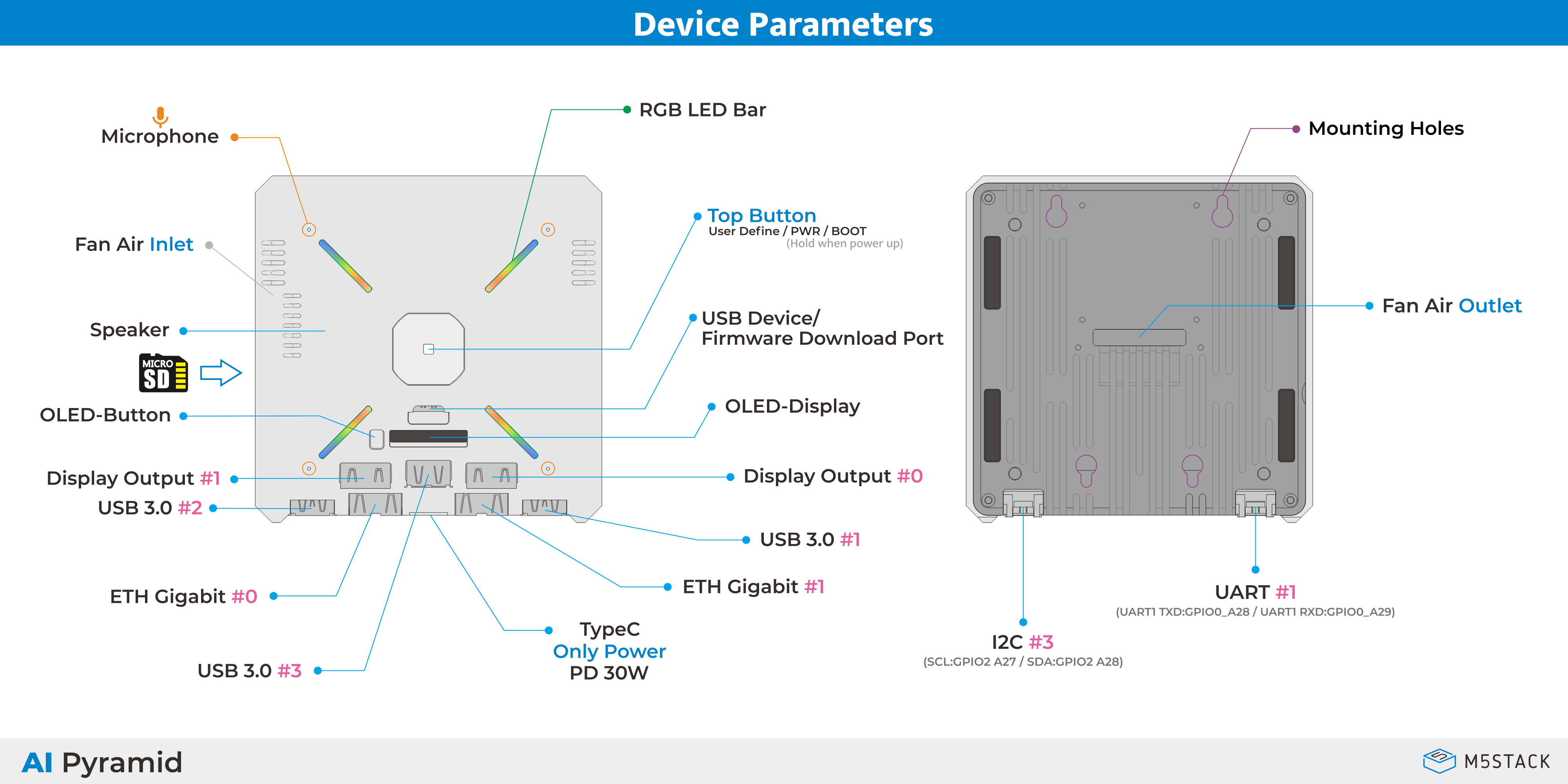

HY2.0-4P Interface

HY2.0-4P	Black	Red	Yellow	White
PORT.A	GND	5V	SDA: GPIO2_A28	SCL: GPIO2_A27

HY2.0-4P	Black	Red	Yellow	White
PORT.C	GND	5V	TXD: GPIO0_A28	RXD: GPIO0_A29

Model Size

AI Pyramid Model Size PDF

Datasheets

Axera AX8850 Product Brief

Softwares

Quick Start

AI Pyramid Quick Start

SDK

Application Examples

Video

AI Pyramid and AI Pyramid-Pro Product Introduction and Feature Demonstration

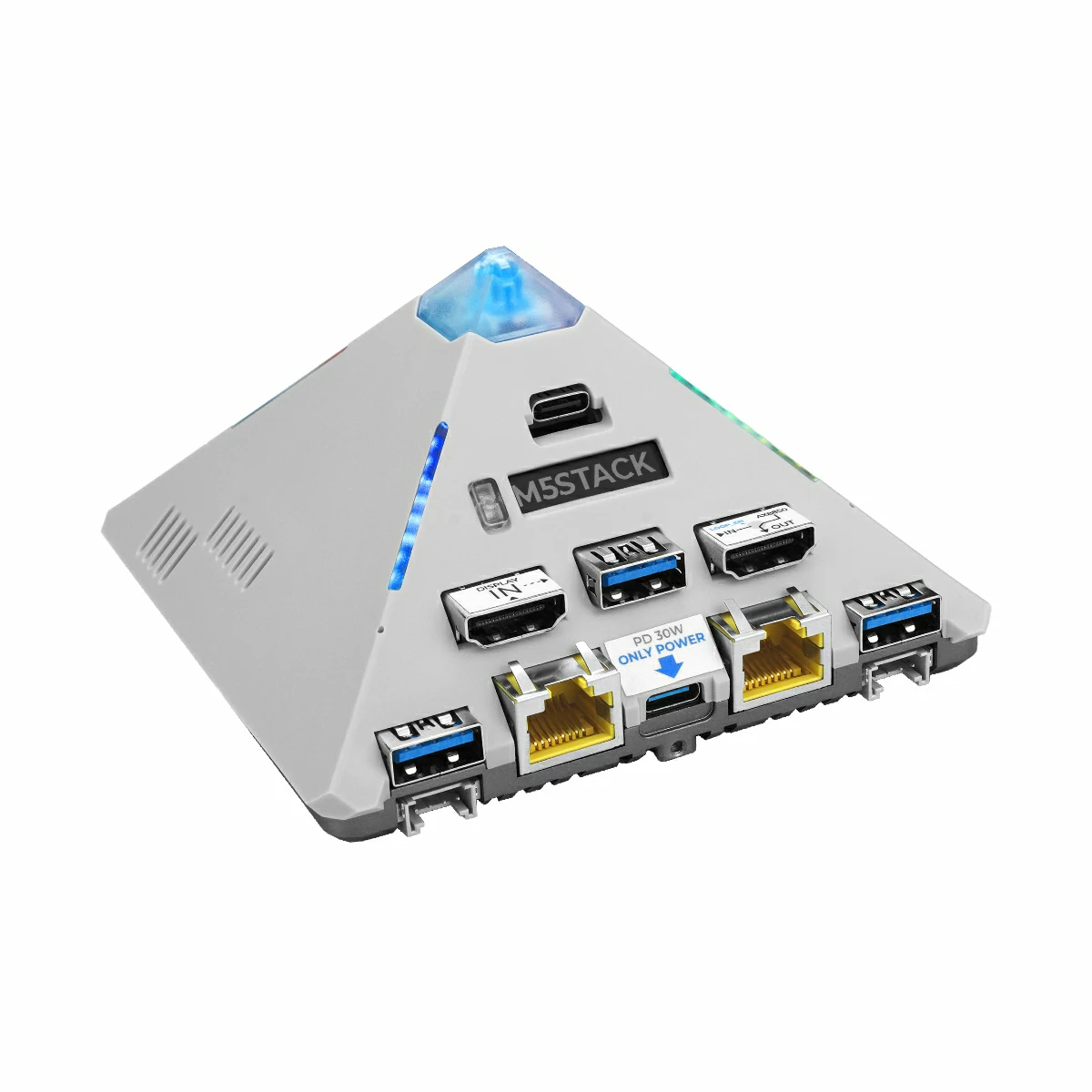

Product Comparison

Product Comparison	AI Pyramid	AI Pyramid-Pro
DRAM	4GB 64‑bit LPDDR4x, 4266 Mbps (2+2)	8GB 64‑bit LPDDR4x, 4266 Mbps (4+4)
HD Digital Audio/Video Interface	2x Output	1x Input + 1x Output
Enclosure Color	Transparent	Gray
