PaperDIY Assembly Kit

SKU:K159

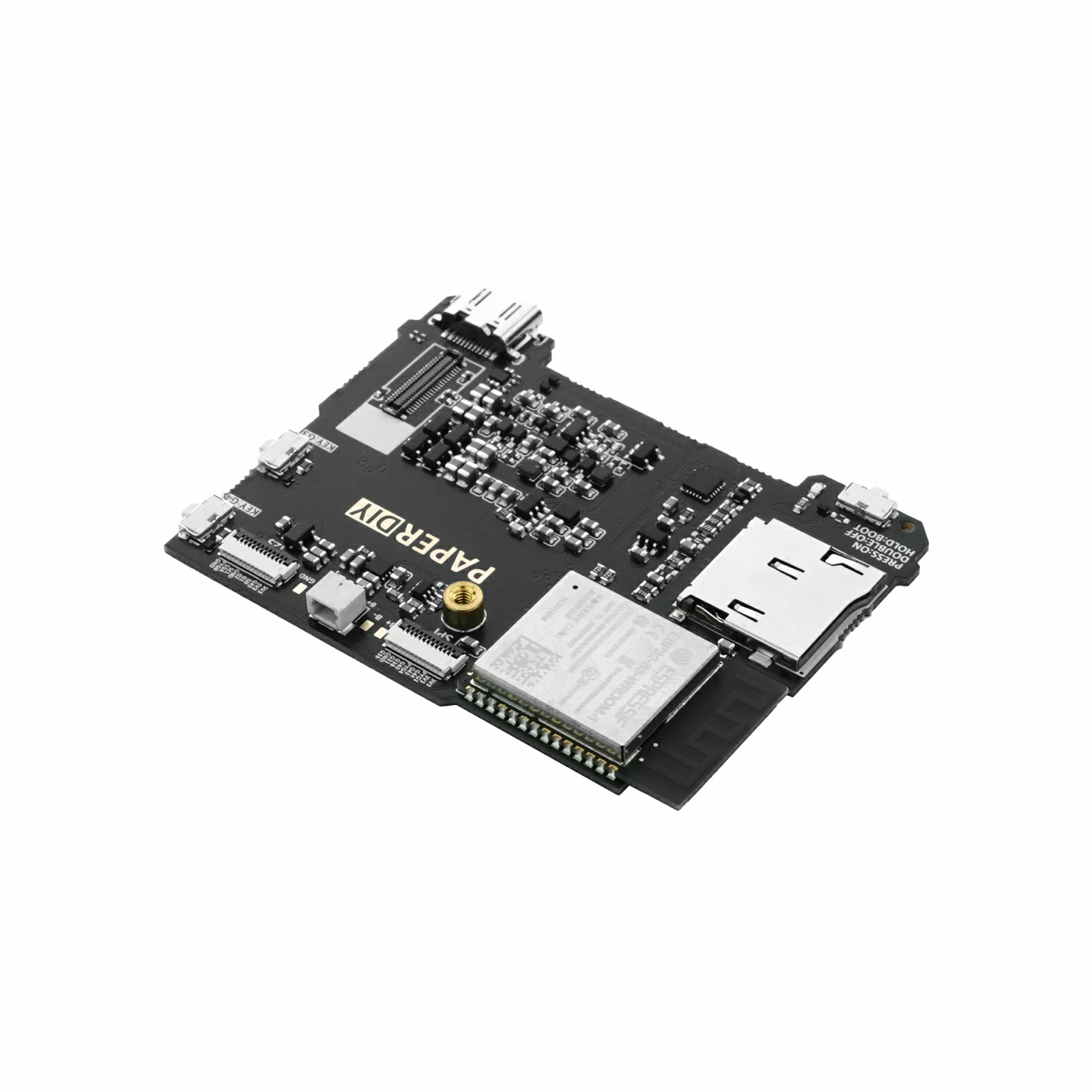

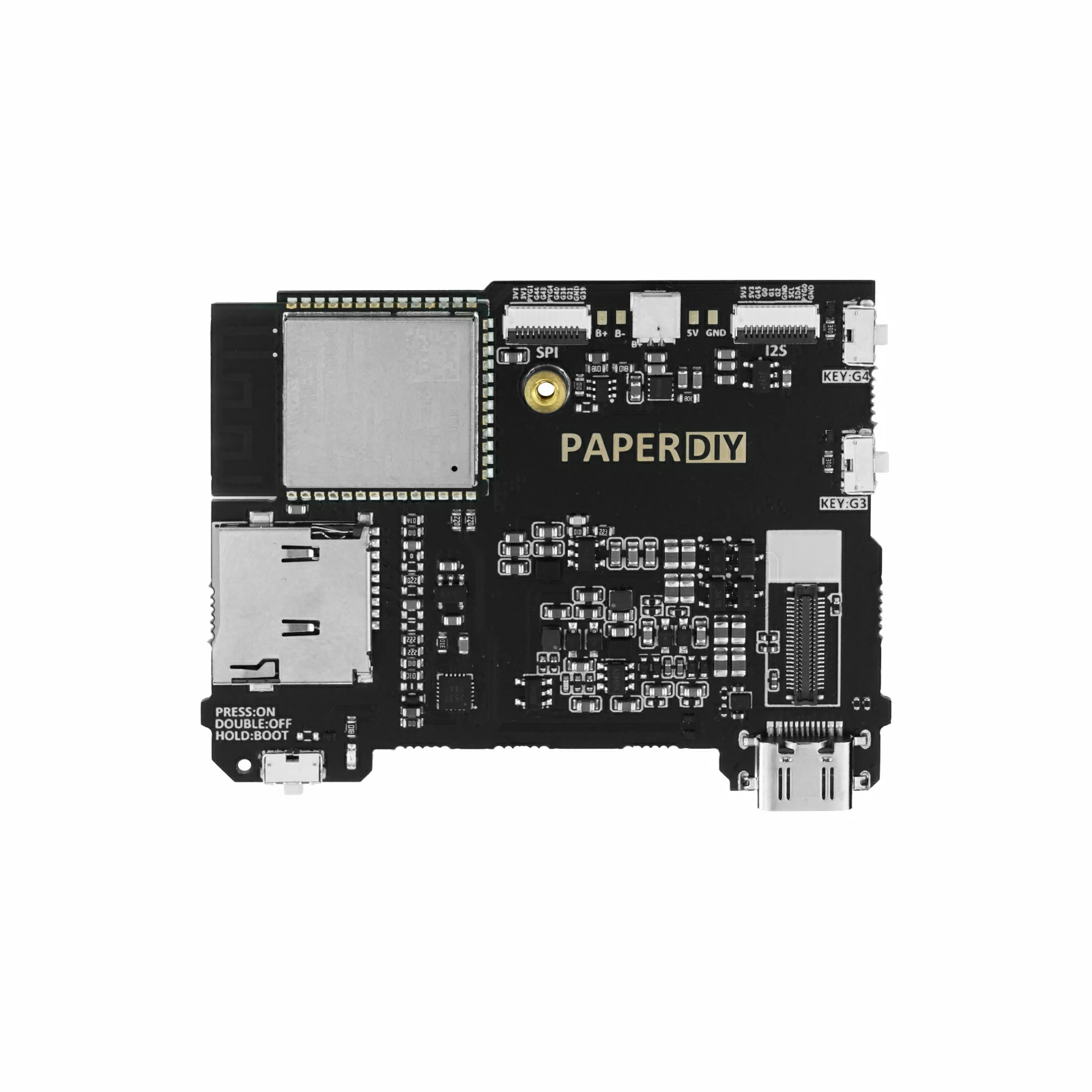

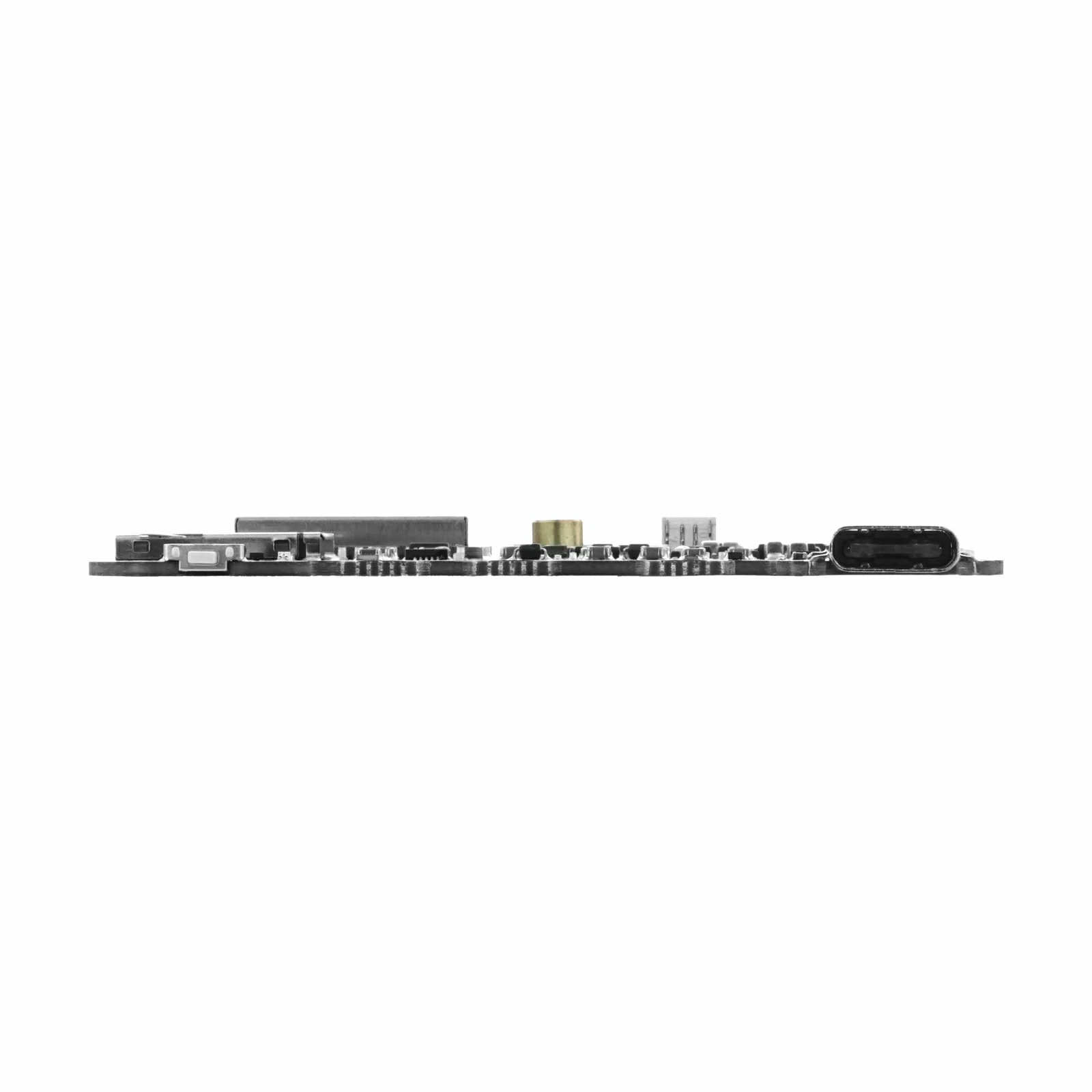

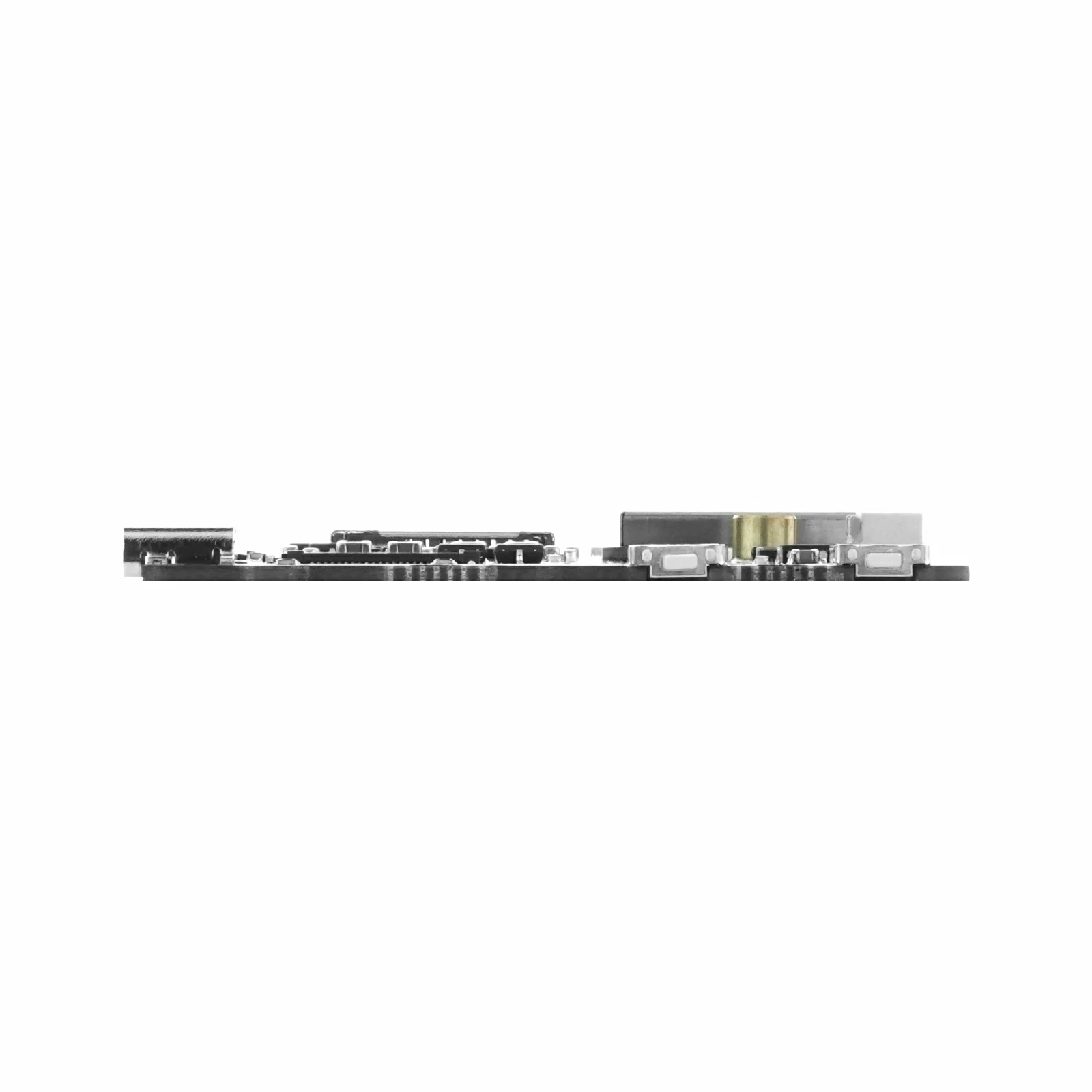

Description

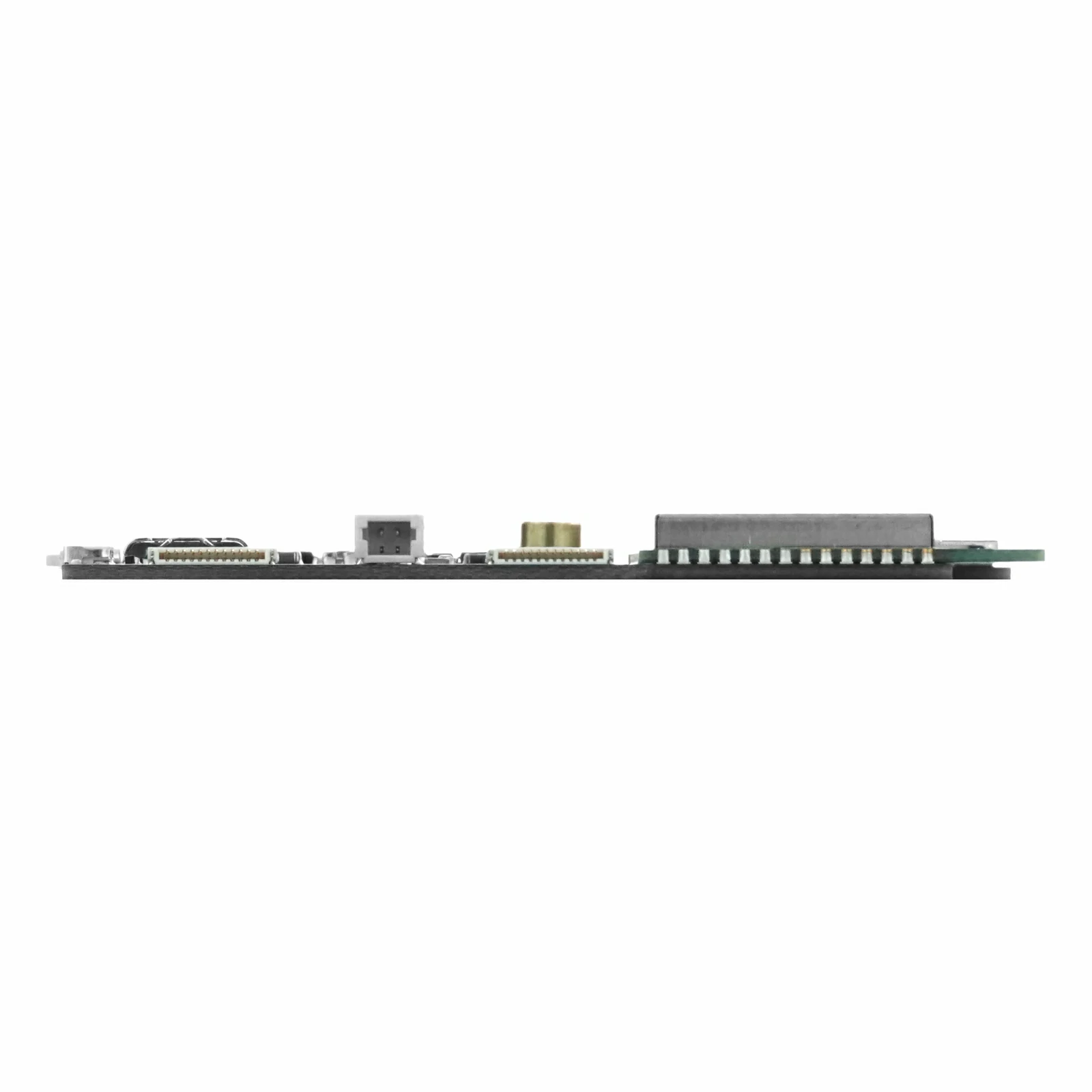

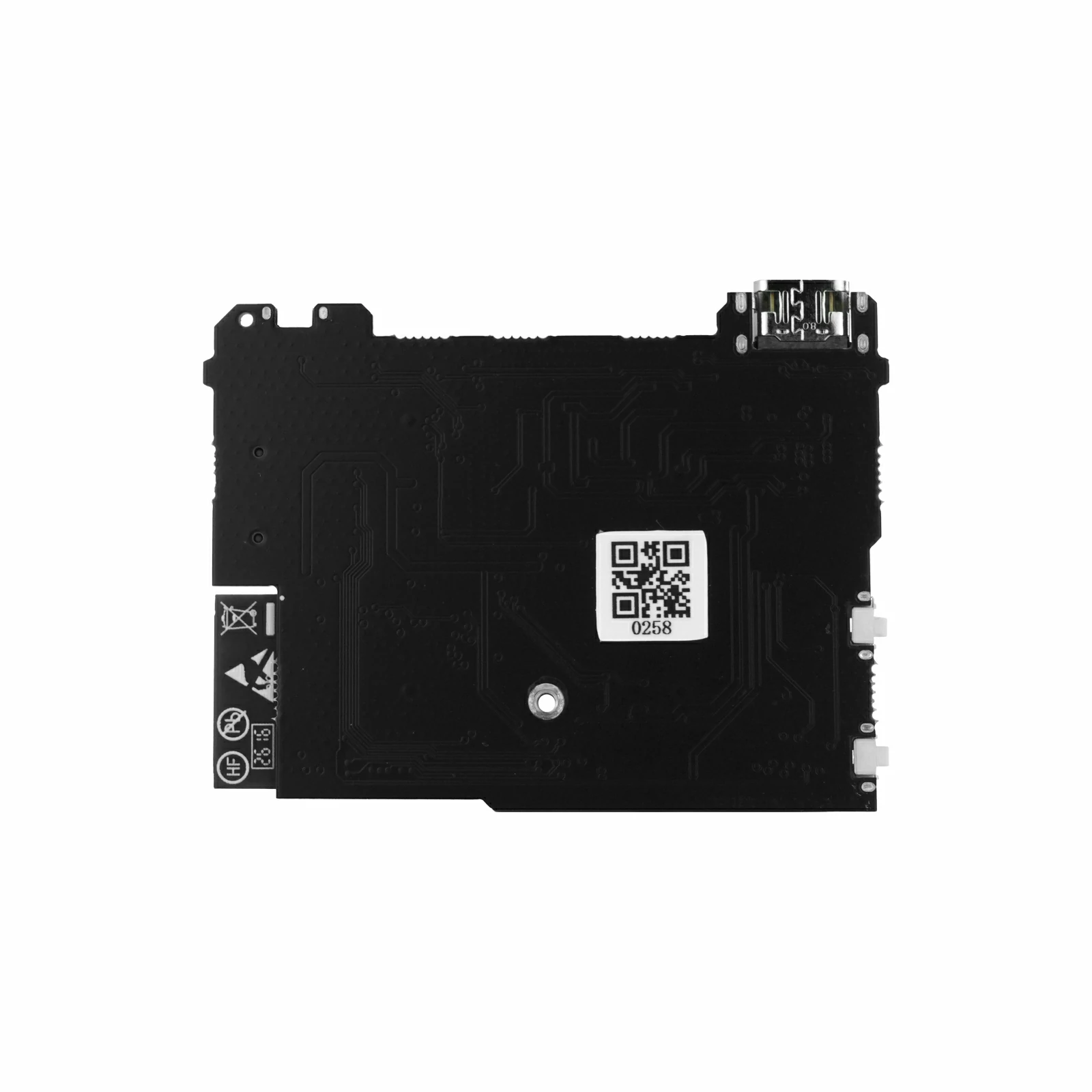

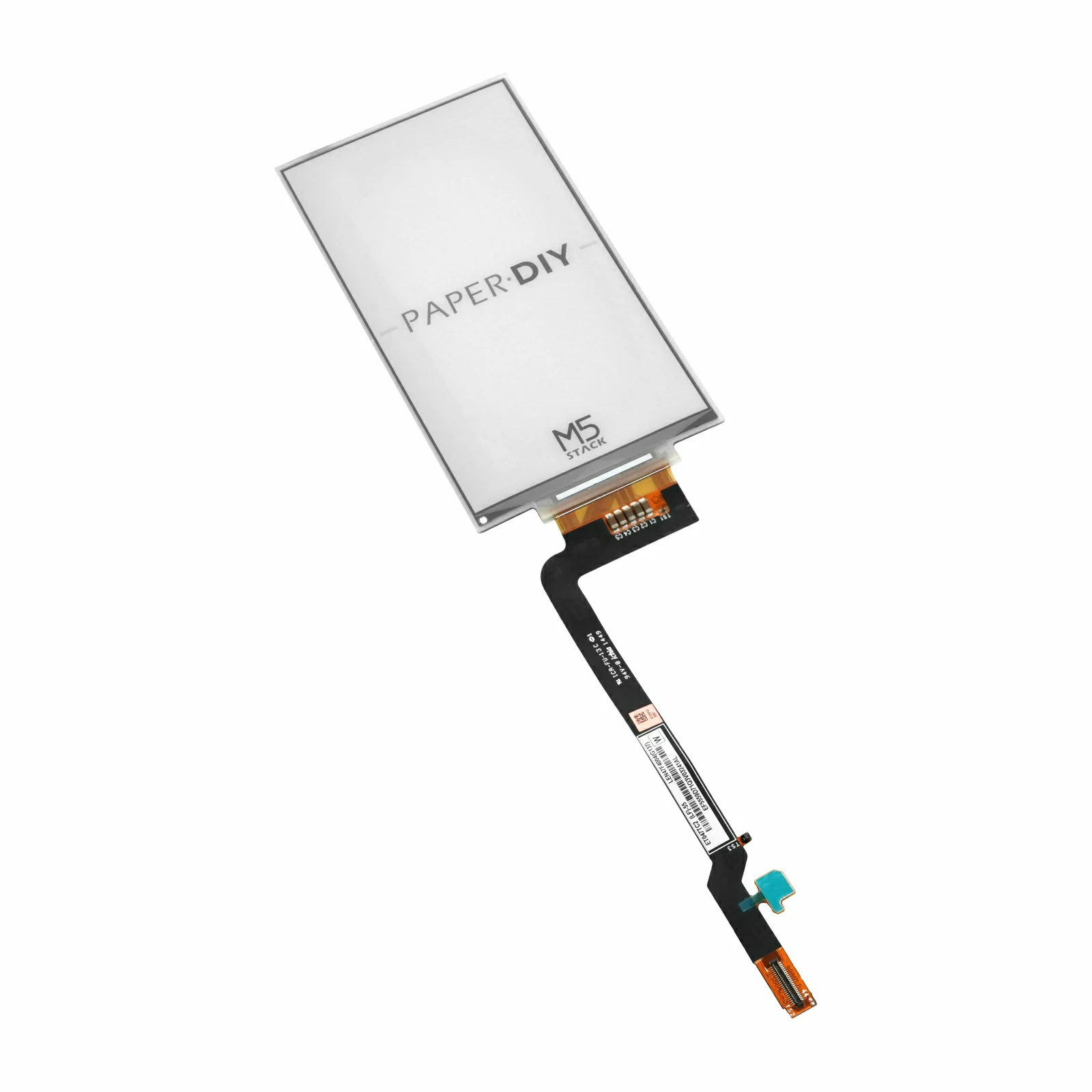

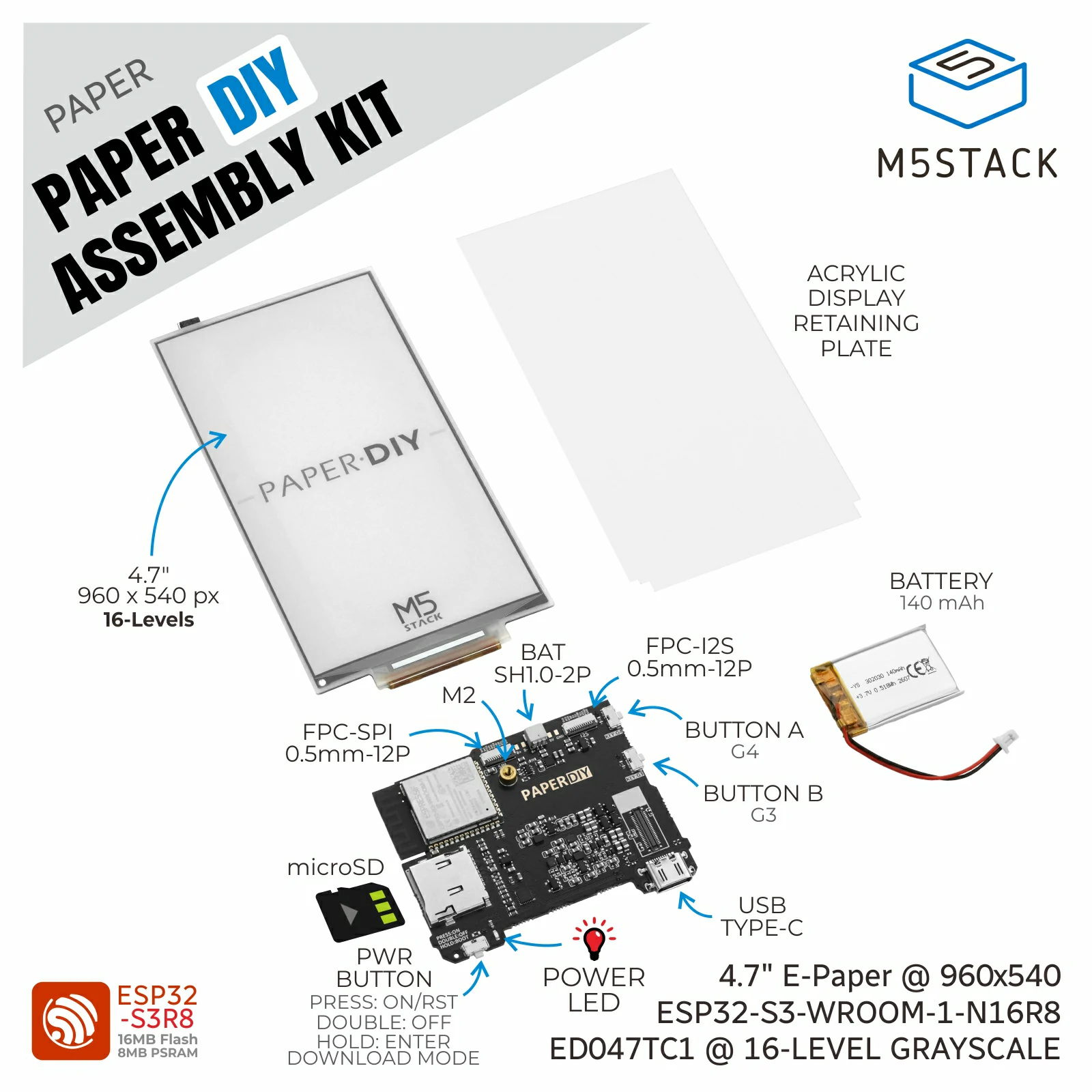

PaperDIY Assembly Kit is a DIY e-paper development board kit that includes a main control board, an e-paper display, and a 140mAh lithium battery, with hardware assembly completed by the user. The main control board uses the ESP32-S3R8 core, featuring a standard 16MB Flash + 8MB PSRAM memory combination and supporting 2.4 GHz Wi-Fi connectivity. The kit is equipped with a 4.7" e-paper display with a resolution of 960×540, supporting 16-level grayscale display. It has an onboard battery connector, a microSD card slot, and a USB Type-C interface. The open structure allows users to design their own peripheral structures, making it suitable for building desktop information displays, electronic labels, maker DIY projects, and embedded hardware development experiments.

Tutorial

UiFlow2

UiFlow2

This tutorial will introduce how to control the PaperDIY device using the UiFlow2 graphical programming platform.

Features

• ESP32-S3R8 core:
  • 16MB Flash
  • 8MB PSRAM
  • 2.4 GHz Wi-Fi
• 4.7" e-paper display, 960×540 resolution
• 16-level grayscale display
• Onboard DC 3.7V battery connector, includes a 140mAh lithium battery
• microSD card slot
• Low-power power management design

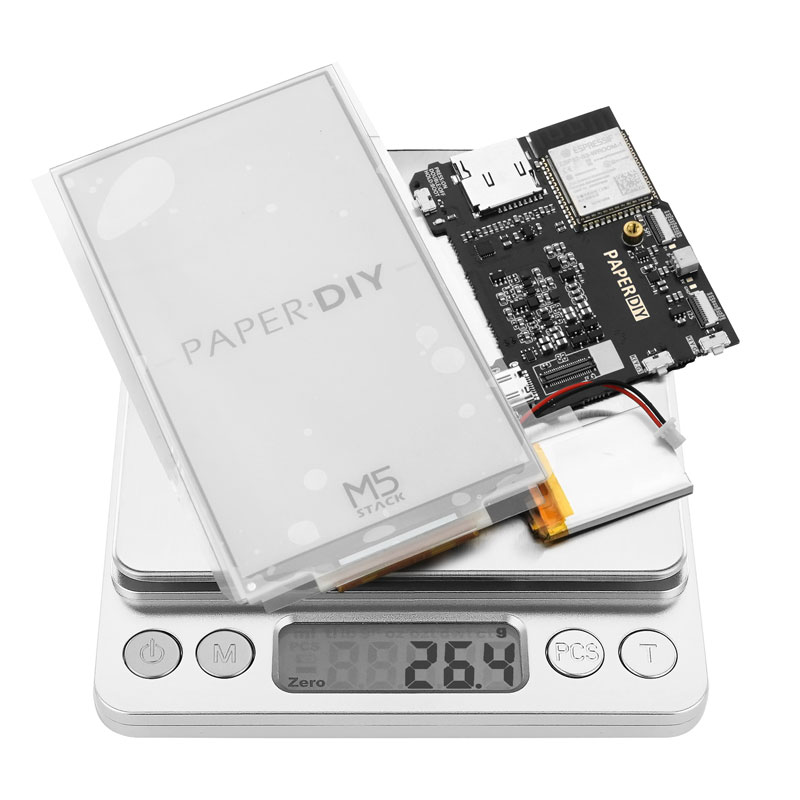

Includes

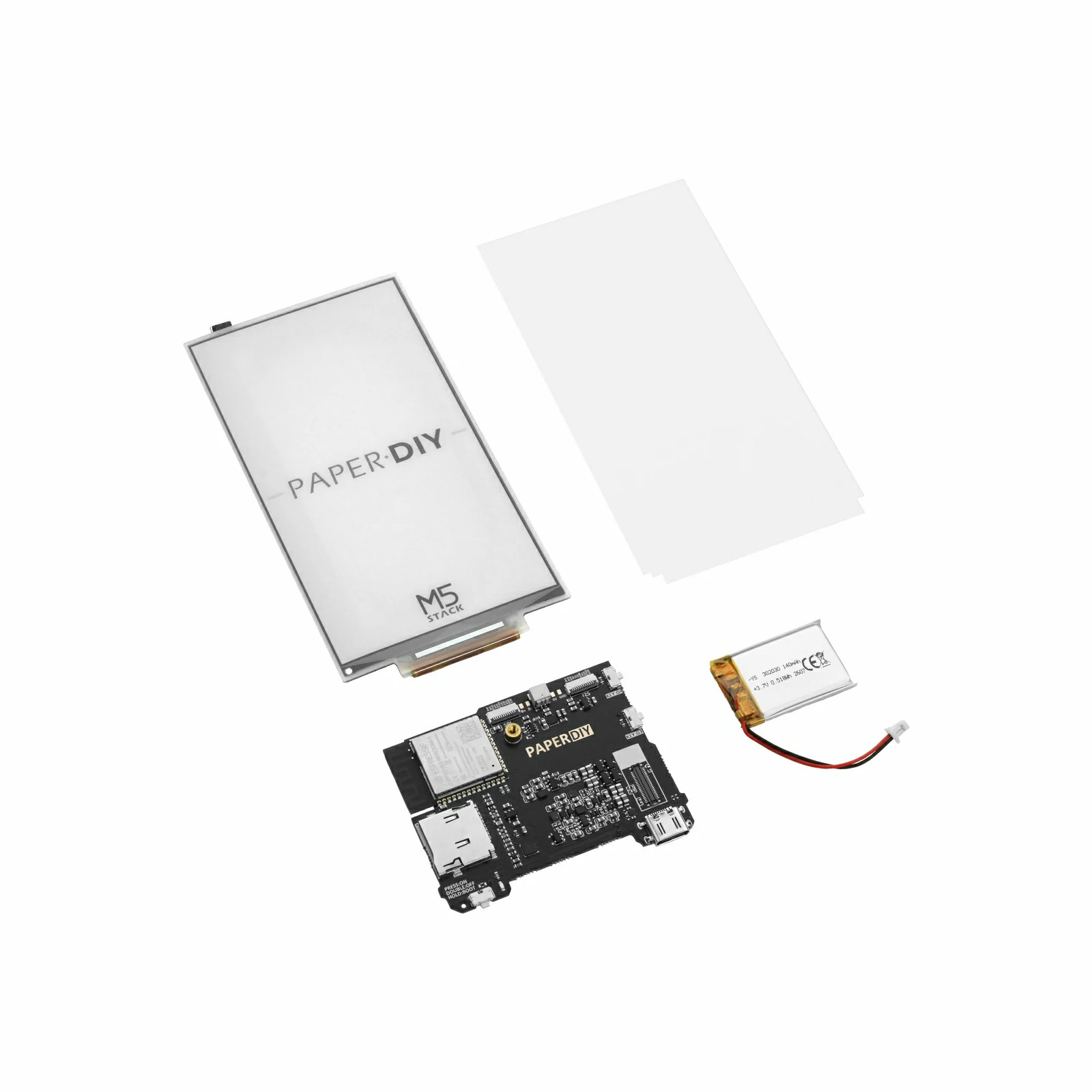

• 1 x PaperDIY (e-paper display + main control board + 140mAh battery + acrylic screen pressure plate)

Applications

• Electronic DIY creative projects
• DIY desktop information display
• Custom electronic labels, signage
• Hardware development learning and experiments

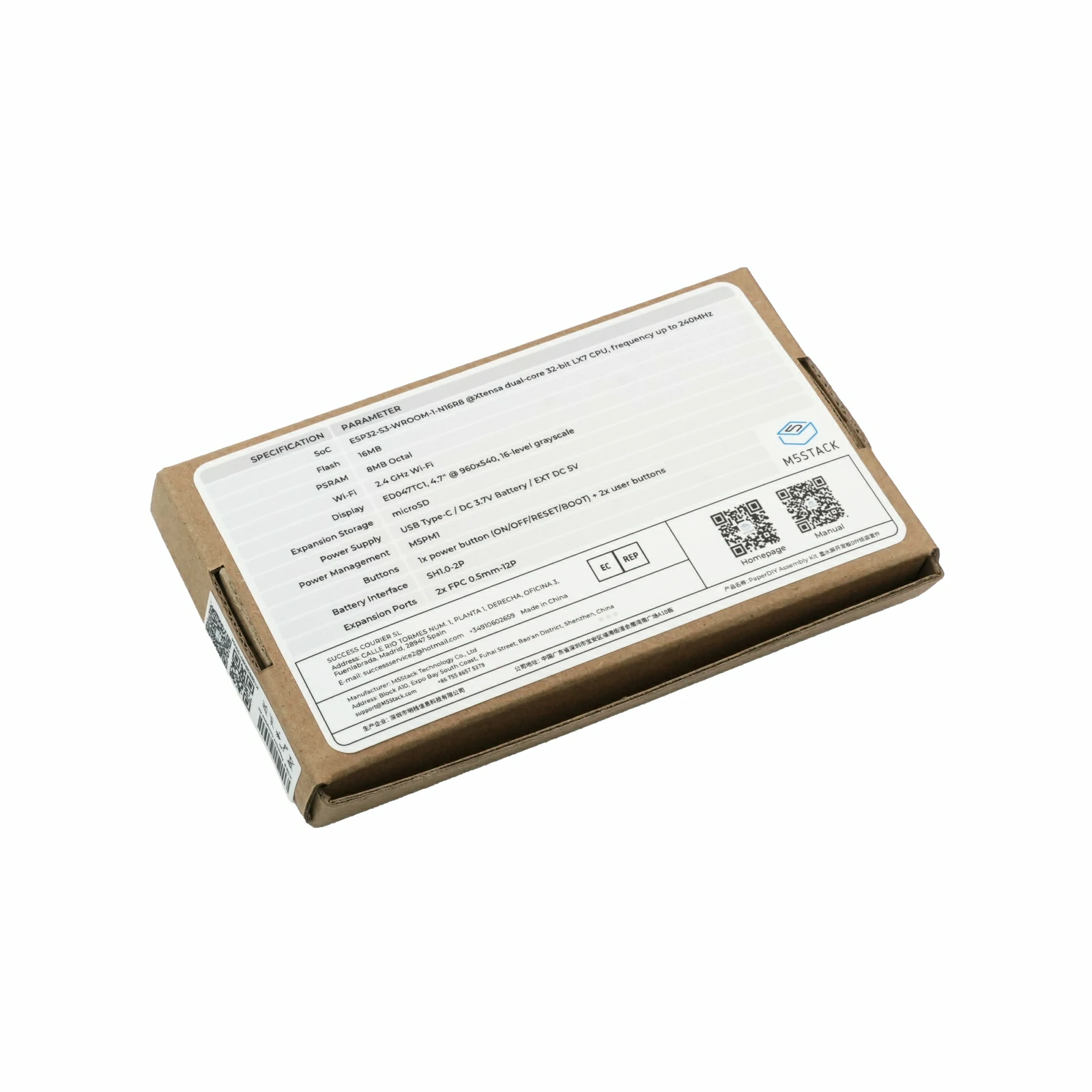

Specifications

Learn

Power On/Off

• Single click the power button: Power on / Reset
• Double-click the power button: Power off

Download Mode

Connect the device to a computer via a USB Type-C data cable. Press and hold the bottom power button until the red LED blinks, then release it. The device enters download mode.

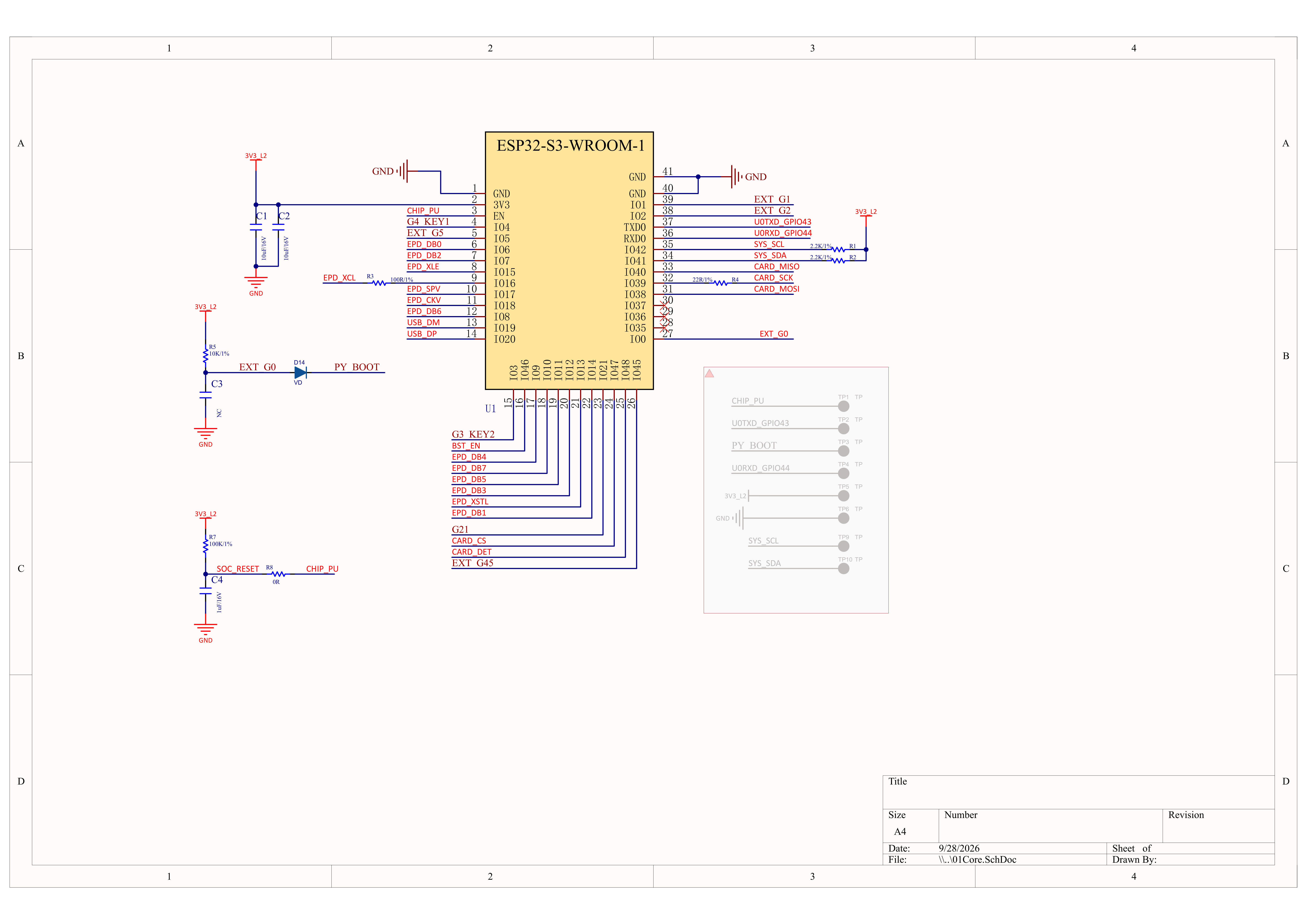

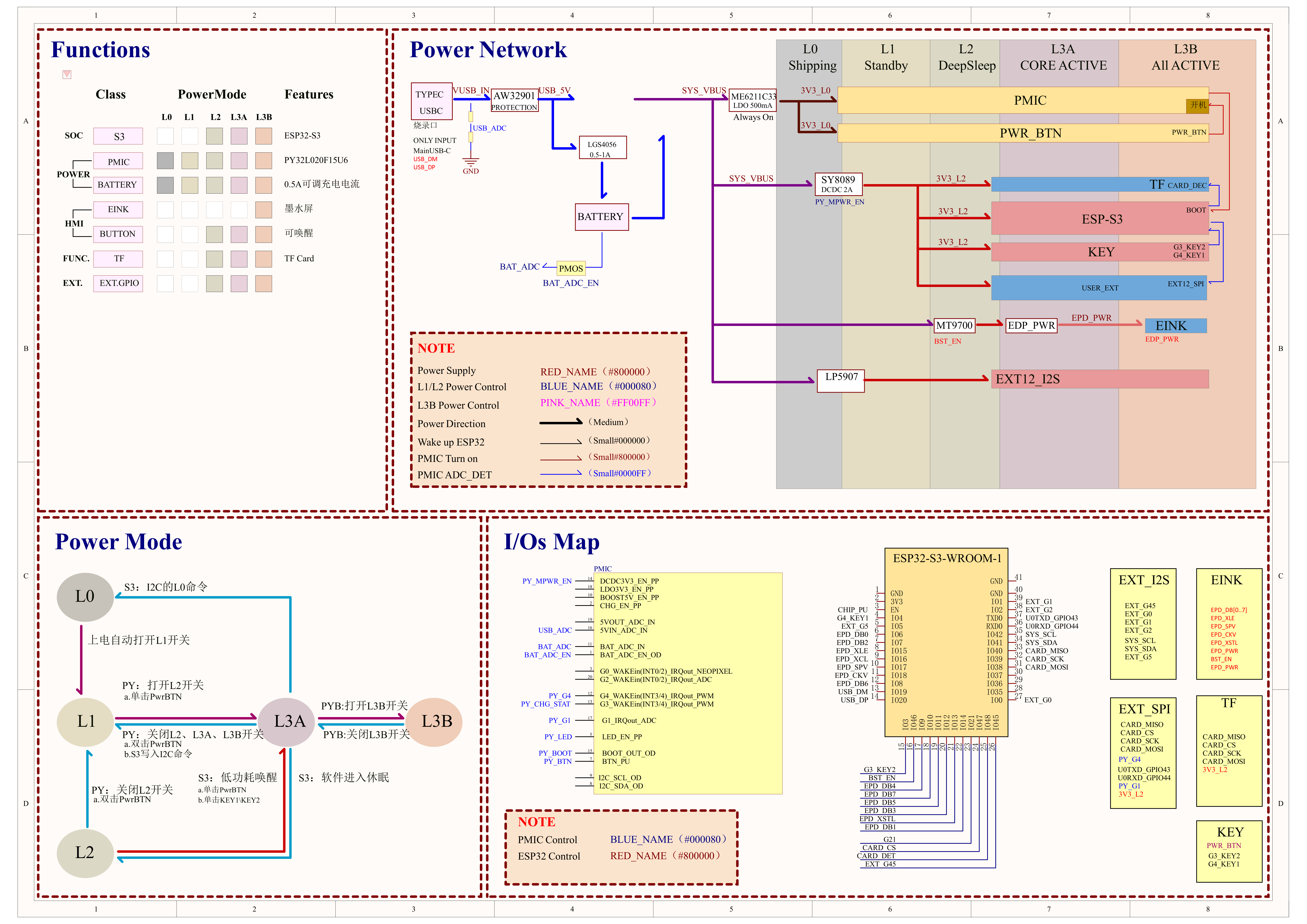

Schematics

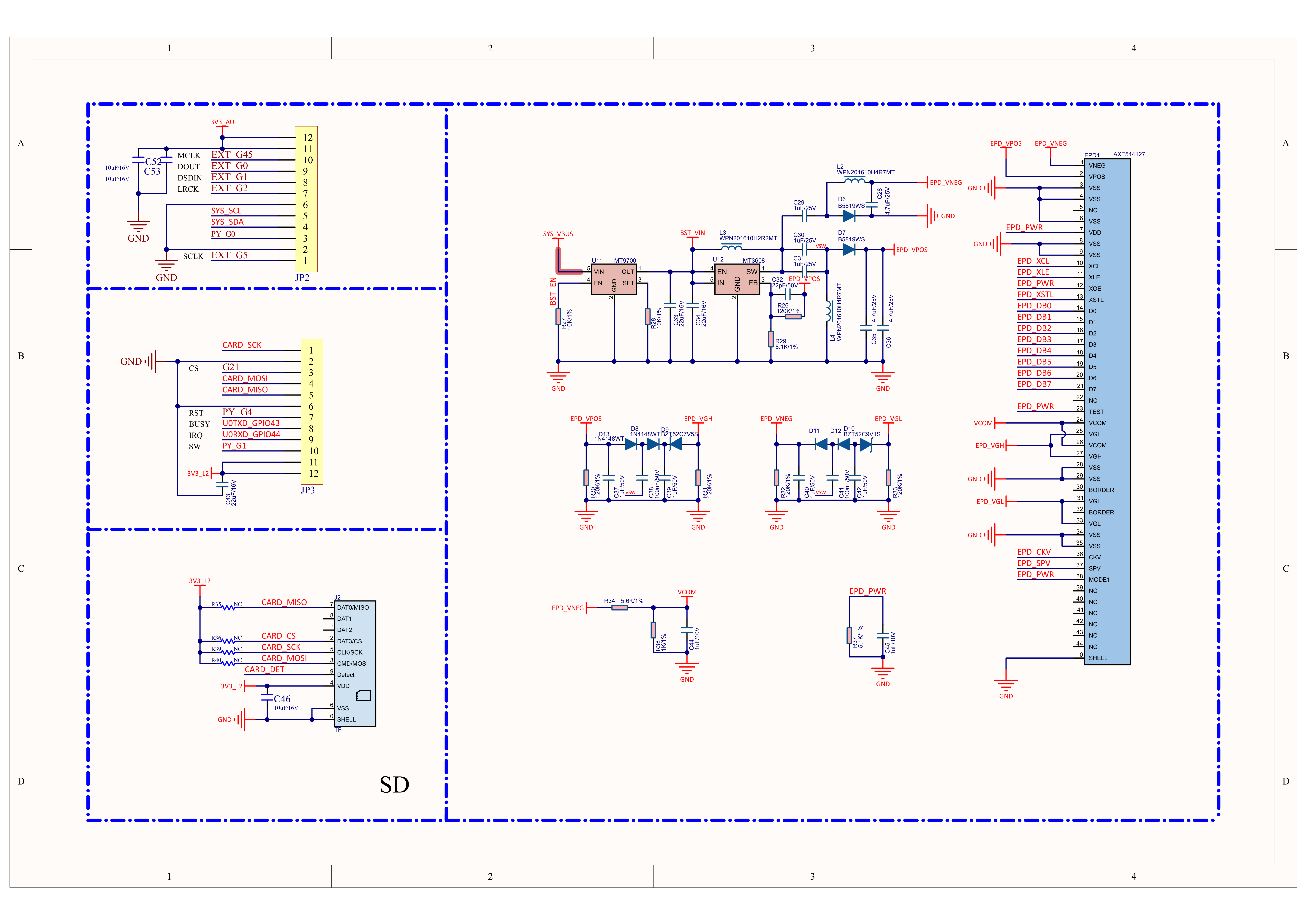

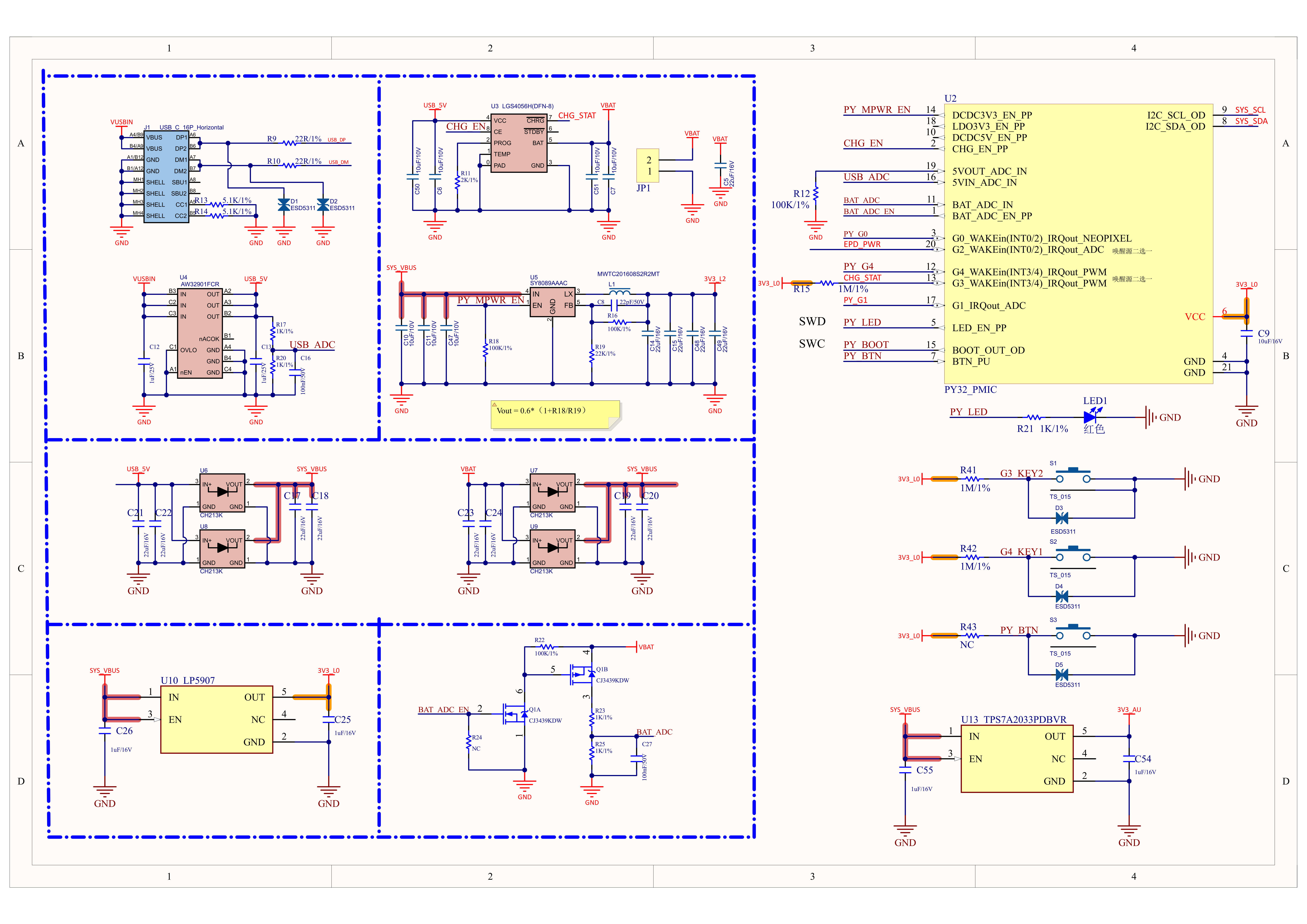

• PaperDIY Schematics PDF

1/4

PinMap

1/2

E-Paper

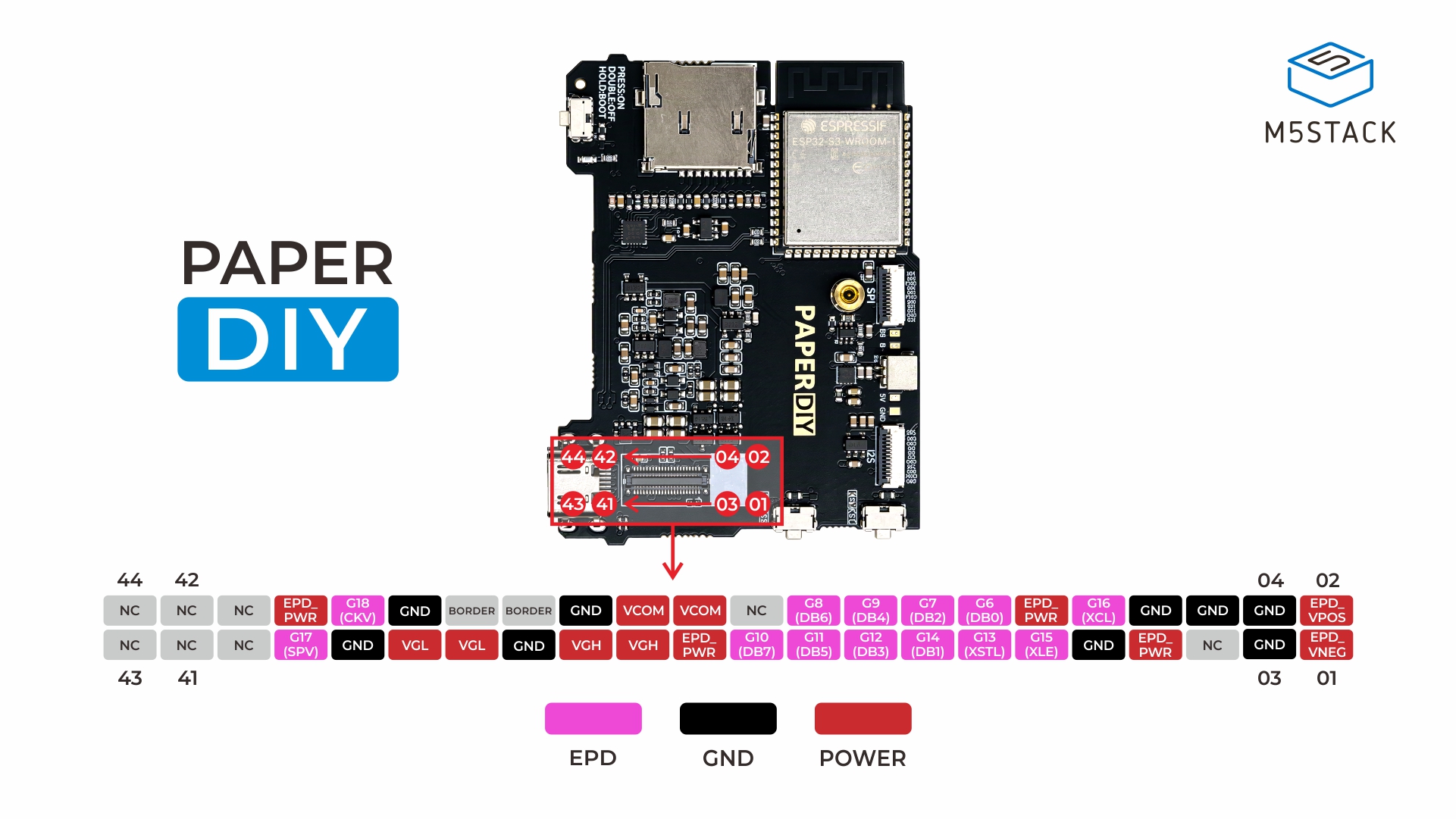

The power supply to the e-paper display and its driver circuit is controlled via PYG2 (EPD_PWR) of the M5PM1 power management chip, and G46 (BST_EN) controls the enable of the e-paper boost circuit.

microSD

Button

The power button is connected to the PY_BTN (BTN_PU) pin of the M5PM1 power management chip.

M5PM1

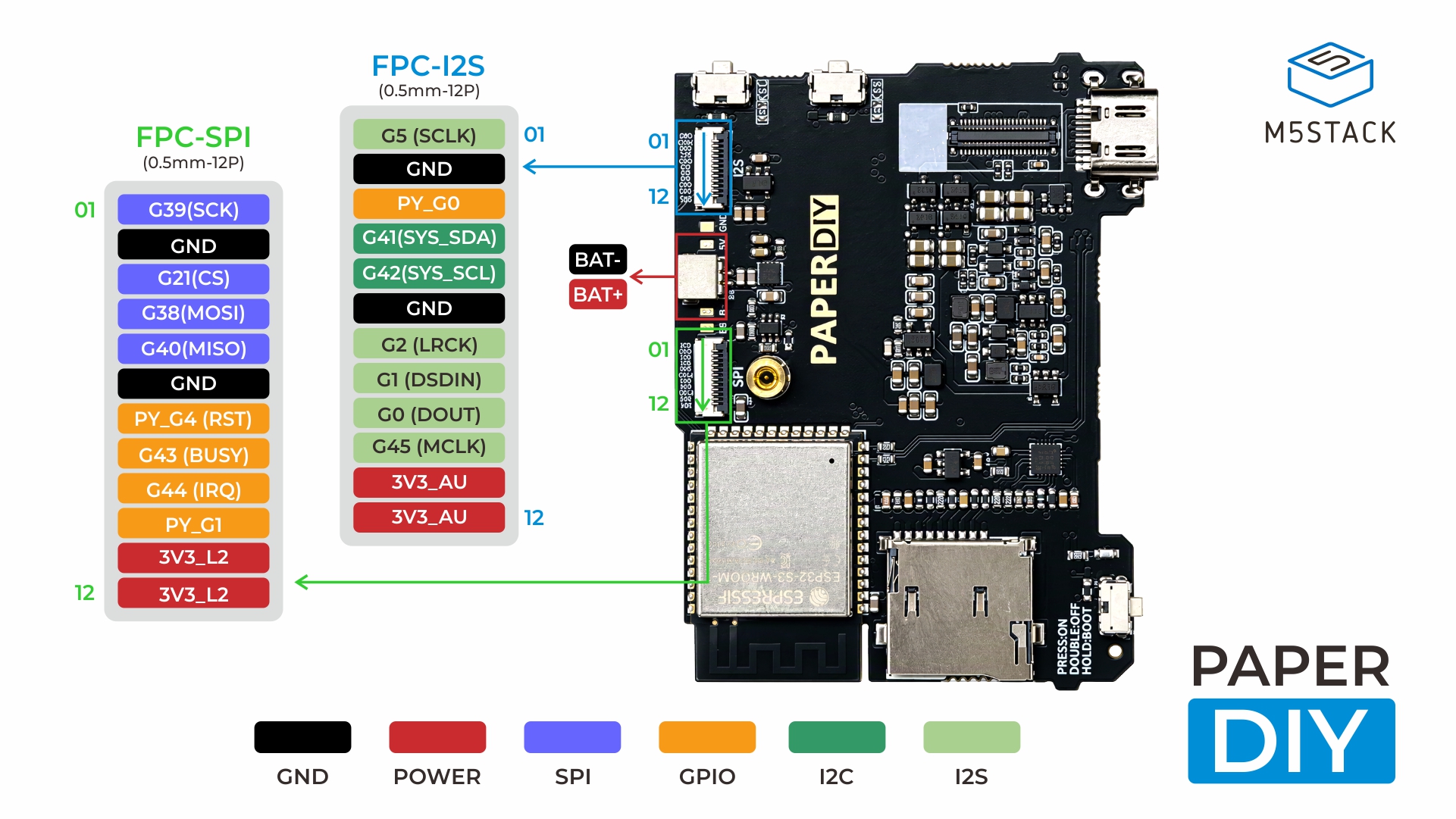

• PYG0(PY_G0): FPC - I2S interface expansion signal
• PYG1(PY_G1): FPC - SPI interface switch signal
• PYG2(EPD_PWR): Power enable for the e-paper display and its driver circuit
• PYG3(CHG_STAT): Charging status
• PYG4(PY_G4): FPC - SPI interface reset signal

FPC - I2S

FPC - SPI

Model Size

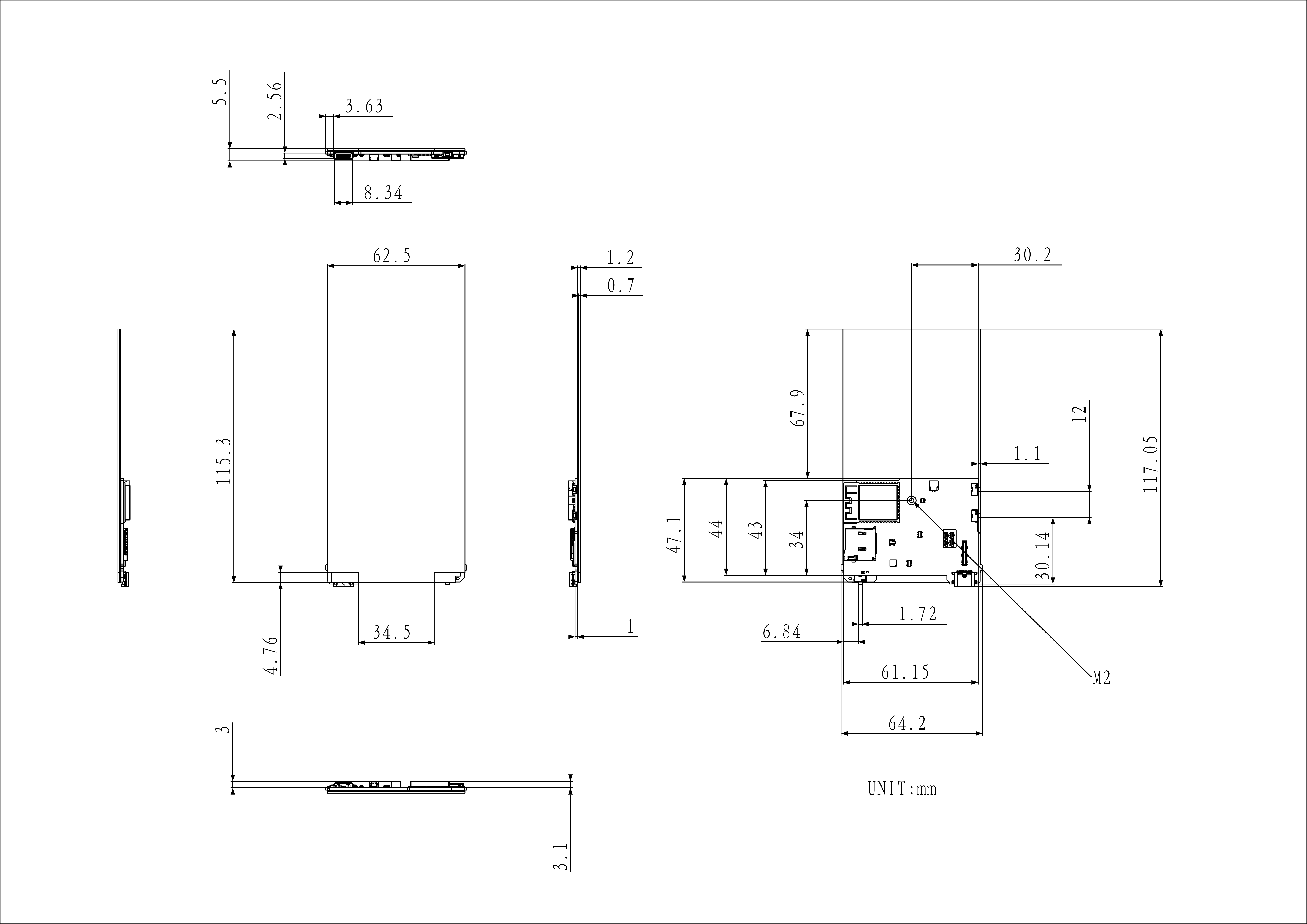

• PaperDIY Assembly Kit Model Size PDF

Structure

• PaperDIY Structure Files

Datasheets

• ESP32-S3-WROOM-1-N16R8

Softwares

Arduino

• PaperDIY Arduino Quick Start
• PaperDIY M5PM1 Power Management
• M5PM1 Arduino Library
• PaperDIY Arduino M5Unified Driver Library
• PaperDIY Arduino M5GFX Driver Library

UiFlow2

• PaperDIY UiFlow2 Quick Start

ESP-IDF

• PaperDIY Factory Firmware Source Code

Other

• PaperDIY Factory Firmware WebBurner

Video

Product Comparison

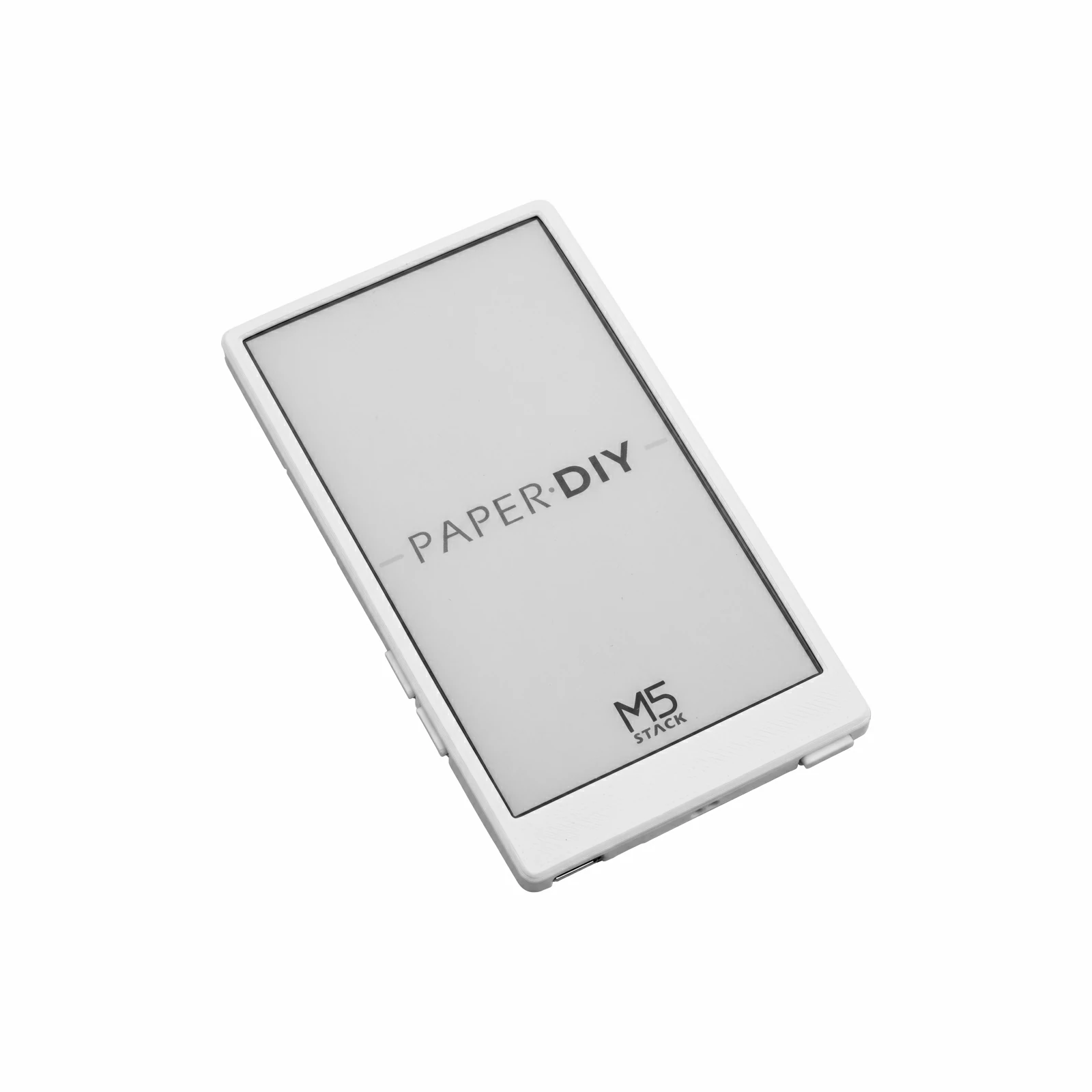

Product Compare	PaperDIY Complete Kit	PaperDIY Assembly Kit
Assembly Type	Hardware assembly completed at the factory, with pre-installed 3D printed enclosure	User assembles by themselves, open structure
3D Printed Enclosure	Standard PLA 3D printed enclosure, enclosure model is open-source, supports reprinting and custom modification	❌️ (Open structure, supports user-designed peripheral structures)
Package Contents	E-paper display + main control board + 140mAh battery + acrylic screen pressure plate (pre-installed 3D printed enclosure)	E-paper display + main control board + 140mAh battery + acrylic screen pressure plate
Main Control / Memory	ESP32-S3R8, 16MB Flash + 8MB PSRAM	ESP32-S3R8, 16MB Flash + 8MB PSRAM
E-Paper	4.7" ET047TC1, 540 x 960, 16-level grayscale	4.7" ET047TC1, 540 x 960, 16-level grayscale
Battery	140mAh	140mAh
