Stamp-AddOn Cam0308
SKU:A178
Description

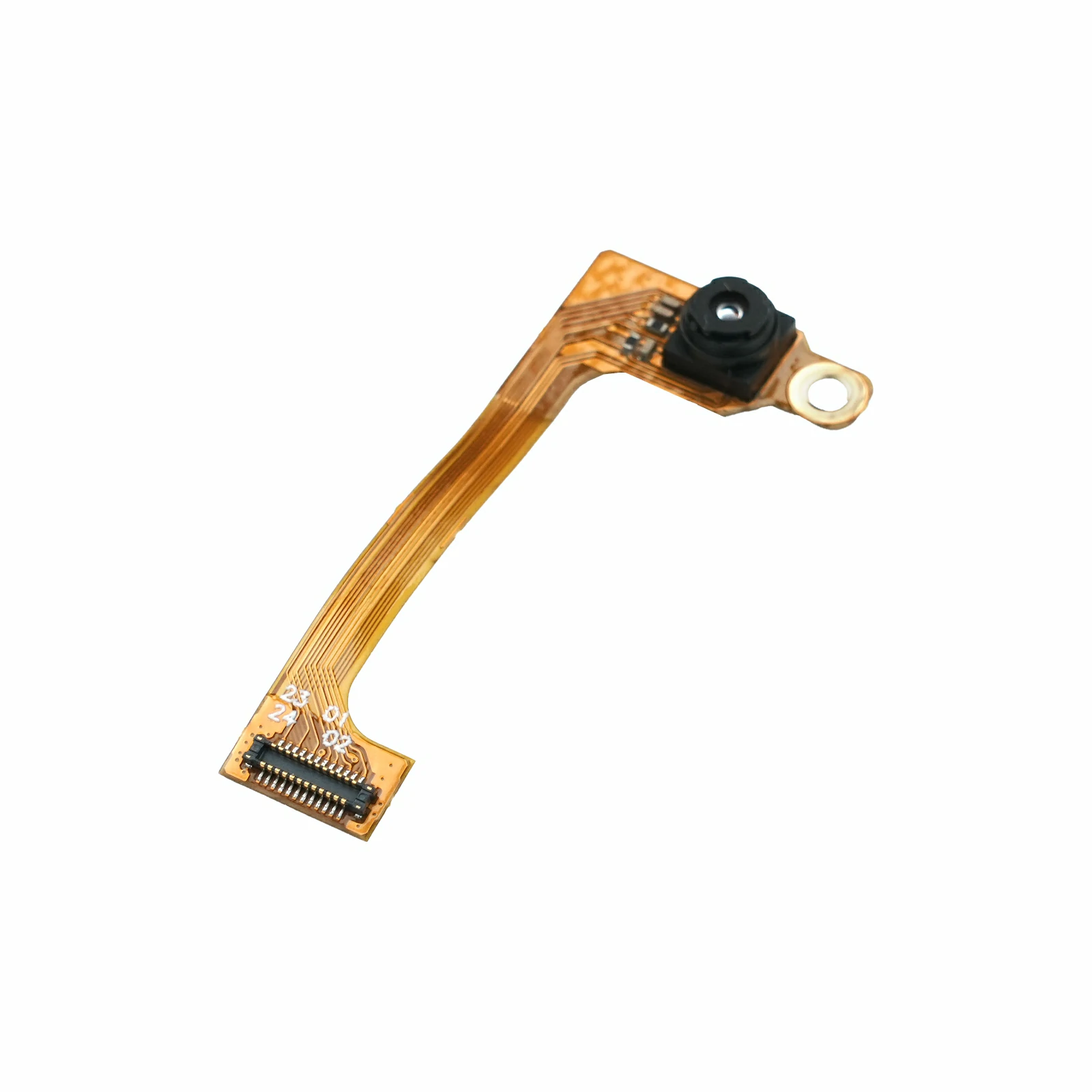

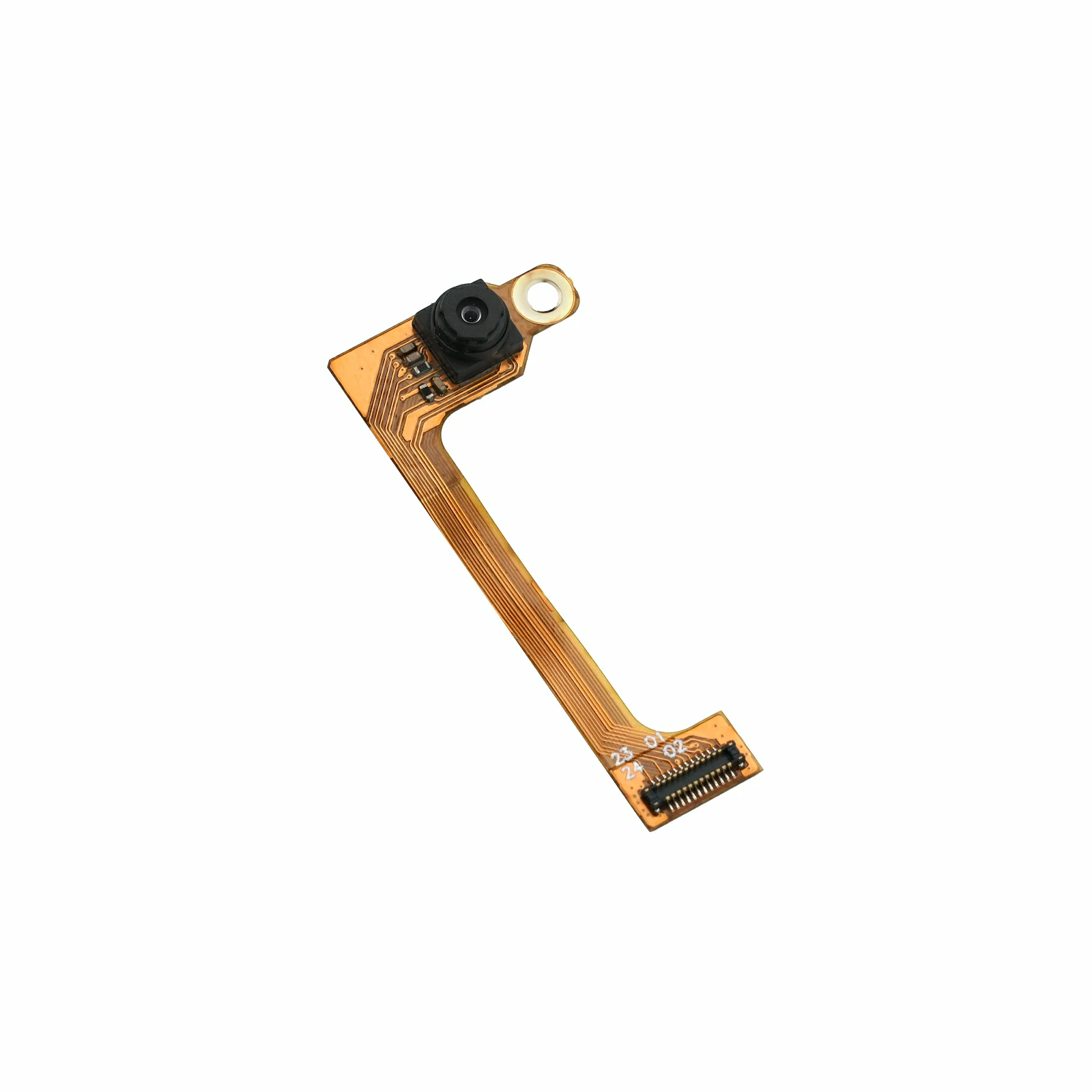

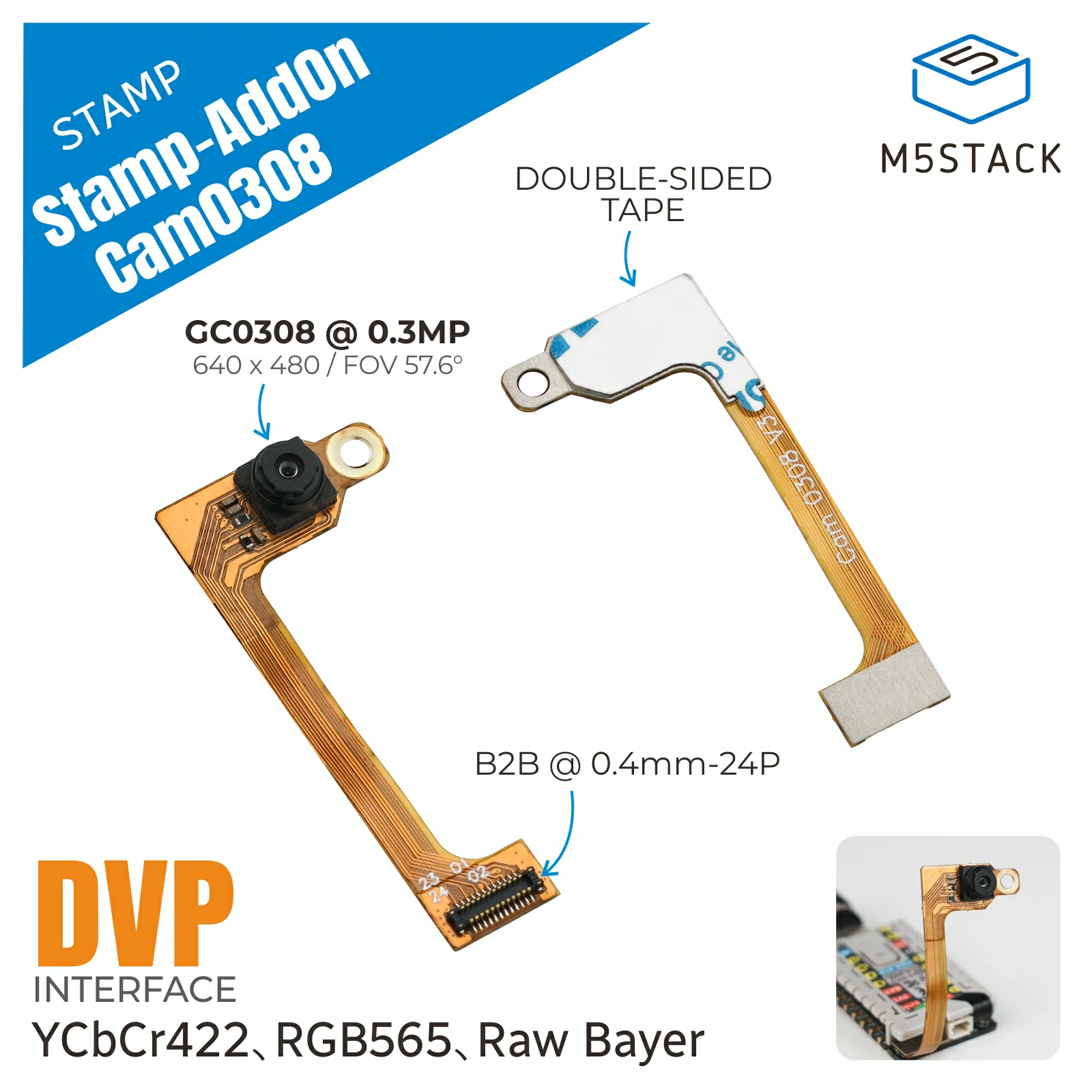

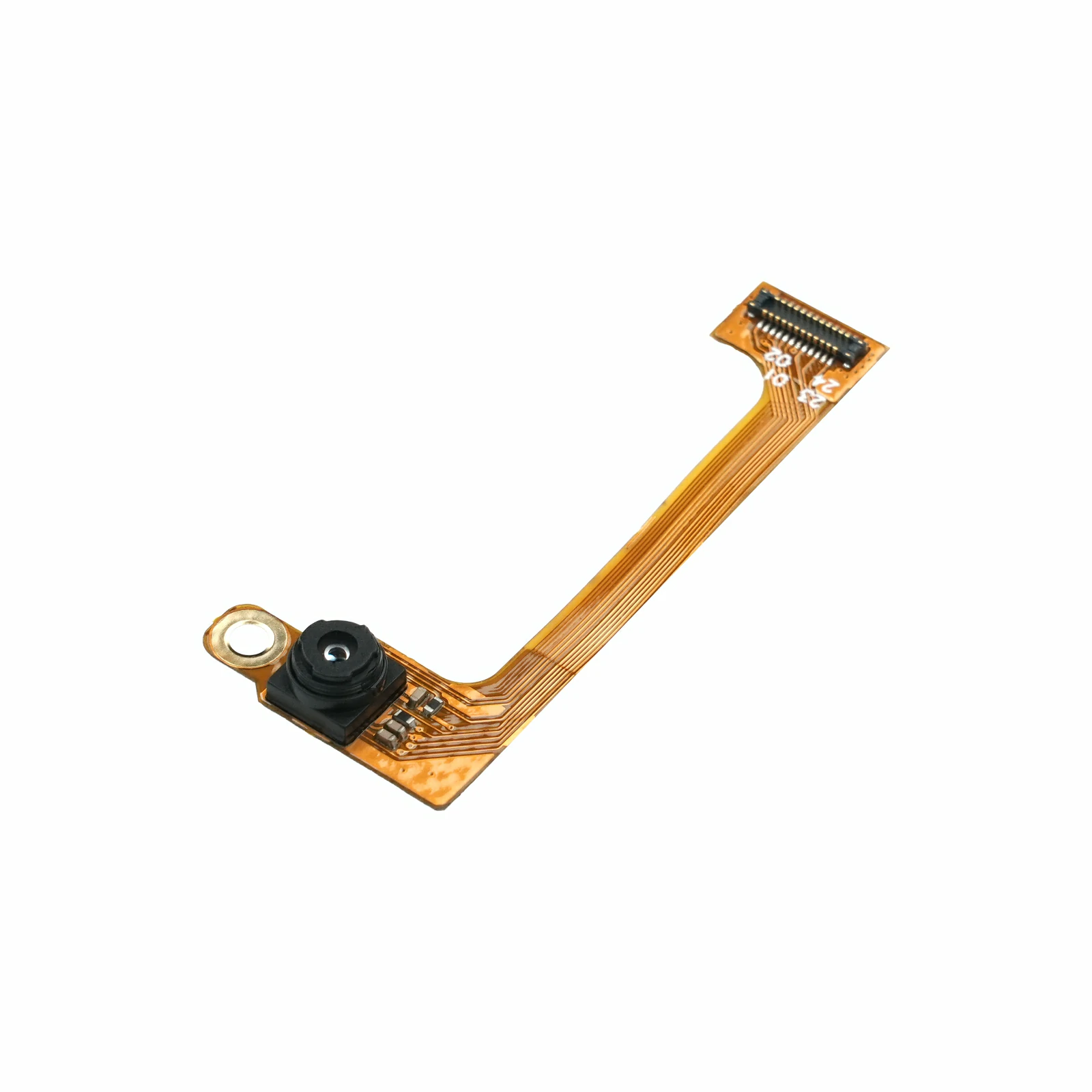

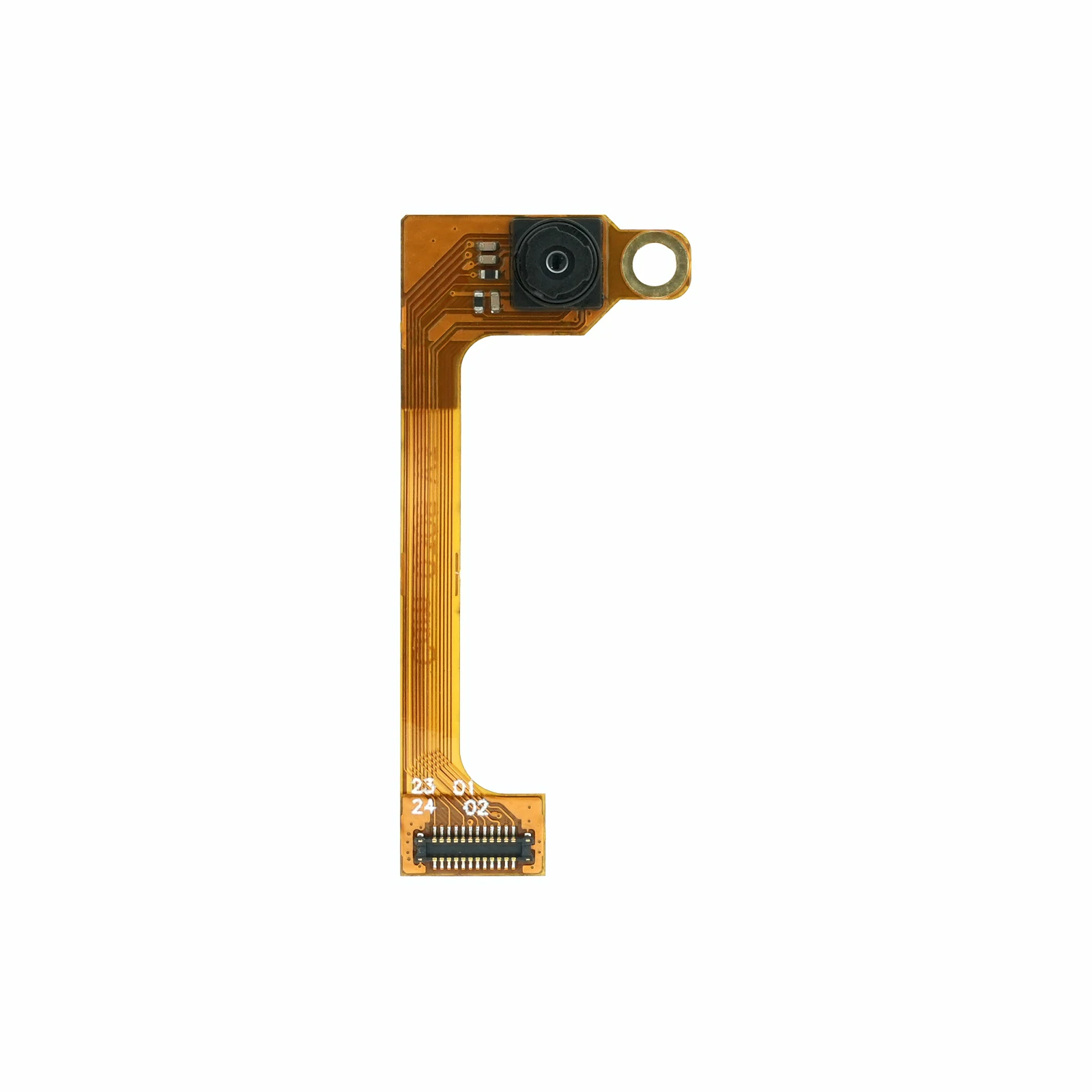

Stamp-AddOn Cam0308 is a miniature CMOS camera expansion module designed for Stamp-S3Bat. It features a 0.3MP GC0308 image sensor, an L-shaped flexible FPC structure, a 24Pin B2B board-to-board connector on the bottom, and a metal mounting hole beside the lens. The module outputs image data through an 8-bit DVP parallel interface and uses an SCCB bus for register configuration. It supports QVGA (320 x 240) and VGA (640 x 480) image capture. Its compact structure is suitable for integration into space-constrained devices and can be used in embedded vision applications such as image capture, code recognition, and visual inspection.
Features
- 0.3MP GC0308 CMOS image sensor
- Supports QVGA (320 x 240) and VGA (640 x 480) resolutions
- Supports YCbCr 4:2:2, RGB565, and Raw Bayer output formats
- 8-bit DVP parallel image output interface
- SCCB configuration bus
- Supports PWDN low-power control and hardware reset
- L-shaped flexible FPC structure with an integrated 24Pin B2B board-to-board connector

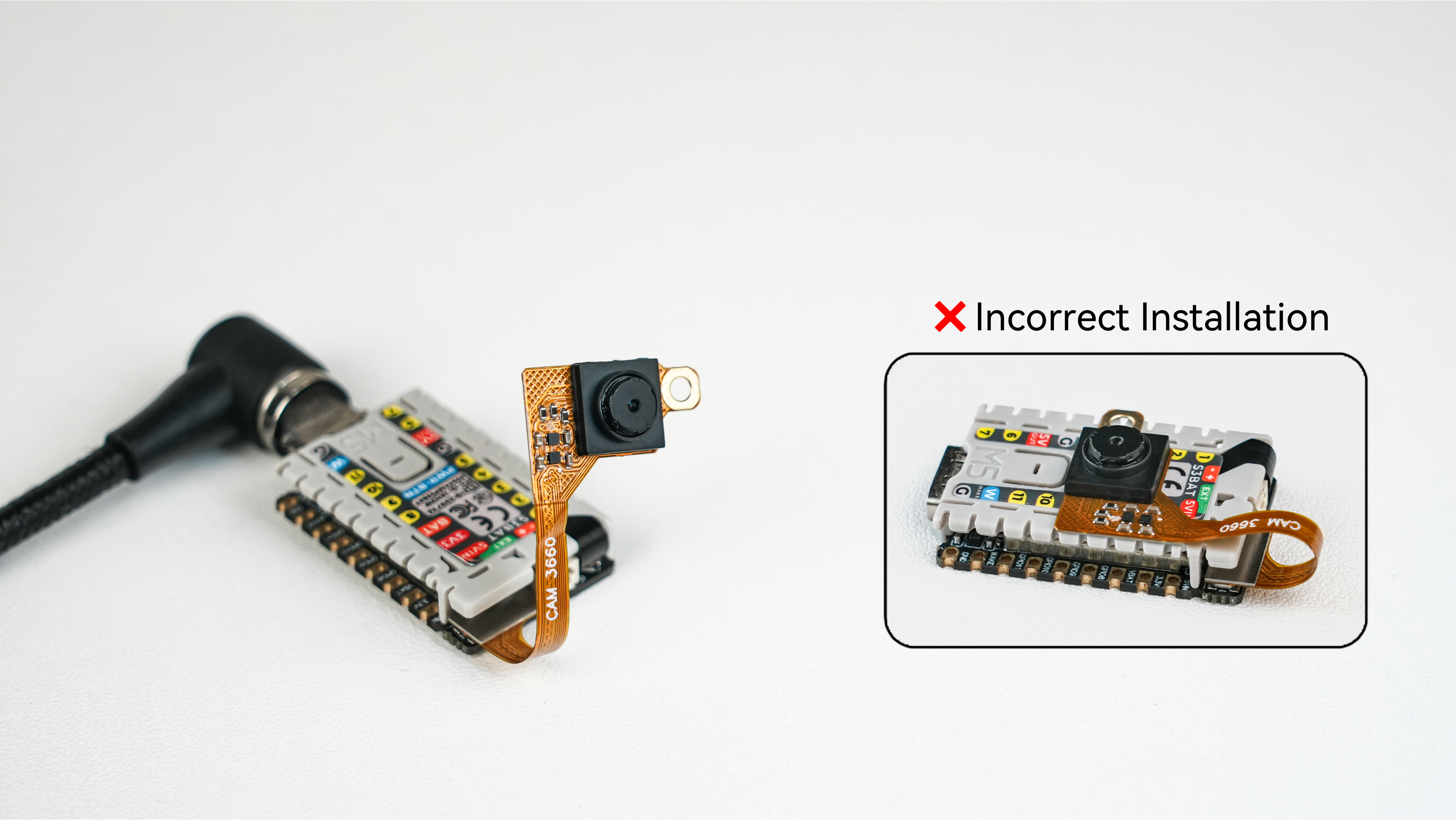

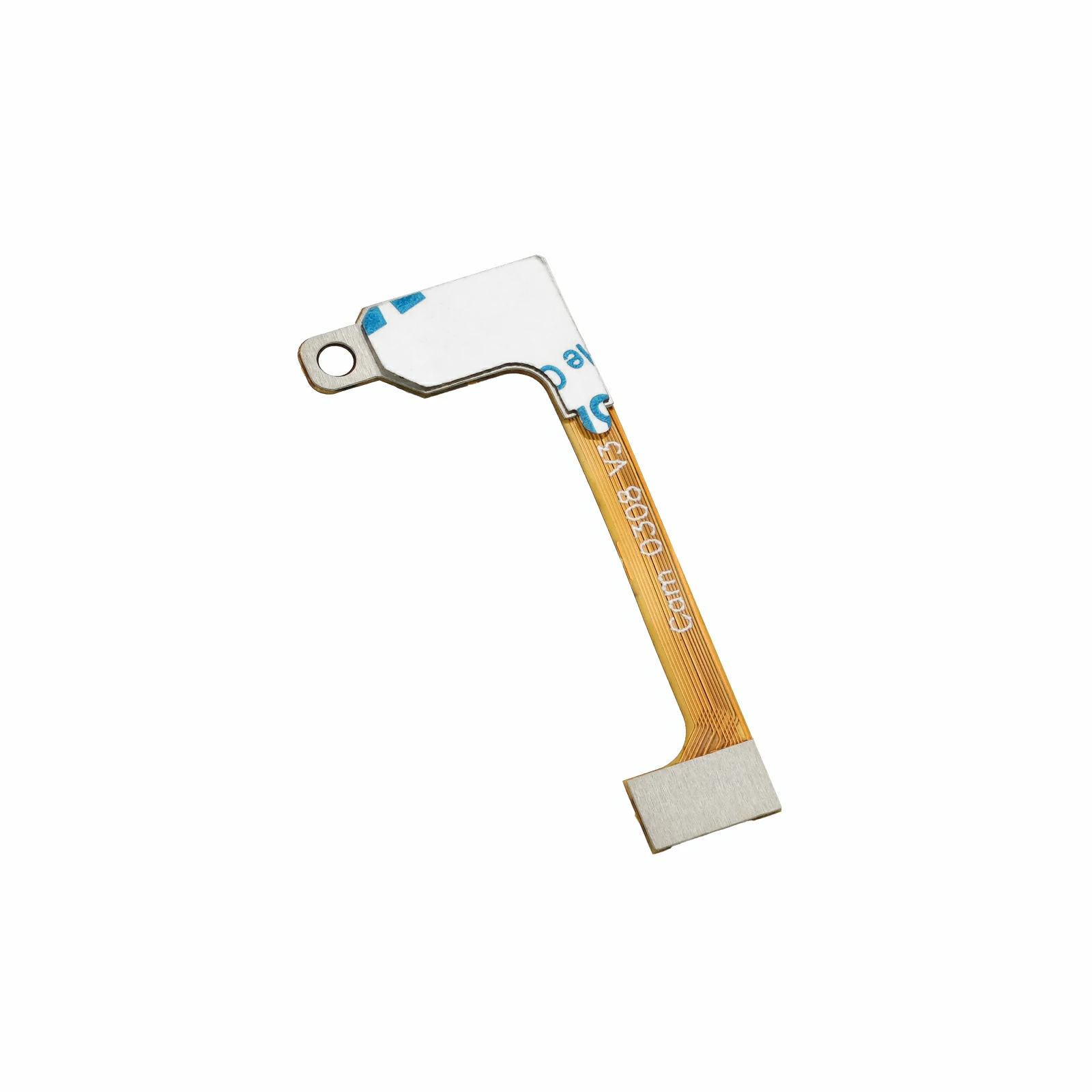

- Side metal mounting hole for secure screw mounting
- Compatible with Stamp-S3Bat
Includes
- 1 x Stamp-AddOn Cam0308
Applications
- Embedded image capture
- QR code recognition
- Object contour and color detection
- Video monitoring and wireless video transmission
- IoT vision sensor nodes
Specifications
| Specification | Parameter |
|---|---|
| Image Sensor | GC0308 CMOS |
| Effective Pixels | 0.3MP |
| Maximum Resolution | 640 x 480 |
| Lens Size | 1/6.5 inch |
| Focal Length | 2.59 ±5% mm |
| Aperture | F2.8 ±5% |
| Field of View | 57.6° |
| Distortion | <1.0% |
| Focus Type | Fixed Focus (FF) |
| Shooting Range | 20cm ~ ∞ |
| Focus Distance | 60cm, adhesive fixed |
| Supported Resolutions | QVGA (320 x 240) / VGA (640 x 480) |
| Maximum Frame Rate | 30fps |
| Output Formats | YCbCr 4:2:2, RGB565, Raw Bayer |
| Image Output Interface | 8-bit DVP parallel interface |
| Configuration Interface | SCCB |
| Device Address | 0x21 |
| Connection | 24Pin B2B board-to-board connector |
| External Clock | 20MHz |
| Interface Voltage | DC 3.3V |
| Analog Circuit Voltage (AVDD) | 2.7 ~ 3.0V |
| Control Signals | PWDN, RESET |
| Operating Temperature | -20 ~ 60°C |
| Compatible Device | Stamp-S3Bat |
Schematics
1/1

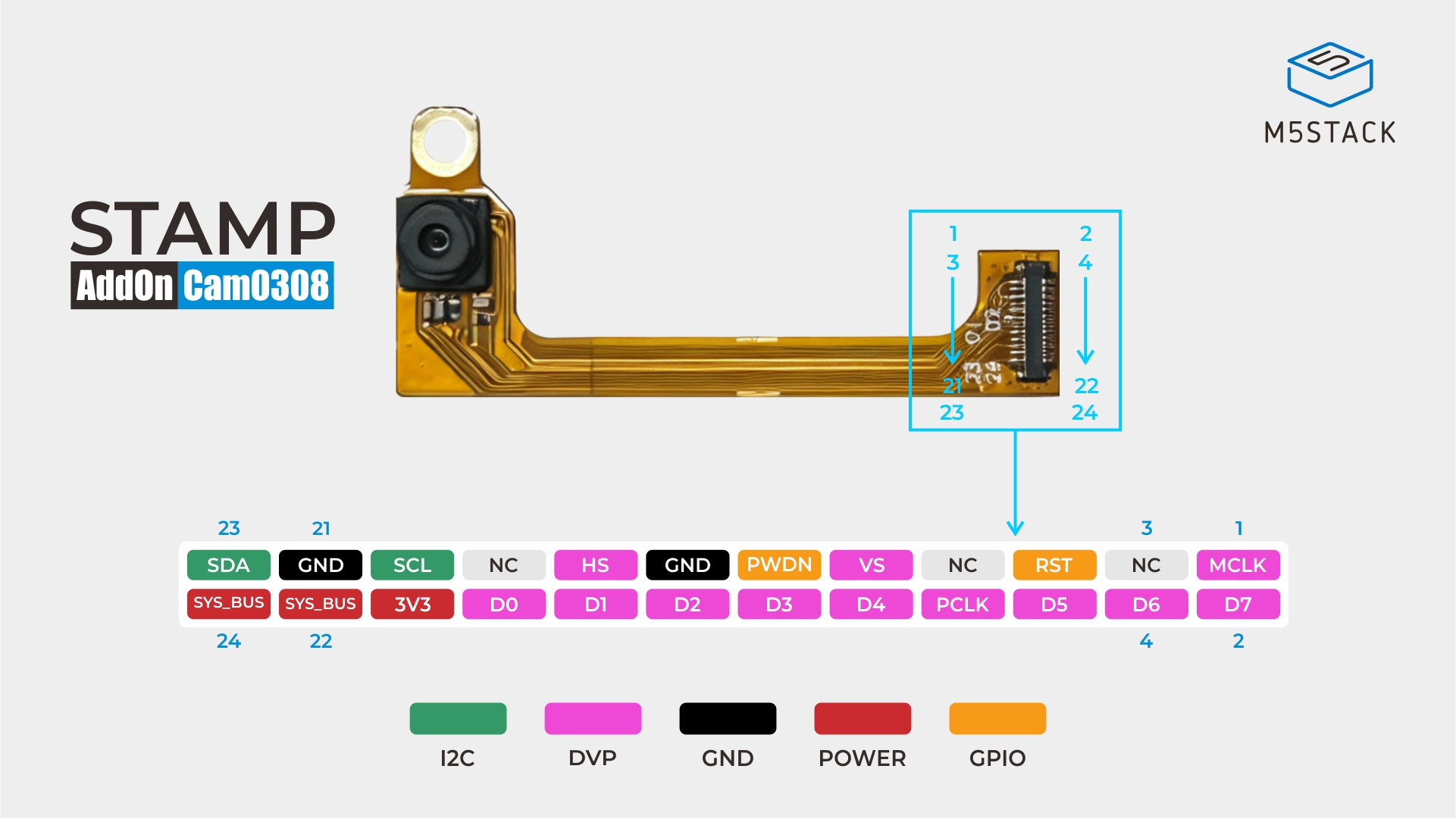

PinMap
| EXP.B2B | Stamp-AddOn Cam0308 |
|---|---|
| 1 | MCLK |
| 2 | D7 |
| 3 | NC |
| 4 | D6 |
| 5 | RESET |
| 6 | D5 |
| 7 | NC |
| 8 | PCLK |
| 9 | VS |
| 10 | D4 |
| 11 | PWDN |
| 12 | D3 |
| 13 | GND |
| 14 | D2 |
| 15 | HS |
| 16 | D1 |
| 17 | NC |
| 18 | D0 |
| 19 | SCL |
| 20 | VCC3.3V |
| 21 | GND |
| 22 | SYS |
| 23 | SDA |
| 24 | SYS |
