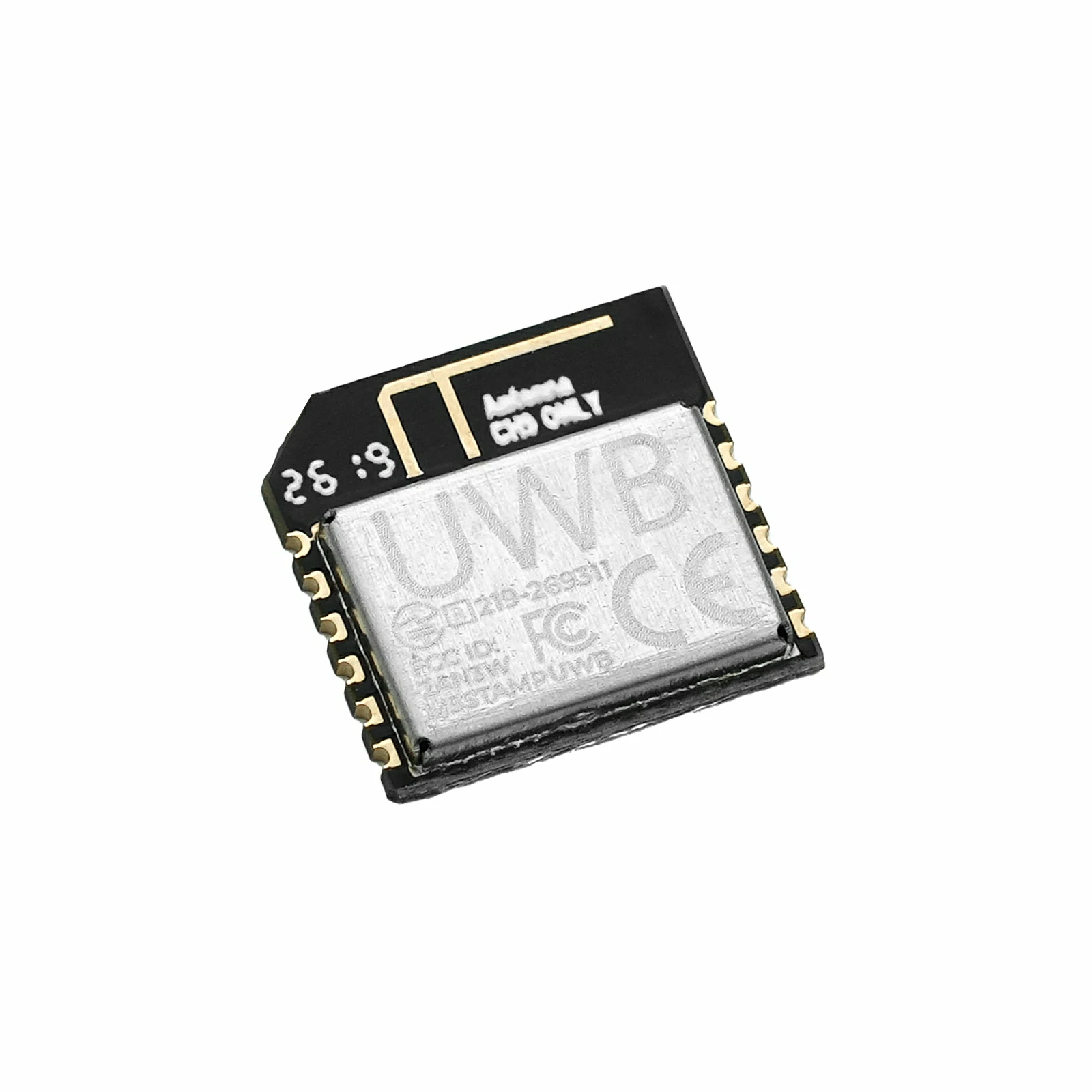

Stamp UWB F

SKU:S017-F

Description

Stamp UWB F is an ultra-compact embedded UWB ranging module. A 0.5mm-12P FPC connector is pre-soldered on the back of the module, allowing external connection through a 0.5mm-12P FPC cable. It integrates the low-power QM33120W UWB transceiver, is compatible with IEEE 802.15.4-2020 and IEEE 802.15.4z-2020 BPRF, and operates on UWB Channel 9 with a center frequency of 7987.2 MHz. With its compact size and stable RF performance, the module supports TWR and TDoA positioning solutions for centimeter-level ranging and high-precision positioning. The current driver library supports both Single-Sided Two-Way Ranging (SS-TWR) and Double-Sided Two-Way Ranging (DS-TWR). It is suitable for indoor personnel positioning, cargo and asset tracking, proximity detection, robot navigation, and other applications.

Note

Wiring Instructions

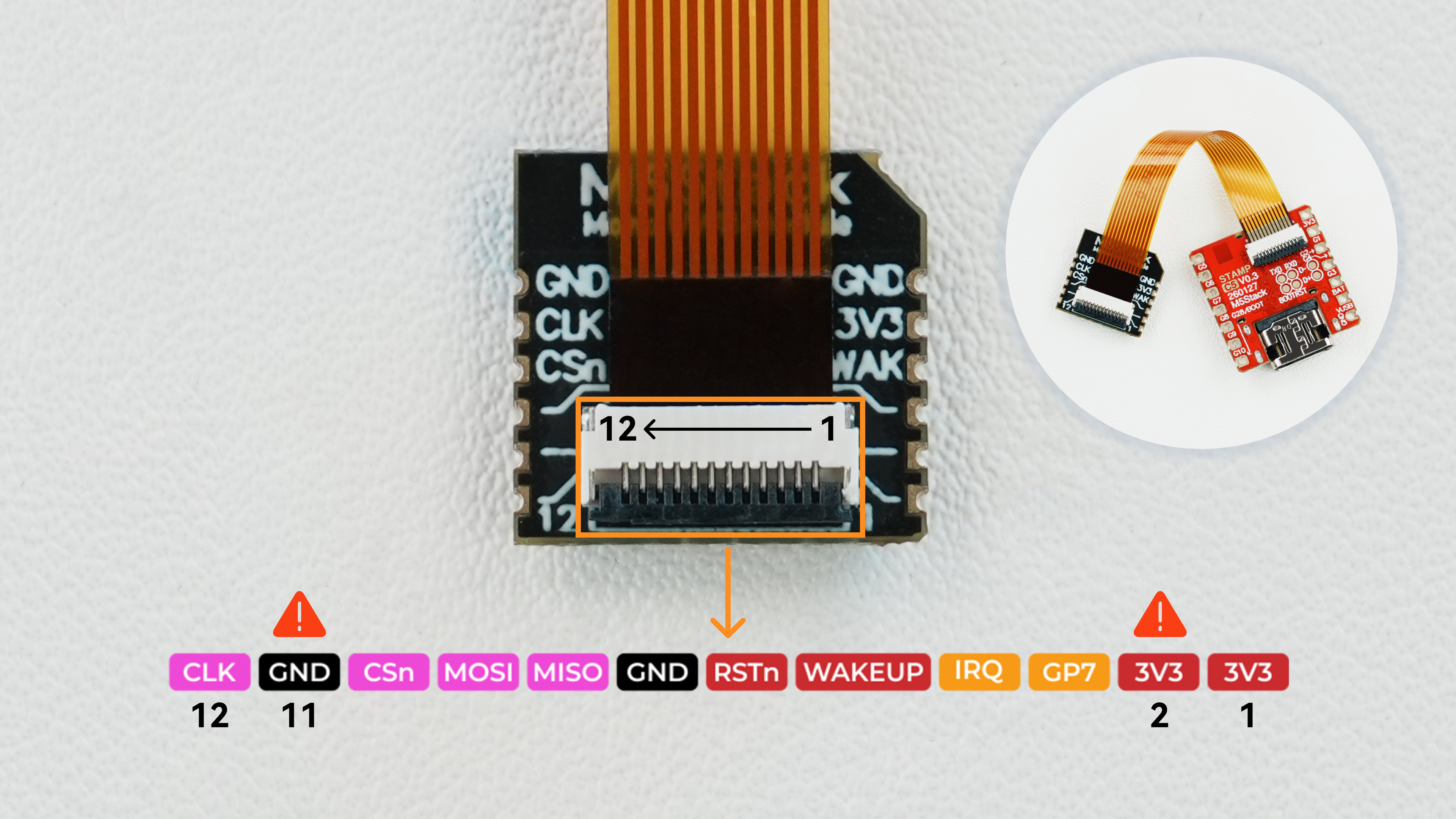

This module can be used with Stamp‑C5 DIP. Please pay attention to the orientation of the FPC cable during wiring. Do not reverse‑insert, otherwise it will damage the device.

Compatibility Warning

The FPC connector pinout of this Stamp UWB F module is incompatible with the FPC pinout on the back of Stamp-S3 / S3A. Direct connection is strictly prohibited — doing so may cause permanent damage to the device.

Power Supply

To ensure communication quality, power Stamp UWB F using a high-PSRR LDO or a power supply with ripple within 12mVpp.

PCB Antenna Clearance

When designing the complete device, pay attention to the impact of the FPC cable and its connector on the module antenna performance. The FPC cable must not pass beneath the module's PCB antenna or through the antenna clearance area, as this may alter the antenna impedance and radiation characteristics, degrade RF performance, and introduce ranging errors. Route the FPC cable outside the antenna area and perform actual testing after assembly to ensure the product's communication range and ranging accuracy meet the design requirements.
For improved RF performance, the SMT version of Stamp UWB is recommended.

Features

Integrated QM33120W UWB transceiver with enhanced secure Time-of-Flight mode and integrated AES-256
Supports UWB Channel 9
Supports IEEE 802.15.4-2020 / IEEE 802.15.4z-2020 BPRF
Supports TWR and TDoA positioning solutions
Supports 850 kbps / 6.81 Mbps wireless communication data rates
SPI communication interface
Supports 0.5mm-12P FPC connection

Includes

1 x Stamp UWB F
1 x 0.5mm-12P FPC Cable

Applications

Indoor personnel positioning
Cargo and asset tracking
Proximity detection
Robot navigation

Specifications

Specification	Parameter
UWB Chip	QM33120W
UWB Frequency Range	8GHz (7987.2 MHz) Channel 9: 7987.2 MHz Low frequency: 7737.6 MHz Mid frequency: 7987.2 MHz High frequency: 8236.8 MHz Bandwidth: 499.2 MHz
UWB Communication Interface	SPI
Supported Standards	IEEE 802.15.4-2020 / IEEE 802.15.4z-2020 BPRF
Wireless Communication Data Rate	850 kbps / 6.81 Mbps
Ranging Function	Supports SS-TWR / DS-TWR ranging
Maximum Communication Distance	55m (when facing directly)
Positioning Function	Supports TWR and TDoA positioning solutions
Measurement Error	DS-TWR: approximately 0.14m

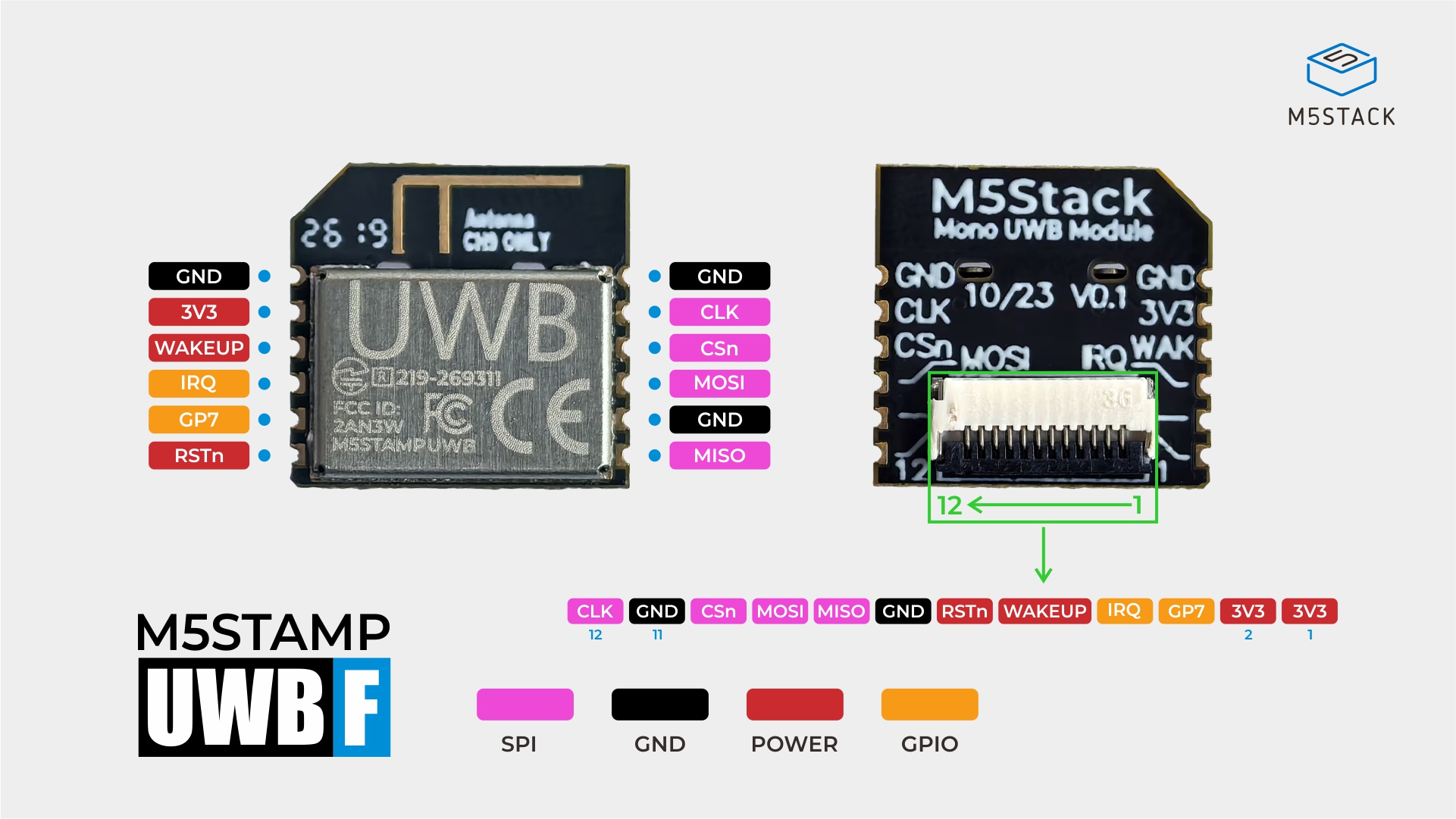

Rear Expansion Interface	FPC 0.5mm-12P
Sleep Power Consumption	DC 3.3V@75.9uA
Operating Power Consumption	As base station: DC 3.3V@5.23mA As slave: DC 3.3V@58.0mA

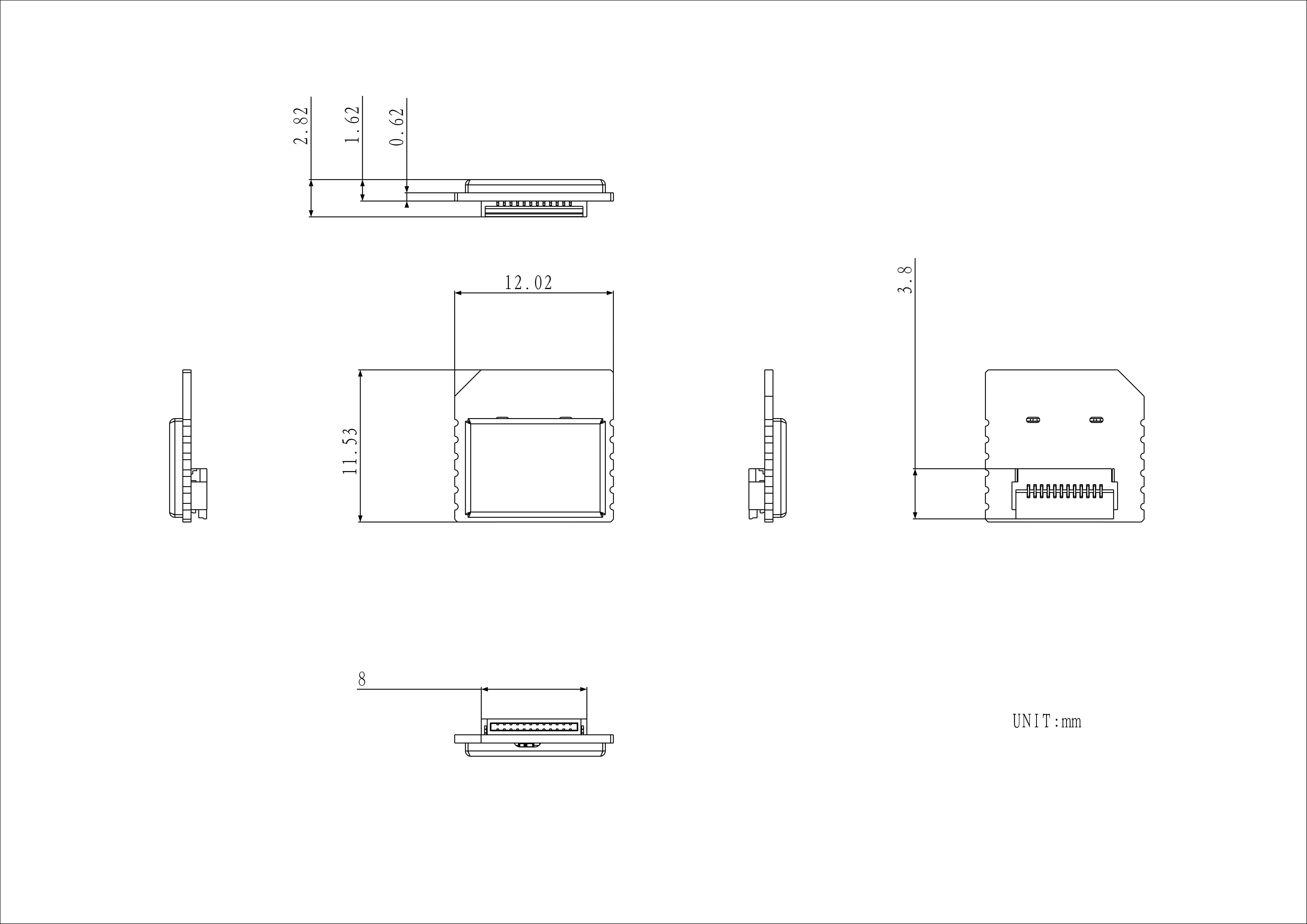

Product Size	11.5 x 12.0 x 2.8mm
Product Weight	0.6g
Package Size	138.0 x 93.0 x 17.0mm
Gross Weight	4.8g
