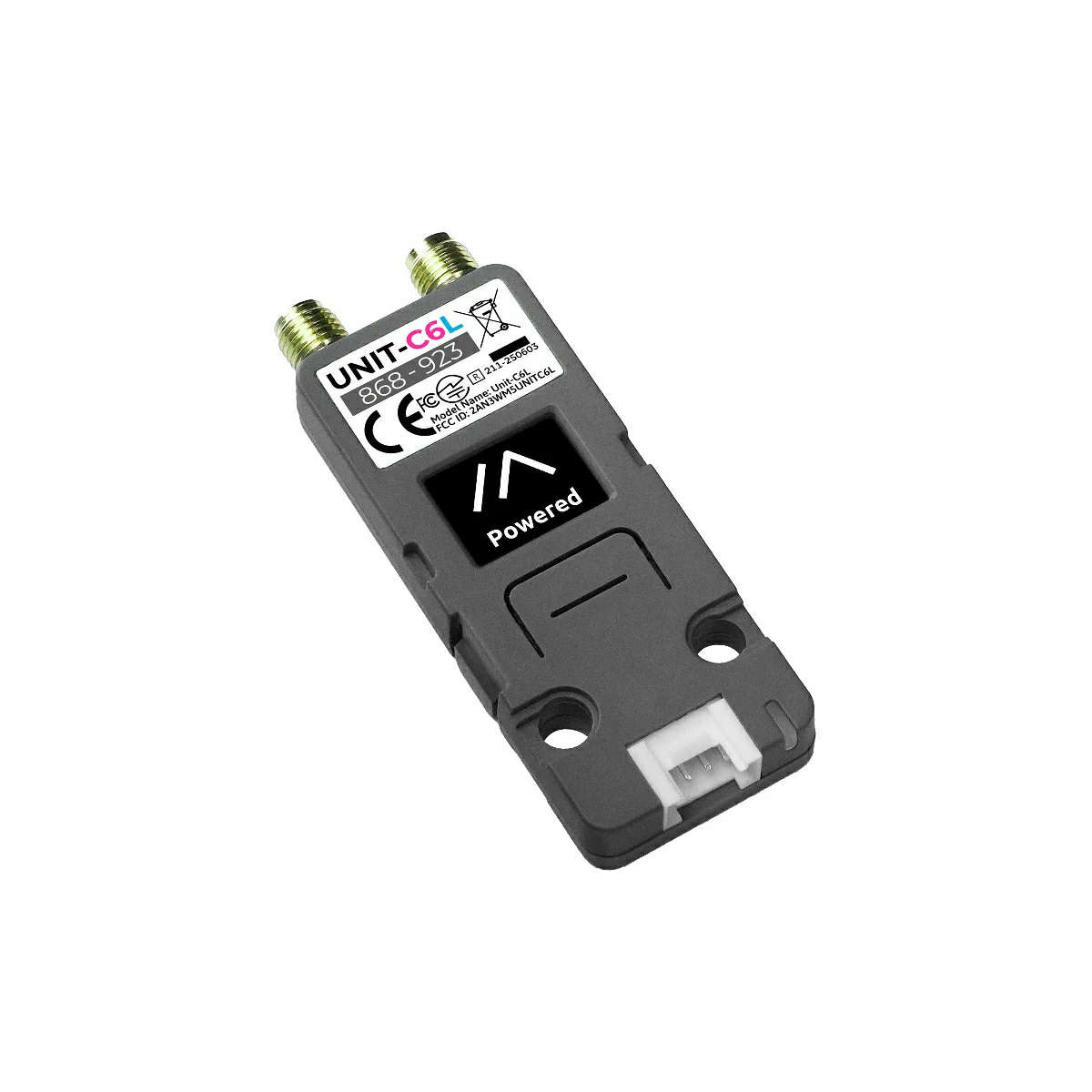

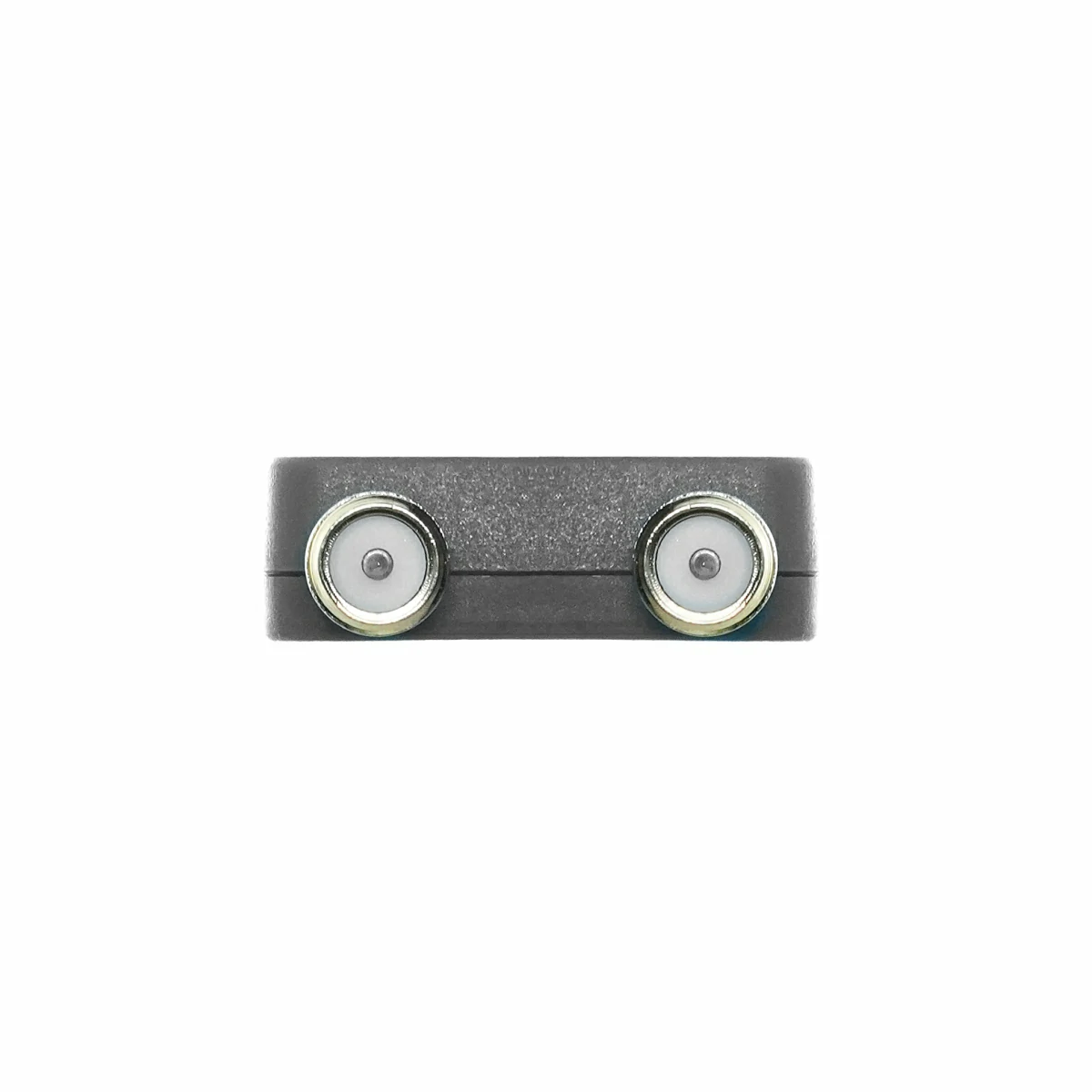

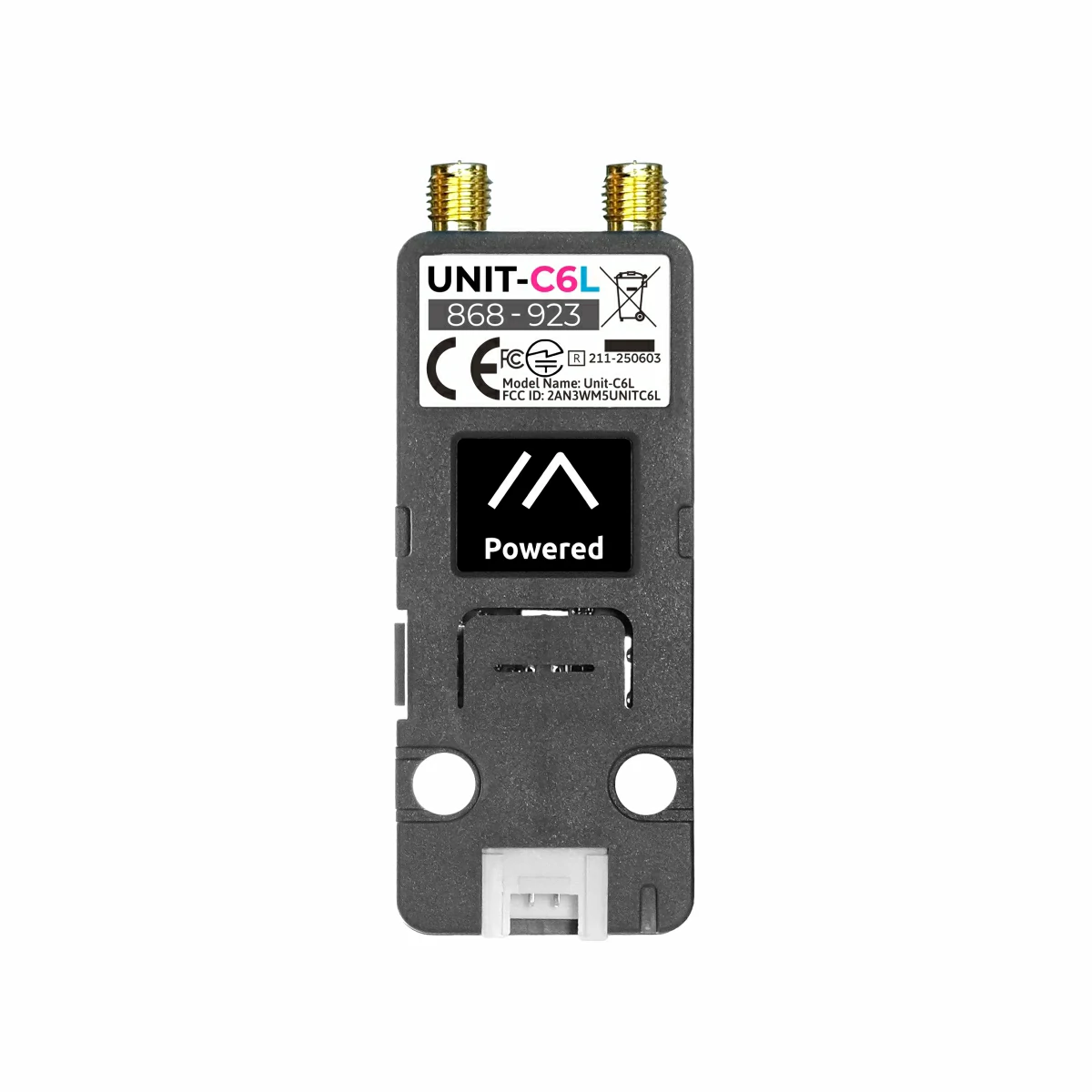

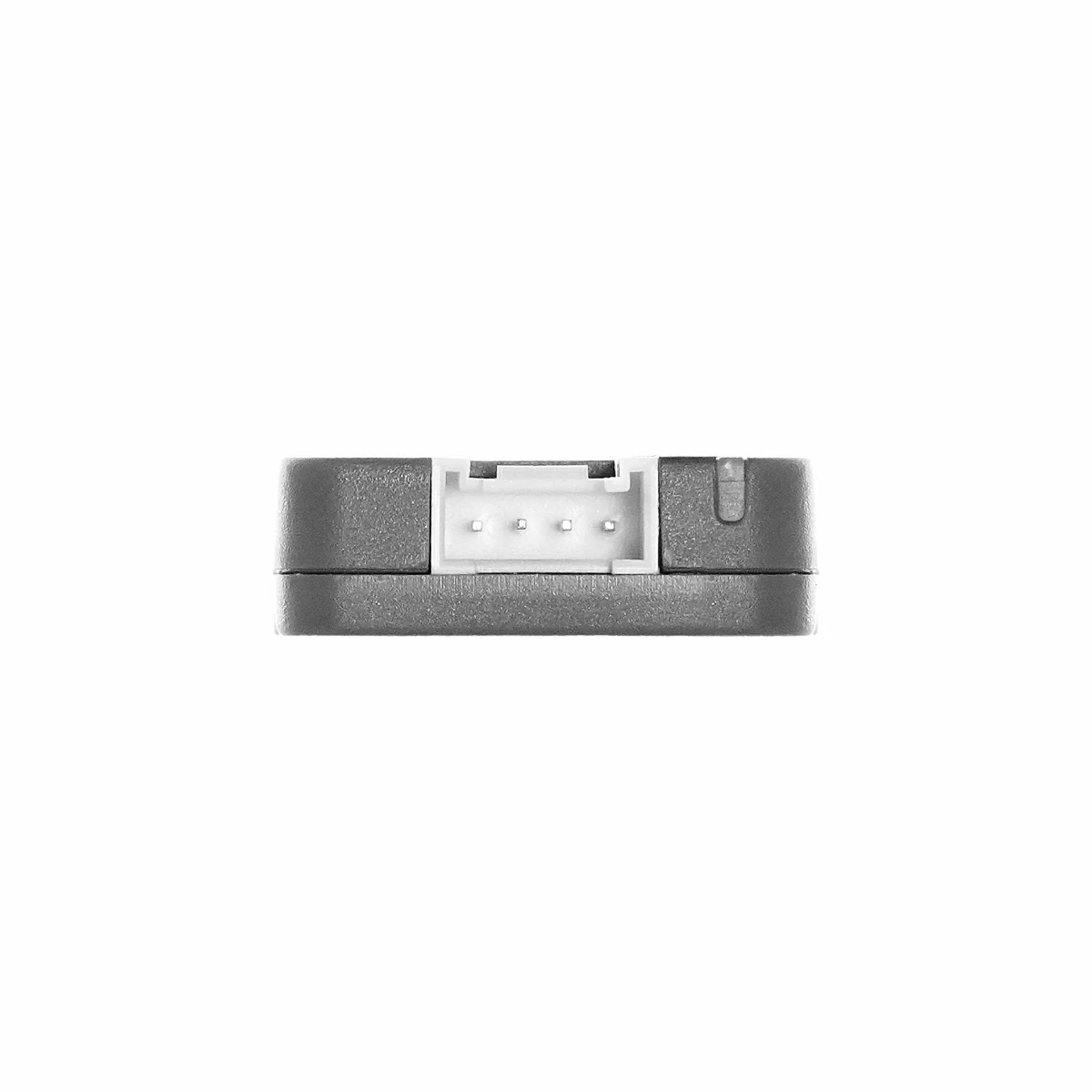

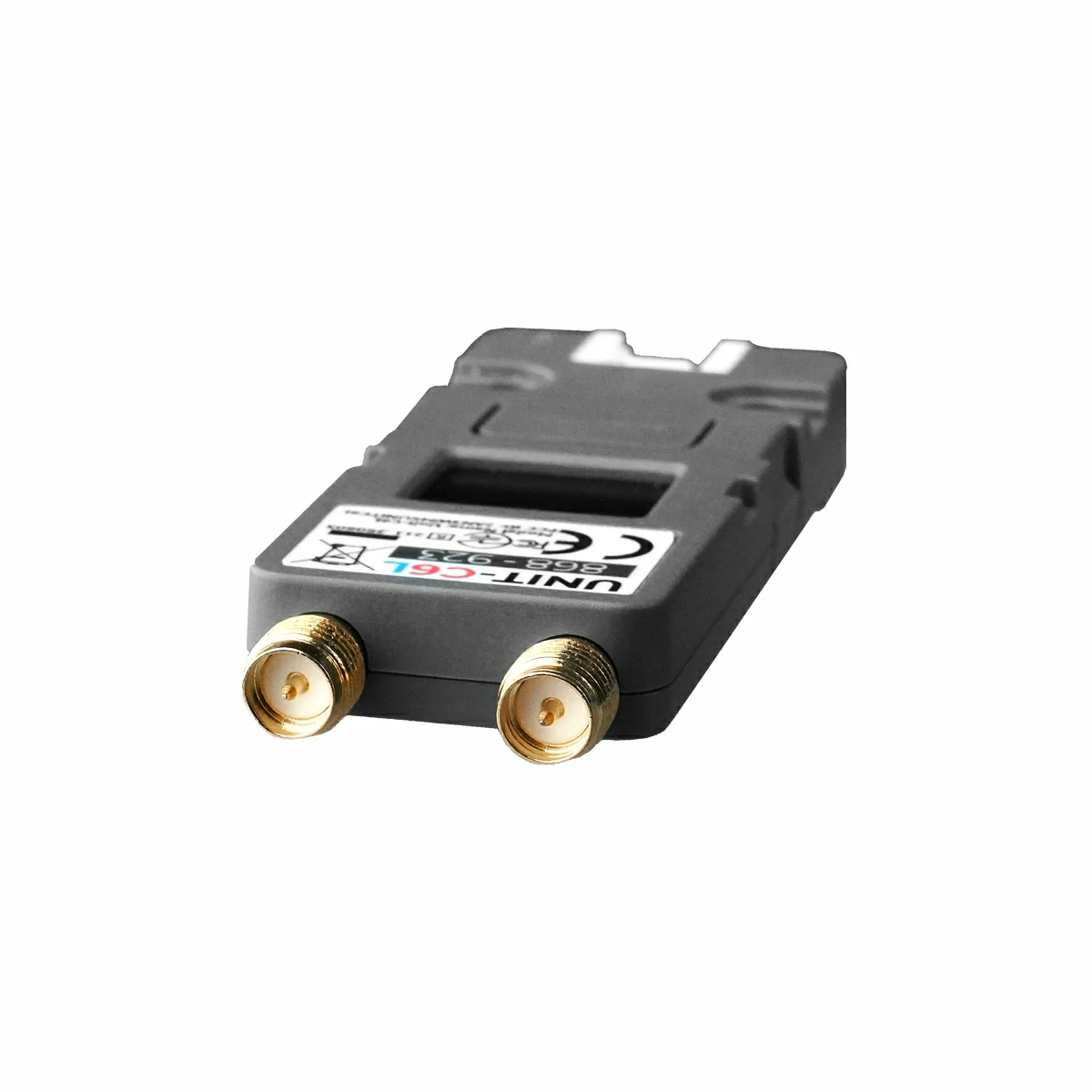

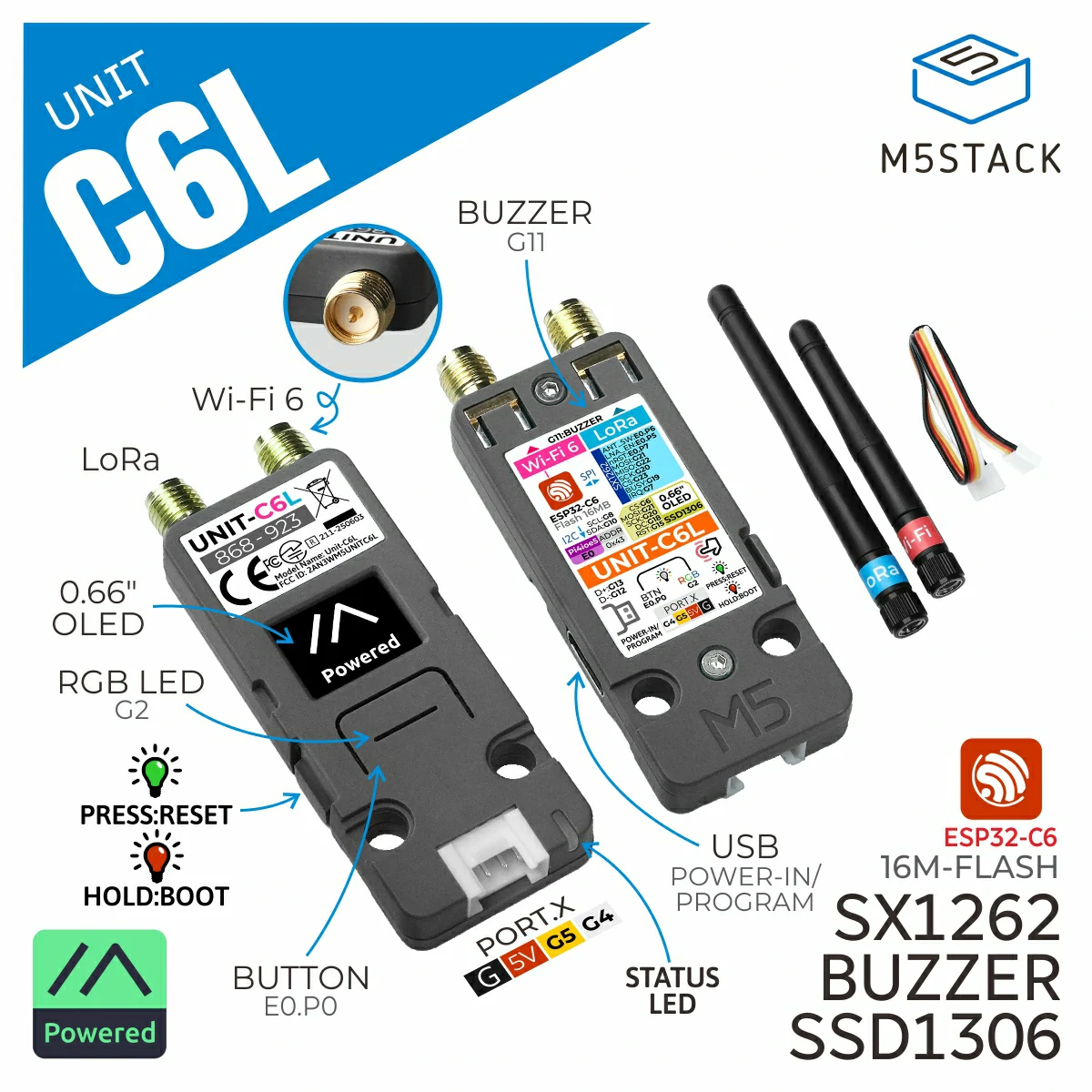

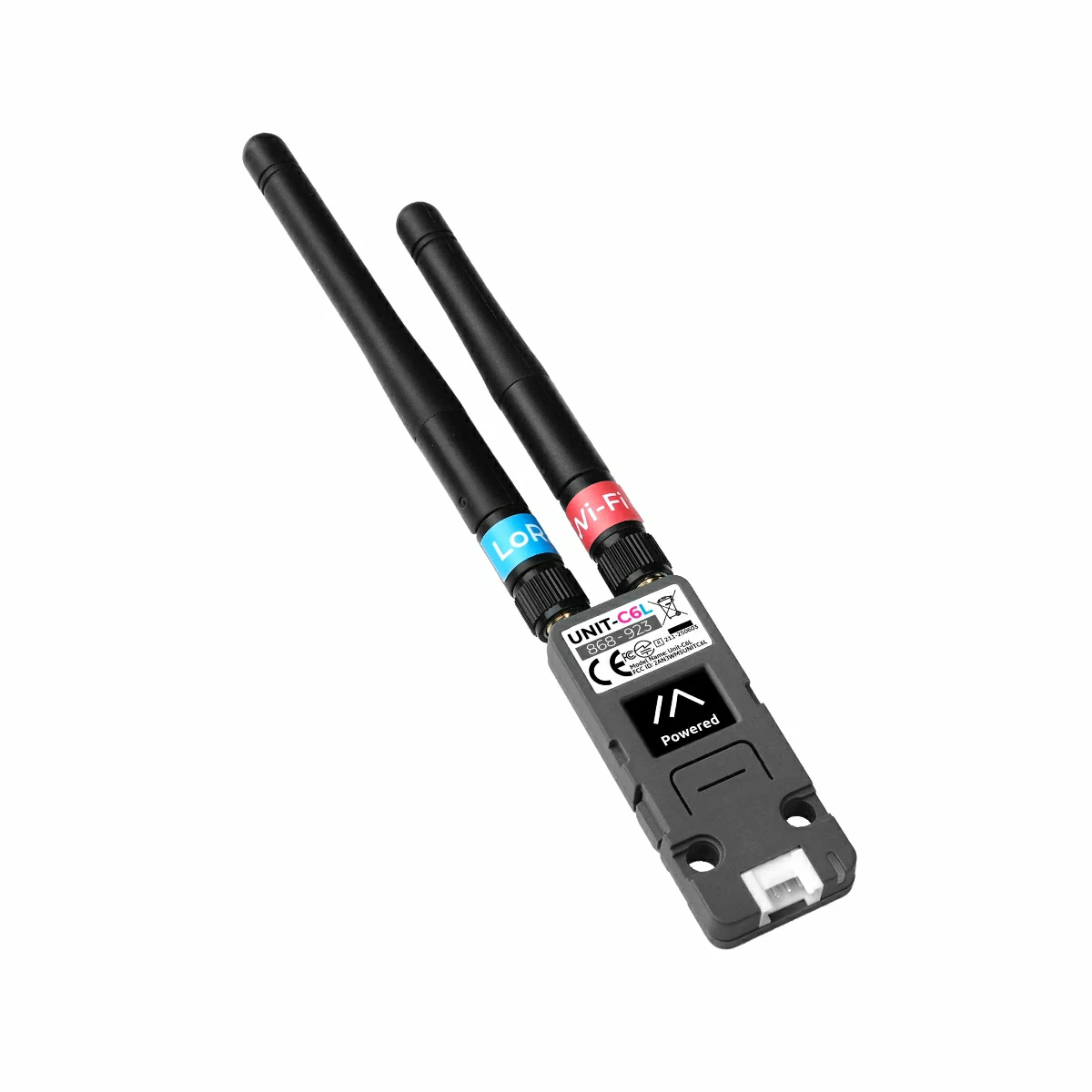

Unit C6L is a highly integrated LoRa communication unit, equipped with the Stamp C6LoRa module (featuring ESP32-C6 as the core controller, integrating SX1262 LoRa transceiver and RF switch circuit), supporting 868 ~ 923 MHz operating frequency range. Unit C6L integrates a 0.66" OLED monochrome display, programmable RGB indicator, buzzer, and user button, providing intuitive human-machine interaction. The device supports connection to the Meshtastic network or secondary development, enabling rapid deployment of private LoRa networks, suitable for remote monitoring, outdoor exploration, and emergency communication scenarios. In hardware design, Unit C6L offers 2x RP-SMA antenna interfaces, respectively for 2.4 GHz Wi-Fi 6 and LoRa communication, ensuring scalability and stability of wireless performance. It also integrates over-voltage protection chip AW32901FCR to enhance device stability. With HY2.0-4P expansion interface and LEGO-compatible mounting holes, users can easily expand sensors or modules to quickly build more application scenarios.
Before using this product, please confirm and comply with local radio regulations, and configure the LoRa operating frequency band, transmit power, and other communication parameters appropriately.
Download Mode

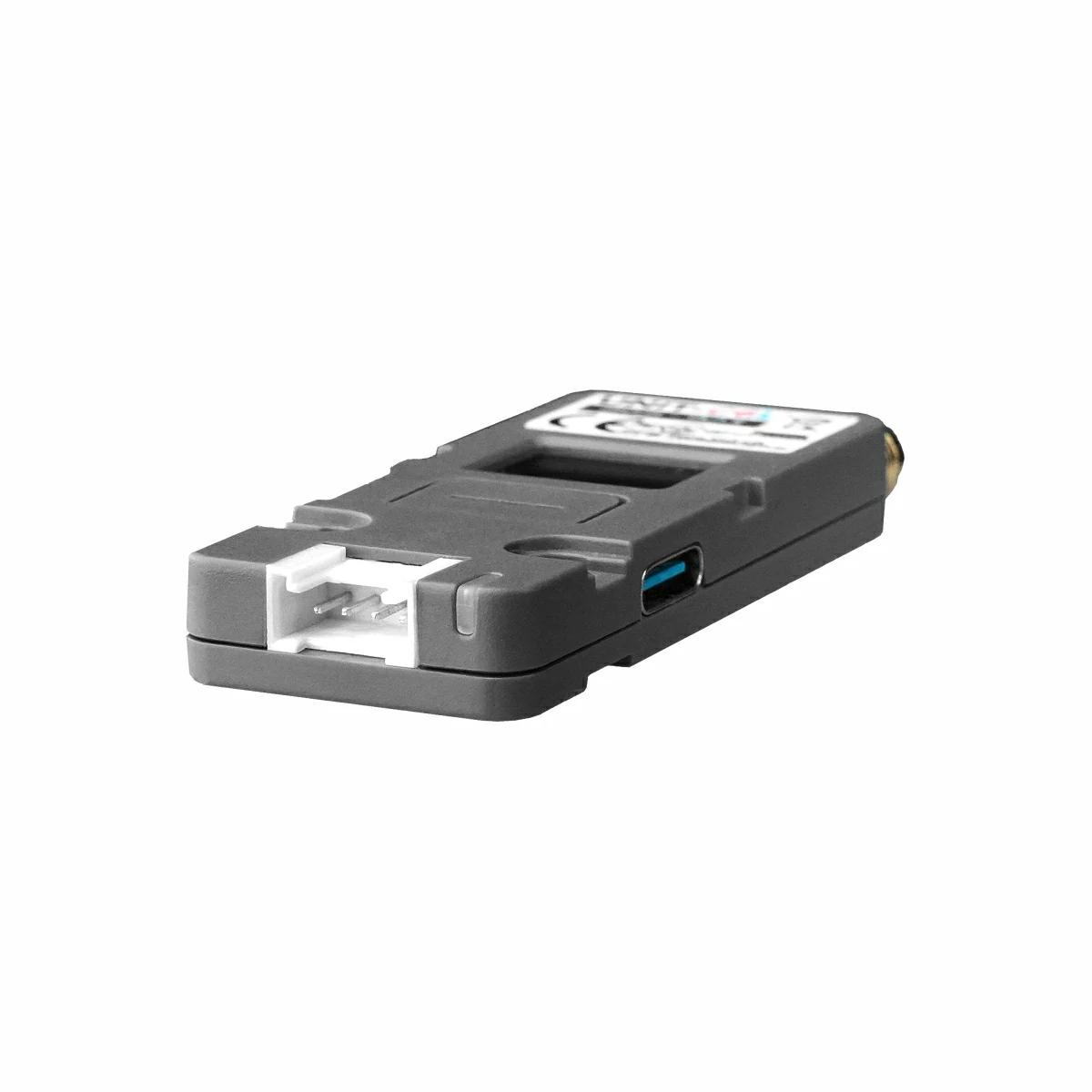

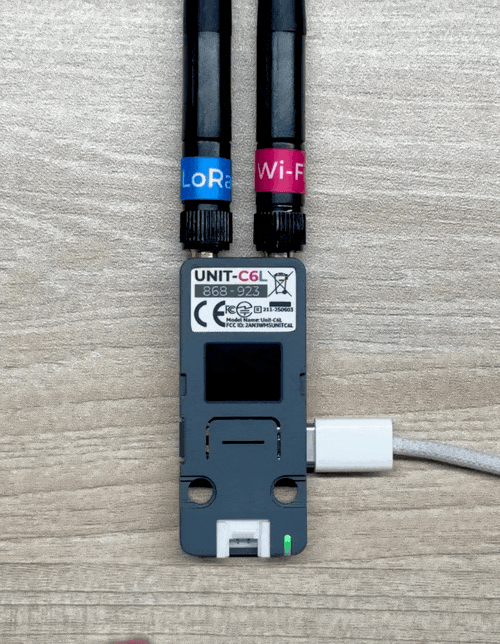

Connect the device to a computer via a USB Type-C data cable. Press and hold the side power button until the green LED turns red, then release it. The device enters download mode.
Please notice that this firmware isn't the newest version, mqtt and webserver was disabled by default. This firmware is for testing whether the Unit C6L is working correctly. If you need to use Meshtastic, please go to the official website to flash the latest version of the firmware: https://flasher.meshtastic.org/
Video
Unit C6L Product Introduction and Function Demonstration
