RELAY

SKU:U023

Description

RELAY as it says is an M5Unit that implement a Relay functions. Relay can be used as an electrically operated switch, uses an electromagnet to mechanically operate a switch, where it is necessary to control a large power load circuit by a separate low-power signal such as digital signal output from a microprocessor.

The Relay support input voltage of up to 30V DC and 220V AC.

There are 3 pins named: ON, OFF, COM. You can program to make COM connect to ON or OFF, just by high and low out put of a digital GPIO.

Product Features

  • Single-BUS control
  • Up to 3A @ 30 V DC or 220 V AC
  • Software Development Platform: Arduino, UIFlow (Blockly, Python)
  • Two Lego-compatible holes

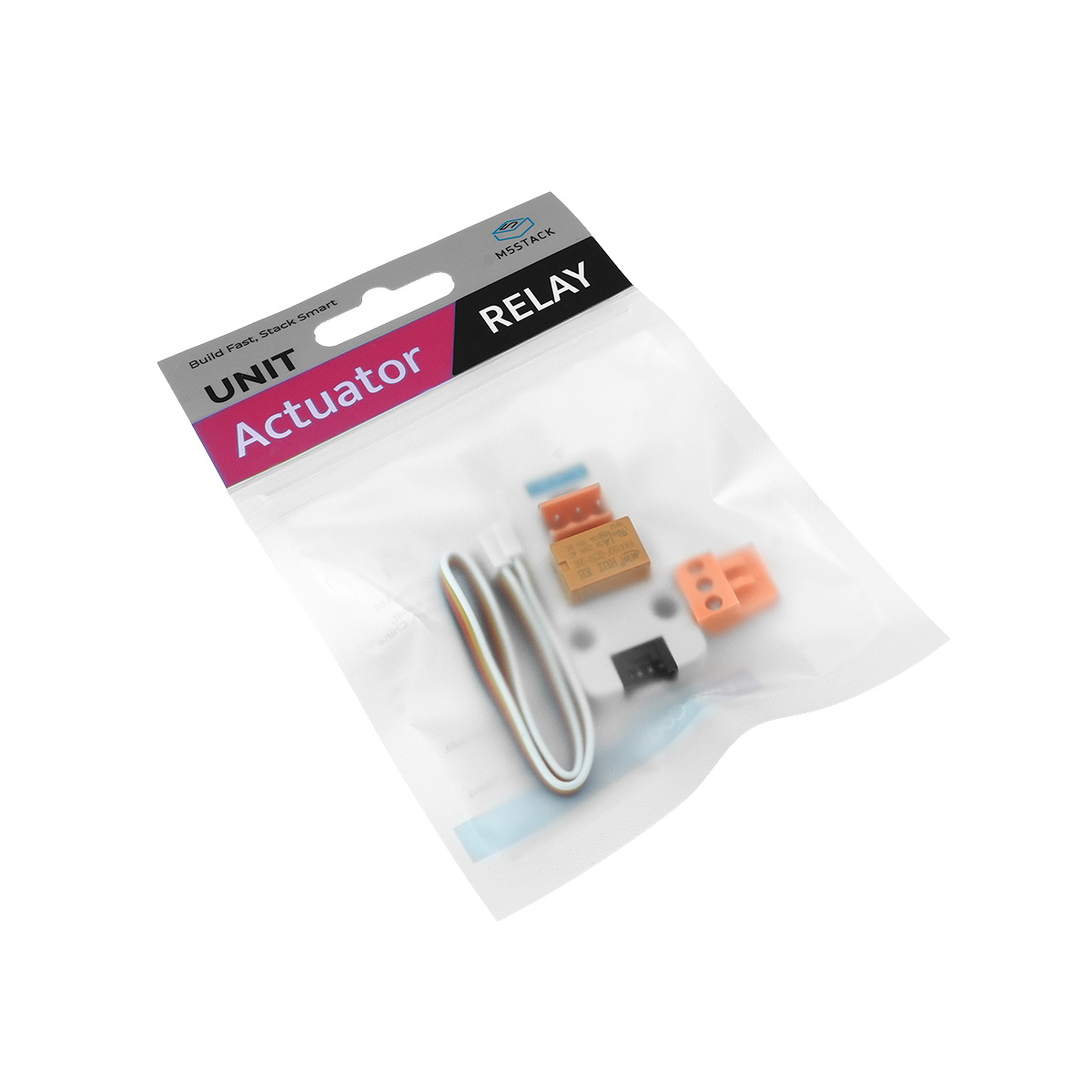

Include

  • 1x RELAY Unit
  • 1x Grove Cable
  • 1x 3.96 socket

Applications

  • Remote control of high-power appliances, such as refrigerators, air conditioners, TVs, etc.

Specification

Resources Parameter
Net weight 12g
Gross weight 26g
Product Size 48*24*21mm
Package Size 60*57*17mm

EasyLoader

EasyLoader is a concise and fast program writer, which has a built-in case program related to the product. It can be burned to the main control by simple steps to perform a series of function verification.

Download Windows Version Easyloader Download MacOS Version Easyloader

Description:
The relay coil is turned on and off, and the contact is used as a switch for circuit control.

PinMap

M5Core(GROVE B) GPIO36 GPIO26 5V GND
RELAY Unit RELAY Controlling Pin 5V GND

Schematic

Learn

Automation with SIM800L ESP32 M5Stack Automation with SIM800L ESP32 M5Stack
Automation with SIM800L ESP32 M5Stack
It is possible to turn a lamp or fan on and off through an SMS message.
Control sit/stand Desk height with a Paper E-Ink Display Control sit/stand Desk height with a Paper E-Ink Display
Control sit/stand Desk height with a Paper E-Ink Display
Control IKEA Bekant Desk sit/stand height with M5Stack M5Paper using two Relay units and a ToF (time-of-flight sensor VL53L0x) unit.
Control sit/stand Desk height with a touch screen Control sit/stand Desk height with a touch screen
Control sit/stand Desk height with a touch screen
Control IKEA Bekant Desk sit/stand height with M5Stack Core2 using two Relay units and a ToF (time-of-flight sensor VL53L0x) unit.
Alexa enabled device with Atom Lite Alexa enabled device with Atom Lite
Alexa enabled device with Atom Lite
Atom Lite control device with Alexa. In my house, Amazon echo is located in every room, and the lighting of living room is controlled by Alex
Portable Automatic Faucets Using M5StickC for COVID-19 Portable Automatic Faucets Using M5StickC for COVID-19
Portable Automatic Faucets Using M5StickC for COVID-19
Using the M5StickC, we developed a product that allows you to wash your hands without touching the device.
Try to make a low temperature conditioner with M5Stack Try to make a low temperature conditioner with M5Stack
Try to make a low temperature conditioner with M5Stack
The mechanism is simple to monitor the value of the water temperature sensor with the M5Stack, and heater power is controlled by the relay

Example

Arduino

UIFlow

Feature Introduction

By controlling the opening and closing of the relay to achieve the purpose of weak current control of strong electricity

  • set COM connect ON Control relay closure

  • set COM connect OFF Control relay disconnect

Usage
