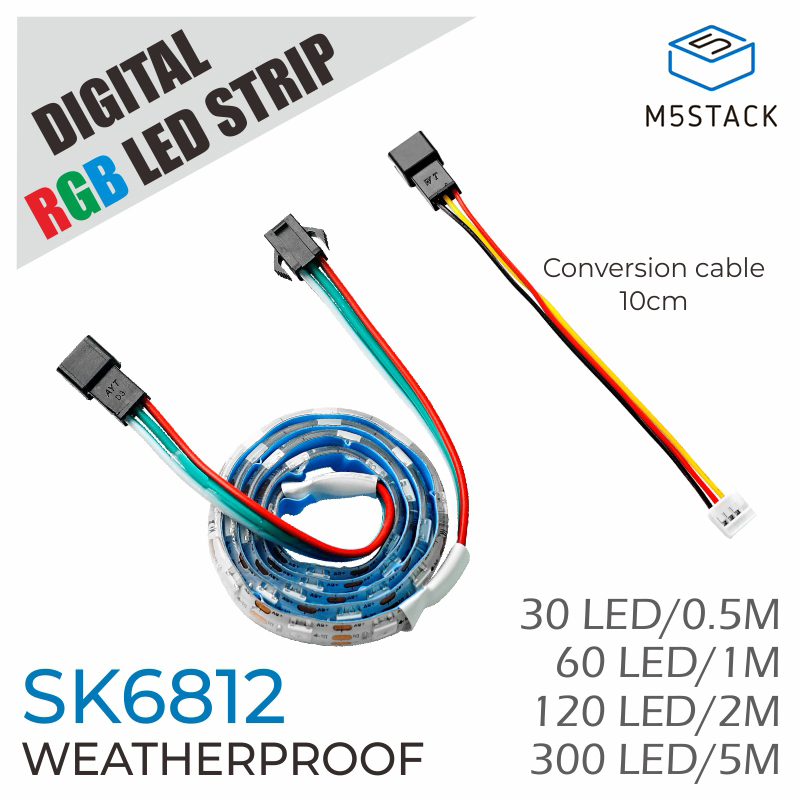

RGB LED Strip is a programmable RGB LED strip,utilizing SK6812 RGB LEDs. The LED strip supports digital addressing, which means that you can individually control the color and brightness of each individual LED on the LED strip. Single bus programming is supported to expand the LED strip.
The outer layer of the LED strip is coated with a transparent protective silica gel which supports IP65 waterproof protection, thus it can be adapted to a variety of applicable environments. The LED strip consists of a flexible FPC (soft light strip)/PCB (hard light strip board) for the substrate, and uses 5050 RGB LEDS, and 3M strong double-sided tape on the back for easy pasting and fixing. The working voltage is 5V DC voltage, and various lighting effects can be realized through controller programming.
It should be noted that with the gradual increase in the number of LED strip connections, the accompanying power consumption will also increase. Therefore, when using RGB LED strips with a large number of LEDs, it is recommended to provide additional power for them.
|Length/Net Weight||0.5m/37g, 1m/55g, 2m/86g, 5m/211g|
|Length/Gross Weight||0.5m/45g, 1m/65g, 2m/96g, 5m/220g|
|Led Strip Thickness||10mm|

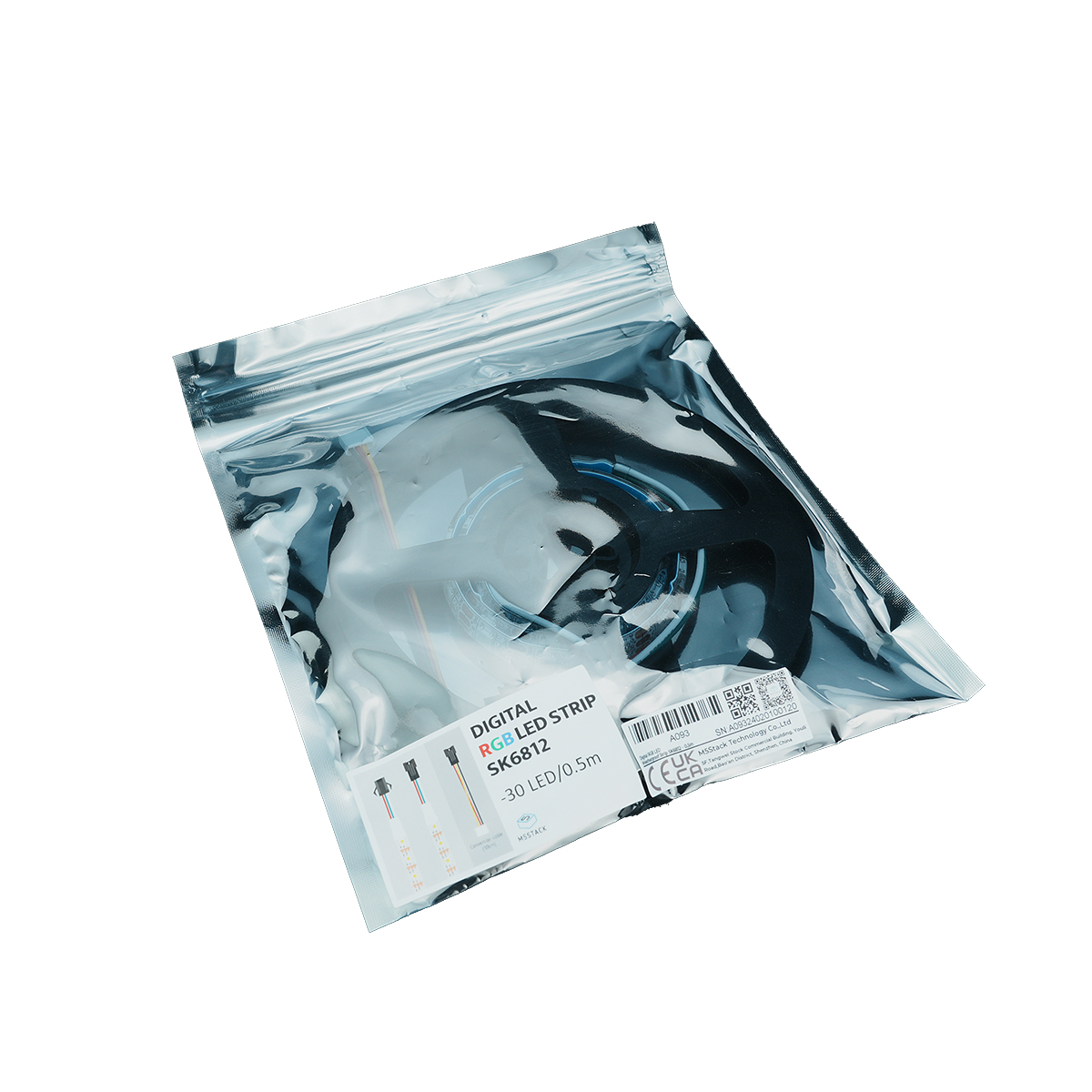

|Packaging Type||Anti-static bag packaging, fixed reel|
|Led Strip PIN||VCC||GND||DATA|
Execute the following statement in Setup() of the Arduino program
When M5Core2 is stacked with other M5 modules, you need to remove the battery base of Core2, which does not support module stacking.
Reason and solution: The power supply current of the port is insufficient, which can cause the device to not enter the download mode normally. You can try to connect a capacitor (>0.1uF) between the RST pin and the GND pin, or when uploading the program, set the G0 Short-circuit to GND, so that G0 can be set to a low level state normally
Add the header file #include <driver/adc.h> and the function adc_power_acquire(); in the Arduino program
The battery life of the controller is affected by various factors such as battery capacity, operating status, and load, so there is no fixed value. Reducing the load and adopting a sleep strategy can effectively increase the battery life.
Support multiple stacks, the total capacity of the batteries in parallel increases, and the voltage remains unchanged. However, since the discharge of each battery is not balanced during use, there is a voltage difference between the batteries, which may cause the battery to charge backwards. .(will lose part of the battery capacity)
ESP32 module currently does not support WiFi in 5G band, only 2.4G.
Confirm whether the TX/RX pin on the TTL side of the pin is correct, try to add two 120Ω terminal resistors at the beginning and end of the device line to reduce signal reflection interference
