SKU:C139
PaperS3 is a touchable low-power e-ink display controller device launched by M5Stack, featuring the ESP32-S3 microcontroller. The front embeds a 960×540 resolution 4.7" (touch and screen integrated) e-ink display, supporting 16-level grayscale. It is paired with a GT911 capacitive touch panel, supporting dual-point touch and various gesture operations. Compared to previous products, PaperS3 adopts a full-screen structure. Unlike standard LCD screens, the e-ink display provides a better text reading experience for users while offering low power consumption, image retention on power loss, and other features.
It integrates a gyroscope sensor, onboard buzzer, and physical buttons, enabling interactions (such as wake-up by lifting) and power on/off operations. In terms of data storage, PaperS3 is equipped with a MicroSD interface and the ESP32-S3R8 chip, which includes 8MB of PSRAM. Additionally, the device has an external 16MB flash memory chip for expanded storage, ensuring higher storage capacity and faster data access speeds. The device features a built-in 1800mAh lithium battery with charging functionality. Combined with the internal RTC (BM8563), it enables sleep and wake-up functions, providing strong battery life. Furthermore, the device has an onboard battery detection circuit to monitor battery status in real-time, ensuring healthy battery management.
The back of the device has an open HC1.25-4P peripheral interface, enabling the expansion of various sensor devices and providing limitless possibilities for future application development. The device also supports OTG functionality, allowing for more external device connections and data exchange possibilities. Compared to previous products, PaperS3 has optimized its antenna for better wireless performance and signal stability. The device design also includes a hanging hook for easy carrying and hanging, enhancing convenience and practicality. It is lighter and thinner than before. In addition, PaperS3 features a magnetic function, allowing users to attach the device to metal surfaces, further enhancing its usability and flexibility.
PaperS3 is suitable for a wide range of low-power display and interaction applications, including IoT monitoring, smart homes, environmental monitoring, health monitoring, electronic tags, and data logging.
Specifications | Details |
---|---|
SoC | ESP32S3R8, Xtensa® 32-bit LX7 Dual-Core Processor, 240MHz, 2.4GHz Wi-Fi |
PSRAM | 8MB PSRAM |
Flash | 16MB External Flash |
Storage | Supports MicroSD Card Expansion |
Display Screen | 4.7" Touch E-Ink Screen (EPD_ED047TC1) Resolution: 960x540 Pixels 16-level Grayscale Display |
Touch Function | Supports Two-Point Touch and Various Gestures (GT911 Capacitive Touch Panel) |

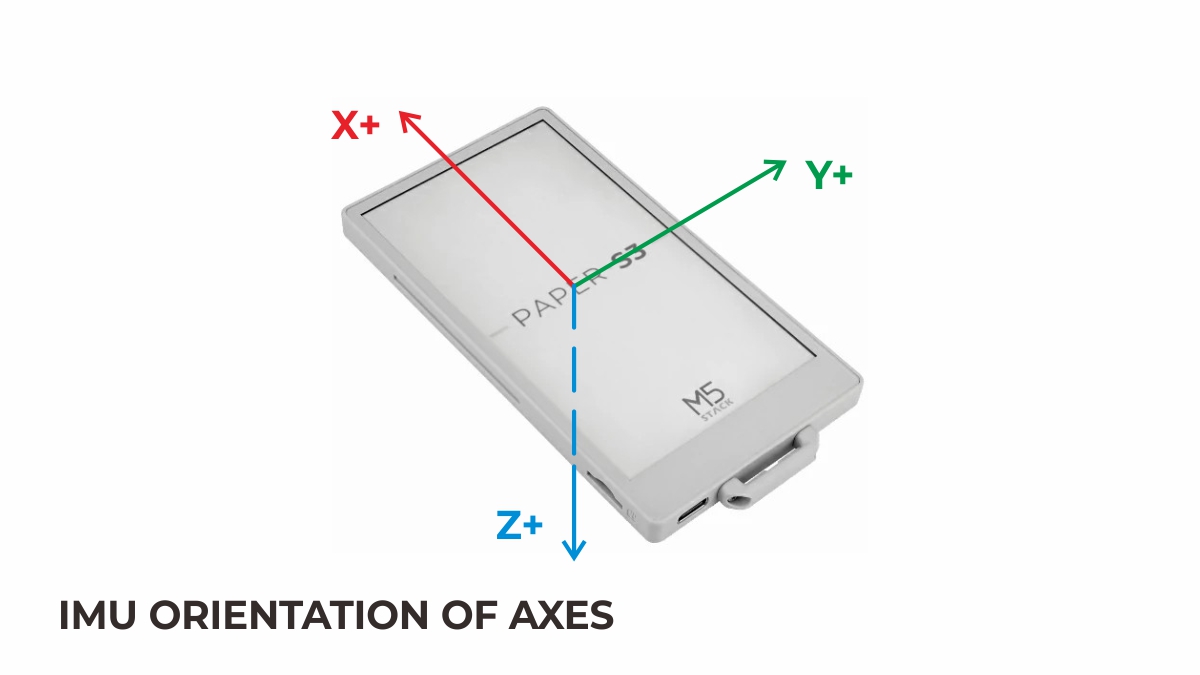

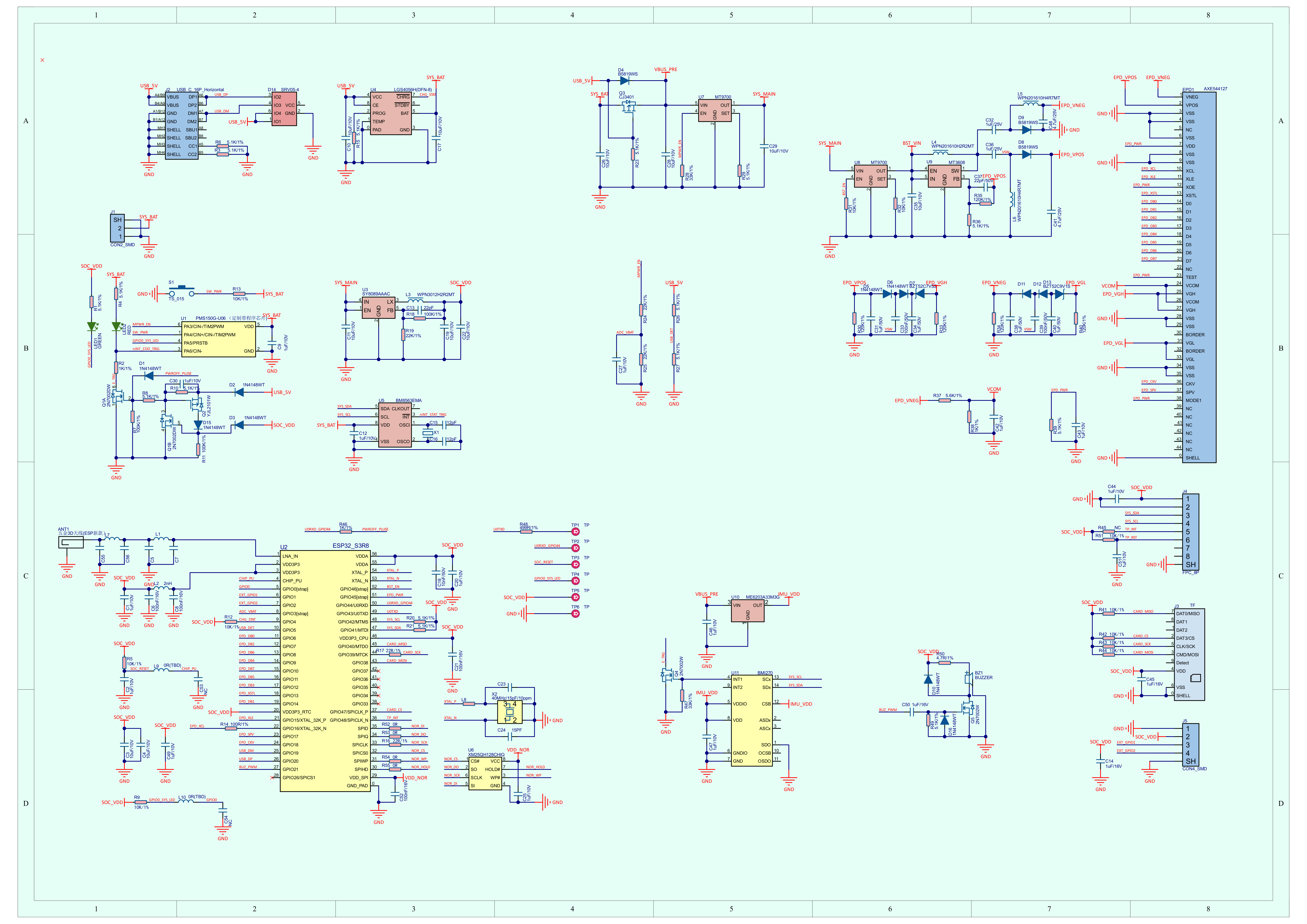

Sensors | Built-in Gyroscope Sensor BMI270 @ Communication Address: 0x68 |
USB Function | OTG/CDC/MSC/Firmware Flashing |
Power Input | 5V@500mA |
Peripheral Interface | HC1.25-4P (3v3+GND+2xGPIO) for Extending Sensors and Devices |
Battery | 3.7V@1800mAh @ Charging Chip: LGS4056H |
Battery Connector | SMT-HDR 1.25-2P |
Charging Current | 5V@176mA |
Power Management | PMS150G (Power On/Off and Program Download Control) Built-in BM8563 RTC Chip @ Communication Address: 0x51 |
Buttons | 1x Physical Button (for Device Control, Power On/Off, Reset, Download Mode) |
Buzzer | Onboard Passive Buzzer |
Wi-Fi | Communication range of 111 meters (in open space, with the antenna positioned vertically at 90° to the ground) |
Power Consumption | Low power mode: DC 4.2V / 9.28µA (main power off, gyroscope in low power mode) Standby mode: DC 4.2V / 949.58µA (main power off, gyroscope on) Operating mode: DC 4.2V / 154.02mA (main power on) |
Operating temperature | 0-40°C |
Product Dimensions | 121.5*67.7*7.7mm |
Package Dimensions | 133*76*19mm |
Product Weight | 89.3g |
Package Weight | 112.9g |
EPD_ED047TC1 | ESP32-S3 |
---|---|
DB0 | GPIO6 |
DB1 | GPIO14 |
DB2 | GPIO7 |
DB3 | GPIO12 |
DB4 | GPIO9 |
DB5 | GPIO11 |
DB6 | GPIO8 |
DB7 | GPIO10 |
XSTL | GPIO13 |
XLE | GPIO15 |
SPV | GPIO17 |
CKV | GPIO18 |
PWR | GPIO45 |
ESP32-S3 | GPIO41 | GPIO42 | GPIO48 | PMS150GU06-PA6/CIN- | GPIO3 | GPIO21 |
---|---|---|---|---|---|---|
GT911 | SDA | SCL | INT | |||
BM8563 | SDA | SCL | INT | |||
Battery Detech | ADC_VBAT | |||||
Buzzer | BUZ_PWM |
MicroSD | CS | SCK | MOSI | MISO |
---|---|---|---|---|
ESP32-S3 | GPIO47 | GPIO39 | GPIO38 | GPIO40 |
HY1.25-4P | Black | Red | Yellow | White |
---|---|---|---|---|
Define | GND | 5V | G1 | G2 |
[env:PaperS3]
platform = espressif32
board = esp32-s3-devkitm-1
framework = arduino
board_build.partitions = default_16MB
board_upload.flash_size = 16MB
board_upload.maximum_size = 16777216
board_build.arduino.memory_type = qio_opi
build_flags =
-DBOARD_HAS_PSRAM
lib_deps =
epdiy=https://github.com/vroland/epdiy.git
M5GFX=https://github.com/m5stack/M5GFX#develop
Easyloader | Download | 备注/Note |
---|---|---|
PaperS3 Factory Firmware | download | / |
Product Compare | PaperS3 | Paper |
---|---|---|
Chip Solution | ESP32-S3R8 | ESP32-D0WDQ6-V3 |
E-Ink Screen Control | Directly Driven by ESP32S3R8 | IT8951 |
Sensors | BMI270, BM8563 | BM8653 |
Power Control | Single-click side button to power on, double-click to power off. Download Mode:Long press the button, and the red light blinks at the lower right corner of the back to enter the download mode. | Power Button (long press for 2s) used for power on. To power off, use software API or the reset button at the back. Program download: Install driver and recognize port. |
Storage | Flash:16M PSRAM:8M | Flash:16M PSRAM:8M |
Battery | 1800mAh | 1150mAh |
Download Connection | Directly Connect to ESP32S3, Auto-Port Recognition | CH9102 Serial Chip |
Antenna | Upgraded Antenna for Better Signal Stability | First-Generation Antenna |
Size | 121.5*67.7*7.7mm | 118*66*10mm |
