Echo Pyramid

SKU:A167

Description

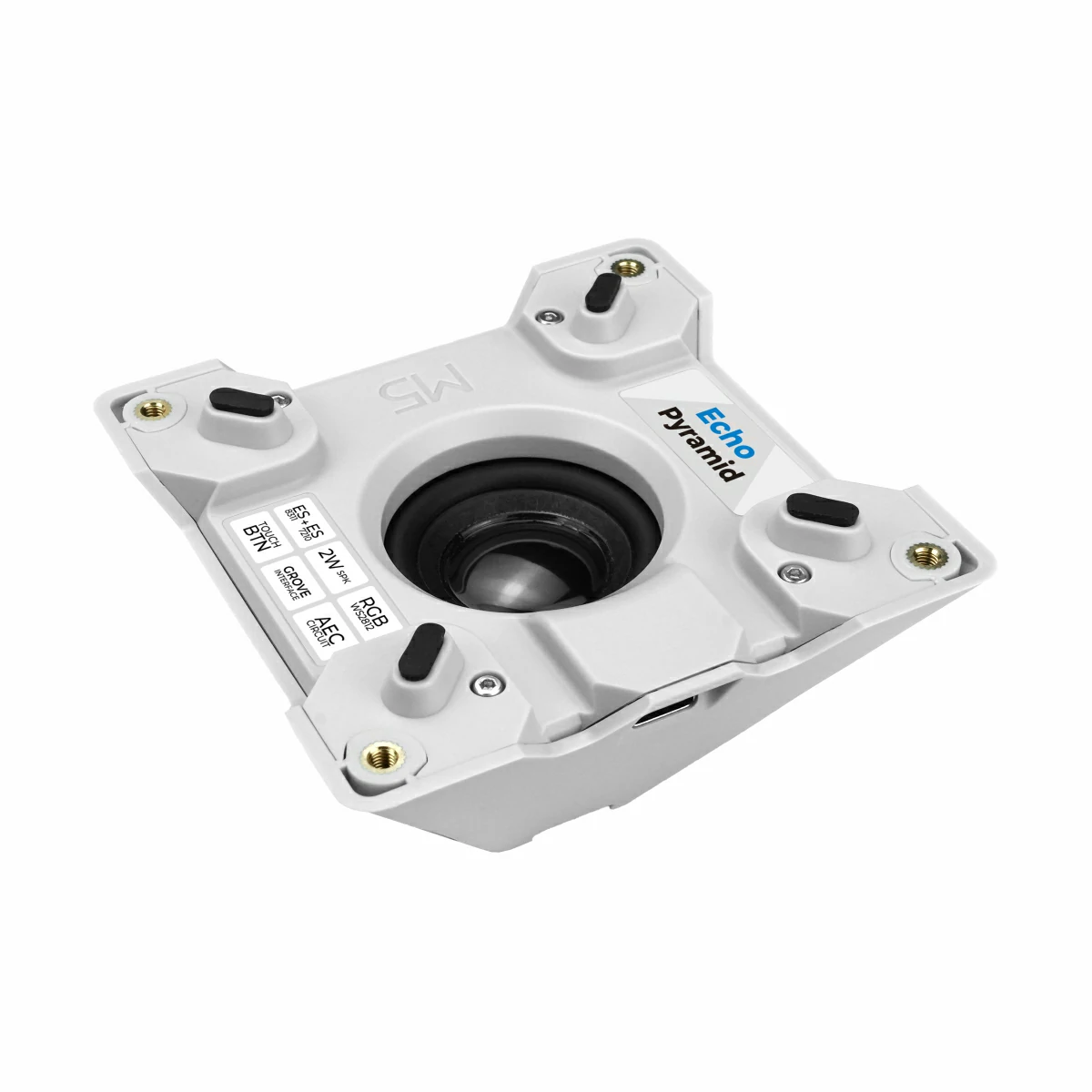

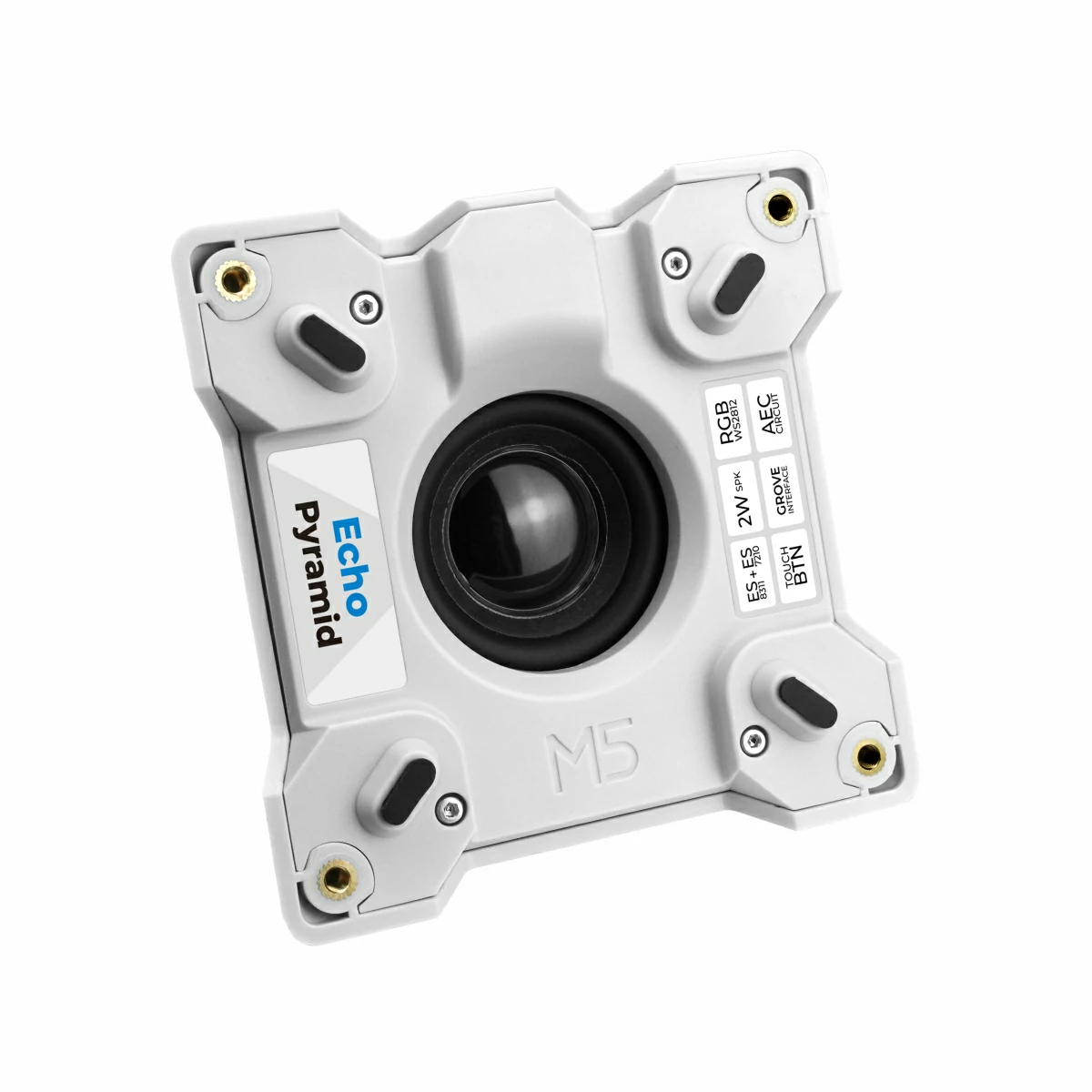

Echo Pyramid is a functional base designed for intelligent voice interaction applications. It is specifically built for the M5Stack Atom / AtomS3 / AtomS3R series controllers, featuring plug-and-play design to quickly build voice devices with high-performance audio interaction capabilities. By connecting an Atom series controller, the system handles audio data processing, wireless communication, business logic control, and IoT connectivity. It is suitable for far-field voice recognition, voice assistants, voice control, and various intelligent interaction scenarios.

The device integrates an independent STM32G030F6P6 microcontroller dedicated to managing the dual-side capacitive touch sliding areas and RGB indicator LEDs, enabling low-latency touch response and colorful, programmable lighting effects. Through intuitive touch interaction combined with rich visual feedback, users can easily perceive device status, voice interaction results, or system prompts, enhancing overall user experience and product expressiveness.

The audio system adopts the high-performance ES8311 audio codec, combined with ES7210 microphone input acquisition and AEC echo cancellation, achieving efficient acoustic echo cancellation, noise suppression, and clear far-field voice capture, providing reliable support for speech recognition and full-duplex interaction. The AW87559 high-efficiency Class-D speaker amplifier drives the built-in speaker to deliver clear audio output with excellent dynamic range. In addition, the system introduces the Si5351 programmable clock generator as the main clock source (MCLK), providing low-jitter and flexible clock signals for the audio ADC and DAC, effectively improving speech recognition accuracy and overall audio performance.

Echo Pyramid is suitable for development scenarios such as smart speakers, desktop voice assistants, voice control hubs, local / cloud-based voice interaction prototypes, and IoT voice gateways.

Tutorial

Home Assistant

Home Assistant

This tutorial introduces how to integrate Echo Pyramid with Home Assistant.

Echo Pyramid Xiaozhi Voice Assistant

Echo Pyramid Xiaozhi Voice Assistant

This tutorial introduces how to use an AtomS3R device with the Echo Pyramid base and flash the Xiaozhi Voice Assistant firmware via M5Burner to build a personal voice assistant application.

Echo Pyramid Bluetooth Speaker

Echo Pyramid Bluetooth Speaker

This tutorial introduces how to use an Atom-Matrix device with the Echo Pyramid base and flash the Echo Pyramid Bluetooth speaker firmware via M5Burner.

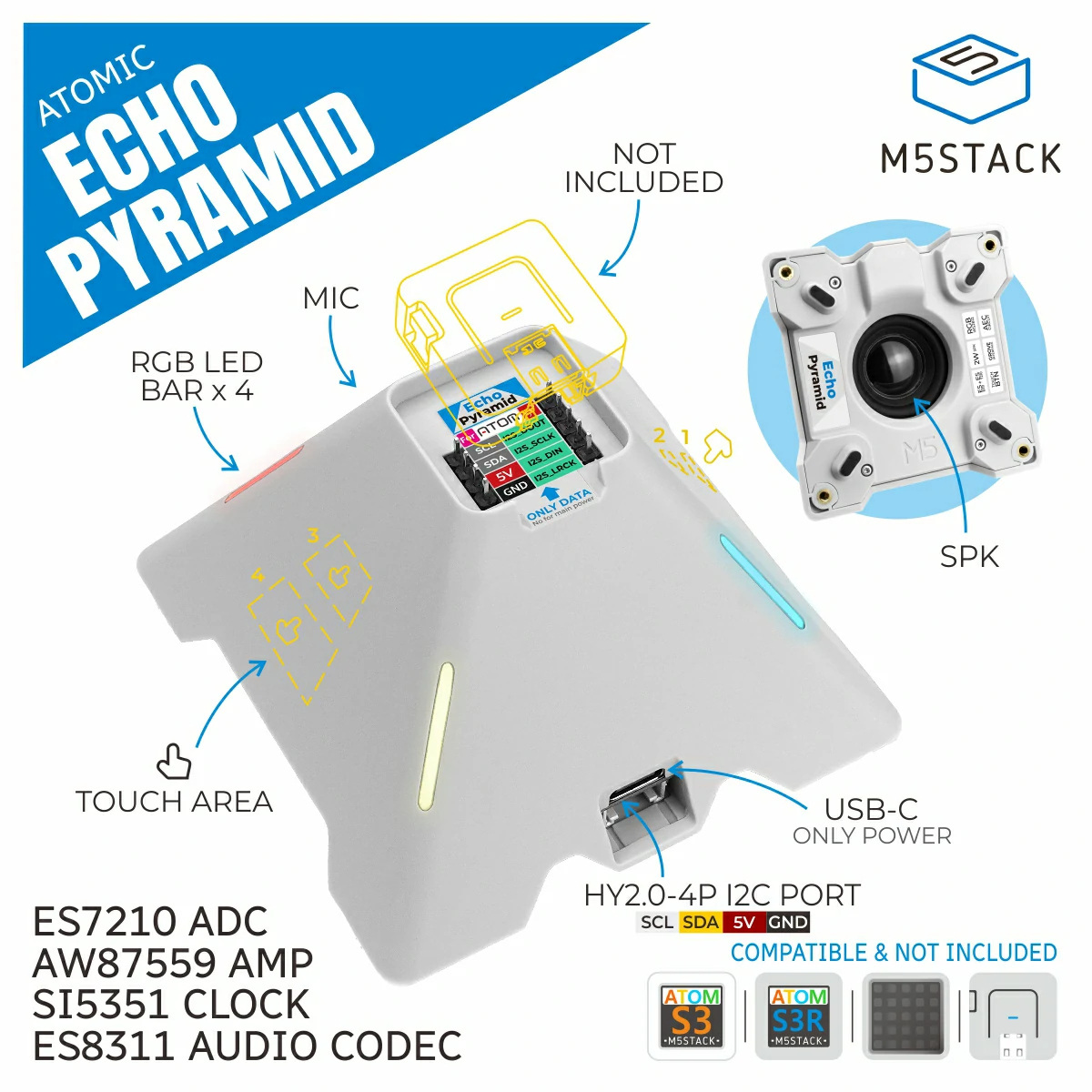

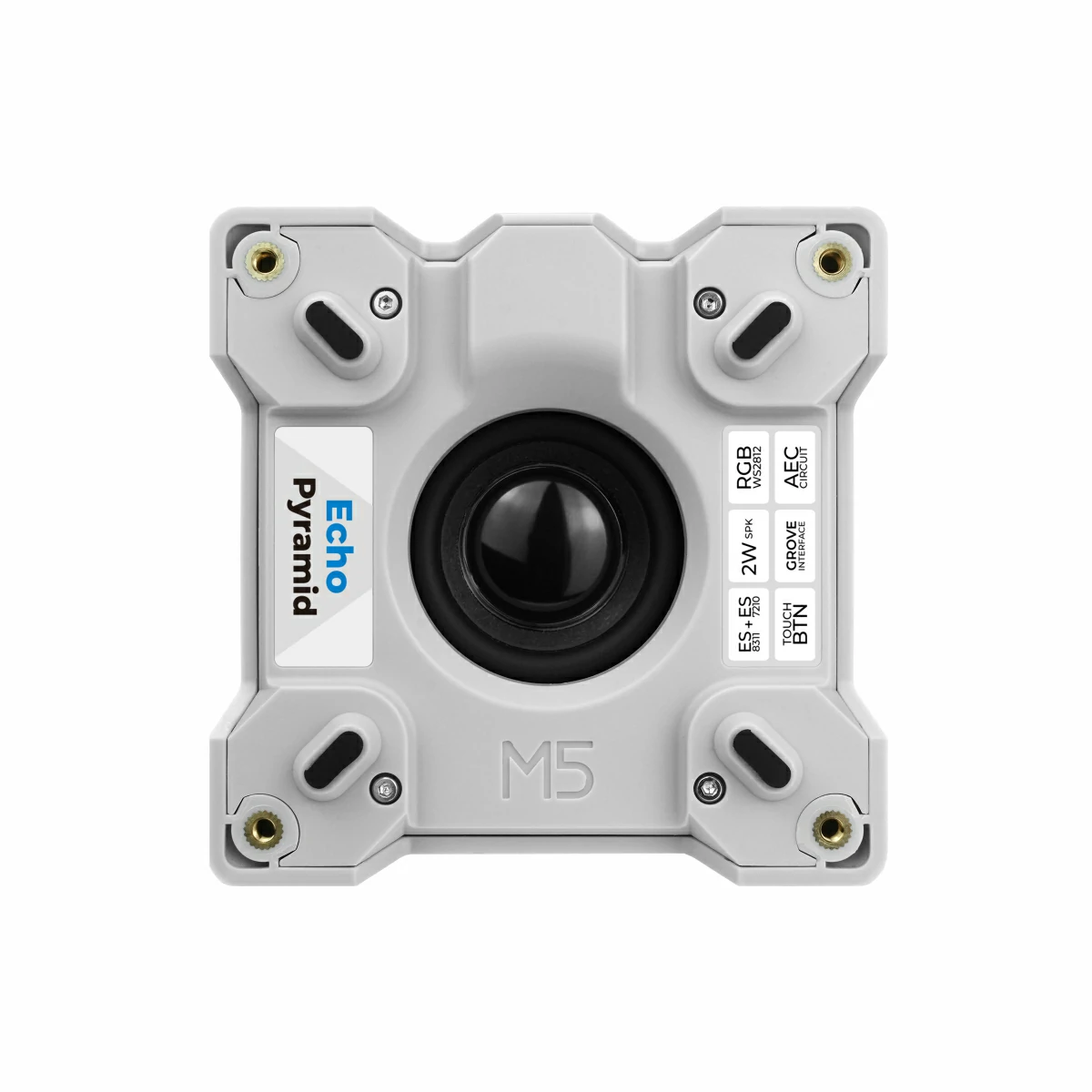

Features

• Compatible with Atom / AtomS3 / AtomS3R series controller modules
• Independent STM32G030F6P6 auxiliary MCU for touch control and RGB lighting effects
• ES8311 high-performance audio codec (supports high-fidelity playback and capture)
• ES7210 microphone input acquisition + AEC echo cancellation
• AW87559 high-efficiency speaker amplifier + built-in speaker
• Si5351 programmable low-jitter main clock generator
• Programmable RGB indicator LEDs
• Dual-side touch sliding areas
• 1 x HY2.0-4P Grove expansion interface (I2C)

Includes

• 1 x Echo Pyramid

Applications

• Smart speakers and desktop voice assistants
• Voice control hubs
• Local / cloud-based voice interaction prototypes
• IoT voice gateways

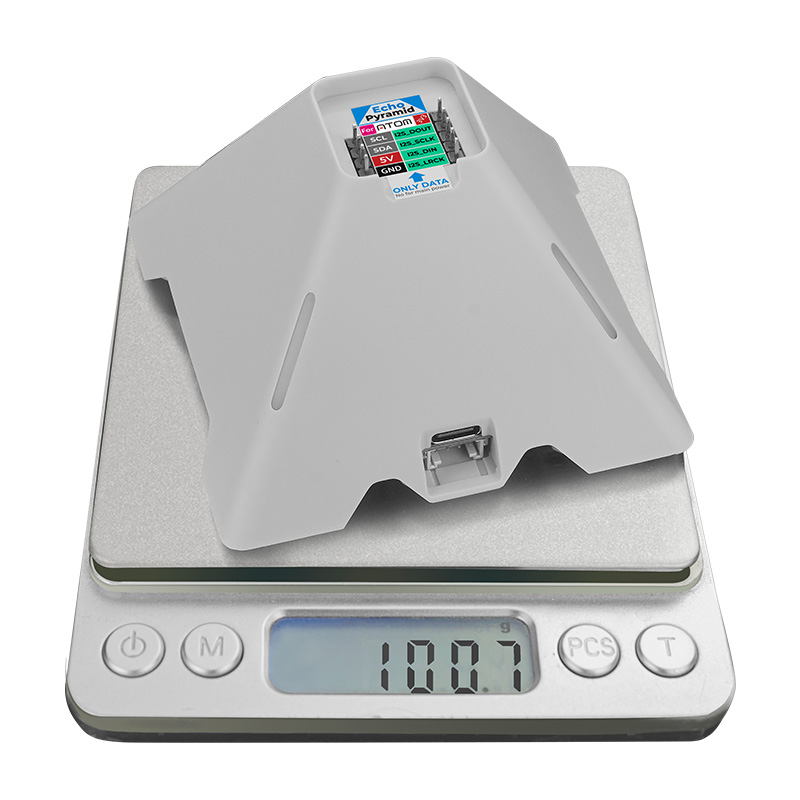

Specifications

Learn

Install Atom Module

Align the Atom module with the reserved pin header interface on the Echo Pyramid and insert it vertically and steadily to ensure a reliable connection.

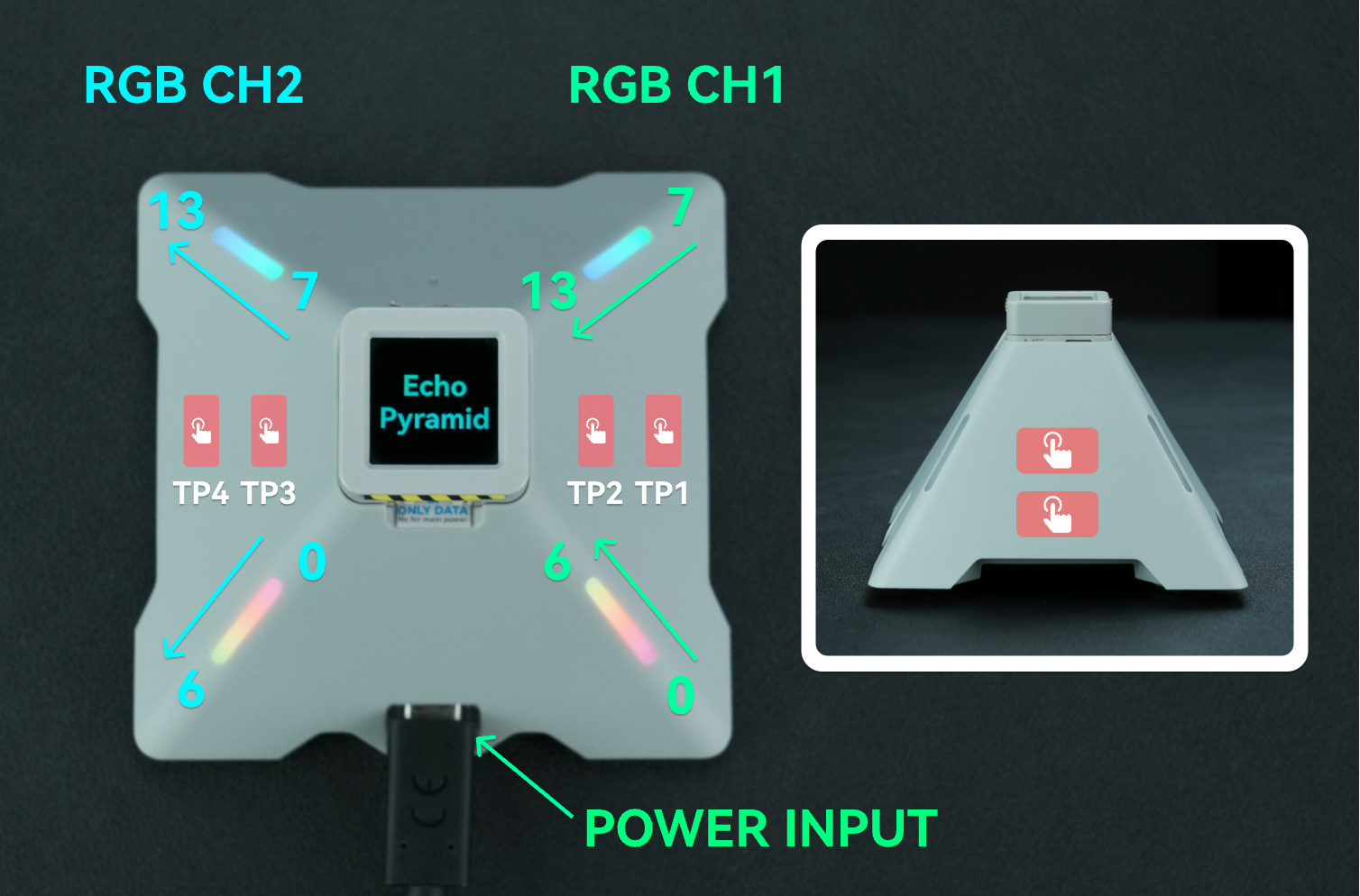

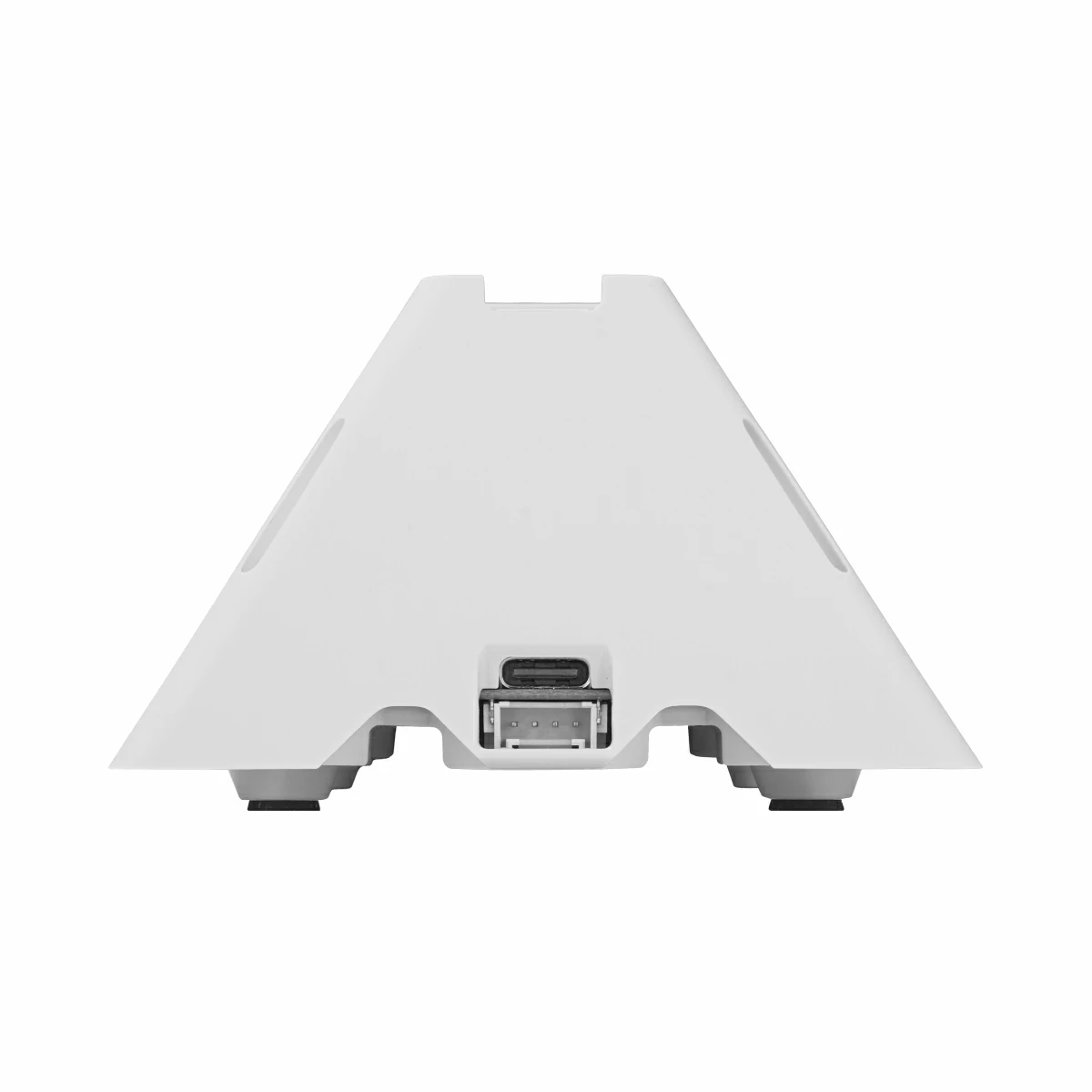

Power Supply

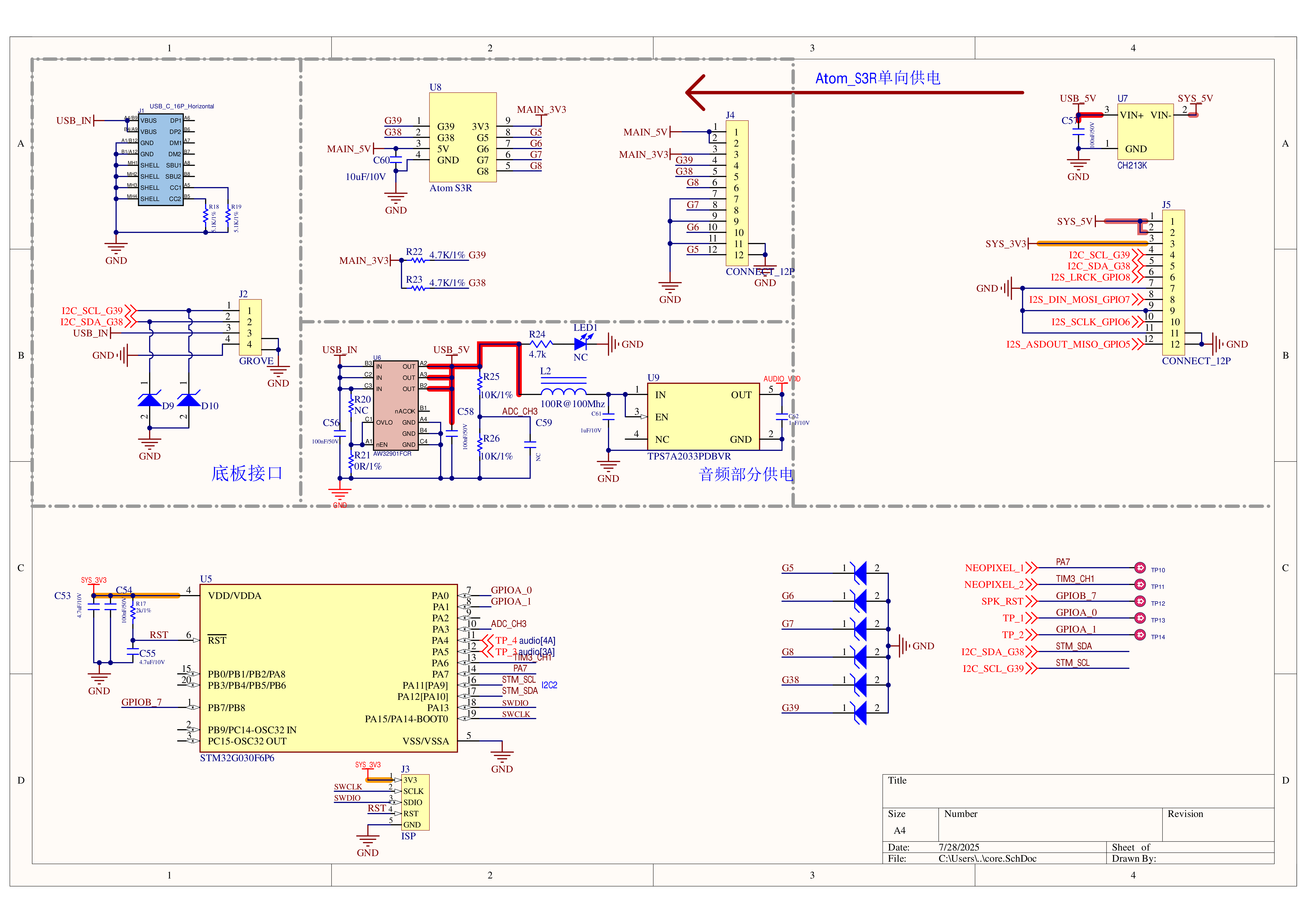

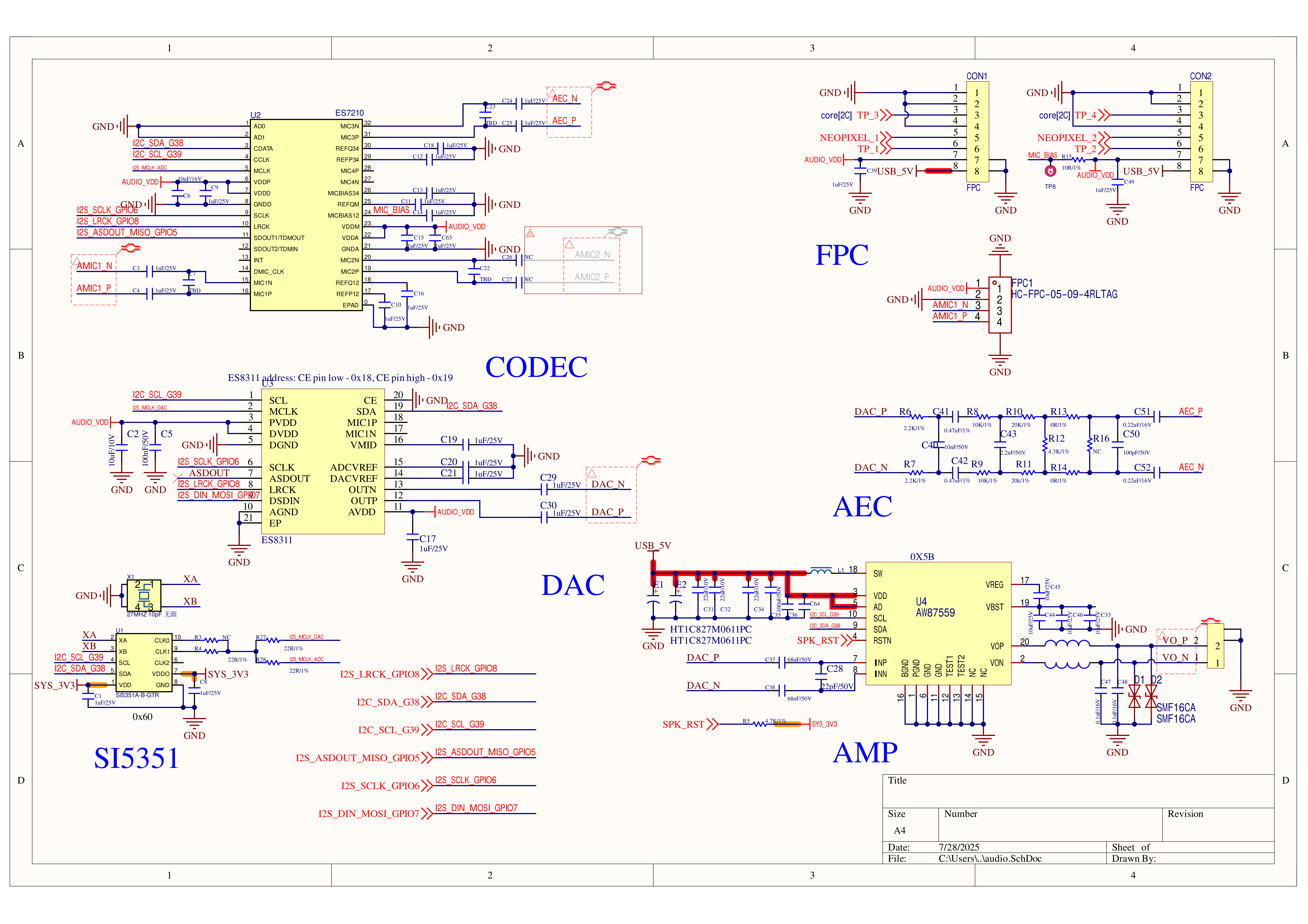

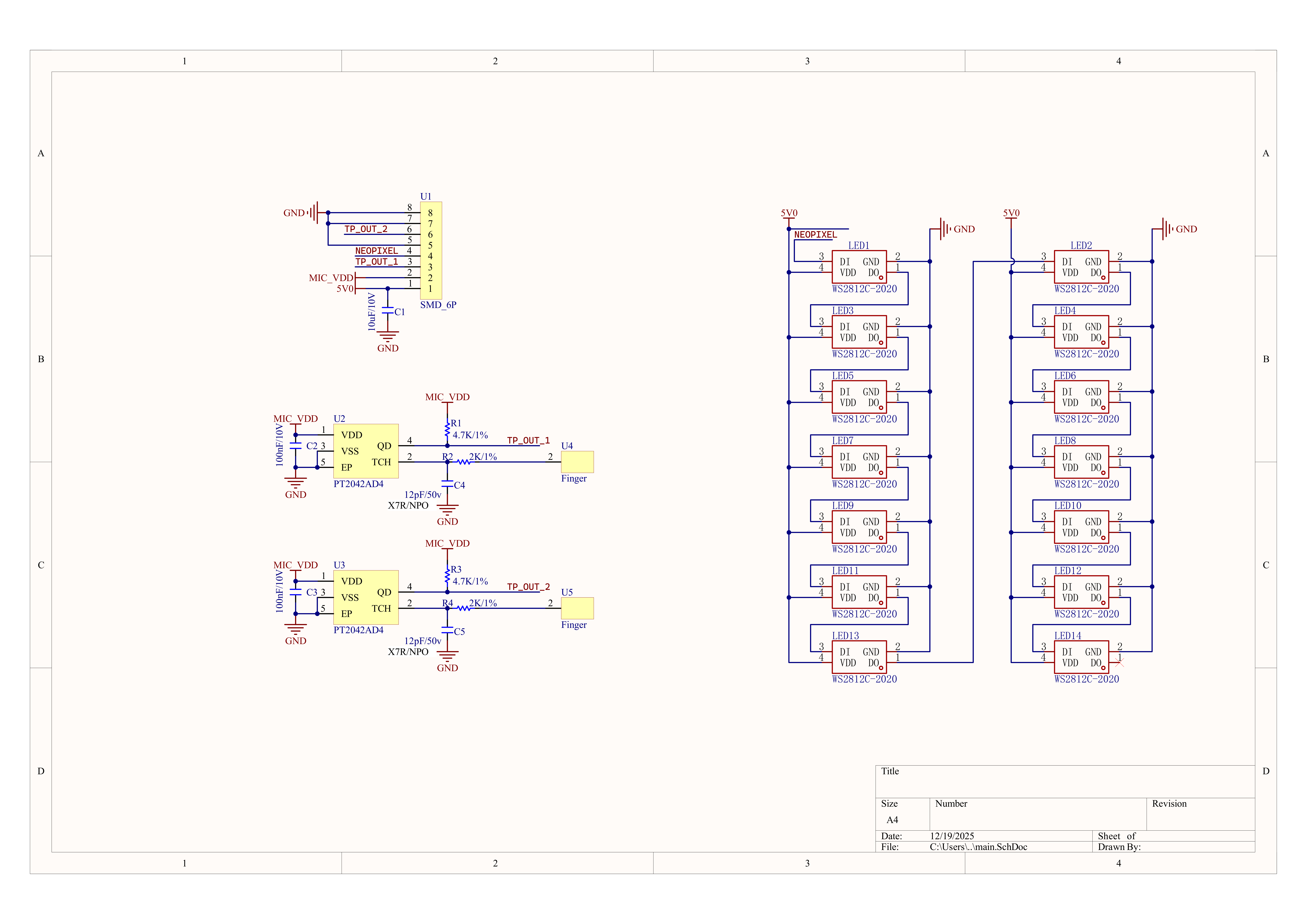

Schematics

• Echo Pyramid Schematics PDF

1/3

PinMap

Echo Pyramid

SI5351

AW87559

WS2812C

PT2042AD4

HY2.0-4P

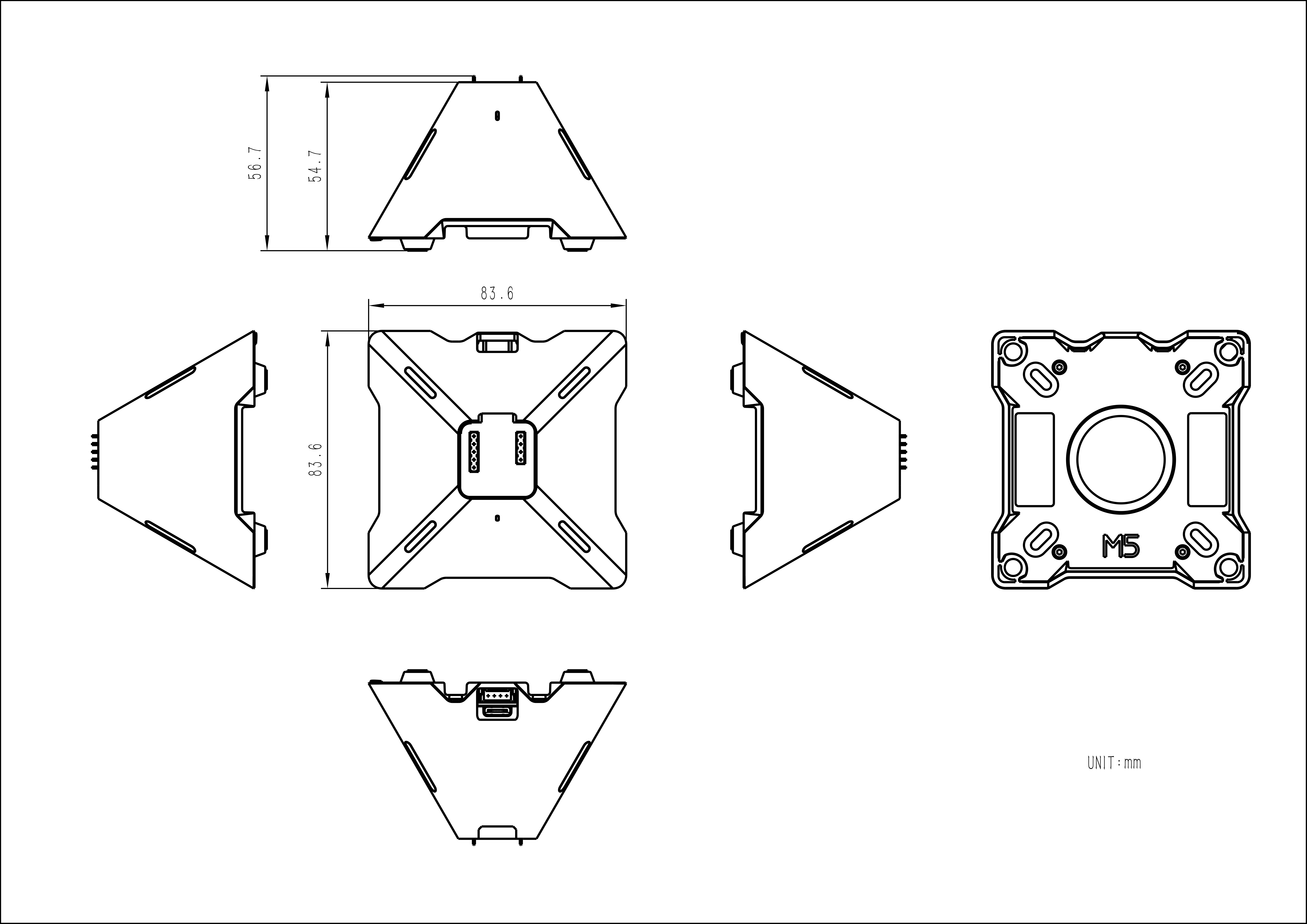

Model Size

• Echo Pyramid Model Size PDF

Datasheets

• ES7210
• ES8311
• AW87559
• SI5351
• STM32G030F6P6

Softwares

Quick Start

• Echo Pyramid Home Assistant Guide
• Echo Pyramid Xiaozhi Voice Assistant
• Echo Pyramid Bluetooth Speaker

Arduino

• Echo Pyramid Arduino Library

ESP-IDF

• BT Audio Player Source Code
