IoT BASE Cat-M is a functional base designed for IoT data transmission. The internal 'SIM7080G' module supports both 'CAT-M' and 'NB-IoT' modes with global coverage. This functional base includes I2C + UART + GPIO + RS485 + Battery-power ports, with rich expansion options. As well to support common industrial protocols such as Modbus. Suitable for remote control, remote monitoring, remote medical applications.
Module Solution: SIM7080G
Cat-M & NB-IoT modes with Global Coverage
UART interface/ AT command control
Global version/ multi-band support
Card slot: MicroSIM
Module certifications: Softbank/Telec/RoHS/REACH/JATE/Docomo/KDDI/RCM/CE(RED)/GCF
Deutsche Telekom/FCC/PTCRB/AT&T/Verizon/T-Mobile/US Cellular/IC
IoT Base expansion ports:
|Communication module||SIM7080G, communication interface: UART baud 115200 8N1|
|Support CAT-M band||B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26 /B27/B28/B66/B85|
|Support CAT-NB frequency band||B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28 /B66/B71/B85|
|Cat-M uplink and downlink speed||Uplink: 1119Kbps Downlink: 589Kbps|
|NB-IoT uplink and downlink speed||Uplink: 150Kbps Downlink: 136Kbps|
|RF Power Class||Class 5 (Typ. 21dbm)|
|Card slot specifications||MicroSIM|
|Support protocol:||TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT and other communication protocols|
|Working current||42mA (DC interface 12V input, when the device is connected to the network)|
DC interface (round hole DC-IN-TH_DC-0440-2.5A-2.0)
Lithium battery interface (VH-3.96-2P)
|Net weight (module)||29.4g|

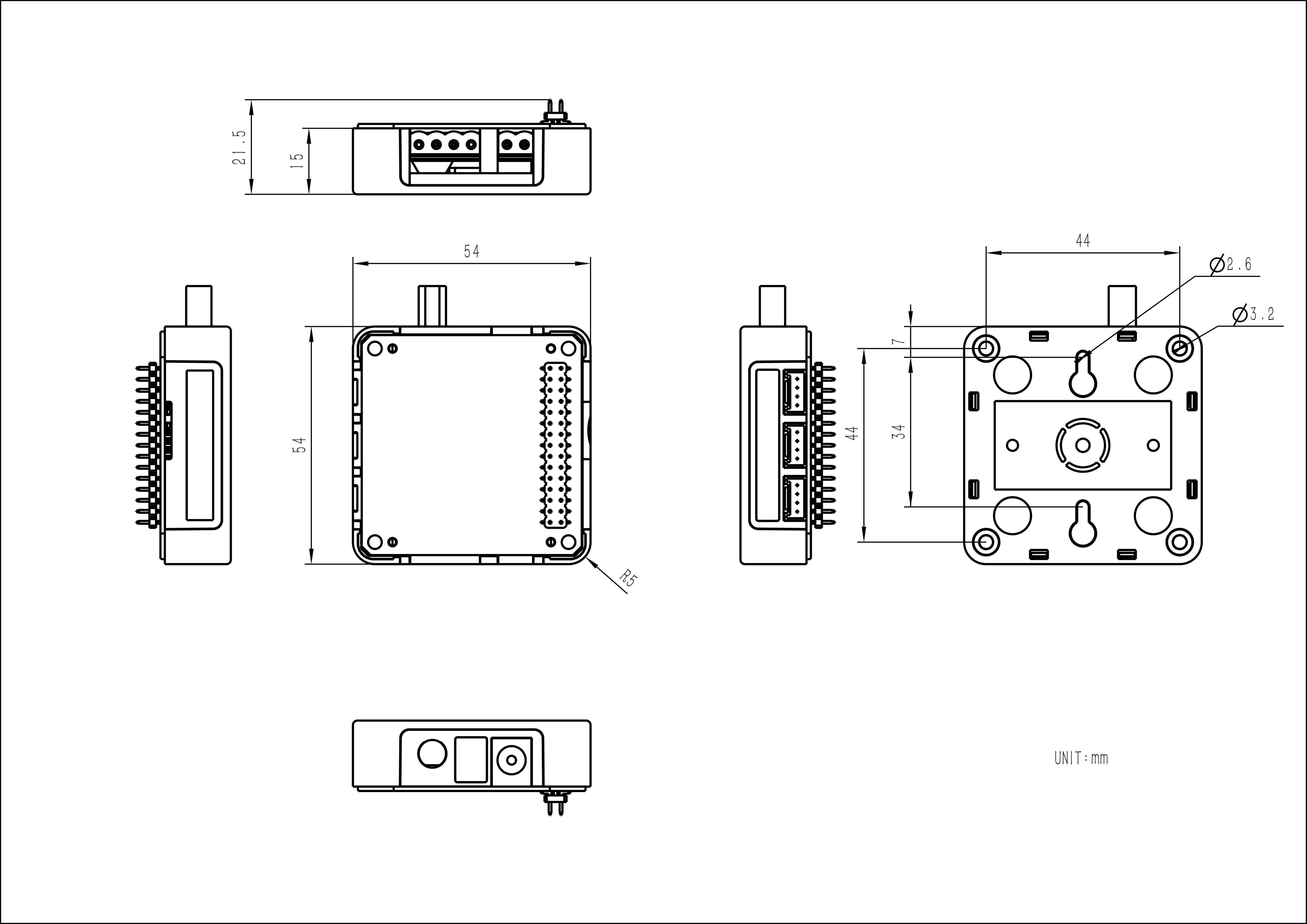

|Product size||80 * 54 * 33mm|
|Packing size||98 * 106 * 57mm|
Execute the following statement in Setup() of the Arduino program
When M5Core2 is stacked with other M5 modules, you need to remove the battery base of Core2, which does not support module stacking.
Reason and solution: The power supply current of the port is insufficient, which can cause the device to not enter the download mode normally. You can try to connect a capacitor (>0.1uF) between the RST pin and the GND pin, or when uploading the program, set the G0 Short-circuit to GND, so that G0 can be set to a low level state normally
Add the header file #include <driver/adc.h> and the function adc_power_acquire(); in the Arduino program
The battery life of the controller is affected by various factors such as battery capacity, operating status, and load, so there is no fixed value. Reducing the load and adopting a sleep strategy can effectively increase the battery life.
Support multiple stacks, the total capacity of the batteries in parallel increases, and the voltage remains unchanged. However, since the discharge of each battery is not balanced during use, there is a voltage difference between the batteries, which may cause the battery to charge backwards. .(will lose part of the battery capacity)
ESP32 module currently does not support WiFi in 5G band, only 2.4G.
Confirm whether the TX/RX pin on the TTL side of the pin is correct, try to add two 120Ω terminal resistors at the beginning and end of the device line to reduce signal reflection interference
