Base M5GO RFID
SKU:A014-B
Description
Base M5GO RFID is an upgraded version of the Base M5GO Bottom, featuring a built-in RFID module. Compared to the standard version Base M5GO Bottom, this base has fewer magnets and a reduced battery capacity, but includes an RFID coil and an infrared transmitter.

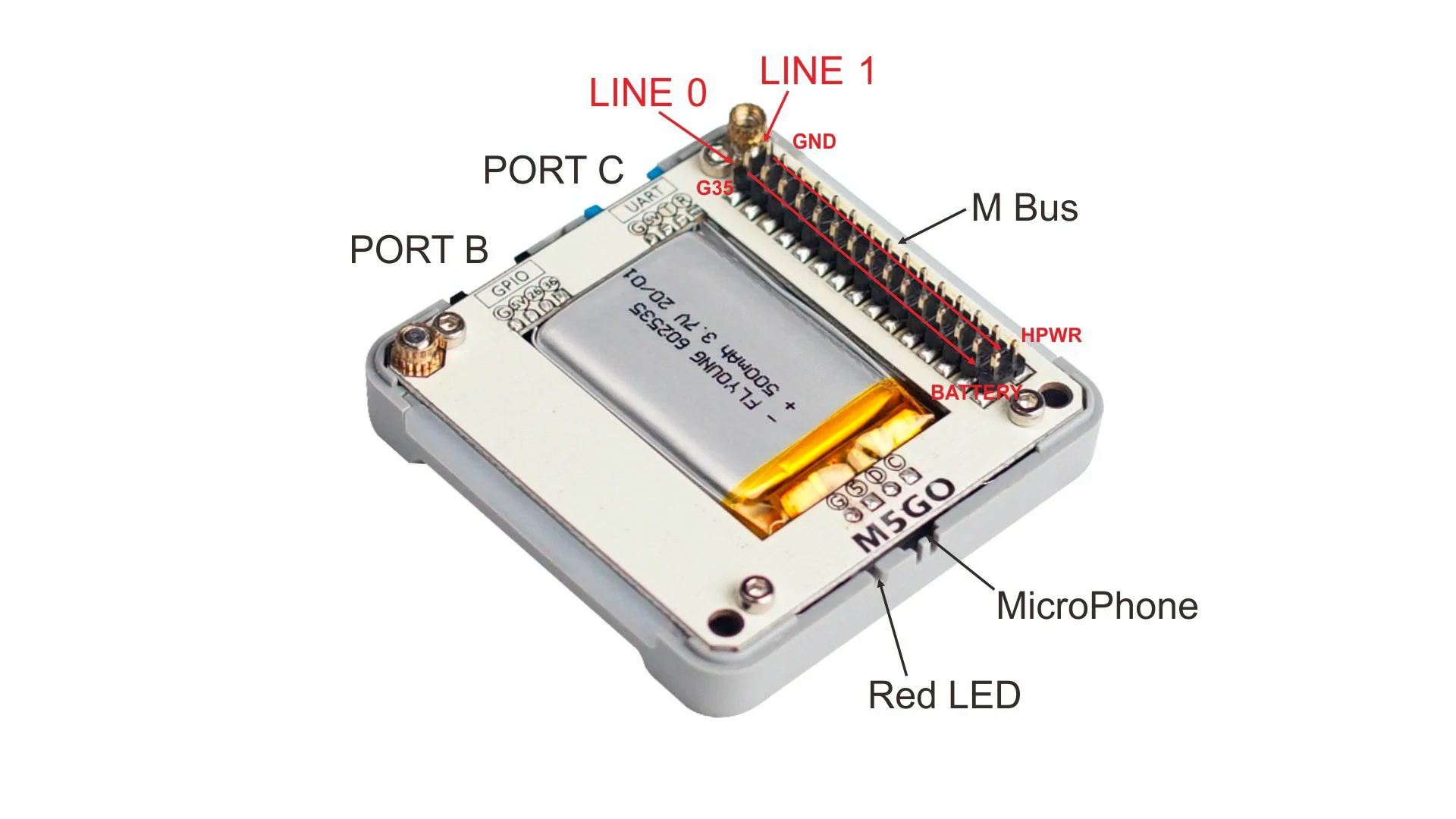

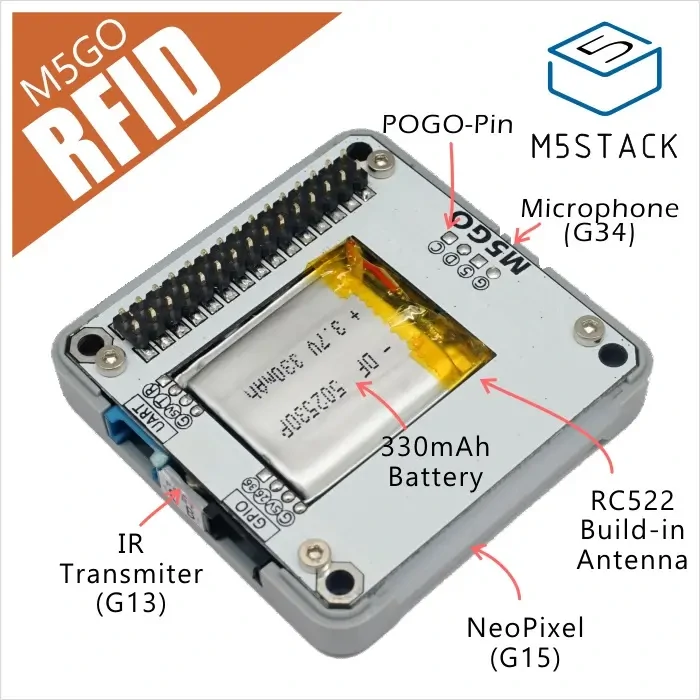

Base M5GO RFID consists of a 330 mAh battery (fully charged at 3.7V), an M5-Bus interface, a microphone, a red charging indicator LED, 2 RGB light strips (10 LEDs in total), an RFID coil, an infrared transmitter, PORT.B, and PORT.C.
PinMap
POGO Pin
| POGO Pin | ESP32 Chip |
|---|
| SCL | G22 |
| SDA | G21 |
LED Bar
There are 10 RGB LEDs, 5 on each side
| LED Pin | ESP32 Chip |
|---|
| LED Pin | G15 |
MIC
Analog input microphone
| MIC Pin | ESP32 Chip |
|---|
| MIC Pin | G34 |
HY2.0-4P
| PORT B(I/O) | ESP32 Chip |
|---|
| G36 | G36 |
| G26 | G26 |
| 5V | 5V |
| GND | GND |
| PORT C(UART2) | ESP32 Chip |
|---|
| RXD | G16 |
| TXD | G17 |
| 5V | 5V |
| GND | GND |
IR Transmitter
| IR Transmitter | ESP32 Chip |
|---|
| IR Transmitter | G13 |
