Chain Joystick

SKU:U205

Description

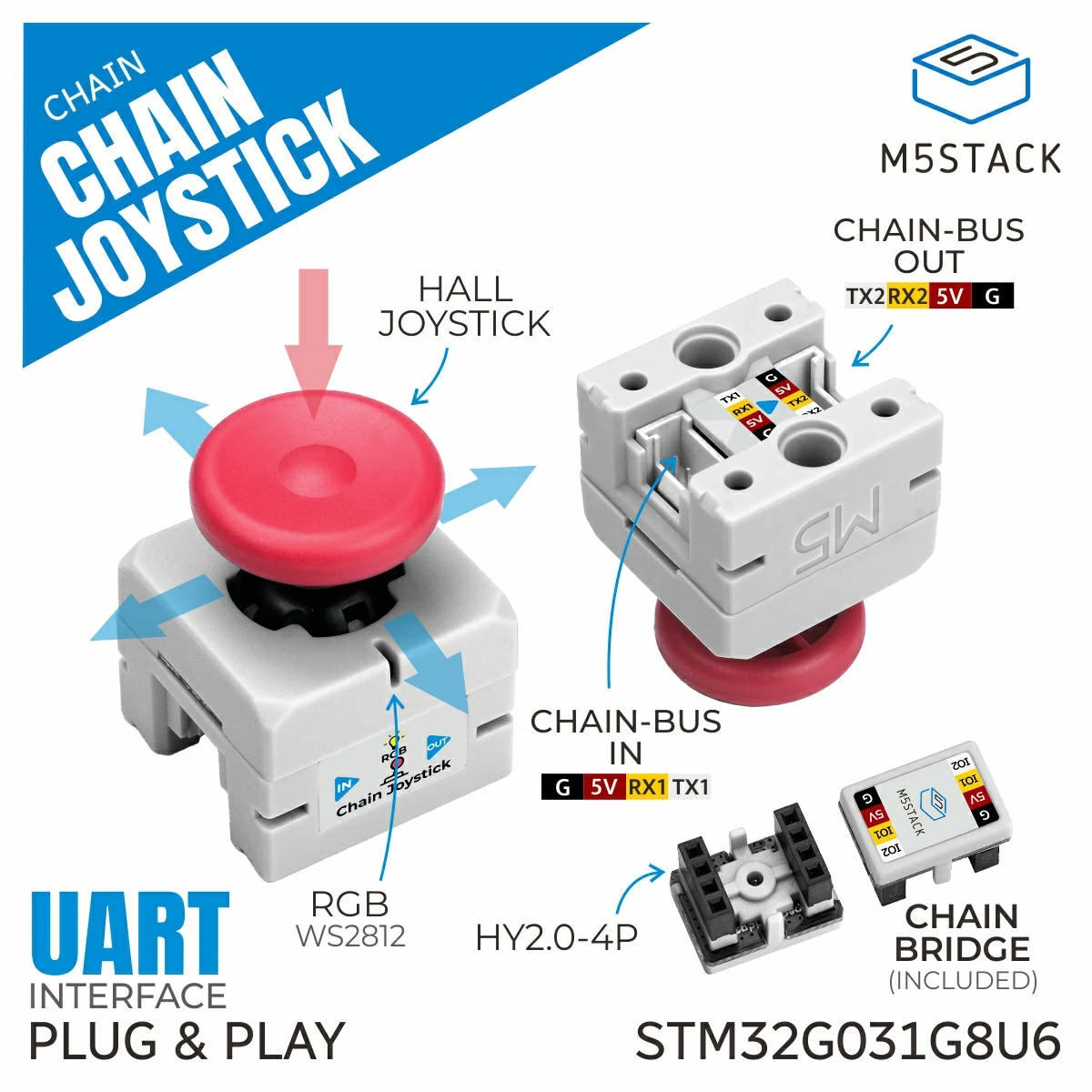

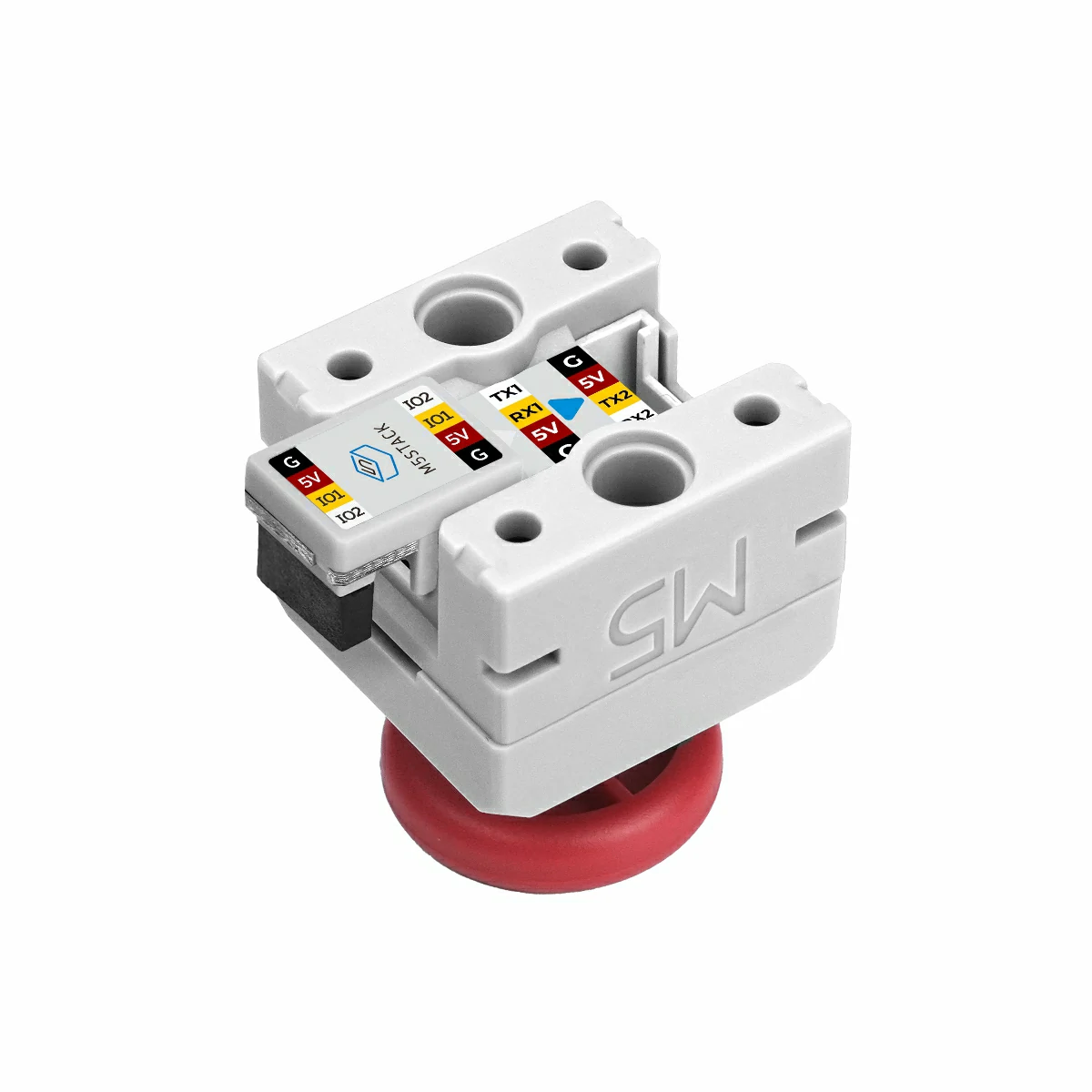

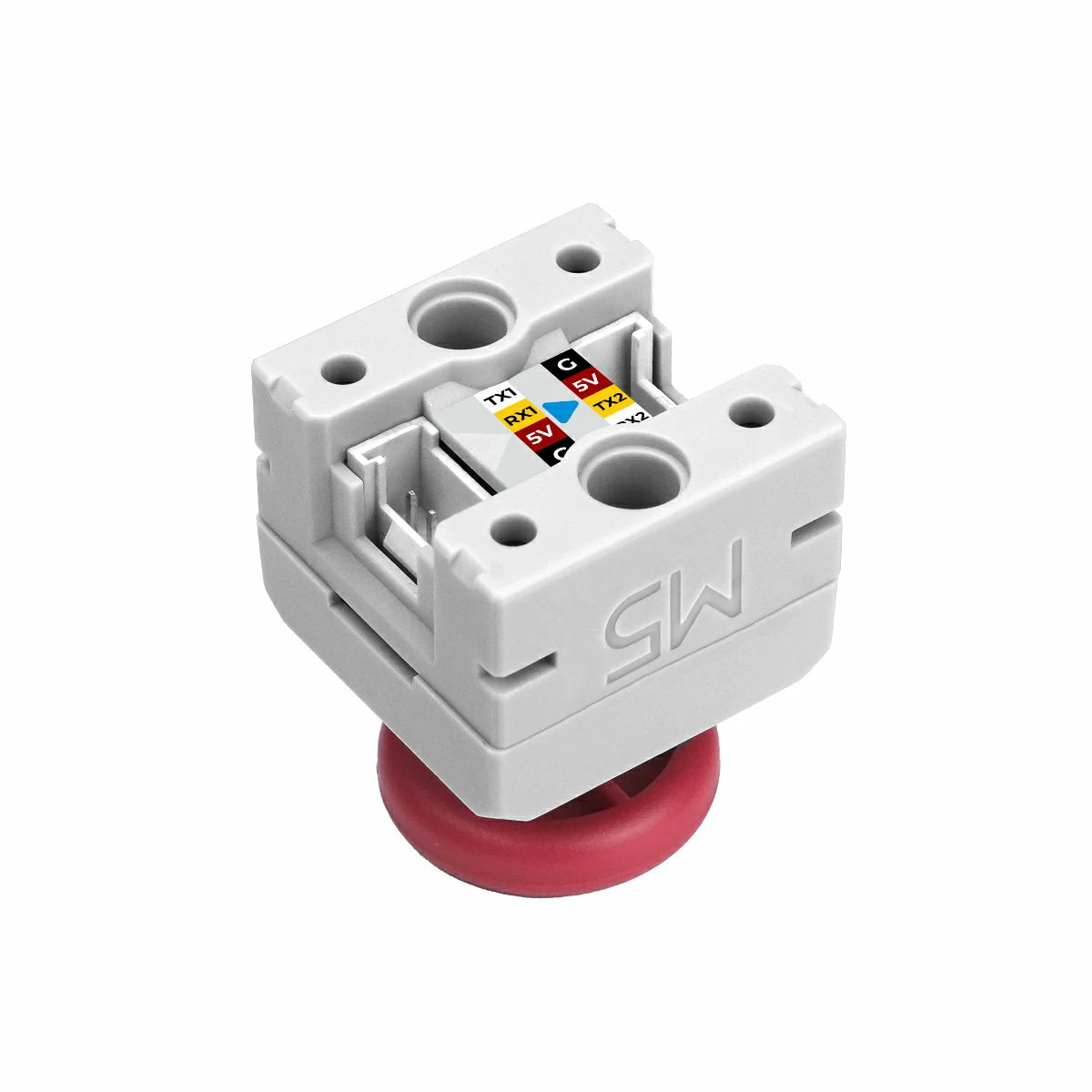

Chain Joystick is a high-precision Hall effect joystick input node in the M5Stack Chain series. It supports three-axis control signal input, including analog input for X/Y axes and digital key input for the Z-axis. The device uses a Hall effect joystick that achieves high-precision control by detecting magnetic field changes. It features non-contact operation, wear resistance, high accuracy, and strong anti-interference capability, ensuring product stability and long lifespan. It also integrates a programmable RGB LED for status indication and interactive display. It is suitable for human-machine interaction, robot control, and other application scenarios.

Chain Joystick integrates the STM32G031G8U6 core controller and adopts the UART serial cascading communication protocol. Through two HY2.0-4P expansion interfaces, it can extend more devices from the Chain series to build richer interactive applications.

Features

• M5Stack Chain series
• High-precision Hall effect joystick
• STM32G031G8U6 core controller
• X/Y/Z three-axis input
• 1x RGB LED
• UART serial cascading communication protocol

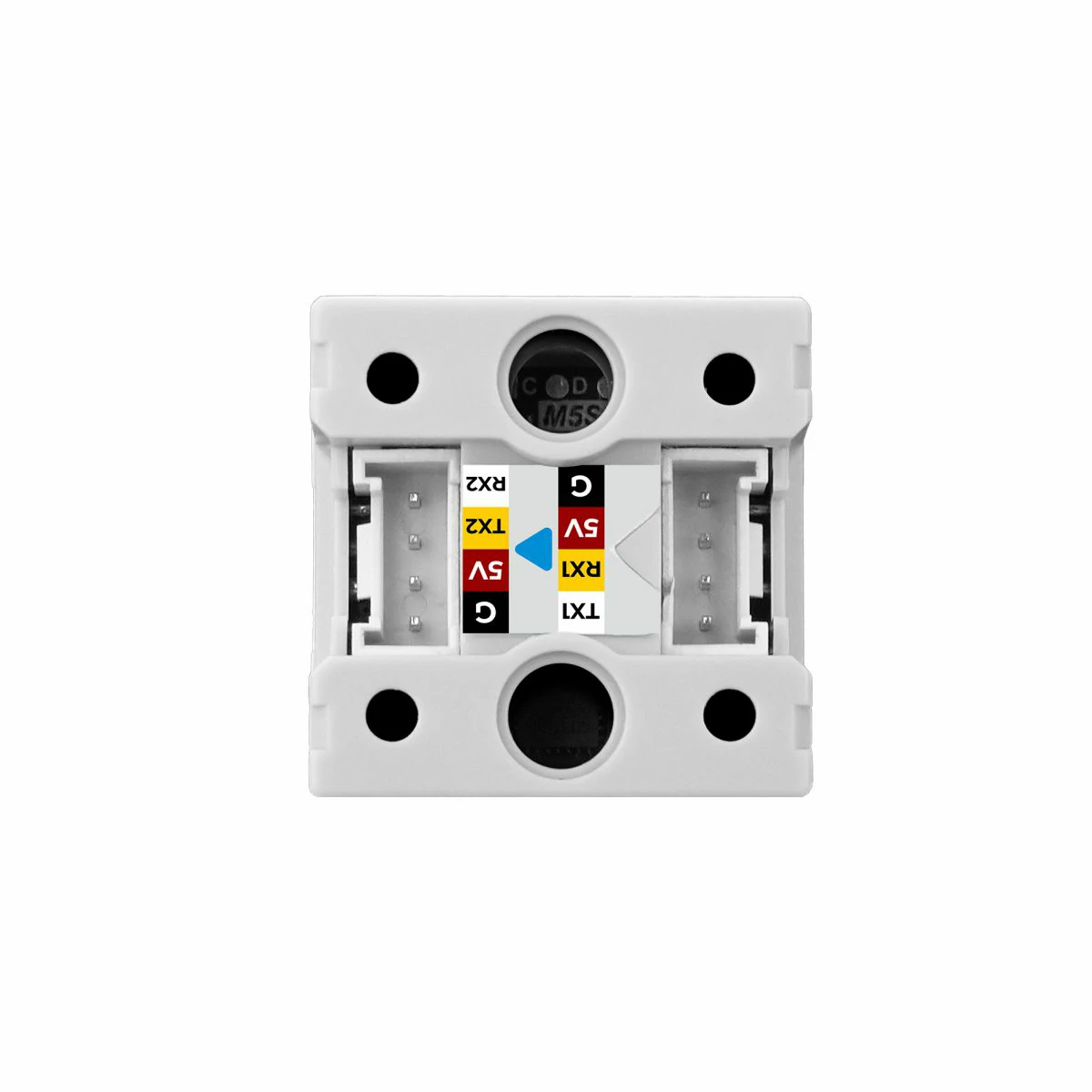

• 2x HY2.0-4P expansion interfaces supporting Chain series extensions

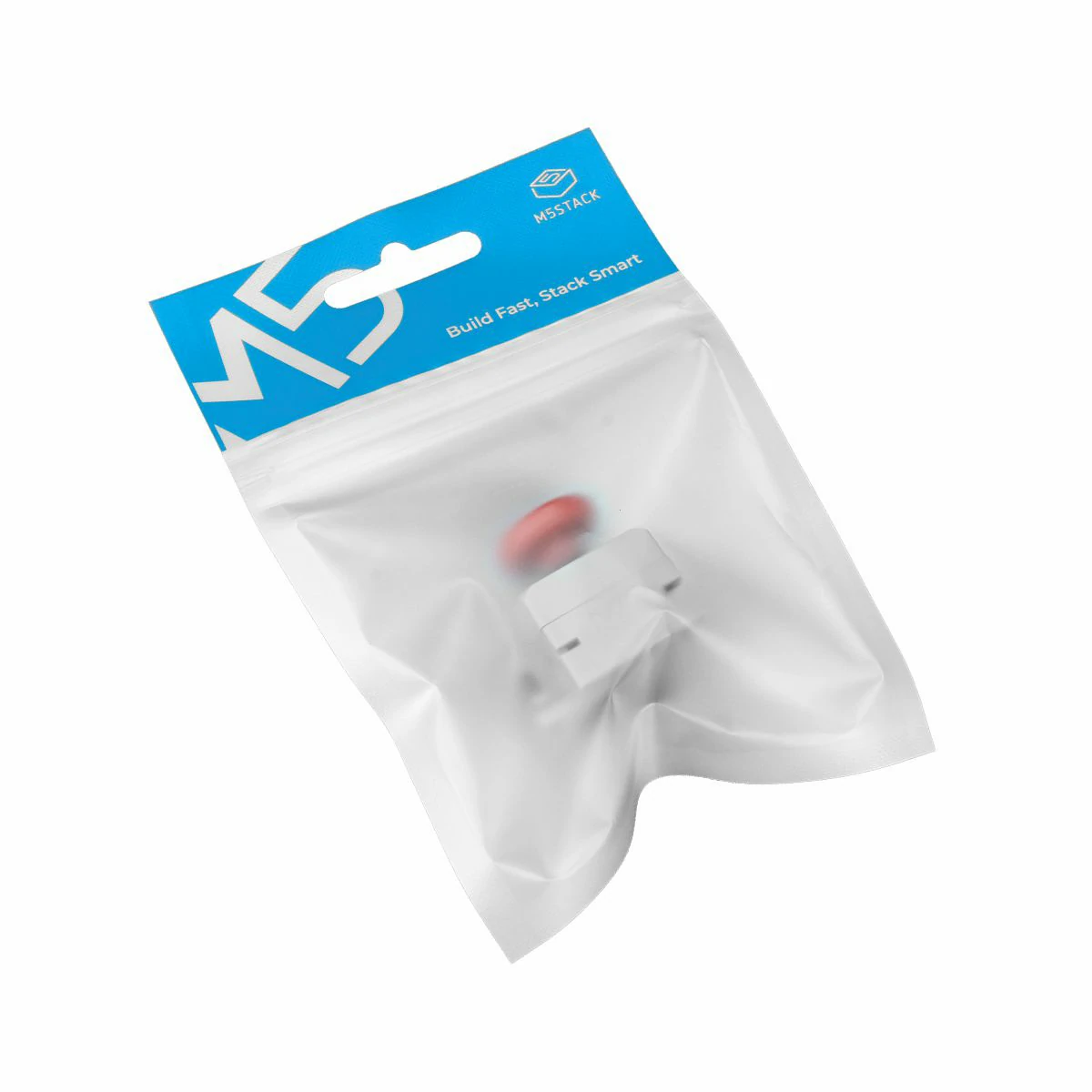

Includes

• 1 x Chain Joystick
• 1 x Chain Bridge

Applications

• Robot control
• Human-machine interaction

Specifications

Learn

Use the Chain Bridge connector to connect the main controller Chain DualKey and various Chain series input devices. Pay attention to the direction when connecting — the triangle arrow should point outward from the main controller Chain DualKey, as shown below:

Schematics

• Chain Joystick Schematics PDF

1/1

PinMap

RGB LED

Joystick

UART

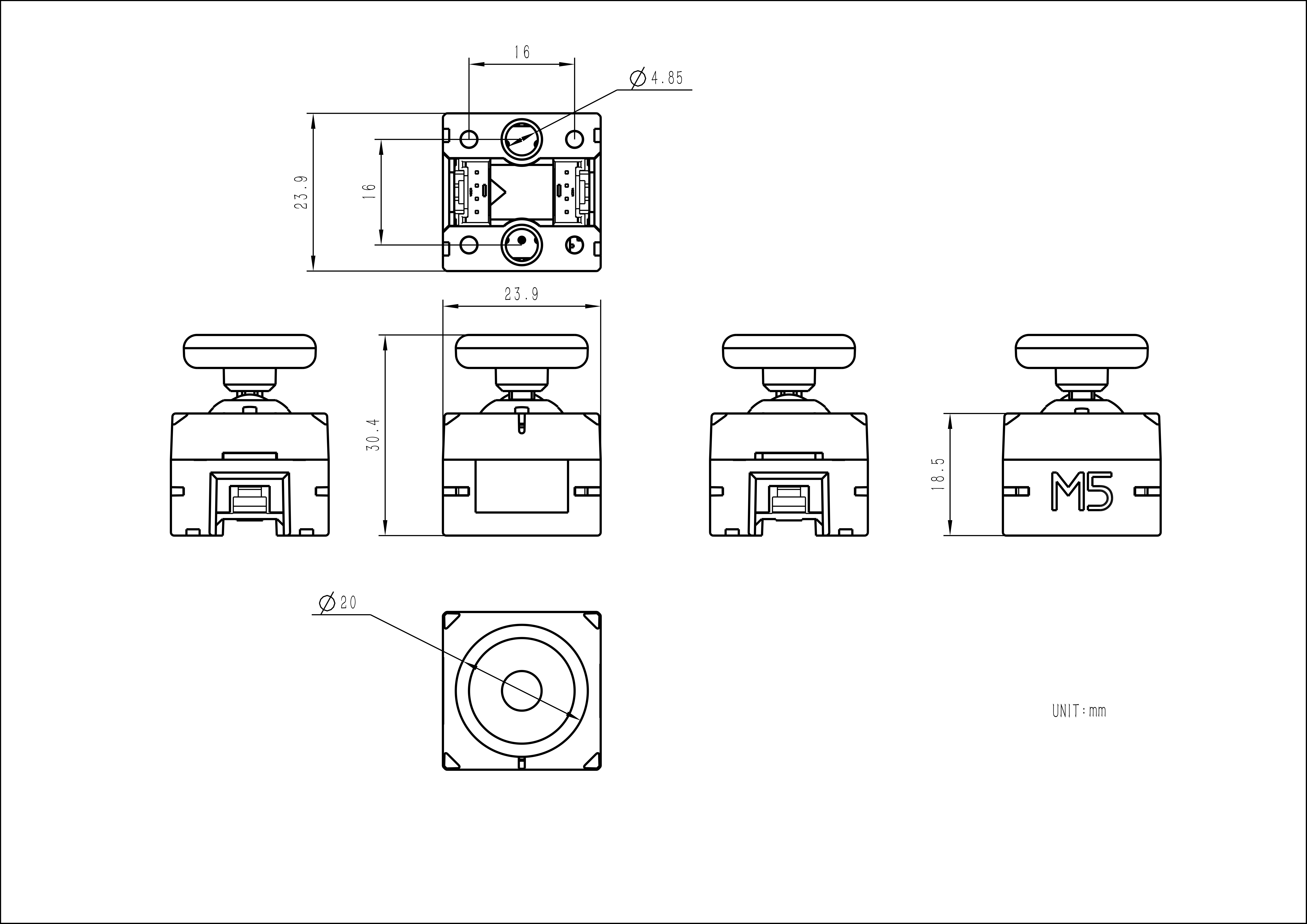

Model Size

• Chain Joystick Model Size PDF

Softwares

Arduino

• Chain Joystick Arduino Quick Start
• Chain Joystick Arduino Library
• Chain Joystick Example Program

Protocol

• Chain Joystick Protocol

Video

• Chain Joystick Product Introduction and Function Demonstration
