AtomS3R-CAM

SKU:C126-CAM

Description

AtomS3R-CAM is a mini IoT programmable controller with an integrated camera. It is powered by the ESP32-S3-PICO-1-N8R8 SoC featuring Wi-Fi connectivity, 8 MB on-chip Flash, and 8 MB PSRAM. The unit carries a 5 V-to-3.3 V power-management circuit, a three-axis BMM150 geomagnetic sensor, and a six-axis BMI270 IMU. In addition, it is equipped with a 0.3 MP GC0308 camera that supports image acquisition and infrared transmission control. Protective glass is fitted in front of the camera to keep dust out and enhance image quality. Compared with previous products, the 3D antenna of AtomS3R-CAM has been enhanced to deliver higher performance and stability.

The factory firmware supports UVC (USB Video Class), allowing the device to work as a driver-free USB camera—simply connect via USB and use it directly. The product also features a USB Type-C port for power supply and firmware download, plus a HY2.0-4P expansion port. Six GPIOs and power pins are exposed on the bottom for further expansion. With compact dimensions of 24.0 x 24.0 x 13.5 mm, it is well suited for IoT monitoring, educational development tools, and other embedded scenarios.

Tutorial

This tutorial shows you how to program and control the AtomS3R-CAM with the Arduino IDE.

Features

  • Integrated ESP32-S3-PICO-1-N8R8 SoC
  • 0.3 MP GC0308 camera
  • 9-axis sensor system (BMI270 6-axis IMU + BMM150 3-axis geomagnetic sensor)
  • 8 MB Flash and 8 MB PSRAM
  • Supports infrared transmission control
  • Expandable pins and interfaces
  • Development Platform
    • Arduino IDE
    • ESP-IDF
    • PlatformIO

Includes

  • 1 x AtomS3R-CAM

Applications

  • Driver-free USB camera
  • Motion detection & orientation sensing
  • Wearable devices
  • Smart device control
  • IoT applications

Specifications

Specification Parameter
SoC ESP32-S3-PICO-1-N8R8 @ dual-core Xtensa LX7 up to 240 MHz @ USB-OTG
PSRAM 8 MB PSRAM
Flash 8 MB Flash

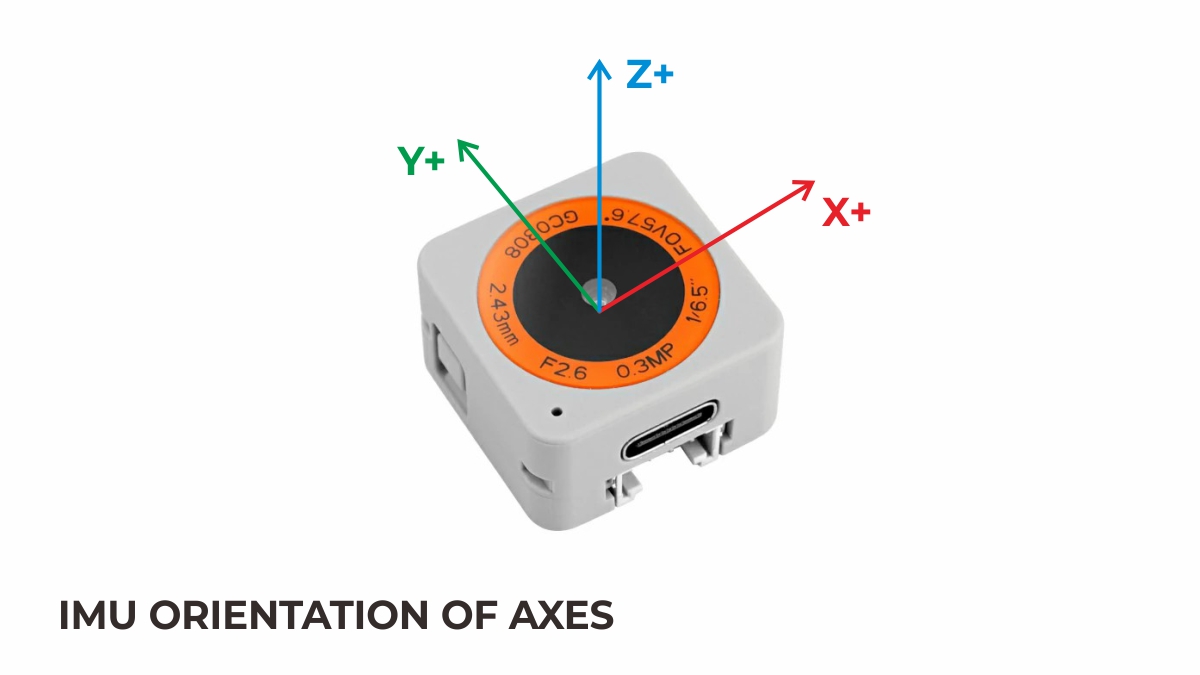

6-axis IMU (BMI270) Accuracy: 0.05 % (acceleration), 0.05 °/s (gyro) I²C address: 0x68
3-axis geomagnetic sensor (BMM150) Accuracy: 0.3 µT. Mounted on BMI270, magnetometer data obtained via BMI270
Camera GC0308. Max frame rate: 30 fps. Output formats: YCbCr4:2:2, RGB565, Raw Bayer. Aperture: F2.6. Resolution: 0.3 MP. Sensor size (diagonal): 1/6.5''. Field of view: FOV 57.6°
Camera panel material Glass
Infrared IR IR emission distance: 12.46 m @ ∠180° (unobstructed)
Sleep current GPIO-5V supply: DC 5 V @ 11.63 µA; Grove-5V supply: DC 5 V @ 10.75 µA; USB-5V supply: DC 5 V @ 92.50 µA (including PD resistor loss)
Bottom GPIO G5/G6/G7/G8/G38/G39
Operating temperature 0 ~ 40 °C
Product Size 24.0 x 24.0 x 13.5 mm
Product Weight 7.4 g
Package Size 85.0 x 65.0 x 14.3 mm
Gross Weight 13.6 g

Learn

BMM150 Magnetic Interference
Products containing magnets may interfere with the BMM150 magnetic sensor and cause abnormal readings. When used with M5 controllers that include magnets, please remove the magnets and avoid placing the BMM150 near strong magnetic fields.

Enable Camera

Before camera initialization, set GPIO18 low to enable power; this action also turns on the power indicator LED.

Download Mode

To flash firmware, press and hold the reset button for about 2 seconds until the internal green LED lights up, then release it. The device is now in download mode and ready for flashing.

schematics

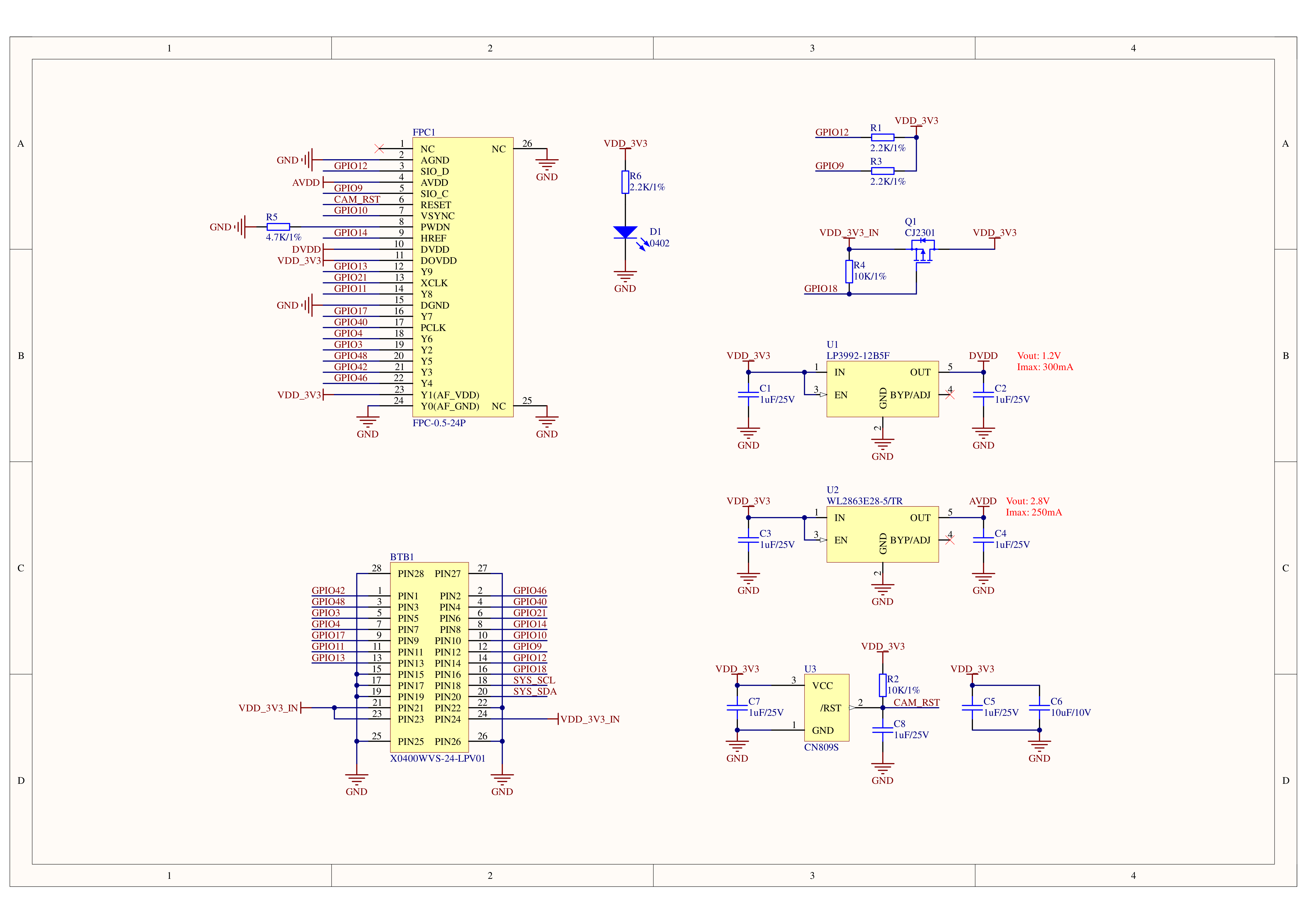

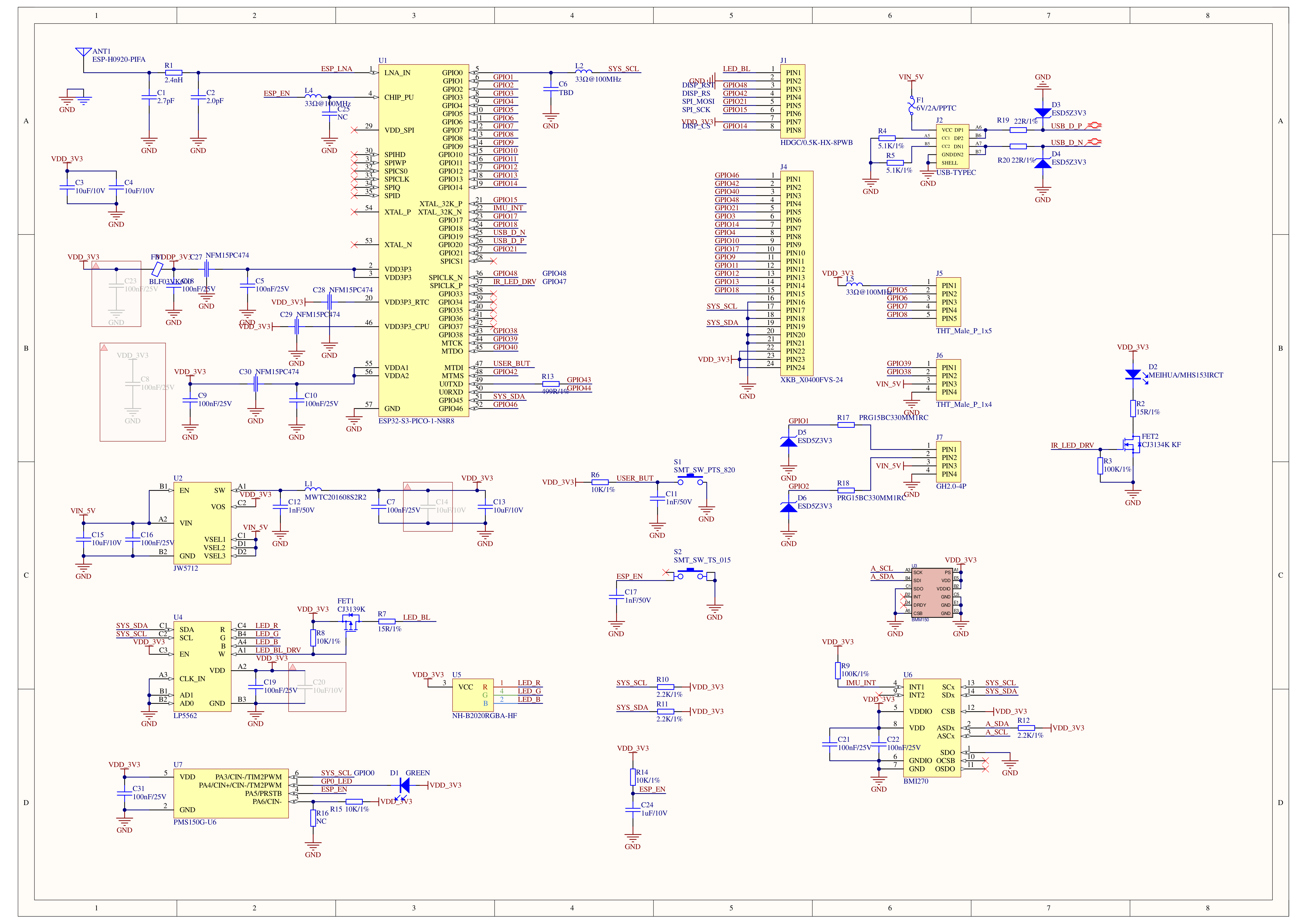

Schematics

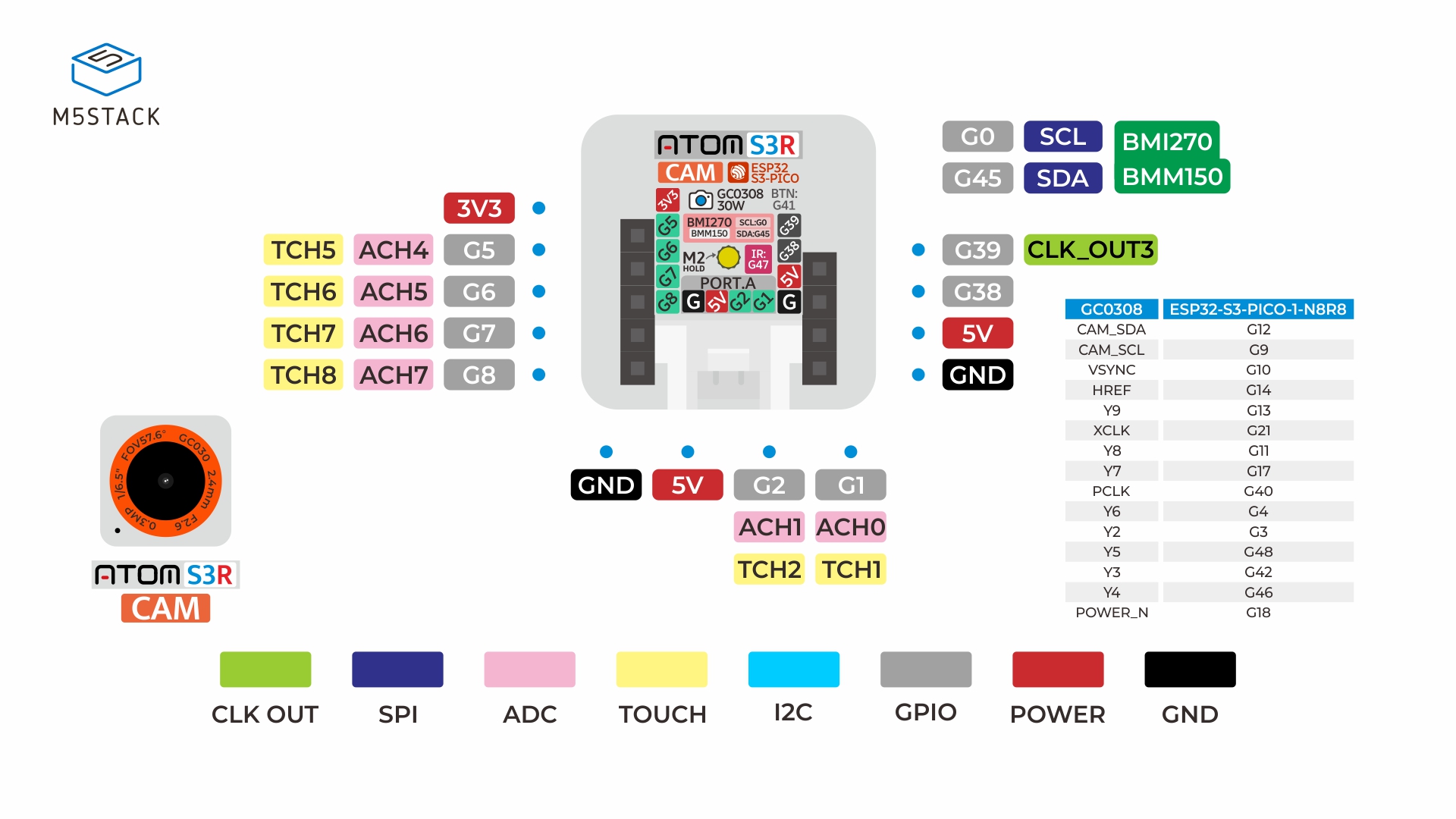

PinMap

BMI270 & IR

ESP32-S3-PICO-1-N8R8 G0 G45 G47
BMI270 SYS_SCL SYS_SDA
IR IR_LED_DRV

BMM150

BMI270 BMI270_ASDx BMI270_ASCx
BMM150 A_SDA A_SCL
BMM150 Mounted on BMI270
The BMM150 is connected via the BMI270 Sensor Hub auxiliary I²C interface, providing unified 9-axis sensor data acquisition.

GC0308

GC0308 ESP32-S3-PICO-1-N8R8
CAM_SDA G12
CAM_SCL G9
VSYNC G10
HREF G14
Y9 G13
XCLK G21
Y8 G11
Y7 G17
PCLK G40
Y6 G4
Y2 G3
Y5 G48
Y3 G42
Y4 G46
POWER_N G18

HY2.0-4P

HY2.0-4P Black Red Yellow White
PORT.CUSTOM GND 5V G2 G1

Model Size

module size

Datasheets

Softwares

Arduino

PlatformIO

[env:m5stack-atoms3r]
platform = espressif32@6.3.2
board = esp32-s3-devkitc-1
framework = arduino
board_build.arduino.memory_type = qio_opi
build_flags =
    -DESP32S3
    -DBOARD_HAS_PSRAM
    -mfix-esp32-psram-cache-issue
    -DCORE_DEBUG_LEVEL=5
    -DARDUINO_USB_CDC_ON_BOOT=1
    -DARDUINO_USB_MODE=1
lib_deps =
    M5Unified=https://github.com/m5stack/M5Unified

ESP-IDF

Factory Firmware Function
The factory firmware provides both UVC and Wi-Fi video streaming functions. The UVC mode allows direct PC connection and image preview via any camera application. For Wi-Fi streaming, connect to the AP “AtomS3R-CAM-WiFi” and open 192.168.4.1 in a browser to view the stream.

Easyloader

Easyloader Download Note
AtomS3R-CAM User Demo Easyloader download /

Video

  • AtomS3R-CAM product introduction and demo cases

Product Comparison

Product Compare AtomS3R M12 AtomS3R M12 AtomS3R Cam AtomS3R Cam
Camera Image Sensor: OV3660 Max Frame Rate: 30 fps Output Formats: RAW RGB, RGB565/555/444, CCIR656, YCbCr422, and compression Aperture: F2.4 Resolution: 3 MP (3 megapixels) Focal Length: 1.8 ± 5 % mm Field of View (FOV): 120° Image Sensor: GC0308 Max Frame Rate: 30 fps Output Formats: YCbCr4:2:2, RGB565, Raw Bayer Aperture: F2.6 Resolution: 0.3 MP (300 k pixels) Sensor Size (diagonal): 1/6.5'' Focal Length: 2.43 mm Field of View (FOV): 57.6°
Resolution 3 MP 0.3 MP
Communication Supports UVC and Wi-Fi Supports UVC and Wi-Fi
SoC ESP32-S3-PICO-1-N8R8 ESP32-S3-PICO-1-N8R8
Memory 8 MB Flash + 8 MB PSRAM 8 MB Flash + 8 MB PSRAM
Sensor BMI270 + BMM150 BMI270 + BMM150
Antenna Enhanced 3D antenna Enhanced 3D antenna
