AtomS3R M12

SKU:C126-M12

Description

AtomS3R M12 is an IoT programmable controller integrated with an M12 camera, featuring a 3-megapixel OV3660 Wide Angle camera that supports high-resolution image capture. It uses the ESP32-S3-PICO-1-N8R8 as the main controller, with built-in WiFi functionality, 8MB onboard FLASH, and 8MB PSRAM. It includes a power management circuit that converts 5V to 3.3V and has an embedded three-axis BMM150 geomagnetic sensor and a six-axis BMI270 motion sensor. The product comes with UVC (USB Video Class) firmware, allowing it to be used as a plug-and-play USB camera without the need for driver installation, and it also has infrared emission control.

Compared to previous ATOM series host products, the AtomS3R M12 features an enhanced 3D antenna, providing better performance and stability. The product includes a Type-C interface for power supply and firmware downloads, along with an HY2.0-4P expansion port. The bottom design features six GPIO and power pins for easy expansion. Measuring only 24x24x22.1mm, it is suitable for applications such as IoT device monitoring, educational development tools, and various embedded scenarios.

Download Mode
To flash the firmware, press and hold the reset button (for about 2 seconds) until the internal green LED lights up, then release the button. The device will enter download mode and is ready for flashing.
schematics

Product Features

  • Integrated ESP32-S3-PICO-1-N8R8 main controller
  • 3-megapixel(3MP) OV3660 camera
  • Nine-axis sensor system (BMI270 six-axis + BMM150 three-axis geomagnetic sensor)
  • 8MB Flash and 8MB PSRAM
  • Supports infrared emission control
  • Expandable pins and interfaces
  • Development platforms: Arduino, UIFlow, MicroPython

Includes

  • 1x AtomS3R M12

Applications

  • Plug-and-play USB camera
  • Motion detection and directional awareness
  • Wearable devices
  • Smart device control
  • IoT applications

Specifications

Specification Parameter
SoC ESP32-S3-PICO-1-N8R8 @ Dual-core Xtensa LX7 processor, up to 240MHz @ USB-OTG
PSRAM 8M PSRAM
FLASH 8M FLASH
Six-axis Motion Sensor (BMI270) Accuracy: 0.05% (acceleration), 0.05°/s (angular velocity)
I2C address: 0x68
Three-axis Geomagnetic Sensor (BMM150) Accuracy: 0.3 μT
Mounted on BMI270, obtaining magnetometer data via BMI270
Camera Sensor chip: OV3660
Maximum frame rate: 30 frames/second
Output formats: RAW RGB, RGB565/555/444, CCIR656, YCbCr422, and compression
Aperture: F2.4
Resolution: 3MP (3 million pixels)
Focal length: 1.8±5% mm
Field of view: FOV 120°
Infrared IR IR emission distance at ∠180°: 12.46m
IR emission distance at ∠90°: 1.45m
IR emission distance at ∠45°: 3.88m
Sleep Current GPIO-5V power supply: DC5V@11.63 uA
Grove-5V power supply: DC5V@10.75 uA
USB-5V power supply: DC5V@92.50 uA (including PD resistor loss)
Reserved GPIO G5/G6/G7/G8/G38/G39
Operating Temperature 0°C ~ 40°C
Product Dimensions 24*24*22.1mm
Package Dimensions 47*46*27mm
Product Weight 10.8g
Package Weight 17.9g

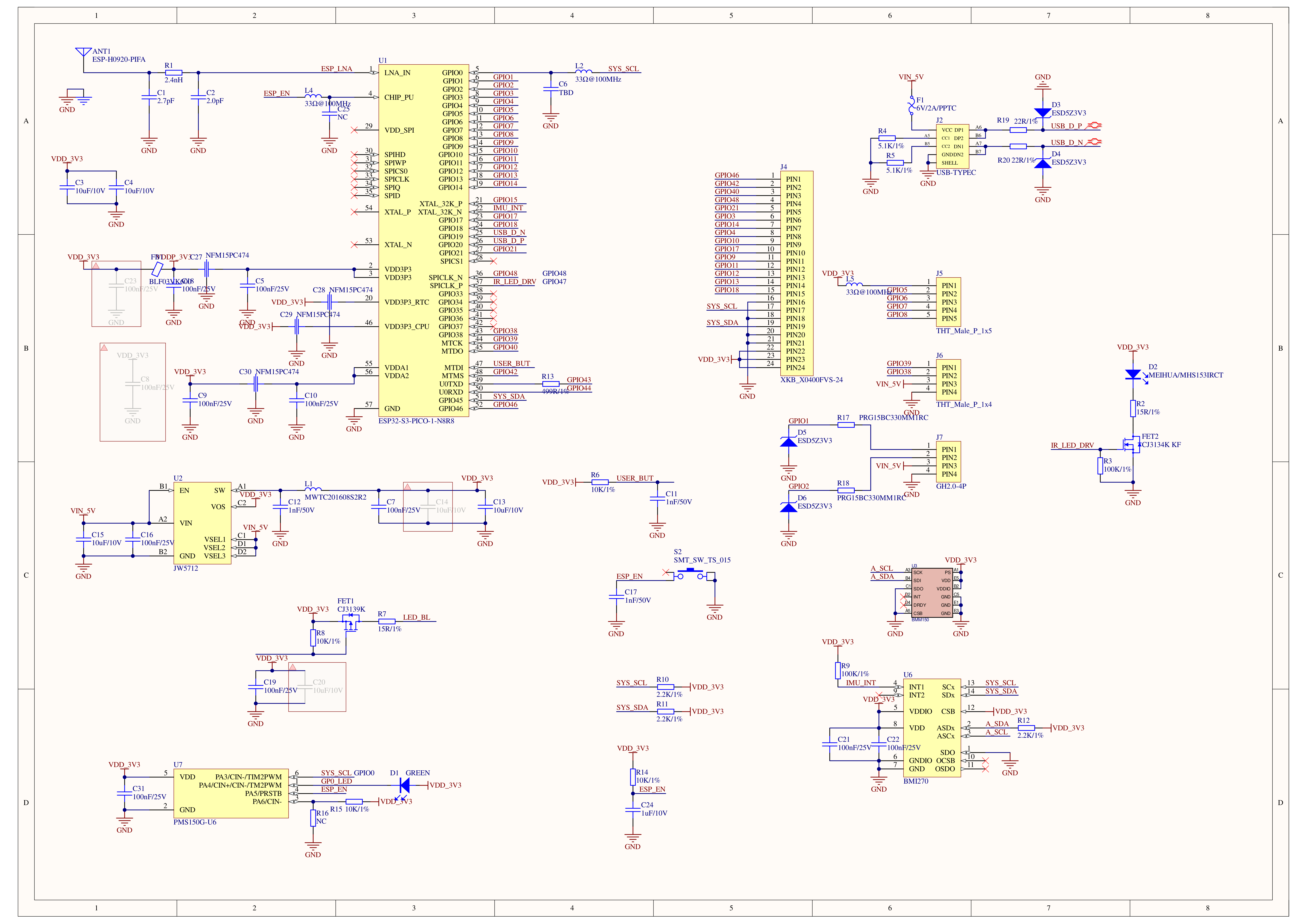

Schematic

schematics schematics schematics

PinMap

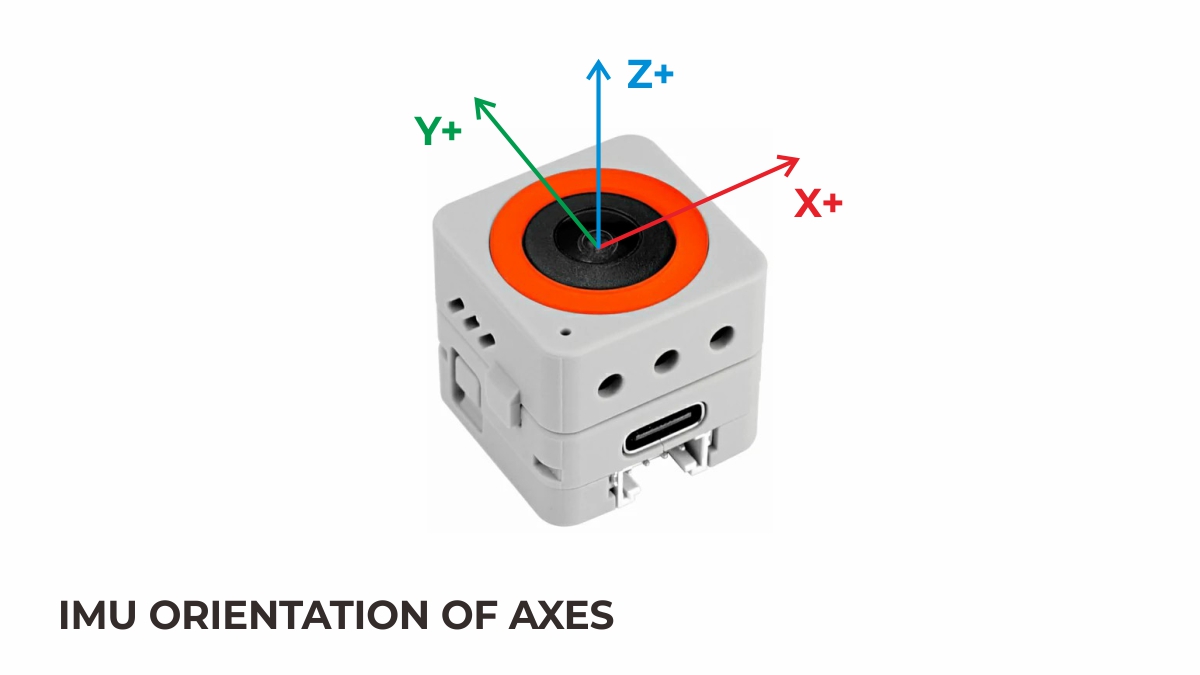

BMM150 & BMI270 & IR

ESP32-S3-PICO-1-N8R8 G0 G45 BMI270_ASDx BMI270_ASCx G47
BMI270 SYS_SCL SYS_SDA
BMM150 A_SDA A_SCL
IR IR_LED_DRV

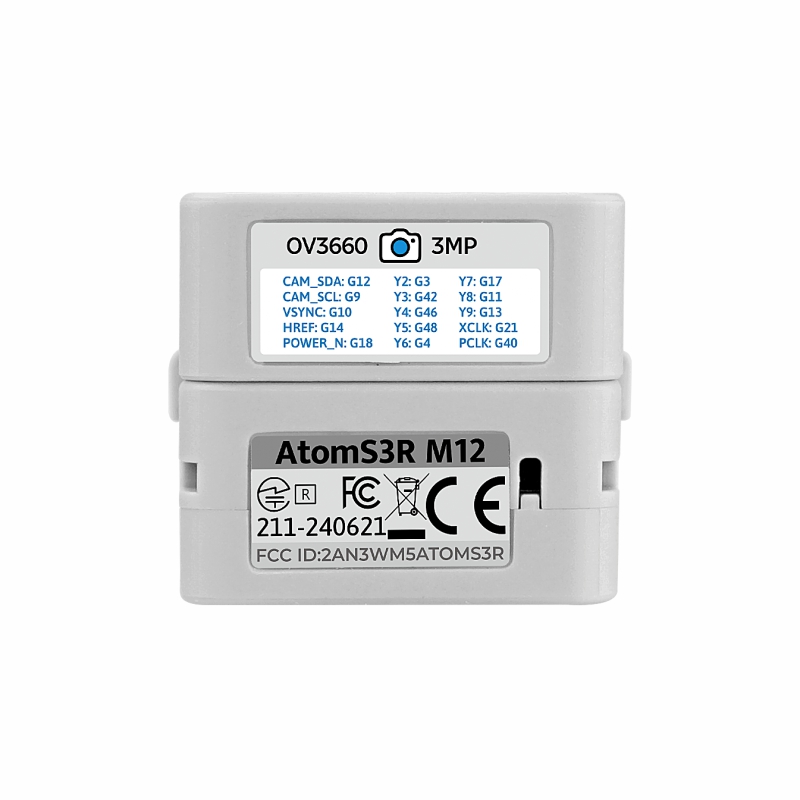

OV3360(M12)

OV3360(M12) ESP32-S3-PICO-1-N8R8
CAM_SDA G12
CAM_SCL G9
VSYNC G10
HREF G14
Y9 G13
XCLK G21
Y8 G11
Y7 G17
PCLK G40
Y6 G4
Y2 G3
Y5 G48
Y3 G42
Y4 G46
POWER_N G18

Module Size

module size

Example

Function Selection
The factory firmware includes both UVC functionality and Wi-Fi transmission capabilities.
The UVC function allows direct connection to a computer; simply open the camera to view the image.
For the Wi-Fi transmission function: connect to the Wi-Fi network emitted by the device: AtomS3R-M12-WiFi, then enter 192.168.4.1 in your browser to select the Wi-Fi transmission feature.

Video

  • ATOMS3R M12 Introduction and Example

Product comparison

Product Compare AtomS3R M12 AtomS3R M12 AtomS3R Cam AtomS3R Cam
Camera Image Sensor: OV3660
Max Frame Rate: 30 frames per second
Output Formats: RAW RGB, RGB565/555/444, CCIR656, YCbCr422, and compression
Aperture Value: F2.4
Resolution: 3MP (3 million pixels)
Focal Length: 1.8 ± 5% mm
Field of View (FOV): 120°		 Image Sensor: GC0308
Max frame rate: 30 fps
Various output formats:YCbCr4:2:2, RGB565, Raw Bayer
Aperture: F2.6
Resolution: 0.3MP
Sensor Size(Camera diagonal length): 1/6.5''
Focal Length: 2.43mm
Field of View (FOV): 57.6°
SoC ESP32-S3-PICO-1-N8R8 ESP32-S3-PICO-1-N8R8
Memory 8M FLASH + 8M PSRAM 8M FLASH + 8M PSRAM
Sensor BMI270 + BMM150 BMI270 + BMM150
Antenna Enhanced 3D Antenna Enhanced 3D Antenna
