Cardputer Mesh Kit

SKU:K152

Description

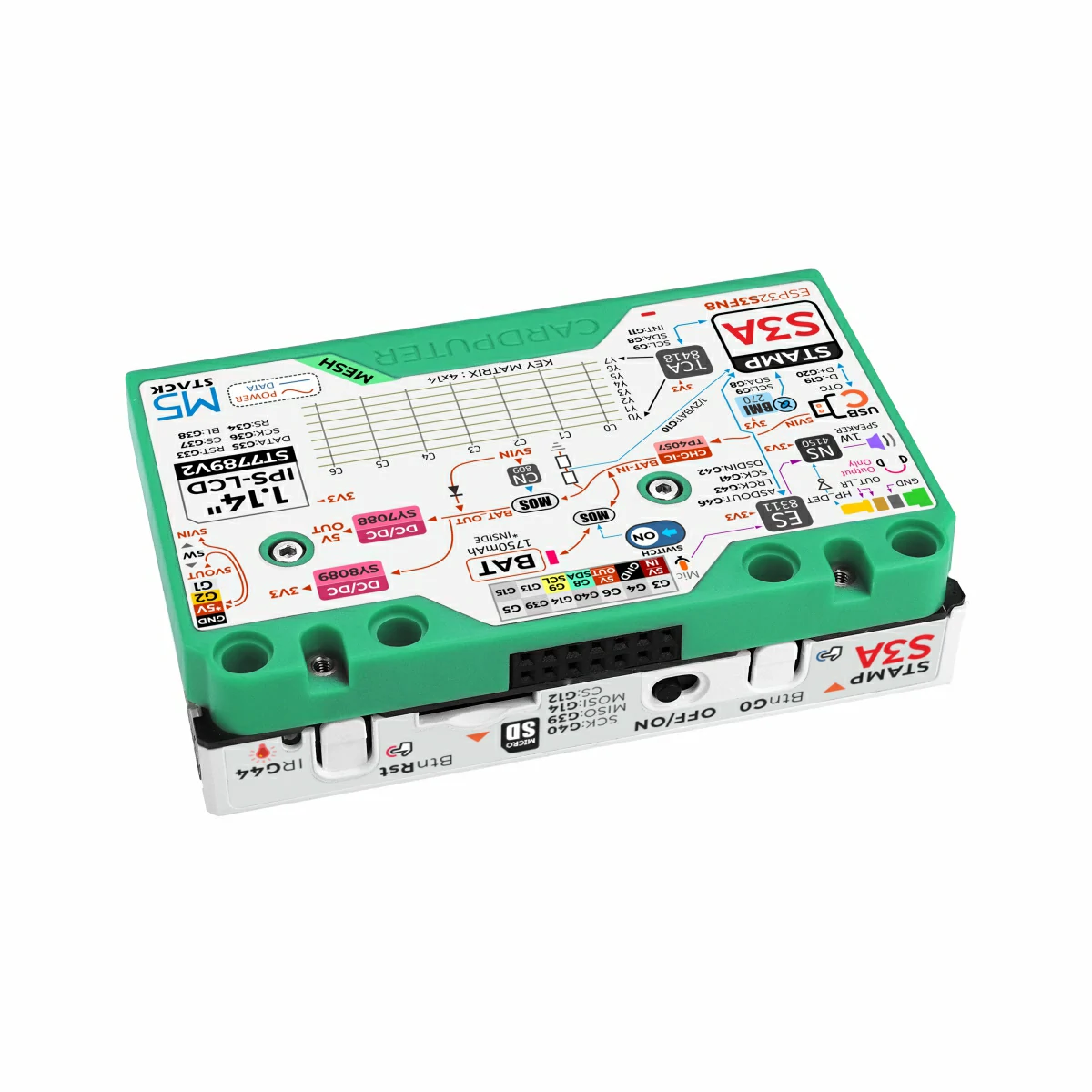

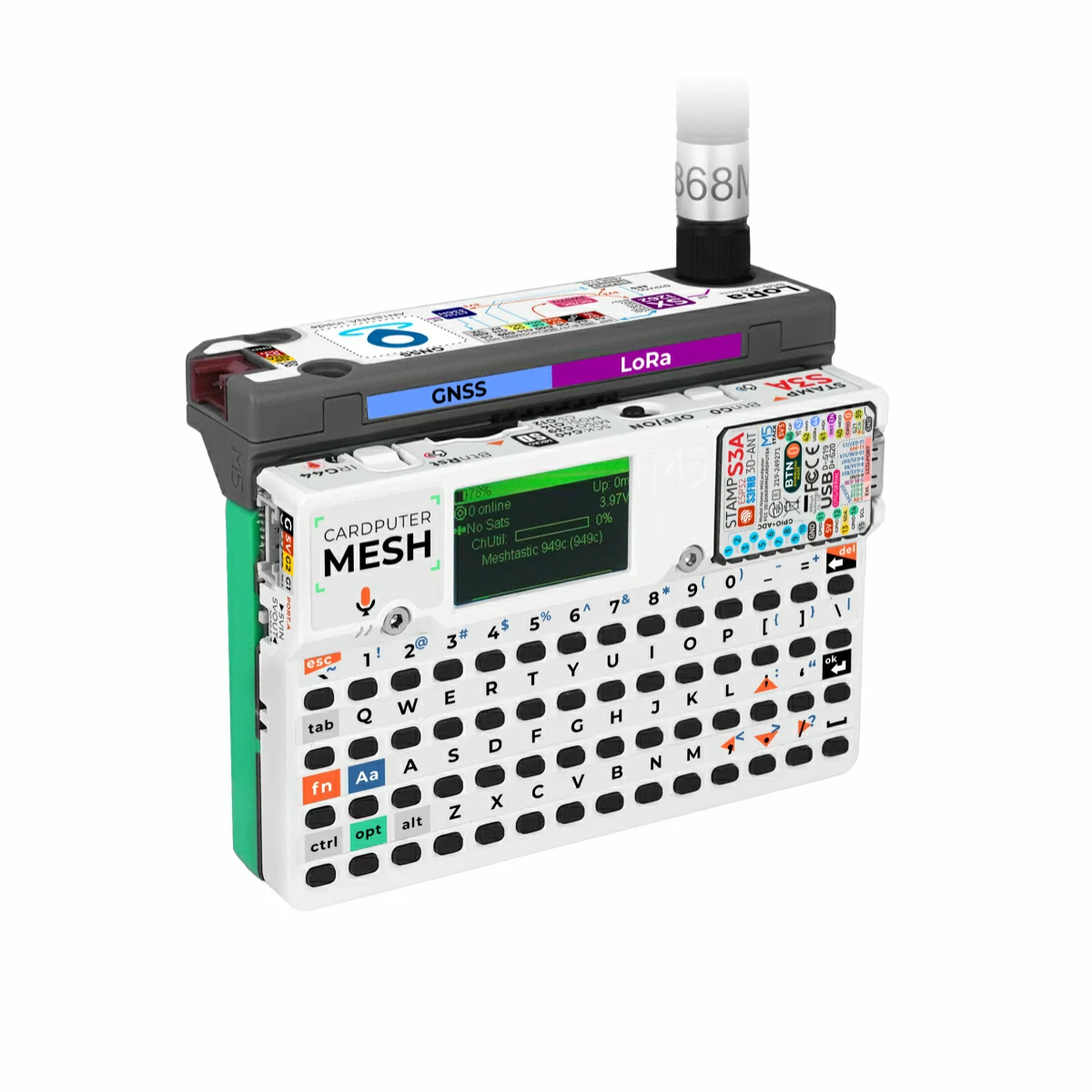

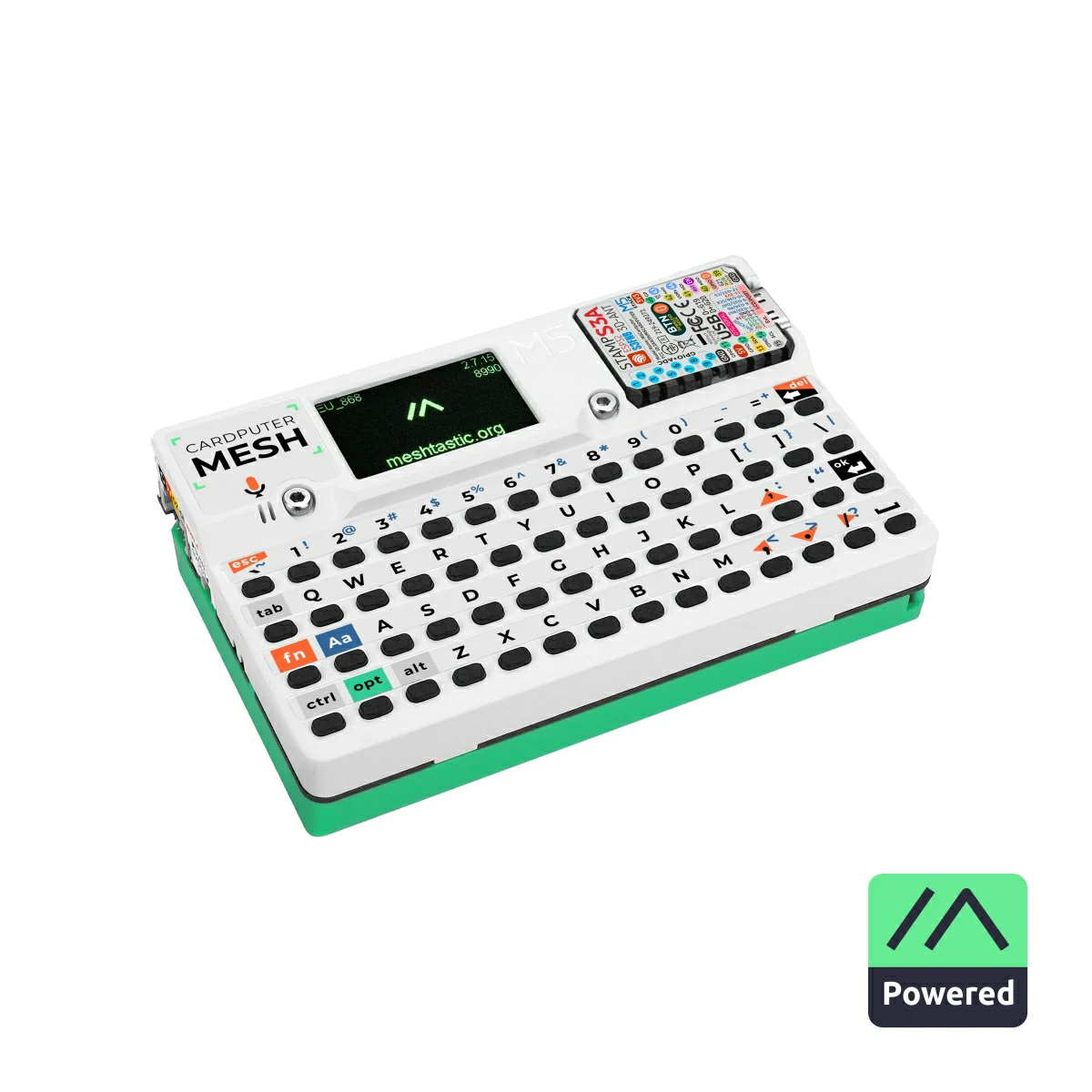

Cardputer Mesh Kit is a portable communication terminal kit that integrates LoRa Mesh networking with global positioning capabilities. The kit centers around the Cardputer-Adv core controller and the Cap LoRa-1262 communication expansion module.

Cardputer-Adv is a card-sized portable programmable controller built on the Stamp-S3A module (based on ESP32-S3FN8). It features a 1.14" LCD screen and a 56-key compact keyboard for convenient on-site information display and command input. A built-in 1750mAh lithium battery ensures extended standalone operation. The device integrates an ES8311 audio codec, MEMS microphone, 1W speaker, and 3.5mm audio jack for voice interaction and audio output. Additional features include a 6-axis IMU BMI270, an infrared emitter, a microSD card slot, an HY2.0-4P Grove interface, and an EXT 2.54-14P expansion bus. The chassis supports magnetic attachment and is compatible with LEGO mounting holes.

Cap LoRa-1262 serves as the communication expansion module of the kit. It connects to the Cardputer-Adv via the EXT 2.54-14P interface, drawing power and control signals directly from the host — plug-and-play with no additional configuration required. The module is built around the SX1262 LoRa solution, supporting the 868 ~ 923 MHz band with a receive sensitivity of -147 dBm and a transmit power of +22 dBm. An RP-SMA external antenna and RF shielding ensure reliable long-range communication with strong interference immunity. An integrated AT6668 GNSS module with a built-in ceramic antenna supports multi-constellation positioning including GPS, BeiDou, GLONASS, and Galileo. The module also includes an HY2.0-4P interface for connecting external sensors.

Cardputer Mesh Kit comes pre-installed with Meshtastic firmware, making it ready to use out of the box — no complex development required to join a LoRa Mesh network. The Cardputer-Adv and Cap LoRa-1262 work seamlessly together for easy configuration and intuitive positioning, making the kit well-suited for outdoor communications, node deployment, location tracking, and industrial inspection.

Tutorial

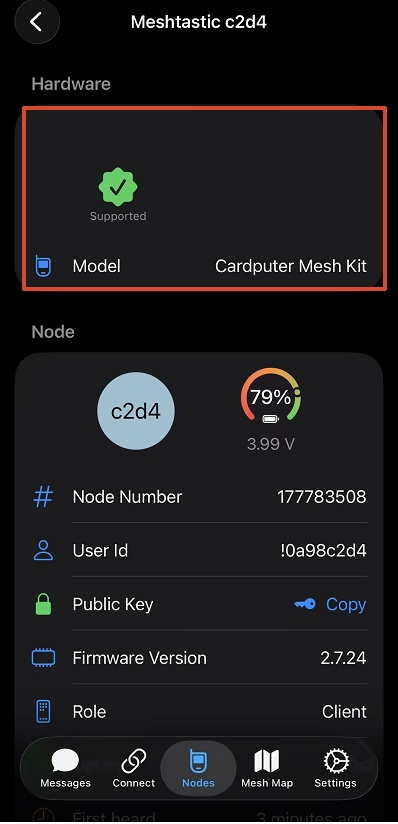

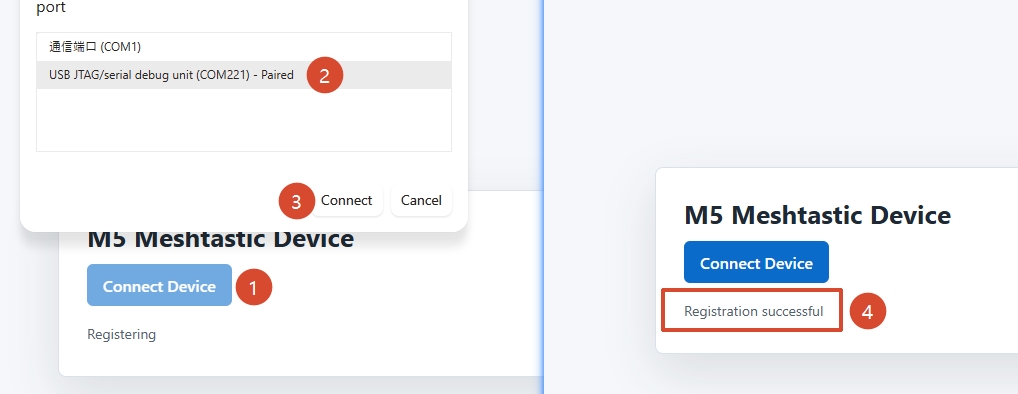

Meshtastic Tutorial

Meshtastic Tutorial

This tutorial explains how to use Meshtastic with the Cardputer Mesh Kit.

UiFlow2

UiFlow2

This tutorial introduces how to program and control the Cardputer-Adv using the UiFlow2 graphical programming platform.

Arduino IDE

Arduino IDE

This tutorial introduces how to program and control the Cardputer-Adv using Arduino IDE.

Features

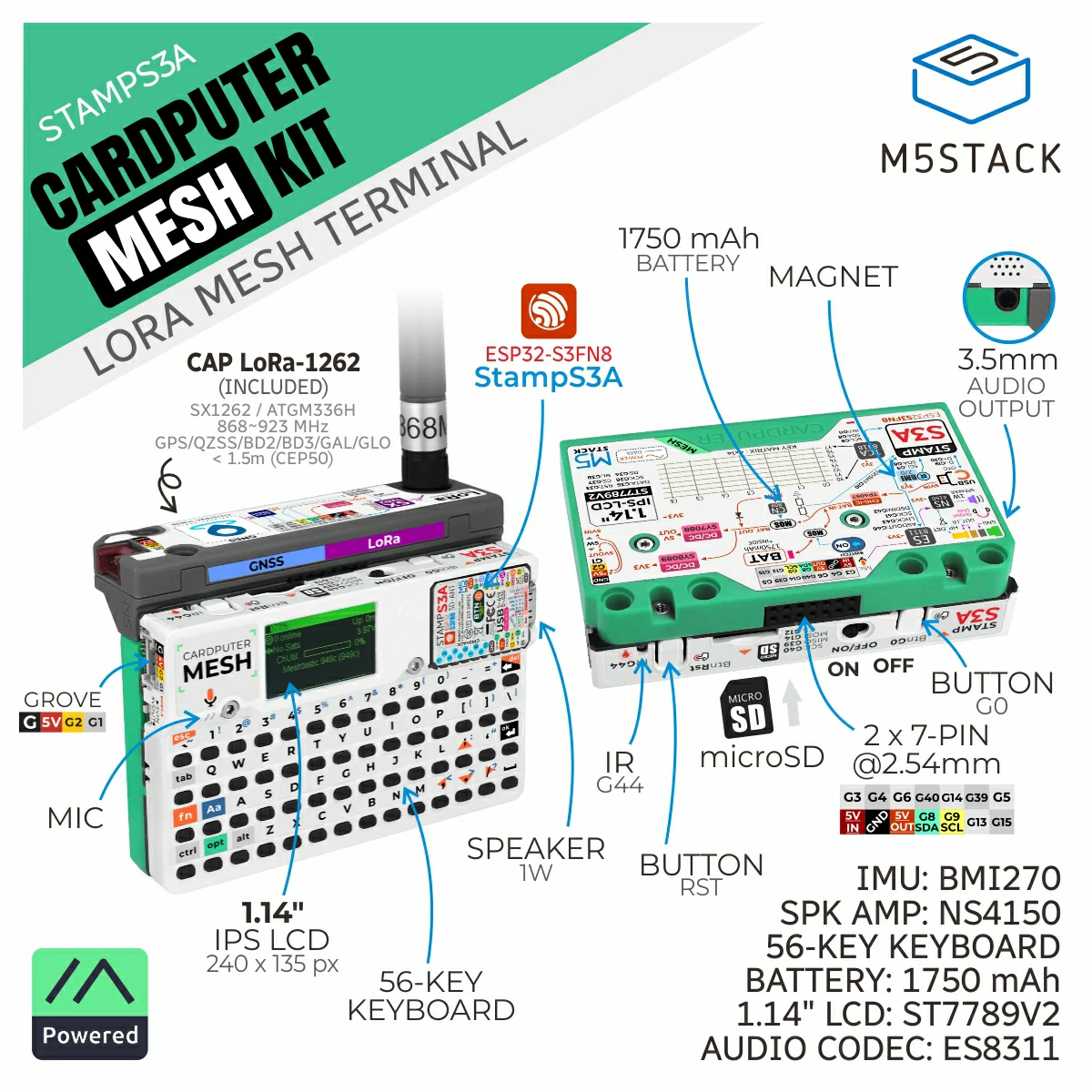

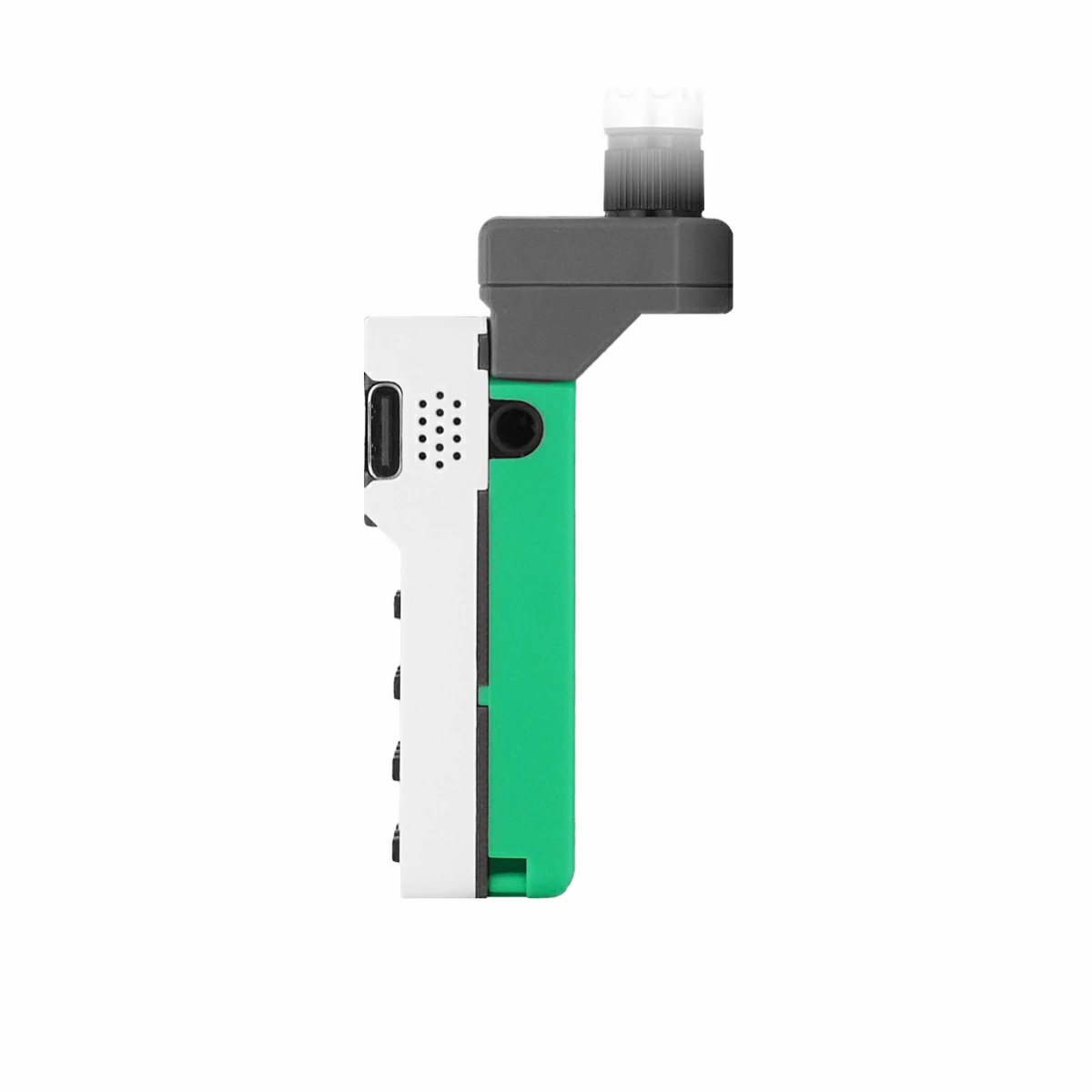

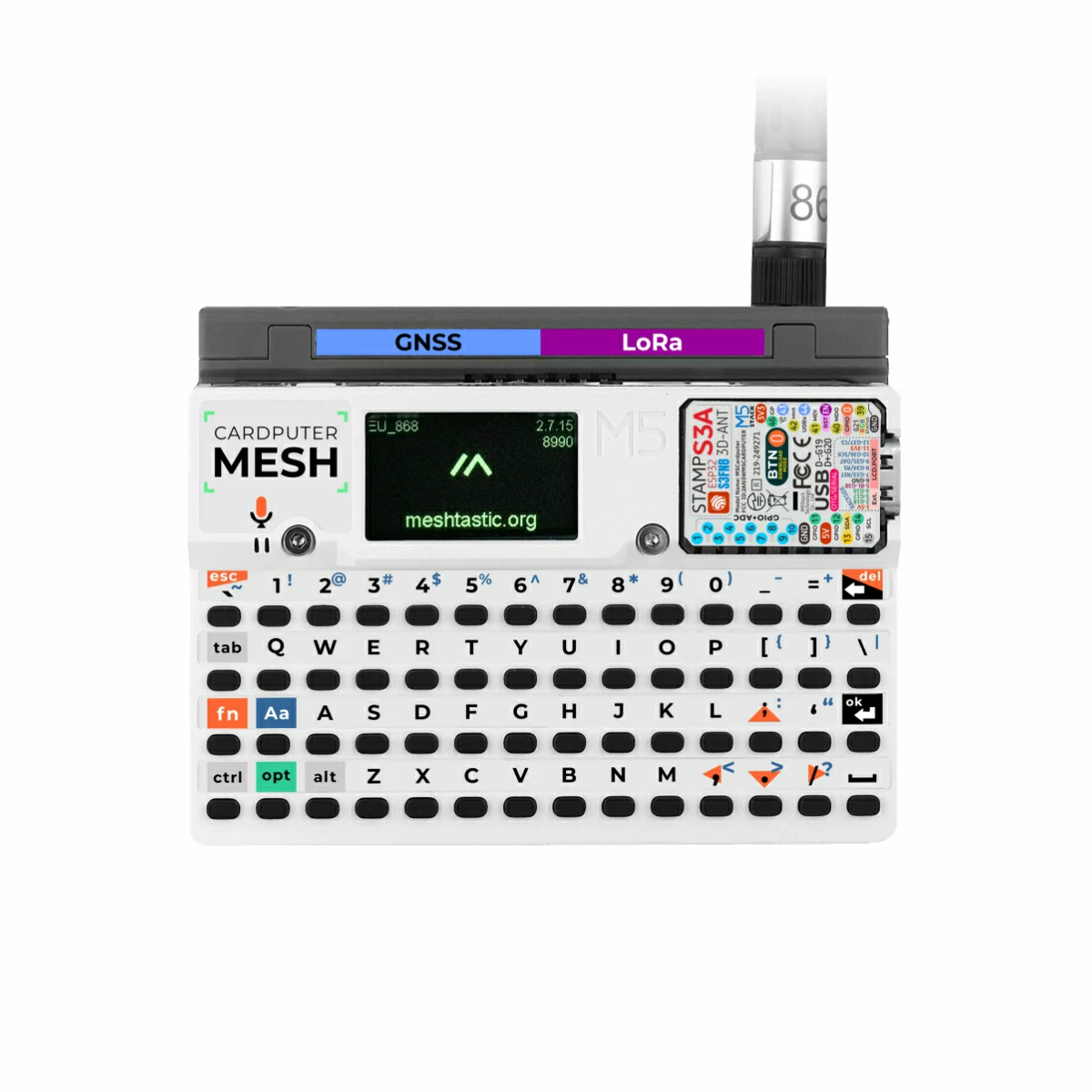

Core Controller (Cardputer-Adv):

• Stamp-S3A core module (ESP32-S3FN8)
• 56-key keyboard with 160gf comfortable key actuation
• 1.14" LCD screen (240 x 135px)
• ES8311 audio codec + NS4150B amplifier + 1W speaker + MEMS microphone
• 3.5mm audio output jack
• 6-axis IMU BMI270
• Infrared emitter
• microSD card slot
• Built-in 1750mAh lithium battery
• HY2.0-4P Grove interface + EXT 2.54-14P expansion bus
• Magnetic attachment on the back, compatible with LEGO mounting holes

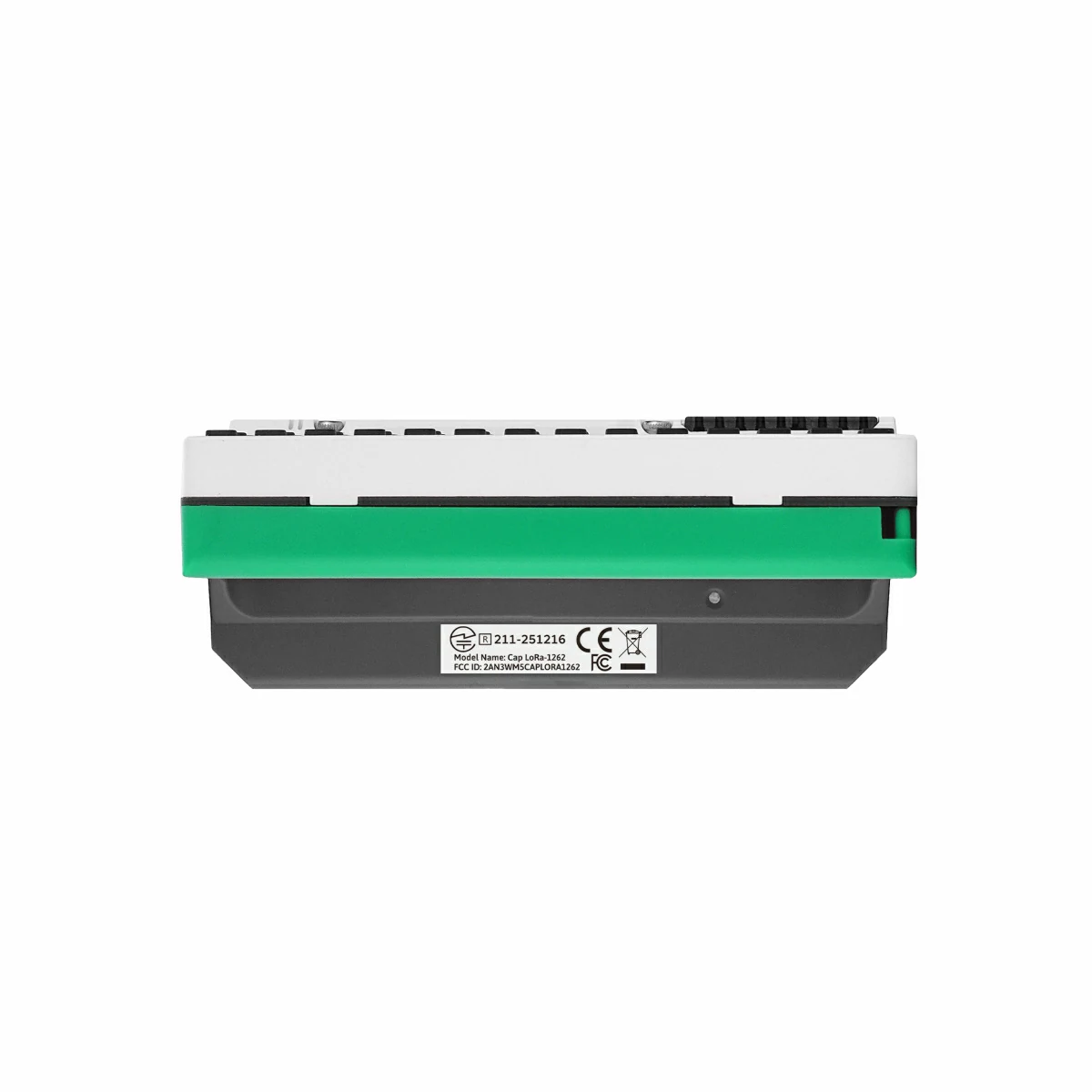

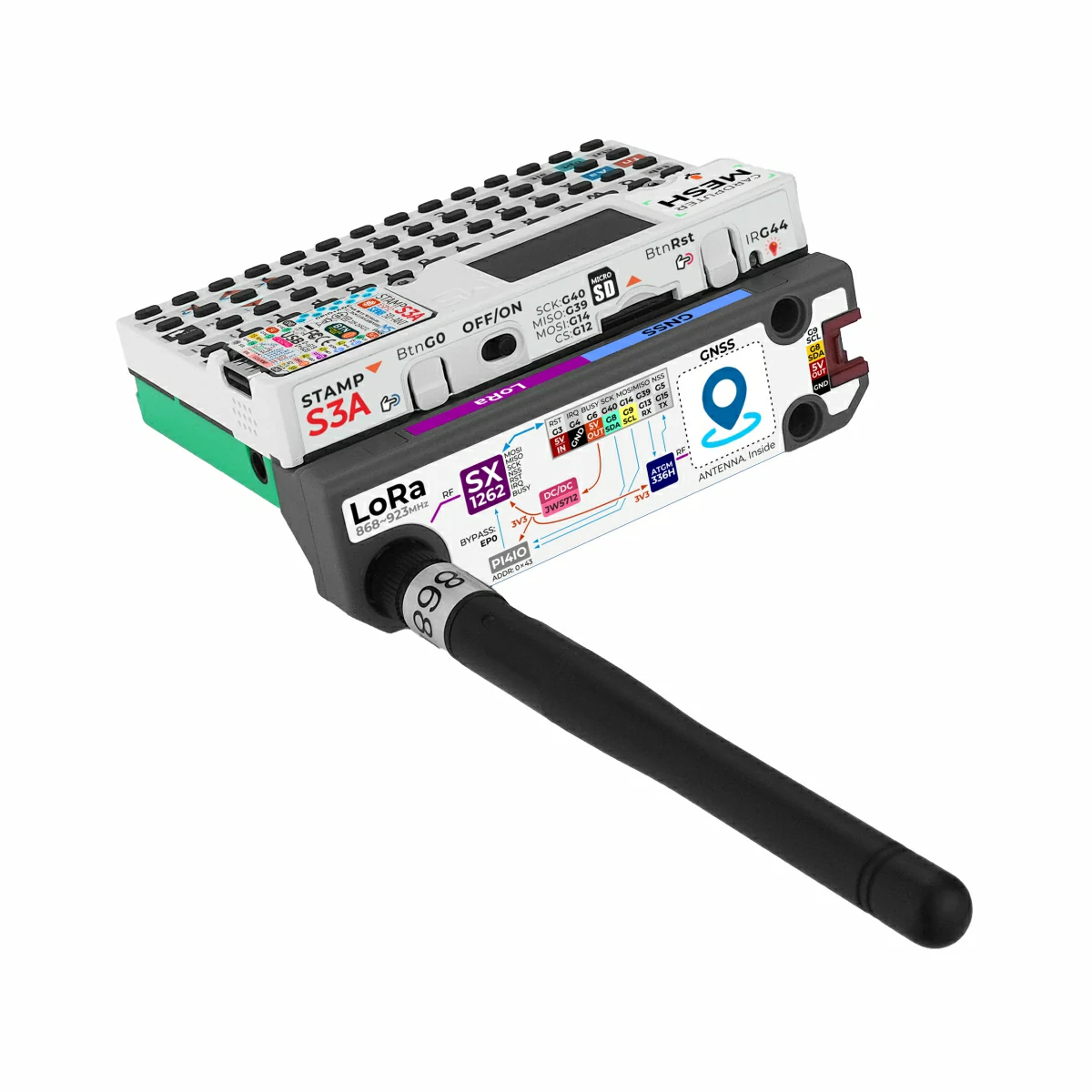

Communication Expansion Module (Cap LoRa-1262):

• LoRa modulation technology + GNSS global positioning system

• Operating frequency: 868 ~ 923 MHz

• Receive sensitivity as low as -147 dBm, transmit power +22 dBm

• External RP-SMA antenna interface with built-in ceramic GPS antenna

• Supports GPS / QZSS / BD2 / BD3 / GAL / GLO multi-constellation positioning

• HY2.0-4P expansion interface (for external sensor connection)

• Development Platform

  • Arduino
  • UiFlow2
  • ESP-IDF
  • PlatformIO

Includes

• 1 x Cardputer-Adv (Green Back Shell Version)
• 1 x Cap LoRa-1262
• 1 x LoRa Rubber Duck Antenna (RP-SMA Connector)
• 2 x M2 * 4mm cap head machine screw
• 1 x Hex Key L-Shape 1.5mm (For M2 Screw)
• 1 x Safety Warning Sticker

Applications

• Remote GPS Tracker
• Outdoor Mesh Networking
• Rapid Prototyping and Functional Verification
• Industrial Control and Automation
• Smart City / Smart Home
• In-Vehicle Positioning and Navigation
• Embedded System Development and Learning

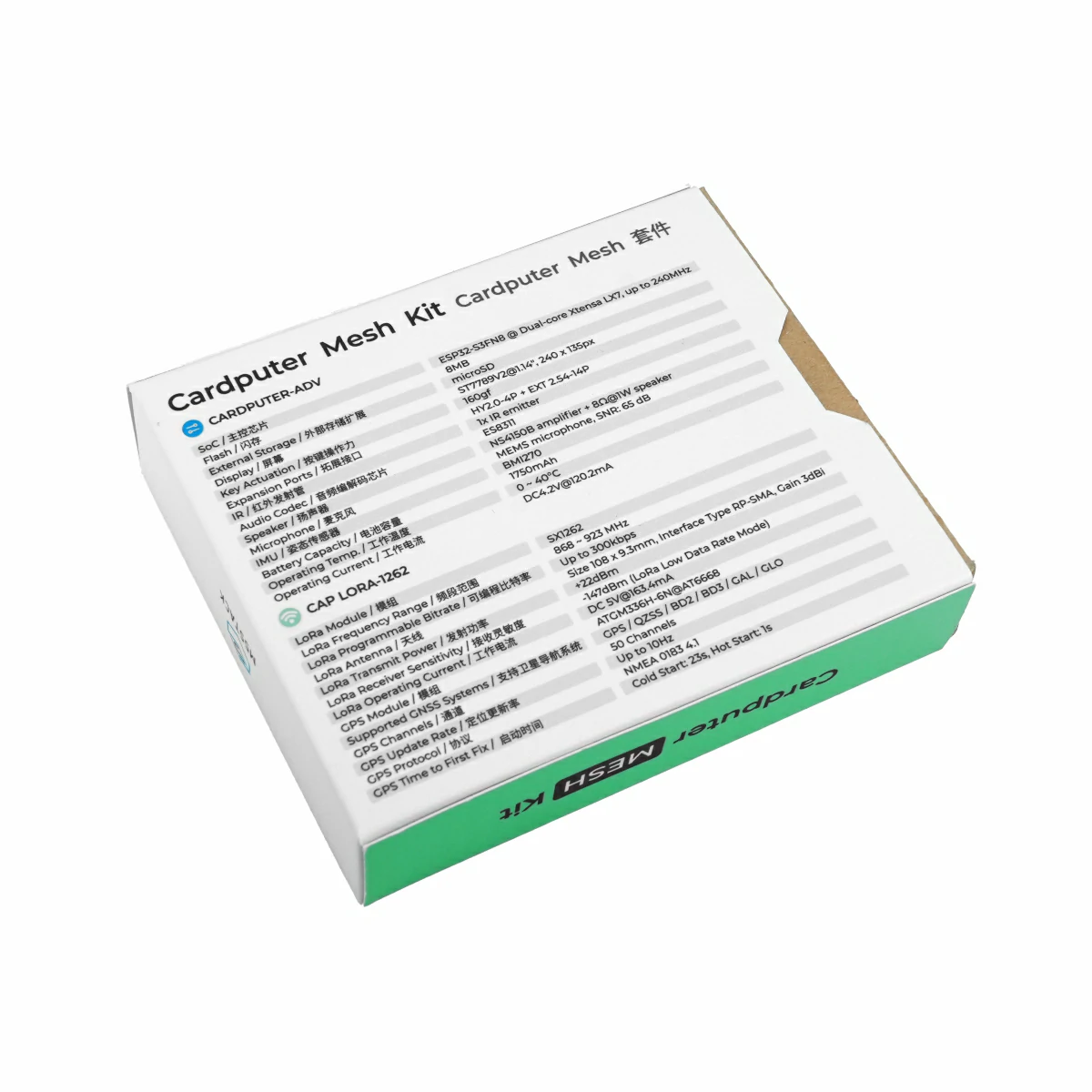

Specifications

Learn

Cardputer-Adv Download Mode

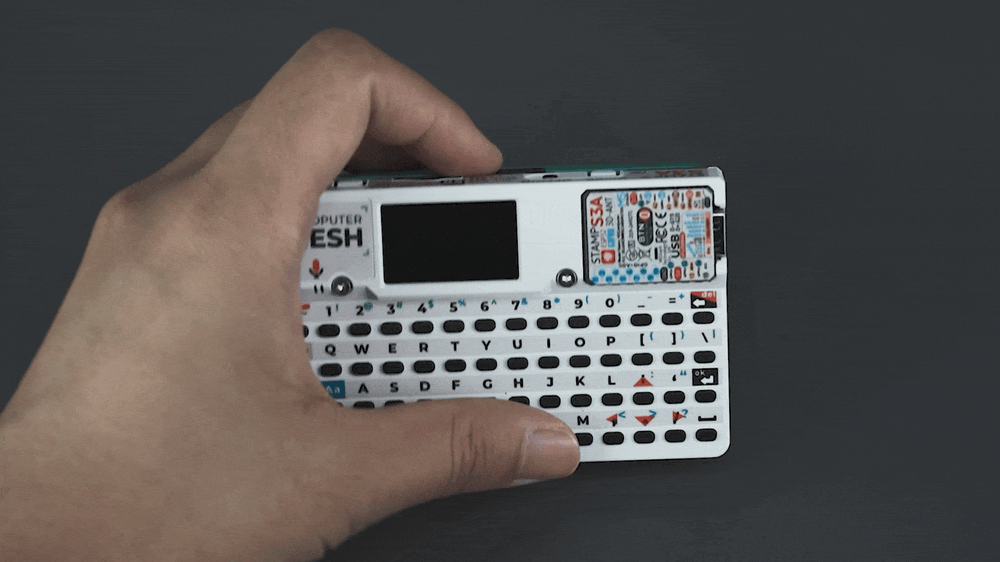

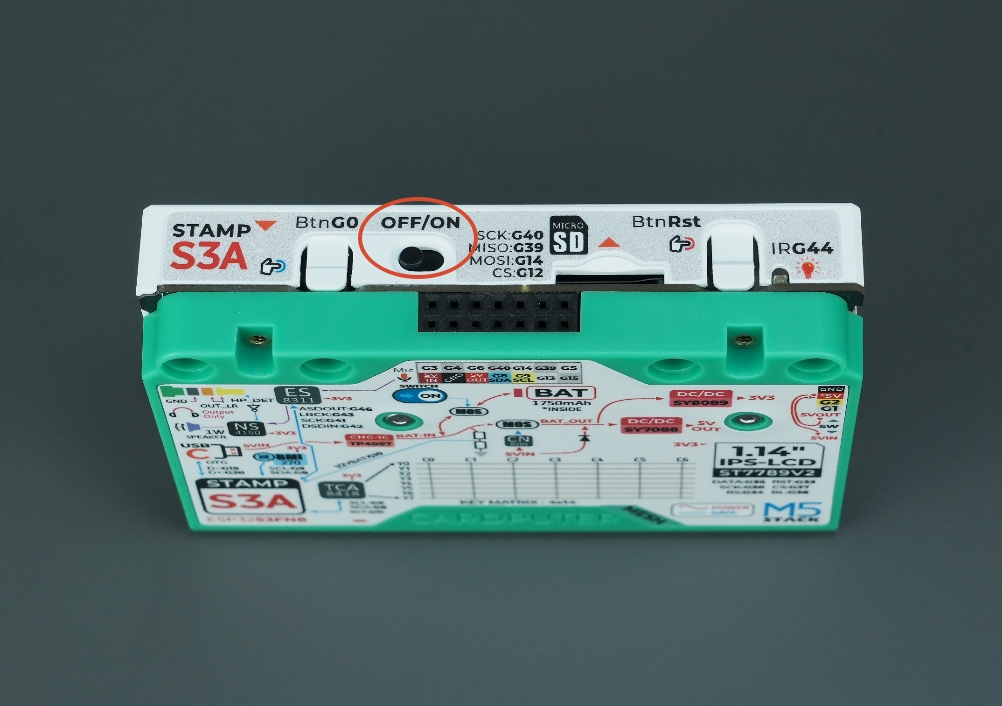

Set the side power switch on the Cardputer-Adv to OFF. Hold down the G0 key, then power on the device. Release the key and the device will enter download mode.

Charging Notes

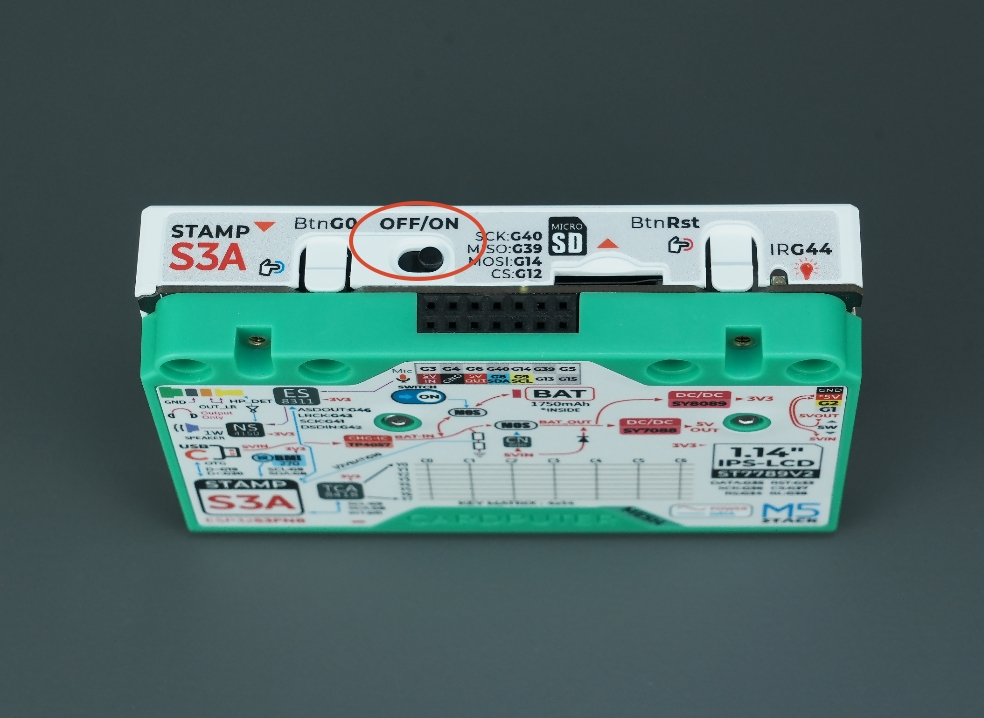

Switch the power switch to ON before charging.

Assembly Instructions

The Cap LoRa-1262 connects to the Cardputer-Adv via the EXT 2.54-14P interface:

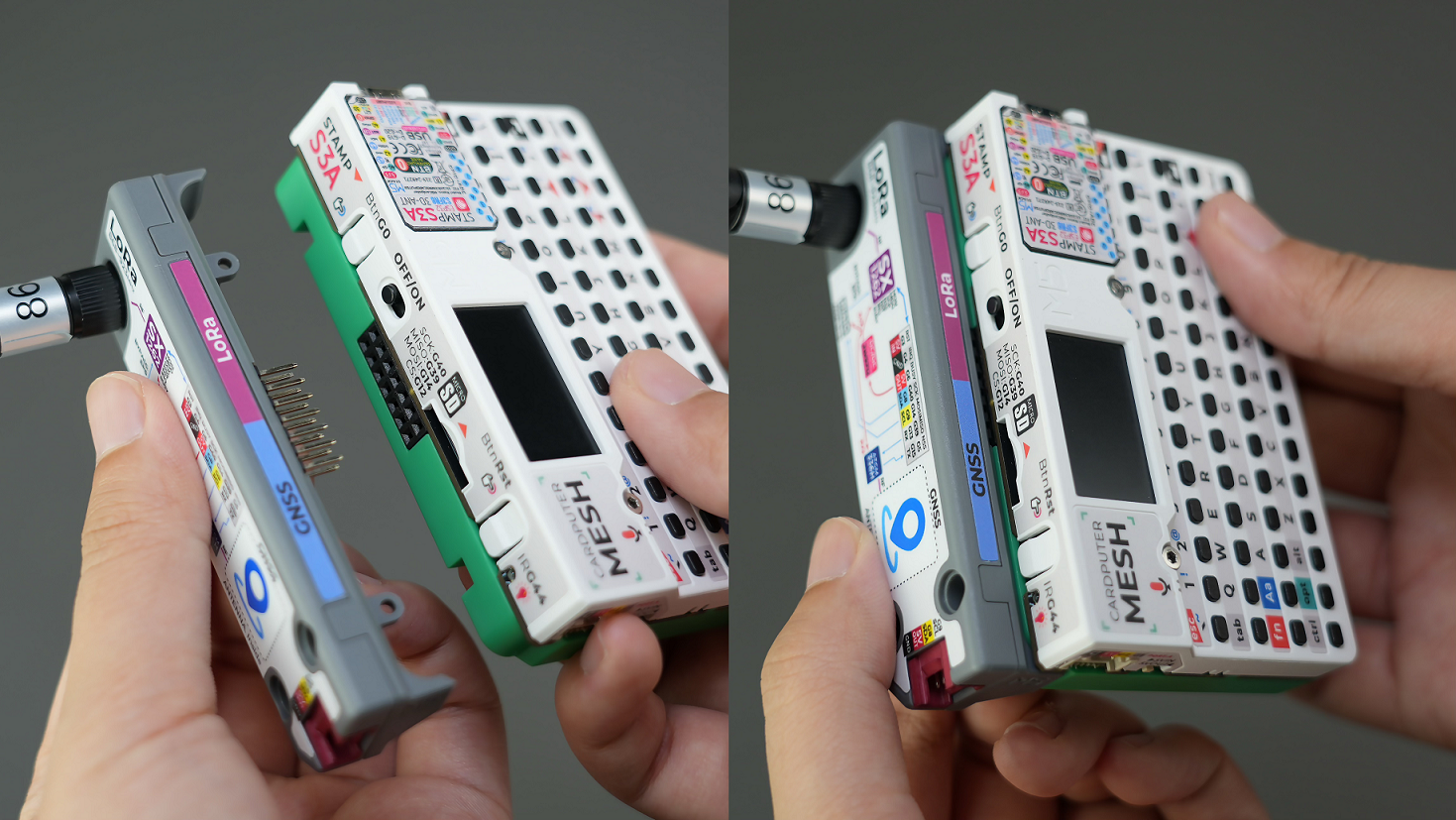

1. Turn the Cardputer-Adv upside down and locate the EXT 2.54-14P interface (14-pin female header).
2. Align the corresponding male header pins of the Cap LoRa-1262 with the interface and gently press until fully seated.
3. Screw the LoRa rubber duck antenna into the RP-SMA antenna connector on the Cap LoRa-1262.

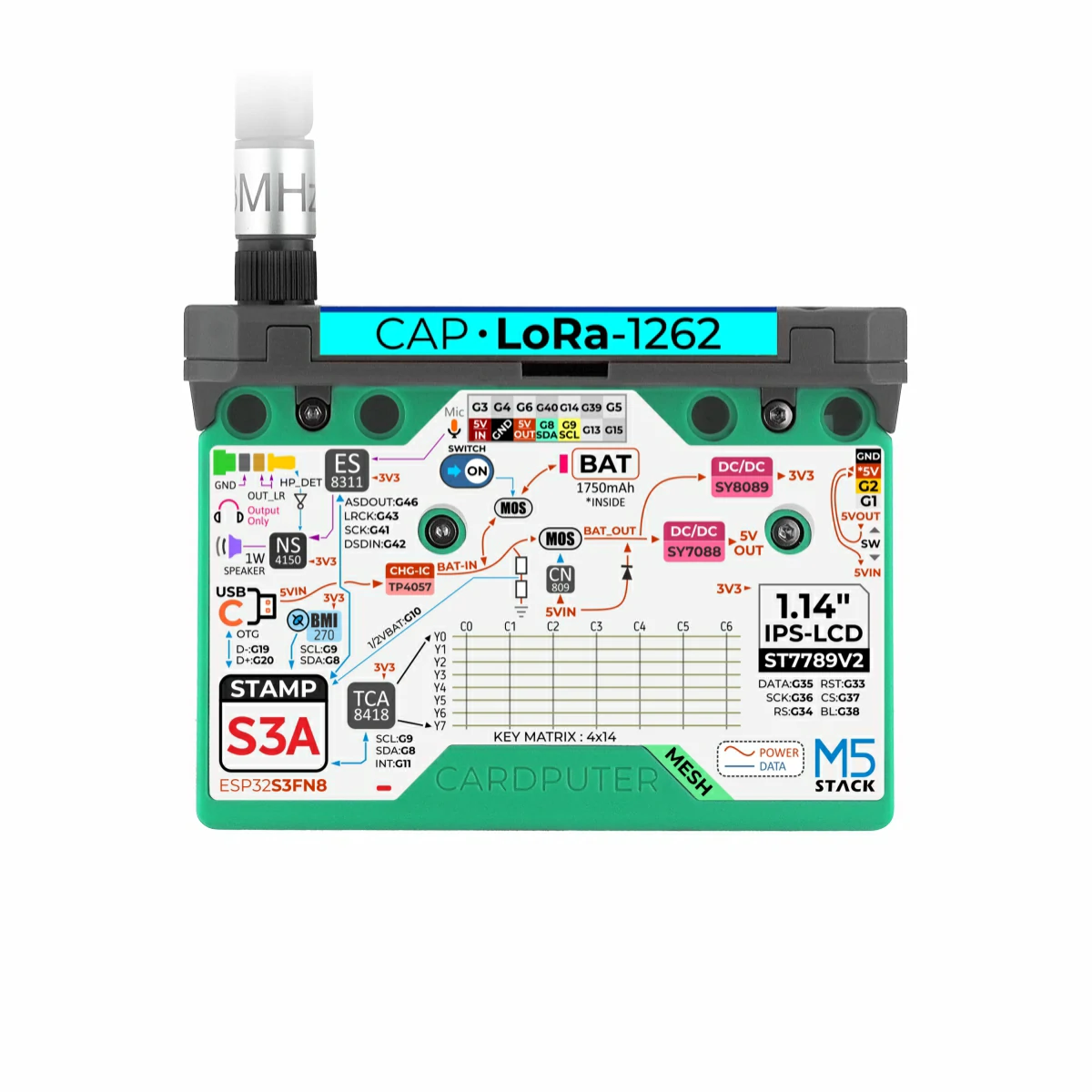

PinMap

Cardputer-Adv EXT 2.54-14P

Cardputer-Adv LCD

Cardputer-Adv Audio

Cardputer-Adv IMU

Cardputer-Adv IR

Cardputer-Adv Battery

Cardputer-Adv Keyboard

Cardputer-Adv microSD

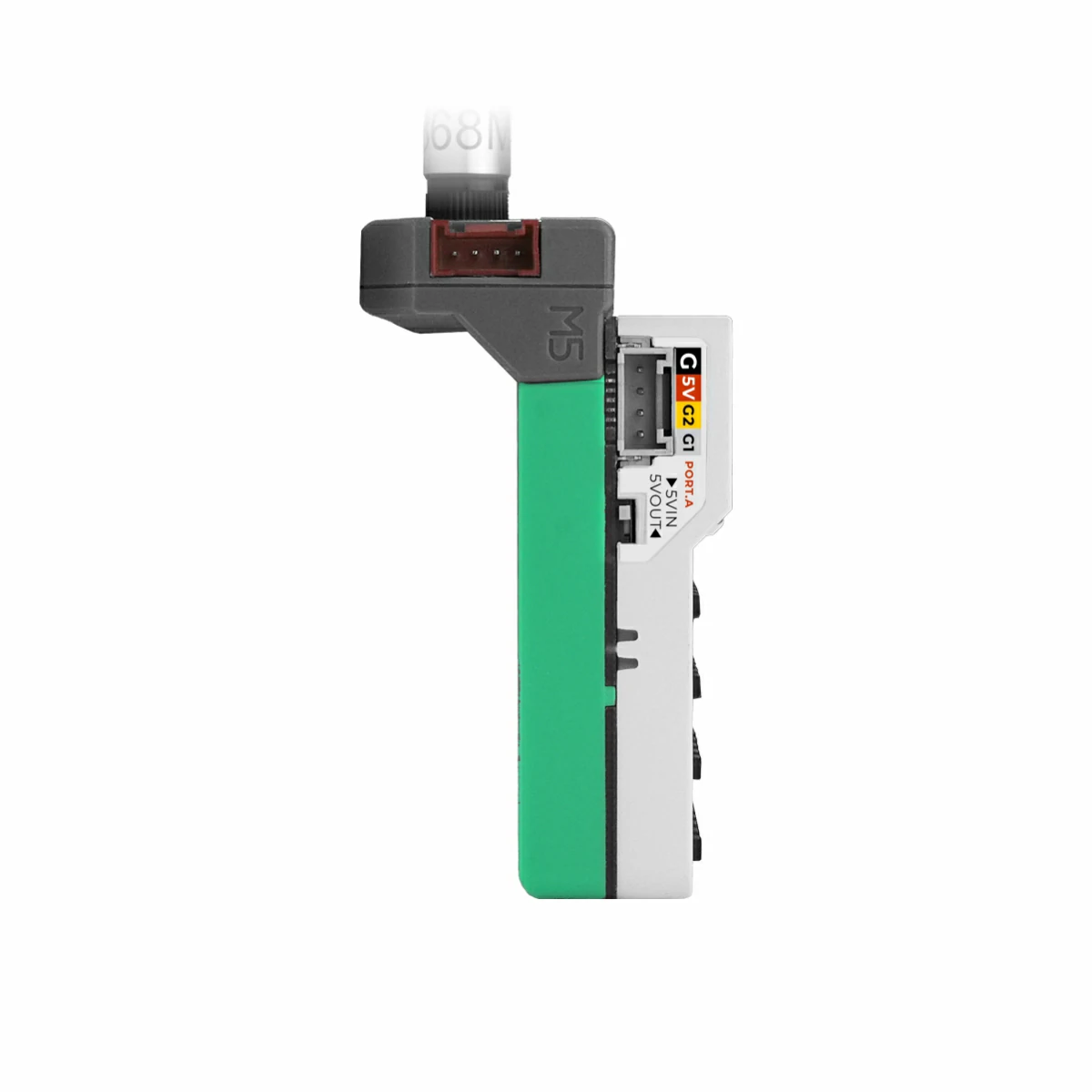

Cardputer-Adv HY2.0-4P

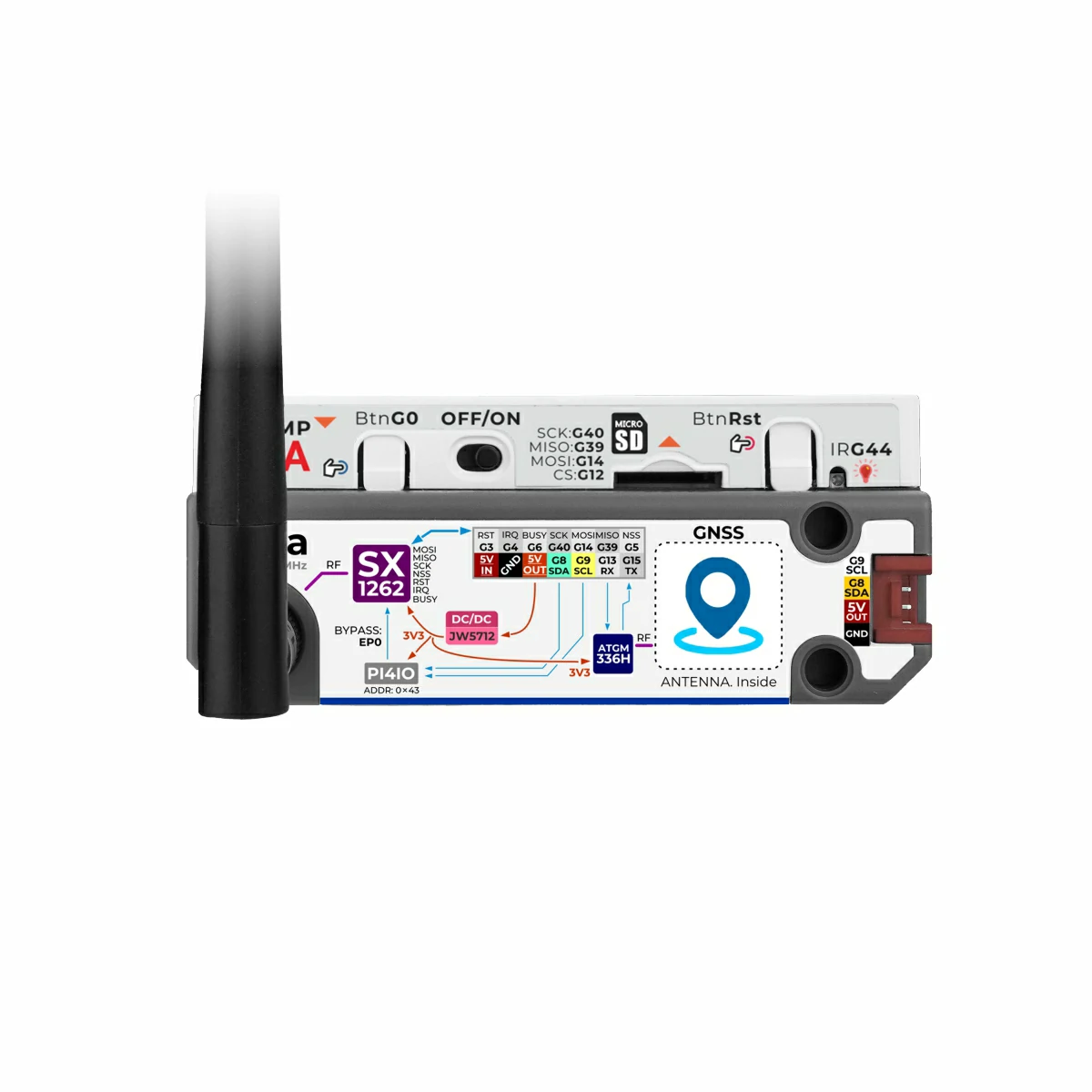

Cap LoRa-1262 Cap-Bus

The following steps are required to initialize the LoRa module:

• Enable the RF antenna switch: set P0 of the PI4IOE I/O expander to HIGH

Cap LoRa-1262 HY2.0-4P

Schematics

• Cardputer-Adv Schematics PDF
• Stamp-S3A Schematics PDF
• Cap LoRa-1262 Schematics PDF
• Stamp LoRa-1262 Mini Schematics PDF

1/7

Model Size

• Cardputer-Adv Model Size PDF
• Cap LoRa-1262 Model Size PDF

1/2

PCB

• Cardputer-Adv Structure Files

Datasheets

• ESP32-S3
• ST7789V2
• ES8311
• NS4150B
• BMI270
• SX1262
• ATGM336H-6N
• CASIC Multi-Constellation GNSS Receiver Protocol Specification

Softwares

Arduino

• Cardputer-Adv Arduino Quick Start
• Cap LoRa-1262 Arduino Quick Start
• Cardputer-Adv Arduino Library
• Cap LoRa-1262 LoRa Library (RadioLib)
• Cap LoRa-1262 GPS Library (TinyGPSPlus)

UiFlow2

• Cardputer-Adv UiFlow2 Quick Start
• Cap LoRa-1262 UiFlow2 Docs

PlatformIO

[env:m5stack-cardputer-mesh-kit]
platform = espressif32@6.12.0
board = esp32-s3-devkitc-1
framework = arduino
upload_speed = 1500000
build_flags =
    -DESP32S3
    -DCORE_DEBUG_LEVEL=5
    -DARDUINO_USB_CDC_ON_BOOT=1
          -DARDUINO_USB_MODE=1

lib_deps =
    M5Cardputer=https://github.com/m5stack/M5Cardputer
    RadioLib=https://github.com/jgromes/RadioLib
    TinyGPSPlus=https://github.com/m5stack/TinyGPSPlus

Easyloader

Video

• Cardputer Mesh Kit Product Introduction and Use Cases
