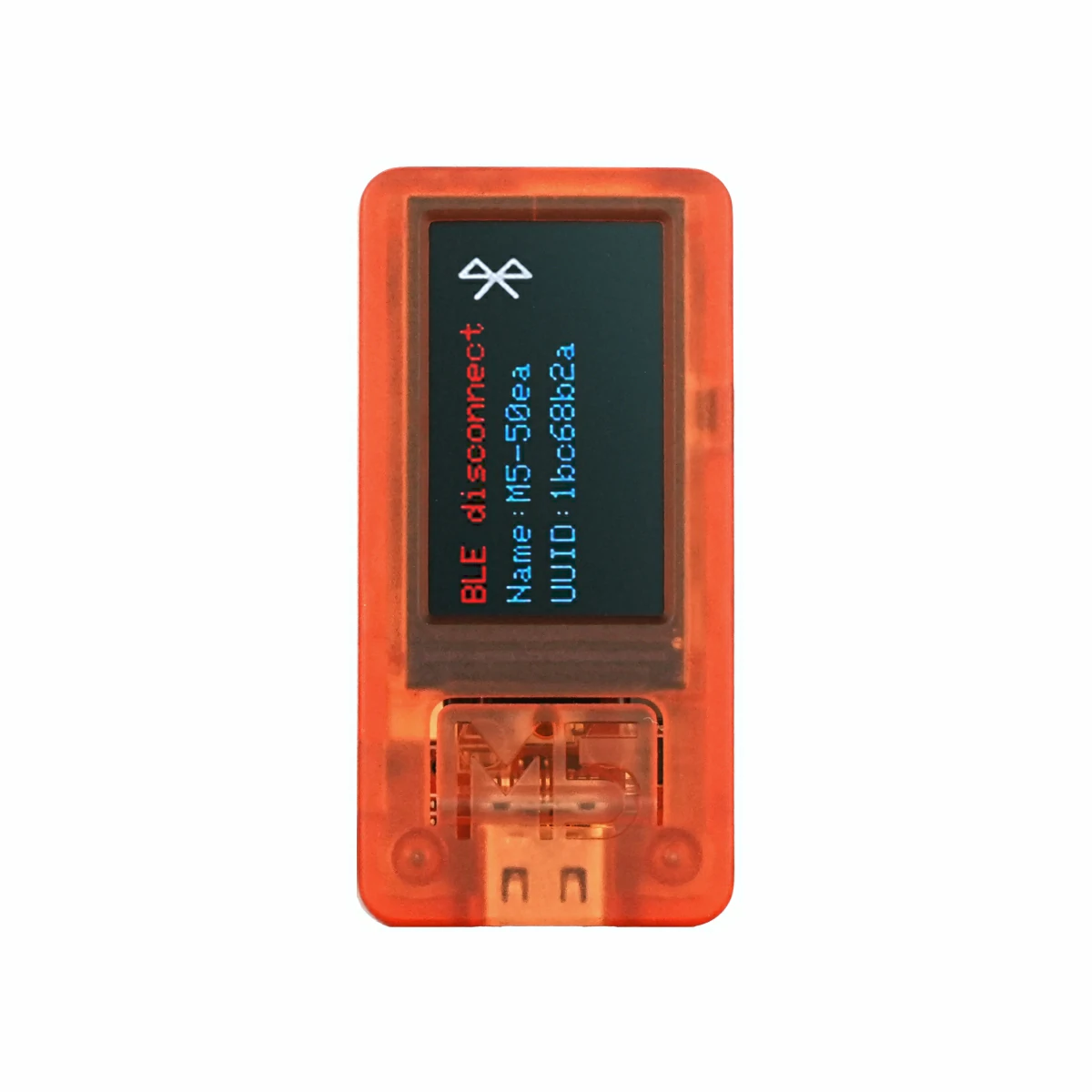

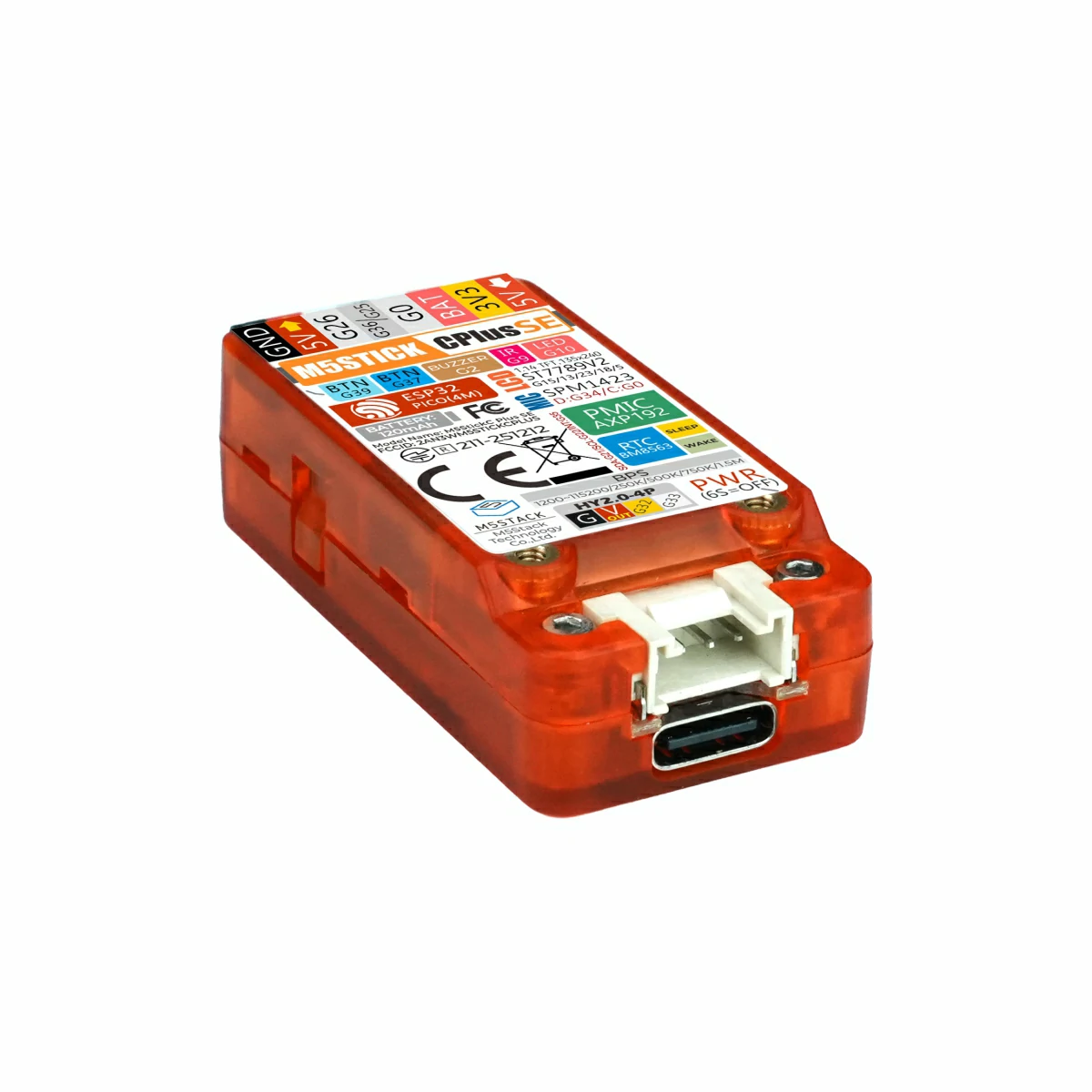

StickC-Plus SE

SKU:K016-P-SE

Description

StickC-Plus SE is a lightweight version of StickC-Plus. It retains the core features while removing the onboard 6-axis IMU sensor, offering better cost efficiency. The enclosure features a new transparent orange design with a distinctive translucent appearance. Powered by the ESP32-PICO-D4 module, it supports 2.4 GHz Wi-Fi and integrates an infrared transmitter, RTC, onboard microphone, status indicator, customizable buttons, passive buzzer, and power management unit (PMU). It features a 1.14-inch color LCD with a 135 x 240 resolution for clear, detailed visuals. The built-in 120mAh battery and compatibility with Hat and Unit series expansion products provide flexible extensibility. This product is suitable for lightweight IoT development and simple creative projects that do not require motion sensing and prioritize cost efficiency.

Tutorial

UiFlow

UiFlow

This tutorial introduces how to control the StickC-Plus SE using the UiFlow graphical programming platform.

UiFlow2

UiFlow2

This tutorial introduces how to control the StickC-Plus SE using the UiFlow2 graphical programming platform.

Arduino IDE

Arduino IDE

This tutorial introduces how to program and control the StickC-Plus SE using Arduino IDE.

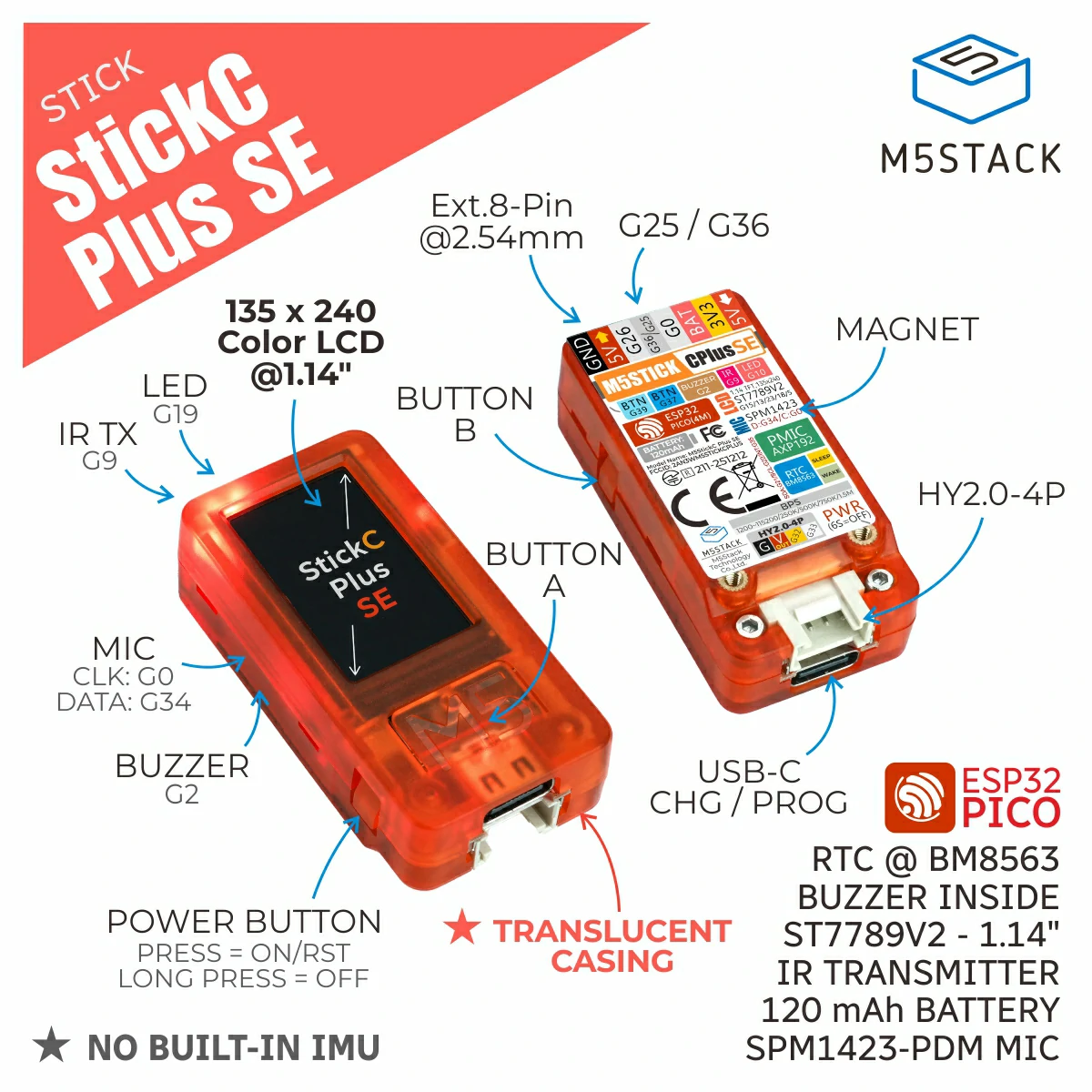

Features

• ESP32-PICO-D4 main controller
  • 4MB Flash
  • 520KB SRAM
  • 2.4 GHz Wi-Fi
• Onboard red status indicator
• Integrated infrared transmitter
• Built-in RTC module
• Onboard microphone
• Customizable buttons, LCD, power button, and reset button
• Built-in 120 mAh lithium battery
• Integrated passive buzzer
• Magnetic back; transparent orange enclosure
• Development Platform
  • UiFlow1
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

Includes

• 1 x StickC-Plus SE

Applications

• Lightweight wearable devices
• IoT smart controllers
• Simple creative DIY projects
• Compact smart home control terminals

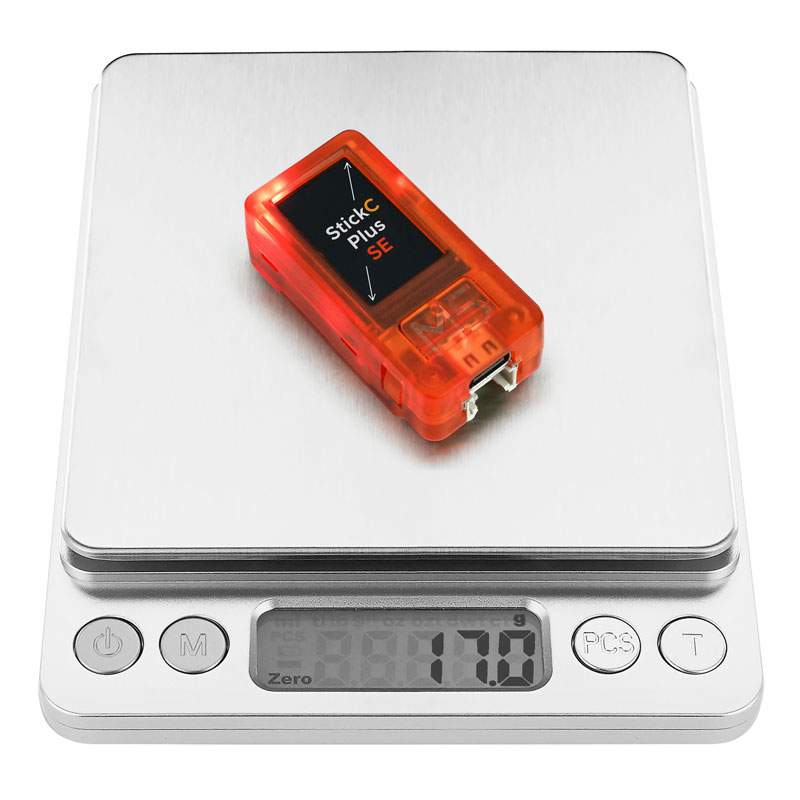

Specifications

Learn

Power On/Off

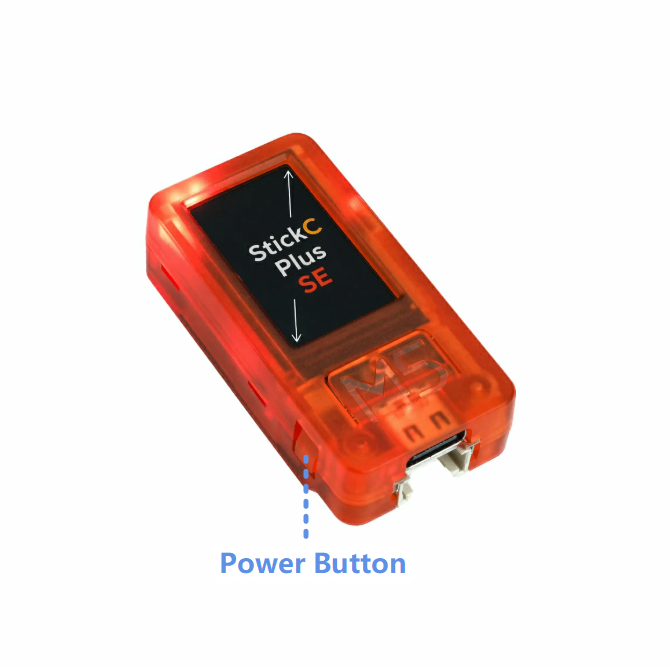

• Power on / Reset: Press the power button once
• Power off: Press and hold the power button

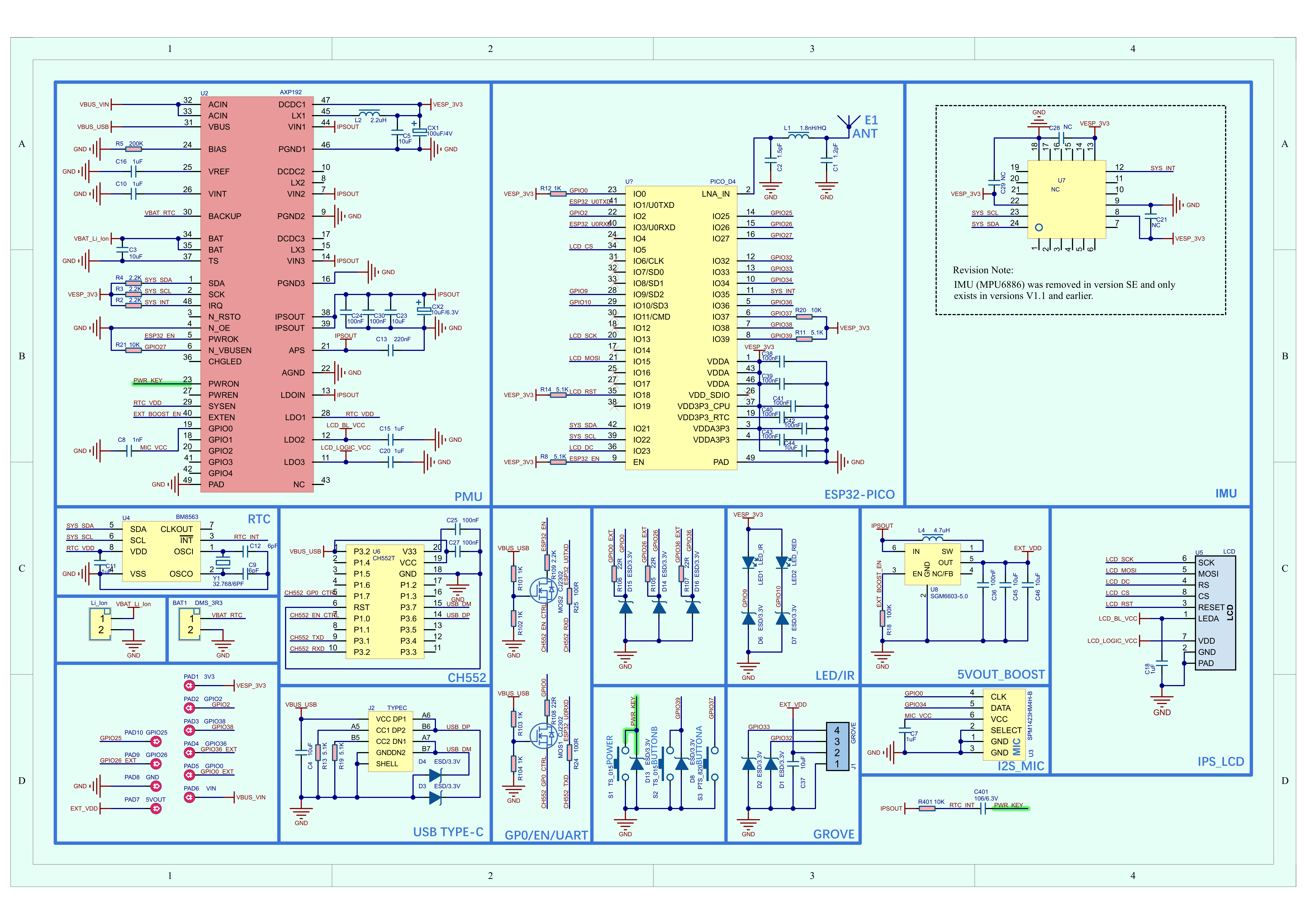

Schematics

• StickC-Plus SE Schematics PDF

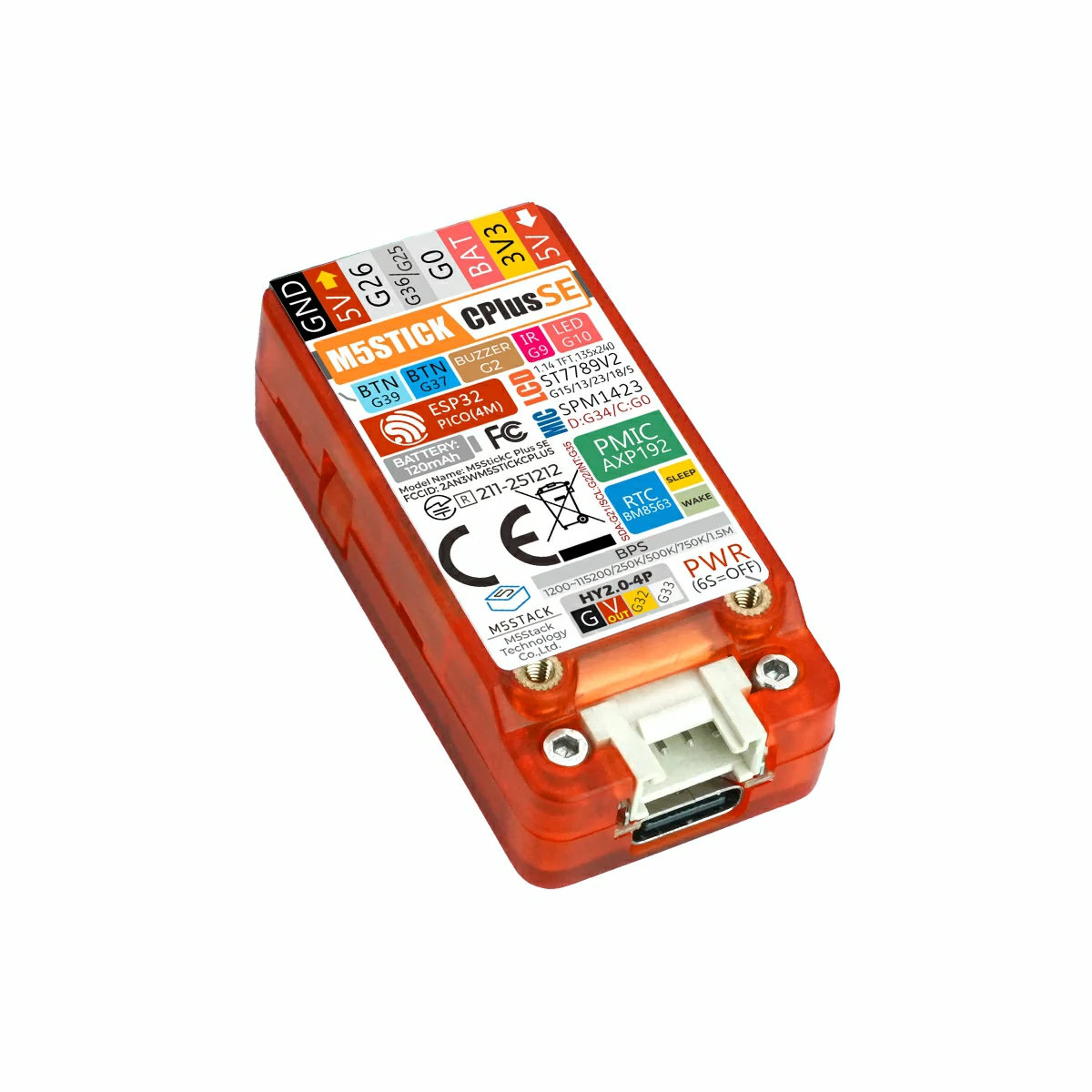

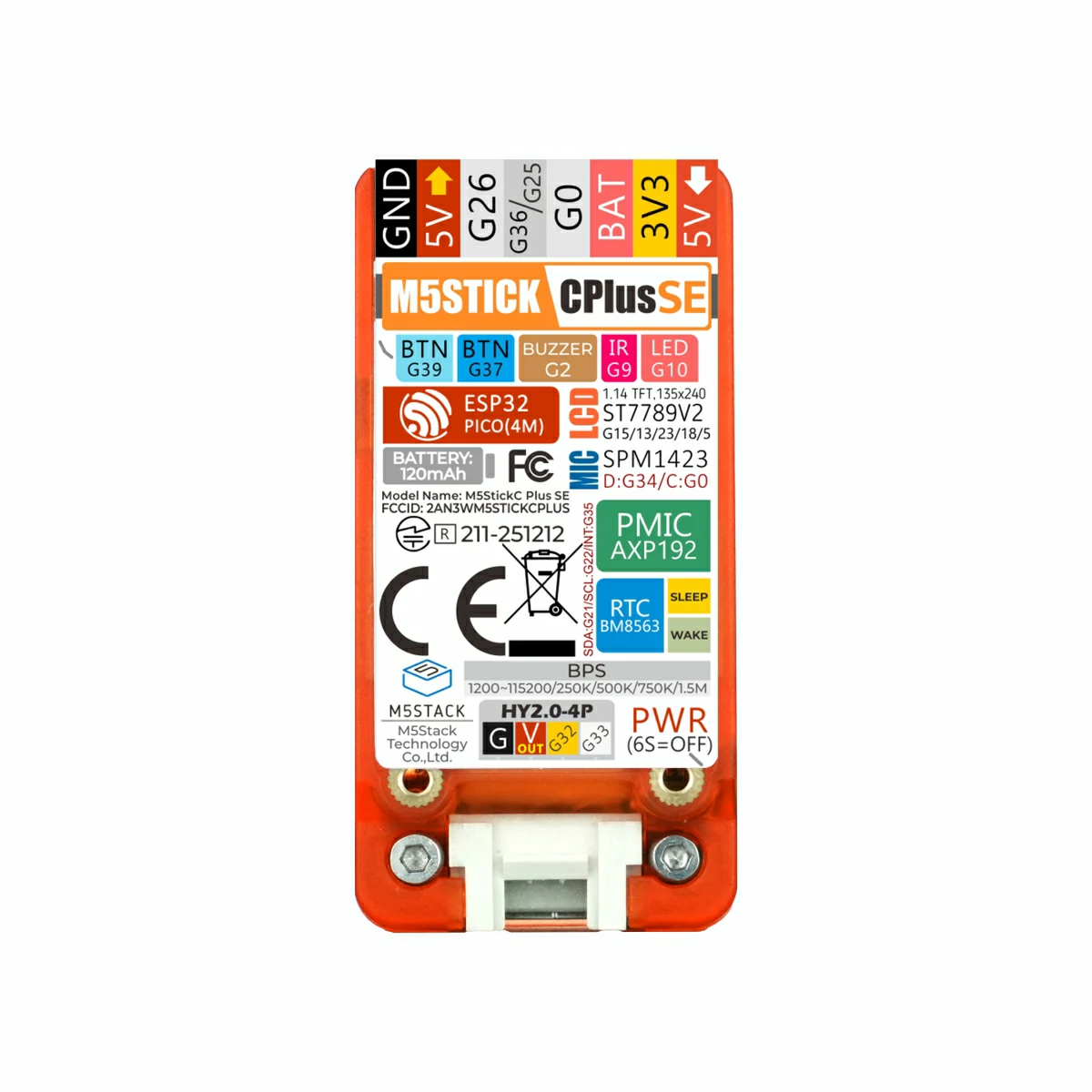

PinMap

LCD

LED & IR & Buttons & Buzzer

Microphone

Power Management

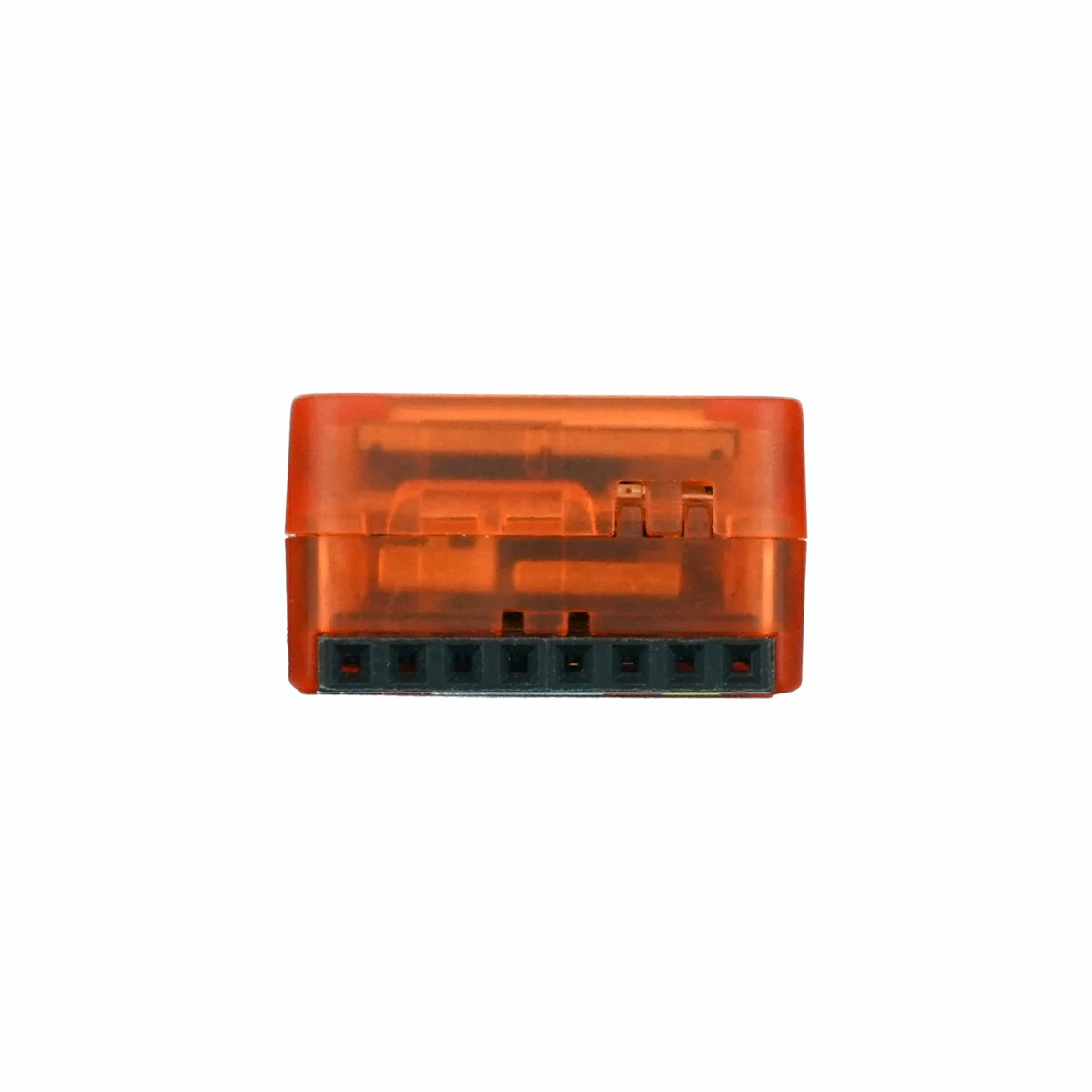

Hat-Bus

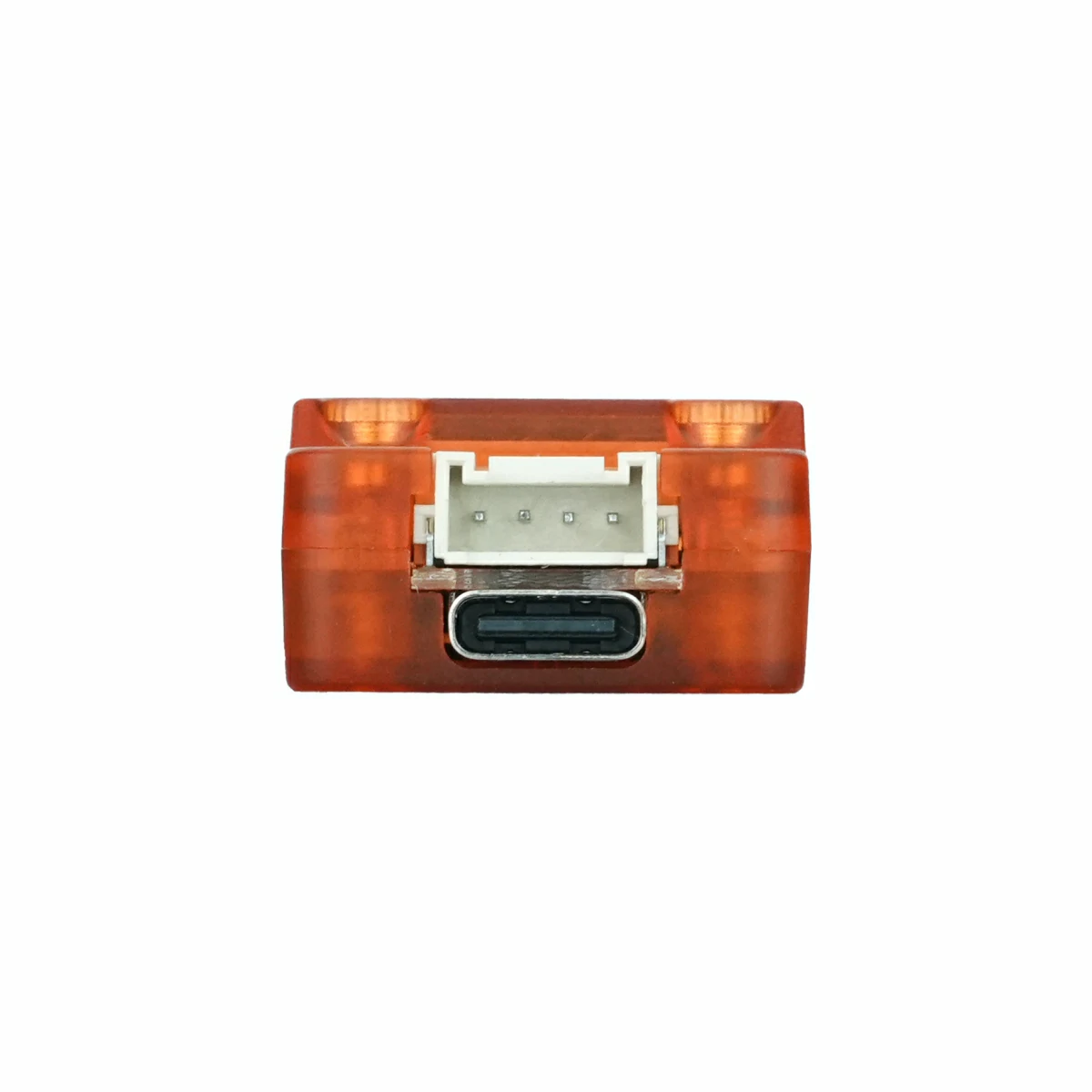

HY2.0-4P

Model Size

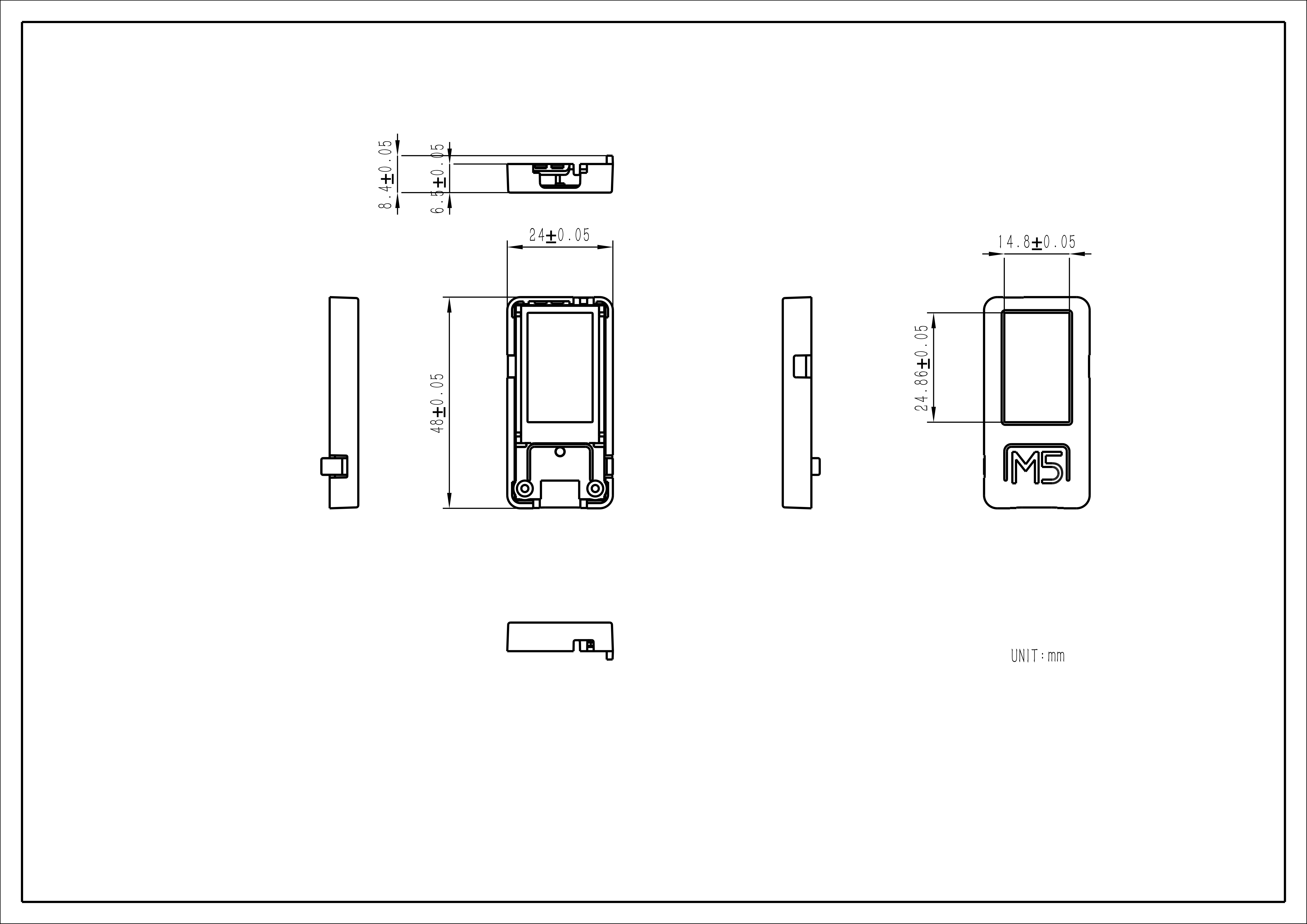

• StickC-Plus SE Model Size PDF

Datasheets

• ESP32-PICO
• ST7789v2
• BM8563
• AXP192 datasheet
• AXP192 register
• SPM1423

Softwares

Arduino

• StickC-Plus SE Arduino Quick Start
• StickC-Plus SE Arduino M5Unified Driver Library
• StickC-Plus SE Arduino M5GFX Driver Library
• StickC-Plus SE Factory Firmware

UiFlow1

• StickC-Plus SE UiFlow1 Quick Start

UiFlow2

• StickC-Plus SE UiFlow2 Quick Start

USB Driver

Connect the device to the PC and install the FTDI driver via Device Manager. Taking Windows 10 as an example, download the driver that matches your operating system, unzip it, and install it through Device Manager. (Note: In certain system environments, the driver needs to be installed twice before it becomes effective. Unrecognized device names are usually M5Stack or USB Serial. On Windows, it is recommended to install directly through Device Manager (custom update) using the driver files; the executable installer may not work properly). Click here to download the FTDI driver

Note:

• StickC-Plus SE supported baud rates: 1200 ~115200, 250K, 500K, 750K, 1500K

• G36/G25 share the same port. When using one pin, set the other pin to floating input

• For example, to use the G36 pin as an ADC input, configure the G25 pin as floating

• The input range of VBUS_VIN and VBUS_USB is limited to 4.8-5.5V. When powered by VBUS, the AXP192 power management will charge the internal battery.

setup()
{
   M5.begin();
   pinMode(36，INPUT);
   gpio_pulldown_dis(GPIO_NUM_25);
   gpio_pullup_dis(GPIO_NUM_25);
}

Easyloader

Product Comparison

Product Compare	StickC-Plus SE	StickC-Plus
IMU	❌	✅ (MPU6886)
Enclosure Color	Orange, transparent	Orange, opaque

To compare Stick series products, visit the Product Selection Table and select the target products to view the comparison results. The table covers key information such as core specifications and functional features, and supports simultaneous comparison of multiple products.
