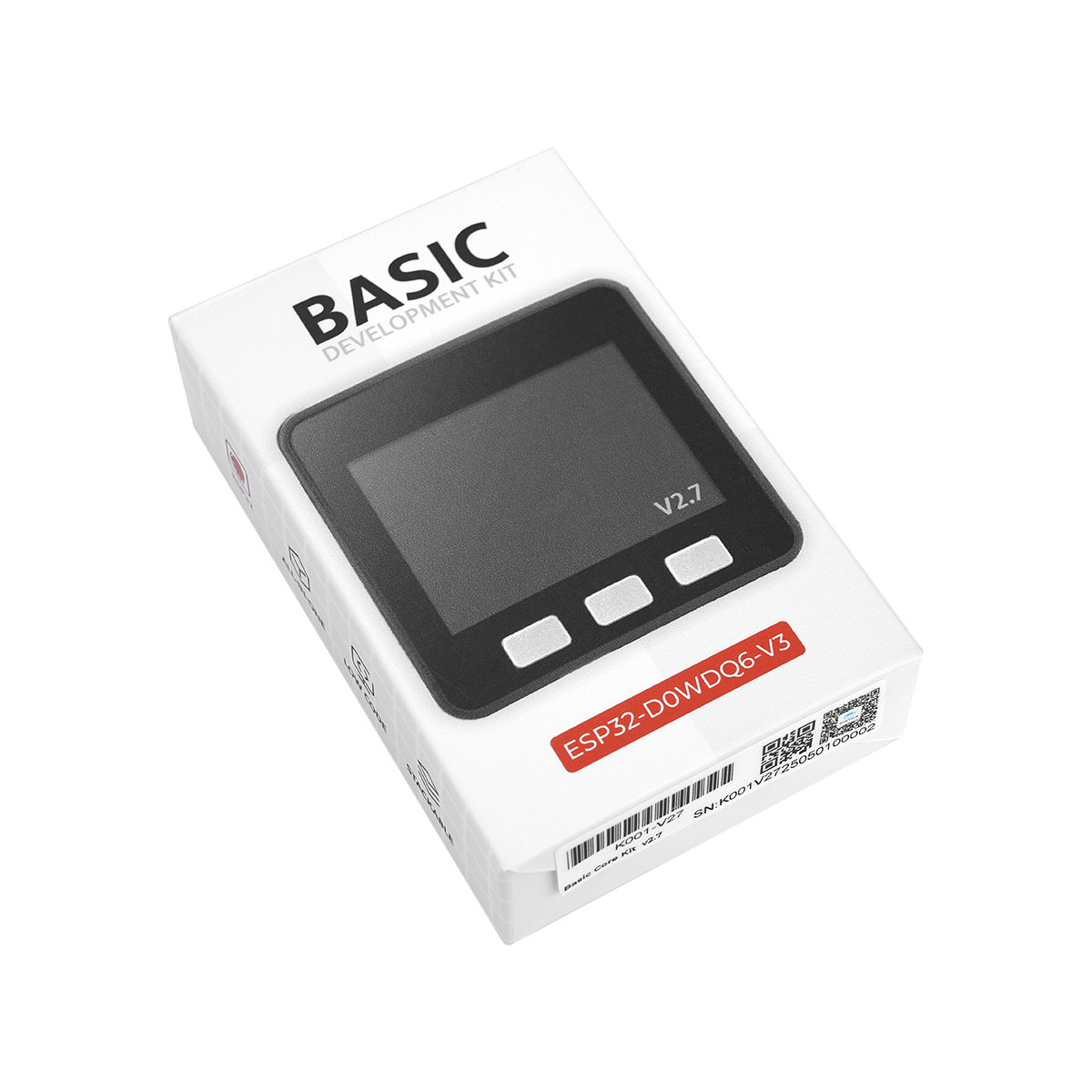

SKU:K001-V27
BASIC is a cost-effective entry-level IoT main controller. It adopts Espressif ESP32 chipset, equipped with 2 low-power Xtensa® 32-bit LX6 microprocessors with main frequency up to 240MHz. Built-in 16M FLASH
memory, integrated 2.0-inch full-color HD IPS display panel
, speaker
, TFCard slot
and other peripherals. The full-coverage housing ensures circuit stability even in complex industrial applications. Internal provides a variety interface resources (ADC/DAC/I2C/UART/SPI, etc.) and 15x IO pins at the bottom, which is highly developable. Ideal for a variety of product prototyping, industrial control, intelligent building application.
High productization
:Low Code Development
:High Integration
:Strong Expandability

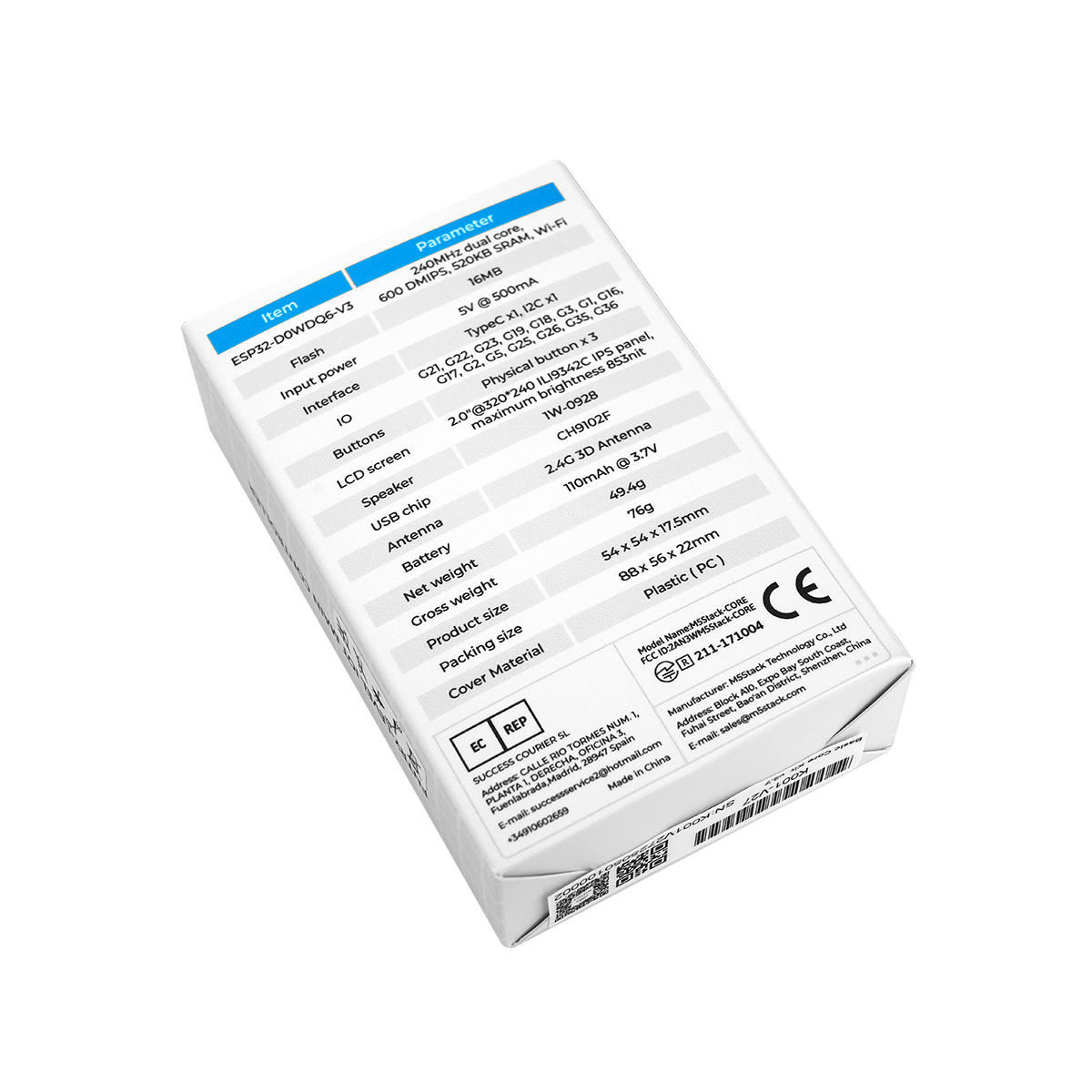

:Specifications | Parameters |
---|---|
ESP32-D0WDQ6-V3 | 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi |
Flash | 16MB |
Input power | 5V @ 500mA |
Interface | TypeC x1, I2C x1 |
IO | G21, G22, G23, G19, G18, G3, G1, G16, G17, G2, G5, G25, G26, G35, G36 |
Button | Physical button x 3 |
LCD screen | 2.0"@320*240 ILI9342C IPS panel, maximum brightness 853nit |
Speaker | 1W-0928 |
USB chip | CH9102F |
Antenna | 2.4G 3D Antenna |
Battery | 110mAh @ 3.7V |
Net weight | 47.2g |
Gross weight | 93g |
Product size | 54* 54* 18mm |
Packing size | 95*65* 25mm |
Cover Material | Plastic ( PC ) |
CH9102
) driver compressed package. After decompressing the compressed package, select the installation package corresponding to the number of operating systems to install. (If you are not sure of the USB chip used by your device, you can install both drivers at the same time. During the installation process of CH9102_VCP_SER_MacOS v1.7
, an error may occur, but the installation is actually completed, just ignore it.) When using it, if If the program cannot be downloaded normally (the prompt is overtime or Failed to write to target RAM), you can try to reinstall the device driver.Driver name | Applicable driver chip | Download link |
---|---|---|
CP210x_VCP_Windows | CP2104 | Download |
CP210x_VCP_MacOS | CP2104 | Download |
CP210x_VCP_Linux | CP2104 | Download |
CH9102_VCP_SER_Windows | CH9102 | Download |
CH9102_VCP_SER_MacOS v1.7 | CH9102 | Download |
EasyLoader is a simple and fast program burner, which has a built-in product-related case program, which can be burned to the main control through simple steps to perform a series of functional verification.
Download Windows Version Easyloader Download MacOS Version Easyloader
LCD screen & TF card
LCD pixels: 320x240 TF card supports up to 16GB
ESP32 Chip | GPIO23 | GPIO19 | GPIO18 | GPIO14 | GPIO27 | GPIO33 | GPIO32 | GPIO4 |
---|---|---|---|---|---|---|---|---|
ILI9342C | MOSI/MISO | / | CLK | CS | DC | RST | BL | |
TF Card | MOSI | MISO | CLK | / | / | / | / | CS |
Button & Speaker
ESP32 Chip | GPIO39 | GPIO38 | GPIO37 | GPIO25 |
---|---|---|---|---|
Button pin | BUTTON A | BUTTON B | BUTTON C | / |
Speaker | / | / | / | Speaker pin |
GROVE interface A & IP5306
The power management chip (IP5306) is a customized I2C version, and its I2C address is 0x75. Click here to view Register manual of IP5306.
ESP32 Chip | GPIO22 | GPIO21 | 5V | GND |
---|---|---|---|---|
GROVE A | SCL | SDA | 5V | GND |
IP5306 | SCL | SDA | 5V | GND |
IP5306 charge/discharge, voltage parameters
charge | discharge |
---|---|
0.00 ~ 3.40V -> 0% | 4.20 ~ 4.07V -> 100% |
3.40 ~ 3.61V -> 25% | 4.07 ~ 3.81V -> 75% |
3.61 ~ 3.88V -> 50% | 3.81 ~ 3.55V -> 50% |
3.88 ~ 4.12V -> 75% | 3.55 ~ 3.33V -> 25% |
4.12 ~ / -> 100% | 3.33 ~ 0.00V -> 0% |
PORT-A(RED) | G21/22 | I2C |
---|---|---|
PORT-B(BLACK) | G26/36 | DAC/ADC |
PORT-C(BLUE) | G16/17 | UART |
ADC1 | ADC2 | DAC1 | DAC2 |
---|---|---|---|
8 channels | 10 channels | 2 channels | 2 channels |
G32-39 | G0/2/4/12-15/25-27 | G25 | G26 |
For more information on pin assignment and pin remapping, please refer to ESP32 datasheet
Datasheet
API
Release Date | Product Changes | Notes |
---|---|---|
2017.7 | First Release(Core1.4) | / |
2019.7 | TN screen changed to IPS screen(Core2.2) | Please upgrade your M5Stack library to the latest version (v0.2.8 or above) to solve the screen reflection problem |
2020.3 | Battery capacity changed from 150mAh to 110mAh(Core2.4) | / |
2020.6 | Flash size changed from 4MB to 16MB(Core2.5) | / |
2021.10 | Upgrade v2.6, change CP2104 to CH9102, optimize structure details(Core2.6) | / |
2023.4 | Upgrade v2.7 | The screen was changed to a glass screen for clearer display.The Grove port adds a boost function to stabilize the 5.1V output with a more stable load.Add a battery-powered switch |
2018.2A
PCB version of the device does not support C2C (TypeC to TypeC) connection and PD power supply.
