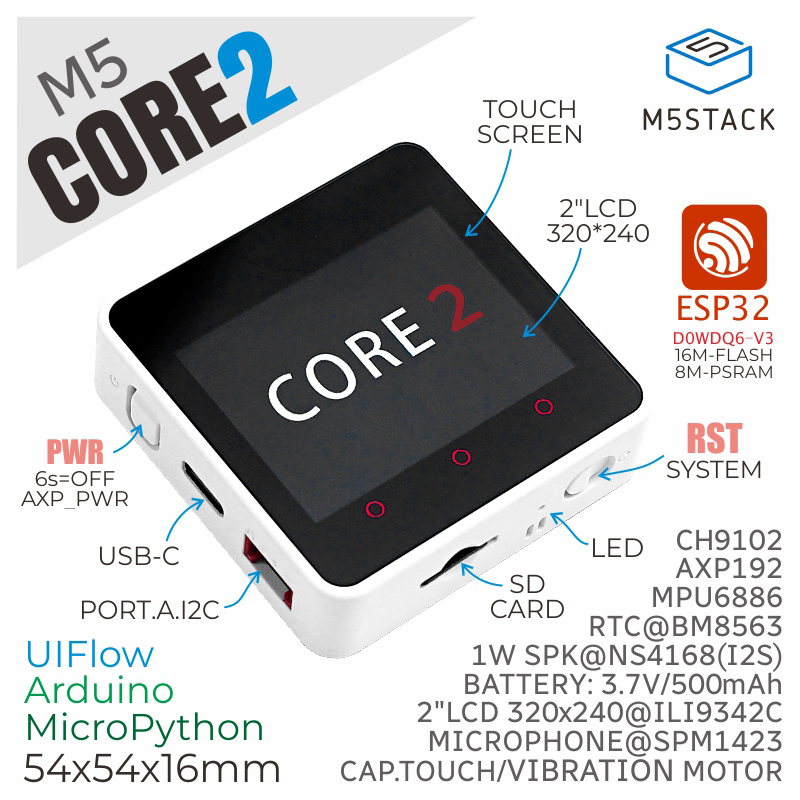

M5Core2

SKU:K010

Tutorial

This tutorial will show you how to control M5Core2 devices through the UIFlow graphical programming platform
This tutorial will show you how to program and control M5Core2 devices through Arduino IDE
This tutorial will show you how to control M5Core2 devices through Micropython programming

Description

M5Core2 is the second generation core device in the M5Stack development kit series, which further enhances the functions of the original generation of cores.

The MCU is an ESP32 model D0WDQ6-V3 and has dual core Xtensa® 32-bit 240Mhz LX6 processors that can be controlled separately. Wi-Fi are supported as standard and it includes an on board 16MB Flash and 8MB PSRAM, USB TYPE-C interface for charging, downloading of programs and serial communication, a 2.0-inch integrated capacitive touch screen, and a built-in vibration motor.

M5Core2 also features a built-in RTC module which can provide accurate timing. The power supply is managed by an AXP192 power management chip, which can effectively control the power consumption of the base and a built-in green LED power indicator helps to notify the user of battery level. The battery capacity has been upgraded to 390mAh, which can power the core for much longer than the previous model.

The M5Core2 retains the TF-card(microSD) slot and speakers. However, in order to ensure higher quality sound output, the I2S digital audio interface power amplifier chip is used to effectively prevent signal distortion. There are independent power and reset buttons on the left side and bottom of the base.

The 3 icons on the front of the screen are capacitive buttons which are programmable. There is a small expansion board on the back of the base with a 6-axis IMU sensor and microphone. The development platform and programming language supported by M5Stack Core2: Arduino, UIFlow (using Blockly, MicroPython language) No matter what level of your development and programming skills, M5Stack will help You gradually turn your ideas into reality.

Power Management

Operations:
Power on: One click the power button on the left
Power off: Long press the left power button for 6 seconds
Reset: Click the RST button on the bottom side

USB drive

Before using, please go to download page to download the USB driver that matches your operating system, and install it.
Note: Core2 currently has two CP2104/CH9102F A USB chip version, users can install the drivers (CH9102 and CP210x) that are compatible with two ICs at the same time to ensure that the device drivers work normally.

Extensions

To stack M5Core2 with M5 modules, you need to remove/eliminate the battery bottom of Core2; If you wish to keep I2S Mic, IMU and Battery functions, a M5GO Bottom2 is required.**The CP2104 chip interface is reserved on the PCB of CORE2 to interface with the lithium battery.

The vibration sensor of M5Core2 and M5 Base series are incompatible in mechanical design. Please do not stack them together.

Product Features

  • ESP32-based, built-in Bluetooth/Wi-Fi
  • 16M Flash,8M PSRAM
  • Built-in speaker, power indicator, vibration motor, RTC, I2S amplifier, capacitive touch screen, power button, reset button
  • TF card slot (16G Maximum size)
  • Built-in lithium battery, equipped with power management chip
  • Independent small board built-in 6-axis IMU, PDM microphone
  • M-Bus Socket & Pins
  • Compatible with multi-platform development:

Include

  • 1x M5Stack Core2
  • 1x Type-C USB(20cm)
  • 1x HEX KEY

Applications

  • Internet of things terminal controller
  • Stem education product
  • DIY creation
  • Smart home equipment

Specification

Resources Parameter
ESP32-D0WDQ6-V3 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, Bluetooth
Flash 16MB
PSRAM 8MB
Input Voltage 5V @ 500mA
Interface TypeC x 1, GROVE(I2C+I/0+UART) x 1
IPS LCD Screen 2.0"@320*240 ILI9342C
Touch Screen FT6336U
Speaker 1W-092
LED Green power indicator light
Button Power button, RST button, Virtual screen button*3
Vibration reminder Vibration motor
MIC SPM1423
I2S Power Amplifier NS4168
6-axis IMU MPU6886
RTC BM8563
PMU AXP192
USB Chip CP2104/CH9102F (two chip versions, there is no difference in function and use)
DC-DC Boost SY7088
TF card slot 16G Max
Lithium Battery 390mAh @ 3.7V
Antenna 2.4G 3D antenna
Operating temperature 0°C to 60°C
Base screw specifications Hexagon socket countersunk head M3
Internal PCB board reserved interface Battery interface (specification: 1.25mm-2P)
USB line interface (specification: 1.25mm-4P)
Net Weight 52g
Gross Weight 70g
Product Size 54 x 54 x 16mm
Package Size 75 x 60 x 20mm
Case Material Plastic ( PC )

Driver Installation

Click the link below to download the driver that matches the operating system. There are currently two driver chip versions, CP210X (for CP2104 version)/CP34X (for CH9102 version) driver compressed package. After decompressing the compressed package, select the installation package corresponding to the number of operating systems to install. (If you are not sure of the USB chip used by your device, you can install both drivers at the same time. During the installation process of CH9102_VCP_SER_MacOS v1.7, an error may occur, but the installation is actually completed, just ignore it.) When using it, if If the program cannot be downloaded normally (the prompt is overtime or Failed to write to target RAM), you can try to reinstall the device driver.

Driver name Applicable driver chip Download link
CP210x_VCP_Windows CP2104 Download
CP210x_VCP_MacOS CP2104 Download
CP210x_VCP_Linux CP2104 Download
CH9102_VCP_SER_Windows CH9102 Download
CH9102_VCP_SER_MacOS v1.7 CH9102 Download

EasyLoader

EasyLoader is a concise and fast program writer, which has a built-in case program related to the product. It can be burned to the main control by simple steps to perform a series of function verification.

Download Windows Version Easyloader Download MacOS Version Easyloader

Description:
This case will perform hardware running tests for speakers, wifi, buttons, accelerometer, TF-card(microSD), screen, etc.

PinMap

LCD & TF card

LCD :320x240 TF card Maximum size 16GB

ESP32 Chip GPIO38 GPIO23 GPIO18 GPIO5 GPIO15
AXP192 Chip AXP_IO4 AXP_DC3 AXP_LDO2
ILI9342C MISO MOSI SCK CS DC RST BL PWR
ESP32 Chip GPIO38 GPIO23 GPIO18 GPIO4
TF Card MISO MOSI SCK CS

CAP.TOUCH (I2C Addr: 0x38)

ESP32 chip GPIO21 GPIO22 GPIO39
AXP192 AXP_IO4
FT6336U SDA SCL INT RST

Mic & NS4168(Speaker)

ESP32 Chip GPIO12 GPIO0 GPIO2 AXP_IO2 GPIO34
NS4168 BCLK LRCK DATA SPK_EN
Mic CLK DATA

AXP Power Indicator Light

AXP192 AXP_IO1 AXP_LDO3
Green LED Vcc
Vibration motor Vcc

RTC

ESP32 Chip GPIO21 GPIO22
AXP192 AXP_PWR
BM8563 SDA SCL INT

IMU(3-axis gyroscope & 3-axis accelerometer)

ESP32 Chip GPIO21 GPIO22
MPU6886 SDA SCL

USB to serial chip

ESP32 Chip GPIO1 GPIO3
CP2104/CH9102F RXD TXD

Internal I2C connection

ESP32 Chip GPIO21 GPIO22
MPU6886 SDA SCL
AXP192 SDA SCL
BM8563 SDA SCL
FT6336U SDA SCL

M5Core2 M-BUS Schematic diagram

M5Core2 BUS(compared to M5Stack)

M5PORT DEFINE
PORT PIN Note:
PORT-A(Red) 32/33 I2C
PORT-B(Black) 26/36 DAC/AD
PORT-C(Blue) 13/14 UART

ESP32 ADC/DAC

ADC1 ADC2 DAC1 DAC2
8 channels 10 channels 2 channels 2 channels
G32-39 G0/2/4/12-15/25-27 G25 G26

For more information about Pin assignment and Pin Remapping, Please refer to ESP32 Datasheet

Charging current measured value

charging current Fully charged current(Power OFF) Fully charged current(Power ON)
0.219A 0.055A 0.147A

Schematic

Example

Arduino

Tutorial

Learn

Health monitoring using the M5Stack Mini Heart Rate Unit and Non-Contact Infrared Thermometer Unit and the Waylay IO IoT platform.
I made one-wheel balancing robot. This robot can be operated remotely from a smartphone using Blynk.
Modern times make modern solutions possible. Therefore, the step to a digital snow globe is not that far.
Developing a simple remote for my openhub, I have got the app but do not want to unlock my phone, open the app to do stuff

Version Change

Release Date Product Change Note:
2020.6 Initial public release< /
2021.7 USB Chip changed from CP2104 to CH9102F The actual delivery has two chip versions, CP2104/CH9102F, and there is no difference in function and use

FAQ

Q1: How do I remove the speaker floor noise when the M5Core is on or running?

Execute the following statement in Setup() of the Arduino program

Q2: How does M5Core2 stack modules?

When M5Core2 is stacked with other M5 modules, you need to remove the battery base of Core2, which does not support module stacking.

Q3: A timeout error is displayed when uploading the program to the device

Reason and solution: The power supply current of the port is insufficient, which can cause the device to not enter the download mode normally. You can try to connect a capacitor (>0.1uF) between the RST pin and the GND pin, or when uploading the program, set the G0 Short-circuit to GND, so that G0 can be set to a low level state normally

Q4: How to solve the phenomenon of automatic signal triggering of M5Core button A

Add the header file #include <driver/adc.h> and the function adc_power_acquire(); in the Arduino program

Q5: M5 device battery life

The battery life of the controller is affected by various factors such as battery capacity, operating status, and load, so there is no fixed value. Reducing the load and adopting a sleep strategy can effectively increase the battery life.

Q6: Can multiple modules with batteries be stacked at the same time?

Support multiple stacks, the total capacity of the batteries in parallel increases, and the voltage remains unchanged. However, since the discharge of each battery is not balanced during use, there is a voltage difference between the batteries, which may cause the battery to charge backwards. .(will lose part of the battery capacity)

Q7: M5 master supports WiFi connection to 5G frequency band

ESP32 module currently does not support WiFi in 5G band, only 2.4G.

Q8: The RS485 device cannot communicate normally/data is garbled. Packet loss, etc.

Confirm whether the TX/RX pin on the TTL side of the pin is correct, try to add two 120Ω terminal resistors at the beginning and end of the device line to reduce signal reflection interference

Q9: The difference between different masters and camera products

Click the link below to view the product comparison table

Q10: M5 camera image blur, how to adjust the focal length

Rotate the lens to adjust the focal length within a certain range

Q11: The control RGB LED pin of FACE II BOTTOM conflicts with the I2S DOUT pin of CORE2

FACE II BOTTOM NOT CORE2 COMPATIBLE

Q1: How to read the programmed firmware?

Use esptool to read the flash content of esp32 and export the bin file. Refer to the detailed operation

Q2: Several solutions for esp32 board download failure in Arduino IDE board management

Restart the Arduino IDE, the computer uses the mobile AP mobile network to download.

Method 3: Download the resource package provided by M5Stack for direct installation, and extract the contents to the board management path of Arduino, such as (C:\Users\Sean\AppData\Local\Arduino15\packages), https://m5stack.oss-cn-shenzhen.aliyuncs.com/resource/arduino/packages/m5stack_v2.0.0.zip
Q3: Arduino SPIFFS file upload operation

Refer to the Github link below, use arduino-esp32fs-plugin for file upload

Q4: When M5Burner burns firmware, an error pop-up window or exception occurs

Check if the COM of the corresponding device is selected and if the M5Burner is the latest version

Q5: Does the M5 master device support multi-language display (Chinese, English, Japanese, Russian, etc.)?

UIFlow users can switch the Label font to Unicode, Arduino users can use the Chinese font library provided in the M5GFX driver library

Q6: The program cannot load the SD card normally

Confirm whether the SD card format is FAT32, and no partitions exist.

Q7: How to use Bluetooth, HTTP, SD, WebServer, FreeRTOS and other features in Arduino IDE

You can refer to the following link for other ESP32 users to share the case program

Q8: How to download programs for STAMP C3U

STAMP C3U enters program download mode operation: 1. Long press the center button (G9) of STAMP C3U when the power is off. 2. Connect to the computer, after the port is successfully identified, program burning.

Q9: How STAMP C3U defines UART0 output mode

By default, USB CDC is not enabled, the serial port output started by C3U will be output through the default pins (G20, G21) of UART0. If you want to output through USB, please use the IDE to output Its USB CDC option is enabled. (Arduino users can enable it through Tools->USB CDC on Boot-Enabled. For IDF users, please refer to the ESP IDF official documentation.)

Q10: Unable to connect to UIFlow Desktop IDE

Refer to the UIFlow documentation of the corresponding device to check whether the device has entered the USB programming mode.

Q11: NBIoT devices cannot connect to the network normally

Make sure that the NBIoT used is not locked. Frequent device replacement or after activating the IoT card, using traffic in different places may cause the card to be locked. If the above situation occurs, please contact the IoT card supplier. If you are using the IoT card matching M5, please contact M5 after-sales through e-commerce or email. (provide the ICCID of the IoT card)
