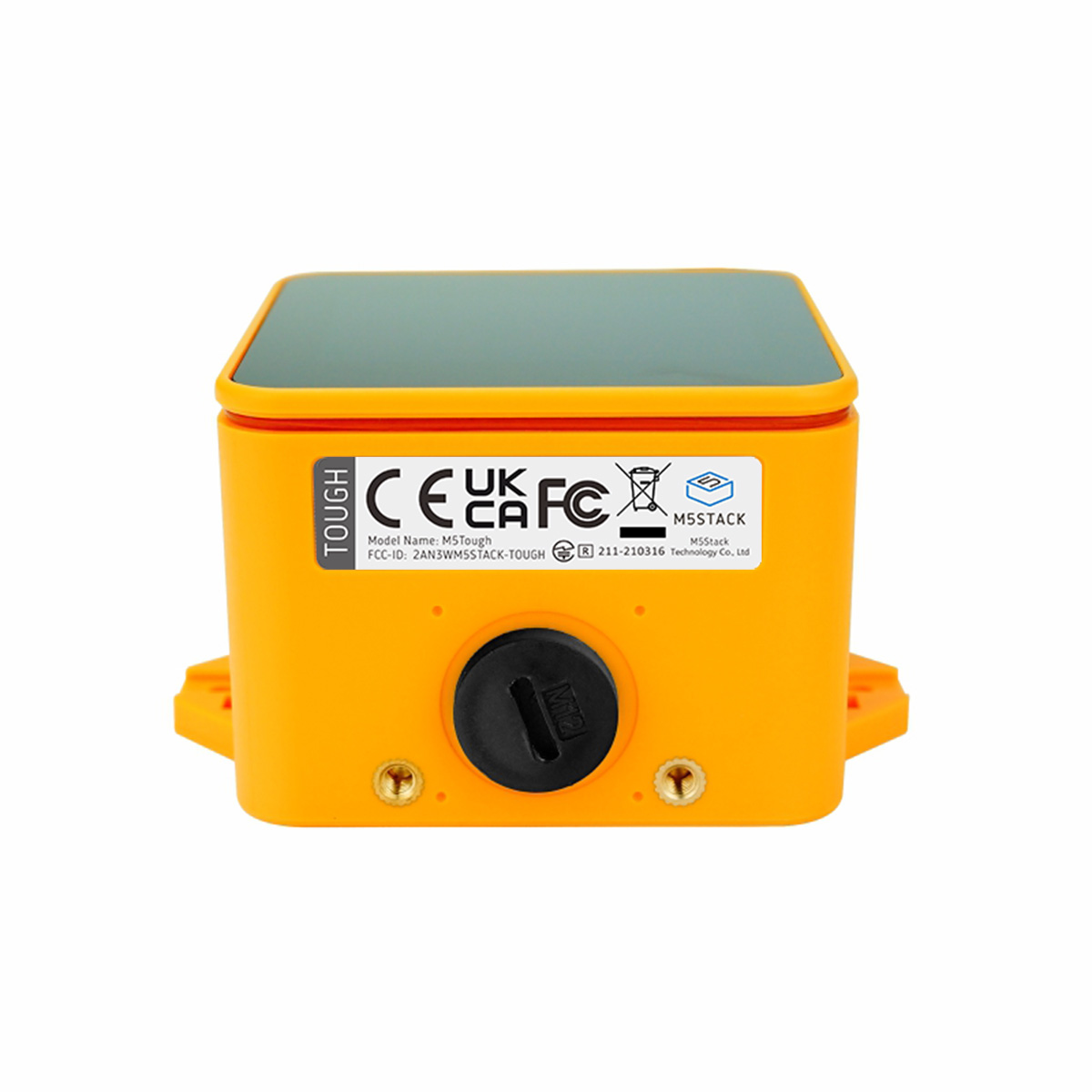

TOUGH

SKU:K034

Description

The M5Stack ** Waterproof ESP32 embedded controller TOUGH** is Industrial grade programmable embedded controller featuring Espressif ESP32 chipset with integrated Wi-Fi, It is equipped with dual-core low power Xtensa® 32-bit LX6 microprocessor with clock frequency up to 240MHz. A combination of 8M PSRAM + 16M FLASH memory , integrated 2.0-inch HD IPS display panel + high-sensitive capacitive touch screen + rich peripherals, expansion interface. M5 TOUGH has full-coverage support dustproof and waterproof`, which can ensure the stability of circuit operation even in complex industrial applications. The M5 TOUGH is ideal for industrial control, smart buildings, outdoor node data acquisition, and other applications.

Caution: Please DO NOT immerse the enclosure in water. There is no protection from immersion.

  • Structural Design:
    • Water-resistant with an 'o-ring sealing' contains Waterproof M12 Connectors can complete against solid objects, dust, sand, and dirt and against the effects of immersion.
    • UV resistant enclosure design
    • A variety of installations Screw, Rolled strip, Magnetic, Adhesive Back
    • Waterproof M12 Connectors
  • High integration:
    • 2 inches LCD capacitive Multi-touch screen
    • NS4168 16bits I2S power amplifier + 1W speaker
    • TFCard slot
    • AXP192 power management chip + BM8563-RTC clock -> Low-power power solution, Wake Up with an RTC Alarm Clock
    • Delicate RF circuit delivers robust and consistent wireless communication
  • Strong expandability :
    • Equipped with programable expansion board
      • Integrated with 12v->5V flexible DC/DC converter. flexible power supply
      • RS485 conversion circuit
      • PortA, B, C/ 3x Grove expansion interface
    • Easy access to M5Stack's software and hardware system, plug-and-play sensor expansion
  • Low code development:
    • Support UIFlow graphical programming platform, scripting-free, cloud push
    • Fully compatible with with Arduino, ESP32-IDF, and other mainstream development platforms
    • Executing Dual-core processor on FreeRTOS to run multiple tasks for better performance.

Product Features

  • ESP32-D0WDQ6-V3
  • 16MB Flash + 8MB PSRAM
  • Waterproof and Dustproof
  • UV resistant enclosure design protection
  • 2 inches LCD capacitive Multi-touch screen
  • Advanced low power techniques: Wake Up with an RTC Alarm Clock
  • Integrated with 12v->5V flexible DC/DC converter. Flexible power supply
  • RS485/I2C/GPIO/UART interface
  • Development platform:
    • Arduino/UIFlow/ESP-IDF

Included

  • 1x M5Stack TOUGH
  • 1x Type-C USB(1m)
  • 1x 2.5mm hexagon wrench
  • 1x 1.25-2P single head terminal line
  • 1x 1.25-4P single head terminal line
  • 1x Waterproof O-ring
  • 1x HY2.0-4P

Applications

  • IoT controller
  • Data acquisition/display terminal
  • Timing controller

Specifications

Specifications Parameters
ESP32-D0WDQ6-V3 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
Flash 16MB
PSRAM 8MB
Protection level Waterproof/Dustproof
Input voltage USB(5V @ 500mA) RS485 DC Input (12V @ 1A)
Interface TypeC x 1, GROVE x4 (RS485/I2C/G/UART interface)
IPS LCD 2.0"@320*240 ILI9342C full color display, maximum brightness 853nit
Touch Panel Driver Chip CHSC6540
Speaker configuration NS4168 16bit I2S amplifier + 1W speaker
RTC clock chip HY8563
PMU AXP192
USB chip CH9102 USB-TTL serial port/program download circuit
TF card slot Maximum support 16GB memory card
Antenna 3D-Wi-Fi/BLE Antenna
Shell material UV-resistant plastic
Net weight 108g
Gross weight 139g
Product size 58 * 76 * 41 mm
Packing size 99 * 80 * 45 mm

Driver Installation

Click the link below to download the driver that matches the operating system. select the installation package corresponding to the number of operating systems to install. During the installation process of CH9102_VCP_SER_MacOS v1.7, an error may occur, but the installation is actually completed, just ignore it.) When using it, if If the program cannot be downloaded normally (the prompt is overtime or Failed to write to target RAM), you can try to reinstall the device driver.

Driver name Applicable driver chip Download link
CH9102_VCP_SER_Windows CH9102 Download
CH9102_VCP_CDC_Windows CH9102 Download
CH9102_VCP_SER_MacOS v1.7 CH9102 Download

Pin Mapping

LCD Display & TF Card

ESP32 Chip GPIO38 GPIO23 GPIO18 GPIO5 GPIO15
AXP192 Chip AXP_IO4 AXP_LDO3 AXP_LDO2
ILI9342C MISO MOSI SCK CS DC RST BL PWR
ESP32 Chip GPIO38 GPIO23 GPIO18 GPIO4
TFCard MISO MOSI SCK CS PWR

Cap.Touch

ESP32 Chip GPIO21 GPIO22 GPIO39
Cap.Touch SDA SCL SCK RST

Mic & NS4168(Speaker)

ESP32 Chip GPIO12 GPIO0 GPIO2 AXP_IO2 GPIO34
NS4168 BCLK LRCK DATA SPK_EN
Mic CLK DATA

RTC-HY8563

ESP32 Chip GPIO22 GPIO21
AXP192 PWRKEY AXP_LDO1
RTC-HY8563 SCL SDA INT PWR

RS485

M5BUS GPIO27 GPIO19 (DCDC 12->5V) GND
RS485 RX TX 12V GND

HY2.0_RESET

M5BUS EN GPIO25 VCC GND
RESET EN GPIO25 5V GND

TOUGH DEFINE

PORT PIN Note:
PORT-A(Red) 33/32(SCL/SDA)/VCC/GND I2C
PORT-B(Black) 32/26(IN/OUT)/VCC/GND DAC/AD
PORT-C(Blue) 13/14(RX/TX)/VCC/GND UART

ESP32 ADC/DAC

ADC1 ADC2 DAC1 DAC2
8 channel 10 channel 2 channel 2 channel
G32-39 G0/2/4/12-15/25-27 G25 G26

For more information on pin assignment and pin remapping, please refer to ESP32 datasheet

Schematics

Examples

Arduino

FAQ

Q1: How do I remove the speaker floor noise when the M5Core is on or running?

Execute the following statement in Setup() of the Arduino program

Q2: How does M5Core2 stack modules?

When M5Core2 is stacked with other M5 modules, you need to remove the battery base of Core2, which does not support module stacking.

Q3: A timeout error is displayed when uploading the program to the device

Reason and solution: The power supply current of the port is insufficient, which can cause the device to not enter the download mode normally. You can try to connect a capacitor (>0.1uF) between the RST pin and the GND pin, or when uploading the program, set the G0 Short-circuit to GND, so that G0 can be set to a low level state normally

Q4: How to solve the phenomenon of automatic signal triggering of M5Core button A

Add the header file #include <driver/adc.h> and the function adc_power_acquire(); in the Arduino program

Q5: M5 device battery life

The battery life of the controller is affected by various factors such as battery capacity, operating status, and load, so there is no fixed value. Reducing the load and adopting a sleep strategy can effectively increase the battery life.

Q6: Can multiple modules with batteries be stacked at the same time?

Support multiple stacks, the total capacity of the batteries in parallel increases, and the voltage remains unchanged. However, since the discharge of each battery is not balanced during use, there is a voltage difference between the batteries, which may cause the battery to charge backwards. .(will lose part of the battery capacity)

Q7: M5 master supports WiFi connection to 5G frequency band

ESP32 module currently does not support WiFi in 5G band, only 2.4G.

Q8: The RS485 device cannot communicate normally/data is garbled. Packet loss, etc.

Confirm whether the TX/RX pin on the TTL side of the pin is correct, try to add two 120Ω terminal resistors at the beginning and end of the device line to reduce signal reflection interference

Q9: The difference between different masters and camera products

Click the link below to view the product comparison table

Q10: M5 camera image blur, how to adjust the focal length

Rotate the lens to adjust the focal length within a certain range

Q11: The control RGB LED pin of FACE II BOTTOM conflicts with the I2S DOUT pin of CORE2

FACE II BOTTOM NOT CORE2 COMPATIBLE

Q1: How to read the programmed firmware?

Use esptool to read the flash content of esp32 and export the bin file. Refer to the detailed operation

Q2: Several solutions for esp32 board download failure in Arduino IDE board management

Restart the Arduino IDE, the computer uses the mobile AP mobile network to download.

Method 3: Download the resource package provided by M5Stack for direct installation, and extract the contents to the board management path of Arduino, such as (C:\Users\Sean\AppData\Local\Arduino15\packages), https://m5stack.oss-cn-shenzhen.aliyuncs.com/resource/arduino/packages/m5stack_v2.0.0.zip
Q3: Arduino SPIFFS file upload operation

Refer to the Github link below, use arduino-esp32fs-plugin for file upload

Q4: When M5Burner burns firmware, an error pop-up window or exception occurs

Check if the COM of the corresponding device is selected and if the M5Burner is the latest version

Q5: Does the M5 master device support multi-language display (Chinese, English, Japanese, Russian, etc.)?

UIFlow users can switch the Label font to Unicode, Arduino users can use the Chinese font library provided in the M5GFX driver library

Q6: The program cannot load the SD card normally

Confirm whether the SD card format is FAT32, and no partitions exist.

Q7: How to use Bluetooth, HTTP, SD, WebServer, FreeRTOS and other features in Arduino IDE

You can refer to the following link for other ESP32 users to share the case program

Q8: How to download programs for STAMP C3U

STAMP C3U enters program download mode operation: 1. Long press the center button (G9) of STAMP C3U when the power is off. 2. Connect to the computer, after the port is successfully identified, program burning.

Q9: How STAMP C3U defines UART0 output mode

By default, USB CDC is not enabled, the serial port output started by C3U will be output through the default pins (G20, G21) of UART0. If you want to output through USB, please use the IDE to output Its USB CDC option is enabled. (Arduino users can enable it through Tools->USB CDC on Boot-Enabled. For IDF users, please refer to the ESP IDF official documentation.)

Q10: Unable to connect to UIFlow Desktop IDE

Refer to the UIFlow documentation of the corresponding device to check whether the device has entered the USB programming mode.

Q11: NBIoT devices cannot connect to the network normally

Make sure that the NBIoT used is not locked. Frequent device replacement or after activating the IoT card, using traffic in different places may cause the card to be locked. If the above situation occurs, please contact the IoT card supplier. If you are using the IoT card matching M5, please contact M5 after-sales through e-commerce or email. (provide the ICCID of the IoT card)
