CoreInk Proto Base

SKU:M037

Description

CoreInk Proto Base is a DIY expansion kit suitable for CoreInk master control. When stacking the expansion board, the IO bus on the CoreInk main control will be led out to the PROTO board through the lower PIN pin. You can design and build the circuit according to your own needs. The package also contains a variety of expansion parts (HY2.0-4P female terminal, 3.96 male/female terminal, DC power terminal, etc.), which can be soldered to the PROTO board, which can add standard specifications to your circuit design. Output Interface. The hook hole on the back and the LEGO compatible hole design on the corners make it easy for you to embed the finished DIY product into a variety of structures.

Product Features

  • Compatible with CoreInk
  • Prototype circuit design
  • PROTO board

Includes

  • 1x CoreInk Proto Base (face shell + bottom shell)
  • 1x HEX KEY
  • 3x HY2.0-4P socket terminals (red x1, blue x1, black x1)
  • 4x HT3.96R-4P pins
  • 4x HT3.96R-4P socket
  • 1x HT3.96R-2P pin
  • 1x HT3.96R-2P socket
  • 1x DC-044 socket terminal
  • 4x M2*6 cup head tapping screws
  • 1x PROTO DIP header
  • 3x port block

Application

  • Experimental circuit
  • DIY function expansion

Specifications

Specifications Parameters

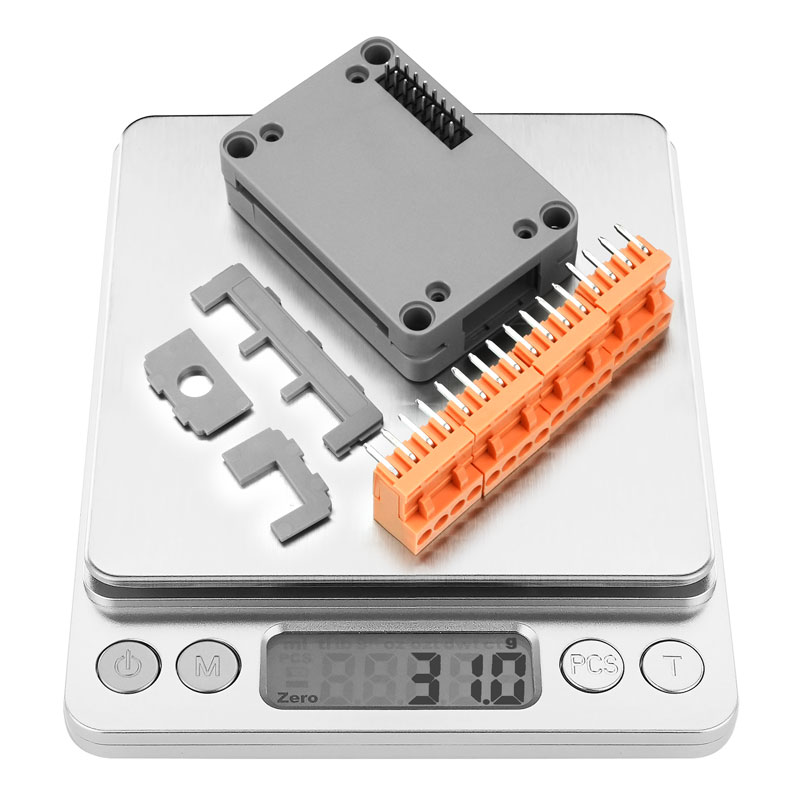

Net weight 34g
Gross weight 46g
Product size 56*40*16mm
Package size 83*54*26mm
Shell material Plastic (PC )

Pin mapping

  • The IO bus on the CoreInk main control will be led out to the PROTO board through the PIN pin
CoreInk GPIO ADC SCL SDA MOSI MISO SCK TXD2 RXD2 GND 5V IN 5V OUT 3.3V BAT RST
CoreInk G25,26 G36 G22 G21 G23 G34 G18 G14 G13 GND 5V IN 5V OUT 3.3V BAT RST

Video

Integrate 433MHz radio frequency module through CoreInk PROTO BASE welding to realize intelligent furniture control.

FAQ

Q1: How do I remove the speaker floor noise when the M5Core is on or running?

Execute the following statement in Setup() of the Arduino program

Q2: How does M5Core2 stack modules?

When M5Core2 is stacked with other M5 modules, you need to remove the battery base of Core2, which does not support module stacking.

Q3: A timeout error is displayed when uploading the program to the device

Reason and solution: The power supply current of the port is insufficient, which can cause the device to not enter the download mode normally. You can try to connect a capacitor (>0.1uF) between the RST pin and the GND pin, or when uploading the program, set the G0 Short-circuit to GND, so that G0 can be set to a low level state normally

Q4: How to solve the phenomenon of automatic signal triggering of M5Core button A

Add the header file #include <driver/adc.h> and the function adc_power_acquire(); in the Arduino program

Q5: M5 device battery life

The battery life of the controller is affected by various factors such as battery capacity, operating status, and load, so there is no fixed value. Reducing the load and adopting a sleep strategy can effectively increase the battery life.

Q6: Can multiple modules with batteries be stacked at the same time?

Support multiple stacks, the total capacity of the batteries in parallel increases, and the voltage remains unchanged. However, since the discharge of each battery is not balanced during use, there is a voltage difference between the batteries, which may cause the battery to charge backwards. .(will lose part of the battery capacity)

Q7: M5 master supports WiFi connection to 5G frequency band

ESP32 module currently does not support WiFi in 5G band, only 2.4G.

Q8: The RS485 device cannot communicate normally/data is garbled. Packet loss, etc.

Confirm whether the TX/RX pin on the TTL side of the pin is correct, try to add two 120Ω terminal resistors at the beginning and end of the device line to reduce signal reflection interference

Q9: The difference between different masters and camera products

Click the link below to view the product comparison table

Q10: M5 camera image blur, how to adjust the focal length

Rotate the lens to adjust the focal length within a certain range

Q11: The control RGB LED pin of FACE II BOTTOM conflicts with the I2S DOUT pin of CORE2

FACE II BOTTOM NOT CORE2 COMPATIBLE

Q12: Does the battery run out of power quickly?

Built-in CR1220 button battery, can make it work for a long time, if the battery power is exhausted, open the Unit shell to replace the battery

Q1: How to read the programmed firmware?

Use esptool to read the flash content of esp32 and export the bin file. Refer to the detailed operation

Q2: Several solutions for esp32 board download failure in Arduino IDE board management

Restart the Arduino IDE, the computer uses the mobile AP mobile network to download.

Method 3: Download the resource package provided by M5Stack for direct installation, and extract the contents to the board management path of Arduino, such as (C:\Users\Sean\AppData\Local\Arduino15\packages), https://m5stack.oss-cn-shenzhen.aliyuncs.com/resource/arduino/packages/m5stack_v2.0.0.zip
Q3: Arduino SPIFFS file upload operation

Refer to the Github link below, use arduino-esp32fs-plugin for file upload

Q4: When M5Burner burns firmware, an error pop-up window or exception occurs

Check if the COM of the corresponding device is selected and if the M5Burner is the latest version

Q5: Does the M5 master device support multi-language display (Chinese, English, Japanese, Russian, etc.)?

UIFlow users can switch the Label font to Unicode, Arduino users can use the Chinese font library provided in the M5GFX driver library

Q6: The program cannot load the SD card normally

Confirm whether the SD card format is FAT32, and no partitions exist.

Q7: How to use Bluetooth, HTTP, SD, WebServer, FreeRTOS and other features in Arduino IDE

You can refer to the following link for other ESP32 users to share the case program

Q8: How to download programs for STAMP C3U

STAMP C3U enters program download mode operation: 1. Long press the center button (G9) of STAMP C3U when the power is off. 2. Connect to the computer, after the port is successfully identified, program burning.

Q9: How STAMP C3U defines UART0 output mode

By default, USB CDC is not enabled, the serial port output started by C3U will be output through the default pins (G20, G21) of UART0. If you want to output through USB, please use the IDE to output Its USB CDC option is enabled. (Arduino users can enable it through Tools->USB CDC on Boot-Enabled. For IDF users, please refer to the ESP IDF official documentation.)

Q10: Unable to connect to UIFlow Desktop IDE

Refer to the UIFlow documentation of the corresponding device to check whether the device has entered the USB programming mode.

Q11: NBIoT devices cannot connect to the network normally

Make sure that the NBIoT used is not locked. Frequent device replacement or after activating the IoT card, using traffic in different places may cause the card to be locked. If the above situation occurs, please contact the IoT card supplier. If you are using the IoT card matching M5, please contact M5 after-sales through e-commerce or email. (provide the ICCID of the IoT card)
