Hat ADC v1.1
SKU:U069-V11
Description
Hat ADC v1.1 is a high-precision analog-to-digital conversion module specifically designed for the StickC series. It integrates the ADS1110 16-bit Δ-Σ ADC chip, featuring self-calibration and adjustable gain. The chip has an internal 2.048V reference and a differential full-scale range of ±2.048V/PGA. Through optimized peripheral circuit design, the module extends this capability to a DC voltage measurement range of 0 ~ 12V. It also includes a built-in 2.048V reference voltage, enabling stable and accurate signal acquisition without the need for an external reference source. The module communicates via a standard I2C interface and is suitable for applications such as industrial sensor signal processing, battery voltage monitoring, and various analog signal acquisition scenarios.
The module terminals provide a ground-referenced single-ended input, with the negative terminal connected to GND. The nominal 0 ~ 12V measurement range applies at PGA = 1; higher gains reduce the measurement range.
Features
- Input Voltage: DC 0 ~ 12V
- ADS1110:
- Built-in 2.048V reference voltage
- 16-bit no missing codes
- Continuous self-calibration
- Single-cycle conversion
- Integrated programmable gain amplifier (Gain = 1, 2, 4, 8)
- Internal system clock
- Programmable data rate: 15SPS to 240SPS
- I2C interface (0x48)
- Development Platform
- UiFlow1
- UiFlow2
- Arduino IDE
Includes
- 1 x Hat ADC v1.1
- 1 x HT3.96-2P Terminal
Applications
- Analog signal capture
Specifications
| Specification | Parameter |
|---|---|
| Communication Interface | I2C Communication @0x48 |
| Product Size | 24.0 x 24.9 x 13.7mm |

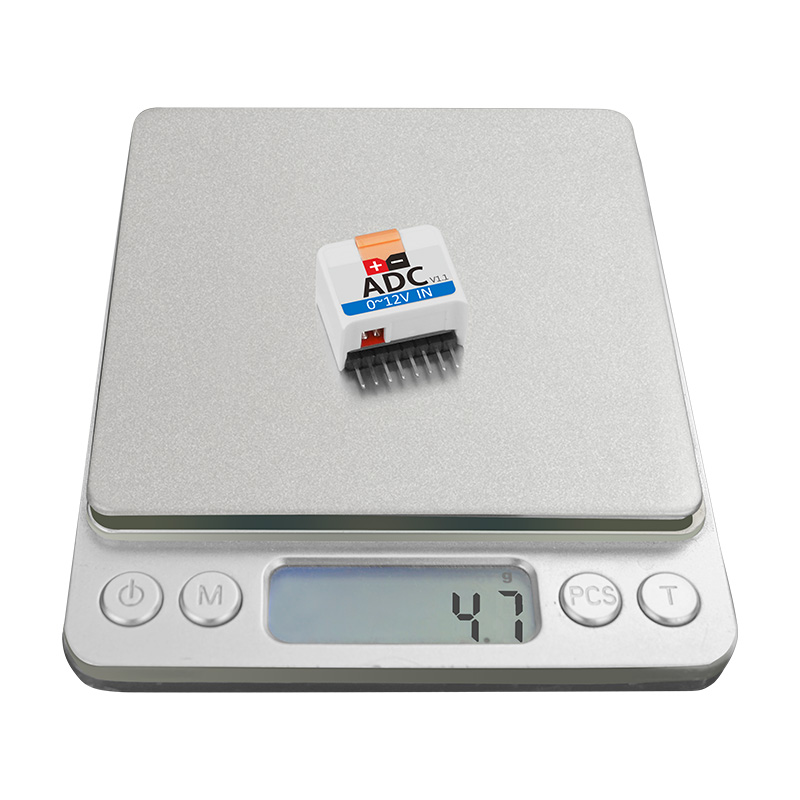

| Product Weight | 4.7g |
| Package Size | 40.0 x 42.0 x 30.0mm |
| Gross Weight | 8.4g |
Schematics
PinMap
| M5StickC | G0 | G26 | 3V3 | GND |
|---|---|---|---|---|
| ADC HAT V1.1 | SDA | SCL | 3V3 | GND |
Model Size
Datasheets
- Datasheet - ADS1110
Softwares
Arduino
UiFlow1
EasyLoader
| Easyloader | Download | Note |
|---|---|---|
| Hat ADC v1.1 Easyloader | download | / |
Video
Product Comparison
The table compares the main ADC parameters of the two HAT products. Each analog input must also remain within its allowed voltage relative to ground.
| Feature | ADS1110 | ADS1100 |
|---|---|---|
| SKU | HAT ADC V1.1 (U069-V11) | HAT ADC (U069) |
| Resolution | Up to 16 bits (15 SPS) | Up to 16 bits (8 SPS) |
| I2C Address | 0x48 | 0x48 |
| Internal Reference Voltage | 2.048V | Supply voltage VDD is the reference |
| Input Range | Chip differential full scale: ±2.048V/PGA | Chip differential full scale: ±VDD/PGA |
| Gain Settings | Programmable (1, 2, 4, 8) | Programmable (1, 2, 4, 8) |
| Package Type | SOT23-6 | SOT23-6 |
| Data Rate | Programmable (15, 30, 60, 240 SPS) | Programmable (8, 16, 32, 128 SPS) |
