Module HMI
Description
HMI Module is a human-computer interactive module that provides rotary encoder, two input buttons and two LED indicators, using STM32F030 as the acquisition and communication MCU, and communicating with the M5 host through I2C. In addition, there are portB and portC interfaces on the module, and a 500mAh lithium battery is built-in. The module is suitable for a variety of applications that require handheld operator interaction.
Features
- STM32F030F4P6, ARM Cortex-M0 @ 16 KB Flash and 4 KB SRAM
- Human-machine interaction (rotary encoder, two input buttons and two indicator lights)
- PORT B and PORT C interfaces
- Programming platform: Arduino, UIFlow
Includes
- 1×HMI Module
Applications
- Industrial control
- Embedded systems
- Smart home
Specifications
| Resources | Parameters |
|---|---|
| MCU | STM32F030F4P6 |
| Interactive peripherals | The rotary encoder of the dial wheel, two input buttons and two indicator lights |
| Battery | 500mAh polymer battery |
| Input voltage | 5v |
| Operating temperature | 0-40°C |
| Product Size | 54*54*6.6mm |
| Package Size | 60*57*17mm |
| Product Weight | 22.5g |
| Package Weight | 43g |
Related Link
Schematics

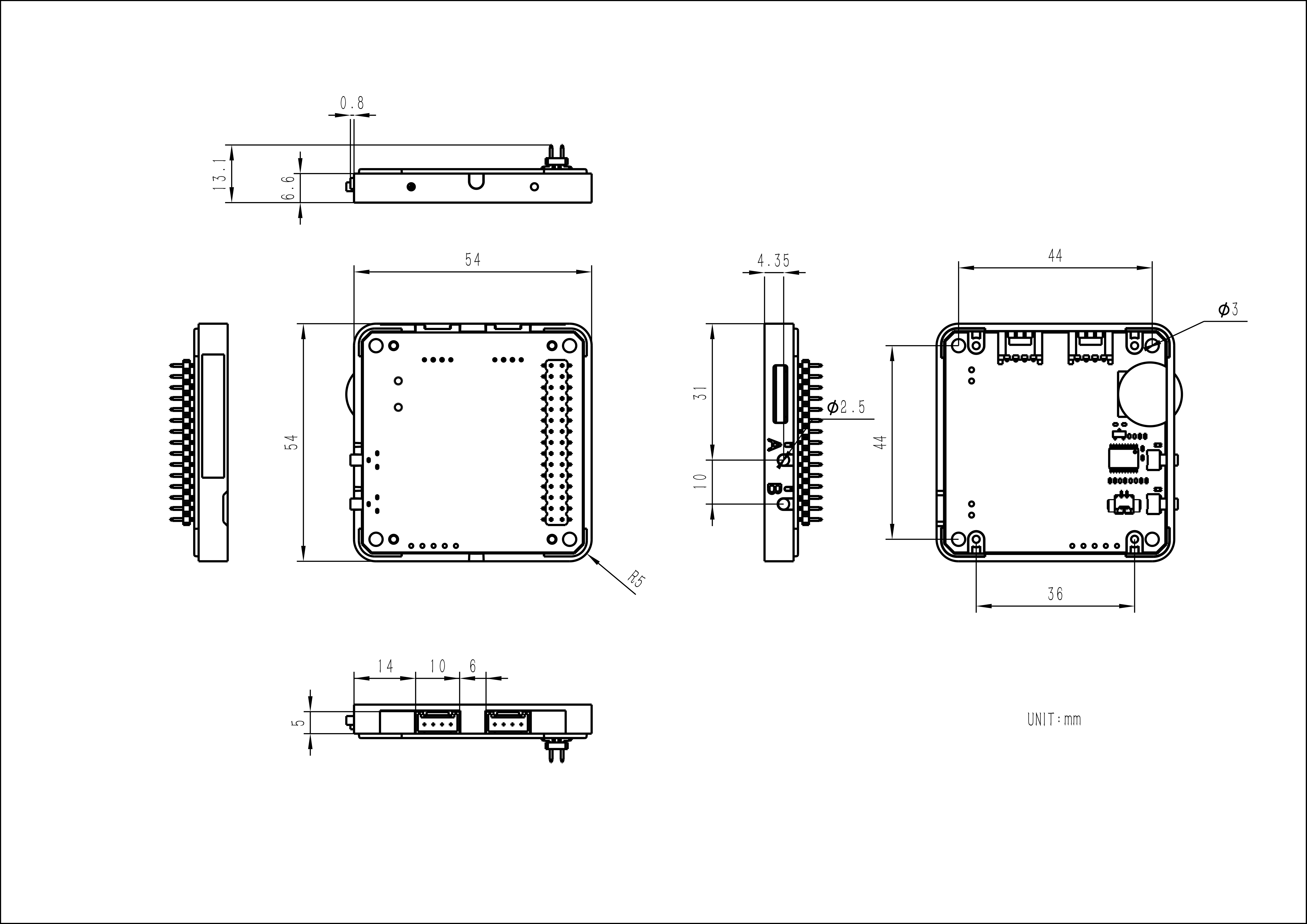

Model Size
Procotol
Examples
Arduino
Internal Firmware
UIFlow
How to use Module hmi on the UIFlow 1.0 graphical programming platform and related API instructions.
