RS232M Module 13.2

SKU:M131

Description

RS232M Module 13.2 is an expansion module of RS232 serial communication with isolation, using the scheme of TD301D232H serial port conversion chip + male DB9 interface to realize the interface conversion between RS232 and TTL/CMOS logic level signals, and using F0505S-2WR3 DC-DC power module to realize electrical and noise isolation functions, toggle switch and coding switch It can realize the pass-through or cross-switching of DB9 signal lines and the switching of serial interfaces to meet different connection needs. The module has a built-in DC power input socket and a corresponding DC-DC circuit to provide power to the entire device. The product is suitable for industrial automation, instrumentation, medical equipment and communication equipment.

Features

  • TD301D232H serial port chip, support full duplex, fast and reliable
  • F0505S-2WR3 Electrical and noise isolation
  • Toggle switches and coded switches switch line sequence and GPIO
  • Programming platform: Arduino, UIFlow(updating)

Includes

  • 1 × RS232M Module 13.2
  • 1 × VH3.96-4.0P

Applications

  • Industrial automation
  • Instrumentation
  • Medical equipment
  • Communication equipment

Specification

Resources Parameters
RS232 TD301D232H
DC-DC isolation F0505S-2WR3
Communication rate up to 115200bps
Communication method DB9 male interface with full-duplex communication and interface conversion between RS232 and TTL/CMOS logic level signals
Operating temperature 0-40°
DC power interface input voltage 9-24V
Product Size 54*54*13.2mm
Package Size 88*61*21mm
Product Weight 28g
Package Weight 60g

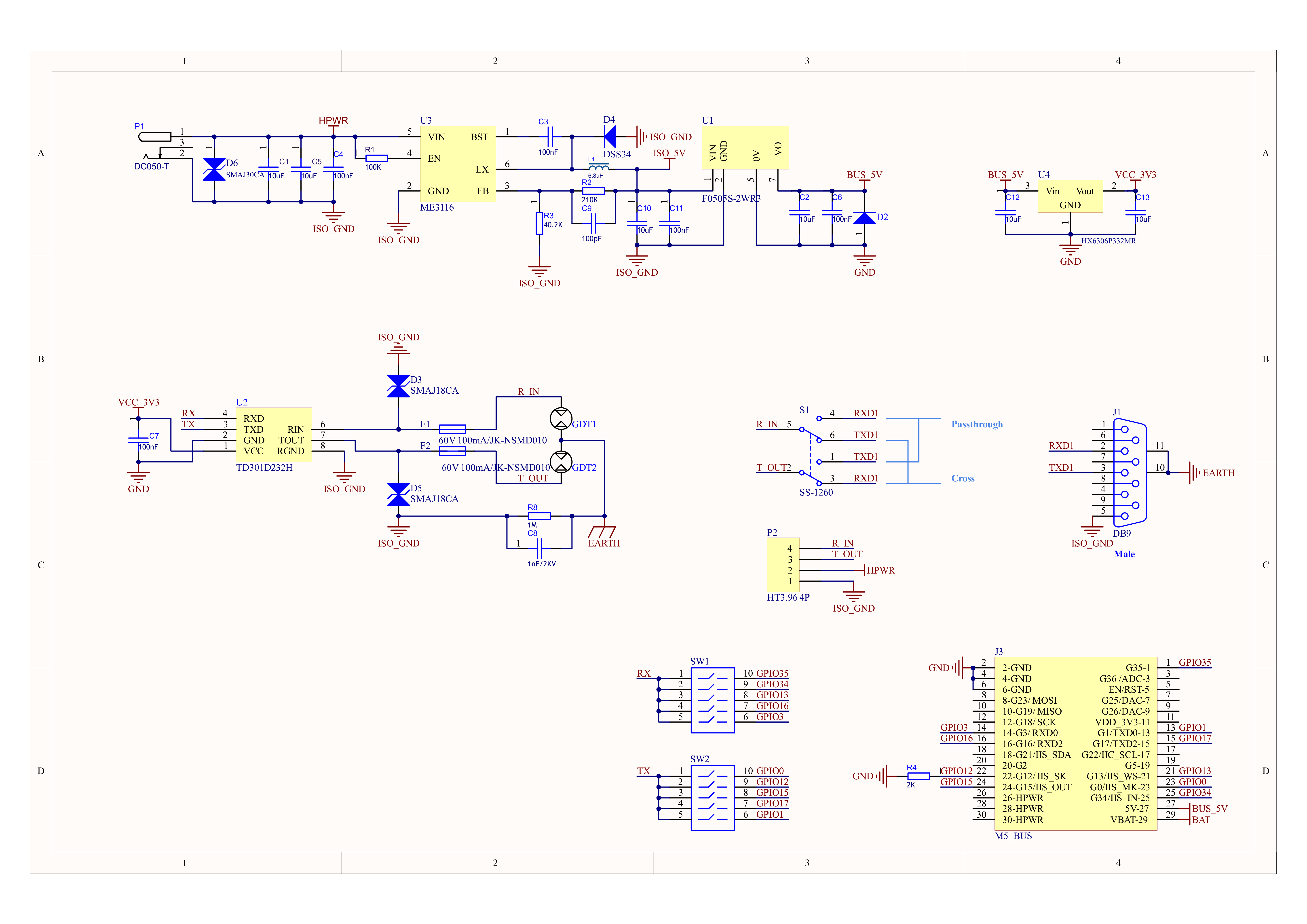

Schematic

schematics

Module Size

module size

Examples

Arduino

UIFlow

UIFlow Blocks

  • Init
  • Write text a line
  • Write text
  • Write raw data list
  • Read all bytes
  • Read characters
  • Read bytes a line
  • Remain cache
