Unit DAC2
SKU:U012-B
Description
Unit DAC2 is an I2C digital-to-analog signal conversion unit. It uses the GP8413 solution, which can linearly convert 15-bit digital signals into two independent 0-5V/0-10V analog voltages with an output voltage error of 0.2% and a linearity of 0.01%. In terms of expandability, the circuit design allows for the selection of three hardware addresses A2/A1/A0, supporting the simultaneous operation of up to 8 devices with 16 channels output. In terms of safety, the device has a short-circuit protection function, automatically entering protection mode and stopping output when the output pins are shorted to ground. It is suitable for general signal conversion, motor speed control, LED dimming, inverters, power supplies, and industrial analog signal isolation.
Features
- I2C communication (default address 0x59)
- Supports multiple parallel connections
- Short-circuit protection
- High precision with minimal error

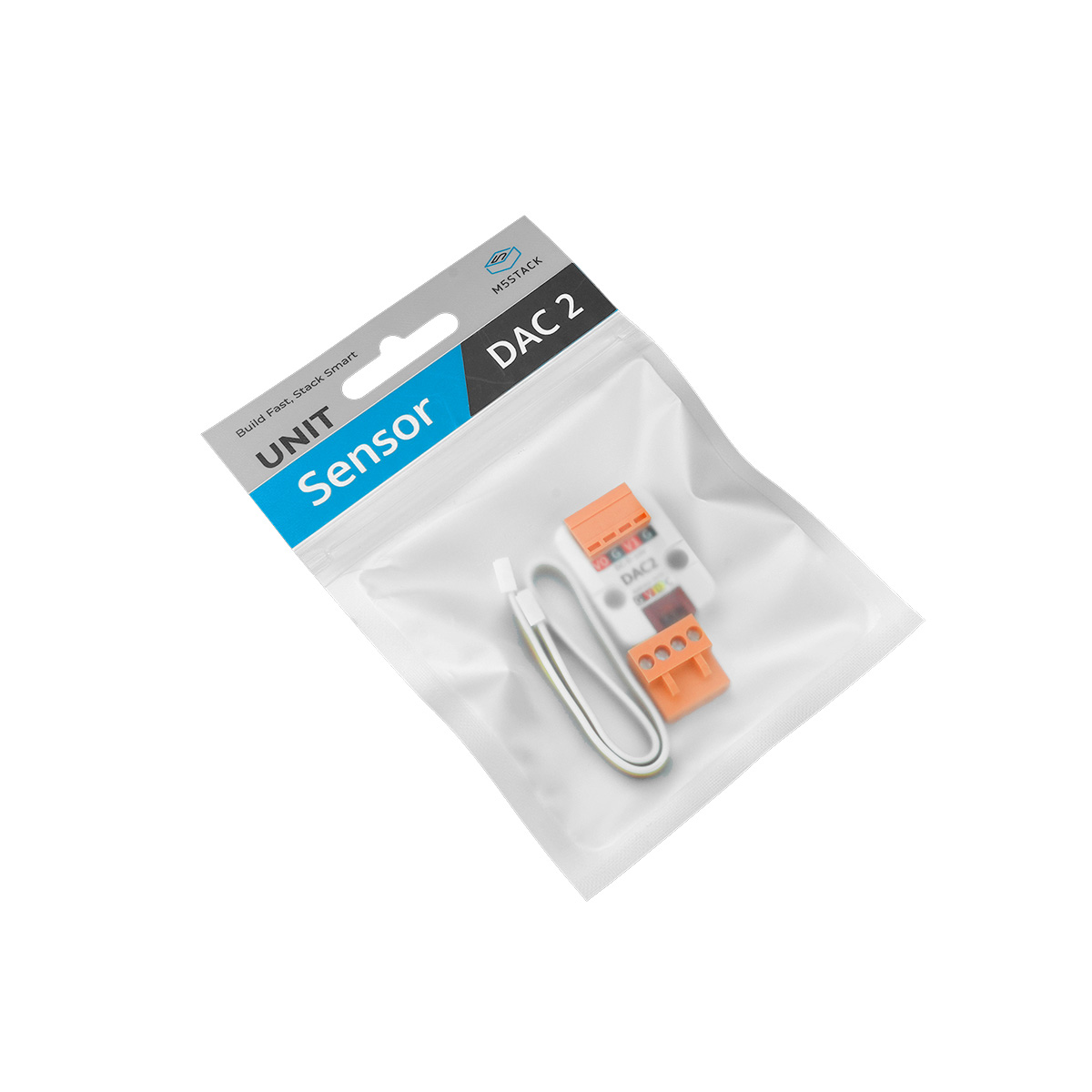

Includes
- 1 x Unit DAC2
- 1 x HY2.0-4P Grove cable (20cm)
- 1 x VH3.96-4P
Applications
- General signal conversion
- Motor speed control, LED dimming
- Inverters, power supplies
- Industrial analog signal isolation
Specifications
| Specification | Parameter |
|---|---|
| DAC Chip | GP8413 |
| Resolution | 15-bit |
| I2C Communication | 0x59 (default) |
| Maximum Output Voltage | 10V |
| Output Voltage Error | <0.2% |
| Output Voltage Linearity Error | 0.01% |
| Operating Temperature | 0 ~ 40°C |
| Product Size | 32.0 x 24.0 x 10.2mm |
| Product Weight | 8.0g |
| Package Size | 138.0 x 93.0 x 11.2mm |
| Gross Weight | 13.4g |
Schematics
PinMap
Unit DAC2
| HY2.0-4P | Black | Red | Yellow | White |
|---|---|---|---|---|
| PORT.A | GND | 5V | SDA | SCL |
Model Size
Datasheets
Softwares
Arduino
- Unit DAC2 Test Example with M5StickC-Plus
- Unit DAC2 Test Example with M5StickC-Plus2
- Unit DAC2 Test Example with M5Core
- Unit DAC2 Test Example with M5Core2
- Unit DAC2 Test Example with M5CoreS3
