Unit Encoder is a
rotary encoder expansion unit with I2C interface, integrated with 30-bit pulse encoding knob (with button function) + 2 x SK6812 programmable RGB LEDs. The built-in STM32F030 flashed with the encoder pulse acquisition firmware, allowing users to obtain the encoded value directly via I2C. Suitable for scale value control/volume adjustment and other control scenarios.
|Pulse encoder knob||30-bit pulse encoder knob (with key input)|
|Programmable RGB LED||2x SK6812|
|Working current||Encoder working (DC-5V@17mA)|
|Product size||32 * 24 * 22mm|
|Packing size||93 * 138mm|

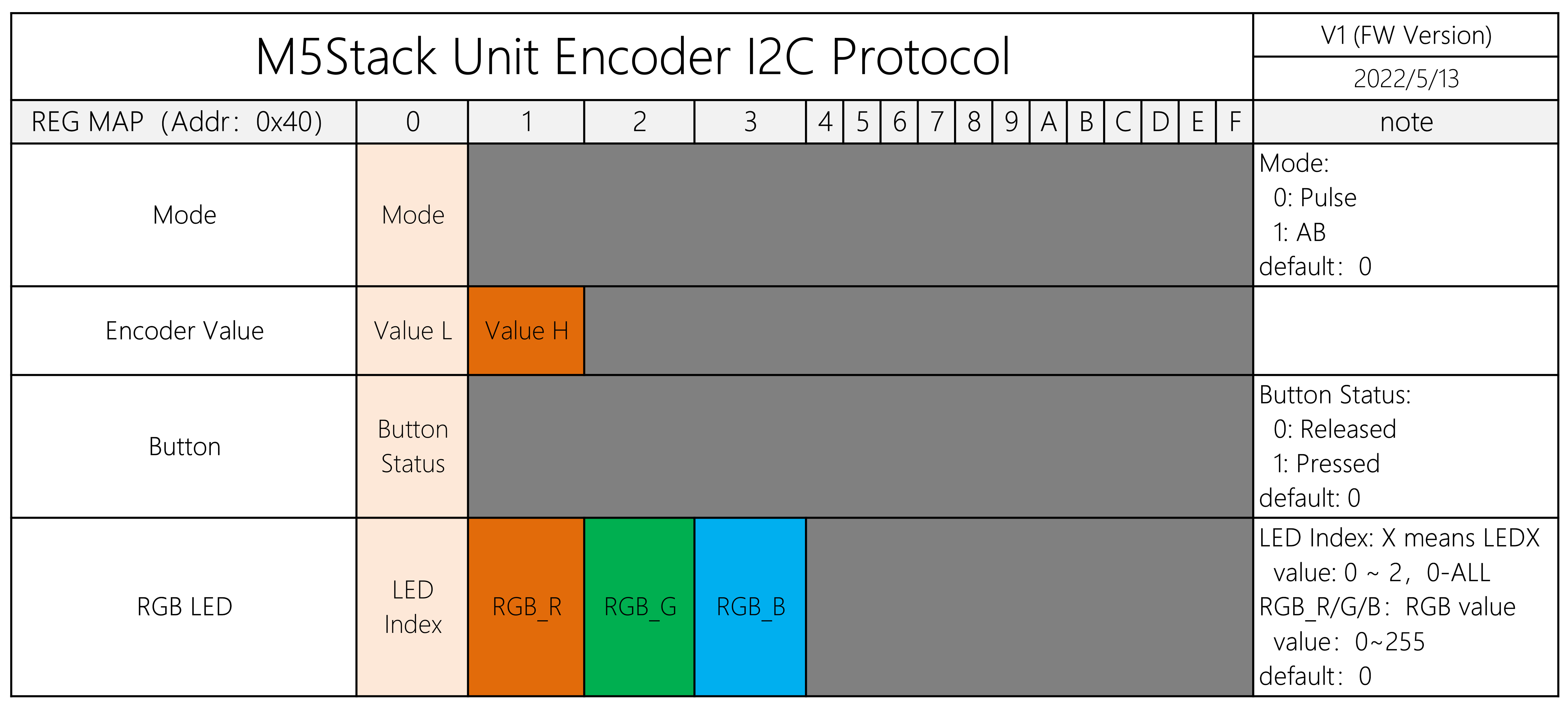

|0x10||2||Read encoder value|| VALUE_L
|0x20||2||Read Button status|| BTN STATUS||R|
|0x30||4||Control RGB LED Color||LED Index（1/2）
