RF433T

SKU:U114

Description

RF433T is a radio frequency (RF) transmitter, using SYN115 radio frequency transmitter IC, working frequency is 433.92MHz (using ASK modulation) commonly used by wireless controllers, built-in PCB antenna, stable signal transmission distance up to 10M, The output power reaches 10dBm. The exquisite and compact housing design can be embedded in a variety of radio frequency remote control applications. It is suitable for security alarm, wireless automatic meter reading, home and industrial automation, remote remote control, wireless data transmission and other system fields.

Product Features

  • Working frequency: 433.92MHz
  • Data transmission rate 10kbps (ASK modulation)
  • Output power 10dBm
  • PCB antenna

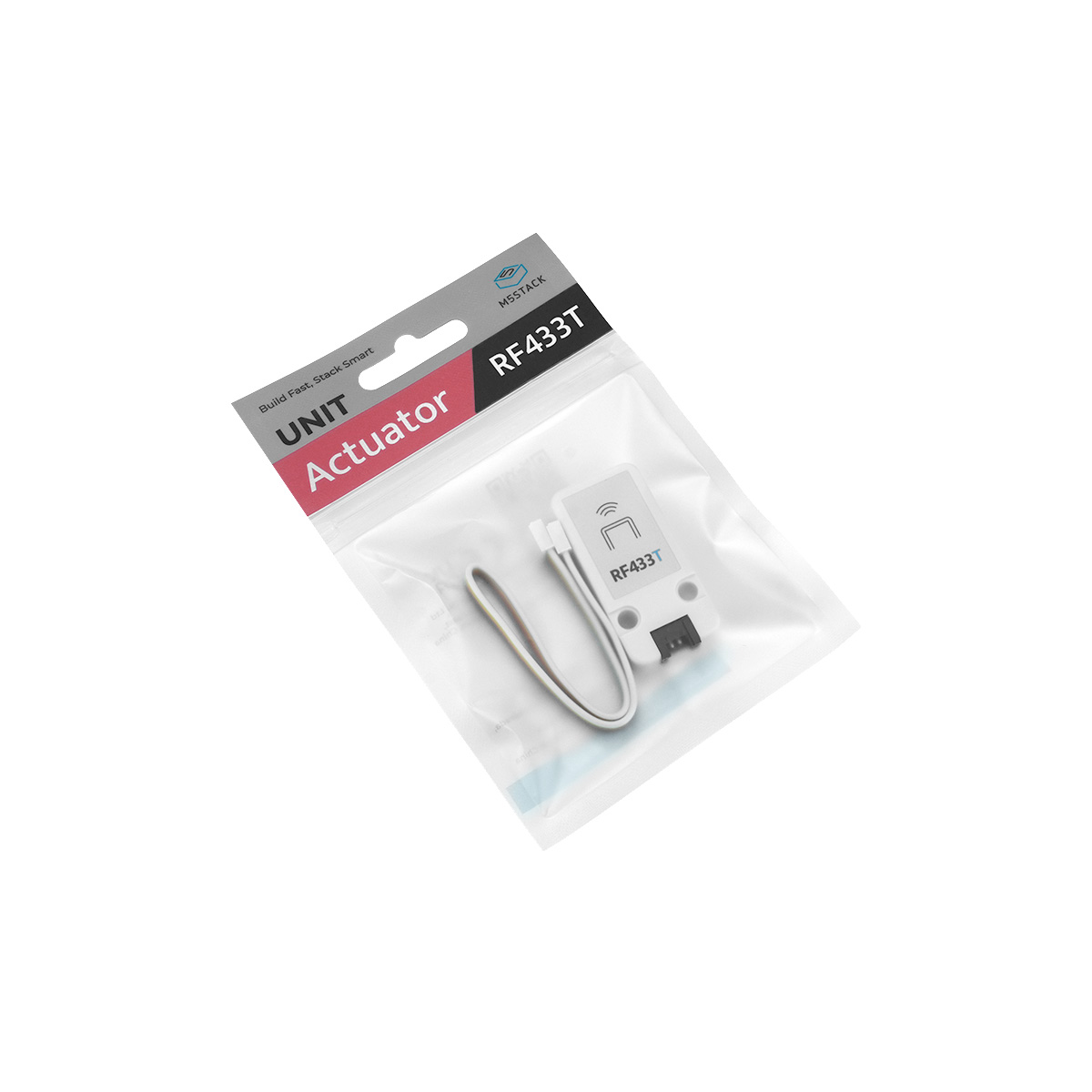

Include

  • 1x RF433T Unit
  • 1x HY2.0-4P Cable

Applications

  • Building Automation
  • Security alarm
  • Home and industrial automation
  • Remote control
  • Wireless data transmission and other system fields

Specification

Resources Parameter
Transmitter IC SYN115
Working current 12mA
Stable communication distance 10M
Output Power 10dBm
Antenna type PCB antenna
Net weight 6g
Gross weight 21g
Product Size 48*24*8mm
Package Size 136*92*12mm

PinMap

M5Core ( PORT B ) GPIO26 5V GND
RF433T TX 5V GND

Schematic

Example

Arduino

Video
