Servo Kit 180°/360° is a 9g servo with LEGO compatible fixed bracket.There are 180 ° or 360 ° specifications.The independent design of the fixed bracket can be easily disassembled, and the product is completely designed according to the LEGO standard unit,so that you can easily combine with LEGO series products, play unlimited creativity.The rudder plate is redesigned, it can be directly connected with LEGO parts. No matter 180 ° or 360 ° servo, it is very easy for beginners to use.Even if you don't know how to program, you can easily drive it with UIFlow.There is no need to use a dedicated servo-drive board with feedback control and a complicated gearbox. Any common pwm driver or a micro controller can easily control this servo. Compared to driving a stepper motor, a servo is much simpler to use. You can use it to do interesting small projects requiring angular movement and/or control.If you feel that the cable is not long enough, you can purchase the servo extension cable to extend it. The yellow wire is for the control signal, brown is for the ground, and the red wire is for the Vcc (voltage).180° servo can only control angle.360° servo can't control the angle, but you can adjust the speed and direction by controlling PWM.When using the servo, pay attention to the power supply current and voltage to prevent burnout.
|Gear material||Metal motor teeth, plastic gearbox|
|Locked rotor current||750mA|
|180° Servo speed||0.1sec/60°/4.8V;0.09sec/60°/6.0v|
|Product Size||40* 12 *36mm|

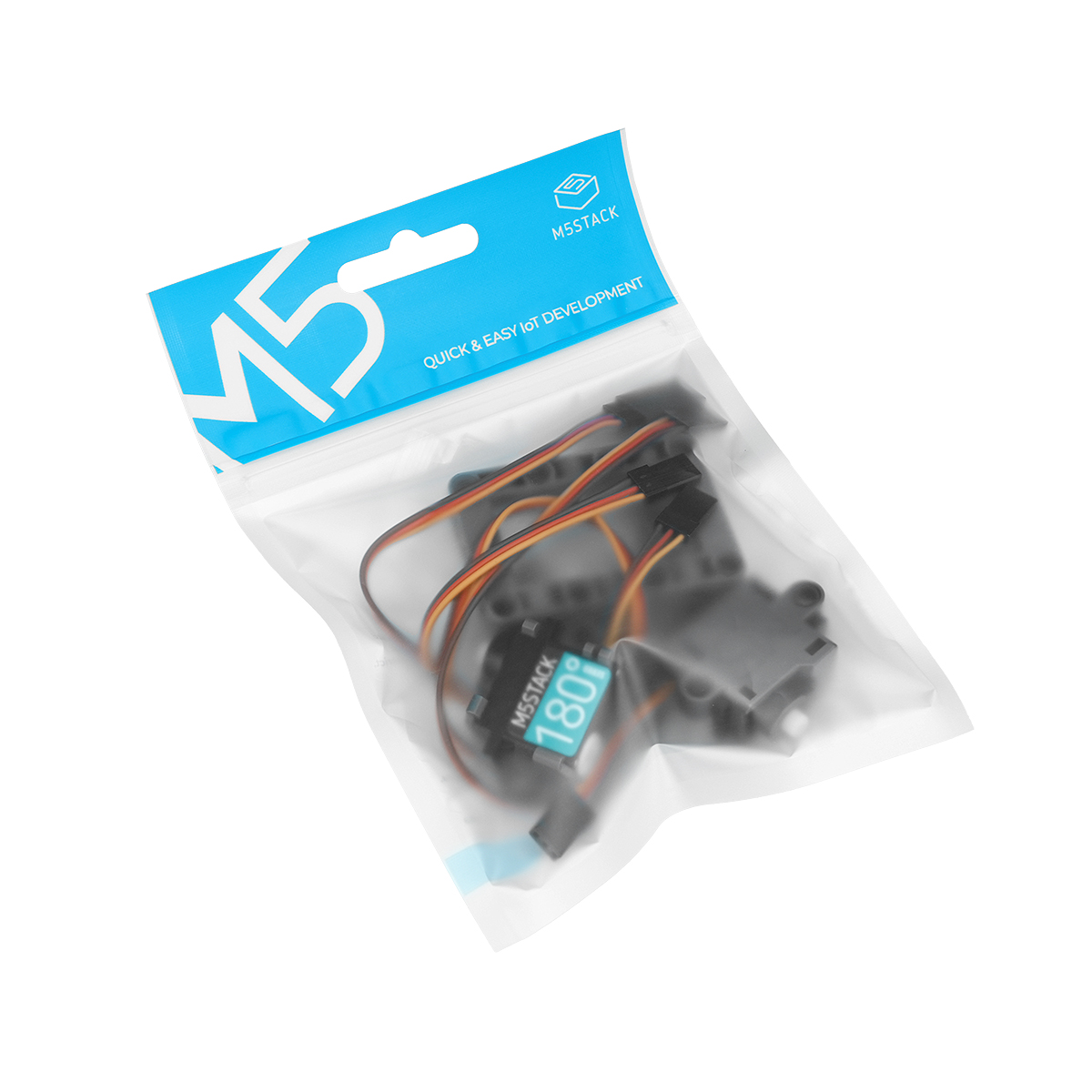

|Package Size||73* 45 *23mm|
Connecting the 360° will control the speed and direction, and connecting the 180° servo will control the angle（360° servo duty cycle 0~7.075 clockwise rotation ,greater than 7.625 counterclockwise rotation,the relationship between rotation speed and duty cycle is nearly linear)
This is an example of a simulated radar,you need a ToF Unit.
Execute the following statement in Setup() of the Arduino program
When M5Core2 is stacked with other M5 modules, you need to remove the battery base of Core2, which does not support module stacking.
Reason and solution: The power supply current of the port is insufficient, which can cause the device to not enter the download mode normally. You can try to connect a capacitor (>0.1uF) between the RST pin and the GND pin, or when uploading the program, set the G0 Short-circuit to GND, so that G0 can be set to a low level state normally
Add the header file #include <driver/adc.h> and the function adc_power_acquire(); in the Arduino program
The battery life of the controller is affected by various factors such as battery capacity, operating status, and load, so there is no fixed value. Reducing the load and adopting a sleep strategy can effectively increase the battery life.
Support multiple stacks, the total capacity of the batteries in parallel increases, and the voltage remains unchanged. However, since the discharge of each battery is not balanced during use, there is a voltage difference between the batteries, which may cause the battery to charge backwards. .(will lose part of the battery capacity)
ESP32 module currently does not support WiFi in 5G band, only 2.4G.
Confirm whether the TX/RX pin on the TTL side of the pin is correct, try to add two 120Ω terminal resistors at the beginning and end of the device line to reduce signal reflection interference
