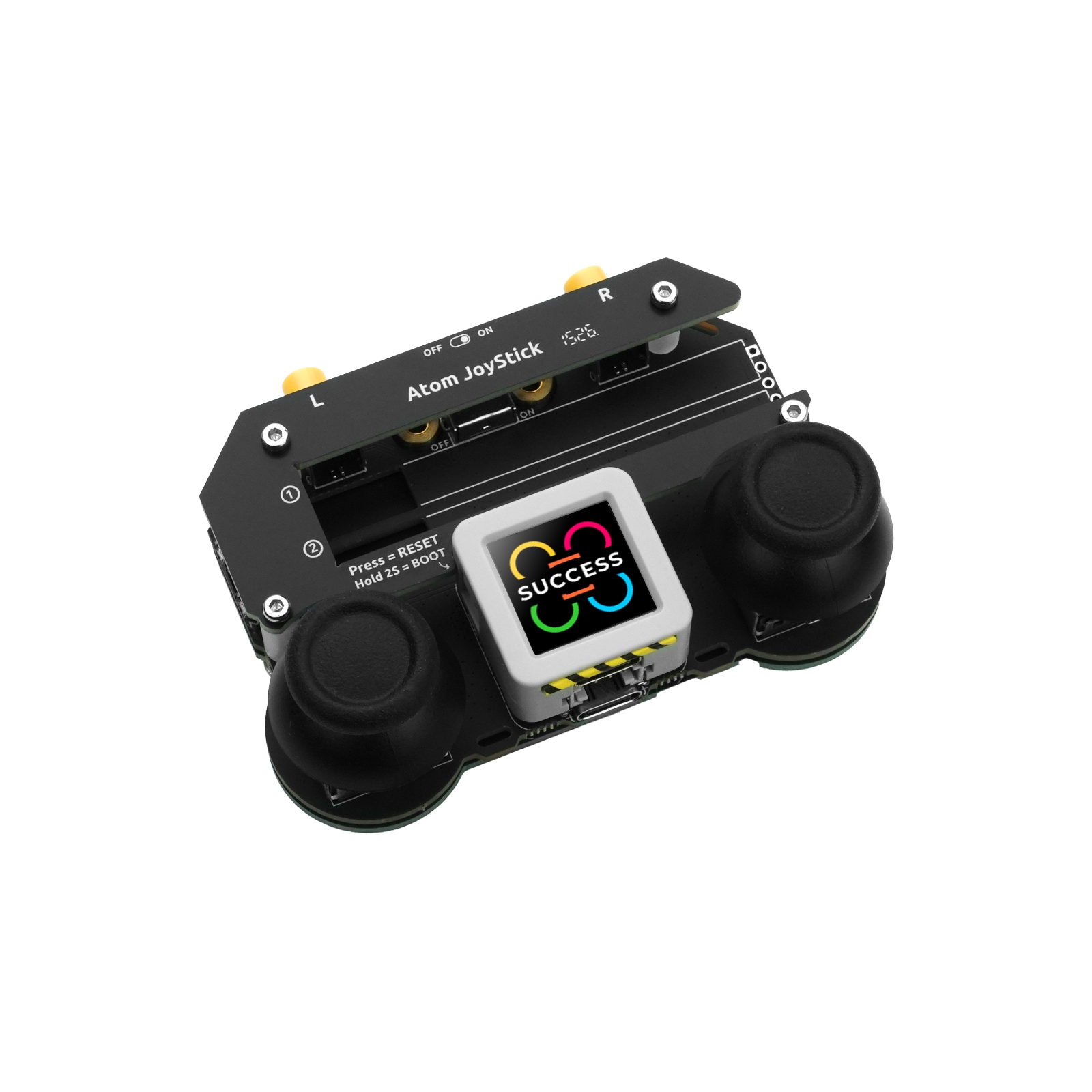

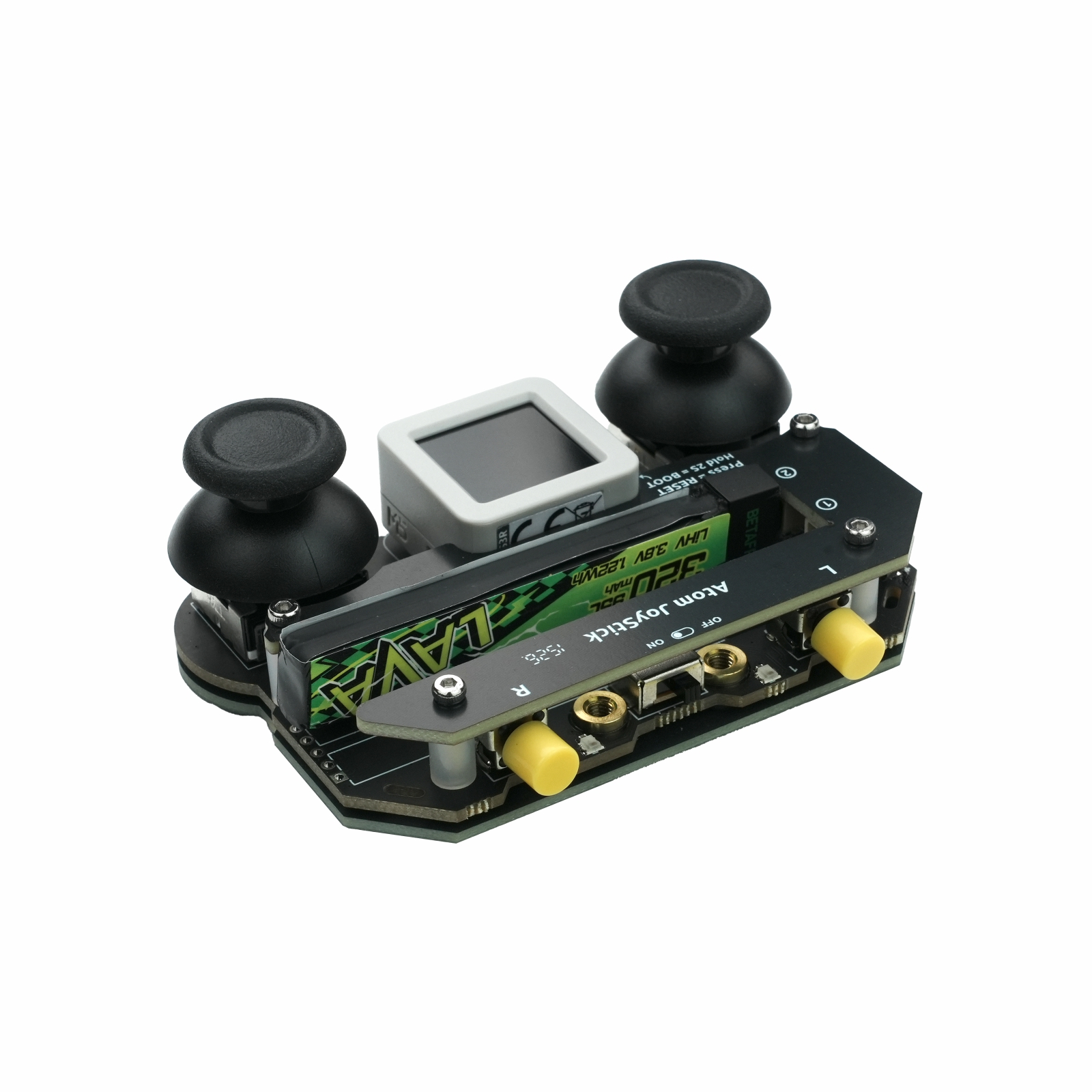

Atom JoyStick v1.1 is a multi-functional programmable dual-joystick remote controller. As an iterative version of the Atom JoyStick, its core improvement is that the main controller has been upgraded from AtomS3 to AtomS3R. The AtomS3R integrates the ESP32-S3-PICO-1-N8R8, features 8MB Flash, 8MB PSRAM, and 2.4 GHz Wi-Fi, and includes a built-in BMI270 6-axis attitude sensor and BMM150 3-axis geomagnetic sensor.
The controller base integrates an STM32 core main controller and uses an I2C communication interface. It is equipped with 2 Hall-effect five-way joysticks, 2 function buttons, an independent power switch, and RGB LED indicators. It is powered by a high-voltage battery for stronger endurance. There are two onboard battery charging interfaces that can charge the battery of the StampFly v1.1 at the same time. The product is pre-flashed with StampFly remote-control firmware at the factory and communicates with the StampFly via the ESP-NOW protocol. The firmware source code is open source, making it suitable for drone control, robot control, smart cars, and various DIY projects.
This tutorial introduces how to flash the factory firmware to the StampFly and Atom Joystick / Atom JoyStick v1.1 via M5Burner, pairing, and the basic operations and indications of the quadcopter

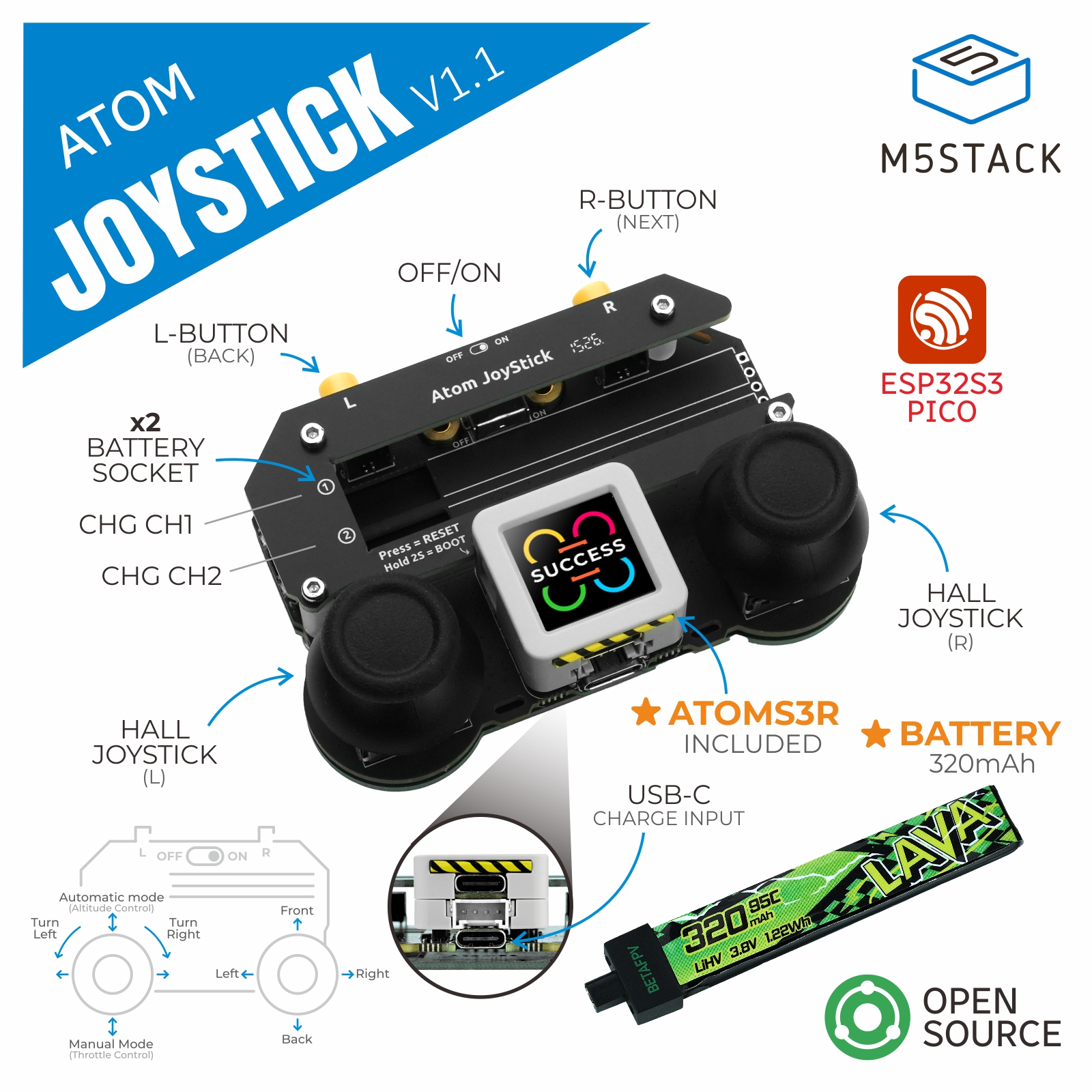

Features

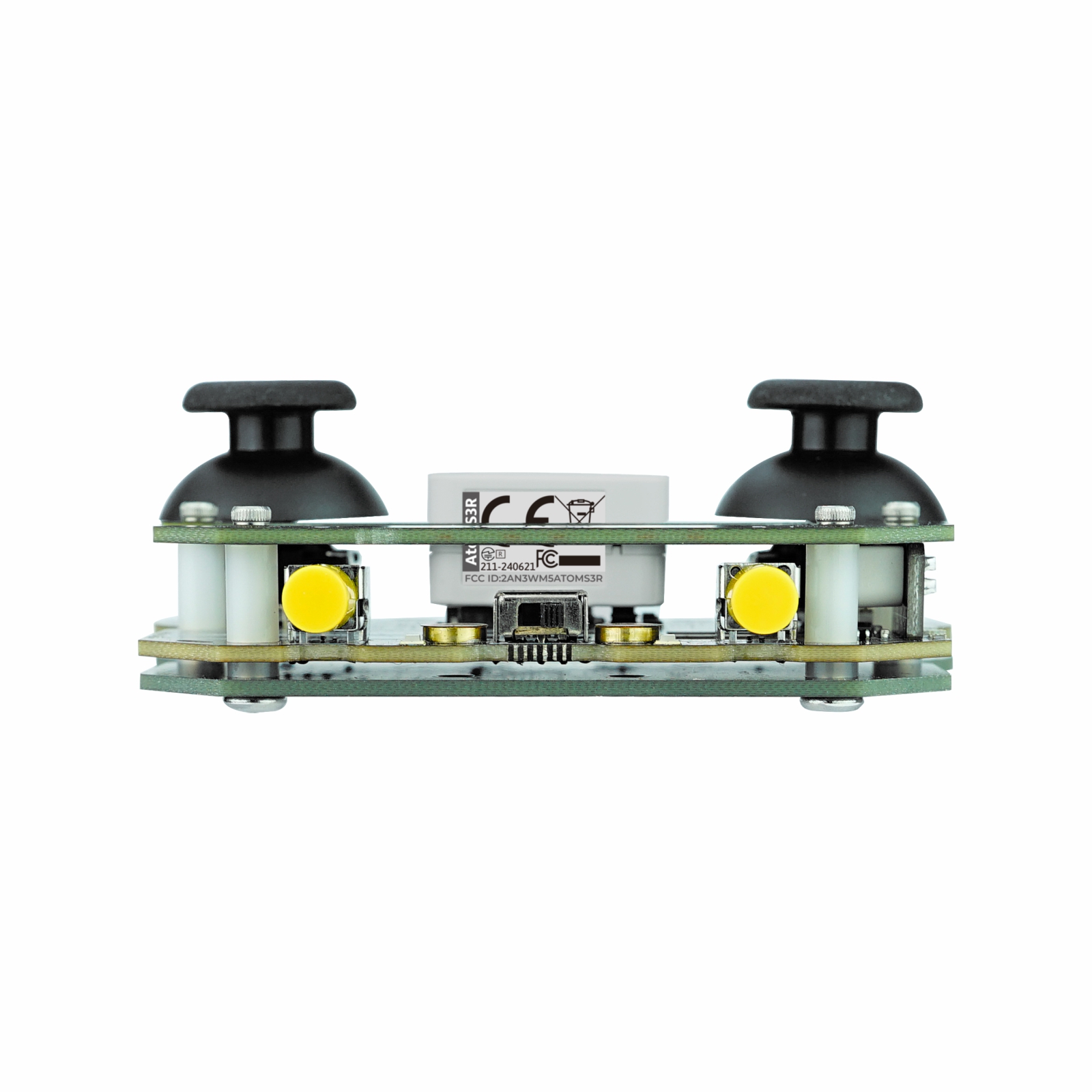

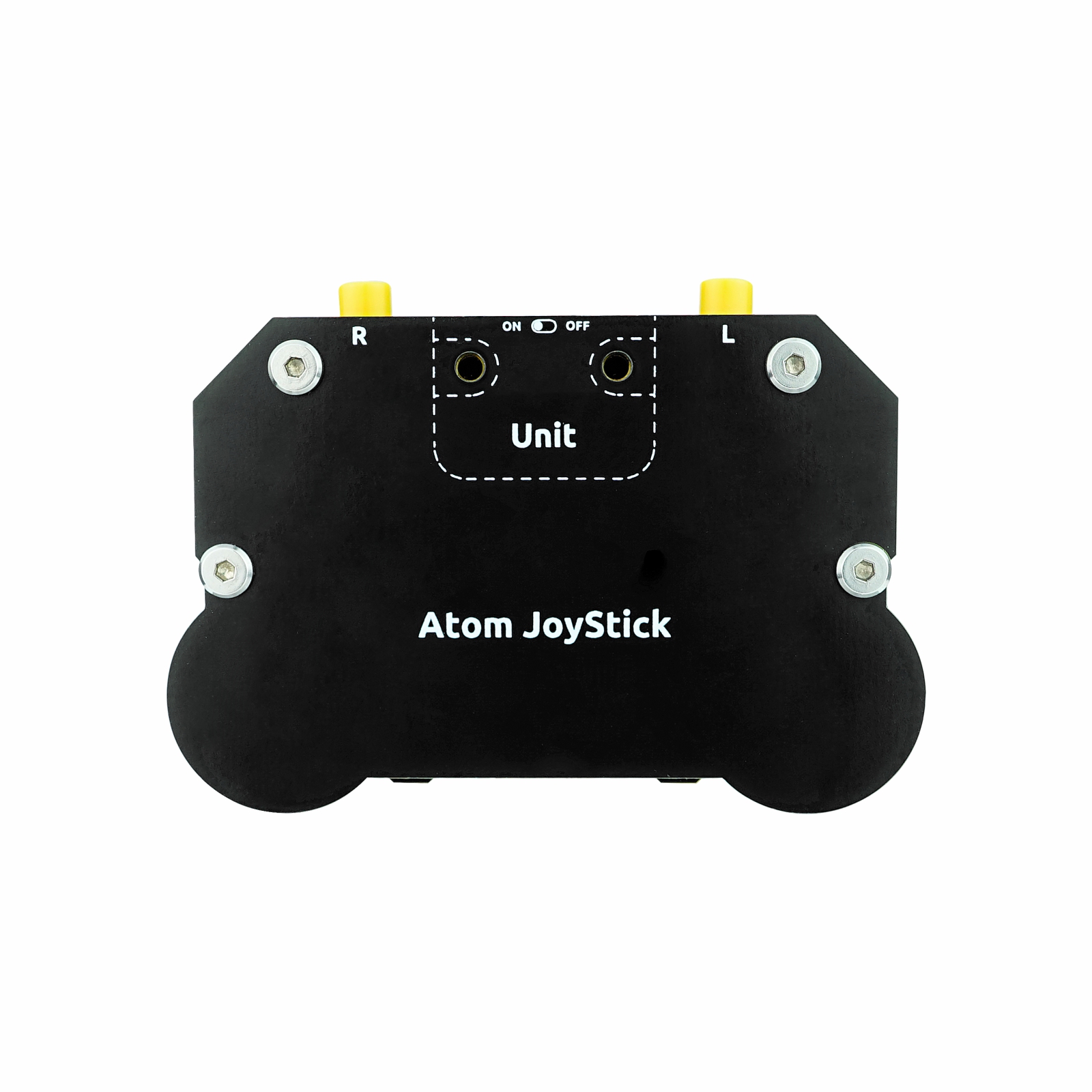

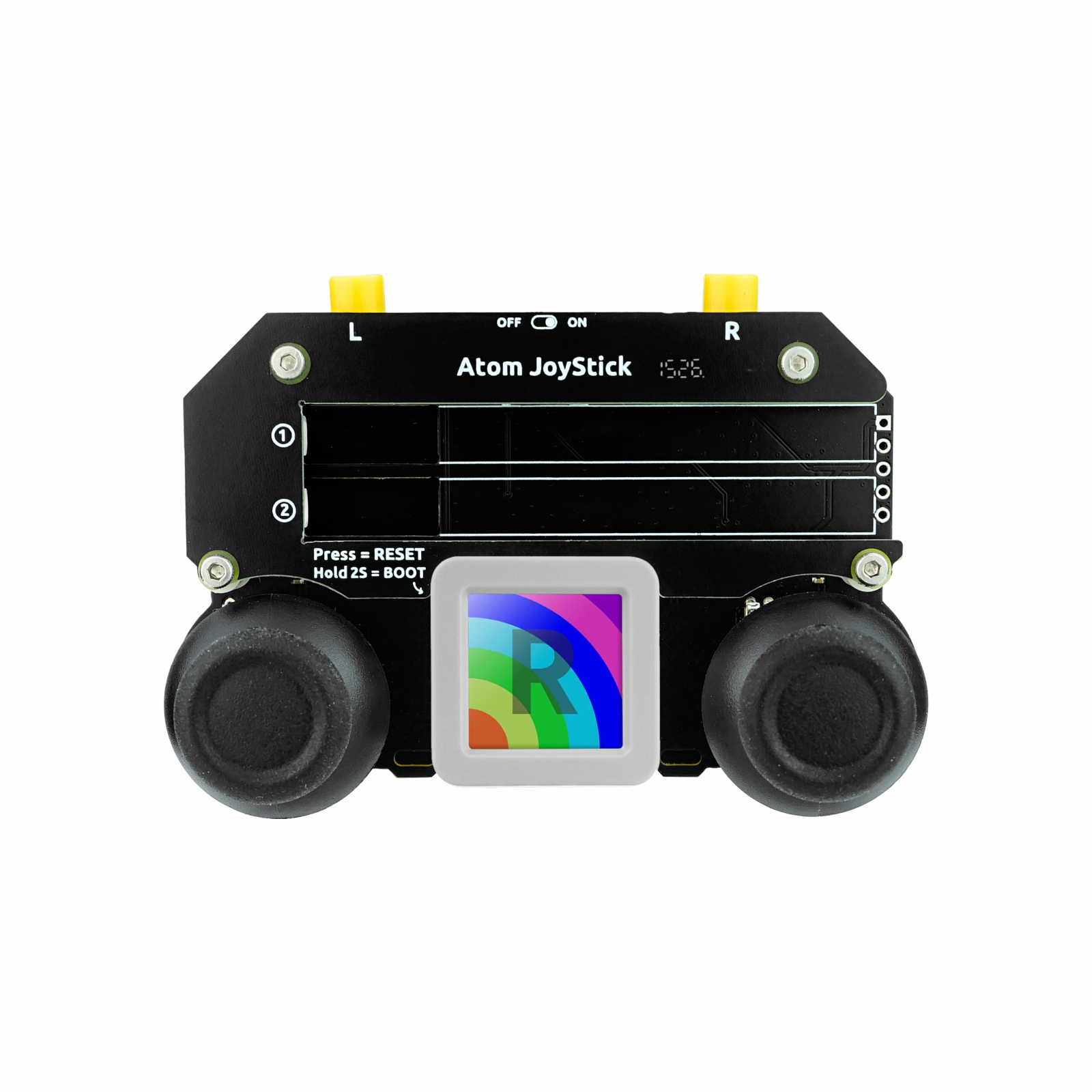

Atom JoyStick v1.1
STM32F030F4P6 core main controller
Dual joysticks, dual buttons, independent power switch
2x WS2812C RGB LED
USB Type-C charging interface
Buzzer notification
Battery voltage detection

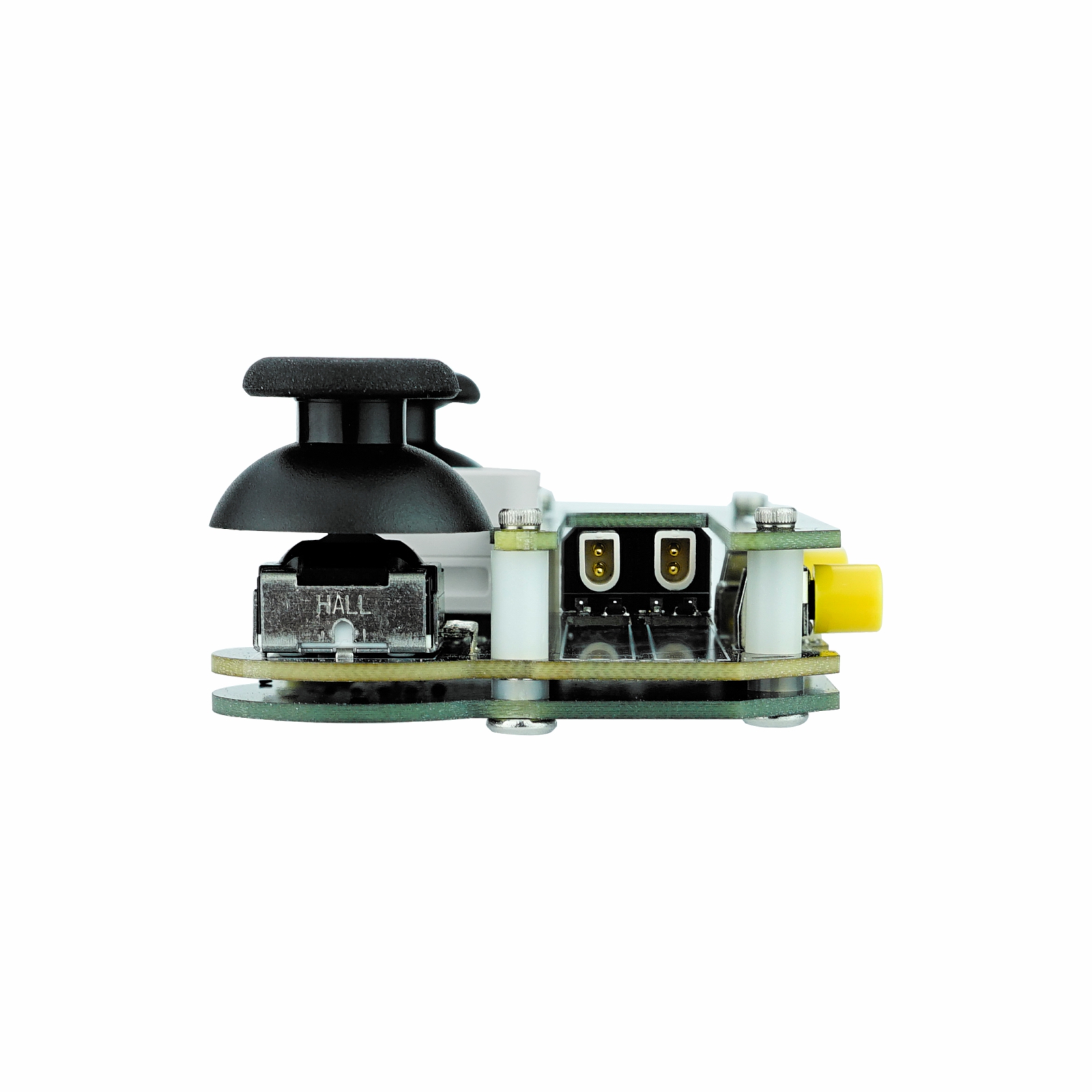

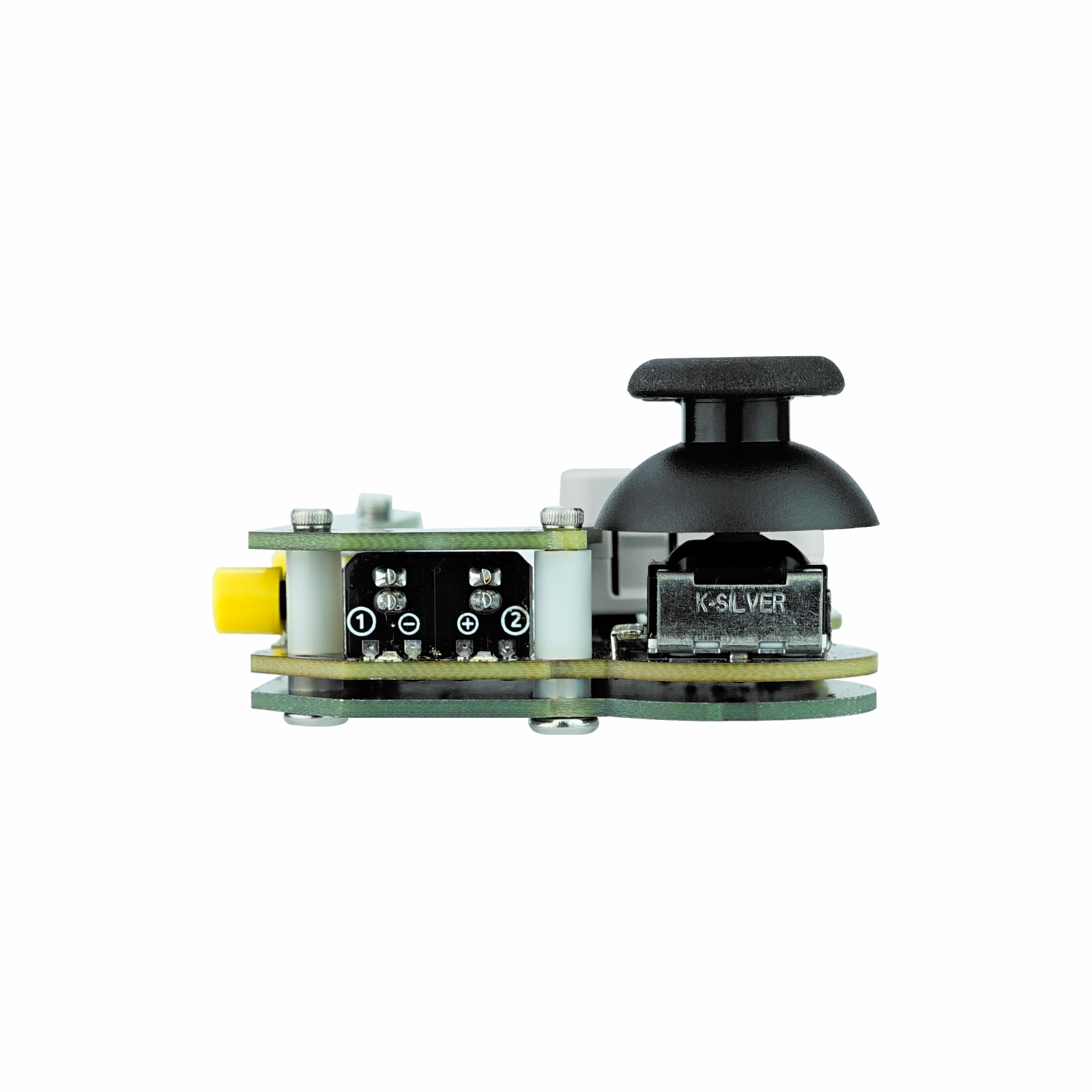

Two battery charging interfaces
AtomS3R Controller
ESP32-S3-PICO-1-N8R8
8MB Flash and 8MB PSRAM
0.85" LCD @ 128x128
BMI270 6-axis attitude sensor
BMM150 3-axis geomagnetic sensor
Enhanced 3D antenna
Includes
1 x Atom JoyStick v1.1
1 x 320mAh high-voltage battery
Applications
Drone control
Robot control
Smart cars
DIY projects
Specifications
Specification
Parameter
Controller
AtomS3R
SoC
ESP32-S3-PICO-1-N8R8 @ Xtensa® 32-bit LX7 dual-core processor, up to 240MHz
Flash
8MB
PSRAM
8MB Octal
Wi-Fi
2.4 GHz Wi-Fi
Display
0.85" LCD @ 128x128
6-Axis Attitude Sensor
BMI270 (I2C @ 0x68)
3-Axis Geomagnetic Sensor
BMM150 (accessed via the BMI270 Sensor Hub)
Base Core Main Controller
STM32F030F4P6
Base Communication Interface
I2C @ 0x59
RGB LED
2x WS2812C
Charging Chip
TP4067@4.35V
Battery Specification
320mAh@1S, output voltage 4.35V; charging current: DC 5V@430mA
Battery Full Charge Time
Approx. 55 minutes
Battery Connector Spec
2 x BT 2.0 male power terminal
Buzzer
Onboard 5020 passive buzzer
Operating Temperature
0 ~ 40°C

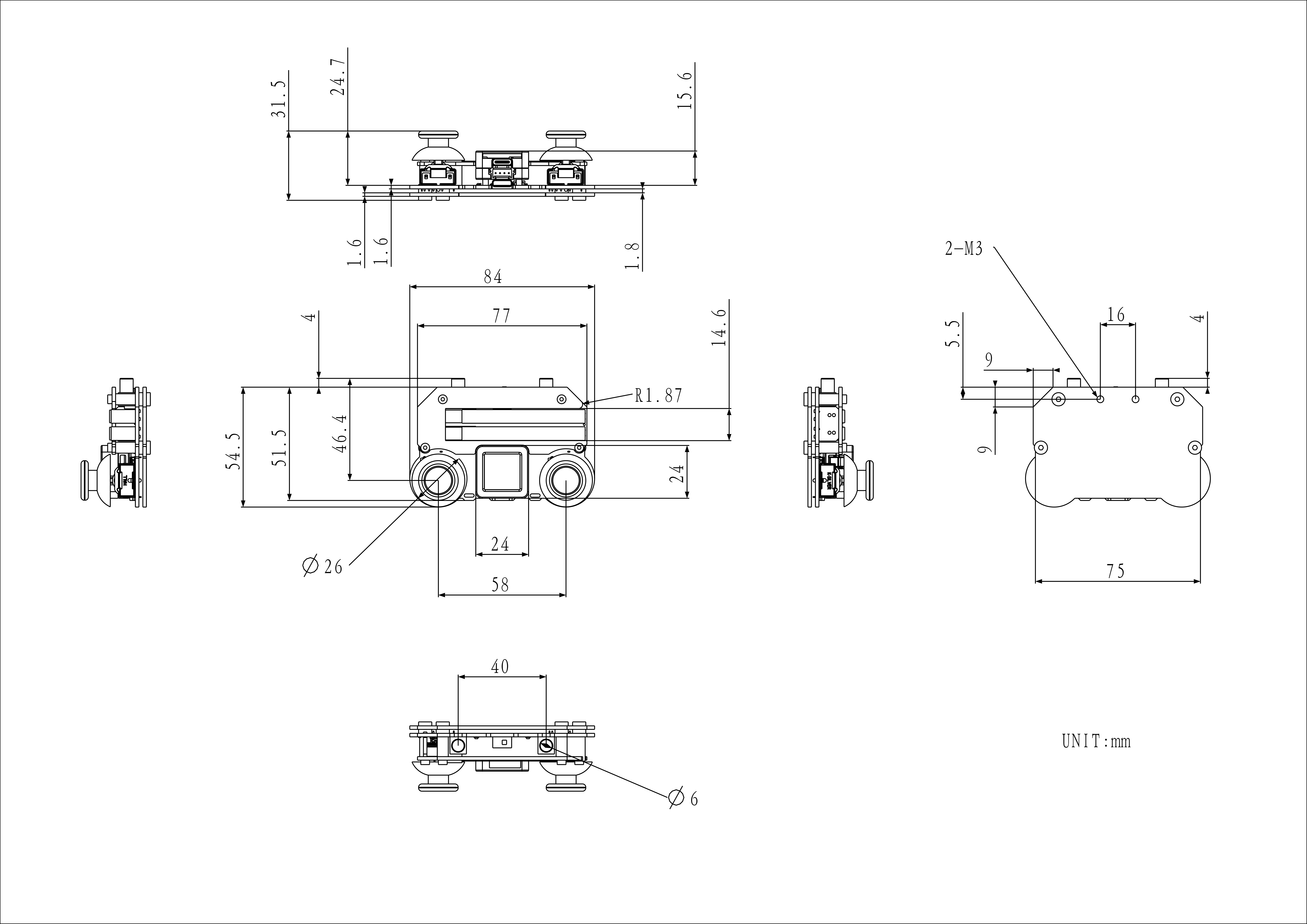

Product Size
84.0 x 60.0 x 31.5mm

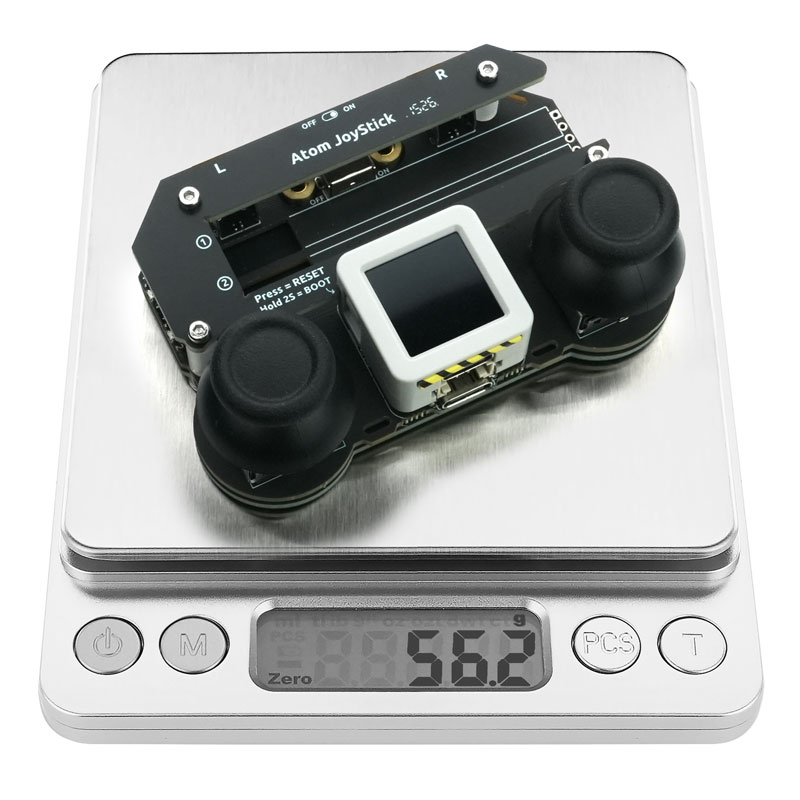

Product Weight
56.2g (excluding battery)
Package Size
126.0 x 99.0 x 30.0mm
Gross Weight
103.0g

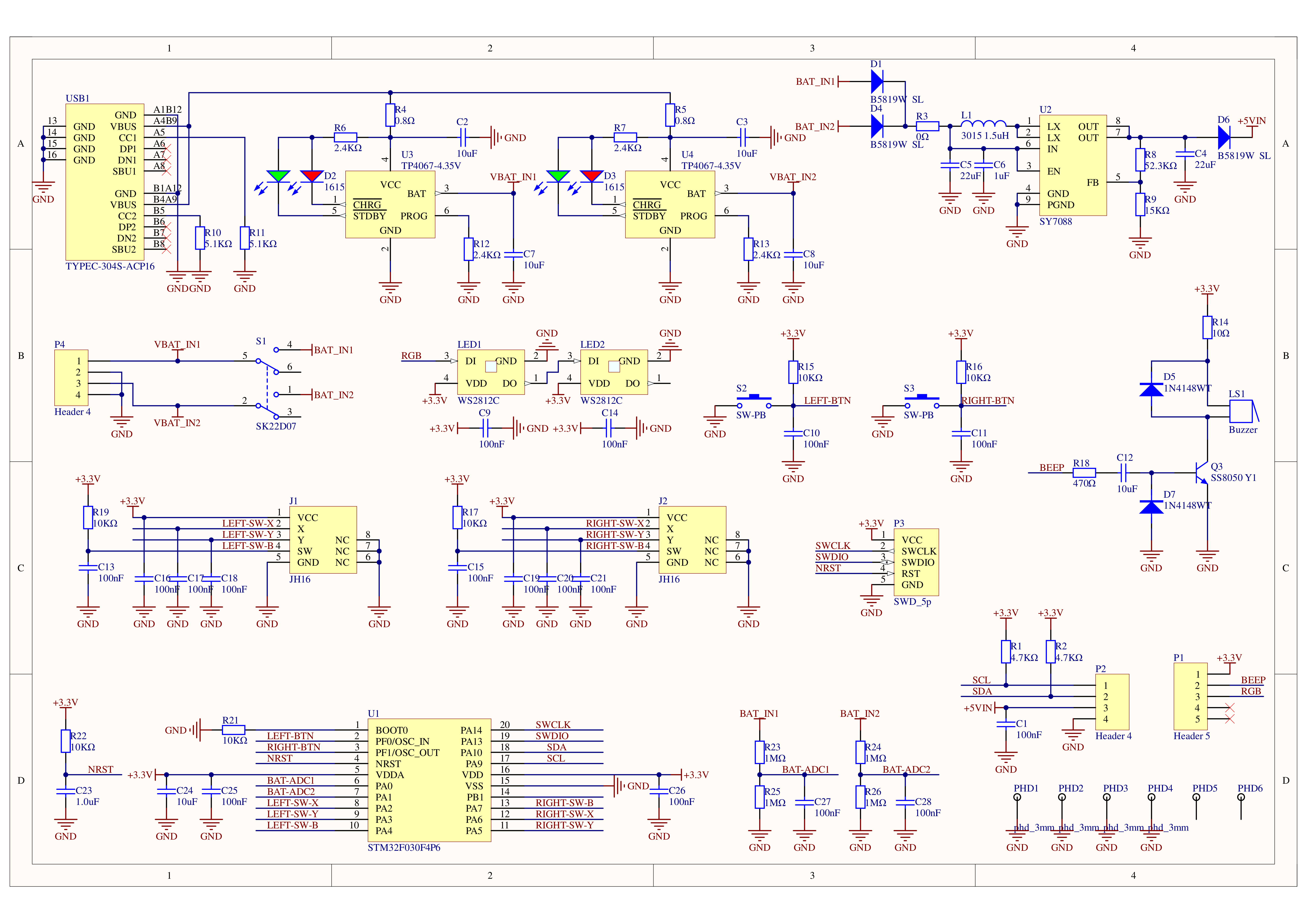

Learn
Charging Reminder

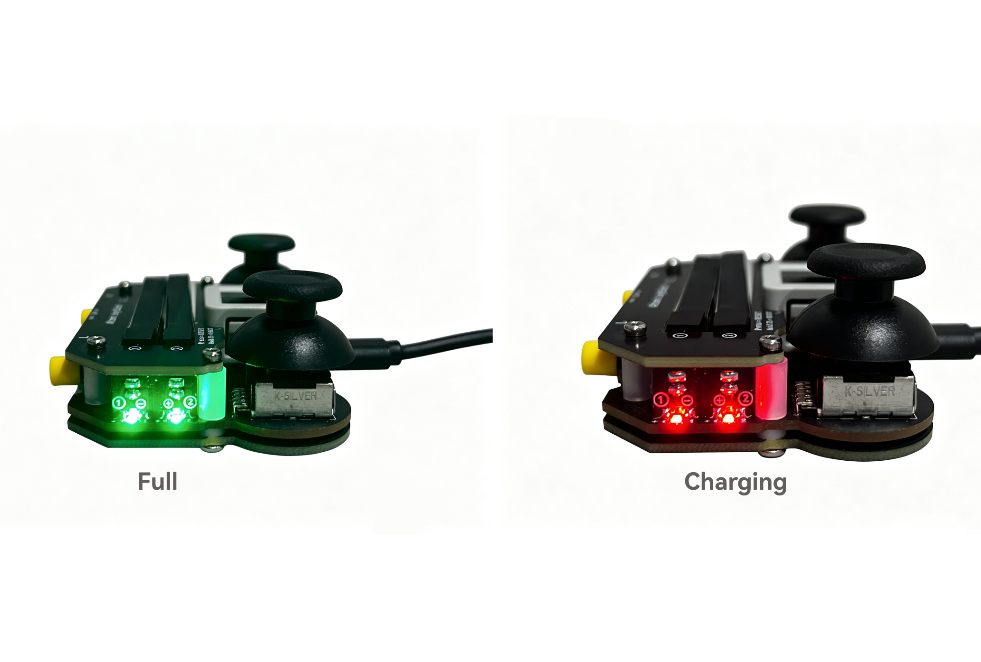

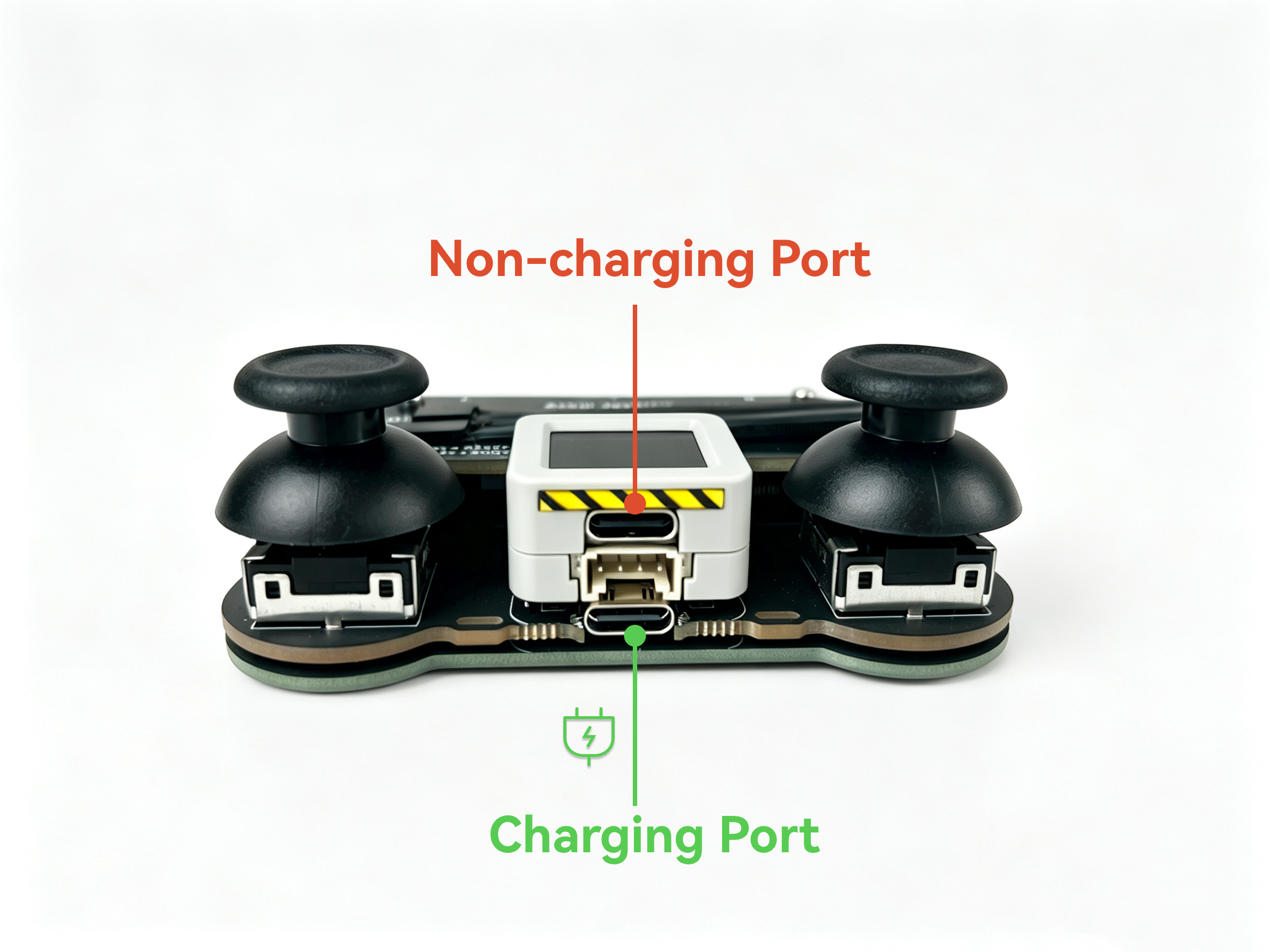

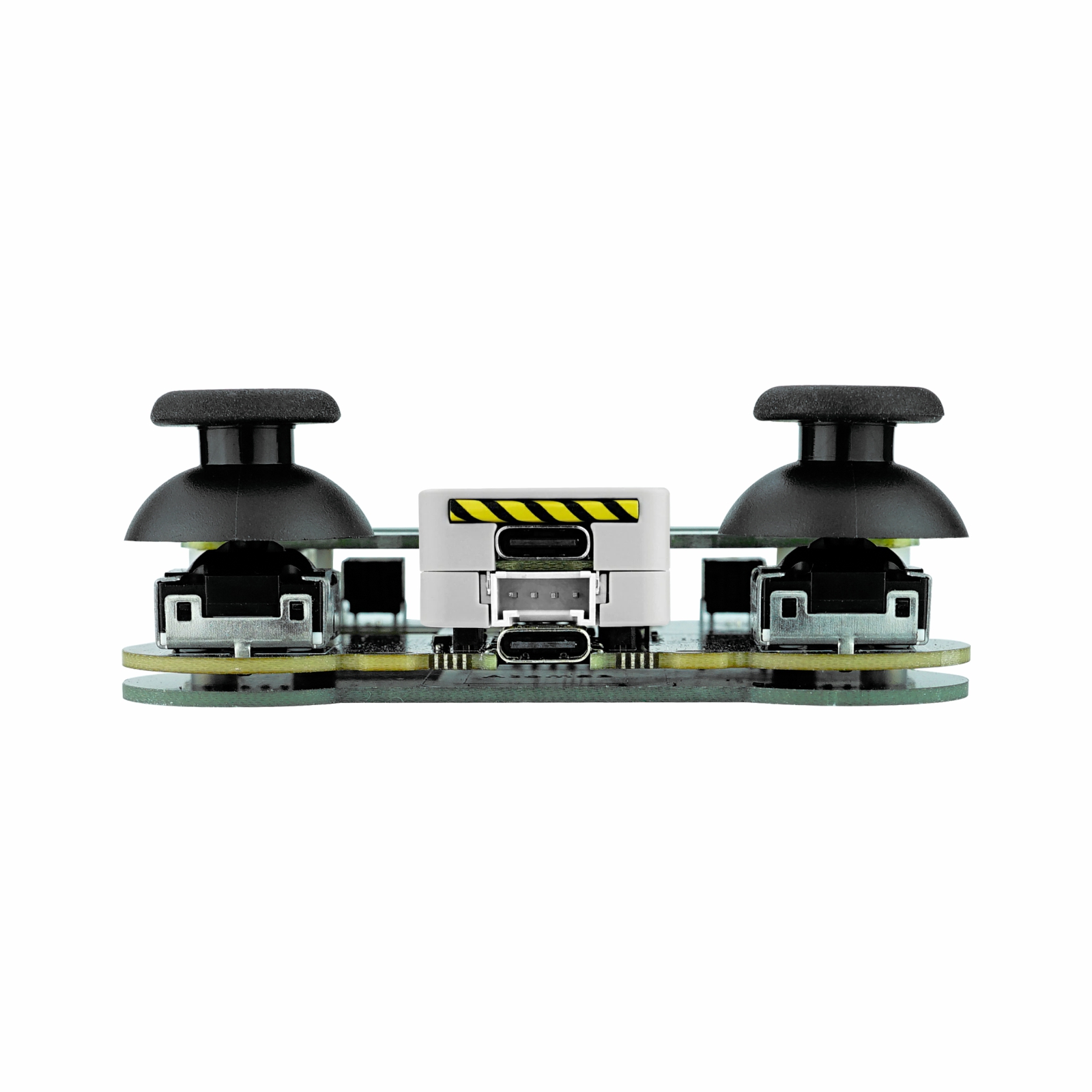

1. Connect the data cable to charge. There is a power indicator in front of the corresponding battery. Red indicates the battery is charging and not fully charged; Green indicates it is fully charged and has reached 4.35V. 2. Only the USB Type-C interface on the base supports battery charging. The USB Type-C interface of the AtomS3R main controller cannot charge the battery.
Battery Maintenance
1. Under load, never discharge the battery below 3V per cell. 2. Do not store a fully charged battery for more than 3 days. For long-term storage, keep the voltage between 3.8V and 3.9V.
Basic function demonstration of the Atom JoyStick paired with the StampFly quadcopter
Note
The video demonstrates the Atom JoyStick paired with the StampFly; the operation method also applies to the Atom JoyStick v1.1 paired with the StampFly.
