AtomS3R-M12 Volcengine Kit

SKU:D062-M12

Description

AtomS3R‑M12 Volcengine Kit is an IoT vision+voice development kit that deeply integrates M5Stack hardware with Volcengine’s cloud AIGC one-stop solution. It consists of two core parts: the high-performance image capture unit AtomS3R‑M12 and the AI voice processing base Atomic Echo Base. AtomS3R‑M12 provides 3 MP wide-angle video capture and edge computing capabilities, with expansion interfaces for various sensors. Atomic Echo Base integrates high-fidelity audio decoding, microphone, and speaker drivers, supporting full-duplex voice wake-up, recognition, and interaction. Volcengine RTC, in collaboration with M5Stack, offers a built-in one-stop solution that integrates advanced audio processing (including wake‑up and audio 3A) on the chip side, and deeply incorporates large models, speech recognition, speech synthesis, function calling, and knowledge-base technologies on the cloud side, quickly achieving smooth, natural, human-like real-time communication between users and hardware. It is widely applied in smart security, remote education, smart home, industrial monitoring, AI robotics, and other fields.

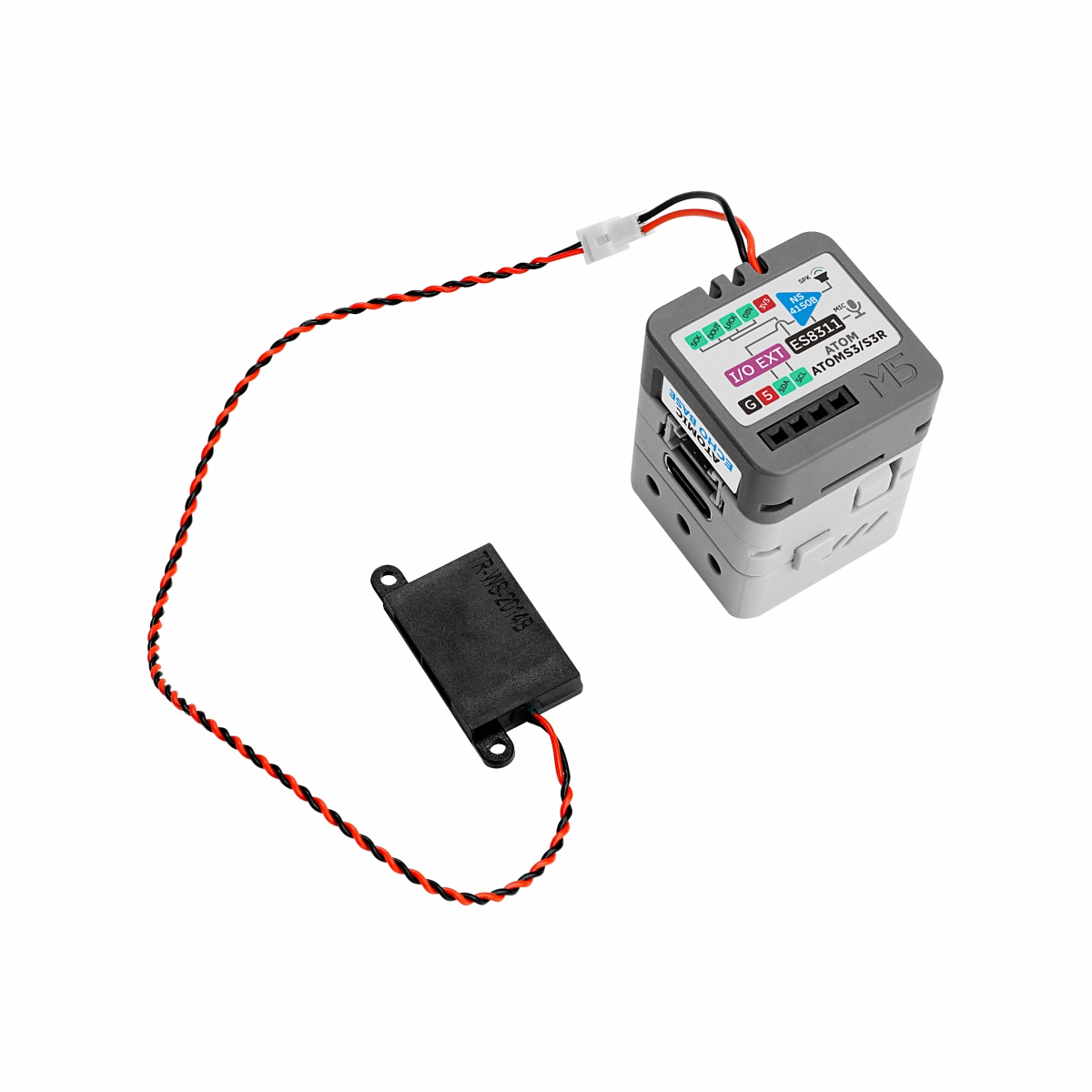

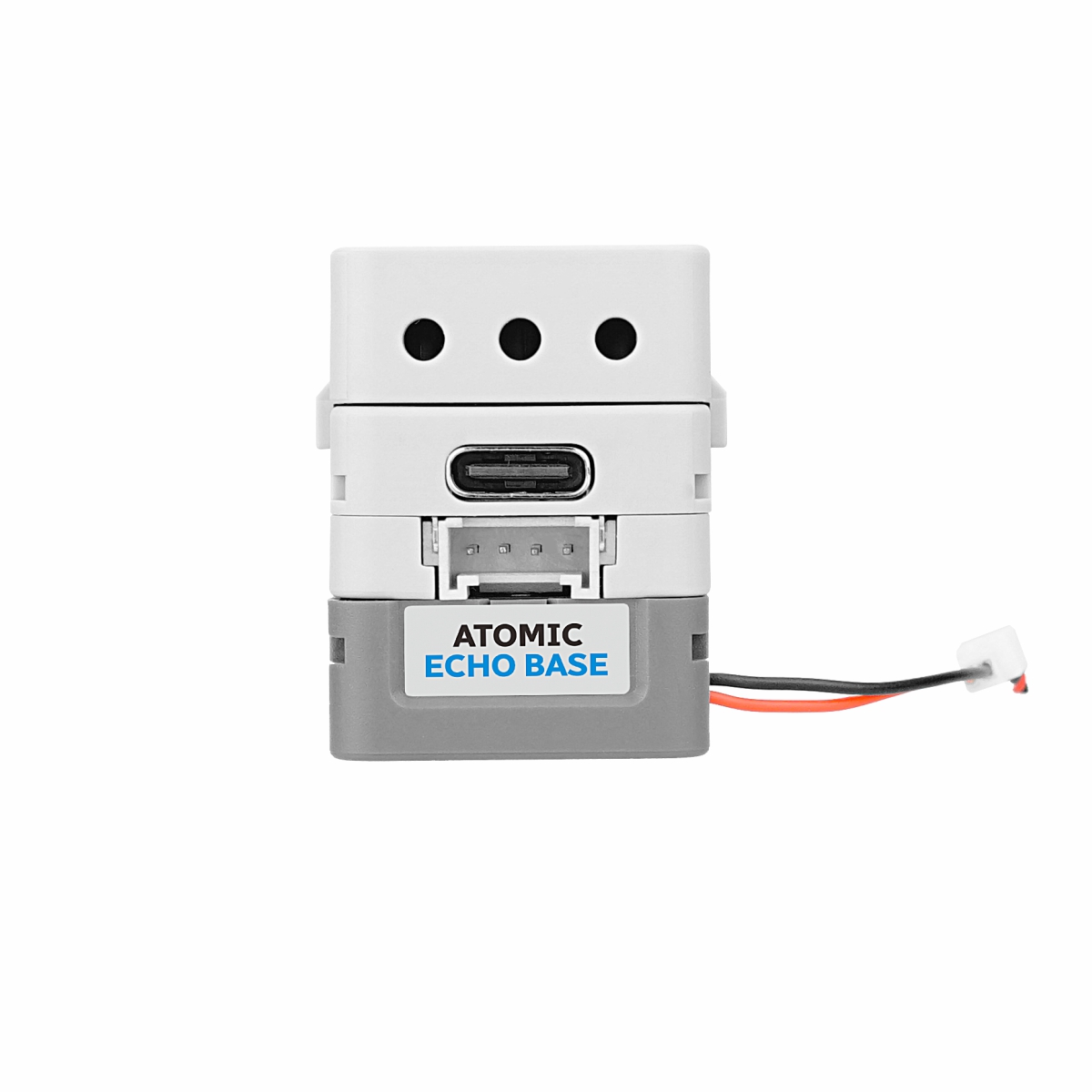

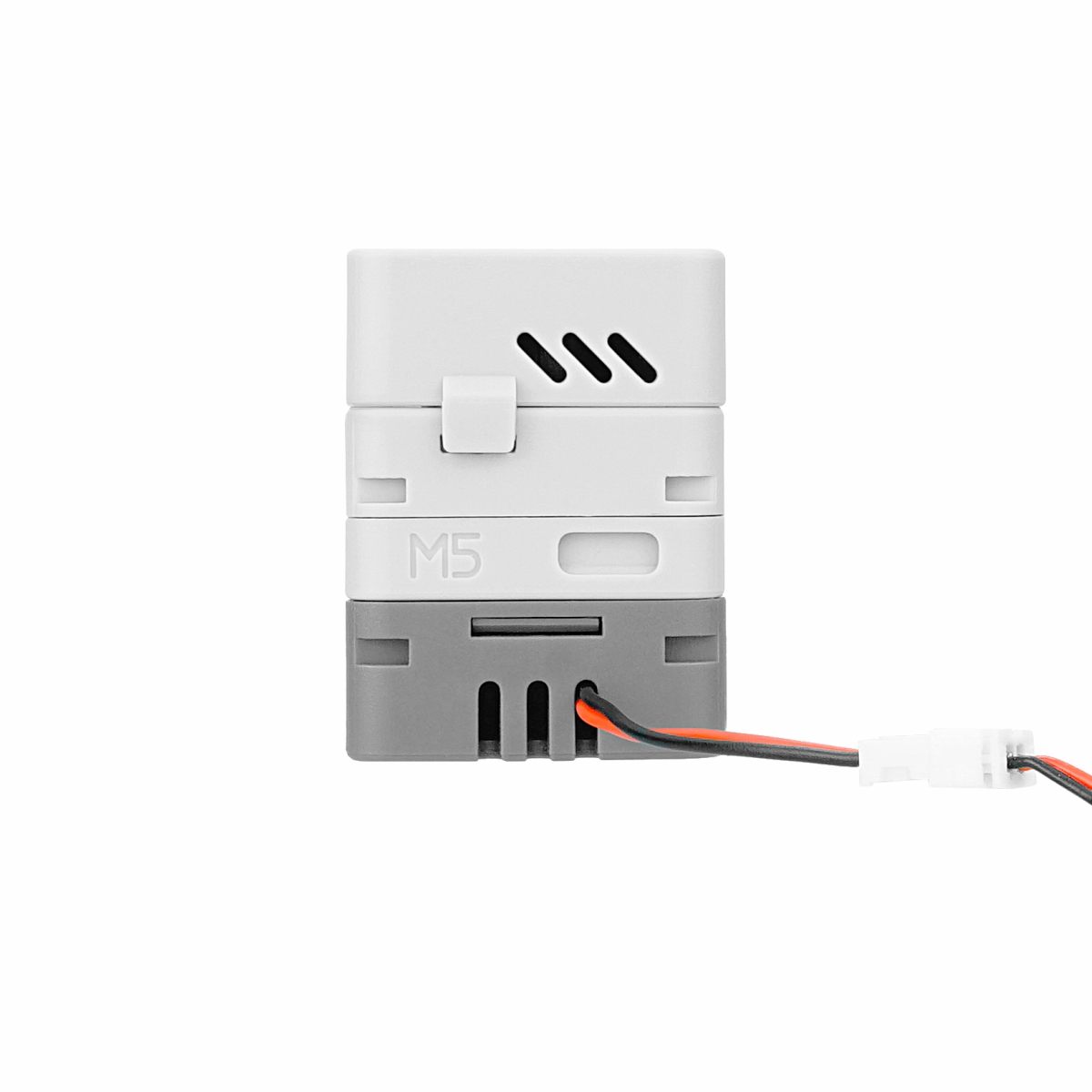

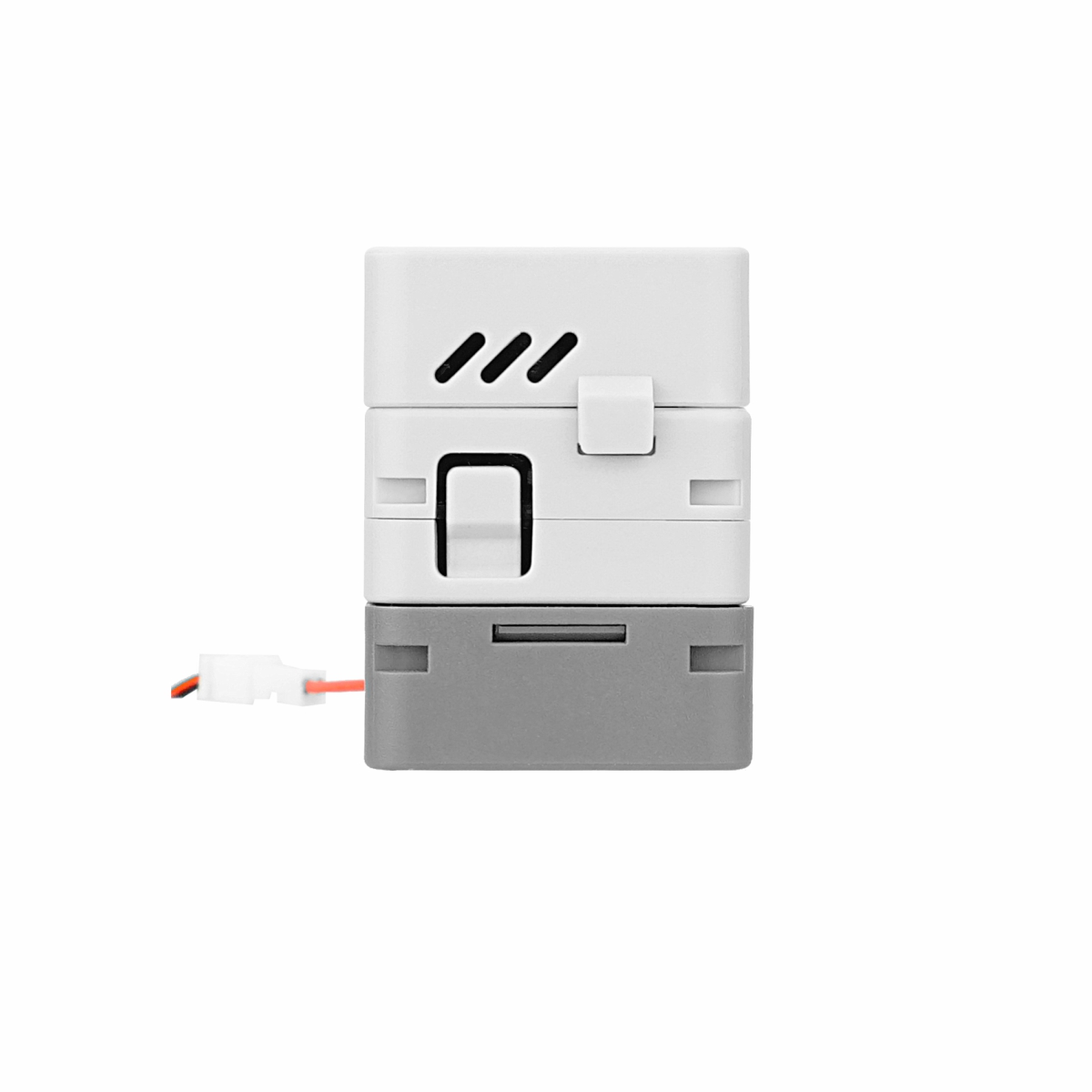

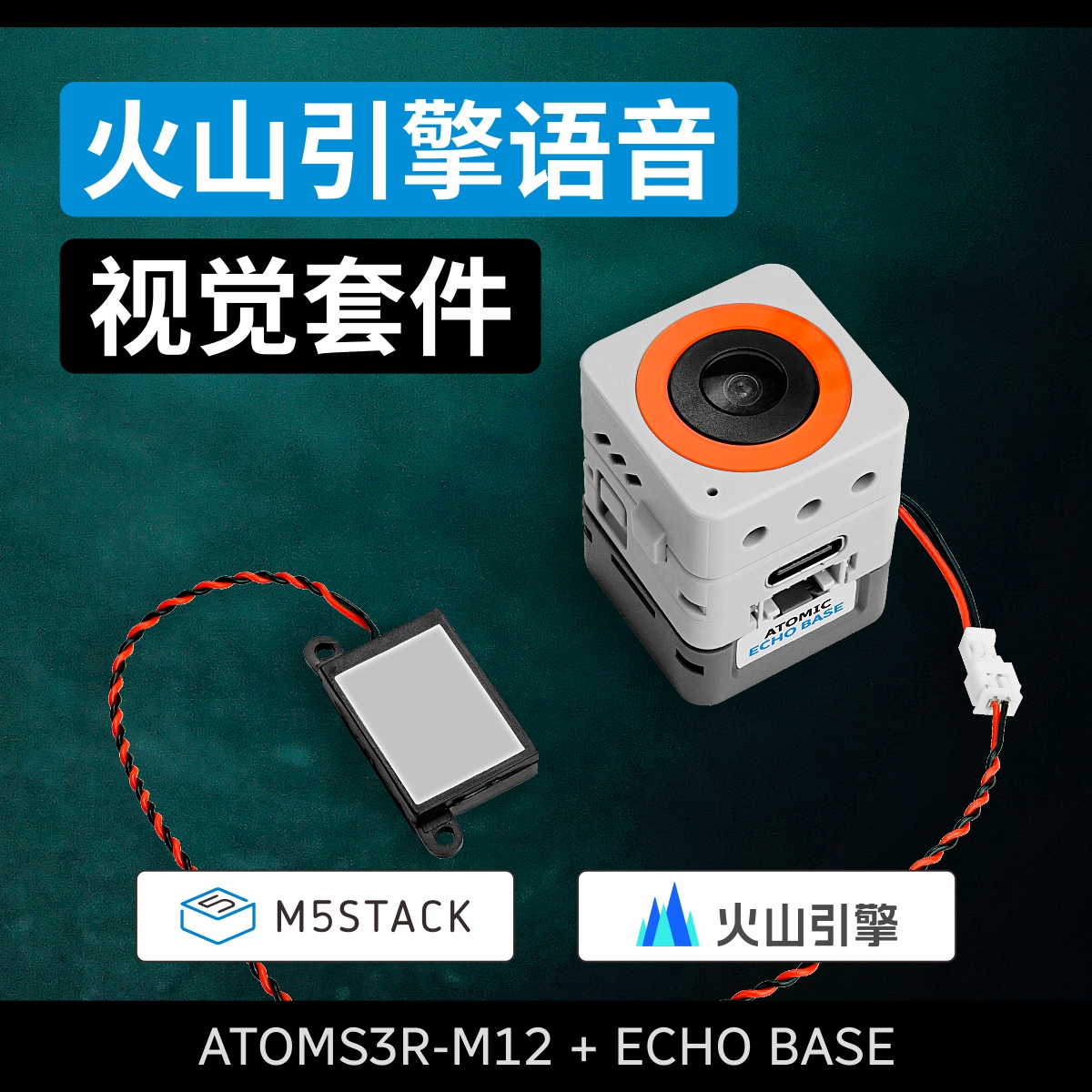

AtomS3R‑M12 Volcengine Kit

This tutorial introduces how to quickly configure the AtomS3R‑M12 Volcengine Voice Assistant using M5Burner

Features

Volcengine RTC real-time communication
AI visual recognition
AI voice recognition
Edge-to-cloud collaboration & model management
Integrated ESP32‑S3‑PICO‑1‑N8R8 SoC
3 MP OV3660 camera (120° FOV)
Nine‑axis sensor system
Edge AI inference
8 MB Flash & 8 MB PSRAM
Infrared emission control support
Expandable pins & interfaces
Full‑duplex I2S audio
24‑bit audio codec
MEMS digital microphone
Class D amplifier (8 Ω @ 1 W speaker)
Development platforms
- Arduino IDE
- ESP‑IDF
- PlatformIO

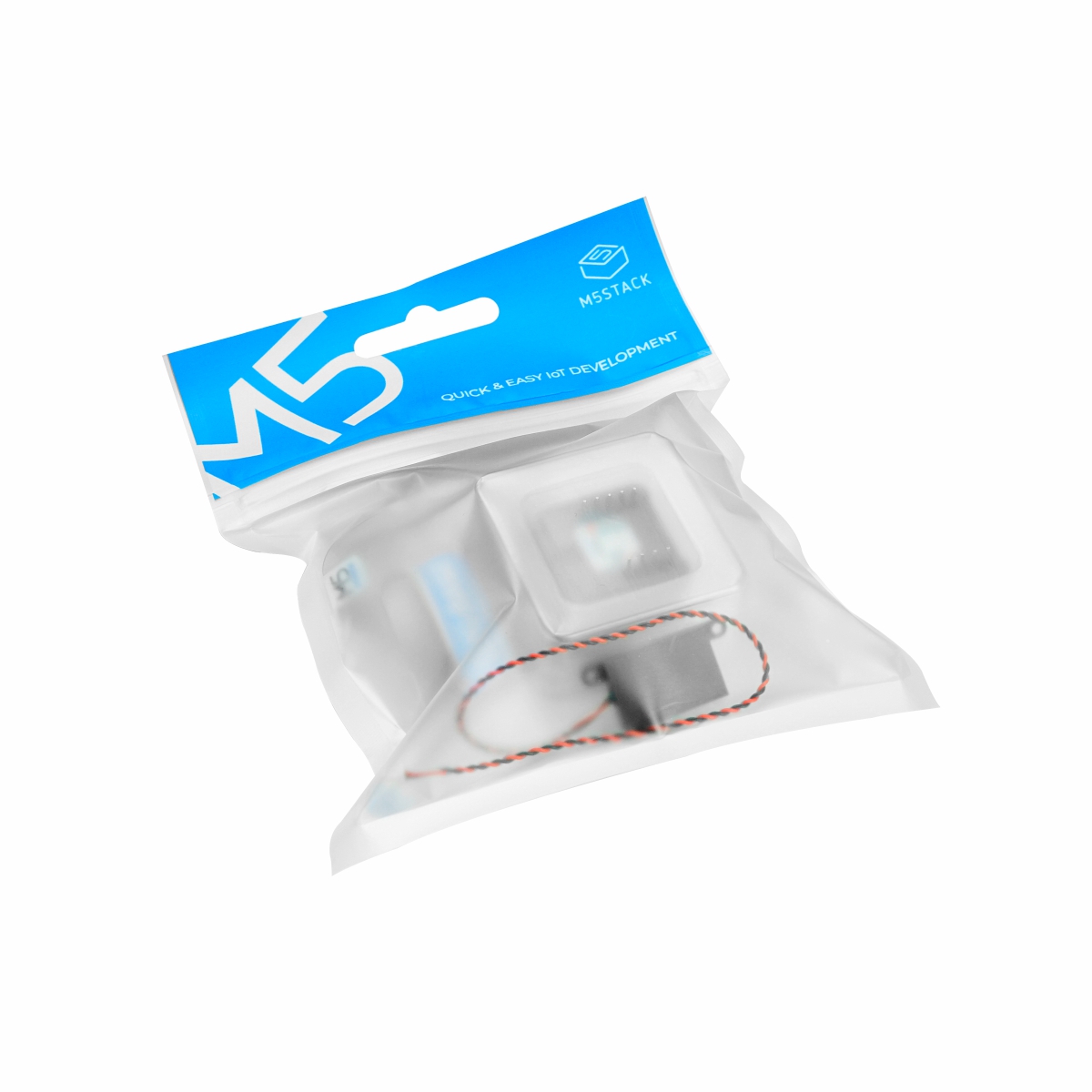

Includes

1 x AtomS3R‑M12
1 x Atomic Echo Base

Applications

Smart security
Remote education
Smart home
Industrial monitoring
AI tutoring
STEAM education

Specifications

Specification	Parameter
SoC	ESP32‑S3‑PICO‑1‑N8R8, dual‑core Xtensa LX7 @240 MHz, USB‑OTG
Storage	8 MB Flash + 8 MB PSRAM
Wireless	Wi‑Fi 2.4 GHz
Cloud Stream Processing	Volcengine Stream real‑time stream access
Cloud Recognition	Face detection, target tracking, OCR text recognition, ASR speech‑to‑text

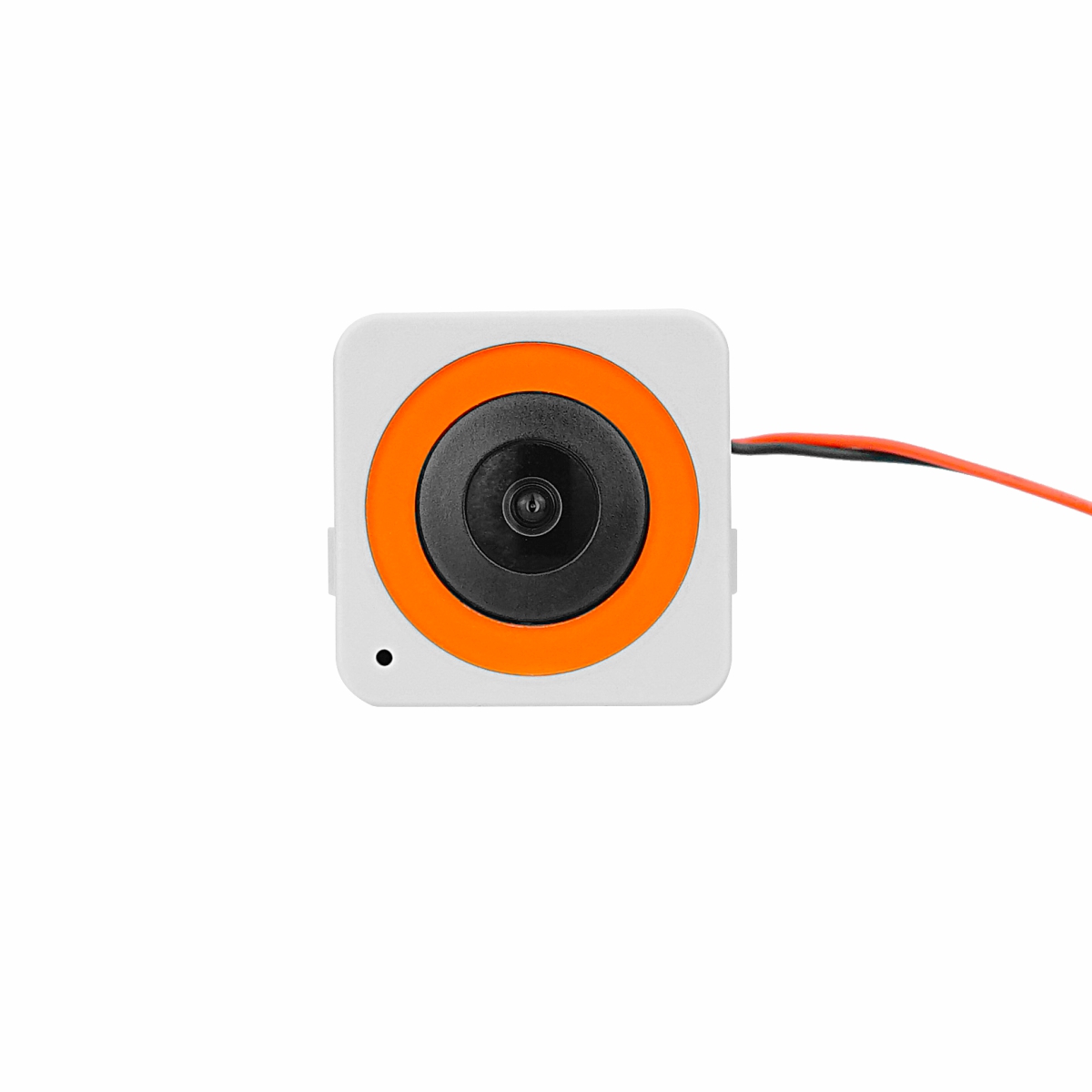

Camera	OV3660, 3 MP, F2.4 aperture, 120° FOV, 30 FPS
Infrared IR	180° emission angle, up to 12.46 m without obstruction
Sensor System	Nine‑axis (BMI270 + BMM150)
Interfaces	USB‑C (power/UVC plug‑and‑play), HY2.0‑4P expansion
UVC	USB Video Class plug‑and‑play
Edge AI	ESP32‑S3 + TinyML: on‑device image detection, keyword wake‑up
Audio Codec	ES8311, 24‑bit I2S, 16 kHz–64 kHz
Microphone	MEMS digital microphone, SNR ≥ 65 dB
Amplifier	NS4150B Class D
Speaker	1 W @ 8 Ω
Communication Mode	I2S full‑duplex
Operating Temperature	0 ~ 40 °C
Product Dimensions	AtomS3R‑M12: 26.4 × 24.0 × 22.5 mm Atomic Echo Base: 26.4 × 24.0 × 22.5 mm
Product Weight	AtomS3R‑M12: 10.8 g Atomic Echo Base: 10.8 g

Learn

Download Mode

To flash firmware, press and hold the reset button (for about 2 seconds) until the internal green LED lights up, then release; the device will enter download mode and wait for flashing.

Schematics

1/3

PinMap

BMI270 & IR & RGB

ESP32-S3-PICO-1-N8R8	G0	G45	G47
LP5562 (RGB control chip)	SYS_SCL	SYS_SDA
BMI270	SYS_SCL	SYS_SDA
IR			IR_LED_DRV

BMM150

BMI270	BMI270_ASDx	BMI270_ASCx
BMM150	A_SDA	A_SCL

BMM150 mounted on BMI270

Access BMM150 via BMI270’s Sensor Hub auxiliary I2C interface for unified 9‑axis sensor data collection

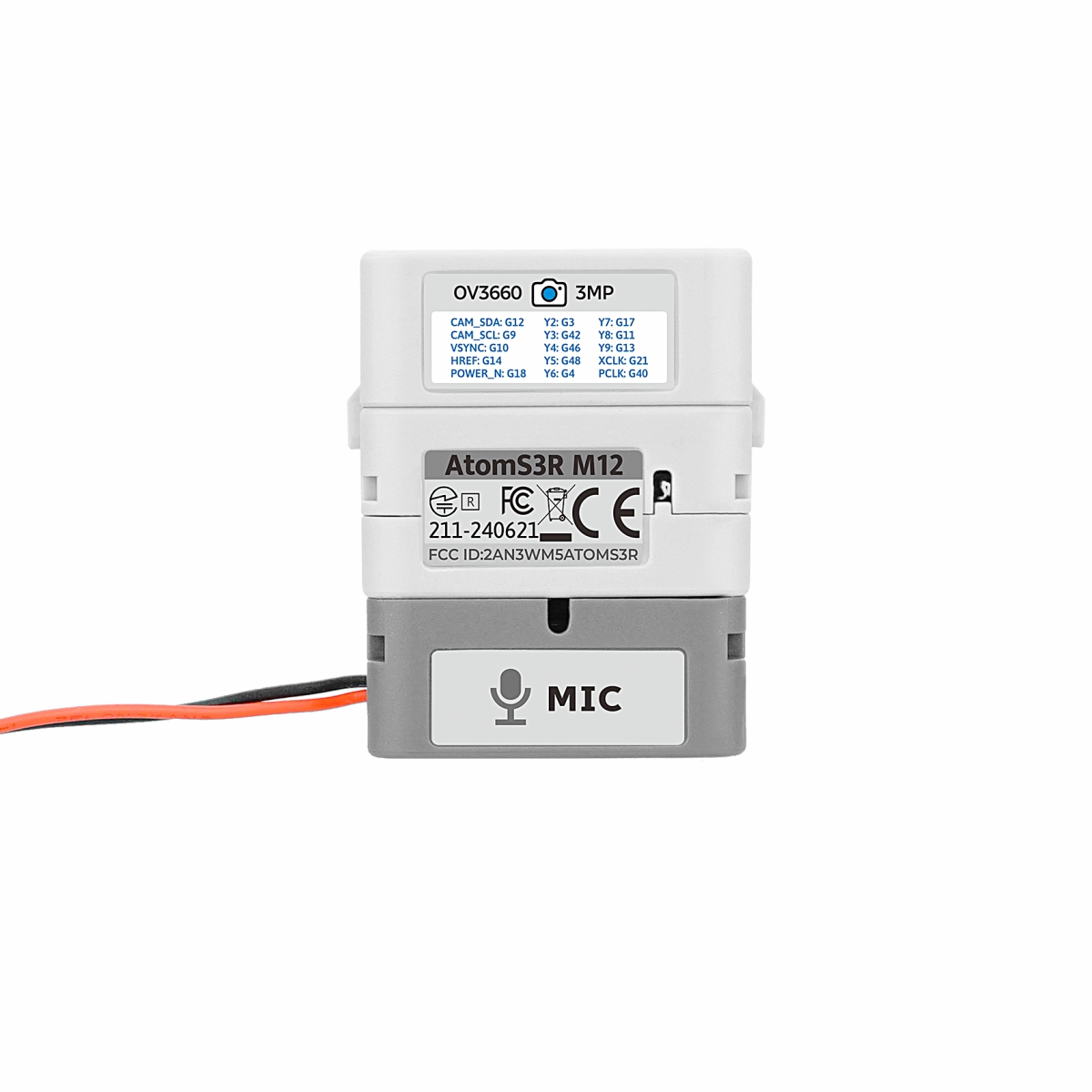

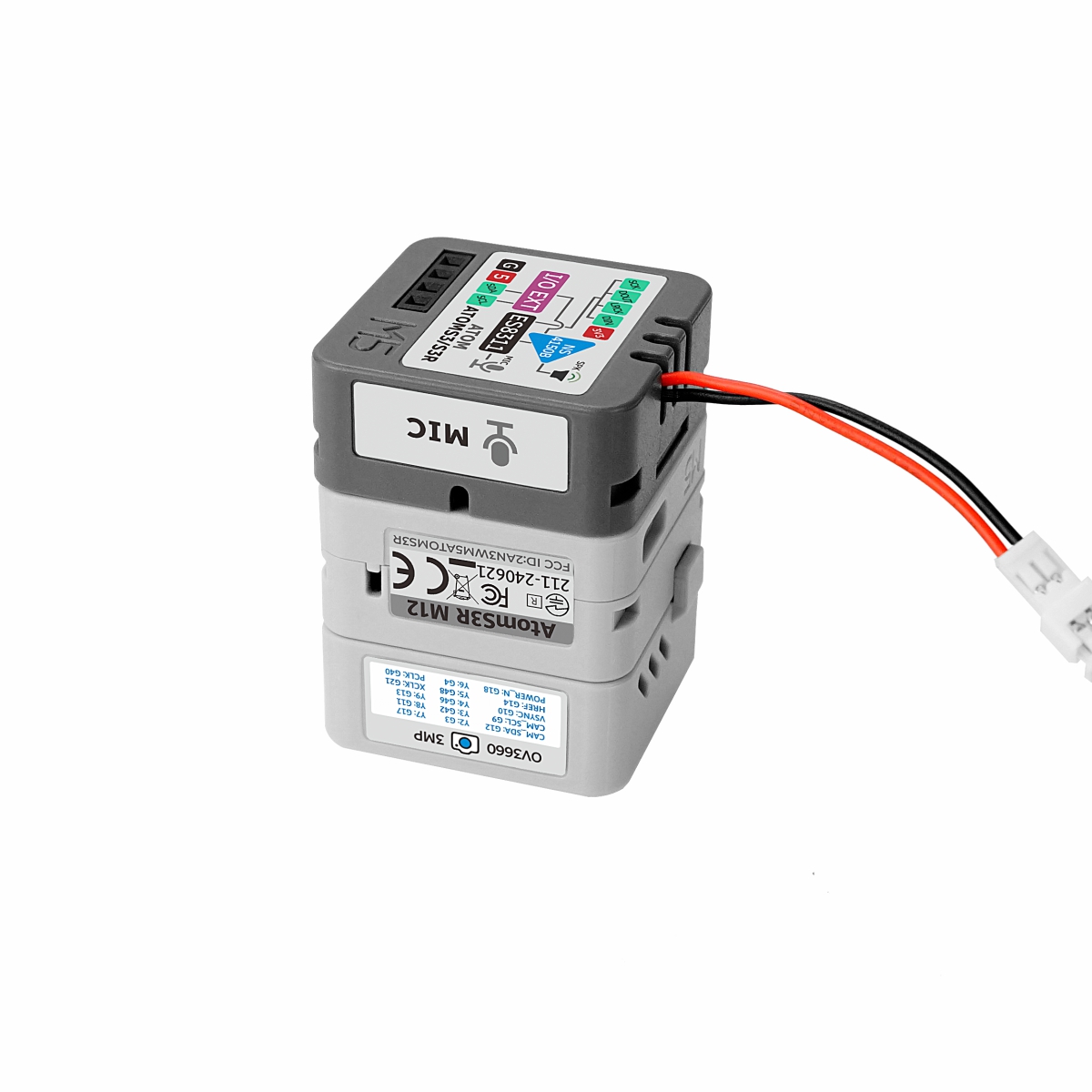

OV3360 (M12)

OV3360 (M12)	ESP32-S3-PICO-1-N8R8
CAM_SDA	G12
CAM_SCL	G9
VSYNC	G10
HREF	G14
Y9	G13
XCLK	G21
Y8	G11
Y7	G17
PCLK	G40
Y6	G4
Y2	G3
Y5	G48
Y3	G42
Y4	G46
POWER_N	G18

Atomic Echo Base

Atomic Echo Base	SCL	SDA	SD/DSDIN	WS/LRCK	ASDOUT	SCK/SCLK
AtomS3R M12	G39	G38	G5	G6	G7	G8

HY2.0-4P

HY2.0-4P	Black	Red	Yellow	White
PORT.CUSTOM	GND	5V	G2	G1

Model Size

1/2
