Stamp-S3 PIN2.54
SKU:S007-PIN254
Description
M5StampS3 PIN2.54 is a highly integrated embedded main control core module. It uses the Espressif ESP32-S3FN8 main control chip, equipped with 8MB SPI flash, and features a high-performance Xtensa 32-bit LX7 dual-core processor with a clock speed of up to 240MHz. The module includes a highly integrated 5V to 3.3V circuit, RGB status indicator, and programmable button. It exposes 10 GPIOs from the ESP32-S3 in the form of 2.54mm pitch pin headers. This product is characterized by its compact size, strong performance, rich expansion I/O, and low power consumption. This module is suitable for IoT applications requiring embedded main control modules.
Tutorial
This tutorial will introduce you to how to program and control the M5StampS3 device using the Arduino IDE
This tutorial will introduce you to how to control the M5StampS3 device using the UIFlow2.0 graphical programming platform
Features
- ESP32-S3FN8 (2.4GHz Wi-Fi)
- Integrated programmable RGB LED and button
- 2.54mm pitch pin headers
- Supports UIFlow graphical programming
Includes

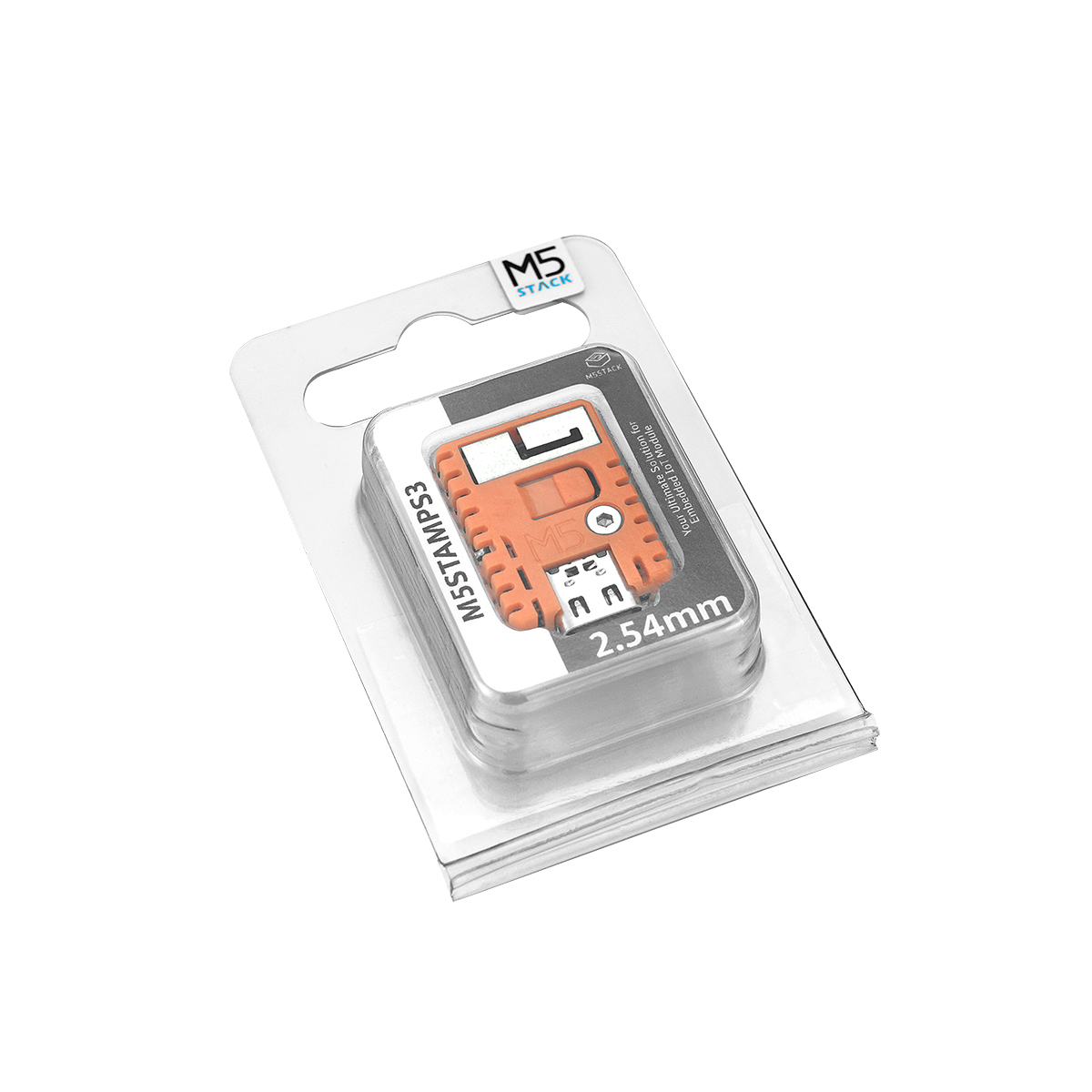

- 1 x Stamp-S3 PIN2.54
- 1 x Silkscreen sticker
Applications
- Smart home
- Wearable devices
- Medical devices
Specifications
| Specification | Parameters |
|---|---|
| MCU | ESP32-S3FN8 |
| DCDC | Highly integrated MUN3CAD01-SC |
| Flash | 8MB |
| Input Voltage | 5V |
| Human-Machine Interface | Programmable physical button x 1, programmable RGB LED (WS2812B-2020) x 1 |
| Antenna Type | 2.4G 3D antenna |
| Module Resource Interface | Touch sensor, SD/SDIO/MMC host controller, SPI, SDIO/SPI slave controller, EMAC, motor PWM, LED PWM, UART, I2C, I2S, GPIO, pulse counter |
| IO Interface x23 | G0/G1/G2/G3/G4/G5/G6/G7/G8/G9/G10/G11/G12/G13/G14/G15/G39/G40/G41/G42/G43/G44/G46 |
| Pin Header Pitch | 2.54mm |
| LCD Interface Pitch | 0.5mm@12pin or 8pin |
| Operating Temperature | 0 ~ 40°C |
| Product Dimensions | 26*18*4.6mm |
| Package Dimensions | 74*48*13mm |
| Product Weight | 3.5g |
| Package Weight | 6.3g |
Learn
Download Mode
To enter download mode, hold down the G0 button on the StampS3 before powering on, and release it after powering up.
GPIO46 is pulled down by default.
Datasheets

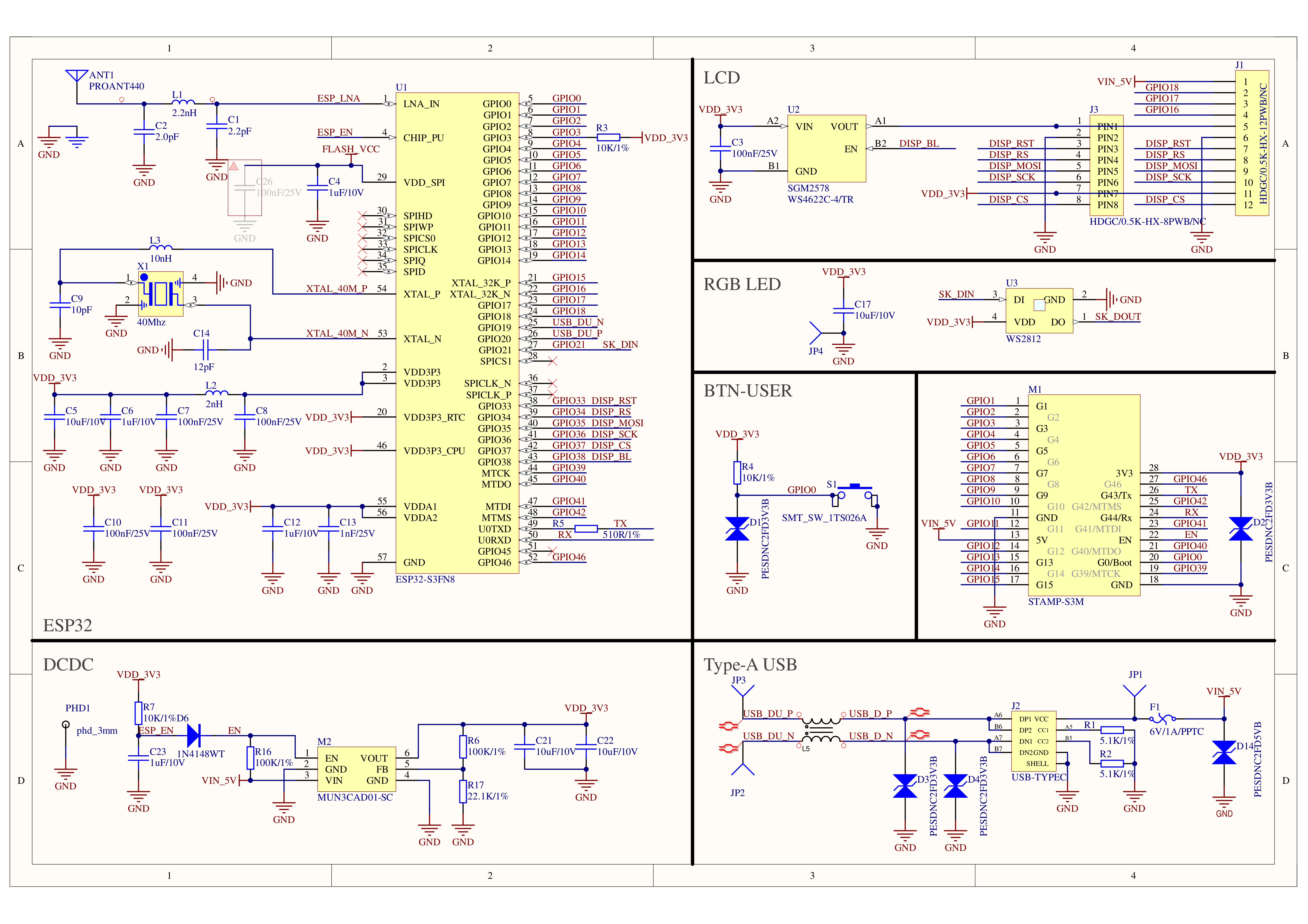

Schematics
1/1
Pin Label Sticker
PCB Footprint
Model Size
