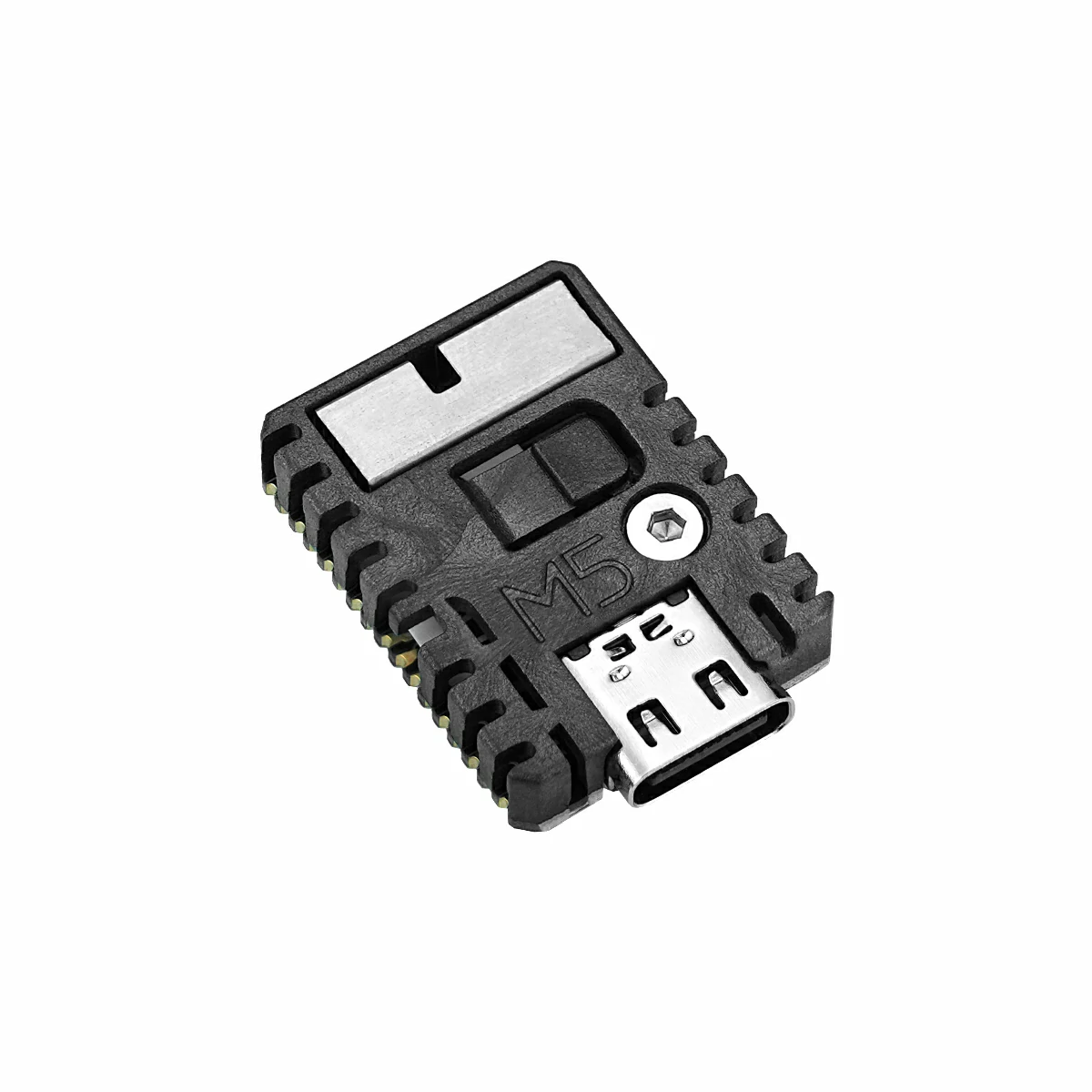

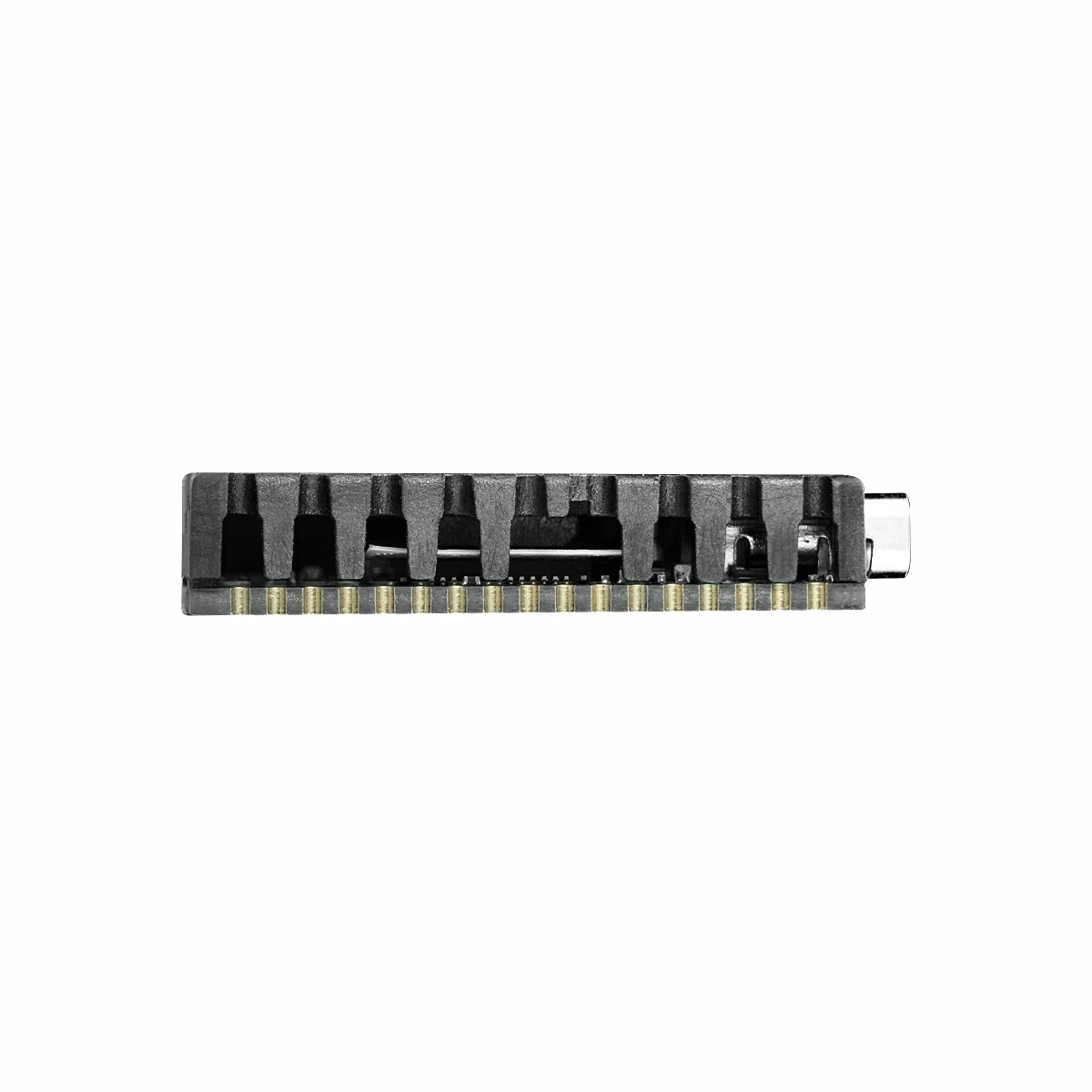

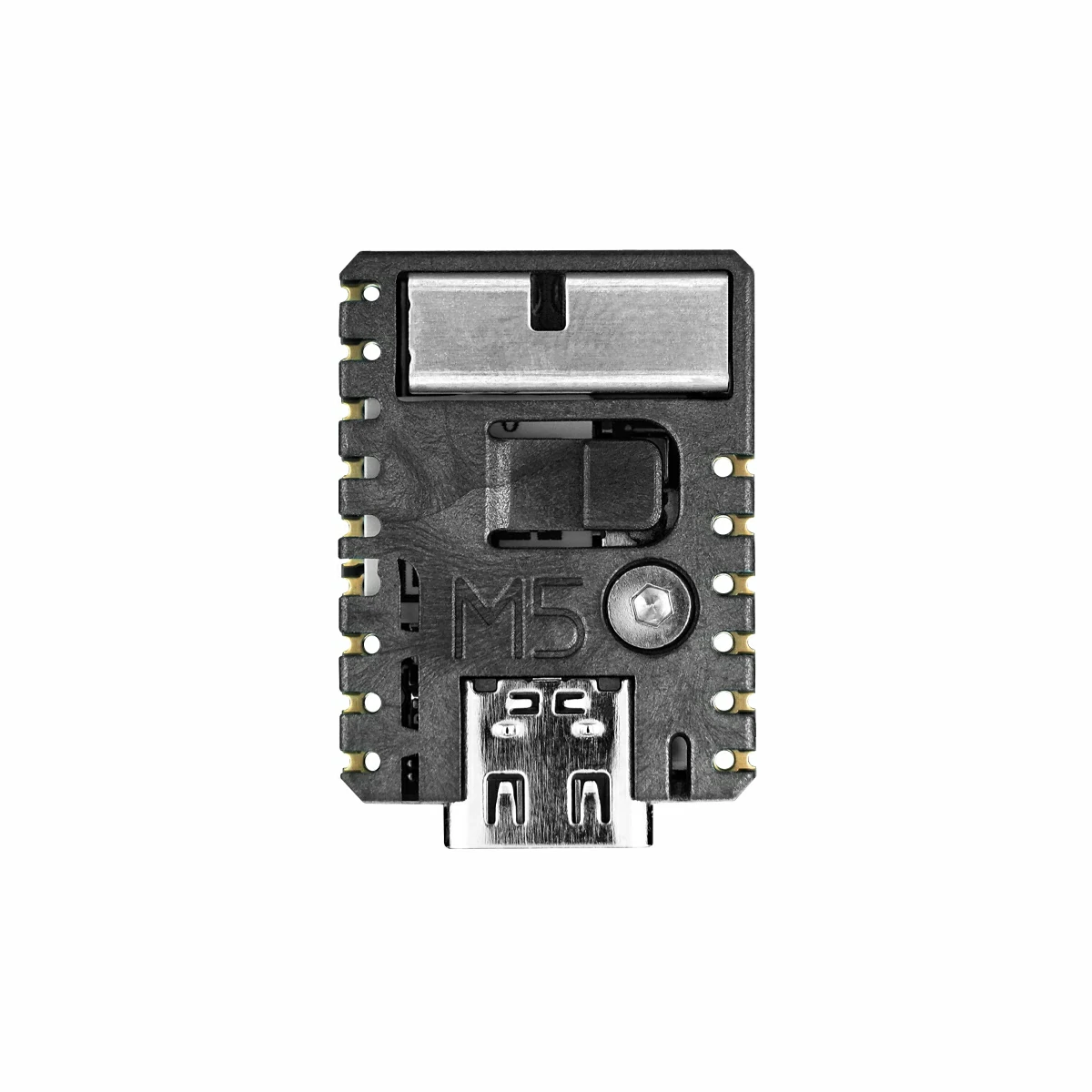

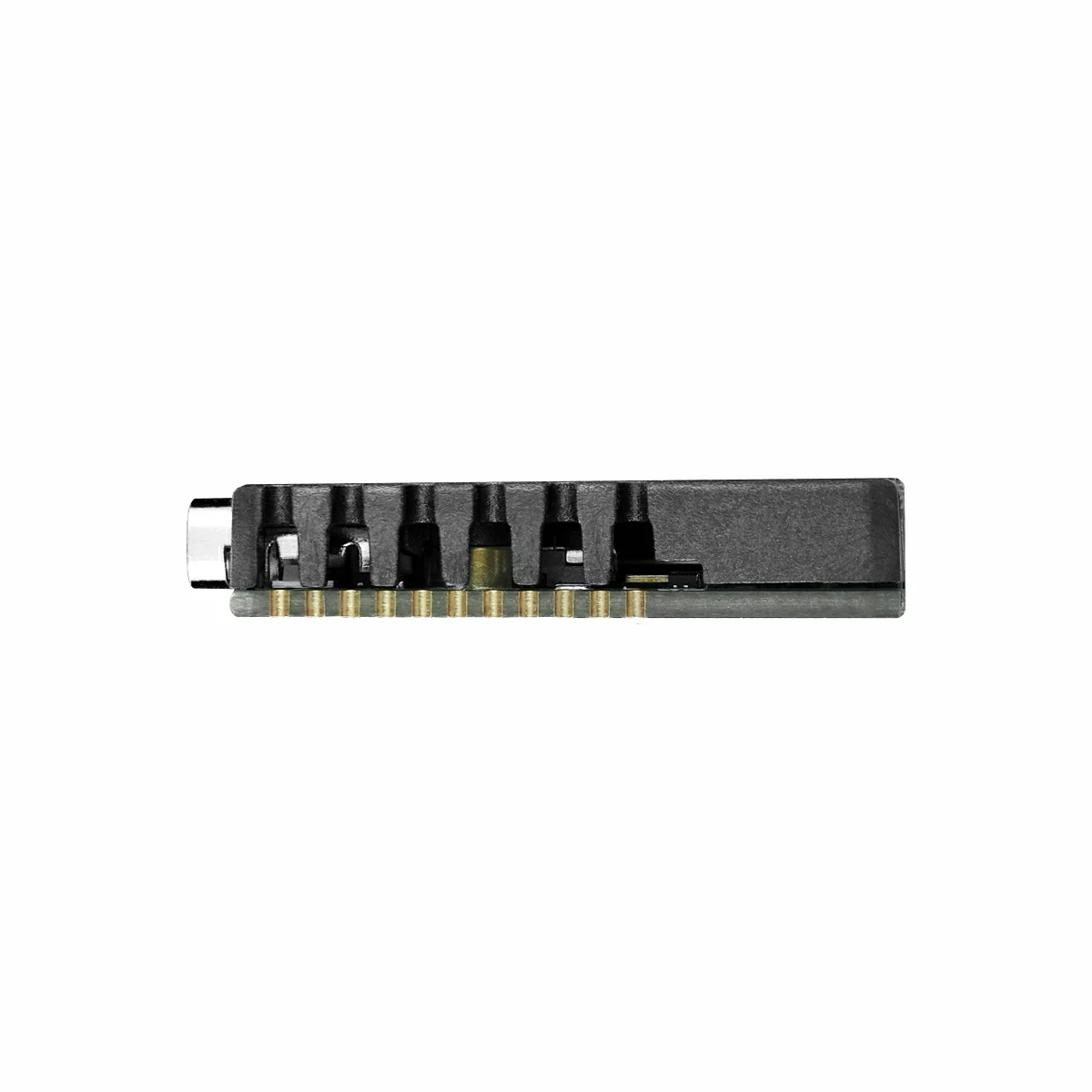

Stamp-S3A
SKU:S007-V033
Description

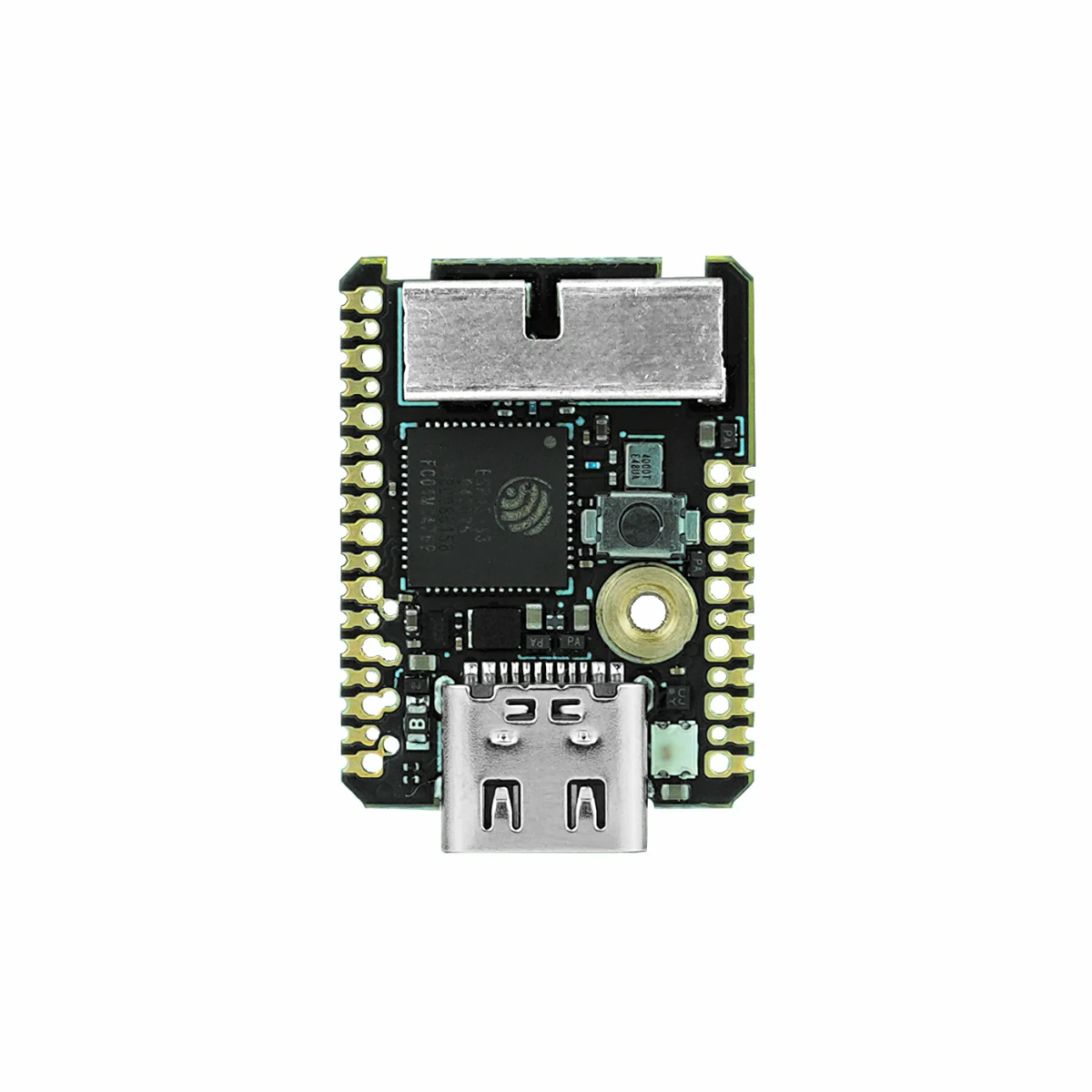

Stamp-S3A is a highly-integrated embedded module based on the Espressif ESP32-S3FN8. It is equipped with a 240 MHz Xtensa® 32-bit LX7 dual-core processor, integrates 8 MB Flash, a programmable RGB LED, and a user button. The deeply-optimized 3D antenna design offers stronger wireless communication performance. Twenty-three GPIOs are broken out and provided via 1.27 mm / 2.54 mm pitch SMT/DIP pin headers or sockets, allowing effortless PCB integration and enabling developers to build applications rapidly.
Tutorial
Features
- ESP32-S3FN8 (2.4 GHz Wi-Fi)
- Minimum-system board
- Rich I/O breakout supporting multiple application forms (SMT, DIP, fly-wire, Unit)
- Integrated programmable RGB LED and button
- Development Platform
- UiFlow2
- Arduino IDE
- ESP-IDF
- PlatformIO

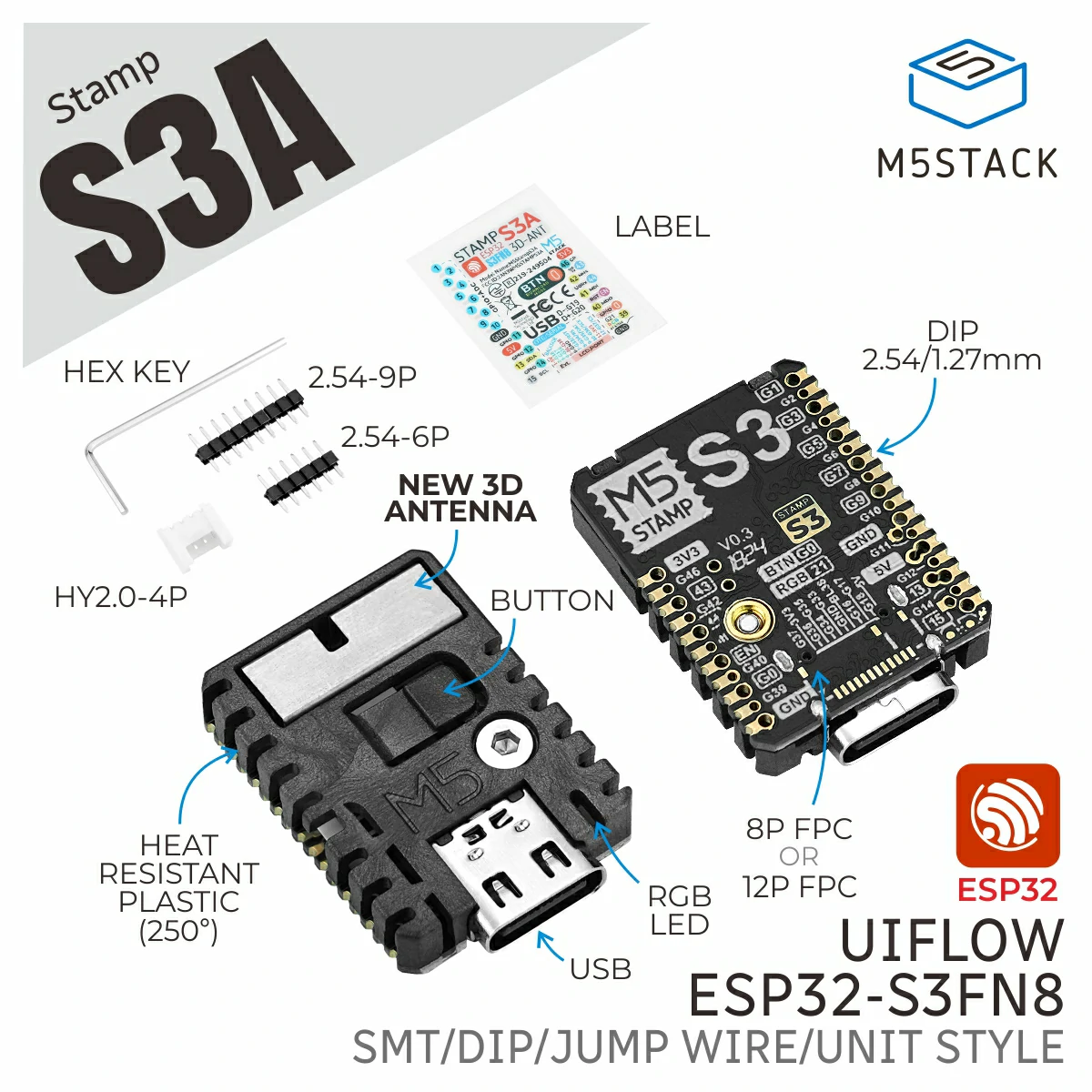

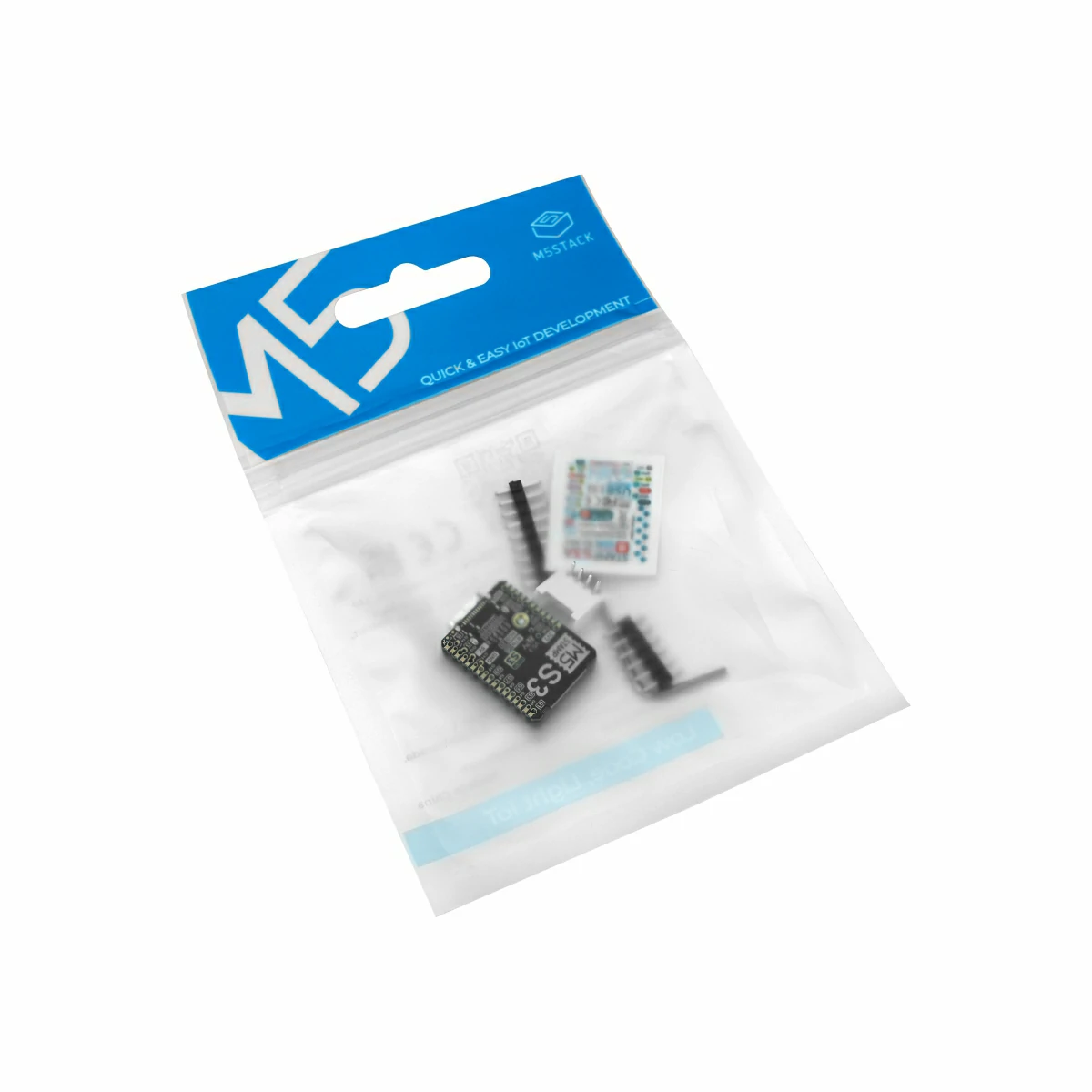

Includes
- 1 x Stamp-S3A
- 1 x HY2.0-4P Terminal
- 1 x 2.54-9P Male Header
- 1 x 2.54-6P Male Header
- 1 x Hex Key L-Shape 1.5 mm (For M2 Screw)
- 1 x Pin Sticker
Applications
- Smart home
- Intelligent IoT devices
- Industrial control terminals
- Wearable devices
Specifications
| Specification | Parameter |
|---|---|
| SoC | ESP32-S3FN8@Xtensa LX7 dual-core, main frequency up to 240MHz |
| Flash | 8MB |
| DC-DC | MUN3CAD01-SC |
| Wi-Fi | 2.4 GHz Wi-Fi |
| Input Voltage | DC 5 V |
| Power Consumption | Sleep mode: USB Type-C power supply: DC 5V@88.82uA; VIN_5V power supply: DC 5V@6.84uA Standby mode: USB Type-C power supply: 25.54mA; VIN_5V power supply: 25.53mA |
| HMI | Programmable physical button × 1, programmable RGB LED (WS2812B-2020) × 1 |
| Antenna Type | 2.4 GHz 3D antenna |
| Module Resource I/F | Touch Sensor, SD/SDIO/MMC Host Ctrl, SPI, SDIO/SPI Slave Ctrl, EMAC, Motor PWM, LED PWM, UART, I2C, I2S, GPIO, Pulse Counter |
| IO Interfaces × 23 | G0/G1/G2/G3/G4/G5/G6/G7/G8/G9/G10/G11/G12/G13/G14/G15/G39/G40/G41/G42/G43/G44/G46 |
| IO Pitch | 2.54 mm and 1.27 mm |
| LCD FPC Pitch | 0.5 mm @ 12 P or 8 P |
| Operating Temp. | 0 ~ 40 °C |
| Product Size | 26.0 × 18.0 × 4.7 mm |

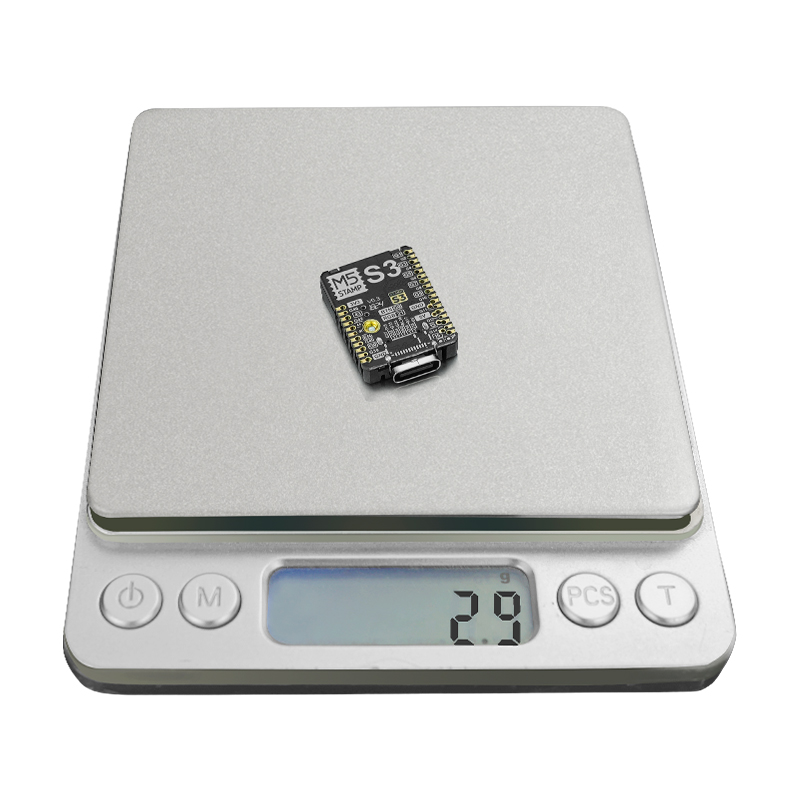

| Product Weight | 2.9 g |
| Package Size | 138.0 × 93.0 × 10.5 mm |
| Gross Weight | 7.1 g |
Learn
Download Mode
To enter download mode, hold the G0 button on the Stamp-S3A before powering on, then release it after power is applied.
Additional Notes
- ESP32-S3 pins G0 and G46 are strapping pins that determine the boot mode. By default, G0 is pulled-up and G46 is internally pulled-down, allowing the chip to boot from SPI Flash normally. Do not pull G46 high before the chip boots; otherwise, it cannot start correctly. Refer to the Strapping-Pin section of the ESP32-S3 datasheet for details.
- An SPI interface for a TFT display is reserved on the back of the module. The compatible FPC connector specifications are 8 PIN and 12 PIN.
Schematics

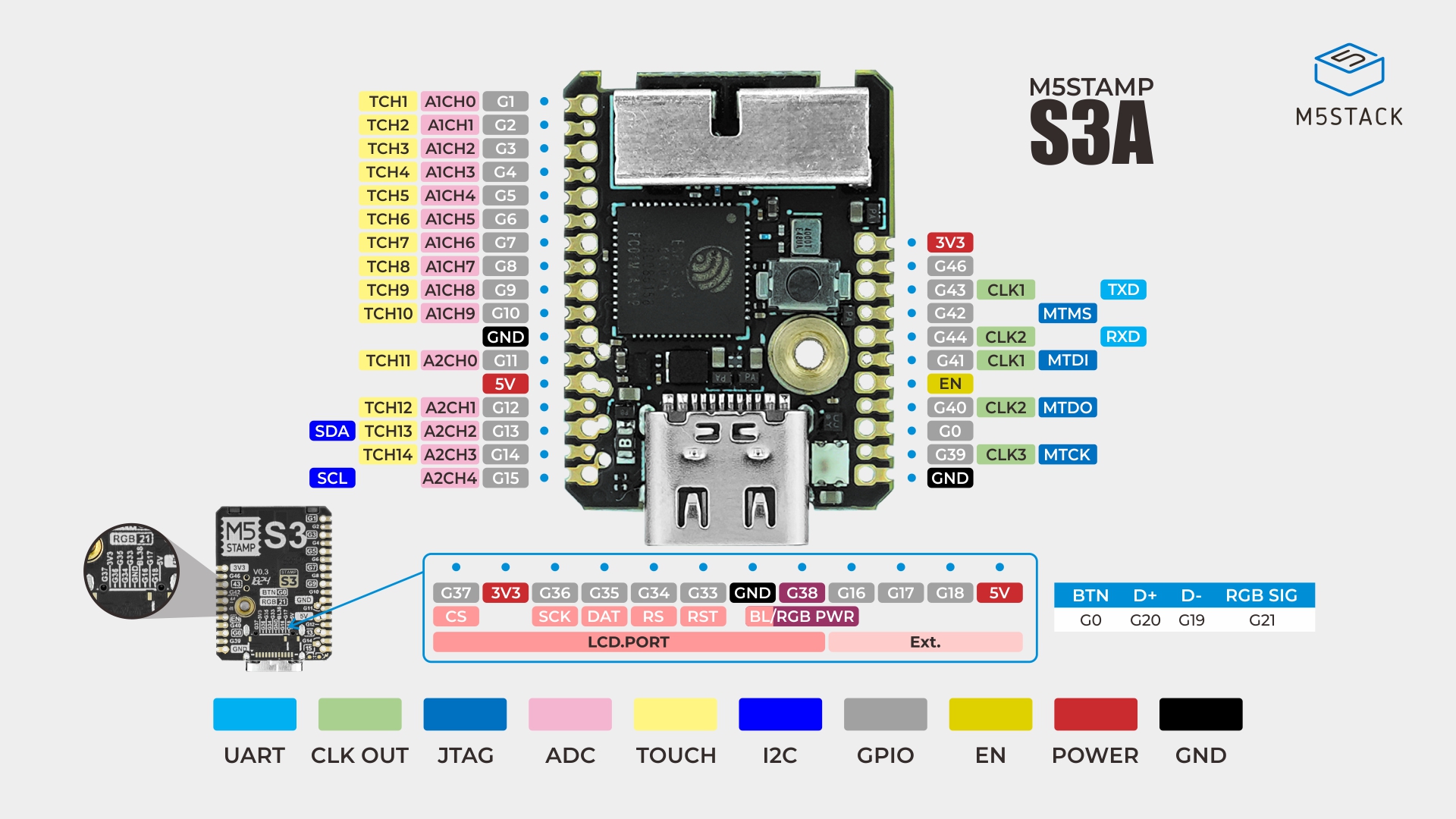

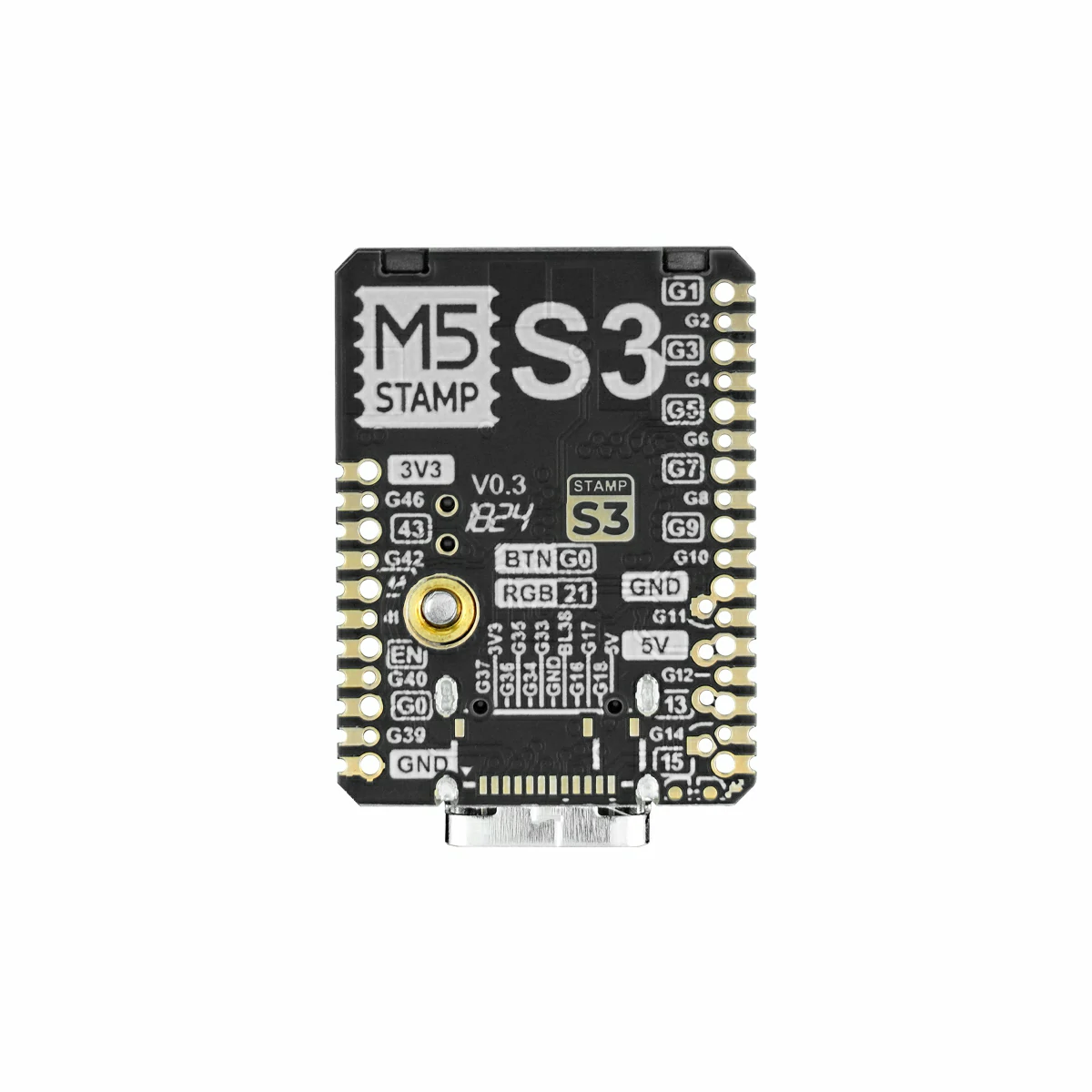

PinMap

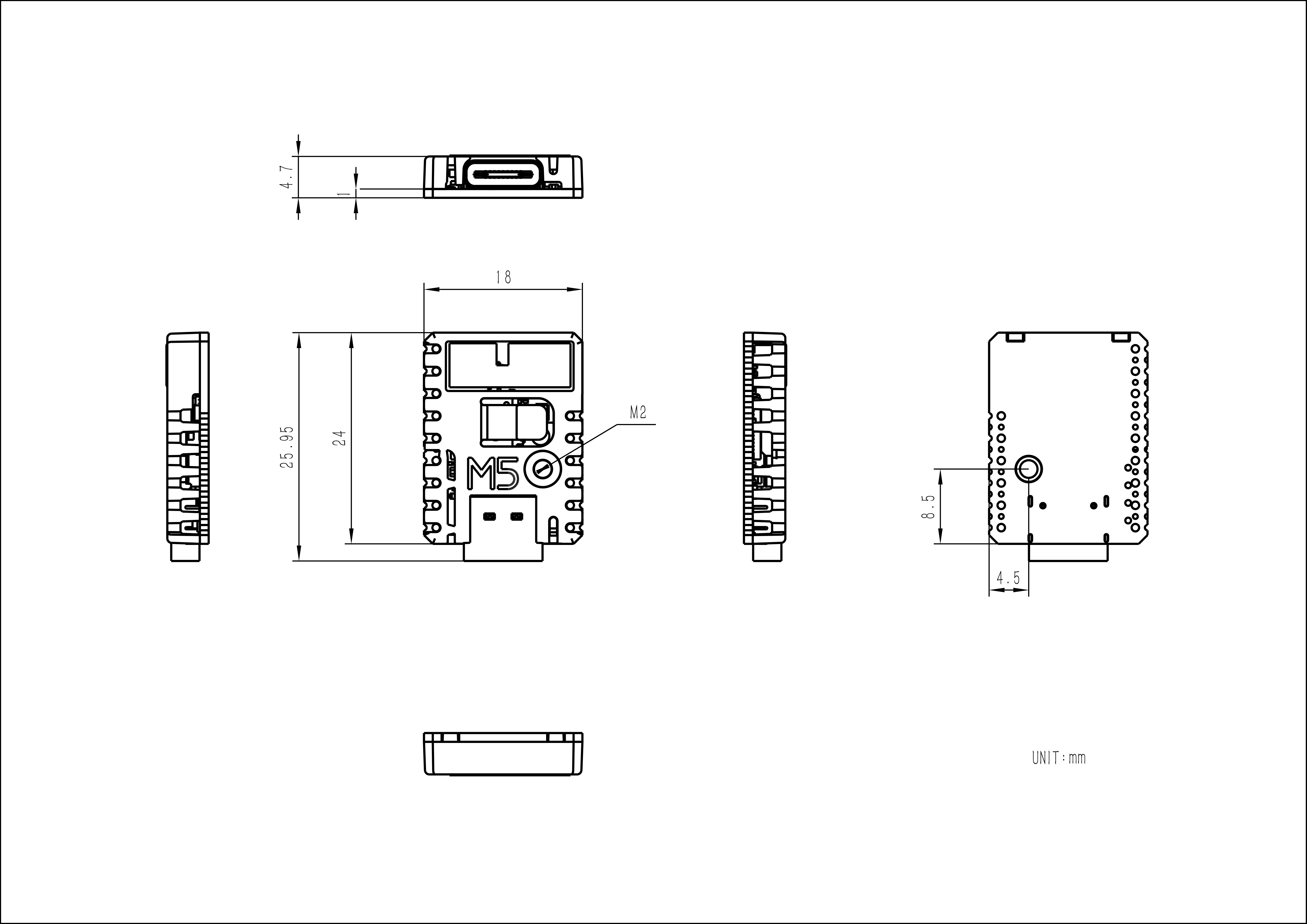

Model Size
PCB
Datasheets
Softwares
Arduino
UiFlow2
Video
- Stamp-S3A Product Introduction
Product Comparison
| Product Comparison Item | Stamp-S3A | Stamp-S3  |
|---|---|---|
| RGB LED Control Logic | RGB LED power is multiplexed with the reserved screen FPC bus backlight | Powered as soon as power is applied |
| Antenna Design | Optimized antenna design with better signal reception | Conventional antenna design |
| Module Boot Button | Improved tactile feel; 4.0 × 3.0 × 2.0 mm button | 2.6 × 1.6 × 0.55 mm button |
| Power Consumption | Sleep Mode： Powered by USB Type-C： DC 5V@88.82uA； Powered by VIN_5V ：DC 5V@6.84uA Standby Mode： Powered by USB Type-C：25.54mA； Powered by VIN_5V：25.53mA | Sleep Mode： Powered by USB Type-C： DC 5V@400.67uA Powered by VIN_5V：DC 5V@310.89uA； Standby Mode： Powered by USB Type-C：DC 5V@33.04mA; Powered by VIN_5V：DC 5V@33.56mA |
To compare information on the Stamp series products, you can visit the Product Selection Table, check the target products, and get the comparison results. The selection table covers key information such as core parameters and functional features, and supports comparison of multiple products simultaneously.
