Module13.2 QRCode

SKU:M145

Description

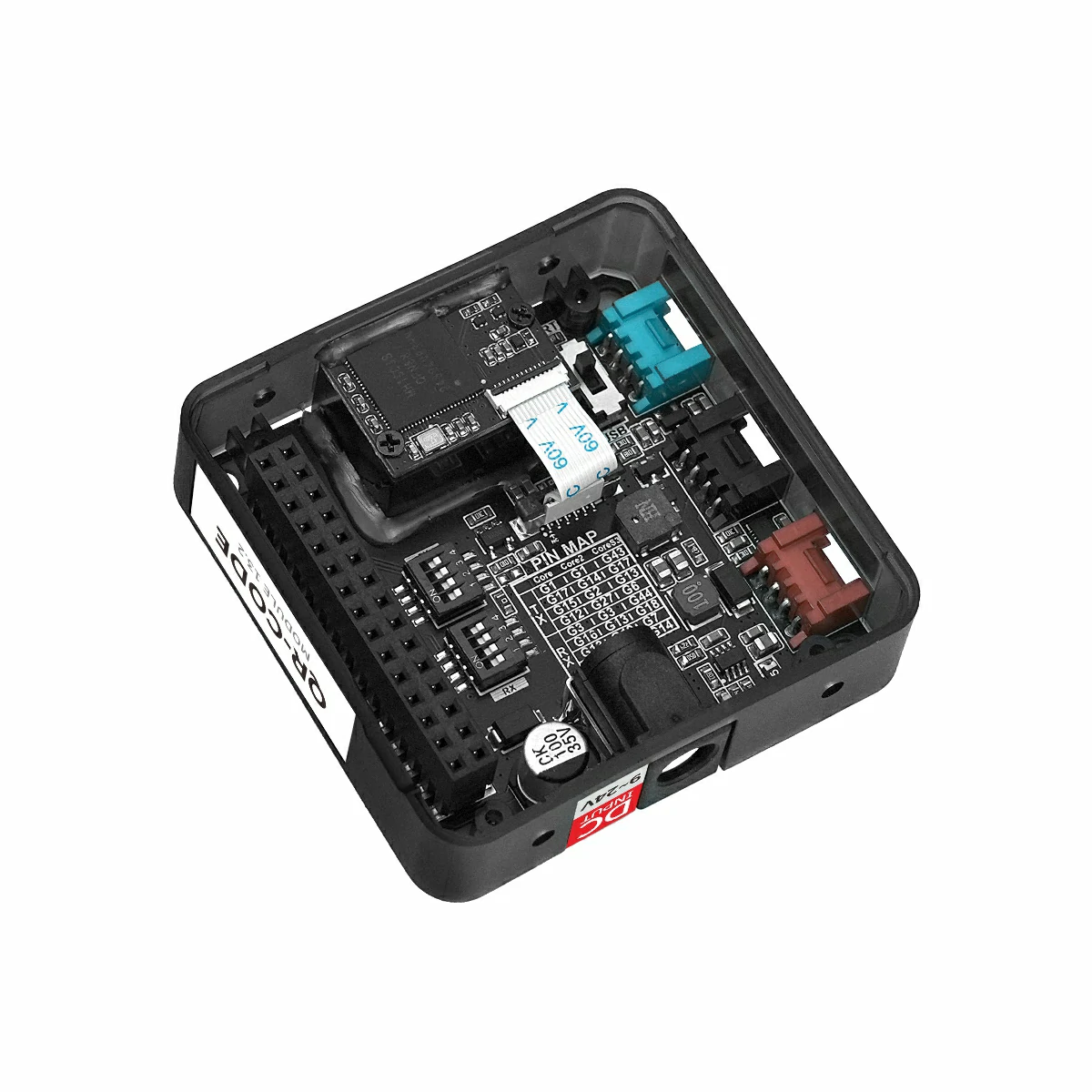

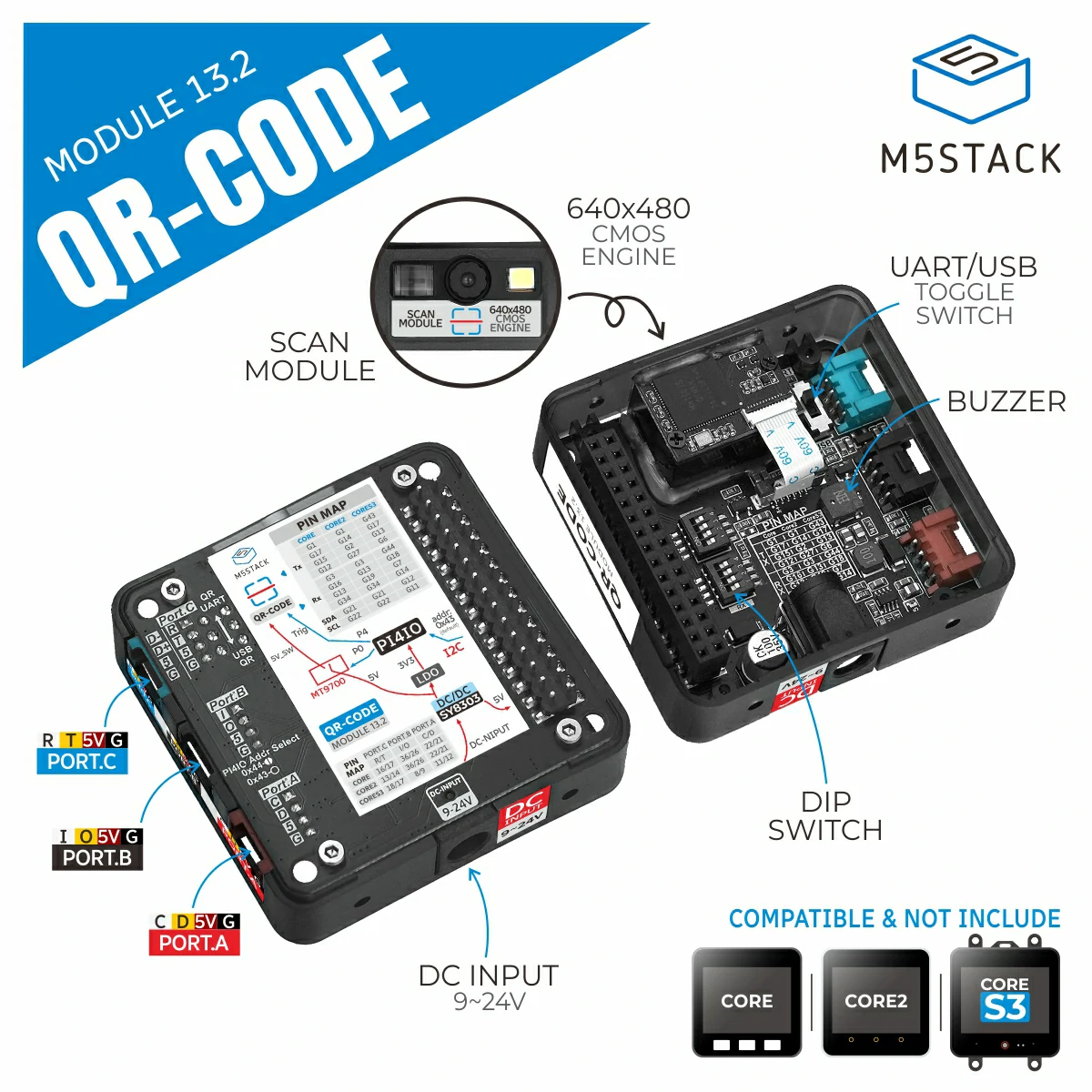

Module13.2 QRCode is a 1D/2D barcode scanning module from the M5Stack stacking module series. It integrates a CMOS barcode capture engine with a resolution of 640 x 480, supporting 3 mainstream 2D code types and 14 1D code types on the market, enabling fast and accurate recognition of barcodes printed on media such as paper and labels. A toggle switch allows switching between USB and UART communication interfaces for the QR module to communicate with external devices. The USB interface can be configured in three modes: USB virtual serial port, USB HID keyboard, and USB HID-POS. The module features a built-in buzzer for audio prompts, illumination and aiming LEDs, provides rich secondary development interfaces, and supports multiple scanning trigger modes (e.g., auto mode, continuous mode, motion sensing mode, pulse mode) for customized functionality and integrated development. It integrates a DC power input interface supporting DC 9 ~ 24V. Through the internal DC-DC step-down circuit it powers the entire device, making it suitable for logistics and warehousing, retail checkout, ticketing systems, production traceability, medical information collection, self-service terminals, and many other scenarios.

Features

  • Supports 3 types of 2D codes and 14 types of 1D codes
  • Built-in USB and UART interface switching switch
  • Built-in buzzer sound prompt
  • Built-in illumination LED
  • High-resolution imaging
  • Focusing and aiming function
  • Multiple scanning trigger modes, such as auto and continuous modes
  • DC power supply interface, wide voltage input: DC 9 ~ 24V
  • Development Platform:
    • Arduino
    • UiFlow2

Includes

  • 1 x Module13.2 QRCode

Applications

  • Logistics and warehousing
  • Retail checkout
  • Ticketing systems
  • Production traceability
  • Medical information collection
  • Self-service terminals

Specifications

Specification Parameter
IO Expansion Chip PI4IOE5V6408 I2C@0x43 (default)/0x44

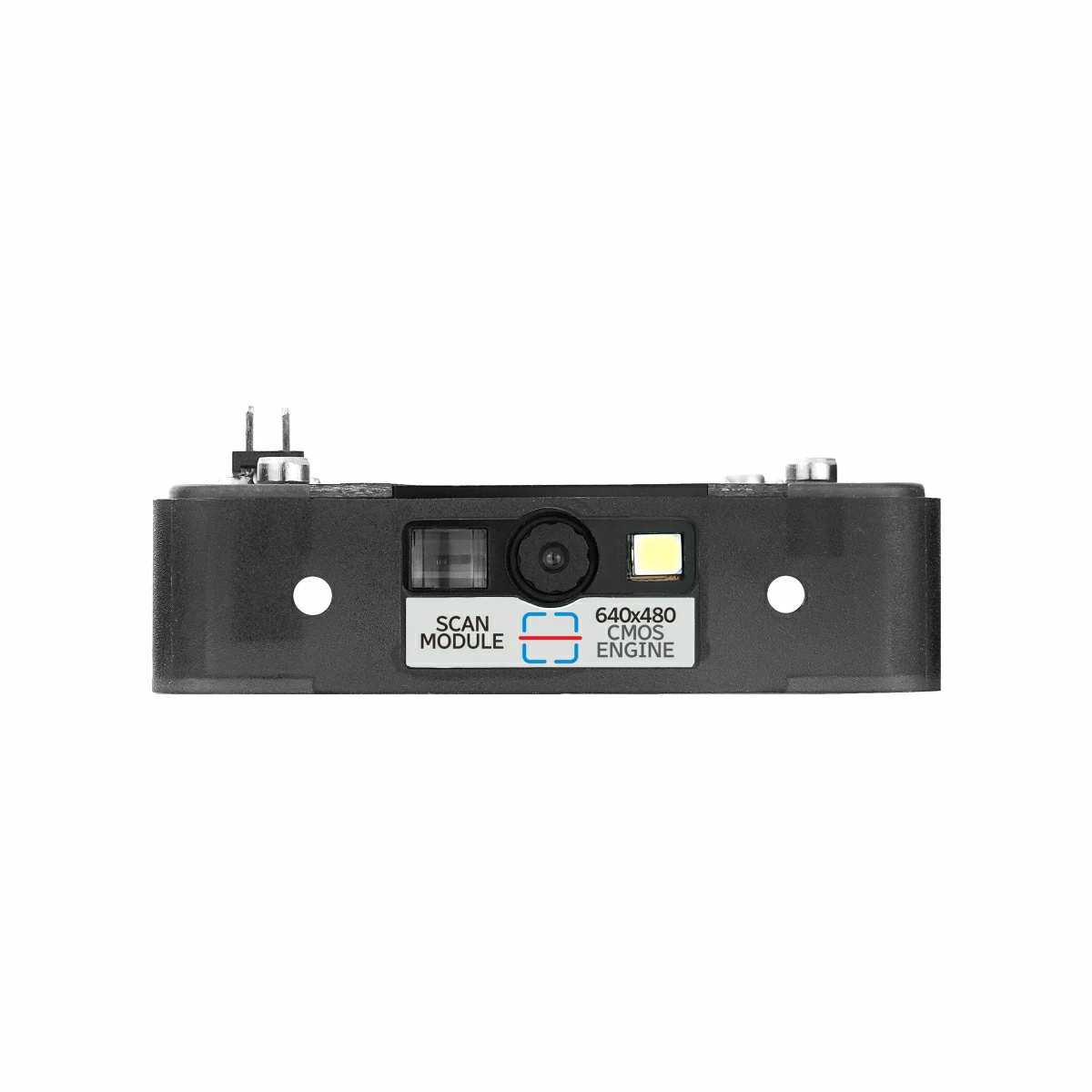

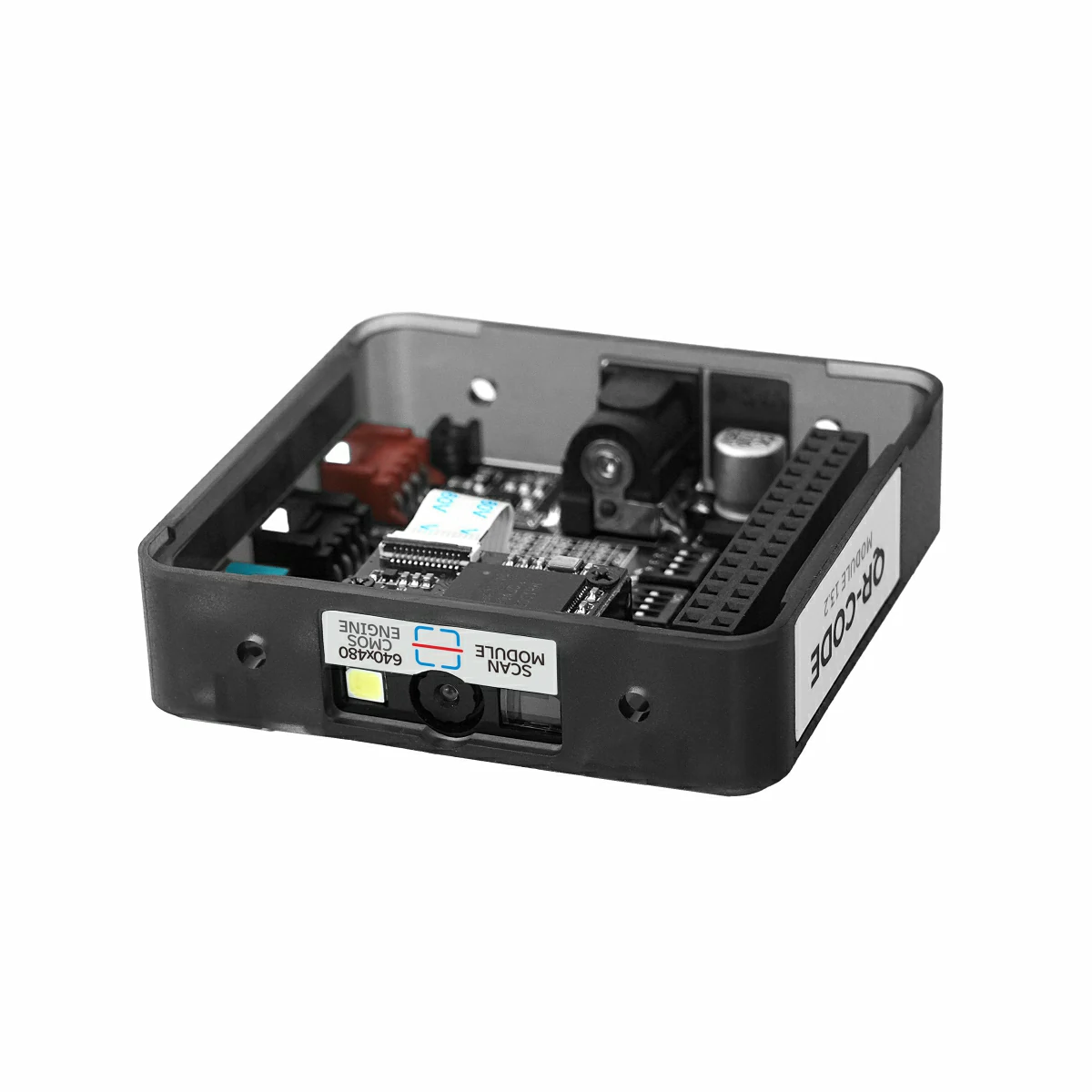

Sensor 640 x 480 CMOS
Illumination White LED
Aiming Red LED
Supported 2D Codes PDF417, QR Code, Data Matrix
Supported 1D Codes Code11, Code39, Code93, Code128, EAN-13, EAN-8, UPC-A, UPC-E,
Codabar, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI, GS1 Databar
Depth of Field 50 ~ 160 mm
Reading Accuracy ≥ 5 mil
Print Contrast ≥ 20 %
Scan Angle Pitch ±55°, Skew ±55°
Communication Interface USB or UART communication; the USB interface can be connected to a PC via a Grove to USB-C accessory

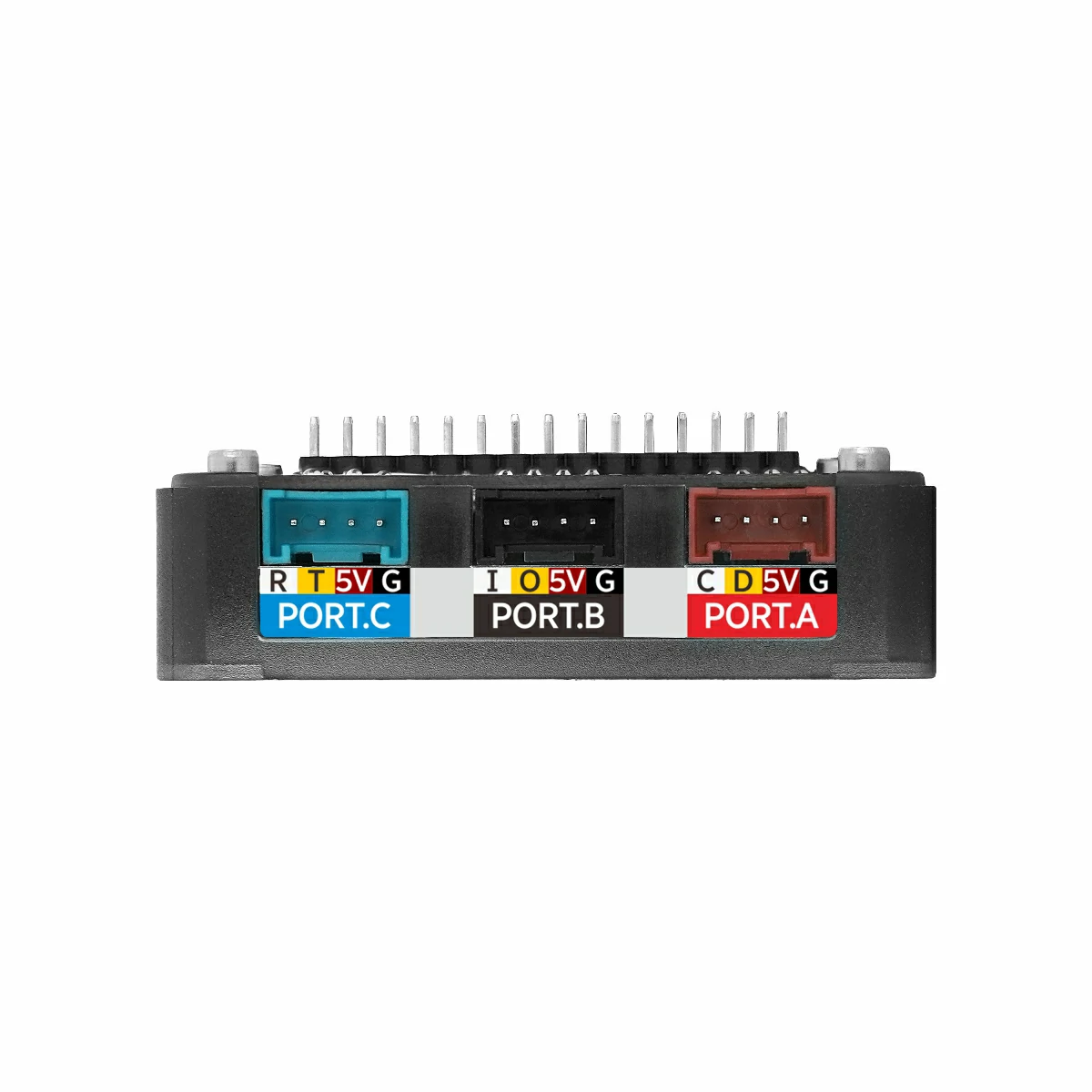

Expansion Interface 3 Grove ports: PORT.A, PORT.B, PORT.C

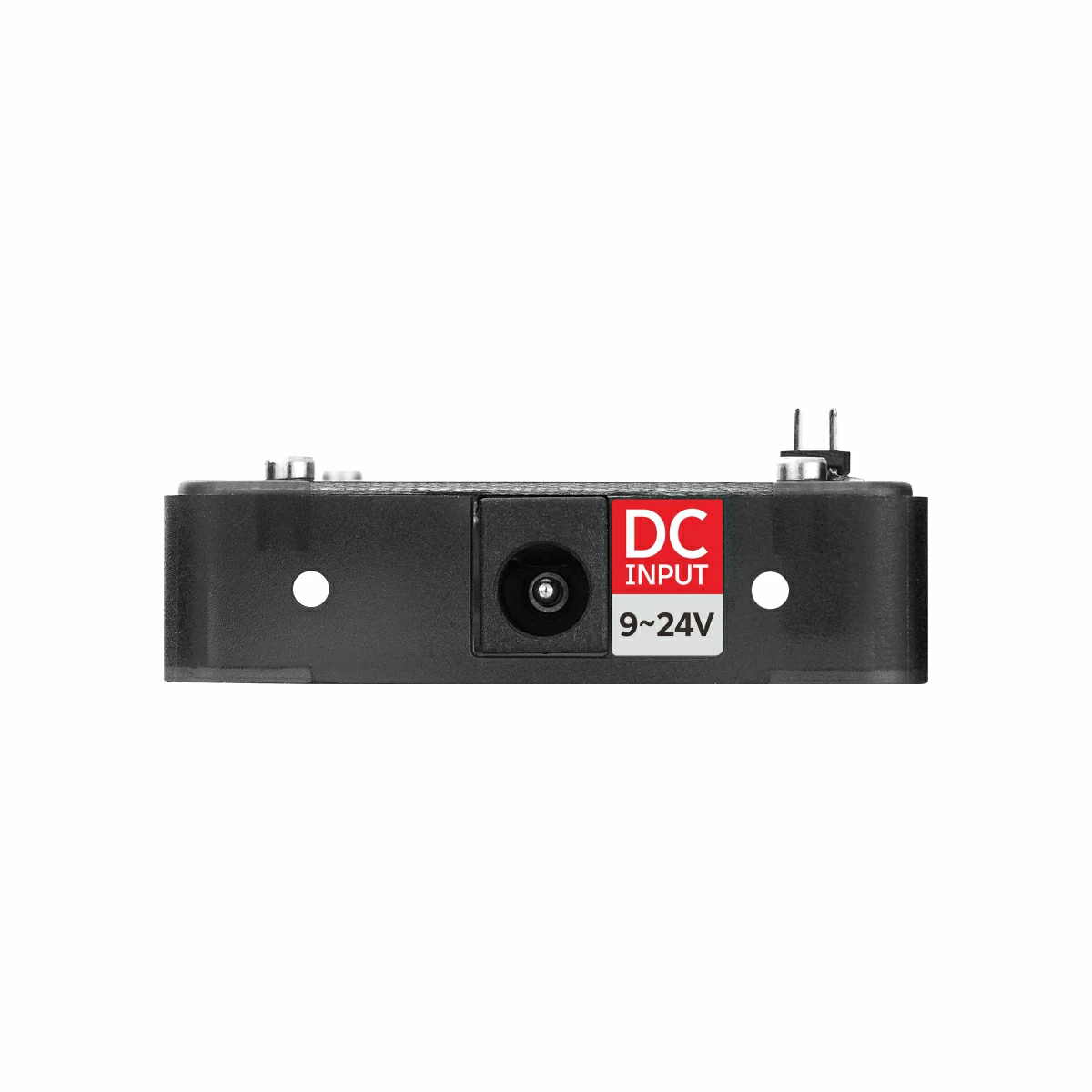

DC Power Input Interface Input voltage: DC 9 ~ 24V, spec: 5.5 x 2.1 mm, polarity: center positive, outer negative
Operating Current (with Core2) DC 5V module off 5.04V@74.42 mA, on 5.09V@255.84 mA DC 9V module off 9.09V@98.93 mA, on 9.10V@153.44 mA DC 12V module off 10.49V@79.96 mA, on 10.38V@124.54 mA
Product Size 54.0 x 54.0 x 19.7 mm
Product Weight 22.9 g
Package Size 138.0 x 93.5 x 22.5 mm
Gross Weight 38.8 g

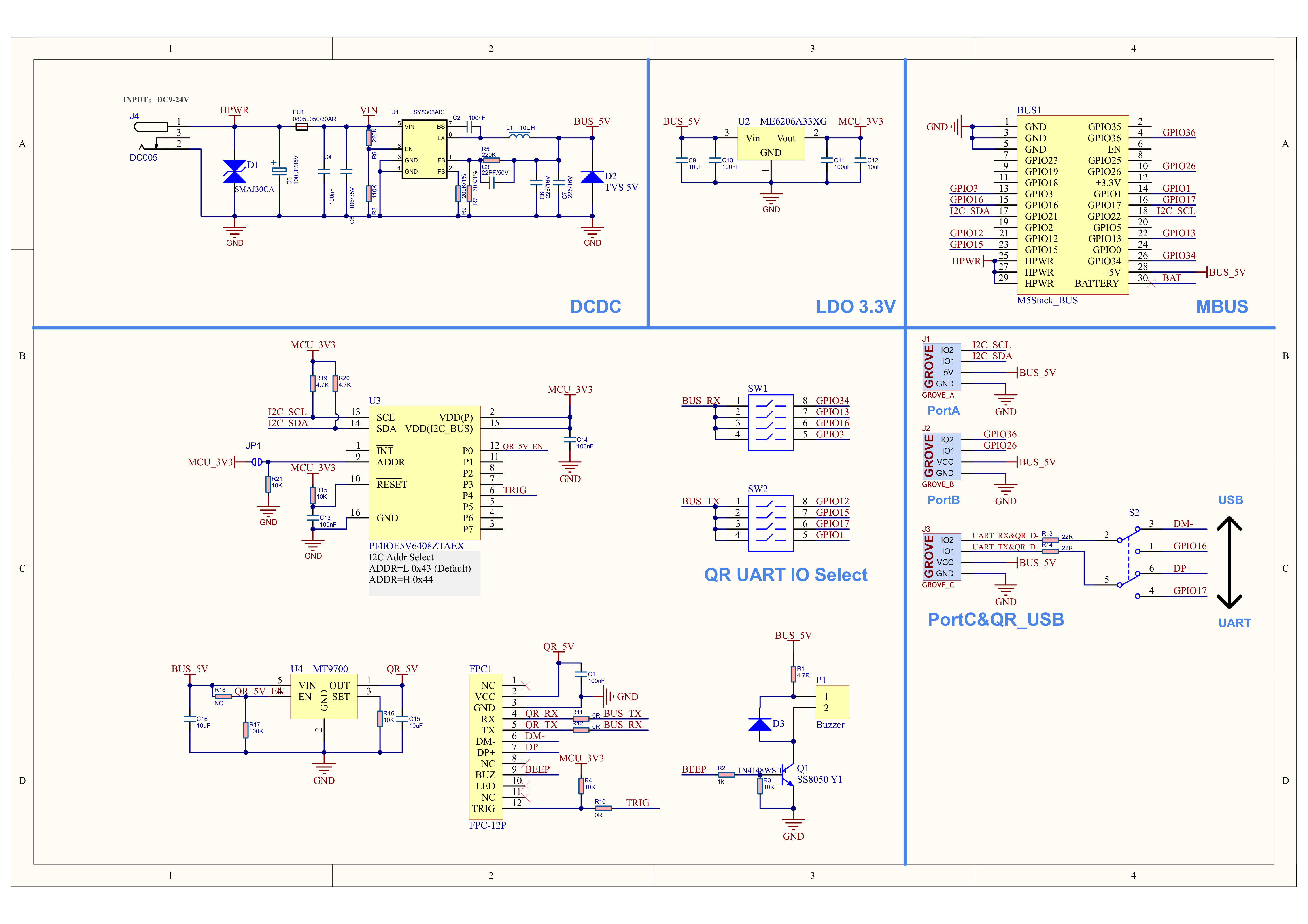

Schematics

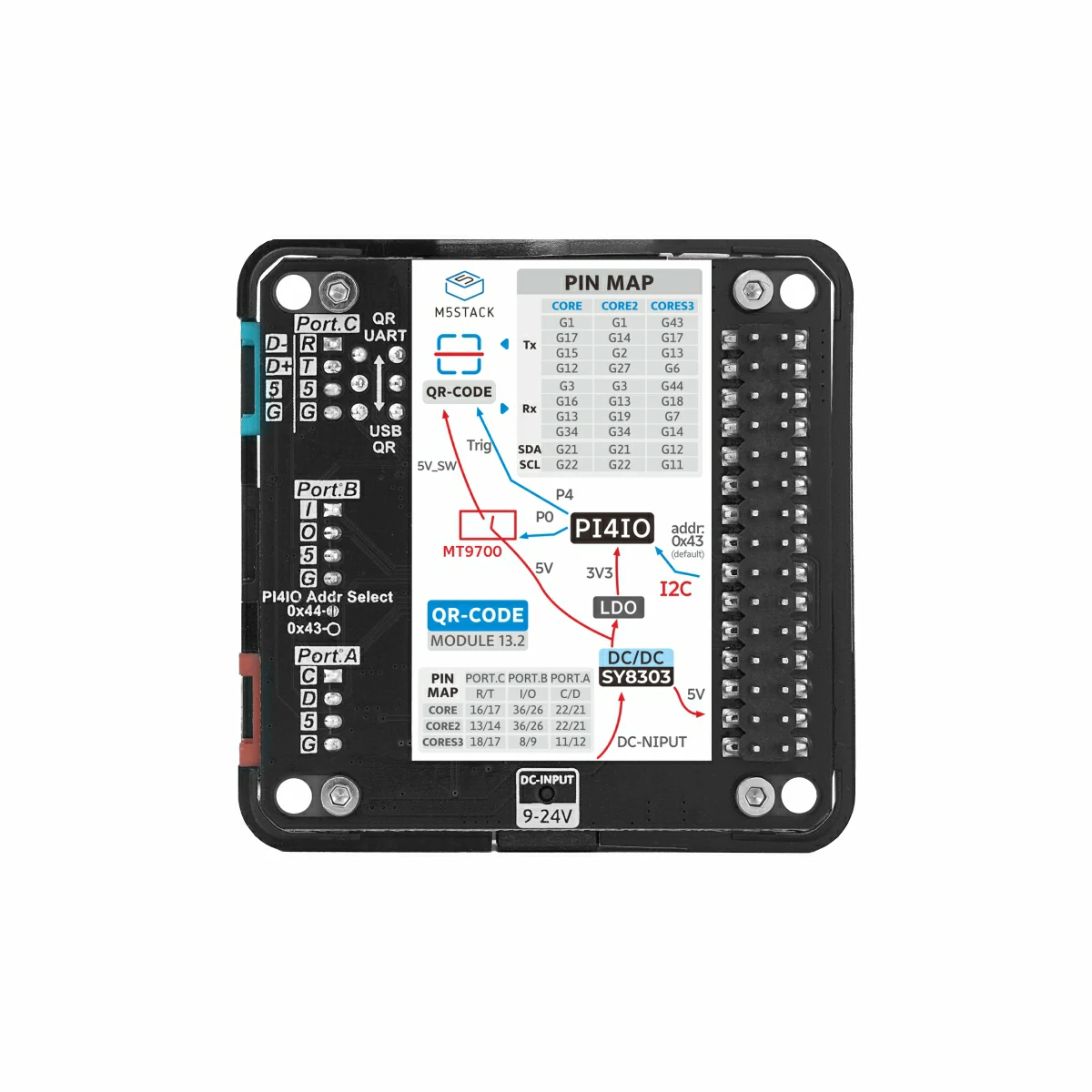

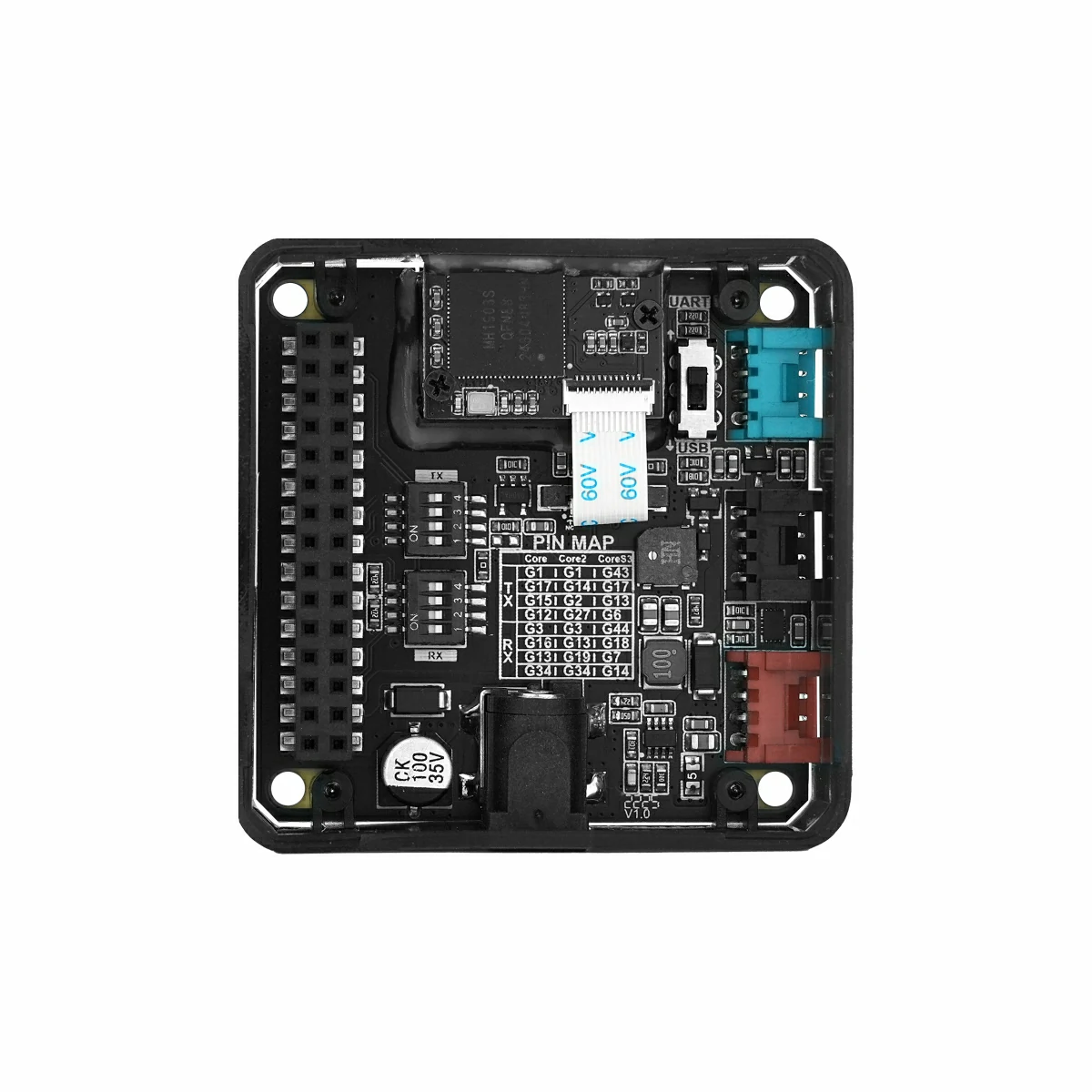

PinMap

IO Expansion Chip

PI4IOE5V6408 P0 P4
QR Module QR_5V_EN TRIG

M5-Bus

Switch
Pins marked SW in the M5-Bus below can be switched via DIP switches to adapt to different host devices; switching to NC disconnects that pin.
PIN LEFT RIGHT PIN
GND 1 2
GND 3 4 PORT.B
GND 5 6
7 8
9 10 PORT.B
11 12
QR_TX / NC (SW) 13 14 QR_RX / NC (SW)
QR_TX / PORT.C_UART_RX (SW) 15 16 QR_RX / PORT.C_UART_TX (SW)
I2C_SDA 17 18 I2C_SCL
19 20
QR_RX / NC (SW) 21 22 QR_TX / NC (SW)
QR_RX / NC (SW) 23 24
HPWR 25 26 QR_TX / NC (SW)
HPWR 27 28 5V
HPWR 29 30

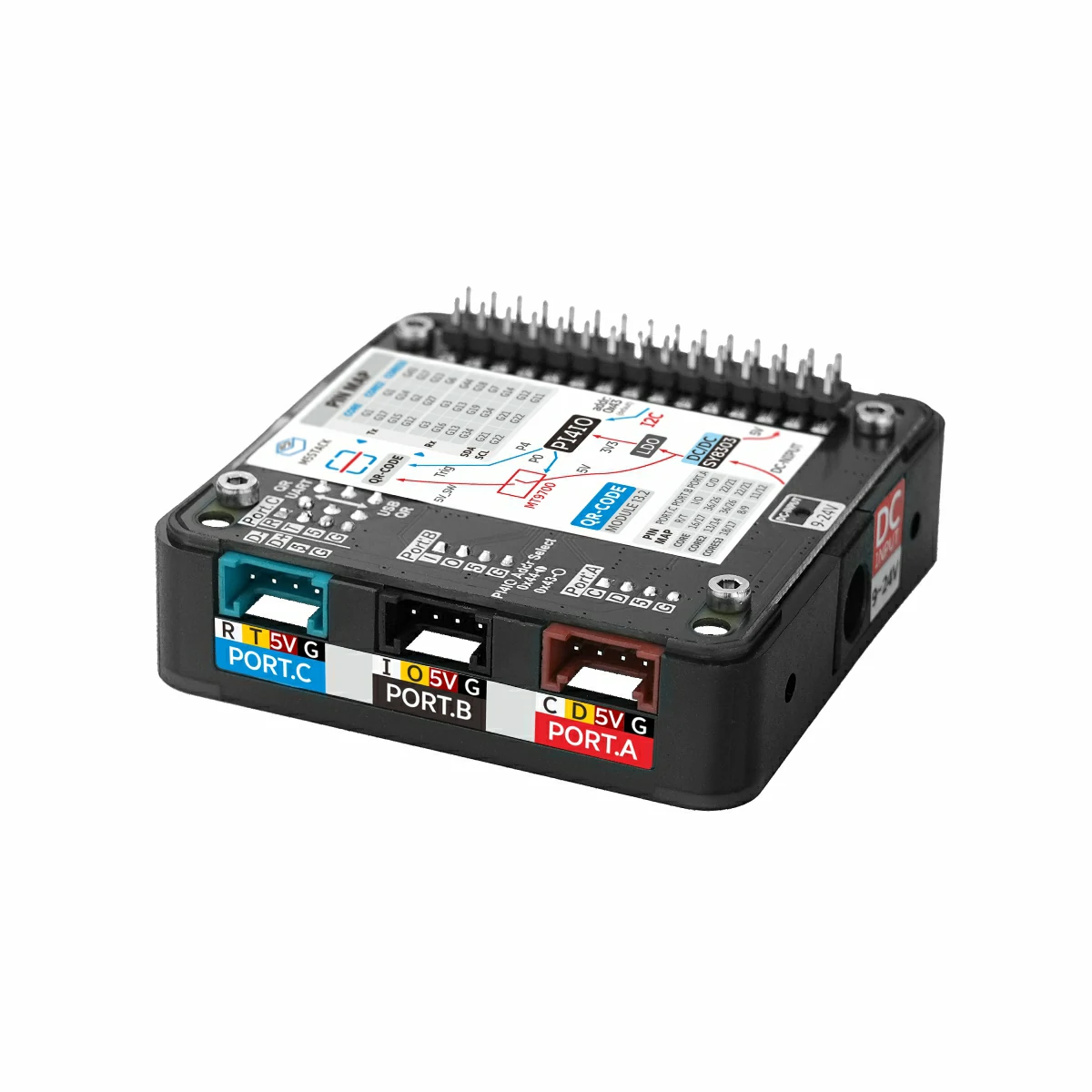

HY2.0-4P

HY2.0-4P Black Red Yellow White
PORT.A GND 5V I2C_SDA I2C_SCL
PORT.B GND 5V OUT IN
PORT.C GND 5V UART_TX/QR_USB_DP+ (SW) UART_RX/QR_USB_DM- (SW)

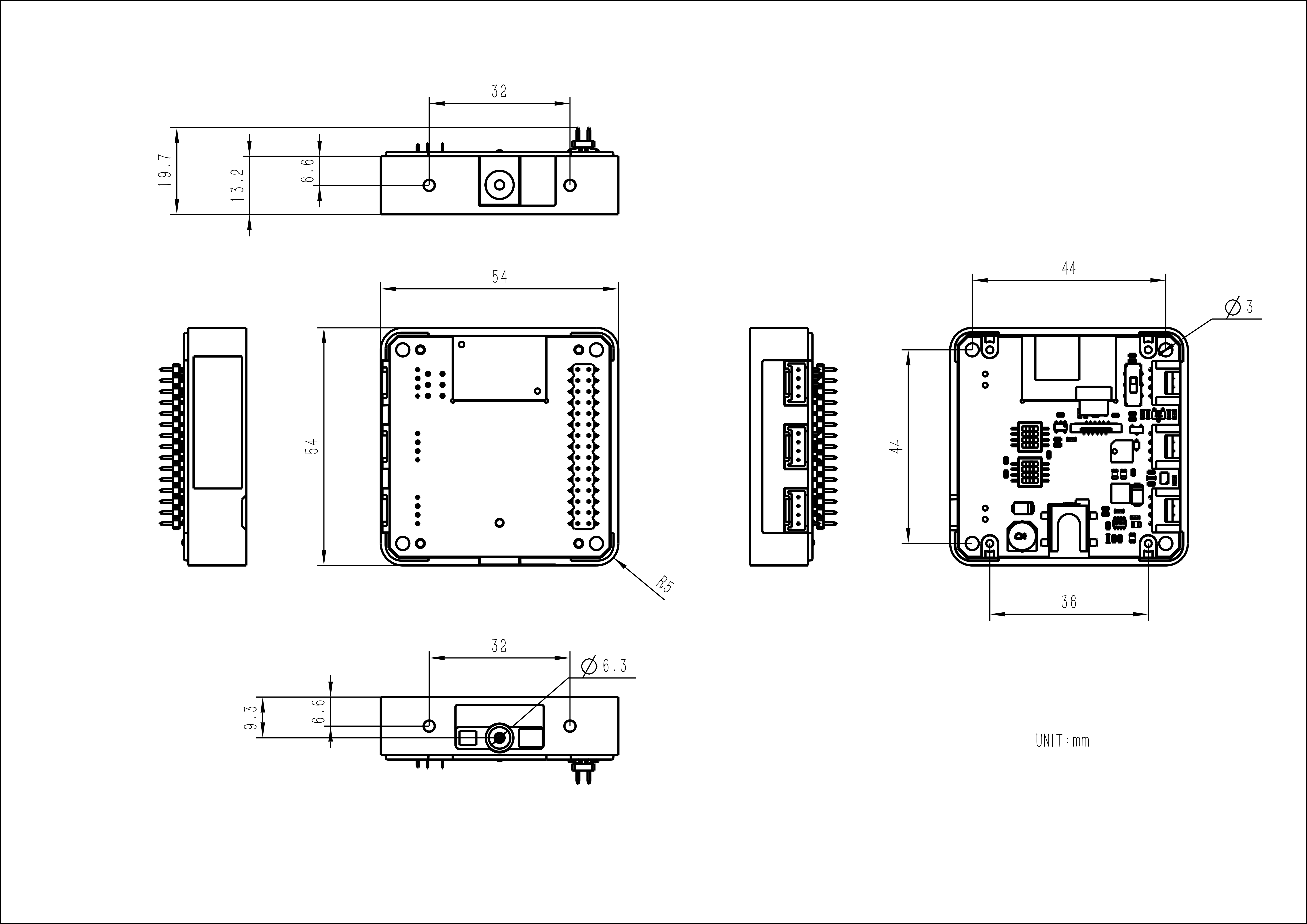

Model Size

Datasheets

Softwares

Arduino

UiFlow2

Protocol

Configuration Tool

Video

  • Module13.2 QRCode product introduction and demo
