Module CC1101
SKU:M146
Description

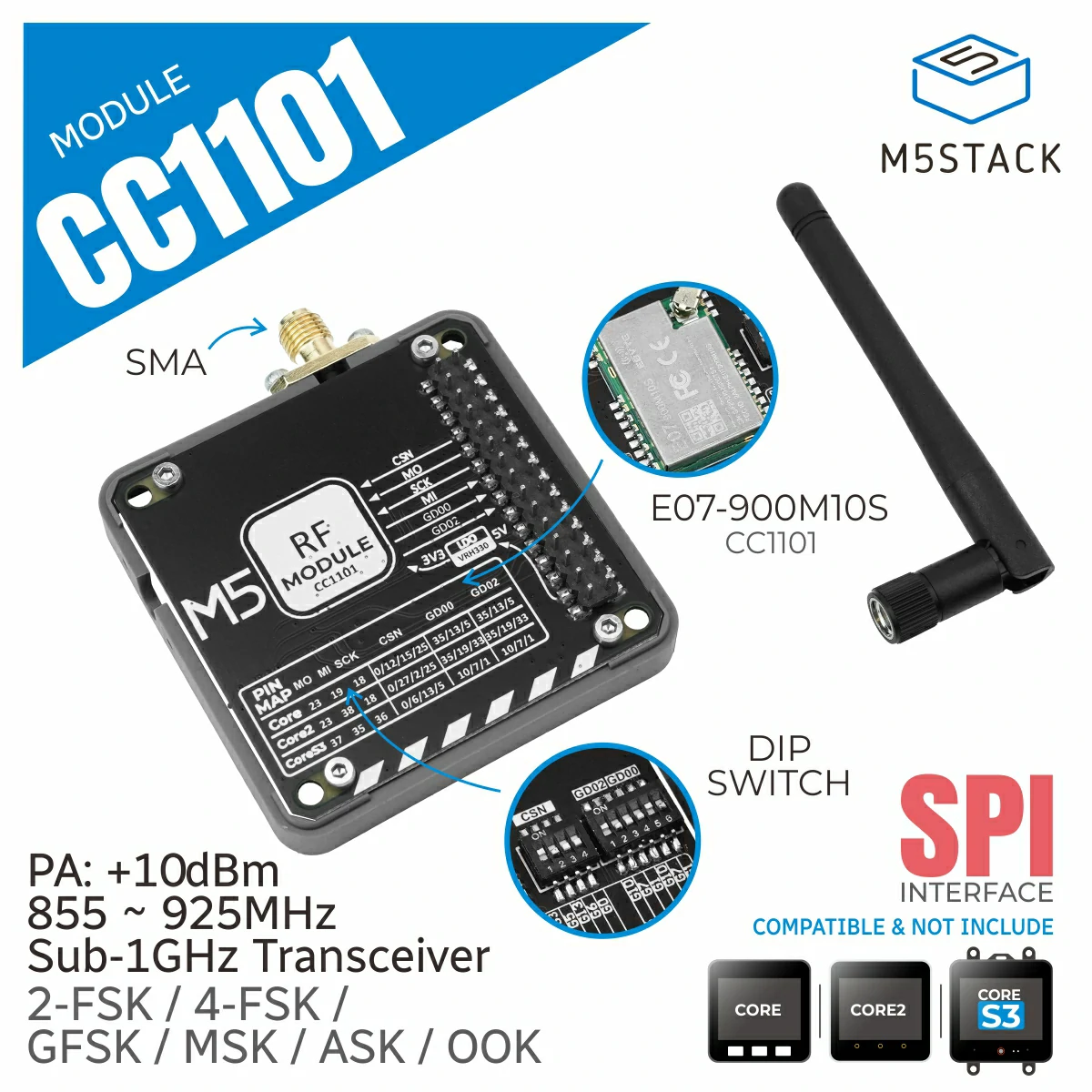

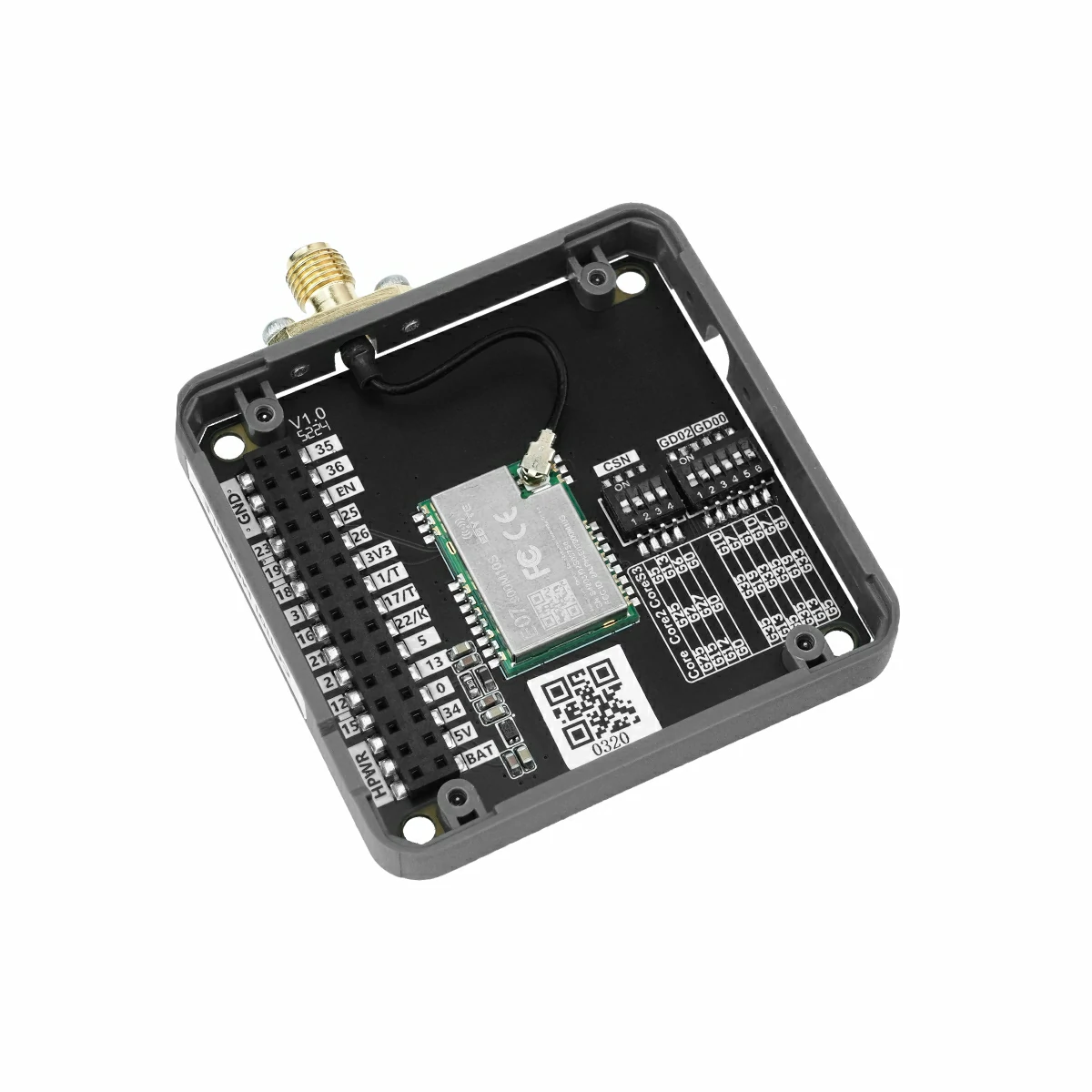

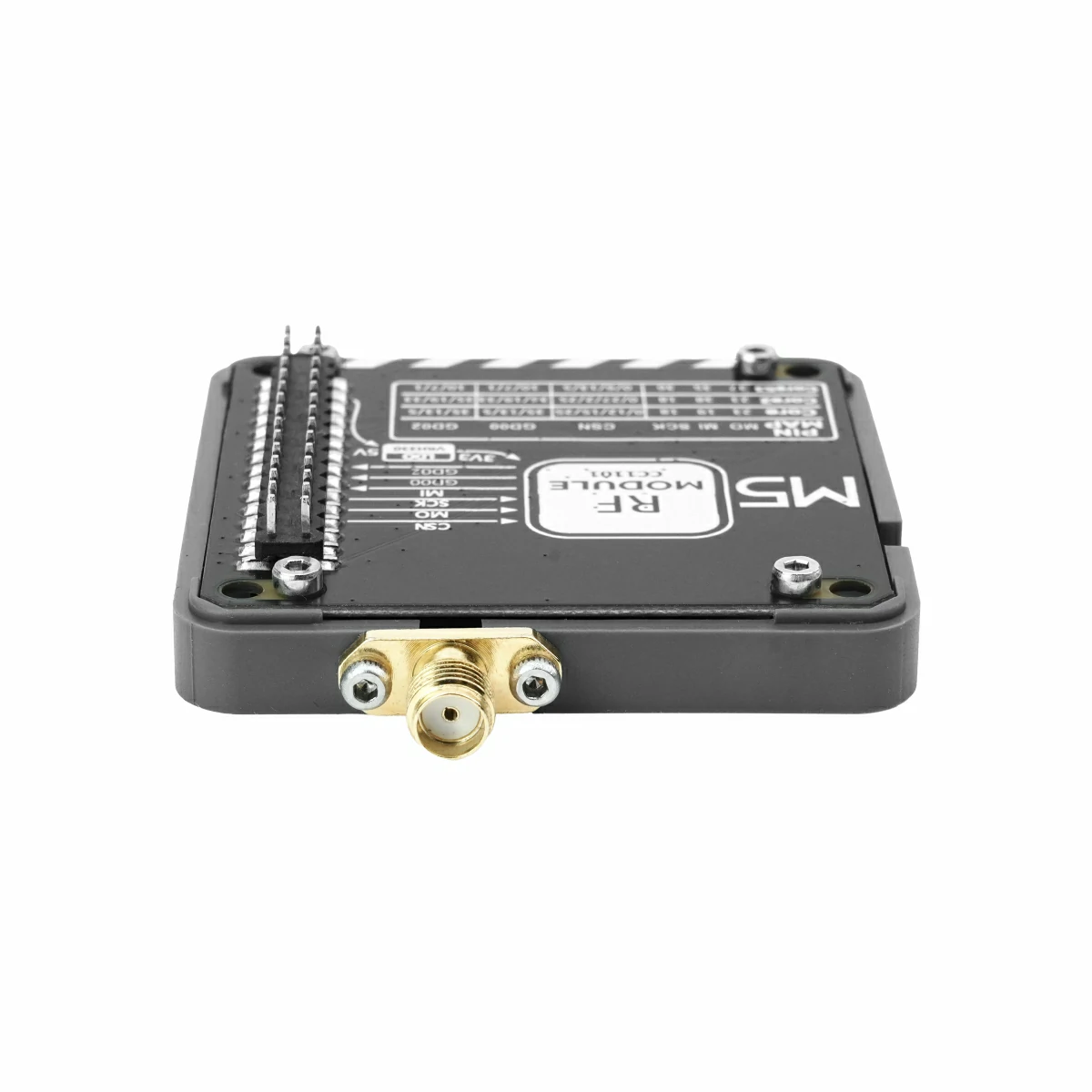

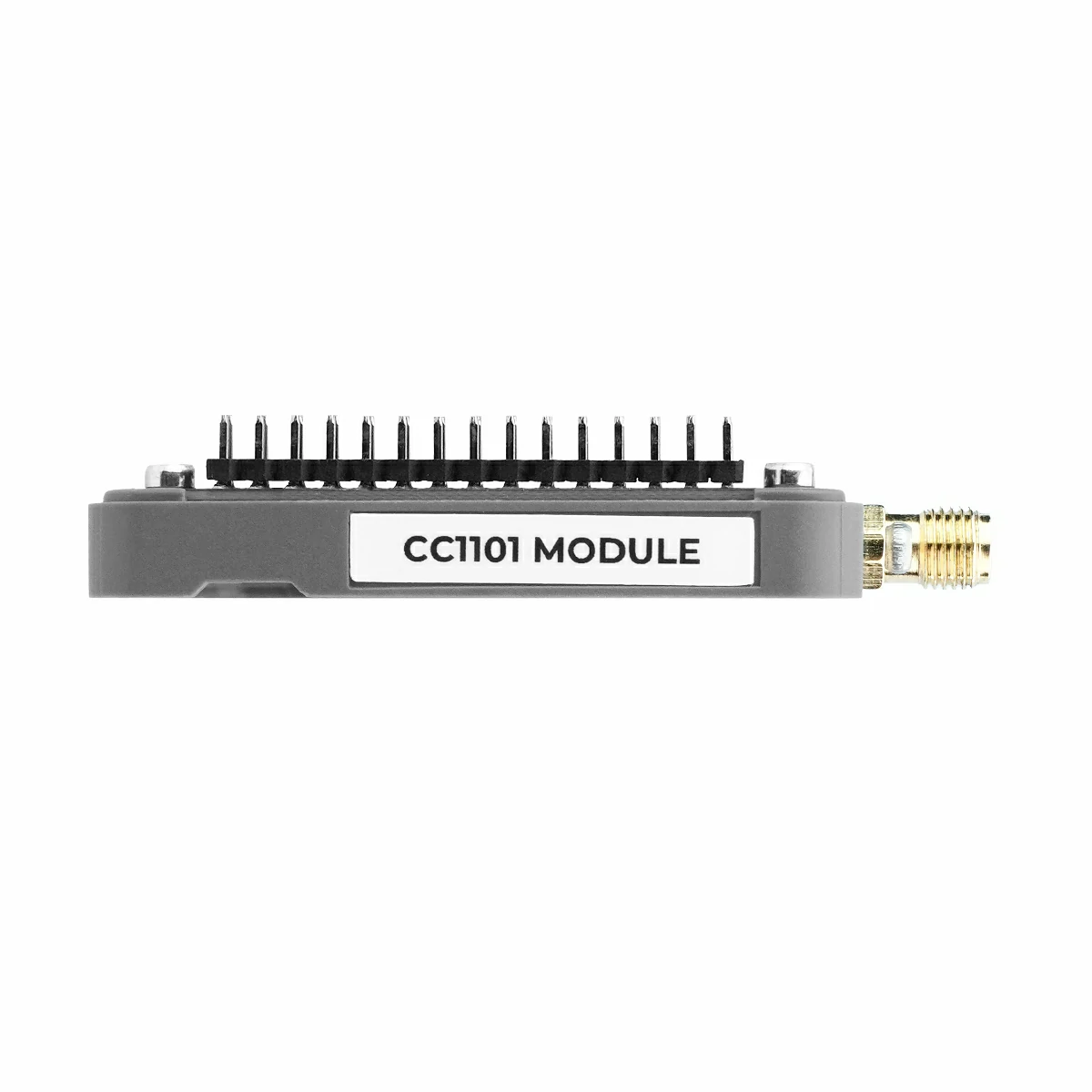

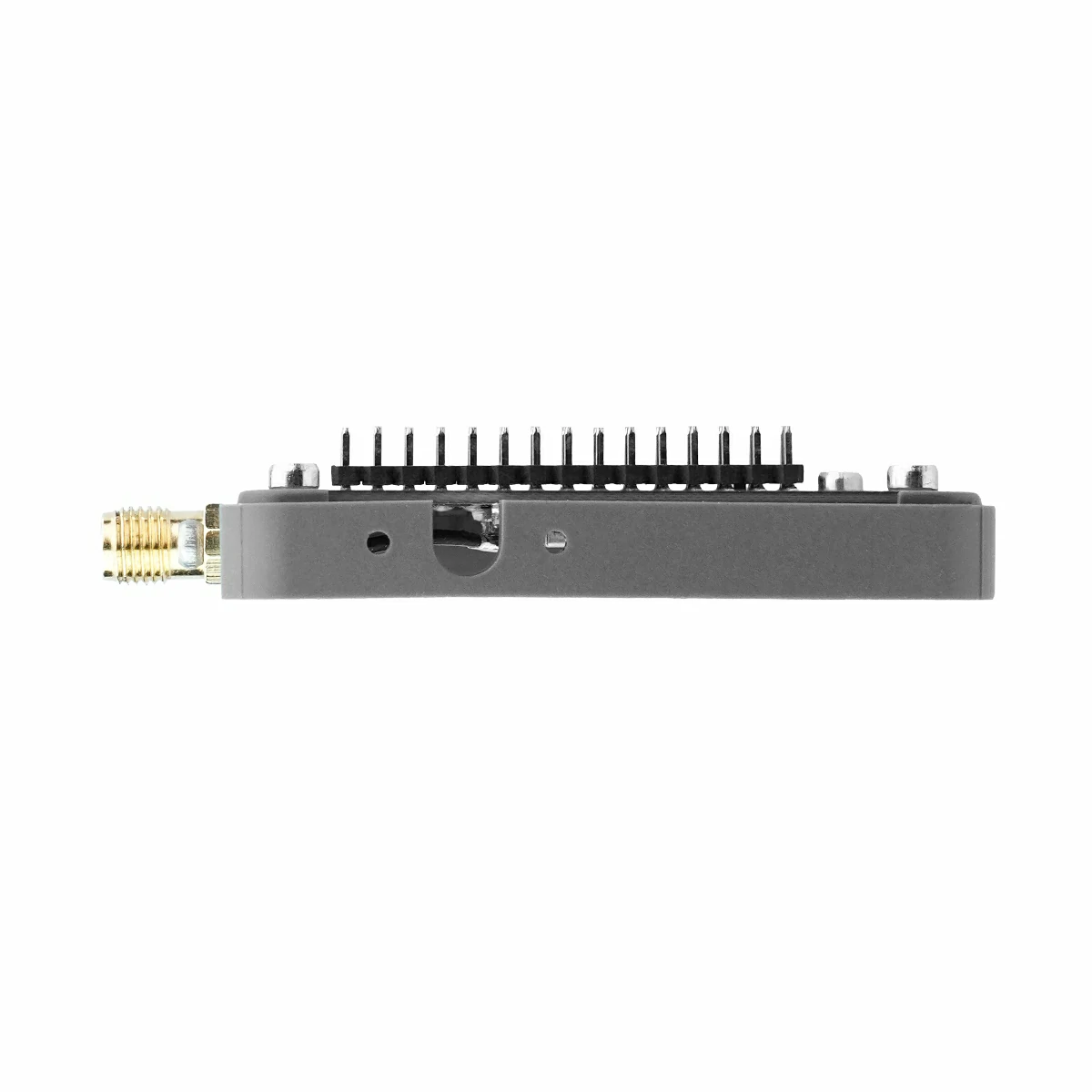

Module CC1101 is a high-performance wireless communication module. It adopts the E07-900M10S module solution (built-in CC1101 low-power Sub-1 GHz RF transceiver) with an operating frequency range of 855 ~ 925MHz. It supports 2-FSK, 4-FSK, GFSK, MSK, ASK, and OOK modulation methods, providing stable wireless data transmission while maintaining low power consumption. The module uses an SPI communication interface and features onboard DIP switches for flexible pin switching, supporting multiple stacked modules for functional expansion. It is suitable for wireless control applications such as industrial automation, smart homes, automatic lighting, and robotics.
Features
- SPI serial communication protocol
- E07-900M10S module (based on CC1101)
- Built-in DIP switch for pin selection
- Supports multiple module stacking
- CC1101 low-power Sub-1 GHz RF transceiver
- Independent 64-byte RX FIFO and TX FIFO
- Supports RSSI (Received Signal Strength Indicator) and LQI (Link Quality Indicator)
- Operating frequency range: 855 ~ 925 MHz
- Supports 2-FSK, 4-FSK, GFSK, MSK, ASK, OOK modulation methods
- Receiving sensitivity: up to -109 dBm (at 1.2kbps rate)
- Low power consumption in sleep mode

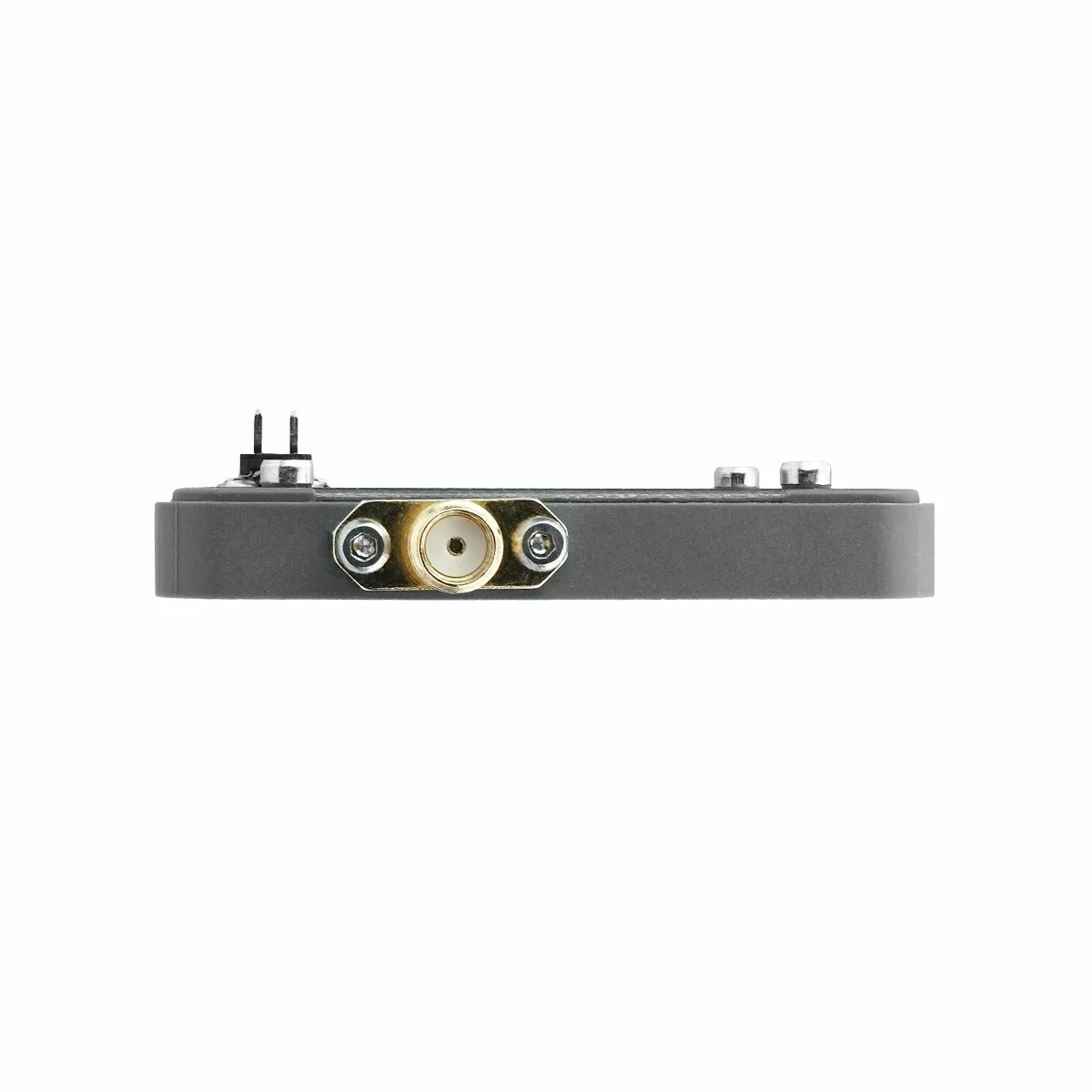

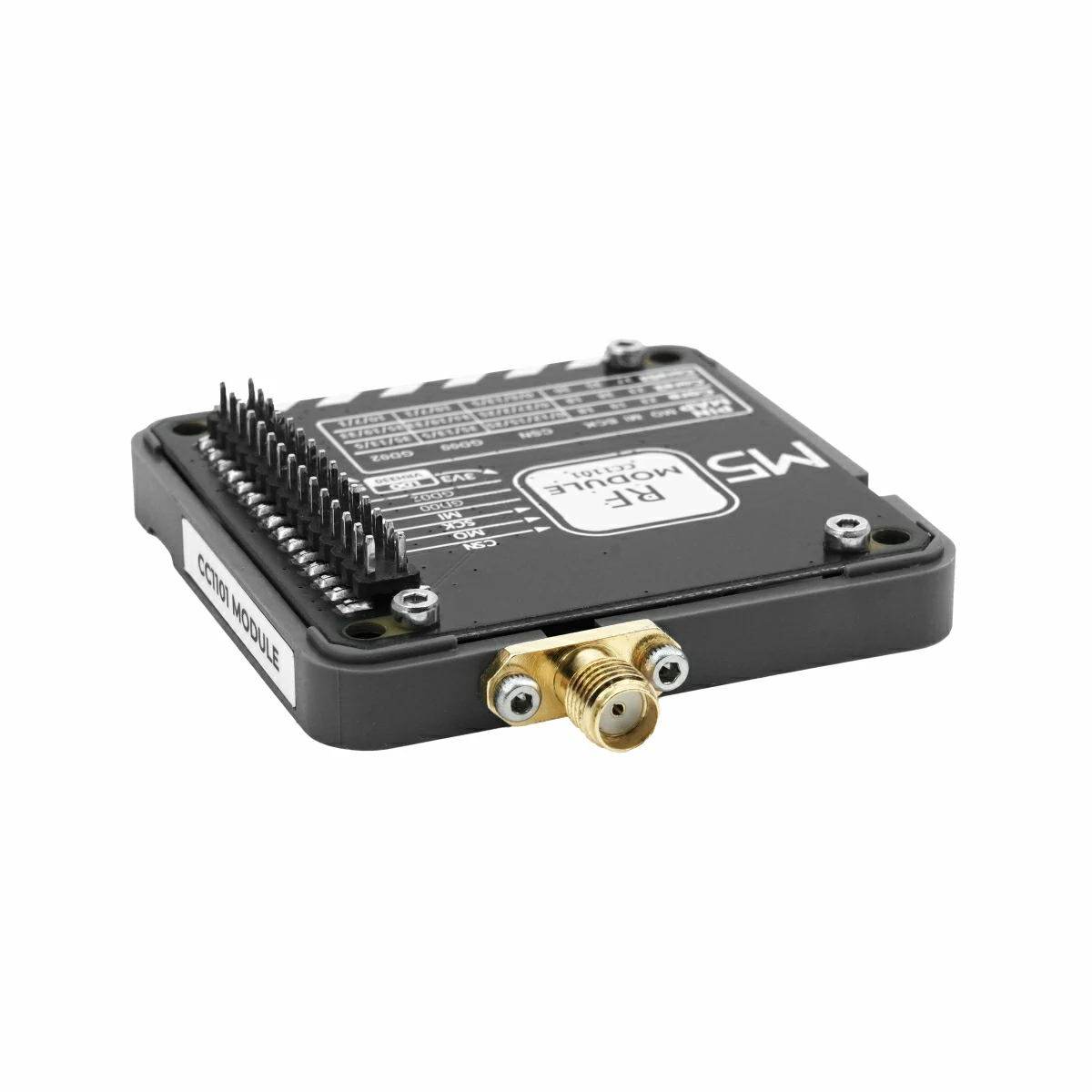

- External SMA antenna interface
- Development Platform:
- Arduino
- UiFlow2

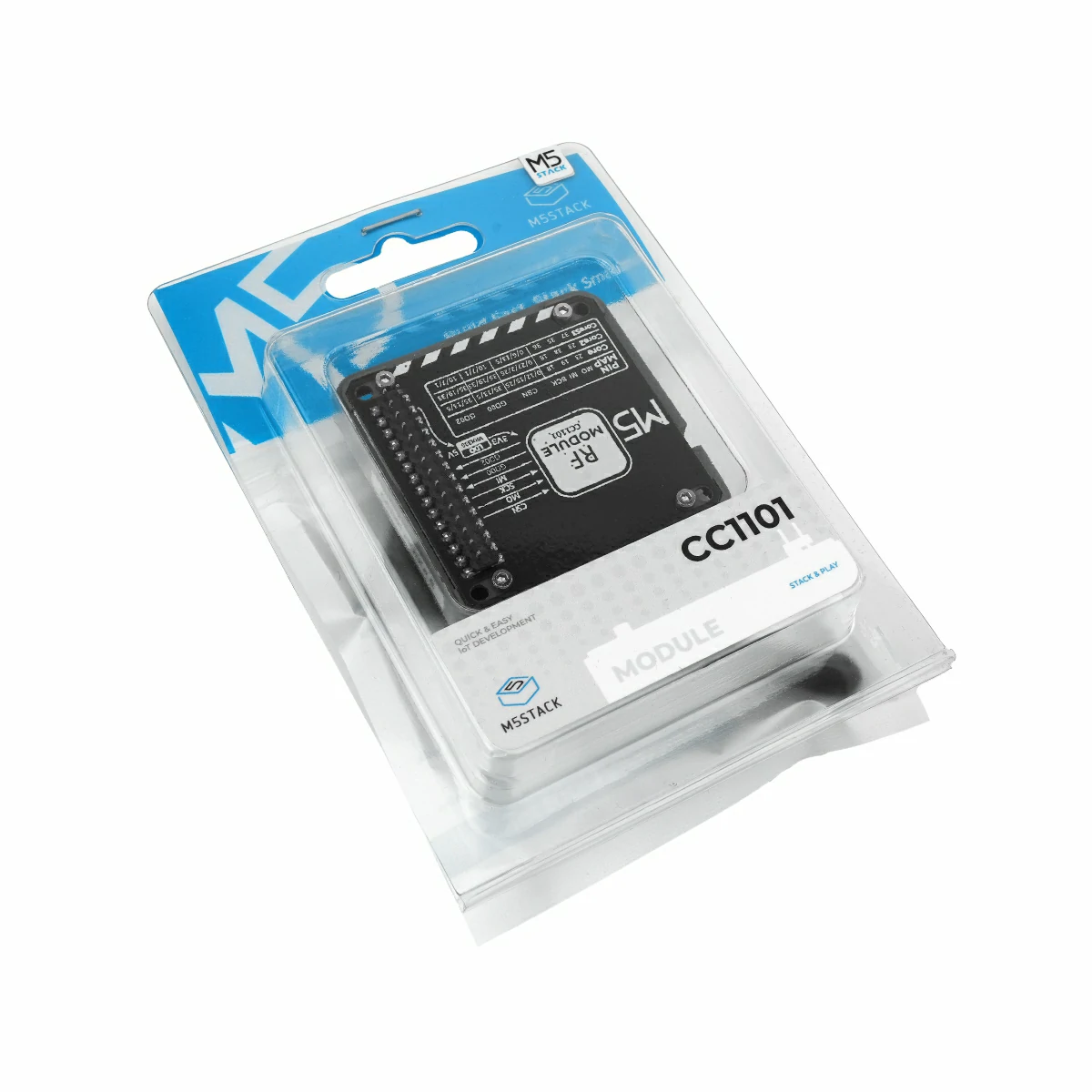

Includes
- 1 x Module CC1101
- 1 x SMA rubber antenna
Applications
- Industrial automation
- Smart home systems
- Automatic lighting
- Robotics
Specifications
| Specification | Parameter |
|---|---|
| RF Transceiver Module | E07-900M10S module (based on CC1101) |
| Operating Frequency | 855 ~ 925 MHz |
| Communication Interface | SPI |
| Programmable Bit Rate | 0.6 ~ 500kbps |
| Antenna | Rubber antenna @2.5dBi Length: 110 x 8mm |
| Communication Range | 430m (Frequency: 868MHz, BW: 58kHz) |
| Transmit Power | +10 dBm |
| Receive Sensitivity | Up to -109 dBm |
| Sleep Power Consumption | DC 5V@26.48uA |
| Standby Power Consumption | DC 5V@1.74mA |
| Working Power Consumption | Receive mode: DC 5V@17.11mA Transmit mode: DC 5V@30mA Sleep mode: DC 5V@26.48uA |
| Product Size | 54.0 x 63.6 x 13.1mm |

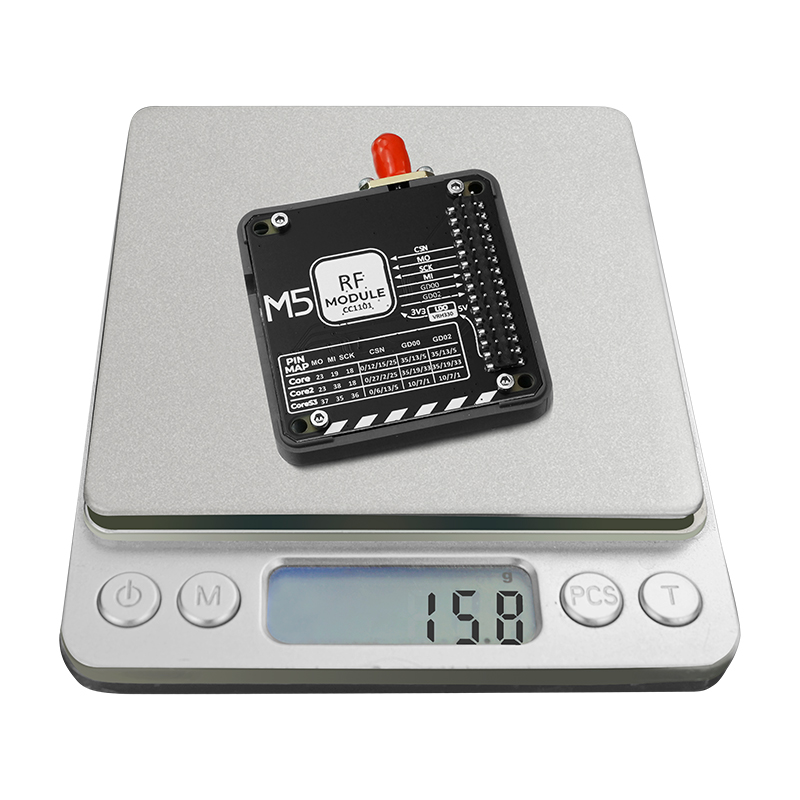

| Product Weight | 15.8g |
| Package Size | 134.0 x 95.0 x 15.7mm |
| Gross Weight | 38.9g |
Schematics
1/1

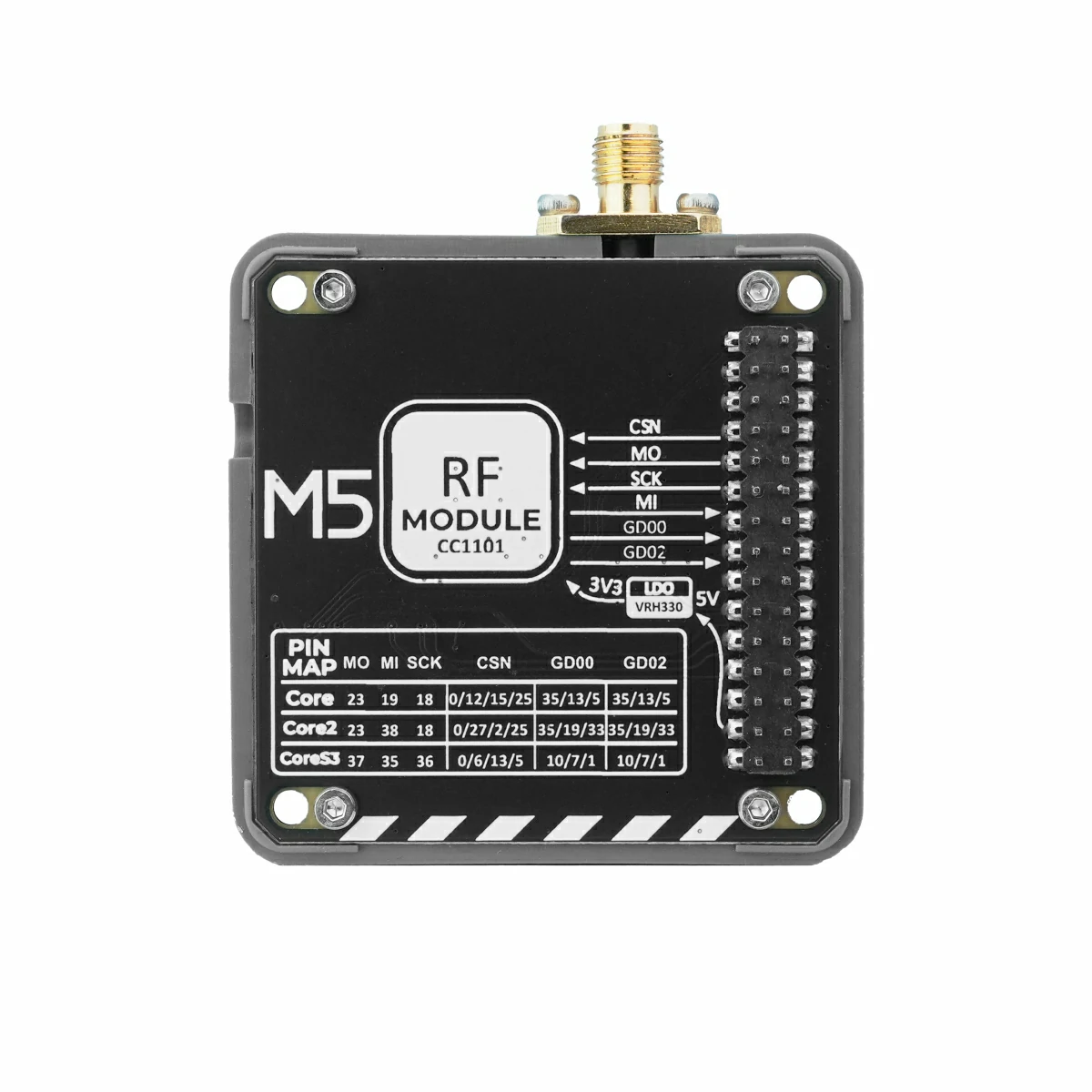

PinMap
M5-Bus

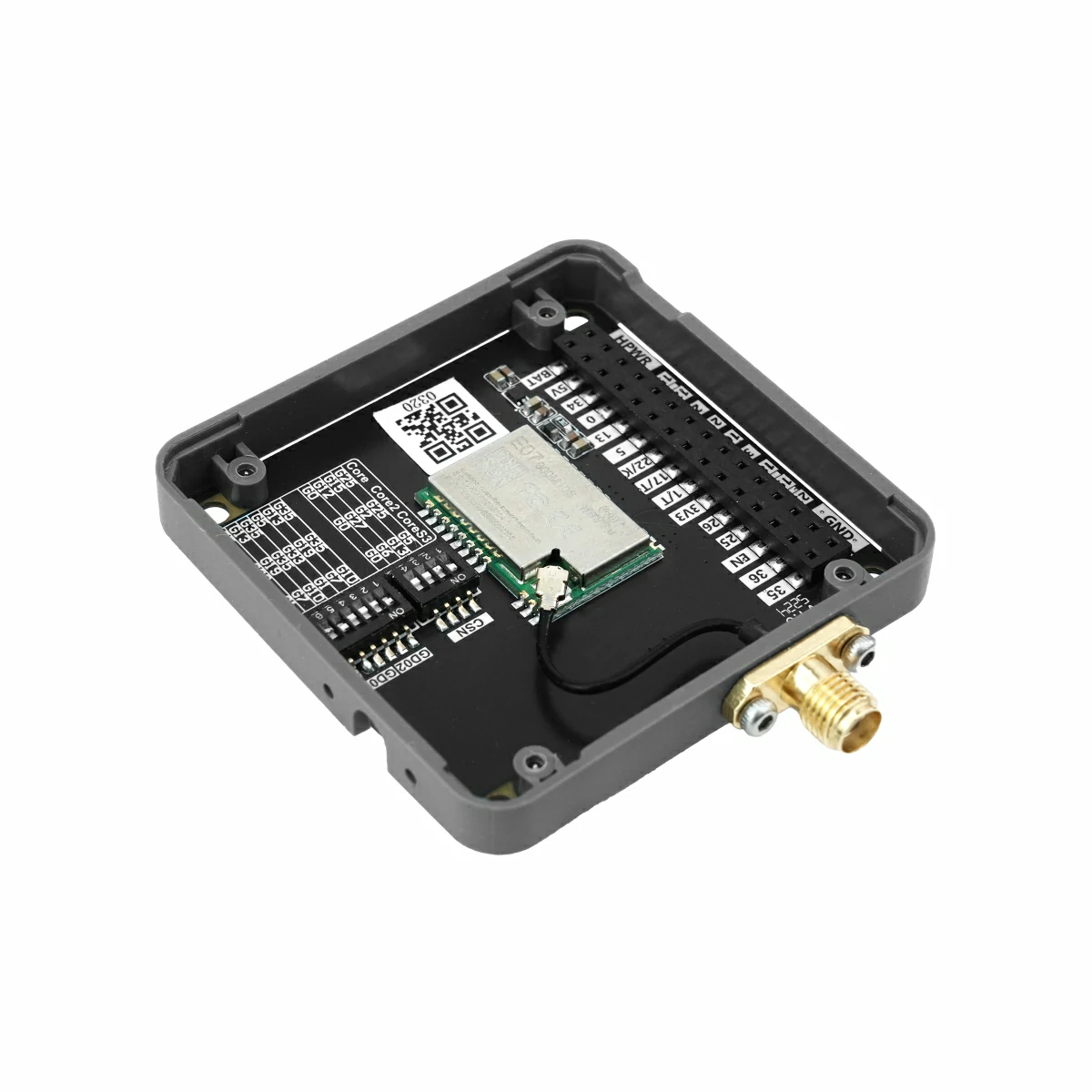

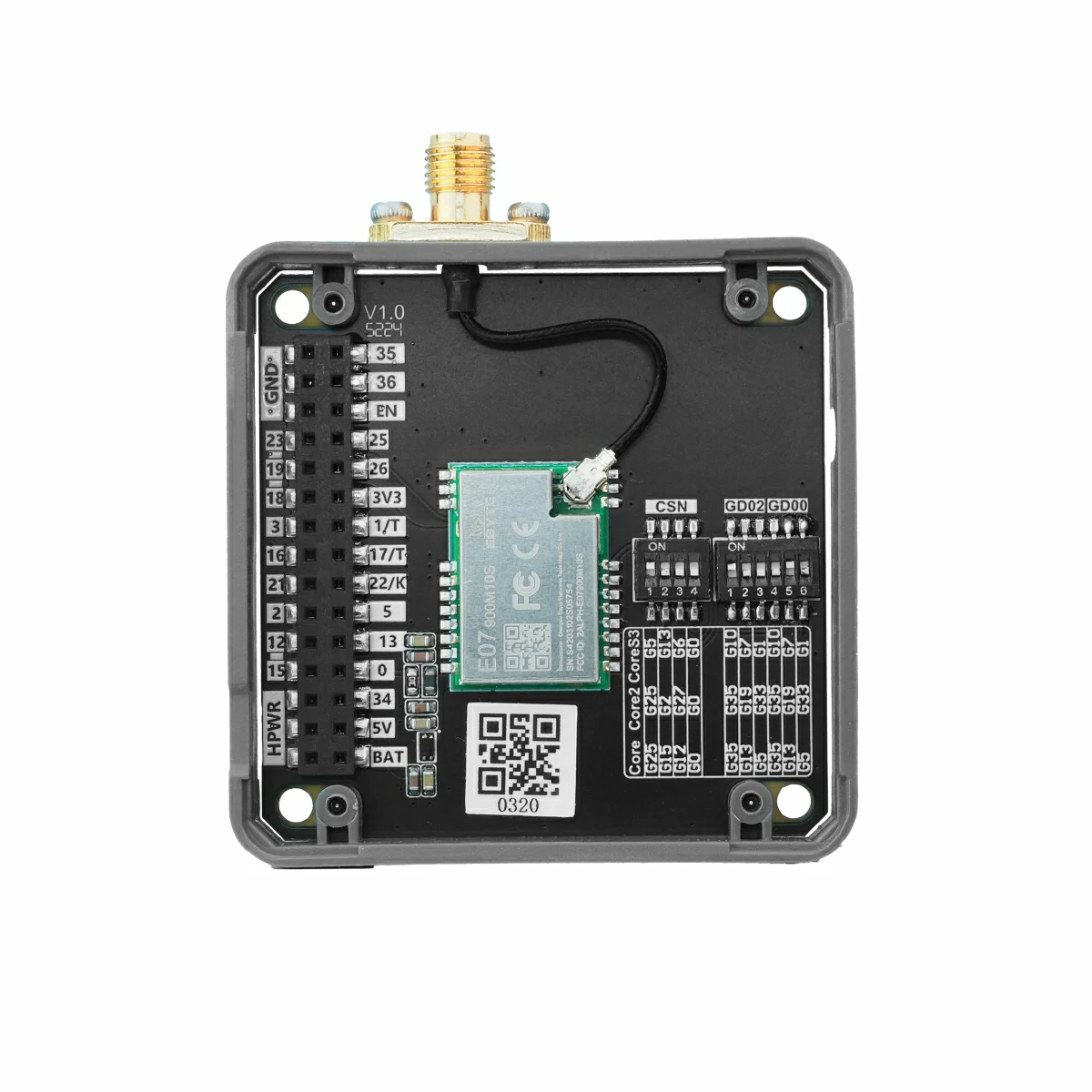

DIP Switch
The
SW-marked pins on the lower M5-Bus can be switched via the DIP switch to adapt to different controller devices. GD00 and GD02 pins share the same three selectable IOs, please choose different pins to avoid functional conflicts.| PIN | LEFT | RIGHT | PIN |
|---|---|---|---|
| GND | 1 | 2 | GD00 / GD02 (SW) |
| GND | 3 | 4 | |
| GND | 5 | 6 | |
| MOSI | 7 | 8 | CSN (SW) |
| MISO | 9 | 10 | |
| SCK | 11 | 12 | |
| 13 | 14 | ||
| 15 | 16 | ||
| 17 | 18 | ||
| 19 | 20 | GD00 / GD02 (SW) | |
| CSN (SW) | 21 | 22 | GD00 / GD02 (SW) |
| CSN (SW) | 23 | 24 | CSN (SW) |
| HPWR | 25 | 26 | |
| HPWR | 27 | 28 | 5V |
| HPWR | 29 | 30 |
Model Size
Datasheets
Softwares
Arduino
Video
- Module CC1101 Product Introduction and Function Demonstration
