Module COMX LTE

SKU:M031-A

Description

Module COMX LTE is a stackable multifunctional LTE communication module, built-in LTE module SIM7600G, supporting LTE-TDD/LTE-FDD/WCDMA and GSM frequency bands, supporting LTE.CAT4 (downlink speed of 150Mbps), and supporting voice calls and SMS. It has stable performance, compact appearance, and high cost performance, enabling low-power transmission of SMS and data information. The module comes with a DC power input, which can be powered by an external power supply of 5 ~ 12V. For user convenience in configuring pins, a DIP switch is used to set the pins. The onboard microphone and 3.5mm headphone jack support the insertion of headphones with a microphone. This module is particularly suitable for scenarios requiring high-speed network connections, such as video calls, drone data transmission, and industrial IoT.

Note

Compatibility

When used with the Fire main control, due to PSRAM pin (G16/G17) conflicts, please switch the module base DIP switch pins to TX(G0/G13), RX(G5/G15).

Features

Stackable design
Supports voice calls, SMS, and cellular data transmission
Can be powered externally
Built-in microphone
AT command control
SIM card type: MicroSIM
Status signals: Two LED indicators
External antenna: SMA antenna
Serial communication: UART 115200bps
Frequency bands:
- LTE-TDD B34/B38/B39/B40/B41
- LTE_FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/ B18/B19/B20/B25/B26/B28/B66
- WCDMA B1/B2/B4/B5/B6/B8/B19
- GSM/GPRS/EDGE 850/900/1800/1900MHz
Data transmission:
LTE Cat4
- Maximum uplink speed: 50Mbps
- Maximum downlink speed: 150Mbps
HSPA+
- Maximum uplink speed: 5.76Mbps
- Maximum downlink speed: 42Mbps
WCDMA
- Maximum uplink/downlink speed: 384Kbps
EDGE/GPRS
- Maximum uplink/downlink speed: 236.8Kbps
Supported protocols
- TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNS
- TLS
- RNDIS/ECM
- FOTA

Includes

1 x Module COMX LTE
1 x SMA antenna
1 x Hex wrench

Applications

Smart metering
Video calls
Industrial IoT

Specifications

Specification	Parameters
Supported bands	LTE-FDD/LTE-TDD/WCDMA/GSM
Network protocols	TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNS
Communication method	UART 115200bps
DC interface specification	5.5mm
Net weight	55g
Gross weight	90g
Product Size	54 x 54 x 13.2mm
Package Size	165 x 60 x 36mm

Learn

Frequency bands of some national operators

The following content is not real-time information and is for reference only.

North America	B4 (1700), B12 (700), B66 (1700), B71 (600), B26 (850)
Asia Pacific	B1(2100), B3(1800), B5(850), B8(900), B18(850), B20(800), B26(850),B28(700)
Europe	B3 (1800), B8 (900) , B20 (800)
Latin America	B2(1900), B3(1800), B5(850), B28(700)
Commonwealth of Independent States	B3 (1800), B8 (900), B20 (800)
Sub-Saharan Africa	B3(1800), B8(900)
Middle East, North Africa	B8(900), B20(800)

Power supply switching

The module base has a DC power input interface. When using this interface to connect to a power supply, please strictly follow the input range (5-12V) to prevent module damage. The internal power DIP switch can adjust the voltage level of the internal terminal VIN to adapt to different modules.

Headphone Jack Compatibility Instructions

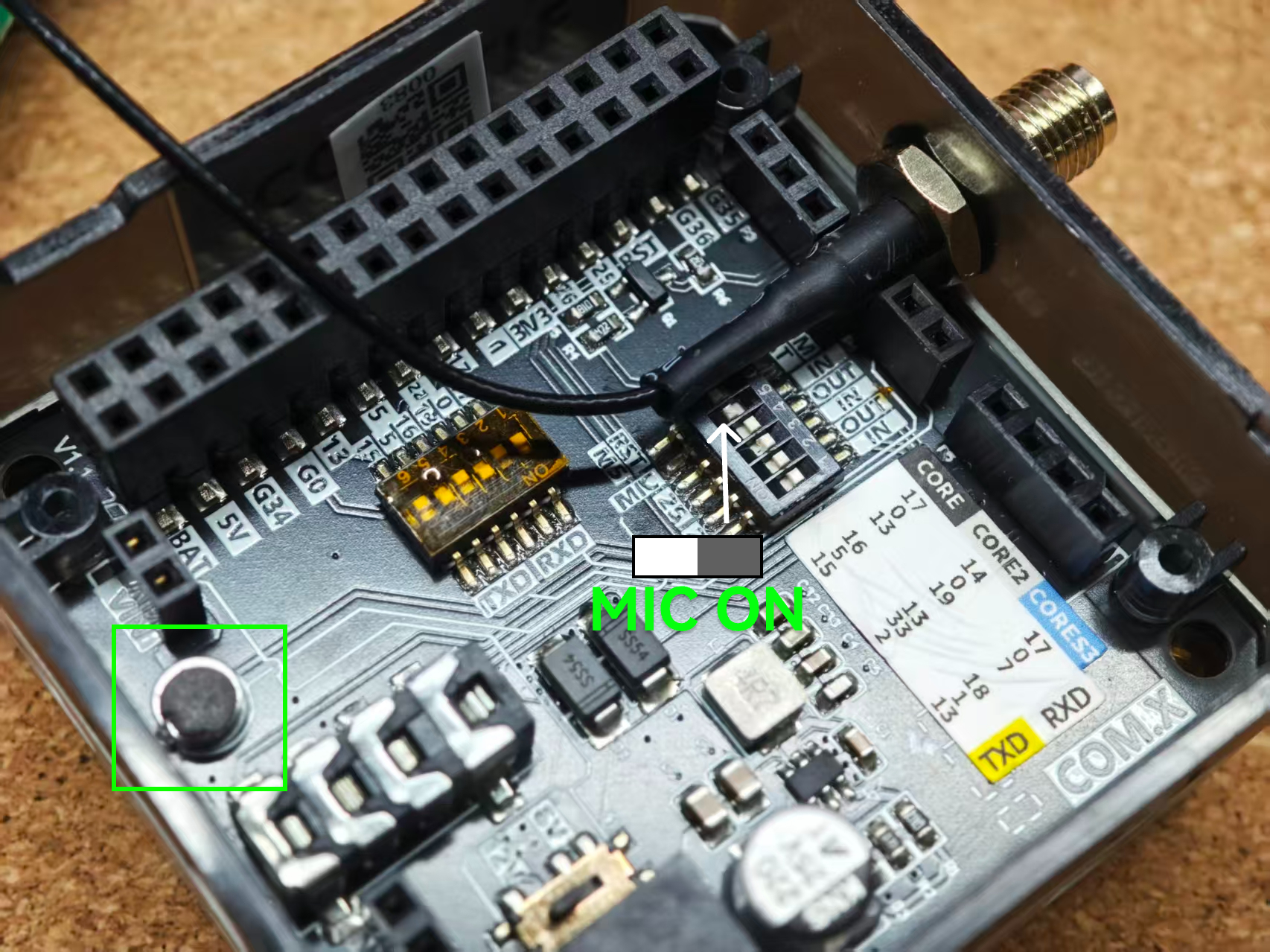

When using the 3.5mm headphone jack onboard the Module COMX LTE, a 3.5mm male connector with a length of 17mm is required; otherwise, the microphone will not work properly. For connectors of other lengths, use an adapter, or cut a small part of the headphone jack to ensure the headphone plug is fully inserted into the headphone jack. Alternatively, you can enable the onboard microphone via the DIP switch.

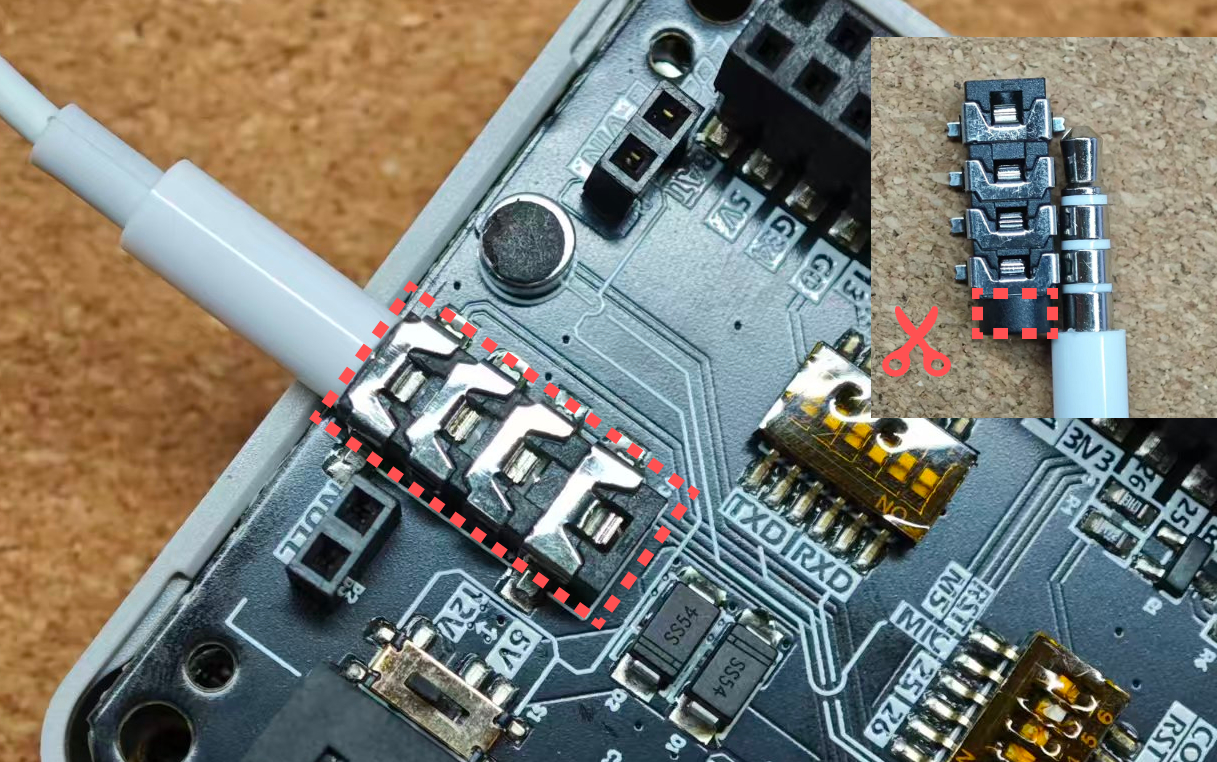

Diagram of cutting the headphone jack:

Certifications

CE/RCM/FCC/IC
PTCRB/GCF
AT&T/Verizon
RoHS/REACH
SIM7600E-PCIE_Deutsche Telekom_Certificate_2020.pdf.pdf

Schematics

Module COMX Module Base Schematic

PinMap

M5-Bus

Switch

The pins marked SW on the M5-Bus below can be switched via DIP switches to adapt to different main controllers.

PIN	LEFT	RIGHT	PIN
GND	1	2
GND	3	4
GND	5	6
	7	8
	9	10
	11	12	3V3
	13	14
TXD (SW)	15	16	RXD (SW)
	17	18
	19	20	TXD (SW)
	21	22	RXD (SW)
TXD (SW)	23	24	RXD (SW)
	25	26
	27	28	5V
	29	30

Model Size

Module COMX LTE Model Size PDF

Datasheets

Softwares

Arduino

UiFlow1

Module COMX LTE UiFlow1 Docs

Protocol

SIM7500_SIM7600 Series_AT Command Manual_V2.00.pdf

Easyloader

Easyloader	Download Link	Notes
Module COMX LTE Example Easyloader with M5Core	download	/
