Unit Mini Scales

SKU:U177

Description

Mini Scales Unit is an integrated mini weighing unit that combines a 5kg weighing sensor, an ADC acquisition chip (HX711), and a protocol conversion MCU to directly output weighing results. The product is equipped with an STM32F030F4P6 microcontroller, uses the I2C communication protocol for external communication, and supports multiple modules working together.

Additionally, it features an SK6812 RGB programmable LED indicator light and a function button, allowing users to easily perform zero calibration and tare adjustment. The product also provides additional installation options with a reserved M3 nut fixing hole on the top. Mini Scales Unit is suitable for various fields such as scientific experiments and industrial production, where precise weighing is required.

Features

  • STM32F030F4P6@32 bit ARM Cortex-M0 processor
  • I2C communication, multiple devices can be used in parallel at the same time
  • SK6812 RGB
  • Press key to clear and tare
  • Weighing up to 5KG
  • Programming platform: Arduino, UIFlow, python, etc

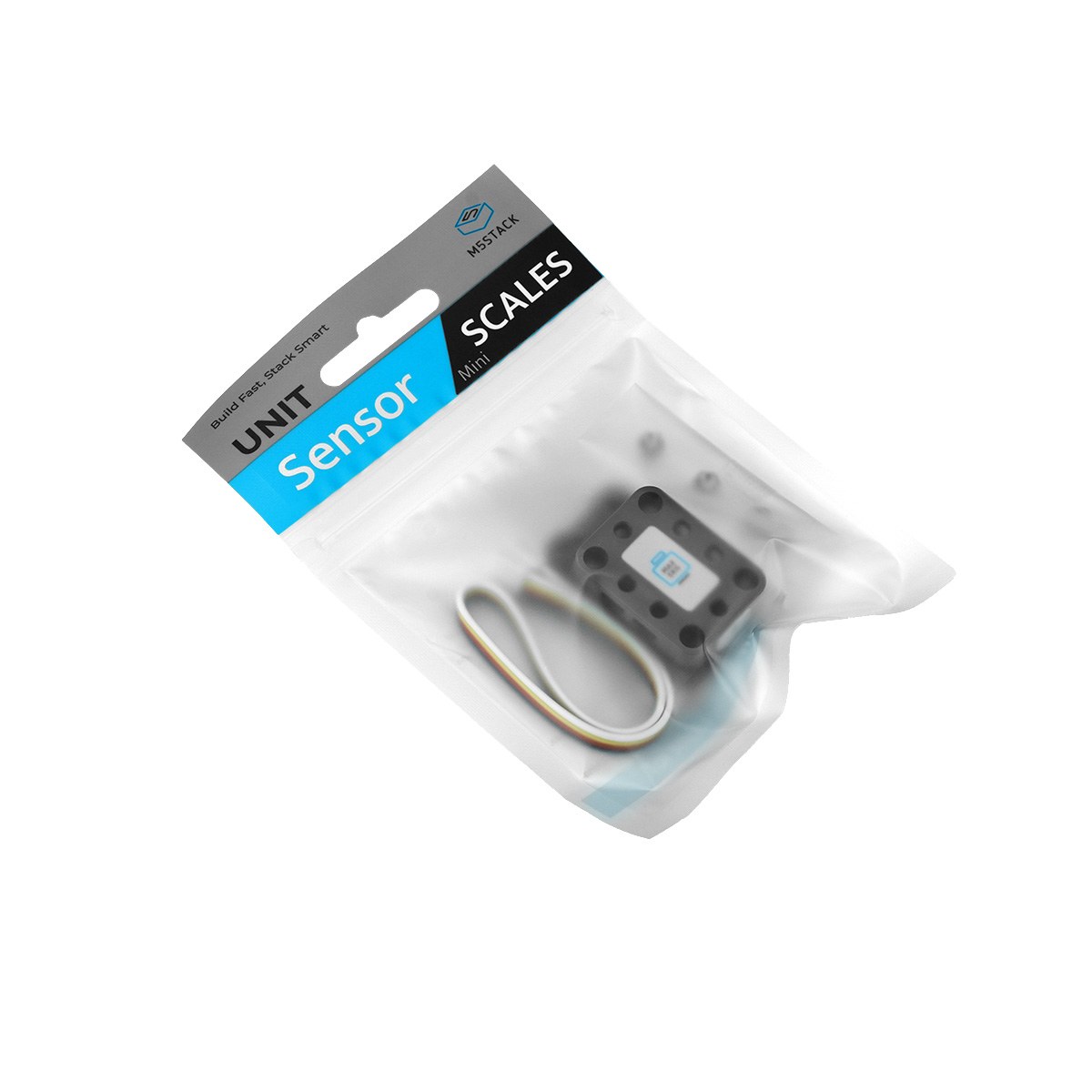

Includes

  • 1x MiniScales Unit
  • 4x Nut M3 (hexagonal 6*2.25mm)
  • 1x HY2.0-4P Cable(20cm)
schematics

Install the weighing plate on the Mini Scales Unit for weighing.

Applications

  • Science Experiment
  • Industrial Production

Specification

Resources Parameters
Sensor ADC Detection Chip HX711
MCU STM32F030F4P6@32 bit ARM Cortex-M0 processor
I2C Address 0x26
LED SK6812 RGB(programmable)
Button For zero calibration and peeling adjustment
Range 5KG
Bottom fixing nut specifications M3
Product Size 40*24*18mm
Package Size 136*92*24mm
Product Weight 15.3g
Package Weight 22g

Schematic

schematics

PinMap

Mini Scales Unit SDA SCL VCC GND
Core(Basic) G21 G22 5V GND
STM32 PA1 PA7
SK6812 IN
BUTTON BUTTON

Module Size

module size

Protocol

detail

Examples

Arduino

UIFlow

UIFlow1.0 UIFlow1.0 Blockly mini_scales Instructions for use
UIFlow1.0 Blockly mini_scales Instructions for use
How to use Blockly mini_scales on the UIFlow 1.0 graphical programming platform and related API instructions
UIFlow2.0 UIFlow2.0 Unit miniscale Docs
UIFlow2.0 Unit miniscale Docs
How to use Unit miniscale and related API instructions in the UIFlow2.0

Video

  • Unit-MiniScales Functional demonstration and introduction

FAQ

Question: The difference between U177 MiniScales,U108 UNIT Scales, U030 UNIT WEIGHT and K121 Scales Kit?

Product Communication Protocol Chip Range
Scales Unit(U108) I2C STM32+HX711 0-20KG
Scales Kit(K121) I2C HX711 0-200KG
WEIGHT Unit(U030) I2C HX711 Depends on the strain gauge and control chip
MiniScales Unit(U177) I2C OR UART STM32+HX711 0-5KG
