Unit Step16

SKU:U198

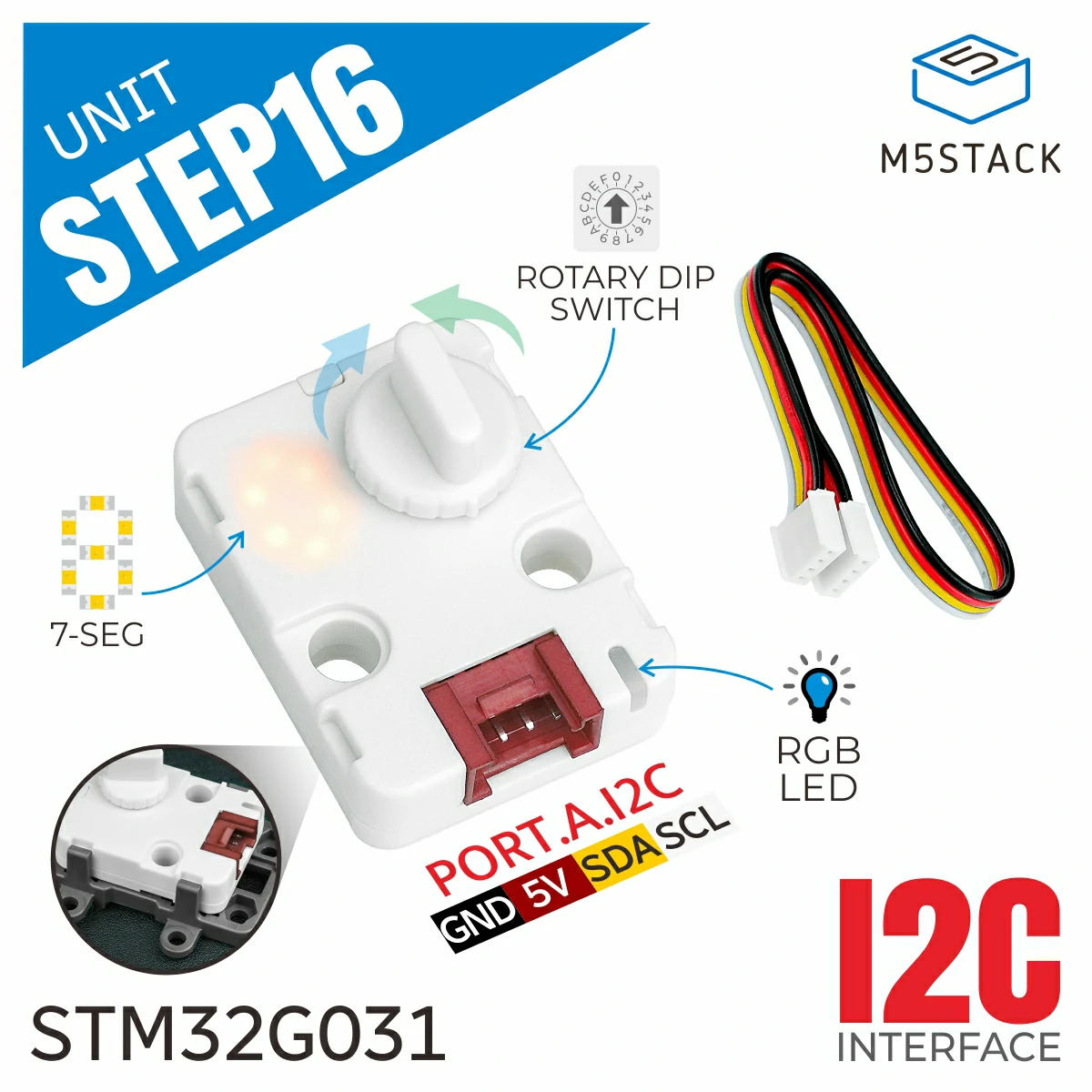

Description

Unit Step16 is a 16-position rotary encoder control unit based on an STM32G031G8U6 microcontroller. It collects the BCD value of the rotary encoder in real time and visualizes the 0–F hexadecimal value via the on-board 7-segment display.

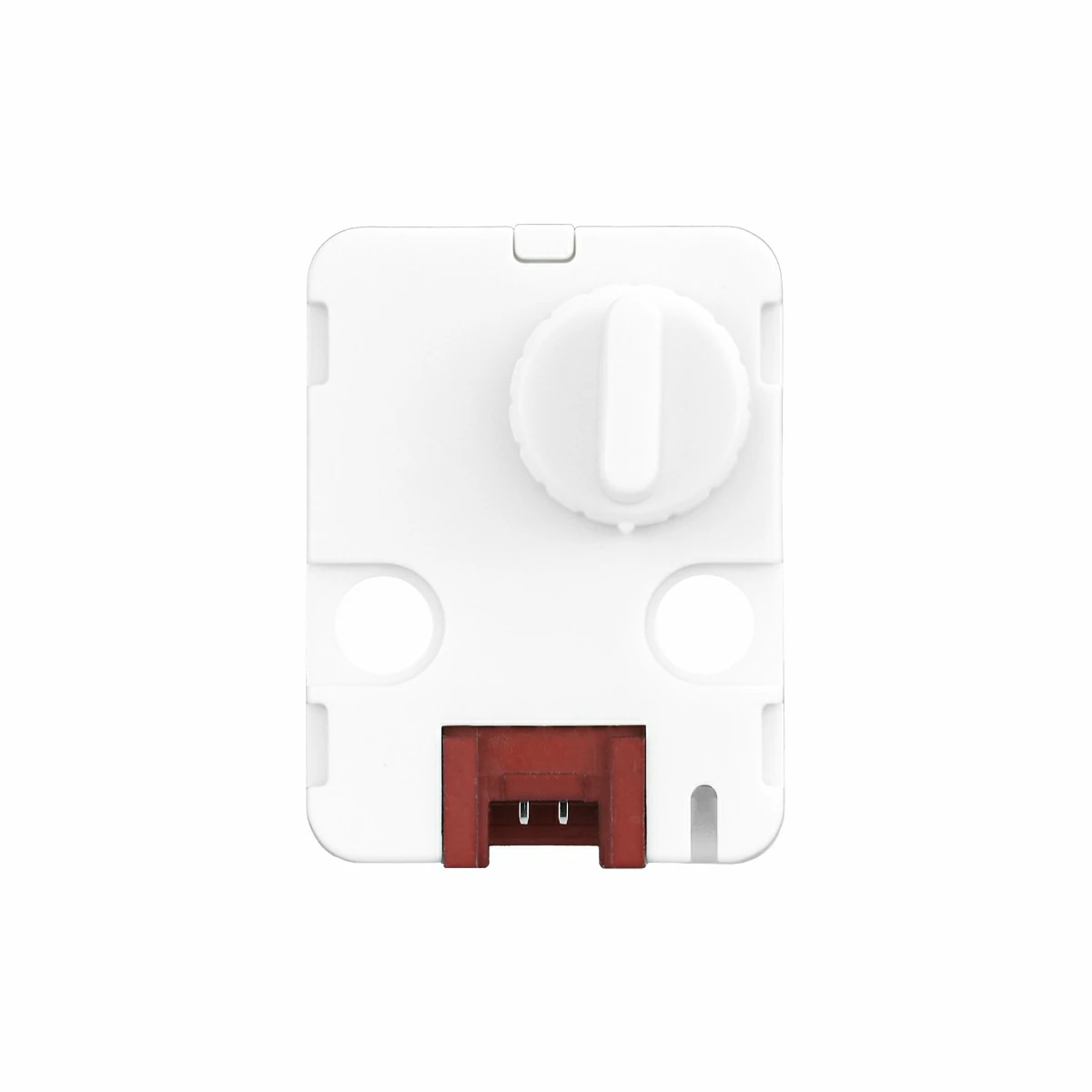

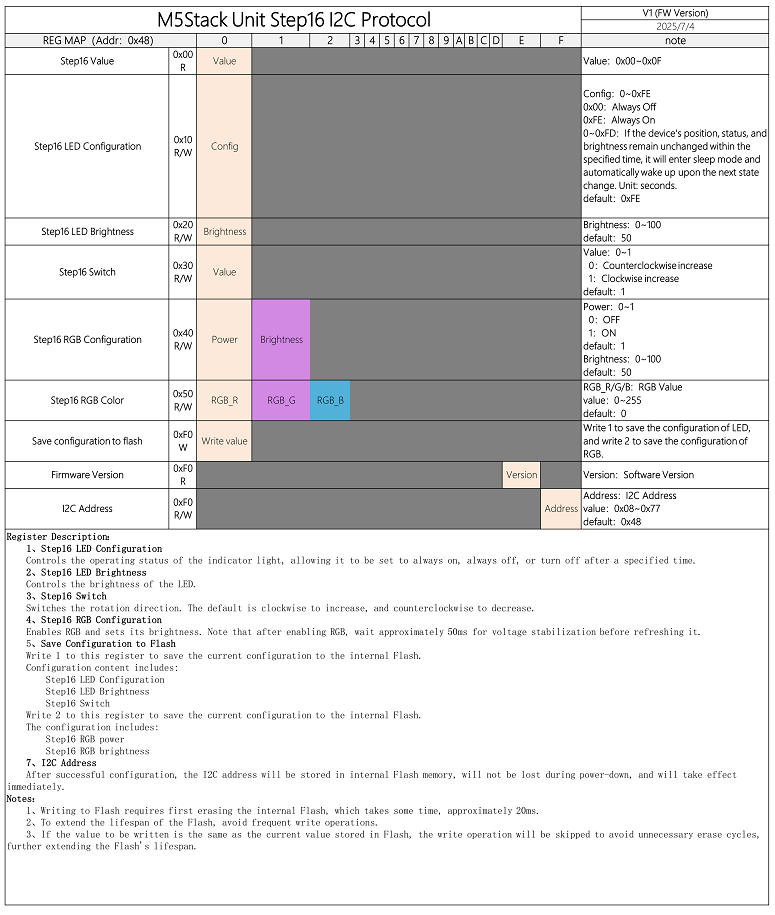

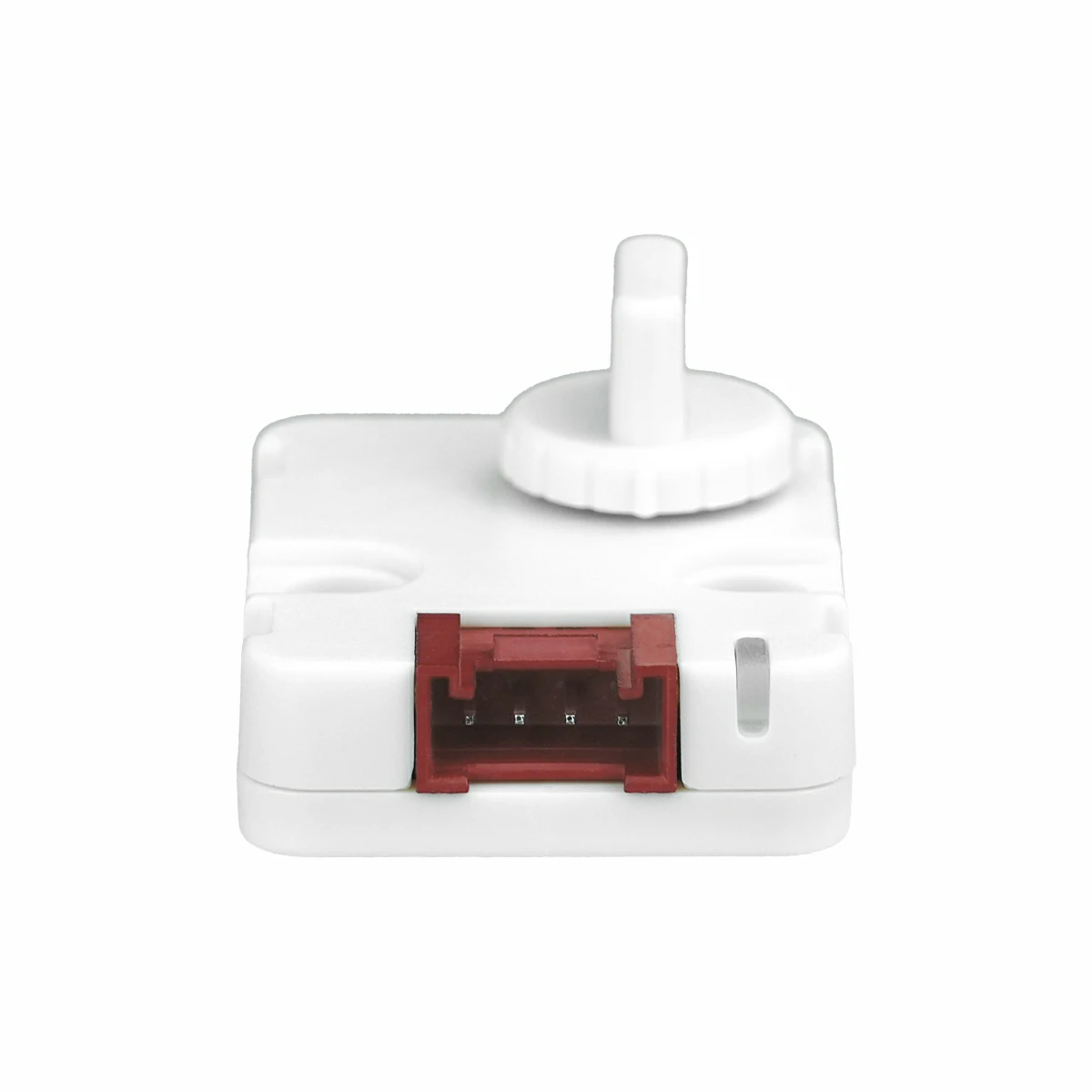

The device communicates over I2C and allows you to configure the rotation increment direction, display operating mode, RGB LED color, and I2C address, enabling multiple encoder units to be used on the same bus.
With its concise and efficient design, Unit Step16 provides reliable physical interaction and instant visual feedback, making it ideal for smart interactive devices (e.g. smart-home control panels), control interfaces (e.g. volume knobs, RGB lighting control, motor speed regulation), and STEAM education hardware prototyping and teaching.

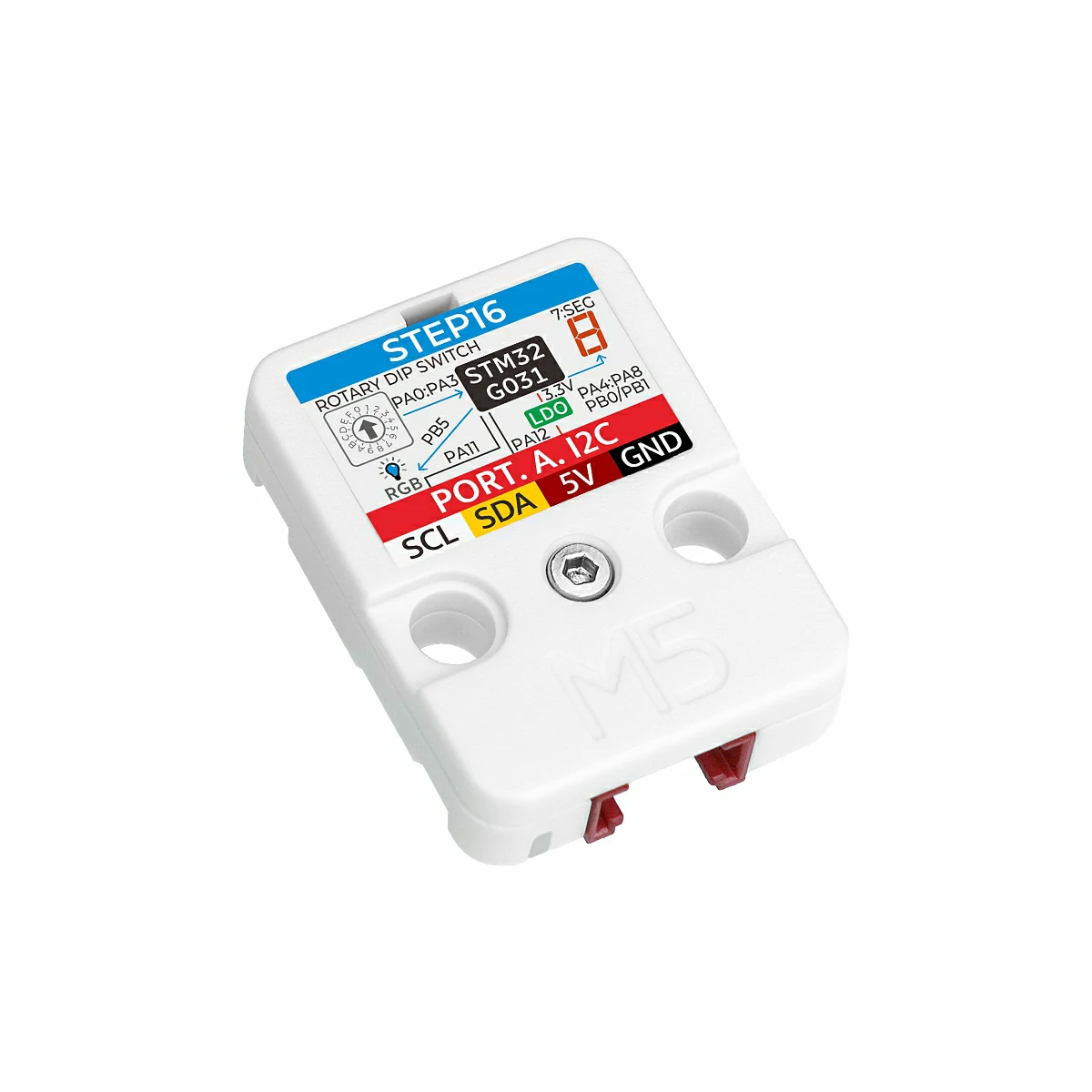

Features

16-position BCD rotary encoder
Integrated 7-segment display for code visualization
Adjustable display brightness and operating mode
Clockwise / counter-clockwise direction setting
Configurable RGB LED color / brightness
I2C communication with configurable address
Development Platform
- UiFlow1
- UiFlow2
- Arduino IDE

Includes

1 x Unit Step16
1 x HY2.0-4P Grove Cable (20cm)

Applications

Smart interactive devices (e.g. smart-home control panels)
Device control interfaces (e.g. volume adjustment, RGB LED lighting control, motor speed regulation)
STEAM education

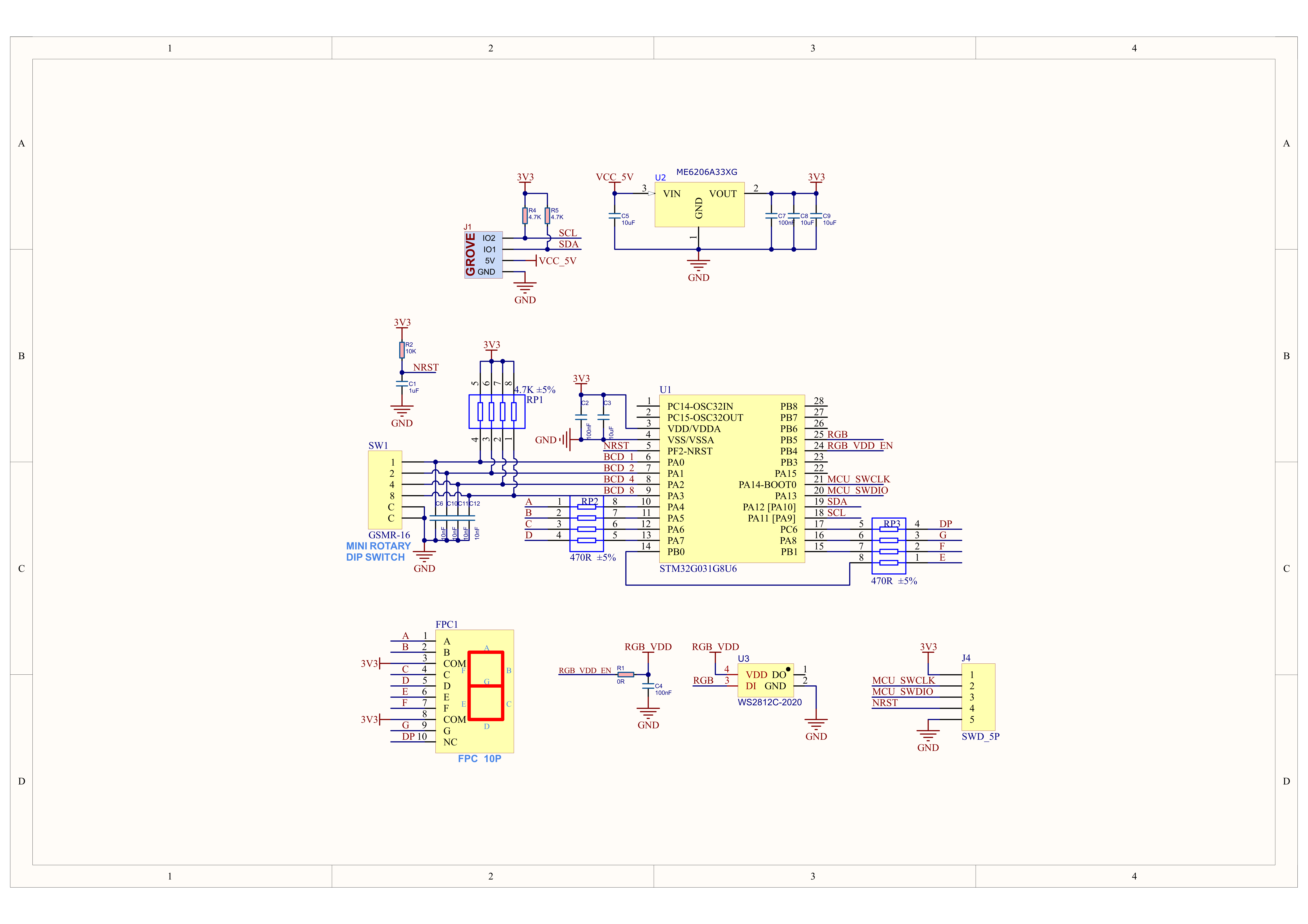

Specifications

Specification	Parameter
MCU	STM32G031G8U6, 32-bit ARM Cortex-M0+, 64 MHz
Step Encoder	16 positions, 8421 BCD code
Encoder Display	7-segment LED
Programmable RGB LED	1 x WS2812
Encoder Update Cycle	100 ms
Communication Interface	I2C @0x48, Address Range: 0x08 ~ 0x77, non-volatile after power-down
Standby Power	DC 5V@5.85 mA
Operating Power	Display LED 60%: DC 5V@14.76 mA Display LED 100%: DC 5V@24.13 mA RGB LED 100%: DC 5V@18.9 mA Display LED / RGB full on: DC 5V@29.91 mA
Product Size	32.0 x 24.0 x 16.9mm
Product Weight	5.5 g
Package Size	138.0 x 93.0 x 13.0mm
Gross Weight	10.9 g
